Does anyone have a wiring diagram for the rear tail lights

I swapped my cap from my previous 16, which was professionally wired, to my new truck. My cap only has a positive an a negative, so that should be all I need. I have done a ton of searching, but I can't find anything on the 3rd gen, and from what I see on the wiring, it is different than the 2nd gen.

Any help appreciated!



@mesojdm



Assuming you did the removal on the 16', where did you unplug the wires from? Nothing has changed in the 17's so put it right back where it was. I am not sure if they tapped off tail lights, trailer harness, or 3rd brake. That will give us a better idea of the correct wire colors you are looking for.



I did not remove the wiring from the tail light portion of the other truck. I just bought a new matching waterproof connector.

Definitely my fault for not peeking where it was tapped on the truck before trading. It was definitely tapped into the drivers side tail light and not the trailer wiring harness

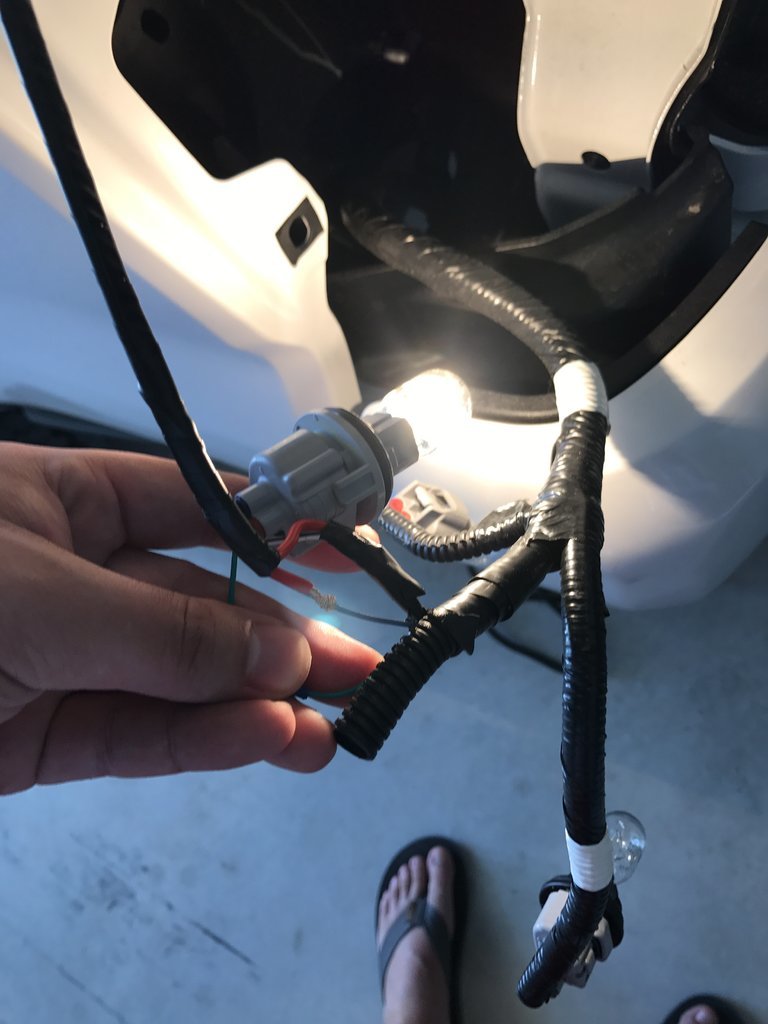

Pop a tail light out. You will be dealing with the Middle connector of the tail light.(triangle in shape)
Peel back the black loom to expose the wires.

Tap the wires accordingly:
Negative from cap light ---->goes to White/black stripe
Positive from cap light---->goes to blue



Here



Thanks! I'll report back once I'm done



May want to pop the plastic latch over and put a bit of dielectric/ silicone grease (metal contact portions) in there if you're near coastal areas or in mud and water often. I've seen exposed taps like that corrode joints at the point of entry into the jacketing.



It's actually not my picture. It was the PO's when he took off the shell I bought. However, mine does look similar since we used taps. I was going to redo it with a pigtail and a male/female quick disconnect.



Hey I guessed right. After 20+ pairs of lights I better know



Impromptu golf club.
Blue for positive and white with black stripe for negative.

@mesojdm i should've just PMd you in the first place but hopefully this thread will help future persons digging like I was.

Thanks for everyone's help!

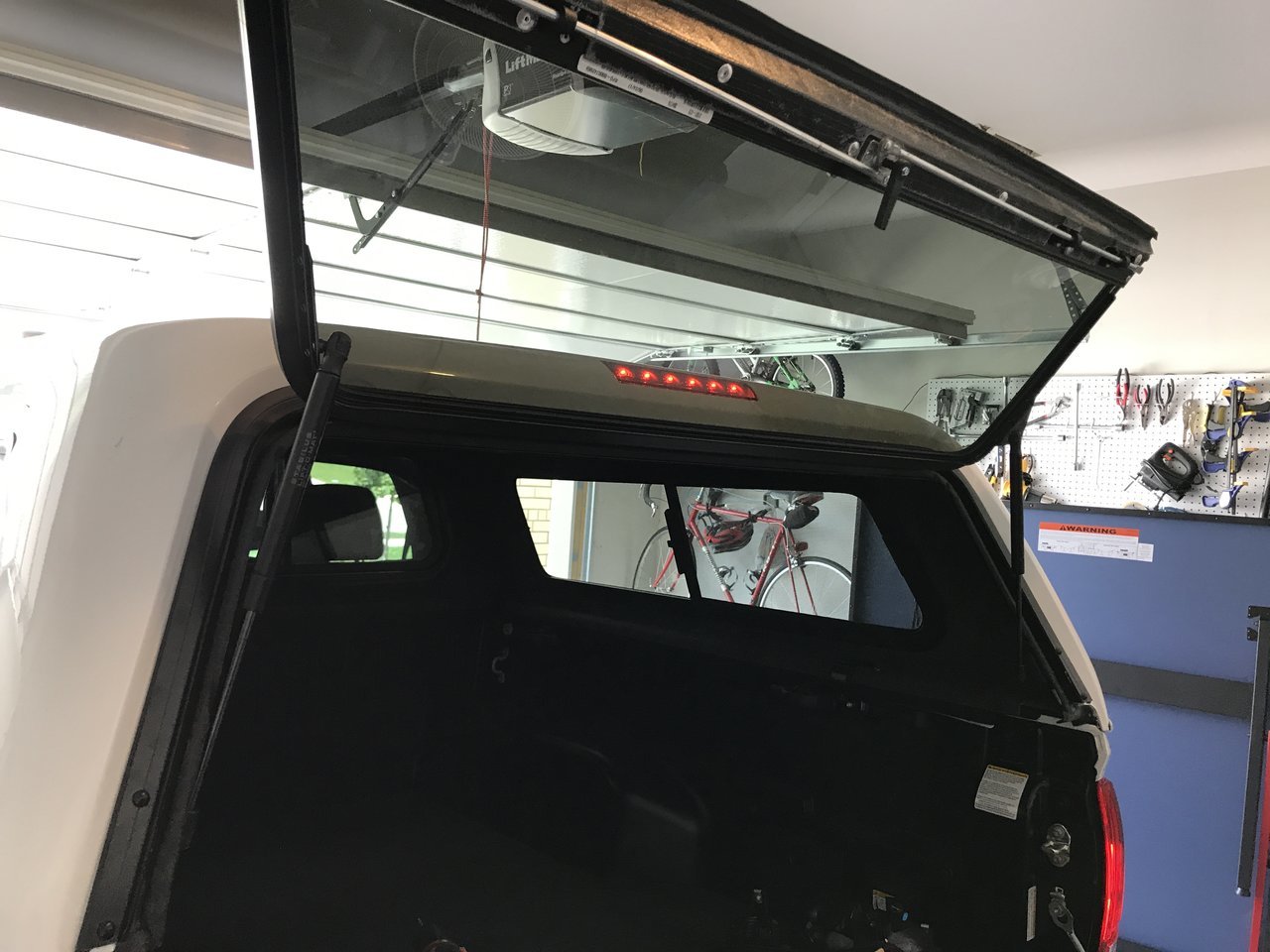

I soldered it afterwards just FYI

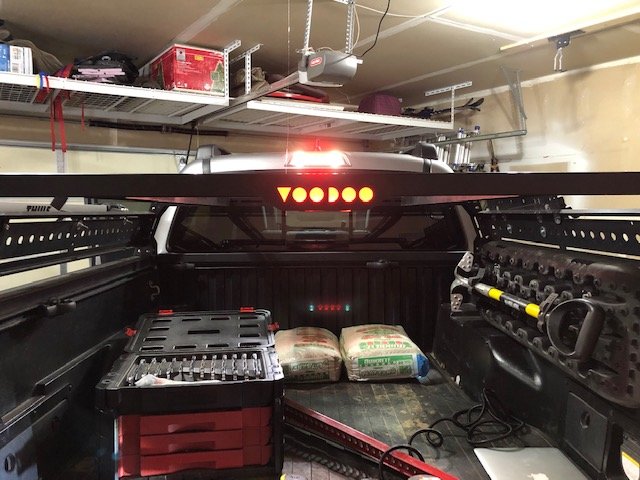

Thank you to MesoJDM for his knowledge and to the OP for starting this thread. Wired up a third brake light for my KBVooDoo rack. When the RTT is up there it covers up the third brake light, now I just feel so much safer on the road with this light



Haha yes! This helped me quickly find the right wires to tap into! Thank you all who contributed to this thread! I appreciate all the knowledge! Got the rear light working instantly on the Alucab canopy.



Same, helped me wire up the GFC brake light



Has anyone built/bought a harness adapter instead of tapping into factory wires?



You can buy @mesojdm total tail and tap into that instead… that’s my plan at least



I'm just looking for the wire harness. If I could find the OEM connectors online, I will just build my own harness.



Another thanks to @MESO. Got the third brake light wired up on my Alu-Cab.



I've purchased this .. and I have a 2nd gen 2015 so is the wiring the same as 3rd gens? I have three wires on this .. so do I tap into all three wires that attach to the bulb?



Is it better to tap into trailer wires? Vs tail light?
