DomeRock Module for Courtesy Rock Lights V4 by DSIM Solutions

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by DSIM, Apr 24, 2018.

  1. Apr 24, 2018 at 12:33 PM
    #1
    DSIM

    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    812
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    DSIMs DomeRock Module for Courtesy Rock Lights

    How To Order
    All orders are placed via my website, and this link will bring you right to the bundles: https://dsimsolutions.com/pages/domerock-v4-bundles.

    All proceeds go directly into my rig and subsequent posts here on TacomaWorld. Thanks for looking!



    Product Description

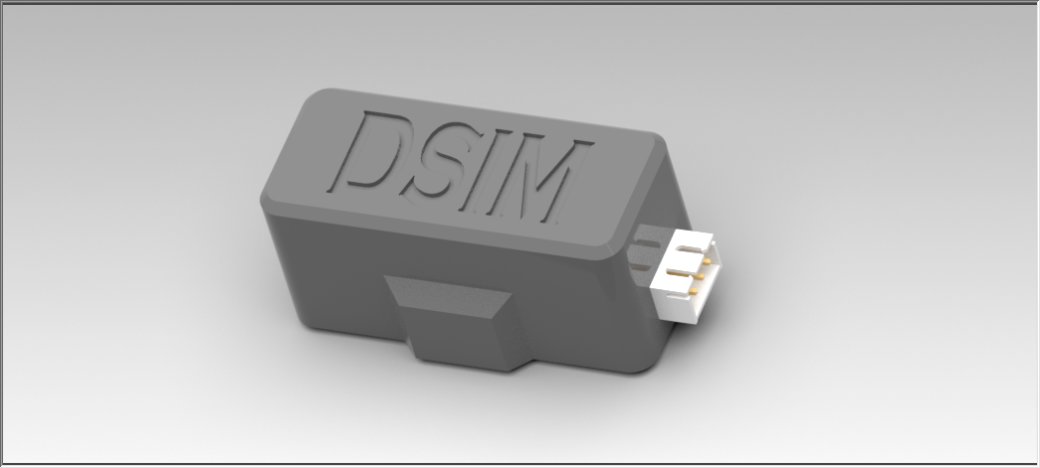

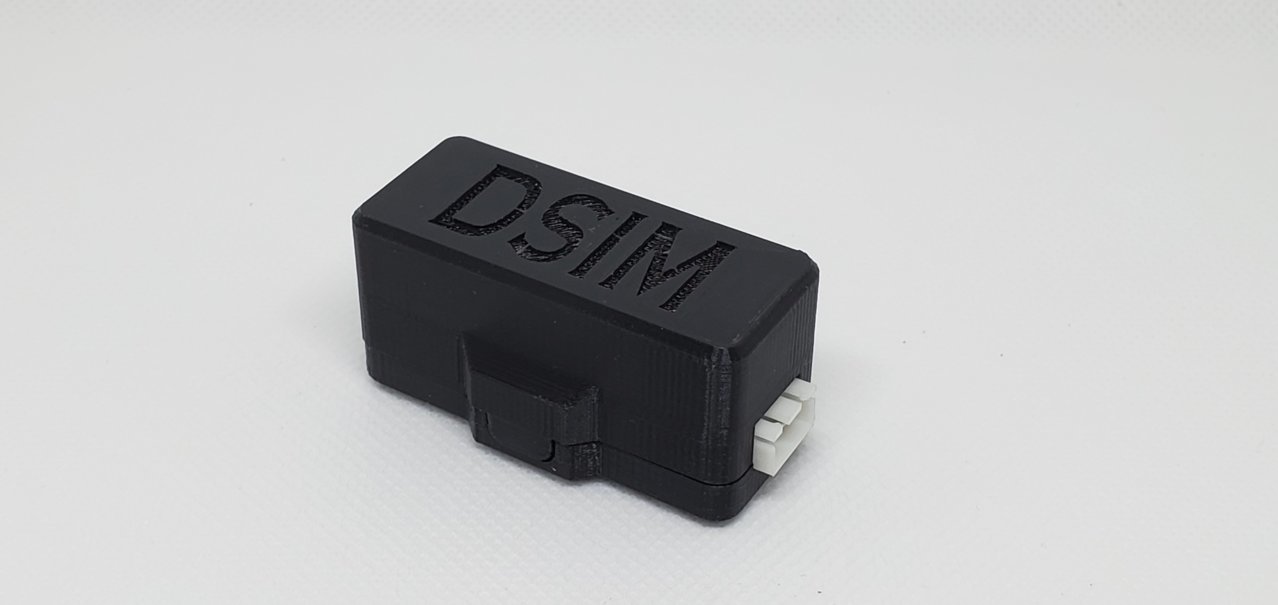

    Add on module to automatically turn on your rock lights in sync with the dome lights on your rig. Upgrade your existing rock lights to be able use your existing switch for anytime activation (great for night trail riding!) as well as activation from the dome lights. With this add-on the rock-lights will illuminate as triggered by the dome light. Unlocking the vehicle, approaching the vehicle (with key-less entry), opening the doors, will all trigger the lights on. Locking the doors, leaving the vehicle for a period of time, etc will turn them off.

    Your dome lights are on a negatively switched circuit. Meaning it is not so simple to wire up in order to utilize both your switch (for anytime activation) AND turn on/off with the dome light. Utilizing a relay in the correct configuration and a few other electrical components allows this module to function properly. If you currently have a rock lights setup with a typical CH4x4 switch or SwitchPro setup this is all you need to be able to add the ability to trigger off of the dome light.

    In V4 there are options for full plug n play harnesses that includes a T-Harness that connects into OEM wiring located in the A-Pillar. The only splice required is into the existing Rock Light Setup!

    V4 will be a-la-carte moving forward. With kits identified. Here is what will be on the menu upon release.

    A-la-Carte
    1) DomeRock V4 Module

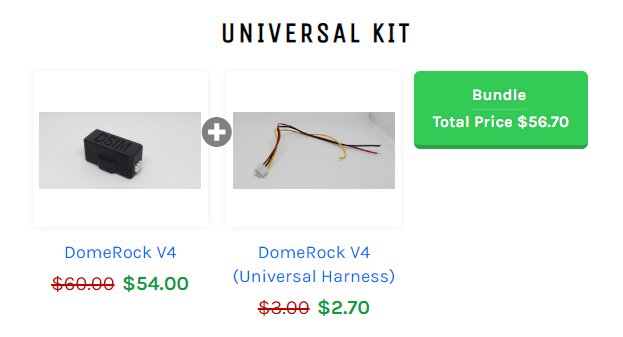

    2) Universal Harness (For non 3rd Gen Tacoma applications)

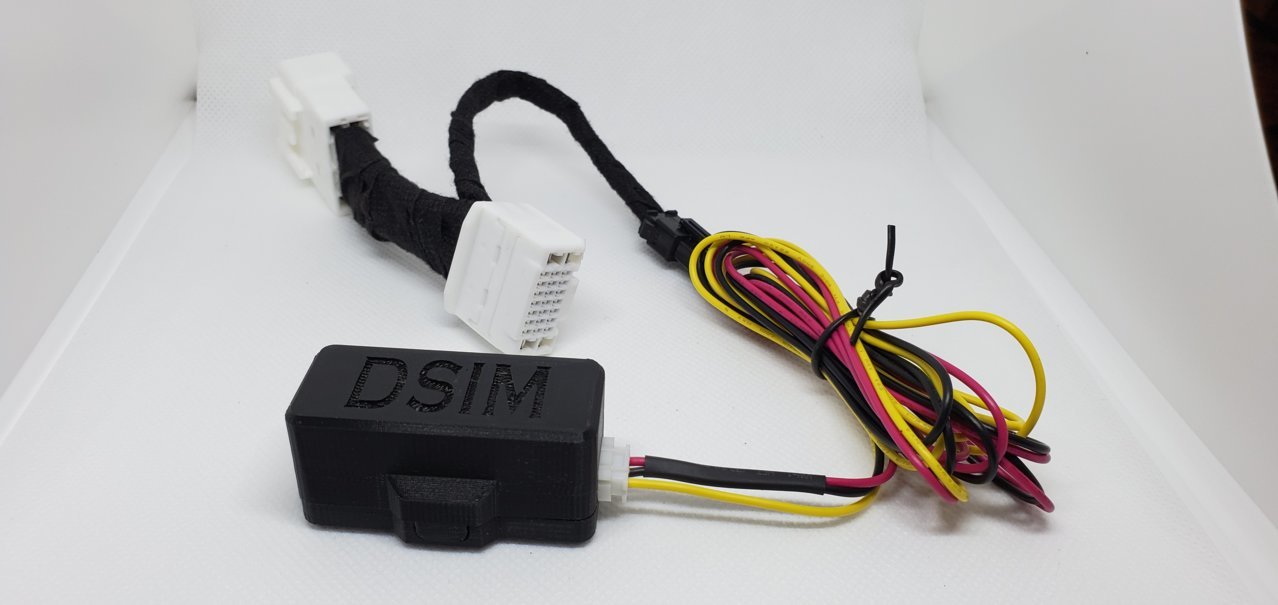

    3) 3rd Gen Tacoma Dome Rock V4 Main Harness

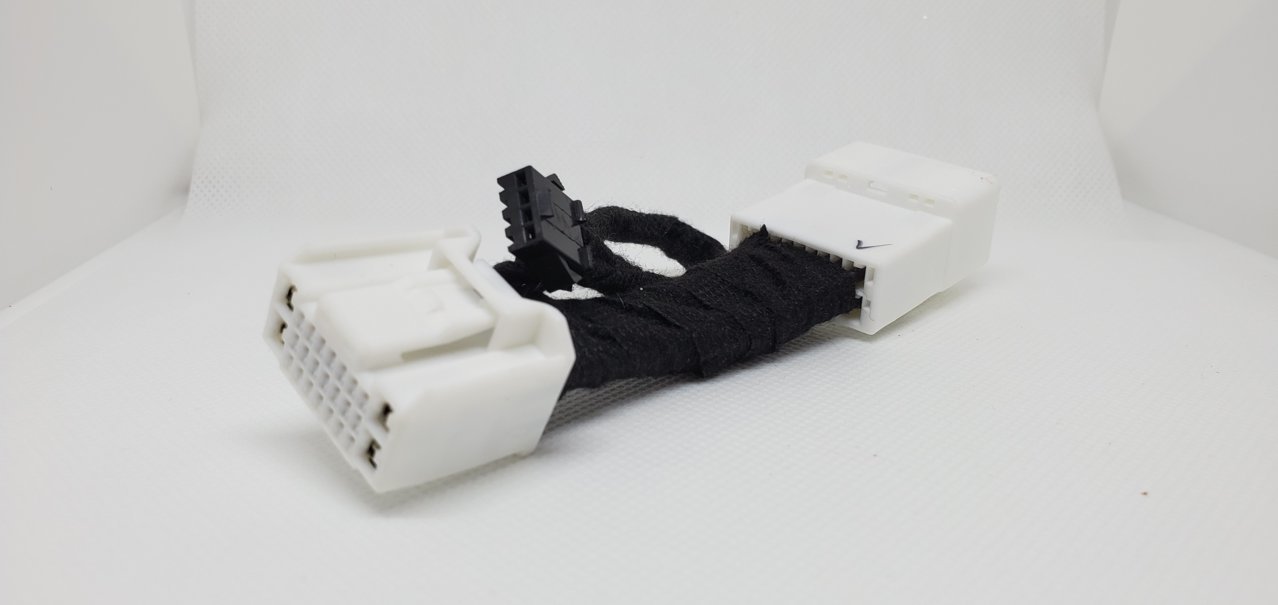

    4) 3rd Gen Tacoma OEM T-Harness

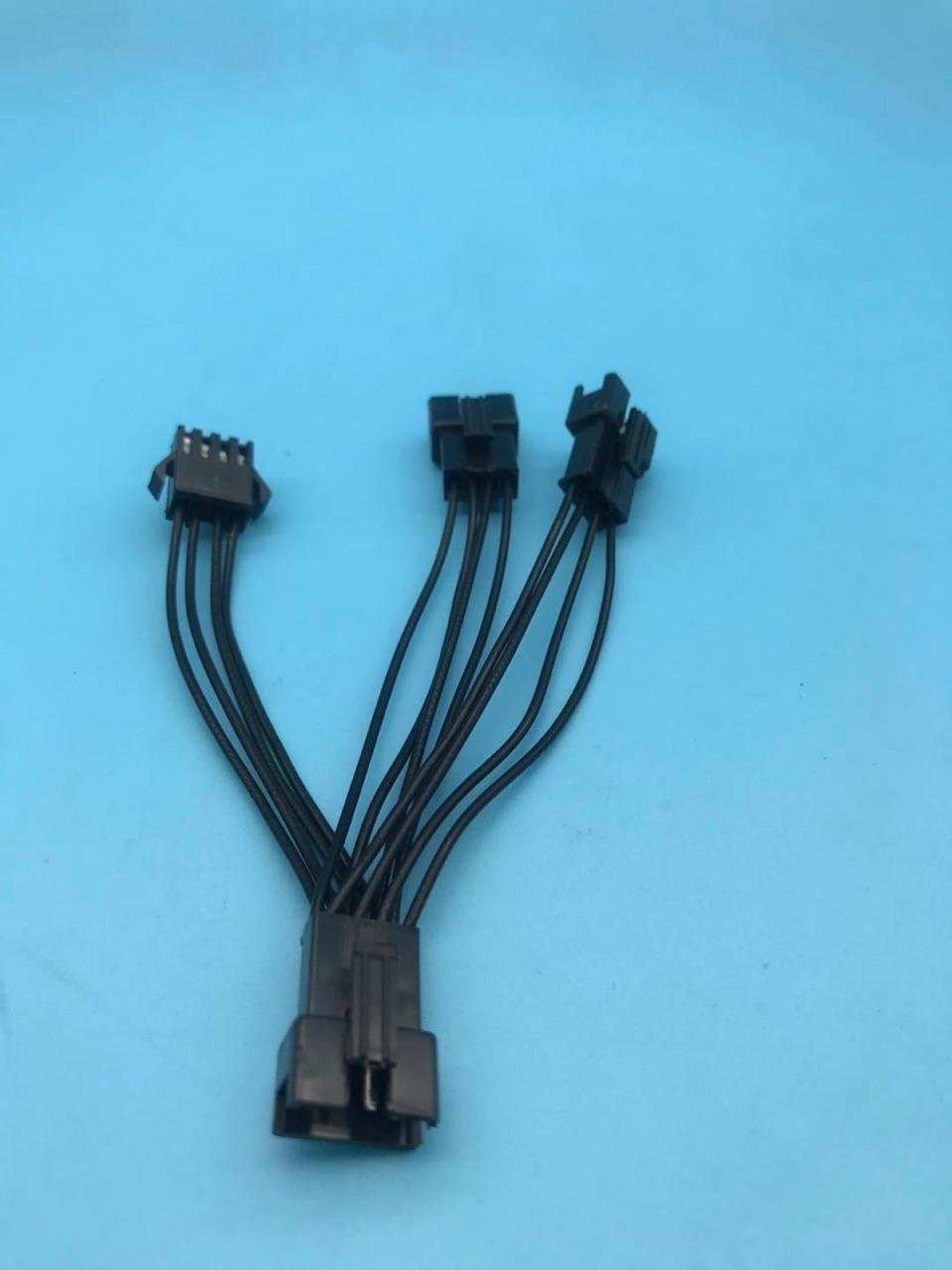

    5) MESO Puddles Adapter. (3 Way Splitter)



    Bundles/Kits
    There will pretty much be 3 scenarios for consumers.

    A) I’ve got something other than a 3rd gen Taco or I feel comfortable splicing my OEM wiring, and want to save a few bucks. You would need 1 & 2 above.

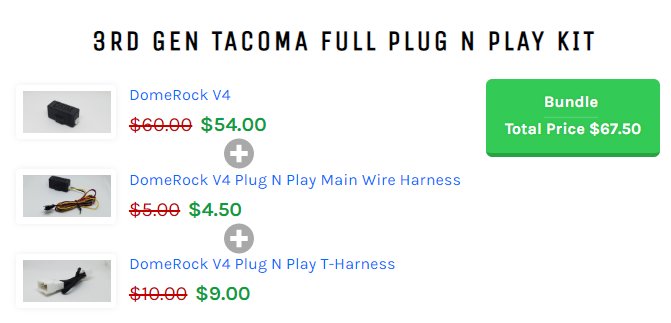

    B) I don’t have MESO’s puddles and want full PNP. You would need 1, 3, & 4 above.

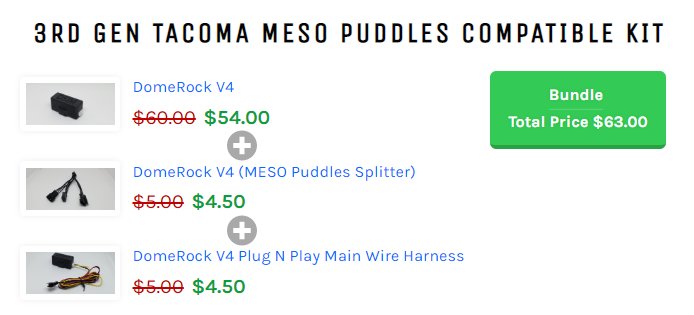

    C) I already have @MESO s puddles that came with the T-Harness (don’t need another one). You would get need 1, 3, & 5 above.


    <Picture to be added here>

    (Don’t have the splitter modeled yet but you guys get the idea.) No T-Harness because you have it already and the splitter added.


    Demonstration Videos




    My Setup
    Link to Rock Lights I run (I run 8 of them, 2 sets)
    [​IMG]$27 Amak 4pcs LED Rock Light JEEP ATV SUV Offroad Truck Boat Underbody Glow Trail Rig Lamp Waterproof - Whitehttps://www.amazon.com/gp/product/B01ABPGAUC/ref=oh_aui_search_detailpage?ie=UTF8&psc=1

    Link to switch I used to run before I upgraded to switchpro 9100 (CH4x4 Toyota Push Button Series with Tacoma Rock Lights Logo)
    http://www.ch4x4.com/product-category/push-series/

    Disclaimer: We are not responsible any damages due to improperly installed equipment. We are here to help with issues, but please follow instructions and ask if something does not make sense before installing.

    Last edited: Dec 5, 2019
  2. Apr 24, 2018 at 12:33 PM
    #2
    DSIM

    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    812
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Installation Information

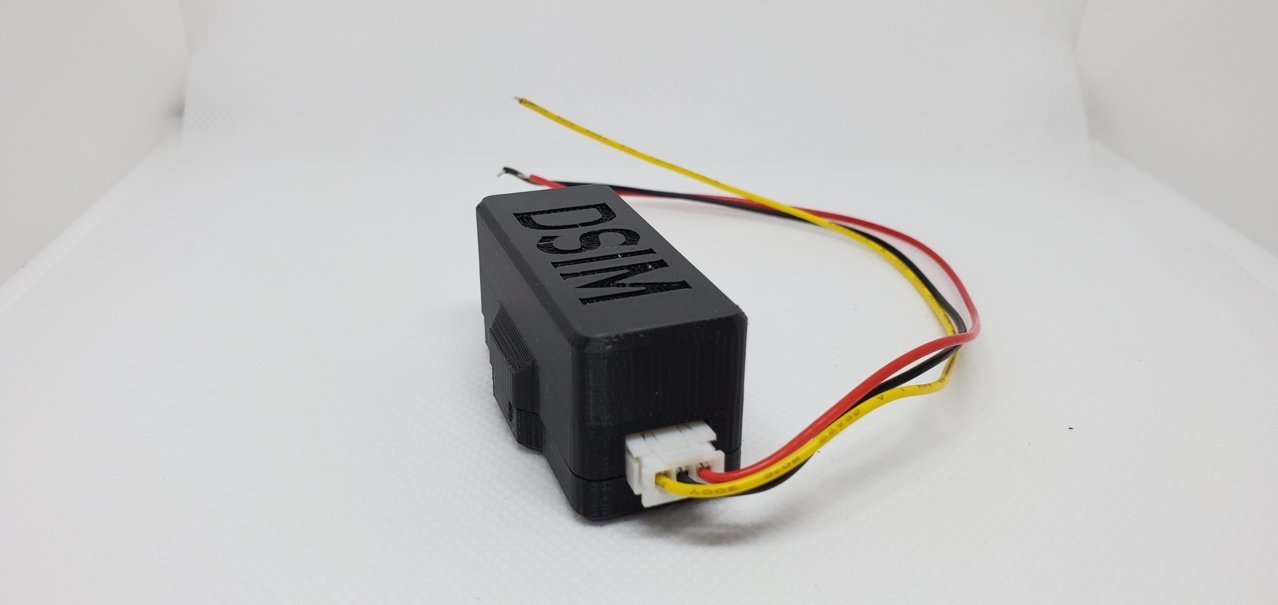

    Harness wires

    Yellow Wire - Output to Rock Lights
    Black Wire - Dome Light Ground Trigger (PWM)
    Red Wire - Fused Battery Connection

    Description
    T-Harness added for Plug N Play Installation. The only wire you will have to tap is your Rock Lights relay activation wire (86).

    Warning
    For both SwitchPros and CH4x4 setups it is strongly recommended that you run an external relay. Depending on the current draw of your rock lights if you hook DomeRock V4 output directly to rock lights without a relay it is possible that the DomeRock V4 module will become very hot when lights are on for extended periods of time. Please follow the diagrams below to avoid any issues.

    Install Video - Hooking up DomeRock V4


    DomeRock V4 Inputs/Outputs

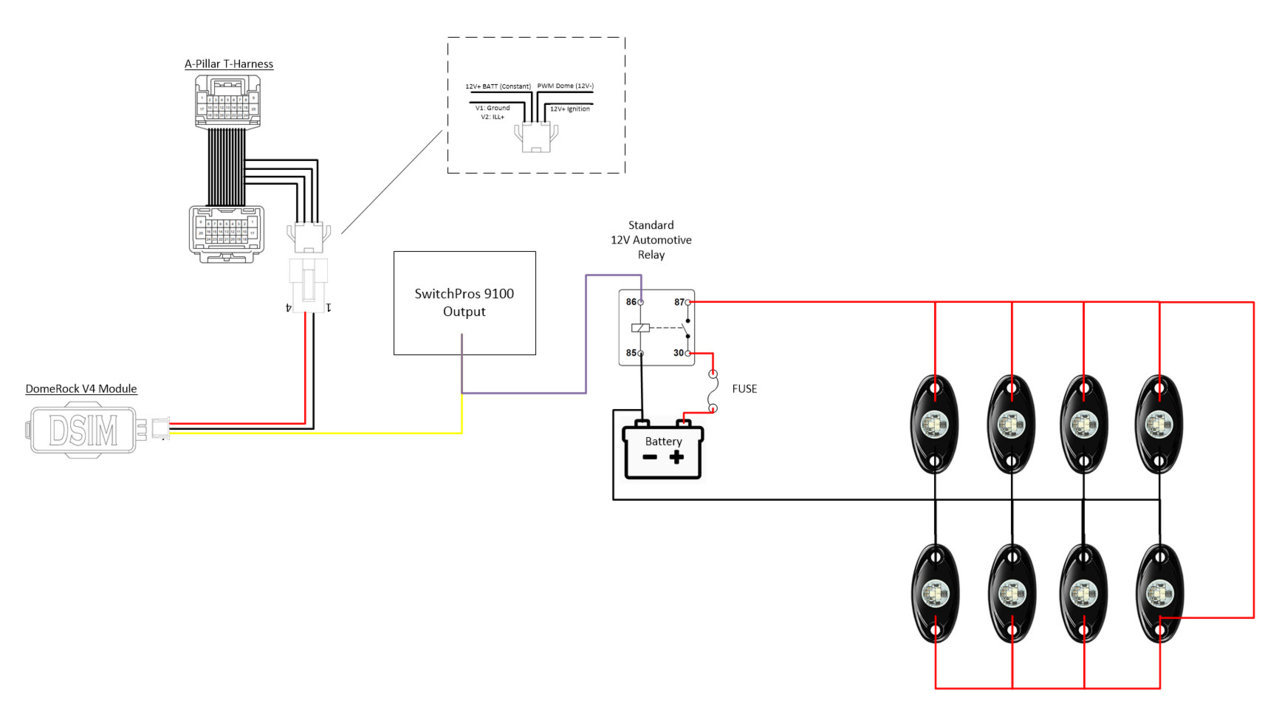

    Wiring Diagrams (Connection to Rock Lights)
