DomeRock Module for Courtesy Rock Lights V4 by DSIM Solutions

Both added to the list in first post.

One more left



Ty



Cranking some of these enclosures out tonight.



Also Updated Second Post w. V2 Diagrams.

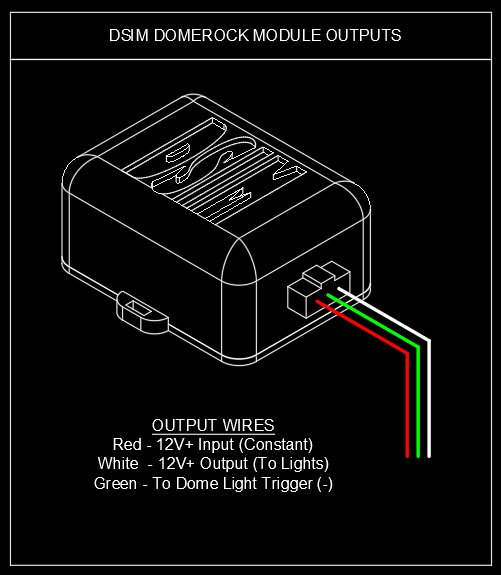

Outputs

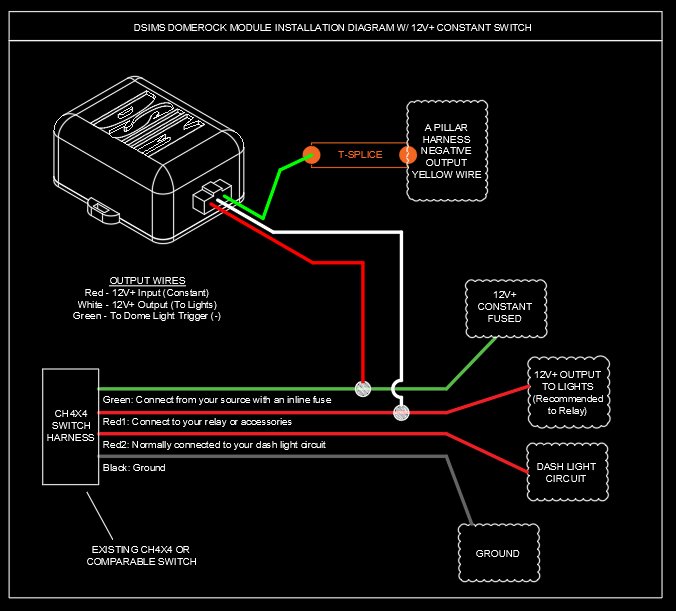

Installation Diagram

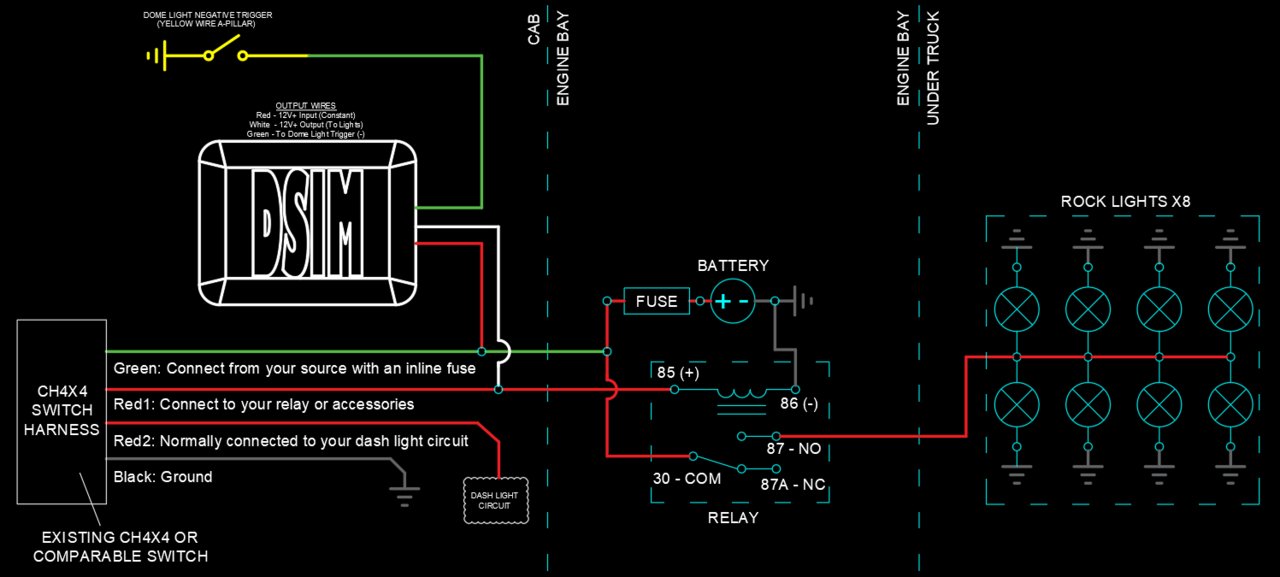

Wiring Diagram



Ill take the sixth spot if it’s still open



Yup. Ill add you to the list.

Heads up guys. I didn't get any damage at all from the hurricane but other parts of NC got hit HARD. Amazon shipment of the fuses I need wont be in till monday this week. Which is a shame considering I put in the order on Saturday.... So much for 2 day shipping but I am assuming the storm has something to do with it. I am assuming ill be able to ship Tuesday next week. Sorry for the delay gents.

Will keep you guys posted... I have them all built and tested with a larger fuse. Soon as these fuses get in Ill be able to pop em in, test again, package, and ship. I will be reaching out to everyone on the list for payment later on today to get that squared away.



I’ll take a spot @DSIM I guess 7th unless someone drops out.
Thanks

Edit: I have a switch pro 9100 will it be wired the same?



Will keep you on deck if someone drops. Will do another drop probably next week as well.

Switch pro wired pretty much the same.
1- Fused 12V+ Constant. (Can be independent of your switch pro)
1- Domelight ground trigger
1- Spliced into the output to your lights

I would recommend putting a diode in line to prevent backflow to the switchpro. I still have not had someone tell me if its required or not but better safe than sorry I guess. Been a topic on this thread awhile and still dont have a clear answer.


Anyways, I am going to send paypal info to everyone on the list here shortly so keep an eye out.



Paid.

What diode and where/how does it get wired inline?



Paid



See Page 6 Post #115 for diagram and general chatter on that topic.

Only difference is the wire colors. Diode goes on the output wire (V1 - Yellow Wire / V2 - White Wire) only allowing current out of the switchpro (not back into it).



Current Status

1) @Hstone556 (PAID)
2) @NateWest (PAID)
3) @lowtaco (PAID)
4) @TRDPROHI (PAID)
5) @Riotfunk (PAID)
6) @Shoxg (PAID)



What’s a fair amount of wait time before I get to move up the list Kidding I can wait till next week
I s

Cool thanks



Payments received for all. Will ship early next week.

Gonna start another list for V2 Batch 2. Thinking ill have enough for 10 this time. Should be able to get more material and build them mid week.

@YachterSteve Gotcha top of the list!



Cool Thanks



Hey Daniel...came upon your post after putting in my rock lights and it really made since to be able to have the lights come on by my remote key. Will this unit work for my 2006 GMC Pickup? Any idea of where dome light wire is around steering wheel where I have my wire harness on/off switch at? I think I would like one of these...Thanks



If your dome light is negatively switched then yeah it will work.

Sounds like a good time to trade that bad boy in and get you a TACO.



Any of you guys use my harness with remote/Bluetooth enabled lights? Ones that have a control box?

@elizer91 sent me a pm asking about compatibility with opt 7 rock lights and im not sure the answer.

If you have these connected turned ON. Then disconnect positive. Re-connect. Do the lights come on?

Also vice versa connected turned OFF. Disconnect. Reconnect. Do the lights stay off?

Wish I had a set to test.



Got some material coming in today. Hopefully building a couple beginning of next week.

Still plenty of slots on the list. Who's interested?

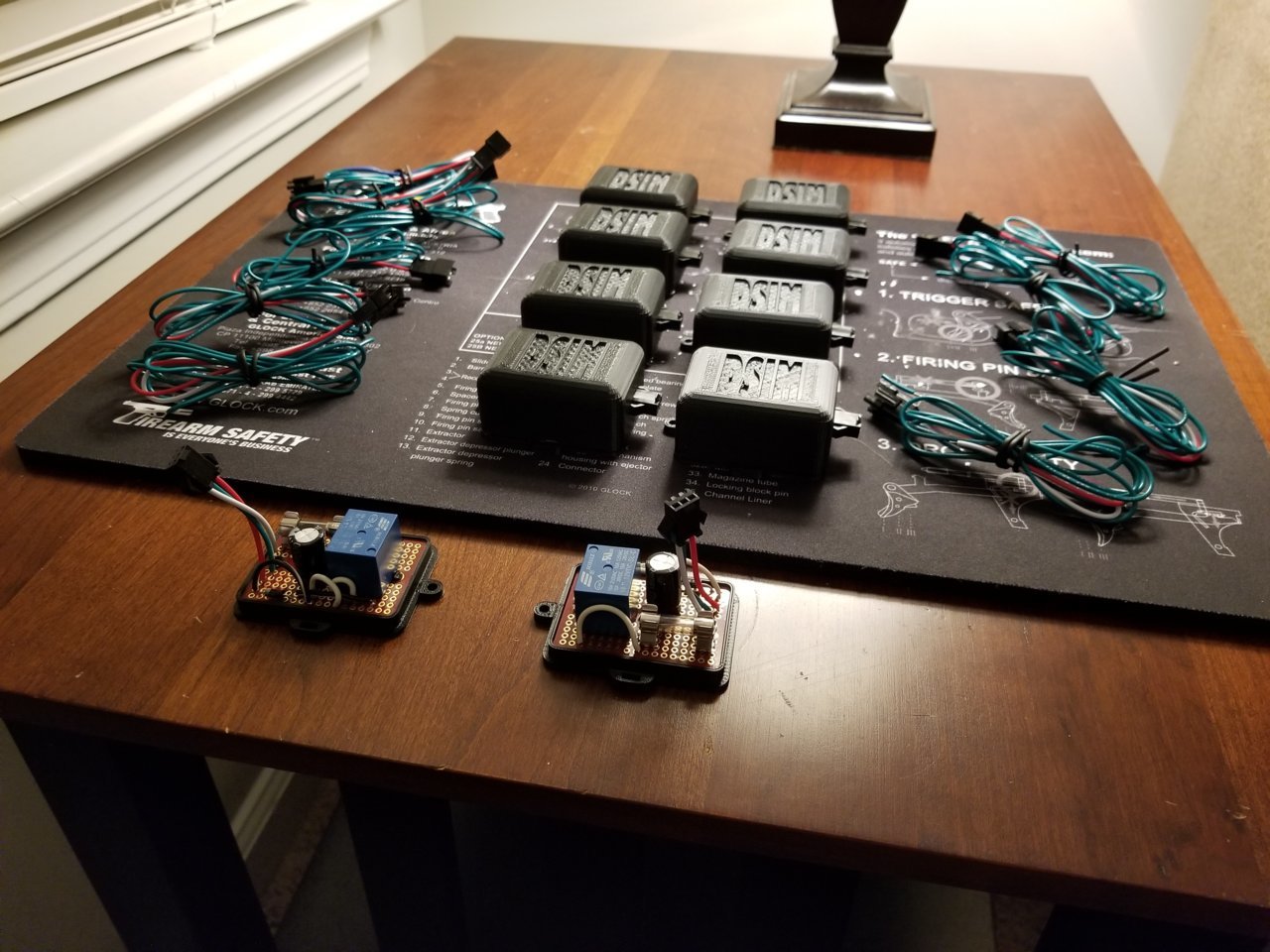

Better Late than never. I have got 8 tested and ready to go. The other two I am printing the tops for now but they have been tested. So 10 in total this batch.

As Always first come first serve by PM.
