DomeRock Module for Courtesy Rock Lights V4 by DSIM Solutions

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by DSIM, Apr 24, 2018.

Page 42 of 57
  1. Sep 2, 2019 at 1:19 PM
    #821
    DSIM

    #821
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Update: All orders from the weekend are packaged and ready to ship except for the T4R harnesses that sold. I have not acknowledged those yet, need to depin and repin a few then they will ship. Planning on doing that tonight so I can ship altogether tomorrow.

    Last day of the Sale! Had a really good turnout this weekend. Gonna have to make some more soon at this rate.

    https://dsimsolutions.com/pages/domerock-v4-bundles

    DSIM, Sep 2, 2019
    #821
    CttAznRanger and BigGuy like this.
  2. Sep 2, 2019 at 6:14 PM
    #822
    DSIM

    #822
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Alright got all but one T4R order left that ill finish tomorrow PM. Depinning and repinning the tharnesses takes time for the Runners. The rest are packaged up for shipment tomorrow AM.

    Gonna let the discount run till tomorrow AM as well so LAST CALL! :)

    DSIM, Sep 2, 2019
    #822
    Charles135 and BigGuy like this.
  3. Sep 7, 2019 at 12:08 PM
    #823
    DSIM

    #823
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Update: The labor day sale wiped my inventory pretty low, built up some last night to replenish and try and stay ahead of the curve. Still a few lingering orders from last week that will go out on Monday!

    I've also decided to run at 10% off for a little while on the bundles. I can make these a lot easier now and want to share some of the cost/labor savings in an effort to sell more volume. Prices are adjusted on the site, when added to the cart as a bundle.

    https://dsimsolutions.com/pages/domerock-v4-bundles

    DSIM, Sep 7, 2019
    #823
    MESO and Maveric like this.
  4. Sep 8, 2019 at 8:36 PM
    #824
    get-er-dirty

    #824
    get-er-dirty Well-Known Member

    Joined:
    Feb 2, 2018
    Member:
    #243252
    Messages:
    55
    Gender:
    Male
    First Name:
    J
    Vehicle:
    Black 17 SR5

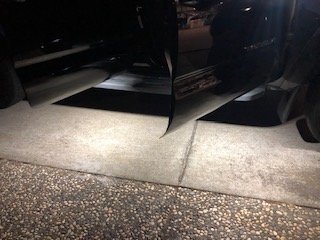

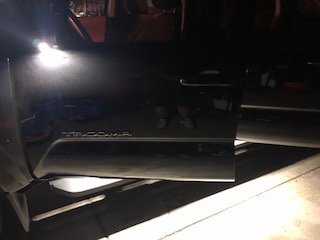

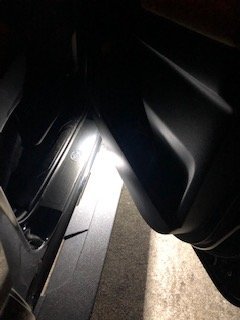

    I added puddles lights to the bottom of the doors using DSIM v4 rock lights. Turned out bright, works great with Meso puddle lights.




    get-er-dirty, Sep 8, 2019
    #824
    DiamondW, CttAznRanger and irayfz6 like this.
  5. Sep 9, 2019 at 4:24 AM
    #825
    TRSAndrew

    #825
    TRSAndrew Instagram: @apissues Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,348
    Gender:
    Male
    ATL
    Vehicle:
    ‘22 4Runner, ‘14 F150, and I’ve had 4 Tacomas (‘12, ‘15, ‘16, ‘18), 2 FJs
    What's the maximum load this module can handle? I'd imagine <5A @ 12VDC

    I imagine I'd need to use it as my relay trigger and not acting as the relay itself.

    TRSAndrew, Sep 9, 2019
    #825
  6. Sep 9, 2019 at 4:51 AM
    #826
    DSIM

    #826
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Correct.

    It won't blow at 5A but anything over 3A for extended periods of time the board will get warm. Should be used as a signal relay to trigger a power relay to match the diagrams in post #2. :fistbump:

    DSIM, Sep 9, 2019
    #826
  7. Sep 9, 2019 at 5:25 AM
    #827
    TRSAndrew

    #827
    TRSAndrew Instagram: @apissues Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,348
    Gender:
    Male
    ATL
    Vehicle:
    ‘22 4Runner, ‘14 F150, and I’ve had 4 Tacomas (‘12, ‘15, ‘16, ‘18), 2 FJs
    Fantastic. Thanks for confirming--will get one ordered up soon!

    TRSAndrew, Sep 9, 2019
    #827
    DSIM[QUOTED][OP] likes this.
  8. Sep 9, 2019 at 5:29 AM
    #828
    Tocamo

    #828
    Tocamo .

    Joined:
    Jan 16, 2018
    Member:
    #241451
    Messages:
    5,606
    Ottawa
    Vehicle:
    Bug-out vehicle
    You had me at "All proceeds go directly into my rig". :thumbsup:

    Tocamo, Sep 9, 2019
    #828
  9. Sep 9, 2019 at 9:15 AM
    #829
    DSIM

    #829
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road

    This whole business is just a loophole around my wife to be able to spend money on taco parts.

    [​IMG]

    Last edited: Sep 9, 2019
    DSIM, Sep 9, 2019
    #829
    BlueFourMike, DiamondW, Red18Taco707 and 3 others like this.
  10. Sep 13, 2019 at 6:02 PM
    #830
    DSIM

    #830
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Ttt!

    DSIM, Sep 13, 2019
    #830
  11. Sep 15, 2019 at 7:52 AM
    #831
    DSIM

    #831
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Major Update please read:

    To all those that purchased the MESO Splitters, I am sending an email out to my customer list.

    If you have the MESO Splitter DO NOT INSTALL IF YOU HAVE NOT INSTALLED YET.

    After some testing I found a few that were incorrectly wired from the factory and if installed could cause damage to the module.

    If you have not installed yet please contact me via PM or email @ dsim.solutions@gmail.com, I would like to do a recall of those so I can verify they are correct. I will happily pay your return shipping for the splitters.

    DSIM, Sep 15, 2019
    #831
  12. Sep 15, 2019 at 11:36 AM
    #832
    oostroma

    #832
    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,283
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    Can you post the error so we can check ourselves before returning the product?

    oostroma, Sep 15, 2019
    #832
  13. Sep 15, 2019 at 11:50 AM
    #833
    Ronzio

    #833
    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    2,719
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
    PM sent

    Ronzio, Sep 15, 2019
    #833
  14. Sep 15, 2019 at 12:04 PM
    #834
    fatboyfirebass

    #834
    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.

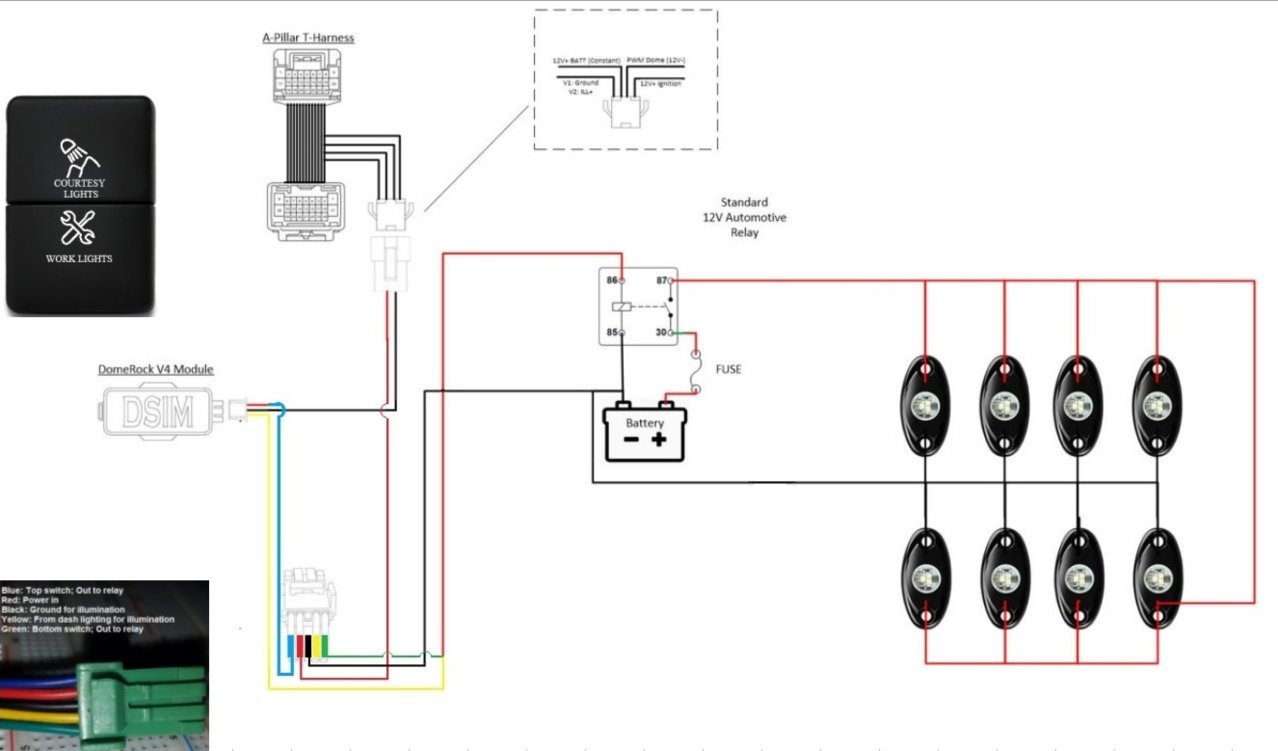

    @DSIM , I am pretty sure the wiring scheme I want to use will work, but I want to run it past you first.
    I am planning to use a double switch, which has a single input and then 2 outputs. I plan you use the bottom switch for the actual rock lights, which I am calling "Work Lights". The top switch would be to enable or disable the module, which I am referring to ac "Courtesy Lights". The names are just based on the graphics that were available and how I thought I would be using the system.
    I like high side switches as a general rule, so putting the enable/disable switch into the red wire rather than the yellow wire is the goal. But, since my switch only has one input, this means I would be using the red wire as the input for both uses. I have worked up a plan based on your schematic in post#2. This does mean that I can turn on the lights even with the truck turned off, which is good for working under there. Other than that, do you see any potential functional issues?
    Edit: I have left off the connection to the dash board lights but I will be tapping into one of the nearby switches for that. I also showed the ground going back to the battery, but it will actually just tap into the illumination ground of a nearby switch as well.

    fatboyfirebass, Sep 15, 2019
    #834
  15. Sep 15, 2019 at 12:53 PM
    #835
    DSIM

    #835
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    MESO Splitter RECALL

    If you purchased a MESO Splitter and have not installed yet please DO NOT INSTALL and contact me immediately via PM or @ dsim.solutions@gmail.com

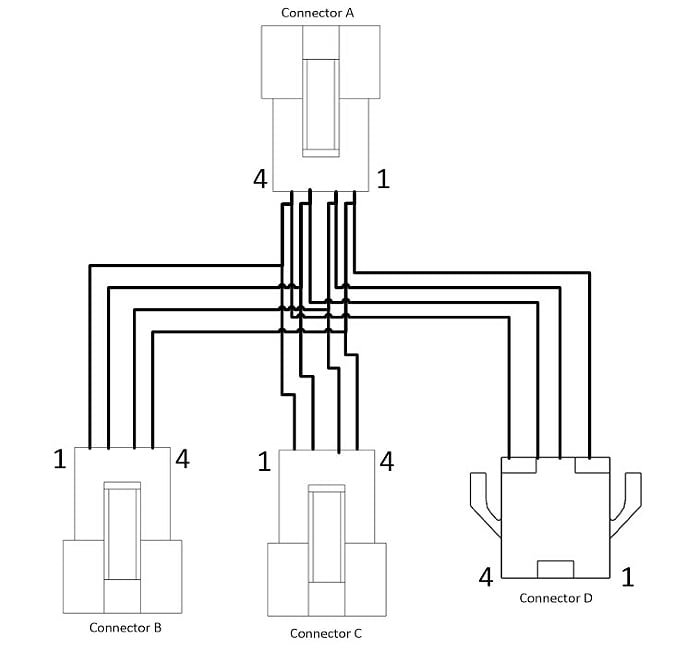

    The Correct Pinout
    Connectors A & D above are for the DomeRock Module
    Connector A Pin 1 to Connector D Pin 1
    Connector A Pin 2 to Connector D Pin 2
    Connector A Pin 3 to Connector D Pin 3
    Connector A Pin 4 to Connector D Pin 4

    The other two are for MESOs puddles
    Connector A Pin 1 to Connector B Pin 4
    Connector A Pin 2 to Connector B Pin 3
    Connector A Pin 3 to Connector B Pin 2
    Connector A Pin 4 to Connector B Pin 1

    Connector A Pin 1 to Connector C Pin 4
    Connector A Pin 2 to Connector C Pin 3
    Connector A Pin 3 to Connector C Pin 2
    Connector A Pin 4 to Connector C Pin 1

    The INCORRECT PINOUTS
    Connector A Pin 1 to Connector D Pin 4
    Connector A Pin 2 to Connector D Pin 3
    Connector A Pin 3 to Connector D Pin 2
    Connector A Pin 4 to Connector D Pin 1


    MESOs Y Splitter is mirrored from the original connection at the T-Harness. While my hookup stays the same as at the T-Harness. I think the factory got confused and they reversed the wires on some of my female connector wires so when you hook up, the 12V+ and GND are flipped (reverse polarity). Which is no-bueno for the onboard capacitor, reversing the polarity will blow the capacitor.


    I assumed that the wires were right from the factory. I am going through my entire inventory now to check every single splitter to confirm the pinouts. I would prefer everyone who purchased a MESO splitter to send in their harness so I can physically inspect it and send out a new one free of charge. It will cost me some shipping fees but its the safest best, I apologize for any inconvenience here folks.





    DSIM, Sep 15, 2019
    #835
  16. Sep 15, 2019 at 7:47 PM
    #836
    Mack411

    #836
    Mack411 Well-Known Member

    Joined:
    Jan 10, 2018
    Member:
    #240863
    Messages:
    850
    Gender:
    Male
    Vehicle:
    2017 Quicksand Tacoma Trd-OR
    I wonder if something like this would be good once I have all of my scene pods filled?I think this would be awesome to have but I definitely want the ability to control then on or off when needed.Is this a good idea and keep in mind I'm adding a switch pro or spod later too.... @Doozy4212 @upTOPoverland

    Mack411, Sep 15, 2019
    #836
  17. Sep 15, 2019 at 9:33 PM
    #837
    CttAznRanger

    #837
    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    4,748
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    This is exactly my plan. Meso is making switches to be able to control this.

    CttAznRanger, Sep 15, 2019
    #837
  18. Sep 16, 2019 at 6:24 AM
    #838
    DSIM

    #838
    DSIM [OP] Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    887
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road
    Okay after the scrambling yesterday I think I caught most of you before installation and we set up the return/exchange. Ill turn these around as quick as possible.

    However I still have 10 or so guys that did not respond to my email and didn't leave their TW usernames at checkout. So one more time,

    If you have a set of MESO Splitters please contact me via PM or email @ dsim.solutions@gmail.com

    DSIM, Sep 16, 2019
    #838
  19. Sep 16, 2019 at 6:33 AM
    #839
    CttAznRanger

    #839
    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    4,748
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    Just replied to email. Been busy. Also has a couple clarification questions in it.

    CttAznRanger, Sep 16, 2019
    #839
  20. Sep 17, 2019 at 8:45 PM
    #840
    Red18Taco707

    #840
    Red18Taco707 Well-Known Member

    Joined:
    May 29, 2018
    Member:
    #254905
    Messages:
    1,123
    Gender:
    Male
    First Name:
    Richi
    Nor Cal
    Vehicle:
    Red 18 TRD POOR
    Just emailed you. Busy all weekend but I haven't installed the splitter or module :thumbsup:

    Red18Taco707, Sep 17, 2019
    #840
