DomeRock Module for Courtesy Rock Lights V4 by DSIM Solutions

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by DSIM, Apr 24, 2018.

  1. Aug 19, 2020 at 7:57 PM
    #1061
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,405
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    PM me your address, I'll send you a couple as long as a stamp or two will get it to you

  2. Aug 21, 2020 at 5:44 PM
    #1062
    bryanbyers28

    bryanbyers28 Well-Known Member

    Joined:
    Jun 18, 2014
    Member:
    #132224
    Messages:
    548
    Gender:
    Male
    First Name:
    Bryan
    Woodstock, GA
    Vehicle:
    2013 Black Tacoma 4x4 TRD Off-Road
    WeatherTech floor liners LED Map, dome, and license plate lighting Home made console organizer 30" LED Light Bar in lower grill Toyota Bed Mat
  3. Sep 6, 2020 at 7:38 AM
    #1063
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    4,579
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
  4. Sep 6, 2020 at 7:38 AM
    #1064
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    4,579
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    No idea on that one, sorry man.

  5. Sep 6, 2020 at 7:54 AM
    #1065
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    Depends on how many amp is your load. If 2A the wire 2 in parallel.

  6. Sep 6, 2020 at 8:15 AM
    #1066
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    4,579
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    It's going to be two strip of LEDs, so I think it will suffice.

  7. Sep 6, 2020 at 10:15 AM
    #1067
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...

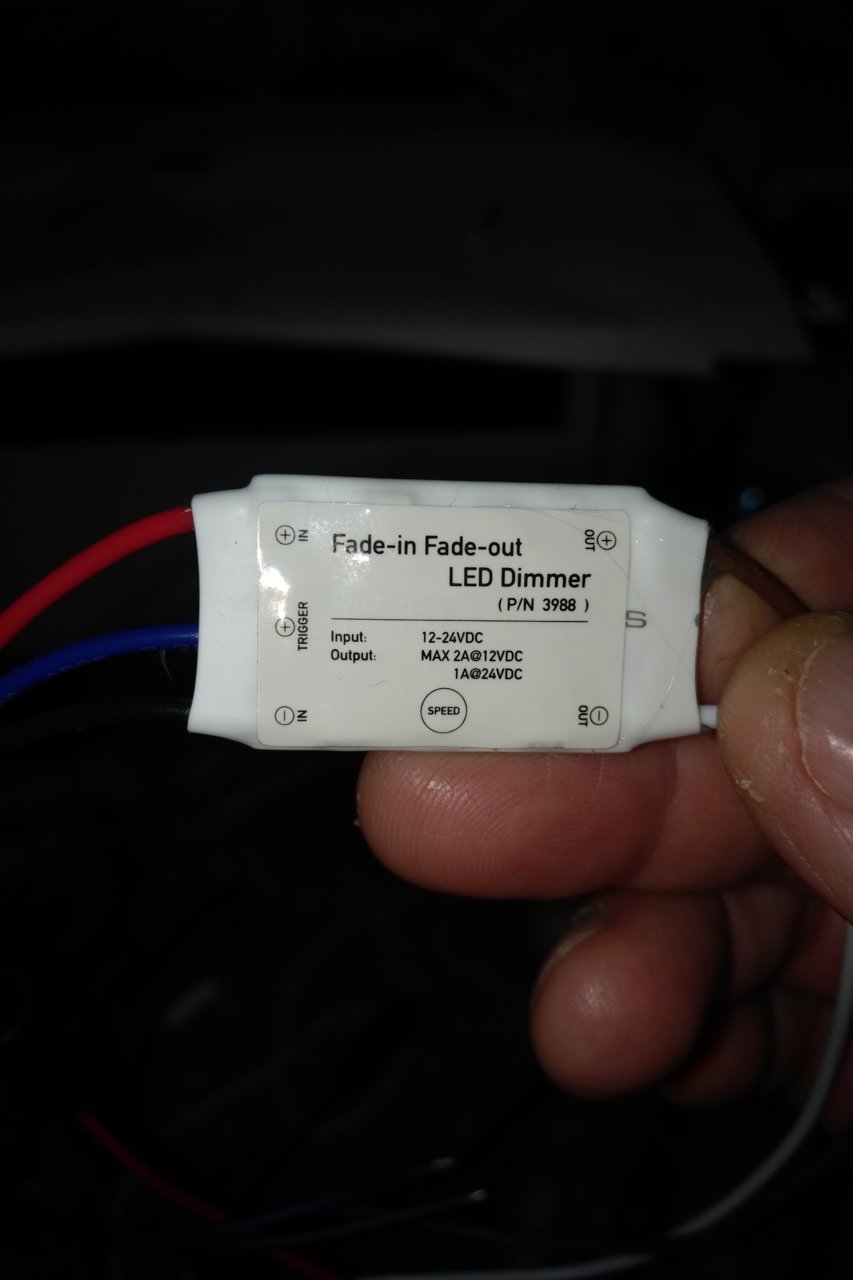

    I finally got around to installing the dimmer module.
    I can confirm that it does fade in the puddle lights but does not fade them out. Also, no change to the overhead dome light. It it still instant on or off, no fade. Note, I wired the fader + parallel with + trigger. I did not try separating the trigger to a switch.


    DSRamsey13 likes this.
  8. Sep 6, 2020 at 6:38 PM
    #1068
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,405
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Sorry if I'm not fully up to speed here, but putting the diode inline on the DSIM ground did not resolve the interior domelight issue?

  9. Sep 6, 2020 at 6:44 PM
    #1069
    CttAznRanger

    CttAznRanger Crazy NE Asian with the Cali Lean (temporary)

    Joined:
    Dec 3, 2018
    Member:
    #274702
    Messages:
    4,579
    Gender:
    Male
    First Name:
    Brandon
    Boston, MA
    Vehicle:
    2018 Tacoma TRD Sport
    It seems like it did when @DSIM did it. I have yet to try it out, so I can't verify that as of right now.

  10. Sep 6, 2020 at 7:48 PM
    #1070
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    You are correct. It did not make my dome light circuit fade in and out like before adding the DSIM diode.
    My only other thought would be to use the DSIM on the trigger only and connect the diode directly to the + and - in the fuse panel.

  11. Sep 6, 2020 at 8:05 PM
    #1071
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,405
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Ahh, I think I understand what you did now. You wired the yellow wire from the DSIM to the trigger and + wire on your dimmer?

  12. Sep 6, 2020 at 8:14 PM
    #1072
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    Yes. According to the manufacturer it is suppose to fade in and out by wiring it this way but it does not.

  13. Sep 7, 2020 at 10:39 AM
    #1073
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,405
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I would hook the dimmer to straight to a 12v+ constant source, and ground it separately if you haven't already done so. I think the point of the dimmer is to carry the load separate of the trigger circuit. By wiring the dimmer+ to the DSIM output, you are still putting that load on the domelight circuit. If you are going to do that, just eliminate the DSIM and wire your load straight to the dome lights. It won't make a difference load-wise on the dome circuit to how you have it wired now. Does that make sense? I suck at explaining stuff.... I'm not sure this will eliminate the other issues, but it will take the load off of the dome circuit.

  14. Sep 7, 2020 at 10:49 AM
    #1074
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    Yes, that was my thought as well. I have made the wire harnesses quick connects so I can experiment. That will be my next test.

  15. Sep 7, 2020 at 11:01 AM
    #1075
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,405
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Let me know how it goes!

  16. Sep 21, 2020 at 6:26 AM
    #1076
    CLVol1255

    CLVol1255 Well-Known Member

    Joined:
    Oct 16, 2018
    Member:
    #269644
    Messages:
    2,188
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    2017 TRD Sport DCSB
    Bilstein 8112/8100 ICON RXT Stage 2 JBA UCAs Archive Garage HH w Shackles Archive Garage U Bolt Flip kit Nitto Ridge Grapplers 255/80/R17 TRD Front Skid and RCI Transmission Skid Kenwood DMX 1057XR Head Unit Focal Utopia WM 3 way plus WM10 Sub Mosconi 5/30 and Genesis Dual Mono Amp
    Hey so I’ve finally gotten around to installing my dsim v4 module and I’ve ran the yellow through the firewall to my 86 pin of the relay that’s connected to my rock and under hood lights. I also have the blue sea systems 12 circuit split fuse block running my accessories. Currently i have it on the constant side and I’m not getting anything from the lights unless i push the switch. Do i need to use the switched side of my fuse block for it to work when approaching the vehicle and when locking unlocking the vehicle? Ive read through several pages of the thread but I haven’t seen a situation talking about what i have going on. Thanks

  17. Sep 21, 2020 at 7:06 AM
    #1077
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    How about drawing up a rudimentary schematic so we can see what you have done?

  18. Sep 21, 2020 at 7:09 AM
    #1078
    CLVol1255

    CLVol1255 Well-Known Member

    Joined:
    Oct 16, 2018
    Member:
    #269644
    Messages:
    2,188
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    2017 TRD Sport DCSB
    Bilstein 8112/8100 ICON RXT Stage 2 JBA UCAs Archive Garage HH w Shackles Archive Garage U Bolt Flip kit Nitto Ridge Grapplers 255/80/R17 TRD Front Skid and RCI Transmission Skid Kenwood DMX 1057XR Head Unit Focal Utopia WM 3 way plus WM10 Sub Mosconi 5/30 and Genesis Dual Mono Amp
    I honestly don’t know where to start on drawing one of those up. Is there an app you use to do so?

  19. Sep 21, 2020 at 7:13 AM
    #1079
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...

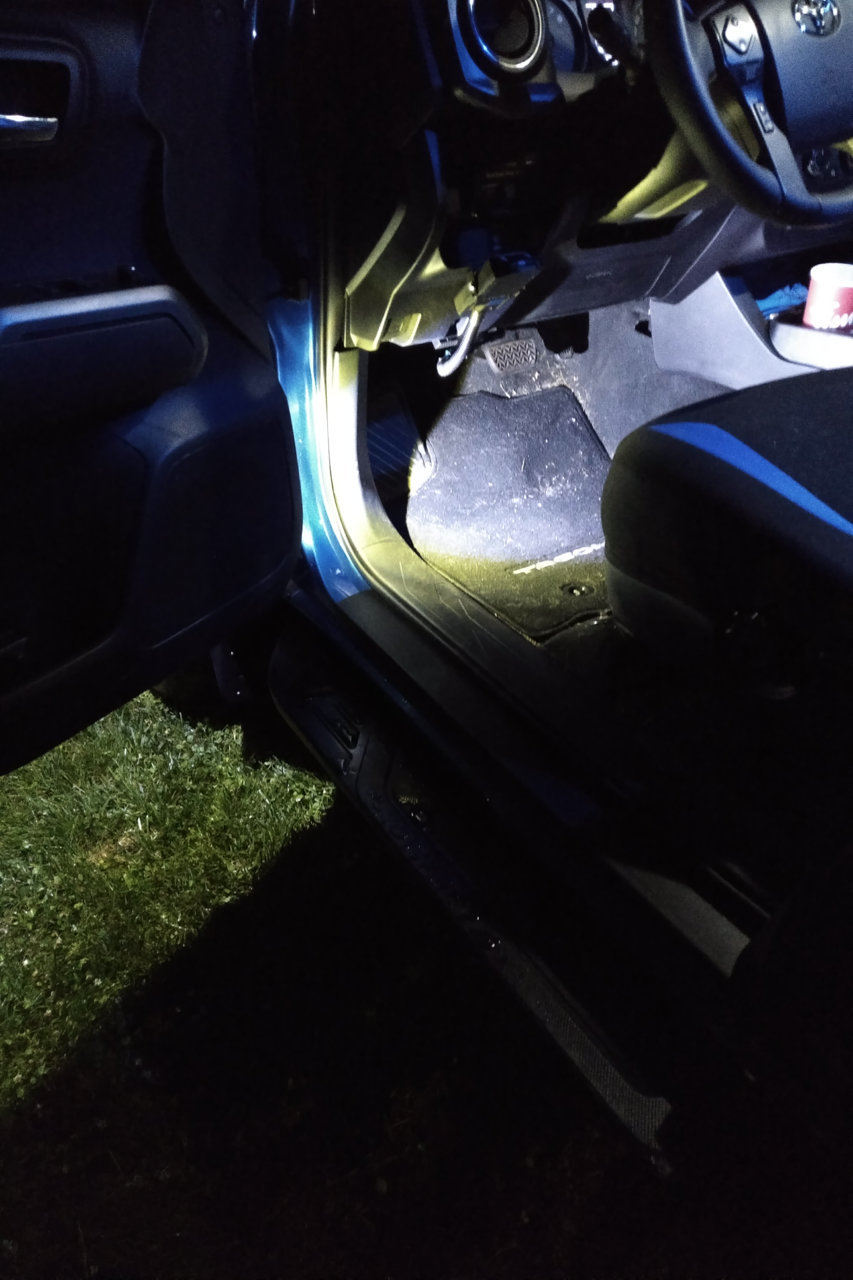

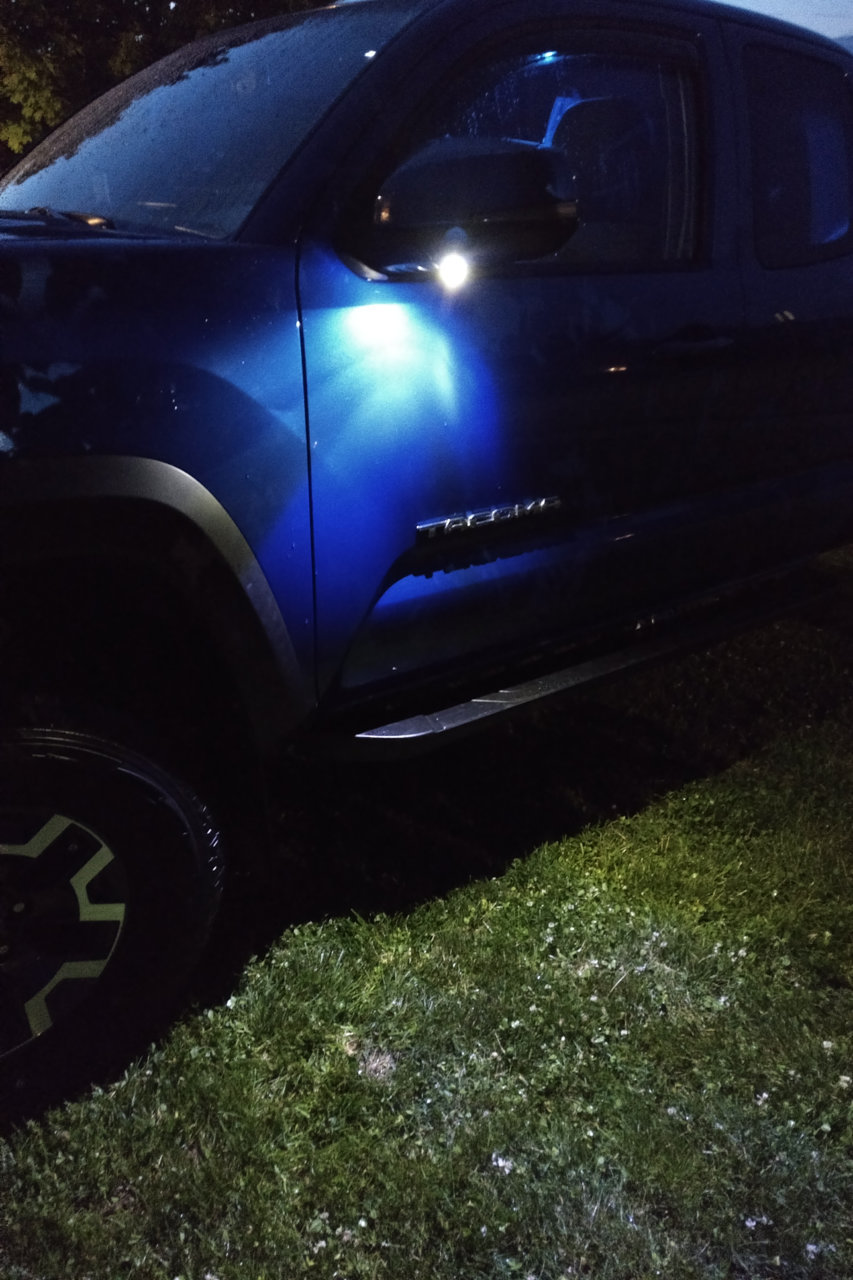

    So I have decided to add illumination in the access cab area with LED lights in the back side of the door panels like I did in my front doors. Therefore I will have to provide a separate + power source since having more than 4x LEDs being powered from the DSIM module may run it too hot or burn it out. This should also resolve the instant power off issue I'm currently experiencing with the puddle light/ footwell lights as well as the overhead dome light. This is what I have so far in the front.


    Going to add 1x blue and 2x white in the rear access cab doors on a NO/ NC proximity switch

  20. Sep 21, 2020 at 7:18 AM
    #1080
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,007
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    Start with a piece of paper, pencil and a ruler. Does not have to be pretty. Just label the parts and keep straight lines as much as possible. You may discover once you have drawn it up you end up answering your own question. Post it here and we can take a look.
    I usually do this on my work bench to help with figuring out the complexity of what I want to wire up and it is easier to correct mistakes on a piece of paper than it is to re-wire what you have done in the truck.

    DSRamsey13 likes this.
