Double Cardan joint

Discussion in '1st Gen. Tacomas' started by toyotadan98, Apr 13, 2013.

  1. Apr 13, 2013 at 10:33 PM
    #1
    toyotadan98

    toyotadan98 [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51872
    Messages:
    85
    Gender:
    Male
    wa
    Vehicle:
    2011 TRD OFFROAD 4X4 ACC
    Can i rebuild my double cardan joint ? just looks like 2 ujoints is all . i read here some where u can't but i don't see why not. :confused:

  2. Apr 13, 2013 at 10:36 PM
    #2
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,796
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
  3. Apr 13, 2013 at 11:00 PM
    #3
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,180
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    I wouldn't. I tried. Couldn't get the damn thing separated. Ended up ruining it.

  4. Apr 13, 2013 at 11:02 PM
    #4
    TacoDell

    TacoDell Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    997
    Gender:
    Male
    SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    non-repairable you meant ?

    many other components seem to fall in that category...
    But it's not limited to Toyota dealerships.

  5. Apr 14, 2013 at 9:11 AM
    #5
    brs127s

    brs127s Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43575
    Messages:
    294
    Gender:
    Male
    O'Fallon, MO
    Vehicle:
    04 D-Cab 4x4 Limited TRD
    TRD Headers, Aero Turbine AT2525XL Deckplate Mod, TRD tranny cooler, King Coilovers, LR UCAs, Alcan 5 Leaf springs and Bilstein 5100s, Shrockworks front bumper, CBI rear bumper.
    A reputable driveline shop should be able to rebuild it, or get you the parts if you want to do it yourself.

    I did it on my 94 Toyota. It wasn't easy, but it was doable.

    Last edited: Apr 14, 2013
  6. Apr 14, 2013 at 10:21 AM
    #6
    toyotadan98

    toyotadan98 [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51872
    Messages:
    85
    Gender:
    Male
    wa
    Vehicle:
    2011 TRD OFFROAD 4X4 ACC
    Ya after lokking at it for awhile it doesn't look that hard to me its just 2 ujoints instead of one. I think the hard part might be getting the right ujoints for it .

  7. Apr 14, 2013 at 10:42 AM
    #7
    Dirty Pool

    Dirty Pool She caught the KATY and left me a mule to ride

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    827
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    Between the 2 joints is what is known as a "centering ball". All 3 components are mechanically in-twined. The movement of one part is dependent on the movement of the others.
    Once on the bench changing out the 3 components takes me 45 minutes, not including parts cleaning. Most drive line shops give it a 1 hour flat rate but will really rape you on the parts and the parts may be garbage.

    This job is far from hard. There are however many places to screw up. The process is just a little different than a regular u-joint and if the sequential steps are not followed EXACTLY the whole thing goes south fast. The 4x4wire write up pretty much explains the theory for taking things apart but the methods used and a few critical details including putting it back together are somewhat lacking. I have a better write up somewhere with pics, covering the details. I will try and dig it up if there is interest.

    Obtaining the correct parts is the first hurdle. There are five companies that make dimensionally correct joints for the aftermarket, Neapco, Precision, Rockford, Spicer and Matsuba. In some cases they are not found under a Tacoma application at all. Matsuba is considered by far the best and equal to OEM. Spend the money and get the Matsubas. Toyota and Koyo, the OEM supplier do not sell the joints or the centering ball. The only source for the ball I know of is Neapco and there are 2 different ones found in Tacomas. http://www.cruiseroutfitters.com/ should be able to get the Matsubas or just Google for suppliers with the best deal to your location.

    Last edited: Jan 27, 2014
  8. Apr 15, 2013 at 6:48 AM
    #8
    toyotadan98

    toyotadan98 [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51872
    Messages:
    85
    Gender:
    Male
    wa
    Vehicle:
    2011 TRD OFFROAD 4X4 ACC
    Thanks for the info guys , it might be easier to just buy one.

  9. Apr 15, 2013 at 8:38 AM
    #9
    boshak

    boshak Well-Known Member

    Joined:
    May 23, 2010
    Member:
    #37663
    Messages:
    514
    Gender:
    Male
    First Name:
    Tony
    Southern California
    Vehicle:
    2003 Manual 4x4 5VZ-FE
    OME 881's, Wheeler's 5-leaf pack, Bilstein 5100's
    I am interested in the write-up when you get the chance to look for it. Thanks!

  10. Apr 15, 2013 at 11:59 AM
    #10
    Dirty Pool

    Dirty Pool She caught the KATY and left me a mule to ride

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    827
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    Here ya go, get comfortable.
    I did some more editing and it looks good to me. If anyone finds an error or something that could be clearer let me know.


    TACOMA DOUBLE CARDAN
    WRITE-UP HAS BEEN

    REVISED

    Again​




    TACOMA DOUBLE CARDAN
    Mostly about the "inside clip" style

    U-JOINTS
    The u-joints are not the same as the shaft ends. Neapco, Precision, Rockford, Spicer and Matsuba Universal Joint Co (Matsuba is considered to be an OEM equivalent) are the only folks that make a dimensionally correct u-joint for the 95-99 xcab Tacoma Double Cardan or CV with "inside" clips. At some point (not confirmed) after 99, some trucks may have the "outside" clip style. The OEM Koyo's are not marketed to the public at all. Folks in the know will tell you the only replacement worth the time is the Matsuba. The Matsuba should be increasingly available through a handful of off road specialty shops such as Cruiser Outfitters that sell Matsuba. You may need to supply the Matsuba part# UJ236.
    No company lists a Tacoma application with the exception of Rockford for the outside clip style only. The outside clip style does not have the joint caps located as deep into the yoke. This may allow them to be removed in the conventional manner. The inside clip style requires the procedure featured in this write-up.
    The dimensionally correct joint for the inside clip type is usually listed under “T 100 front” and some of the pre Tacoma trucks. No matter, IMO (and many others) none equal Matsuba. One rumor says Koyo is made by Matsuba. Rather than loose any sleep worrying about the wimpy quality of the Neapco c-clips on the joints I first installed (ran them for 15-20K without issue), they were pulled back out, tossed, and the OEM Koyos put back in. I didn't even want to keep them for my spare shaft. The OEM Koyo joints were still like new at 200K miles. My whole reason for the rebuild was an issue with the relief valve for the centering ball, another story.


    For Inside clip type
    1.125" cap, all the joints below are dimensionally the same.
    Neapco-#1-5800, Center Ball Kit #7-0409 USA made, used by many shops, questionable (by me) "wimpy" c-clips, I ran them for 15-20K with out issue
    Precision-#513 Made in China
    Spicer-#5-2532x May be obsolete
    Rockford-#407-10 No personal experience
    Matsuba-#UJ236 Spend the money on these


    The only known replacement joint for the outside clip type.
    1.065" cap
    Rockford Drive Line-#2540 The DC looks like the pic at the very end of the write-up and seems to be more prevalent on after 99 shafts.



    Let's get to it
    "Inside clip" type

    DO NOT remove your OEM ball unless you are sure it is bad. (some slight play between the ball and it's race is normal).

    HOW TO DO IT, this is the unique procedure for the "inside clip" style. The "outside clip" version may come apart like a conventional u-joint with out the "washer trick" mentioned in the 4x4wire link below.

    This is not a job to attempt your first time on the floor in a dark garage or something to tackle if a regular u-joint job is not second nature to you. I will assume that you have read and understand everything in the following link for the basic principle (washer trick) and the EXACT ORDER of dis-assembly. http://www.4x4wire.com/toyota/tech/cvmod/ Forget about the modification part.
    There are a number of flaws in that write up. The following changes/additions worked for me.

    I used a hammer for dis-assembly and a “C-Clamp” type ball joint press for assembly. The latter because I have one and it offers more control. Pressing the caps back in with sockets and a vice will be just as effective. Tapping the caps in with a hammer will work, just keep an extra vigilant eye on the needles. Be very careful of the rubber skirt that shields the ball. The biggest thing with this job for the 1st timer is to THINK AHEAD.

    First, note the EXACT WAY the OEM cap retainer clips are positioned. Draw yourself a little picture including the relationship of all the parts. The new clips must be installed in the exact same position with the open end of the “C” pointing along the drive line length. The clips must equally span the 2 crescent shaped bosses on the inboard side of the bore on the “H” (pic #2). Before removal clean the living heck out of the recesses outboard of the caps down to bare metal and add a few drops of a penetrating oil.

    Supporting the flange end against the corner of a vice (4x4wire) and pounding on the “H” with a mallet is sort of crude and could easily damage things. A short piece of 3” x 1/4” channel cut nice and square on the trusty Binford 4600 band saw, supports the yoke perfectly (pic #1). Once the "H" is pounded to the point where the joint stops against the “H”, fish the needles out of the gap at the opposite end with a rare earth magnet gripped in a hemostat, quick and easy. You should have 25 needles. Then do the washer trick to get the cap the rest of the way out. The washers I used were .65” diameter. This size is not critical, if the washers fit in the cap all is well. The joint can then be separated and the remaining cap tapped out with a nice brass drift. At this point, very important, Pay close attention to the motions used and position/angle of the ball as the joint comes apart, it will help with assembly.
    Repeat the process for the shaft end joint.

    To assemble, do the shaft end first. It goes together like a conventional joint. Then install the remaining joint into the flange end. You should have something just like pic # 2. At this point start by packing the hole in the centering ball with grease and plunge the spring into the ball not into the pin as the pic shows. The grease will hold the spring and needles in place through the tricky part. Keep it straight and don’t dislodge any of the tiny needles. You must be absolutely positive that the ball needles are in place during the entire operation, any doubt at any point, back up and make sure.
    Remove the remaining two caps from the flange end. Take the lower cap (upper/lower orientation refers to pic #2) and press it into the lower bore of the “H” until the seal is flush with the inside edge of the bore. This will give you a place to “park” the joint while you start the other cap after the tricky part. Do not start the upper cap yet. Getting the “pin” over the spring and into the ball with out dislodging a needle is the tricky part. With no cap in the upper bore and the ball tilted up a bit there is enough room to slide the pin into the ball (against the spring pressure).
    Tip the bare upper shaft of the flange end joint into the empty upper hole of the “H”. You should see how at this point the pin will be a straight shot into the ball, adjust the angle of the ball if need be. The joint/flange is then tilted back down to allow the lower shaft to be slipped into the lower cap. When the lower shaft is inserted into the lower cap (parked) the spring in the ball will be held compressed and the upper cap can be installed after a short breather. Before installing the upper cap, check that no needles have been dislodged. Once the upper cap is started you will not be able to deal with a dislodged needle. Rehearse this move a few times then go for it.
    A c-frame ball joint press or a wide vice works best for smooth controlled assembly.
    Double check your clip placement and you’re done. It took me longer to write this than it did to R+R the 2 joints the second time.

    If you need to change the ball (not likely) locate a short bolt, total length no longer than the diameter of the ball. Stick it into the ball then rotate the ball 180 deg and pull the threaded end of the bolt out the hole. This gives a threaded “stud” to attach your choice of pullers. My puller was a nut, washer and a few scraps of steel. See pics 3, 4 and 5. Some write ups on the net say to just pry it out, I like my little puller. Tap the new ball in with a socket against the race. The race is off centered a bit on the ball, check the orientation of the OEM race as it is removed and install the new one the same way. Follow with the ball seal.
    Be aware that there are 2 sizes for the center ball. My 99 took the larger .510" stud. I think the smaller one is .470" or there about.

    The end,
    aside from the "Centering Ball Grease Pressure Relief Valve Mod", another story.

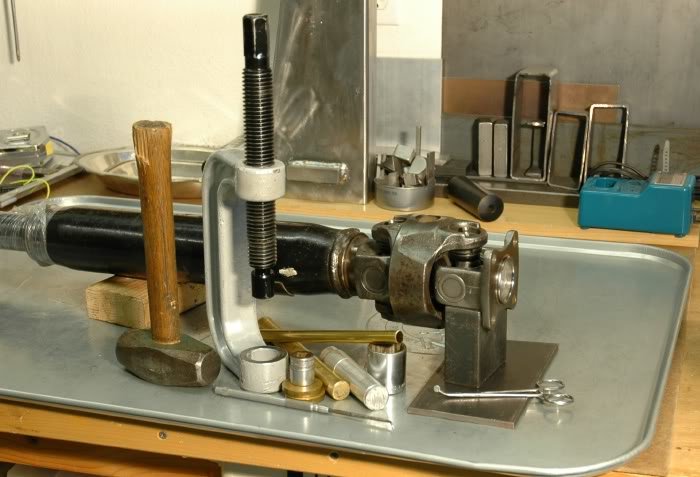

    Picture #1 , All the tools used. The length of 1/2" brass tube helps to align the needles in the ball should they get dislodged. Note how the 3" channel supports the yoke.
    [​IMG]

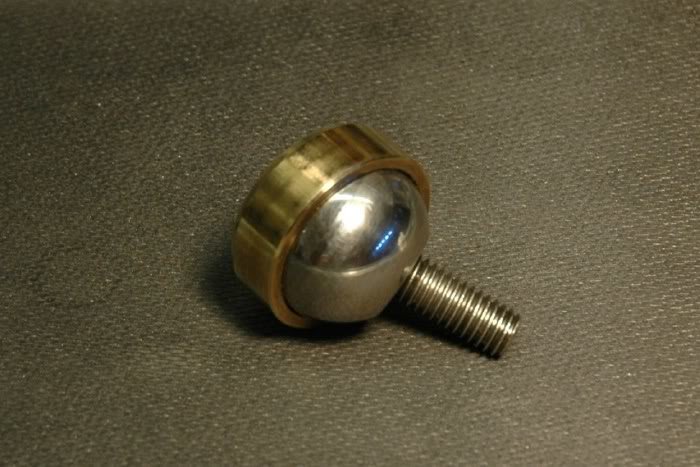

    Picture #2 The crescent shaped bosses can be seen inside the bottom bore of the "H".
    [​IMG]

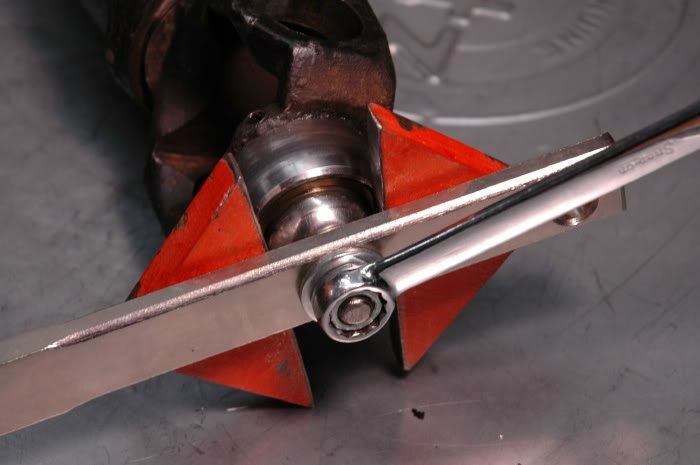

    Picture #3
    [​IMG]

    Picture #4
    [​IMG]

    Picture #5
    [​IMG]

    Outside clip style DC joint.
    [​IMG]

    Last edited: Nov 18, 2014
  11. Apr 16, 2013 at 9:59 AM
    #11
    toyotadan98

    toyotadan98 [OP] Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51872
    Messages:
    85
    Gender:
    Male
    wa
    Vehicle:
    2011 TRD OFFROAD 4X4 ACC
    Nice write up , can i come use your tools lol , thanks again for all the great info.

  12. Jul 26, 2013 at 8:29 AM
    #12
    ihatemytruck

    ihatemytruck New Member

    Joined:
    Jul 26, 2013
    Member:
    #109078
    Messages:
    2
    Gender:
    Male
    Vehicle:
    03 taco 4x4
    Do you know which of the matsubas will fit an 03 tacoma v6 auto trans 4x4 ext cab? thanks and great write up!

    Last edited: Jul 26, 2013
  13. Jul 28, 2013 at 7:22 AM
    #13
    Dirty Pool

    Dirty Pool She caught the KATY and left me a mule to ride

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    827
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    Just get a hold of Kurt at Cruiser Outfitters. The folks answering the phone at FROR apparently do not know what they are talking about. As an absolute last resort go to High Angle Drive Line. I would give my money to Cruiser Outfitters.

  14. Sep 11, 2013 at 5:21 AM
    #14
    ihatemytruck

    ihatemytruck New Member

    Joined:
    Jul 26, 2013
    Member:
    #109078
    Messages:
    2
    Gender:
    Male
    Vehicle:
    03 taco 4x4
    Called Kurt and he said i needed the part number for the ujoint, which I dont know. Still trying to figure out which ujoints are the right ones for the double cardan........anyone who could let me know, i would appreciate it!

  15. Sep 11, 2013 at 12:04 PM
    #15
    Dirty Pool

    Dirty Pool She caught the KATY and left me a mule to ride

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    827
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    PM'd

  16. Sep 28, 2013 at 5:56 PM
    #16
    Inverno4

    Inverno4 Well-Known Member

    Joined:
    Mar 7, 2012
    Member:
    #74388
    Messages:
    248
    Gender:
    Male
    Baltimore, MD
    Vehicle:
    04 SR5 4x4 TRD Xtra Cab
    I don't see the U-joints for the double cardan on their website. Where can I find them? One of mine is starting to fail.

  17. Sep 29, 2013 at 10:40 AM
    #17
    Dirty Pool

    Dirty Pool She caught the KATY and left me a mule to ride

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    827
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    Apparently http://www.highangledriveline.com/ is the only place to get the Matsuba brand joint (OEM equivalent) and they may or may not be keeping the Matsuba # to themselves. Any company that sells Matsuba can get them, they just need the Matsuba part #. The whole issue with this part # thing is that the dimensionally correct joint is not listed as a Tacoma application.

    "ihatemytruck" 3 posts up, may or may not have bought them from HAD. I sent him all my dimensional data and part #'s from 4 other manufacturers and asked for a reply if he was successful with a cross reference to the Matsuba #. I have not heard back from him.

    Two Eagle Feathers to you or anyone else who can come up with the Matsuba #.
    When I get the Matsuba #, I will finish and re-post the write-up revision.

    The write-up has been revised, 10-6-13, with info on the outside clip style

    Last edited: Oct 6, 2013
  18. Oct 17, 2013 at 6:58 PM
    #18
    VeeSix

    VeeSix Well-Known Member

    Joined:
    Sep 11, 2013
    Member:
    #112283
    Messages:
    131
    Gender:
    Male
    First Name:
    Ryan
    Chattanooga
    Vehicle:
    03 Tacoma TRD 4X4
    Chrome muffler bearings Excessive Play mod
    How much is a new DC joint from Toyota versus the parts and labor associated with a rebuild at a professional shop?

    Why is there so much secrecy with these part numbers? It makes no sense. Is Toyota just trying to sell complete DC joints rather than have people rebuild them?

    Last edited: Oct 17, 2013
  19. Oct 18, 2013 at 7:36 AM
    #19
    Dirty Pool

    Dirty Pool She caught the KATY and left me a mule to ride

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    827
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    To get a DC out of Toyota you must buy the entire drive shaft, many many 100's of $. Why? Who Knows. One could speculate on this for ever.

  20. Dec 11, 2013 at 9:57 AM
    #20
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,855
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Good stuff :popcorn:

    One of my CVs has an outside snap ring. I'm assuming I could order an inside clip type Matsuba joint and replace it with that?

    Last edited: Dec 11, 2013
