Double switching led bed lights

Discussion in '3rd Gen. Tacomas (2016+)' started by Pax11B, Apr 23, 2017.

  1. Apr 23, 2017 at 10:15 PM
    #1
    Pax11B

    Pax11B [OP] Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203372
    Messages:
    336
    Gender:
    Male
    Vehicle:
    2017 Quicksand Tacoma TRD OR AC
    https://www.tacomaworld.com/threads/pax11b-quicksand-build.491885/
    So I am about to start working on how to wire this so that I can turn the bed lights on from inside the cab with my own switch but also be able to use the switch that came with the bed lights to turn the lights on via the bed.

    How do I go about wiring an in cab switch as well as a tailgate switch so I can turn them off and on from either location.

    Last edited: Apr 23, 2017
    Shugster2 likes this.
  2. Apr 23, 2017 at 11:01 PM
    #2
    Roxanne16

    Roxanne16 Well-Known Member

    Joined:
    Mar 1, 2017
    Member:
    #212007
    Messages:
    88
    Gender:
    Male
    First Name:
    Zack
    Kansas City, MO
    Vehicle:
    2016 Magnetic Gray Tacoma Limited (Roxanne)
    2000 Toyota Sienna 2004 Toyota Tacoma 2001 Acura Integra LS 1999 Toyota Celica 1998 Toyota Harrier (Lexus RX300) 1999 Toyota MR-S 1999 Toyota Altezza (Lexus IS300) 2016 Toyota Tacoma Limited MGM
    I'm bored at work, so I'll draw up a quick diagram on paint. Are you trying to have a pin switch that turns on the bed lights when you open your tailgate, or a rocker switch in the bed?

  3. Apr 23, 2017 at 11:03 PM
    #3
    Pax11B

    Pax11B [OP] Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203372
    Messages:
    336
    Gender:
    Male
    Vehicle:
    2017 Quicksand Tacoma TRD OR AC
    https://www.tacomaworld.com/threads/pax11b-quicksand-build.491885/
    Just a rocker type switch, well mainly just a push button on/off

  4. Apr 23, 2017 at 11:05 PM
    #4
    inwood customs

    inwood customs Roaming potato

    Joined:
    Sep 11, 2016
    Member:
    #197024
    Messages:
    4,554
    First Name:
    Dave
    Vehicle:
    2006 v6 potato bugTuRD
    K&n, flowmaster, plastidip, chipped, hids, daves
  5. Apr 23, 2017 at 11:22 PM
    #5
    Roxanne16

    Roxanne16 Well-Known Member

    Joined:
    Mar 1, 2017
    Member:
    #212007
    Messages:
    88
    Gender:
    Male
    First Name:
    Zack
    Kansas City, MO
    Vehicle:
    2016 Magnetic Gray Tacoma Limited (Roxanne)
    2000 Toyota Sienna 2004 Toyota Tacoma 2001 Acura Integra LS 1999 Toyota Celica 1998 Toyota Harrier (Lexus RX300) 1999 Toyota MR-S 1999 Toyota Altezza (Lexus IS300) 2016 Toyota Tacoma Limited MGM

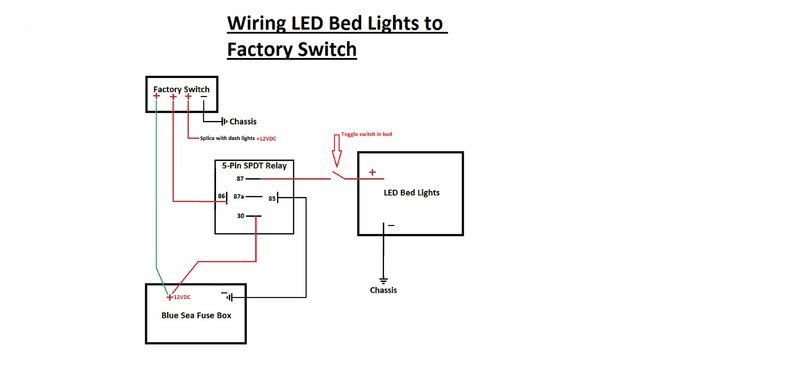

    If you don't have an auxillary fuse box, just run an in line fuse in place of the fuse box and ground pin 85 of the relay to the chassis.
    The "factory switch" has four wires and gives a cleaner look in the cab. you can get any design you want on the switch face from companies like CH4X4
    http://www.ch4x4.com/product-category/push-series/toyota-push-switches/
    https://www.amazon.com/dp/B0117B1J3...olid=VAWR30U4KS4C&coliid=I2NS9W88HL8W6O&psc=1
    Wiring Factory Lights to Factory Switch and Aftermarket Switch.jpg

    Last edited: Apr 23, 2017
    0210 likes this.
  6. Apr 23, 2017 at 11:36 PM
    #6
    Pax11B

    Pax11B [OP] Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203372
    Messages:
    336
    Gender:
    Male
    Vehicle:
    2017 Quicksand Tacoma TRD OR AC
    https://www.tacomaworld.com/threads/pax11b-quicksand-build.491885/
    Awesome, thank you! Really appreciate it

    Roxanne16 likes this.
