DougThorleyHeaders install HowTo 13 toyota tacoma

Discussion in 'Performance and Tuning' started by TripleThreat, Oct 16, 2013.

  1. Oct 16, 2013 at 11:09 PM
    #1
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    Alright Howdy partners this is TripleThreat I lost my camera and I had picks of alot of my modds and maintenance but I found it my cat had it?? (Cat Bed)

    • Items:
    • -Doug Thorley Long Tube headers Part#: THY-517-LS-C
    • -URD Rear O2 Simulator, 1GR-FE 4.0L V6 Dual Channel
    • -This allows you to run all the performance parts above without your Check Engine Light turning on.
    • Tools:
    • -12 Pack of Beer for breaks and frustration
    • -6x M8-1.25 x 30 double ended studs for the bottom cylinders (Bought From AdvAutoParts and it comes with the nuts)
    • -4mm, 6mm, 10mm, 12mm, 14mm deep well socket wrench
    • -deep well socket wrenchs in general recommended
    • -13mm, 14mm, 12mm, open end wrench
    • -Red or blue Lock Tight
    • -Patients of a saint

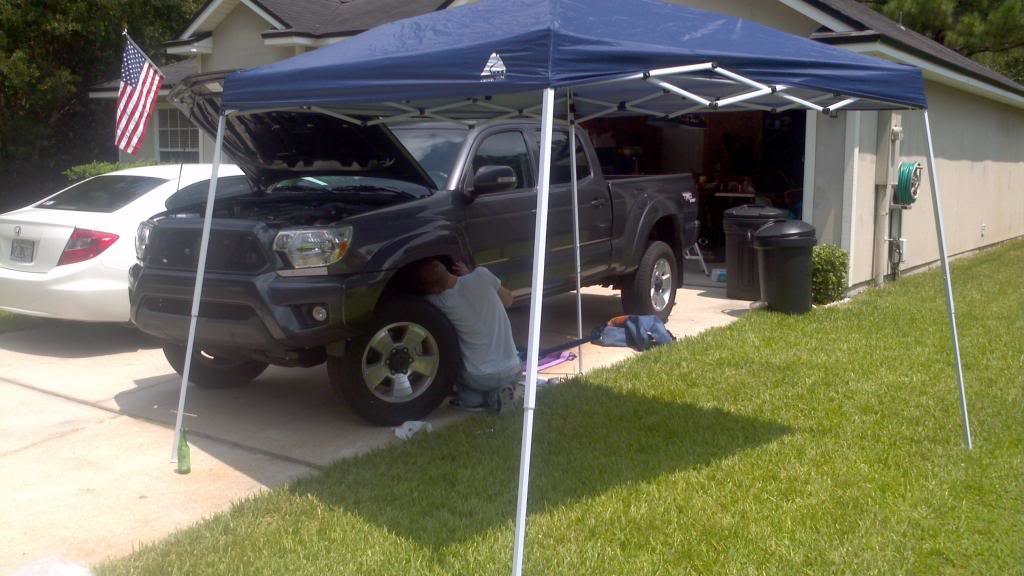

    Anyways! Heres my Doug Thorley Long Tube install. Ignore the safety hazards I took the pictures inbetween transition from phase to phase so the static jacks were removed already
    I am just sharing this to help others heres an install on a 2013 toyota tacoma TRD!

    [​IMG]

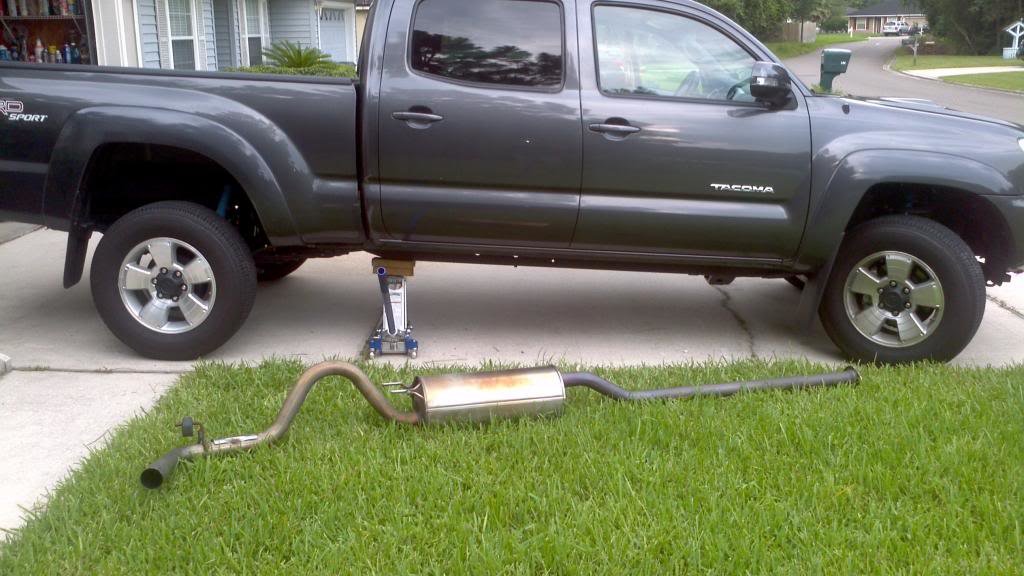

    First the Cat back
    [​IMG]

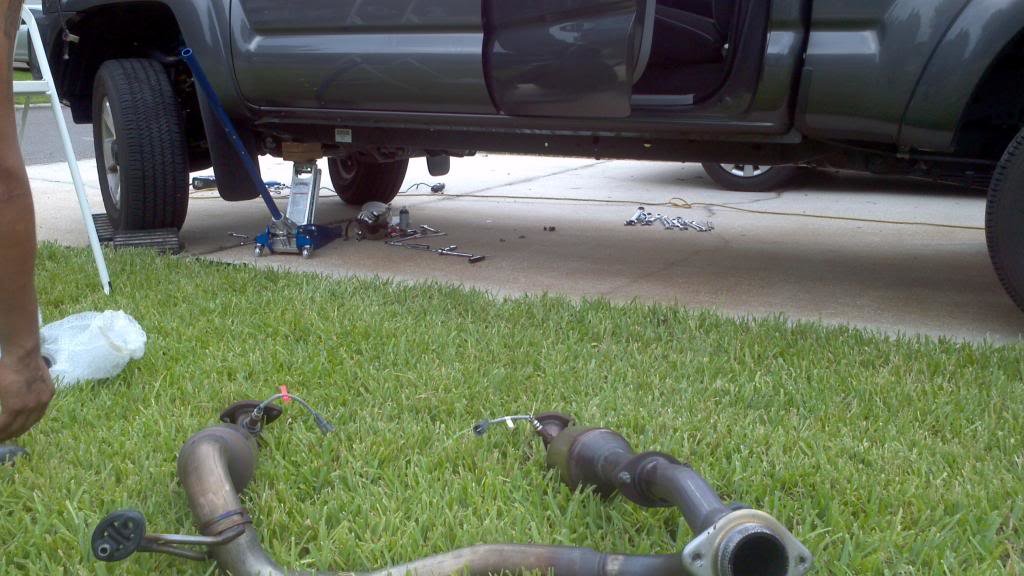

    The Y pipe was next I was surprised this only took me 20 minutes to do by myself
    [​IMG]

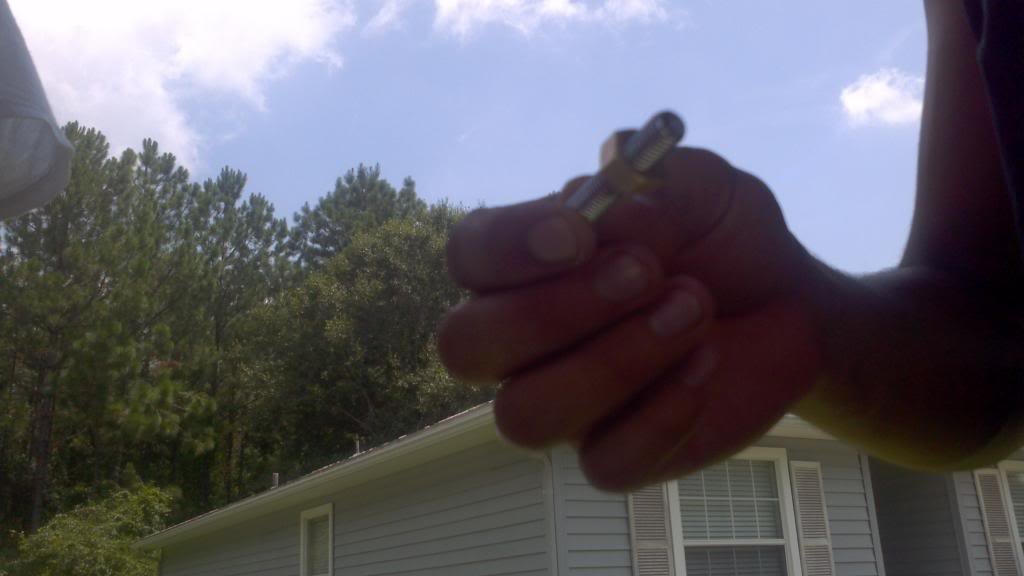

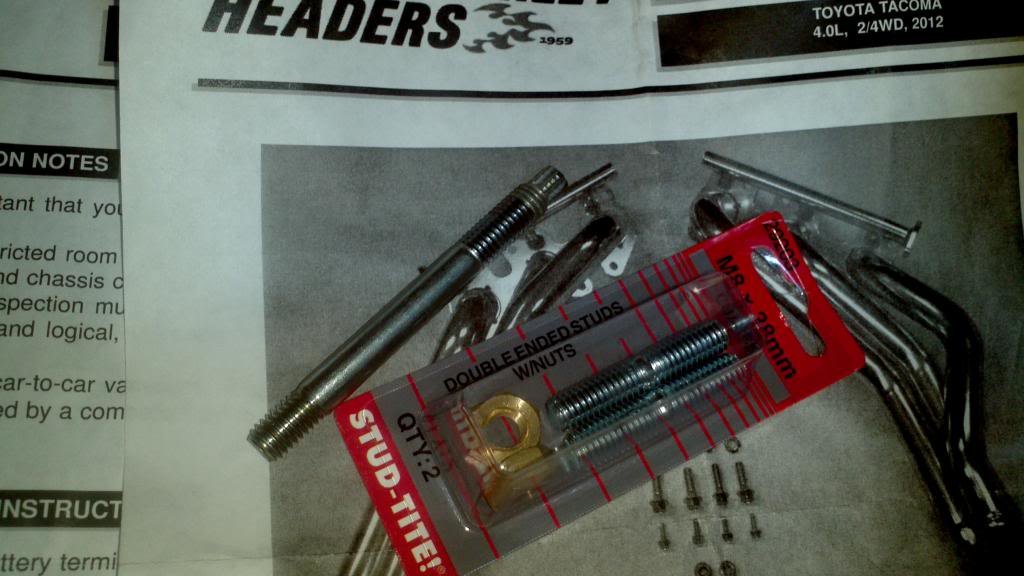

    The Doug thorley Long tubes dont come with studs so I had to improvise also i'd like to note Gadget ordered me some studs and sent them I switched them out later he was very helpful @ URDusa
    [​IMG]

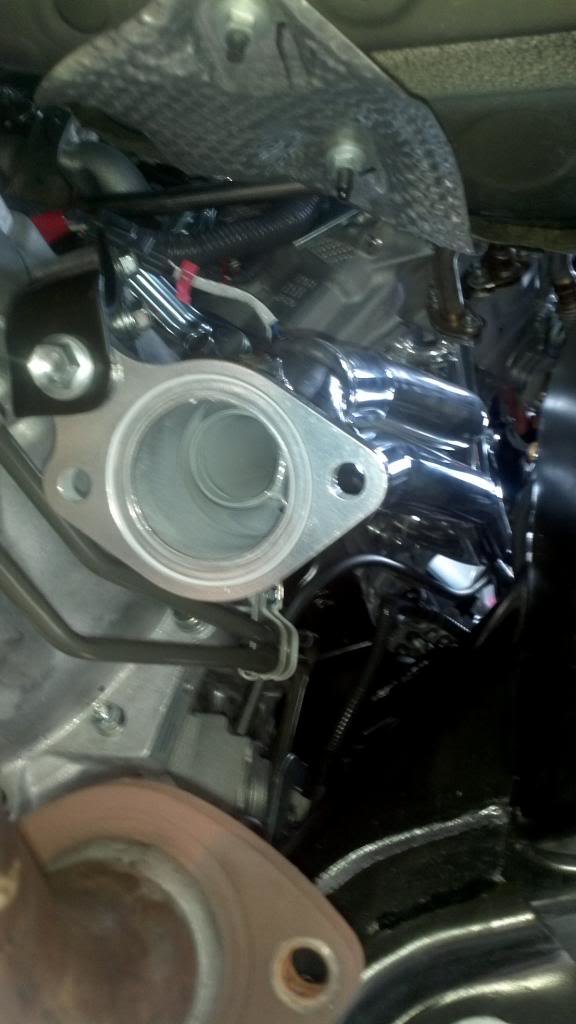

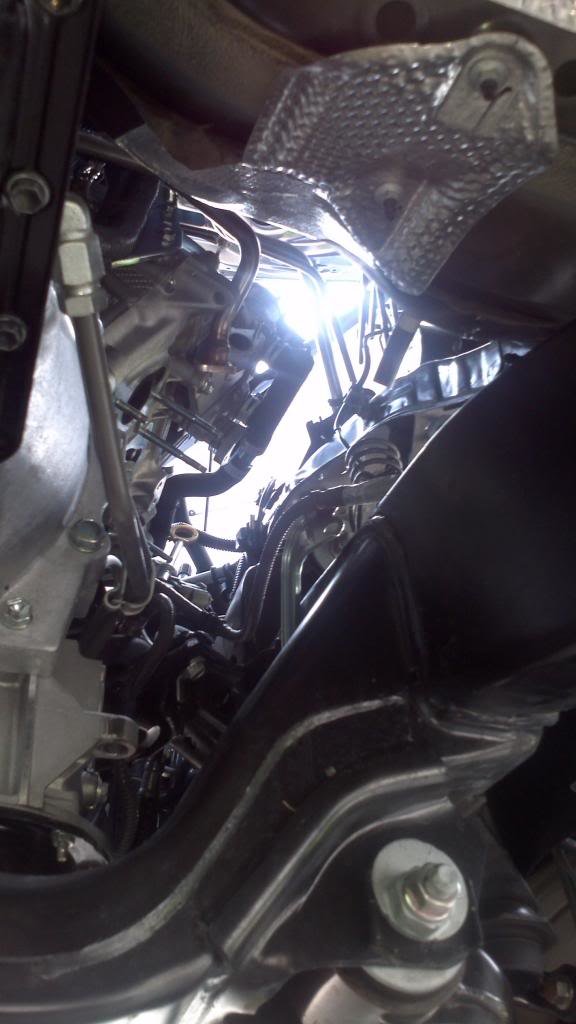

    Alright now to remove the stock headers
    [​IMG]
    [​IMG]

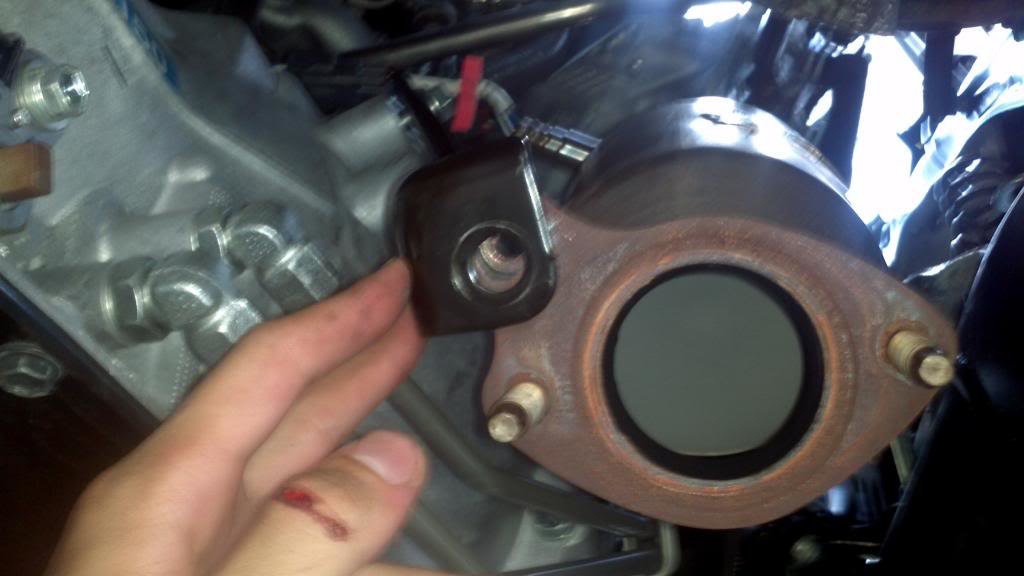

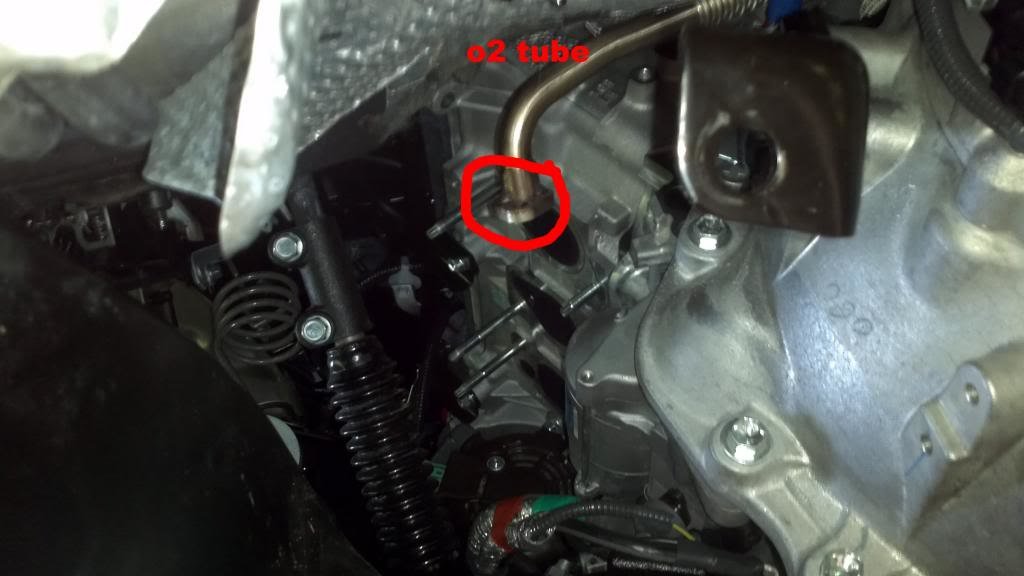

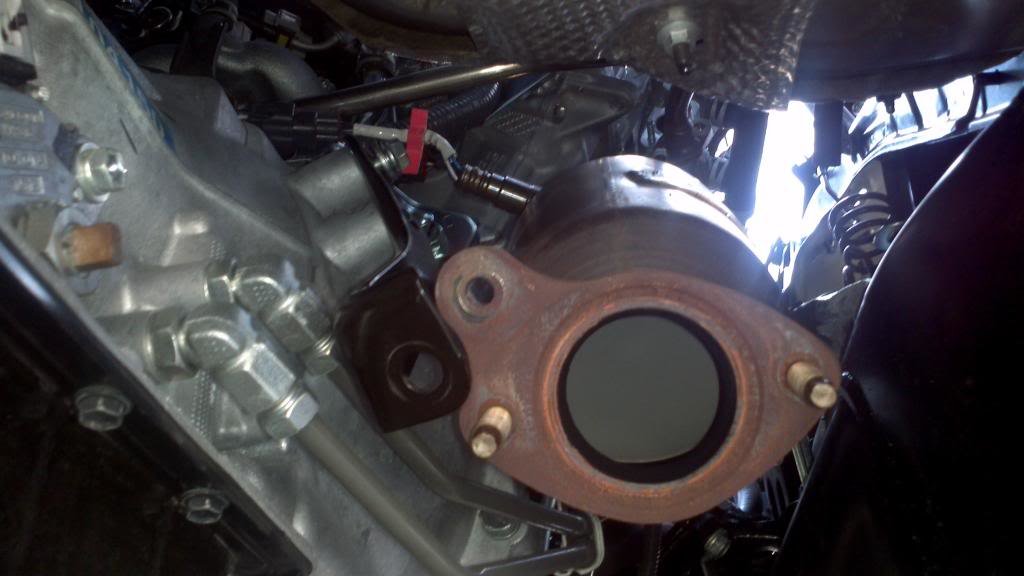

    Header removed notice the O2 line its brass looking pipe infront of the cylinder its a pain in the but through out the install
    [​IMG]

    Yay sunshine!
    [​IMG]

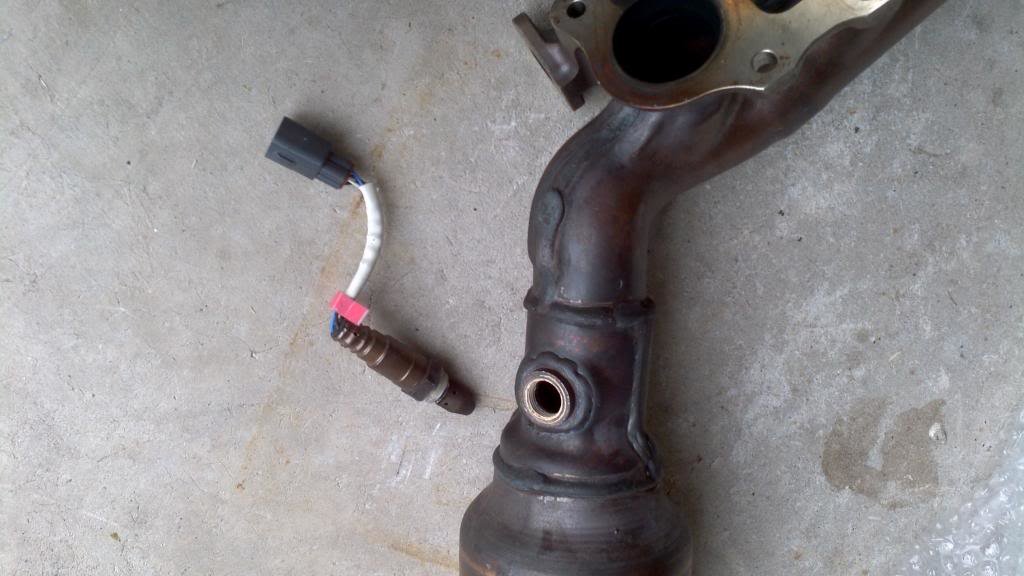

    Now take out the O2 sensors from the old headers or leave them in if you bought URD O2 sensors
    [​IMG]

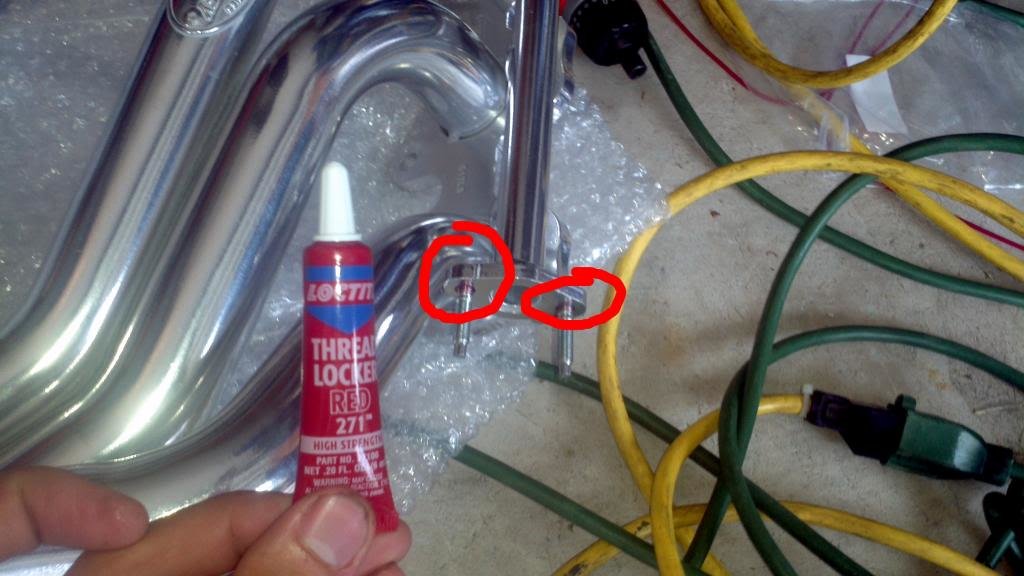

    Now I prepped the "O2 bunge" on the new doug thorley headers with lock tight RED (I know I should have used blue but I won't be taking these out) and get ready to put them in.
    [​IMG]

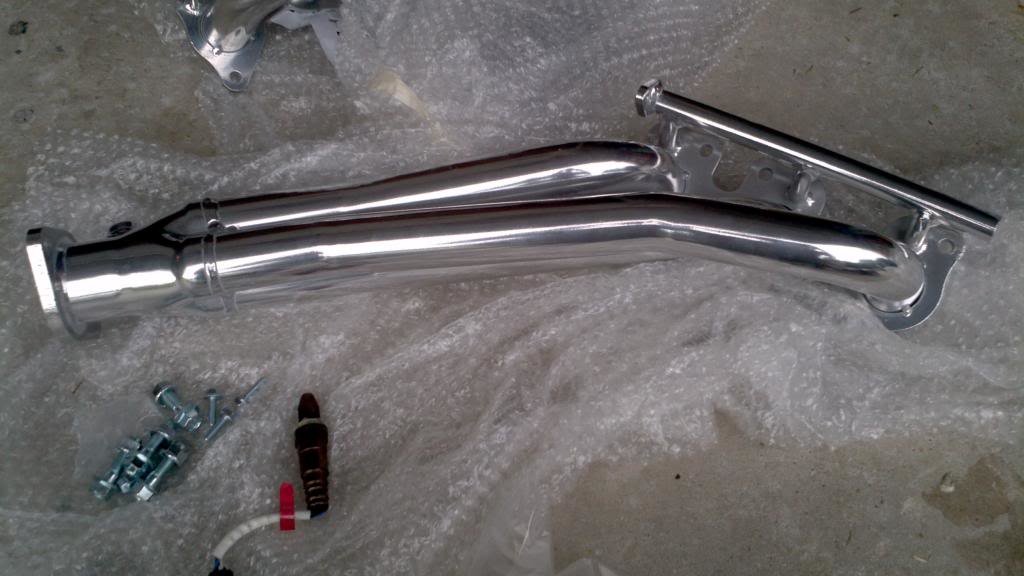

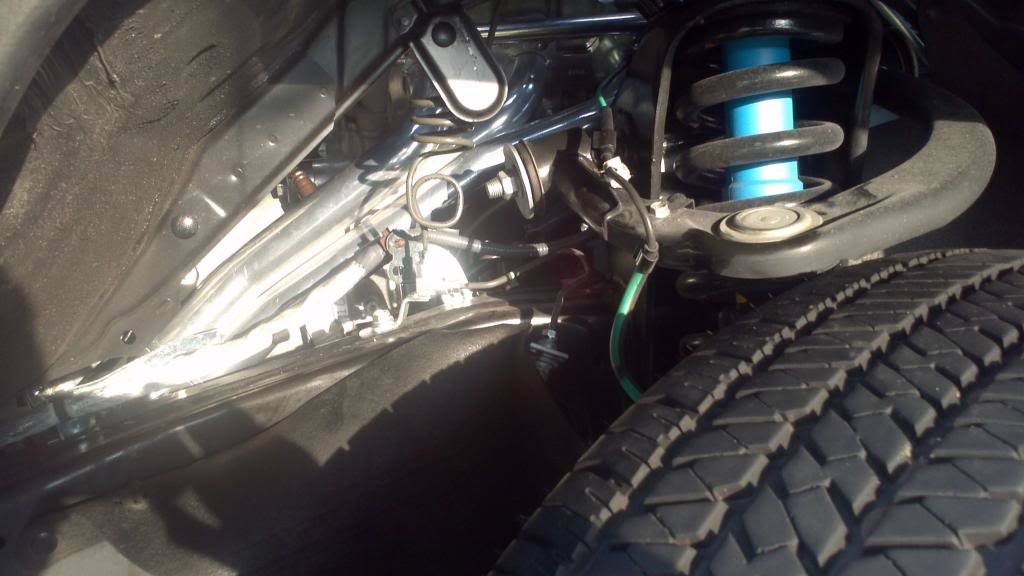

    Heres the right long tube header
    [​IMG]

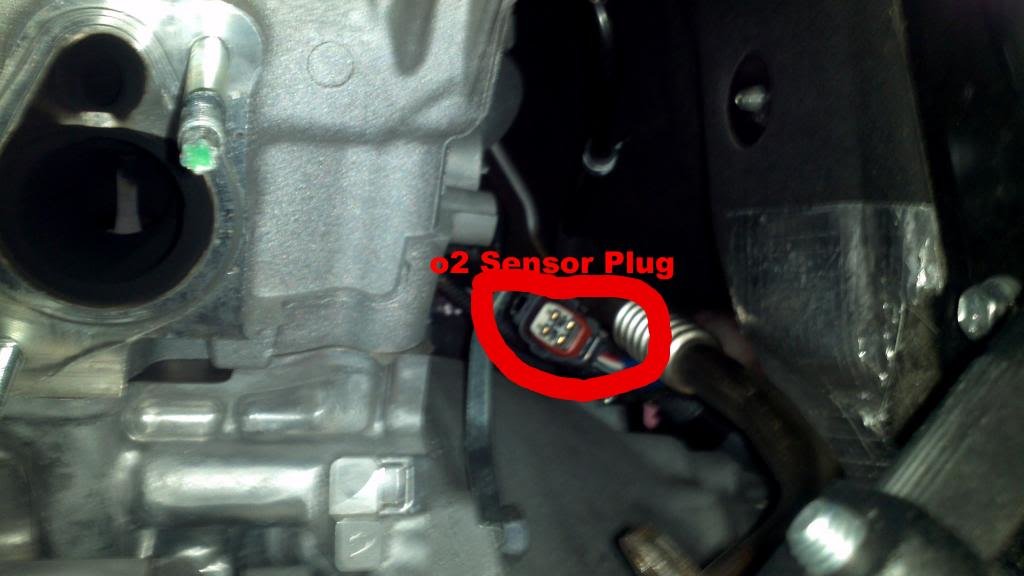

    Locate the O2 plug before header install for the O2 sensor it tends to move!
    [​IMG]

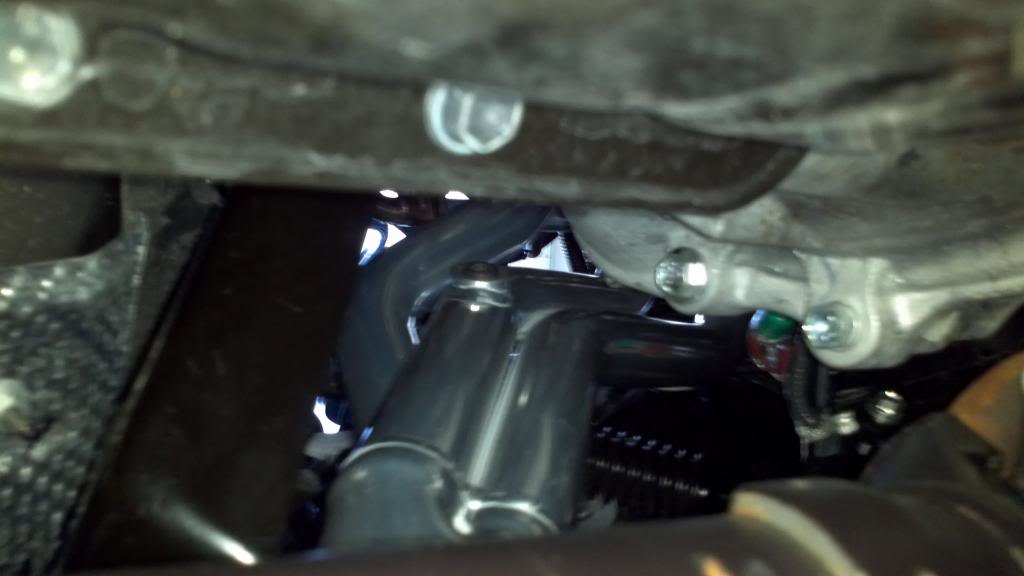

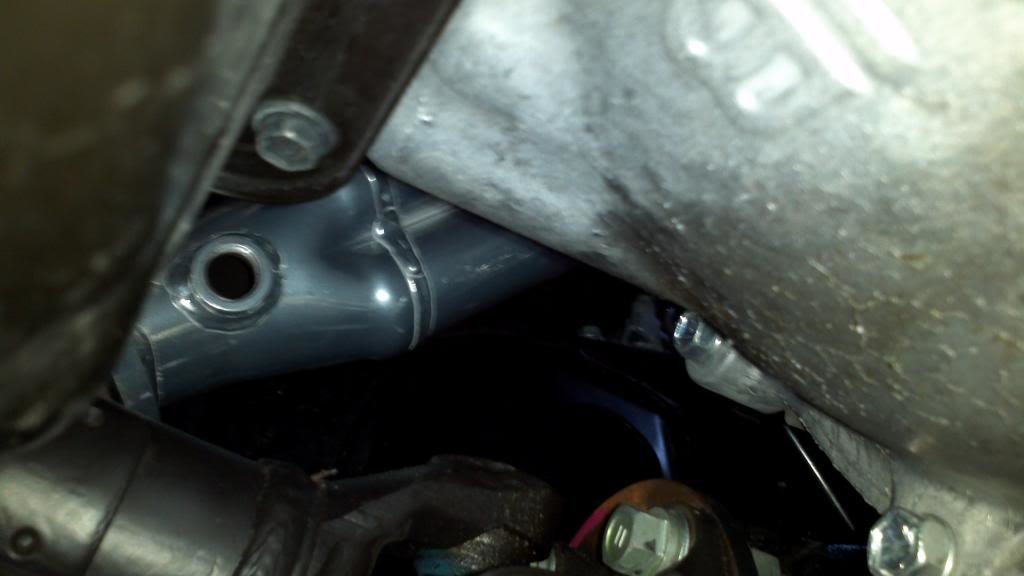

    I went from the bottom of the truck to get the header in heres a pic
    [​IMG]

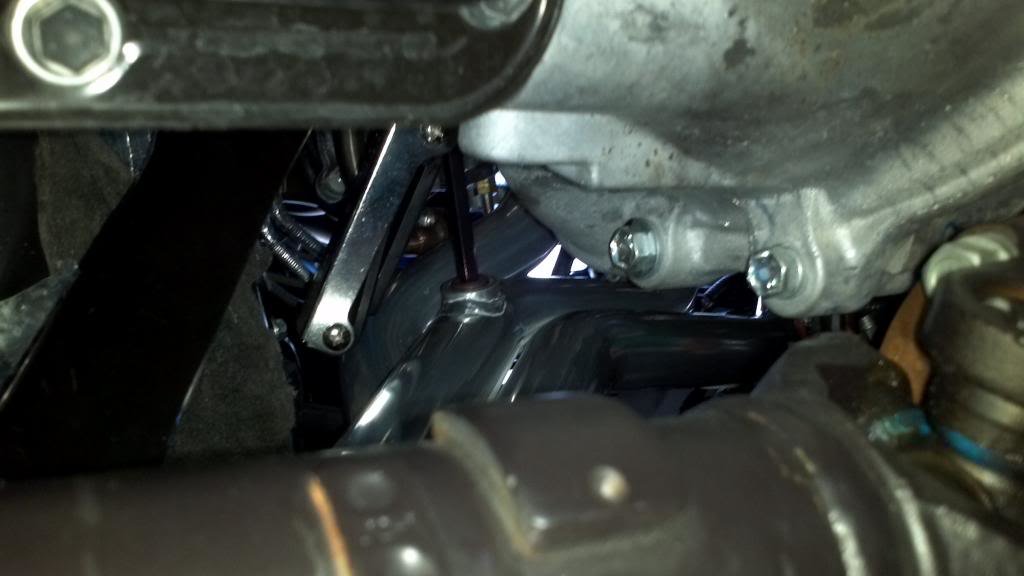

    First Stud made for the bottom set just to repeat myself the stock studs will not work for the new headers. The Nuts on the stock studs won't go anywhere near the new ones.
    [​IMG]

    Choose your O2 sensor spot before install it makes this unnecessary and the plugs go in the O2 sensor spots you don't use
    [​IMG]

    I used the bottom O2 sensor location and I suggest you do the same once you have the O2 sensor extension:
    [​IMG]

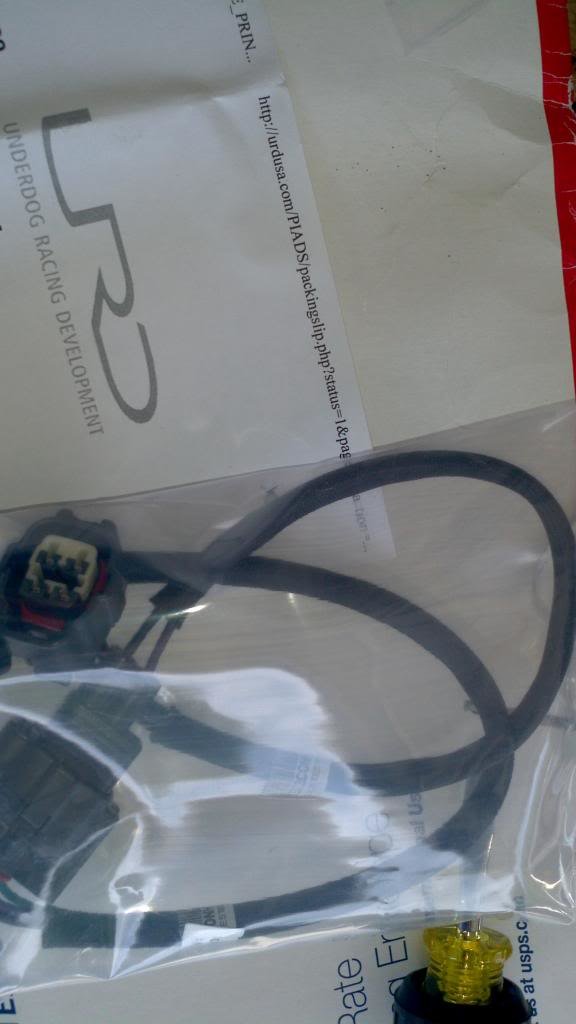

    URD O2 Sensor extension
    [​IMG]

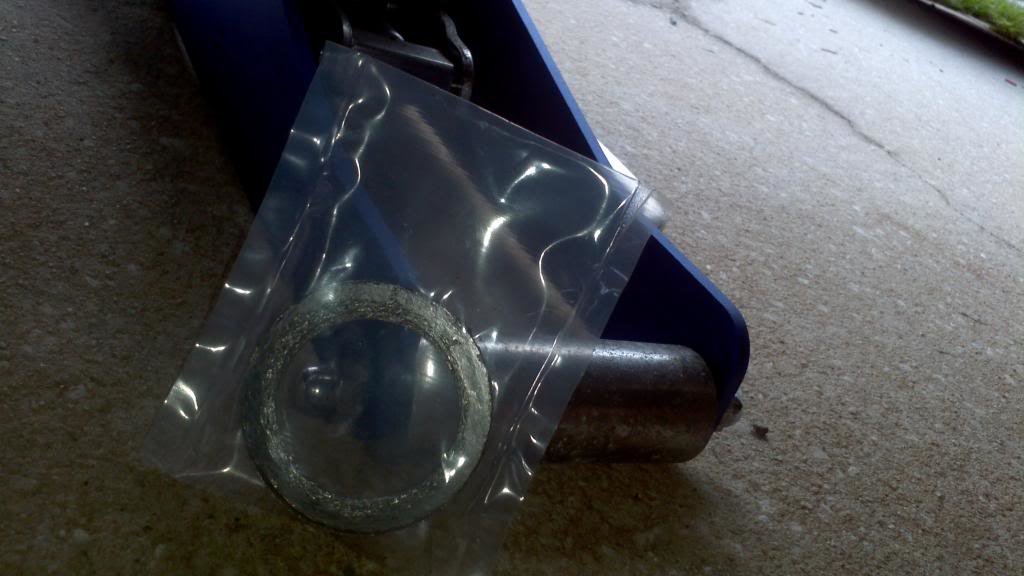

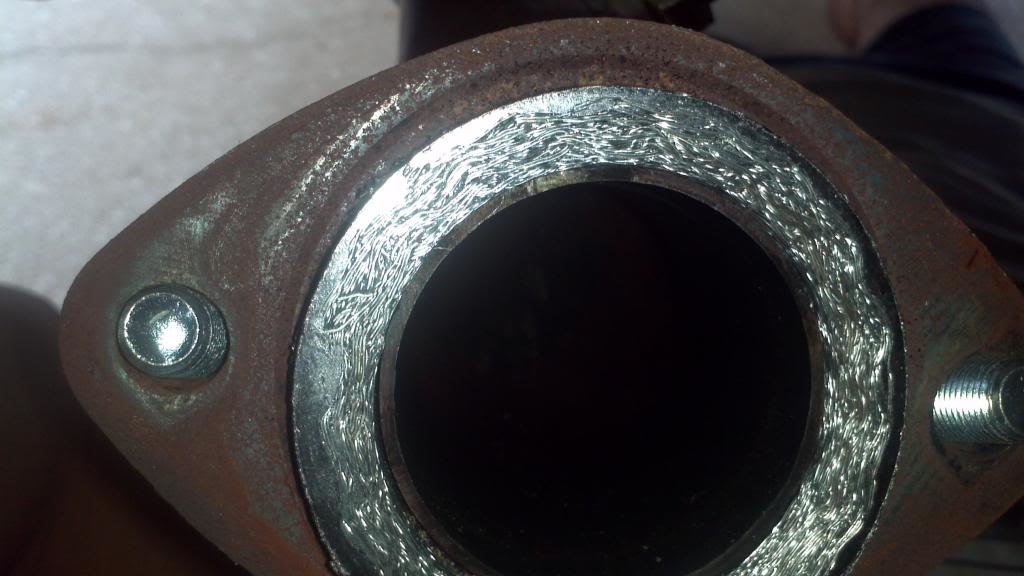

    Get your crush gaskets that comes with your doug thorley headers
    [​IMG]

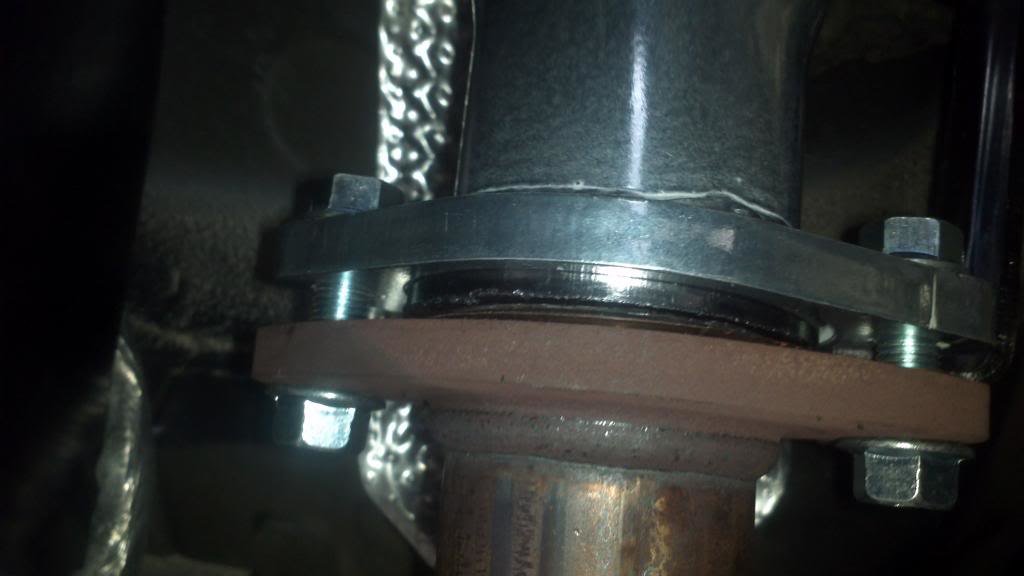

    Put them on the Y pipe or other pipe and the bolts

    [​IMG]


    Attach your header to your Y pipe or Other
    [​IMG]

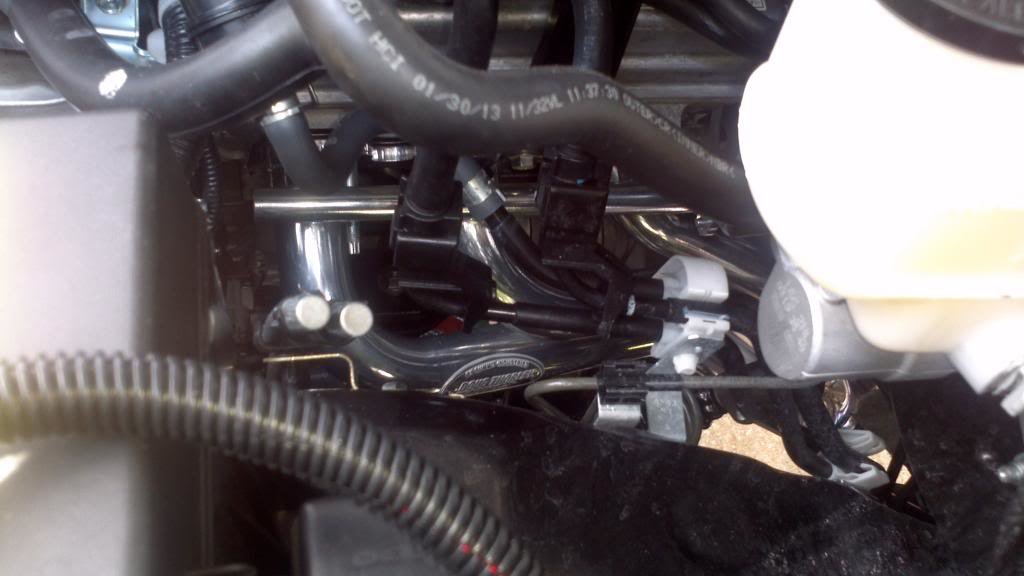

    Hook up the O2 Bunge / tube to the new headers once both are installed
    [​IMG]

    :amen: Finished product (19 hours total time) :cheers:
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    This video is only for the sound don't expect much else except the amazing exhaust
    [​IMG]

    Last edited: Oct 17, 2013
  2. Oct 17, 2013 at 3:35 AM
    #2
    Gadget@URD

    Gadget@URD Well-Known Member Vendor

    Joined:
    Sep 12, 2008
    Member:
    #9183
    Messages:
    637
    Southern Maryland USA
    Vehicle:
    URD Supercharged XRunner
    Very nice!!

    G

  3. Oct 17, 2013 at 7:25 AM
    #3
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    URD">
    Gadget I didn't know you were on tacoma world! Glad I did'nt complain :p

  4. Oct 17, 2013 at 7:39 AM
    #4
    Mr Salty

    Mr Salty Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50297
    Messages:
    1,682
    Gender:
    Male
    First Name:
    Hermmy
    So Cal
    Vehicle:
    White SR5 Pre-runner
    All sorts of crap
    19 hours, holy cow man!
    That time included some beers while sitting on your butt admiring your shiny new headers right?

  5. Oct 17, 2013 at 7:45 AM
    #5
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    I took 15 minute breaks several times and there was multiple kinds of beer involved I have updated my tools required just for you. Also it was 12 hours I have updated it since the hours waiting for parts/tools should'nt count. But it took 19 hours cause we started on saturday and didn't get done untill sunday cause the only way to get to the parts store was the truck we were working on :D Thank goodness for neighbors!

  6. Oct 17, 2013 at 7:50 AM
    #6
    CWG

    CWG Active Member

    Joined:
    Apr 21, 2013
    Member:
    #102546
    Messages:
    31
    Gender:
    Male
    Seattle?
    Vehicle:
    2013 DCLB Sport
    Truck Covers USA Hard Tonneau, DynoLock, OEM steps, TRD SE Anthracite wheels, Duratrac tires
    Nice write-up. My favorite pic is the bloody thumb. That looks like my hands every time I work on the Taco.

  7. Oct 17, 2013 at 7:59 AM
    #7
    Mr Salty

    Mr Salty Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50297
    Messages:
    1,682
    Gender:
    Male
    First Name:
    Hermmy
    So Cal
    Vehicle:
    White SR5 Pre-runner
    All sorts of crap
    Well makes perfect sense.

    Couldn't agree more about your neighbor comment, I have a couple of them who have saved my ass several times with the correct tool for the job.

  8. Oct 17, 2013 at 8:22 AM
    #8
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    Yeah I wore gloves but would'nt you know it the second I take it off everything is trying to kill me I was lucky to escape with just a couple of cuts.

    Yeah I need the extra jack stand and one static stand to do the job and I had to run to the adv parts store and grab some tools multiple times yay for friendly country neighbors. Glad you agree partner!

  9. Oct 17, 2013 at 6:45 PM
    #9
    PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,363
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    I just wanted to let you guys know that I just installed a set of DT LT headers in my truck today. It got some pointers from your thread but it only took me about 4-4.5hrs to do it.

  10. Oct 17, 2013 at 7:32 PM
    #10
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    Glad the thread helped. Also it took me all day lol but I was missing tools like the stud remover, the bottom bolts I did'nt know I needed, I also removed a good portion of parts above the right header so I could tighten the studs on the header, the O2 bung/tube was the hardest thing to reach and beer run costs some time. :D

  11. Oct 17, 2013 at 7:53 PM
    #11
    PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,363
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.

    Lol I actually just got some replacement bolts rather than removing the OEM studs and tried my best to just go around the mess. I installed the O2 sensors before I put the new headers in so I just had to plug in the wiring harness. The only hickups I ran into were an OEM stud that was stuck so bad that I had to cut it out and trying to get the driver side wiring plug back in. Also I didn't even remove the y-pipe all the way. I just disconnected it from both ends and let it hang.

  12. Oct 17, 2013 at 8:07 PM
    #12
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    I took mine out completely for the extra room so that took some time I can say. I was talking in reference to the O2 tube its above the cylinders on the headers and when you bolt in the headers to the engine block theres that tube on it this is the O2 tube that was a pain because its hard to get that nut tighted on the O2 tube:
    [​IMG]

  13. Oct 17, 2013 at 8:29 PM
    #13
    PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,363
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    Hmm... Thats weird. I don't remember ever removing, installing or even seeing anything that looks like that on my truck. I will have to look again in the morning when its actually light out.

  14. Oct 17, 2013 at 9:14 PM
    #14
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    :eek:

    suprised cat.jpeg

  15. Oct 18, 2013 at 6:14 AM
    #15
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    You have an '08. Yours doesn't have that.

  16. Oct 18, 2013 at 7:23 AM
    #16
    PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,363
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    That makes sense. That is kind of what I was thinking. Is it a 09+ thing or a 12+ thing

  17. Oct 18, 2013 at 7:41 AM
    #17
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    Intresting this is why I joined the forums its nice to learn about this stuff I had a 2007 toyota tacoma and I had no idea it does'nt have this 02 tube above the cylinder.

    I went back to URDusa and the long tube headers are specifically for 2012+
    So I can see why there might be diffrences, you learn something everyday!
    THY-517-LS-C, Long Tube Header, 2012+ Tacoma V6 ONLY
    http://urdusa.com/Exhaust-&-Headers...eader,-2012+-Tacoma-V6-ONLY/product_info.html

  18. Oct 18, 2013 at 7:43 AM
    #18
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,458
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    ^^^^ Like he said. '05-'11, then '12+.

    ECU connectors changed in '09.

  19. Oct 18, 2013 at 7:48 AM
    #19
    TripleThreat

    TripleThreat [OP] Vance@Andersenracing.org

    Joined:
    Sep 18, 2013
    Member:
    #112768
    Messages:
    1,045
    Gender:
    Male
    First Name:
    They keep callin me cowboy but its not my name...
    Socal but I am still a Southern Florida guy at hea
    Vehicle:
    Toyota Tacoma 4x4 slightly modified
    nothing special.... wanna race?
    The O2 tube is what I was unaware of :p
    apprently 08s and probably other years don't have it.

  20. Oct 18, 2013 at 7:50 AM
    #20
    PepsiManKolt

    PepsiManKolt Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,363
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    I just went back through your pictures and realized that you have a small tube at the top of the header. I know for a fact mind didnt have that lol.

    I also followed the link and thought it was kind of interesting that the only place it says Doug Thorley is talking about the Warranty and in the description. They don't mention it at all in the title.

    I didn't see a build thread or anything. Do you have intake, exhaust, y-pipe and/or URD MAF Controller? The URD MAF controller is what I need next. So far I am happy without doing a y-pipe.
