drewhaus' Cemento build thread

Discussion in '3rd Gen. Builds (2016+)' started by drewhaus, Mar 18, 2019.

  1. Mar 18, 2019 at 7:50 PM
    #1
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma
    So I don't forget everything I do to the truck.

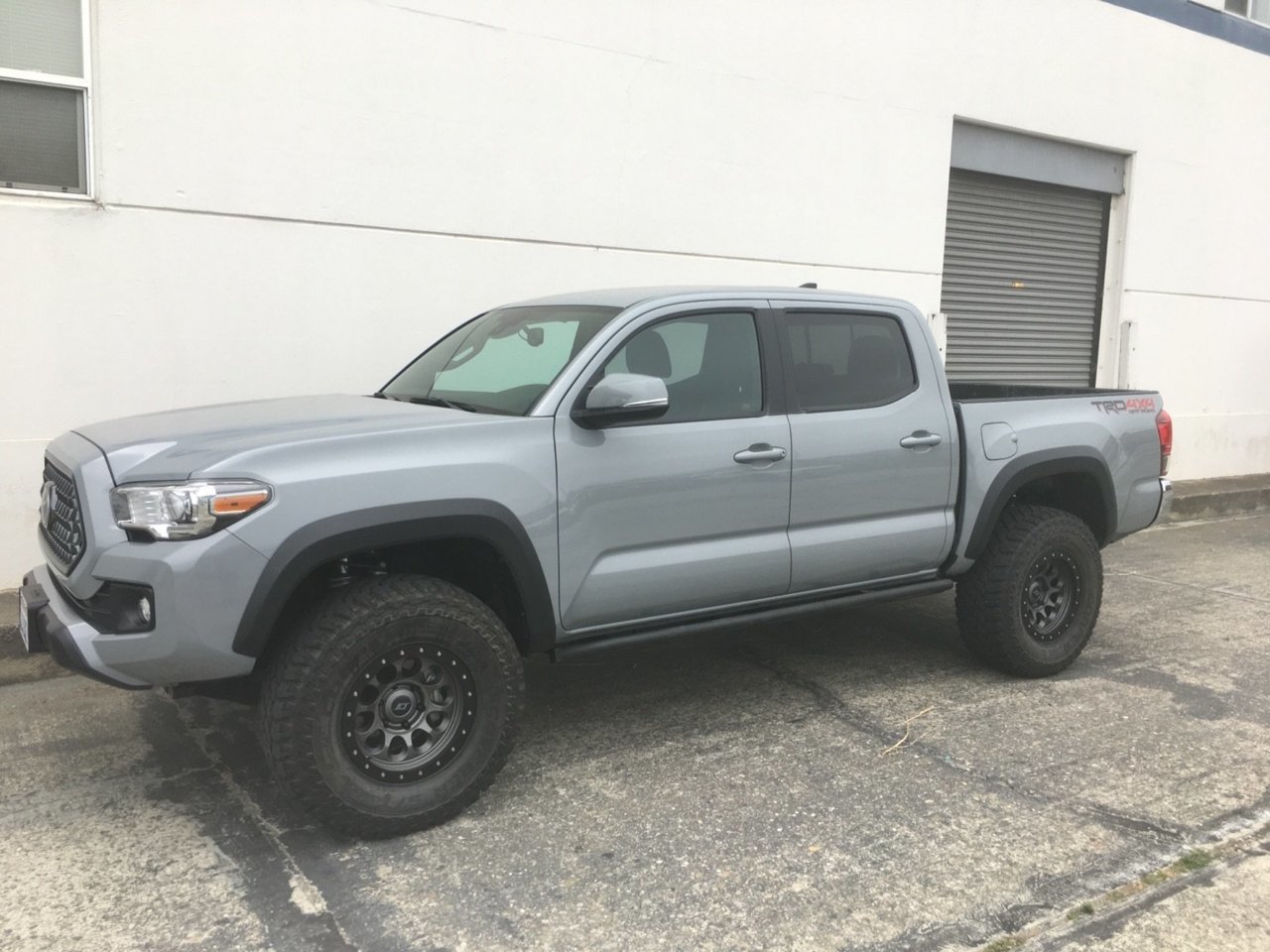

    Current Form:

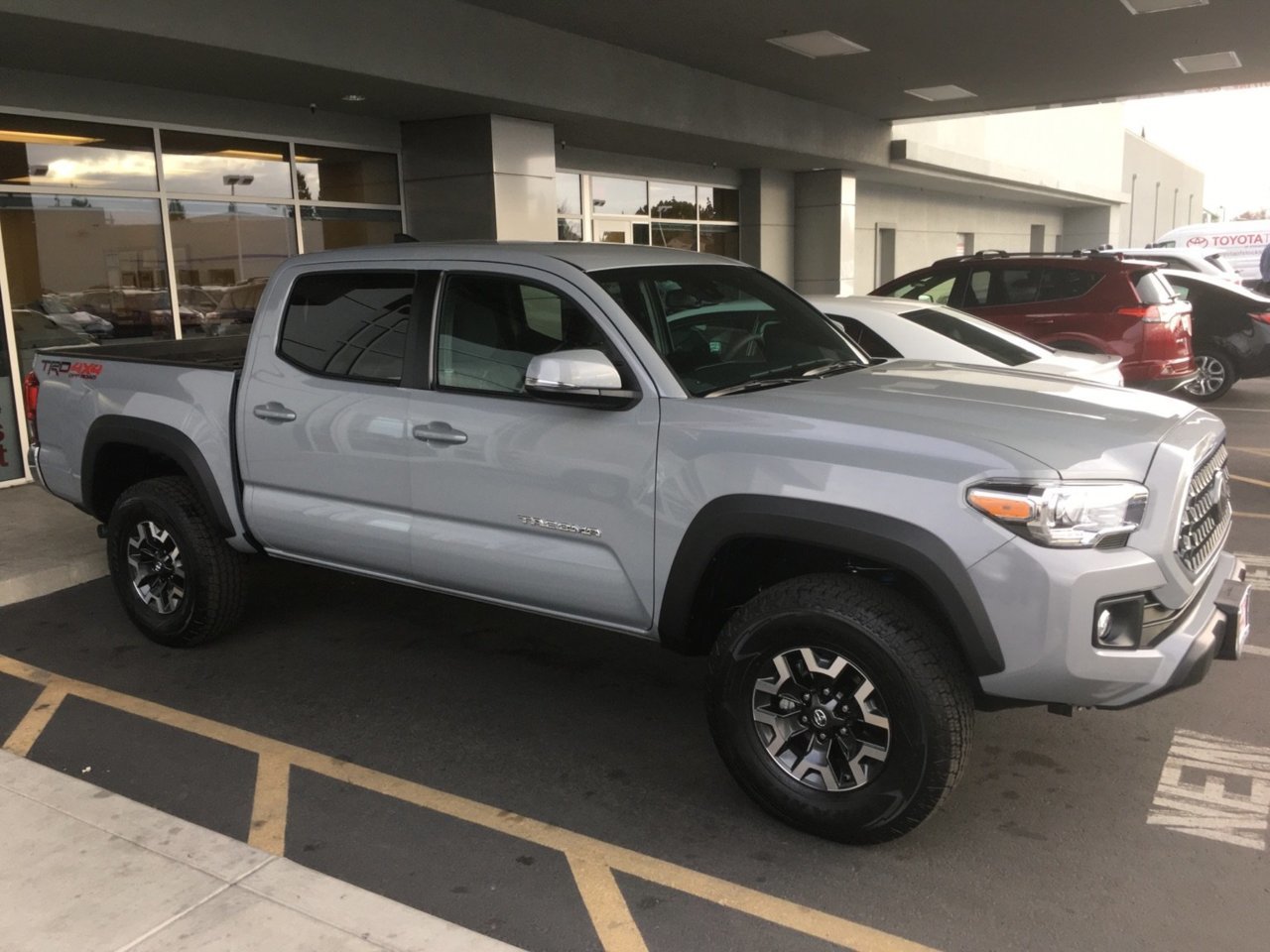

    Purchased at Toyota Town of Stockton, CA a little over a year ago:


    Suspension:
    SPC UCAs
    Fox 2.5 Extended Length Coilovers
    Fox 2.0 Rear Shocks
    HeadStrong 3-Leaf AAL
    Removed Overload Leaf

    Exterior
    :
    SR Black Bezel Grille Surround
    Debadged

    Armor:
    BAMF Bolt on Sliders w/ kick out

    Wheels / Tires:
    Cooper St Maxx 285/75/16
    SCS Ray 10 Gunmetal 16"

    Misc:
    CMC by Milogen Fabrications in San Jose
    Subaru Tweeters
    WeatherTech Floor Mats
    Tacoma Bed Mat
    Tyger Solid Hitch Pin Lock
    Master Flow Tsunami 150PSI Portable Air Compressor
    Boulder Tools Heavy Duty Rapid Tire Deflator
    Additional D-Rings in bed

    Recovery:
    Rhino D-Ring Shackle Hitch Receiver
    X-Bull Traction Boards
    ARB Snatch Strap 17,600 LB

    Last edited: Mar 18, 2019
    Nunya Bizness likes this.
  2. Mar 18, 2019 at 7:54 PM
    #2
    13txtaco

    13txtaco Well-Known Member

    Joined:
    Mar 7, 2016
    Member:
    #180469
    Messages:
    873
    Gender:
    Male
    Katy Texas
    Vehicle:
    2013 Tacoma 4x4
    Nice

    drewhaus [OP] likes this.
  3. Mar 18, 2019 at 7:55 PM
    #3
    Jarlaxle73

    Jarlaxle73 Well-Known Member

    Joined:
    Jan 21, 2019
    Member:
    #280105
    Messages:
    69
    Gender:
    Male
    First Name:
    Clinton
    Newport, Oregon
    Vehicle:
    2019 Crew Cab TRD Off Road
    285/70/17 17 in TRD PRO wheels
    Great looking truck! That is very close to want I want to do with my truck. (As soon as I get it!)

    drewhaus [OP] likes this.
  4. Mar 18, 2019 at 7:56 PM
    #4
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma

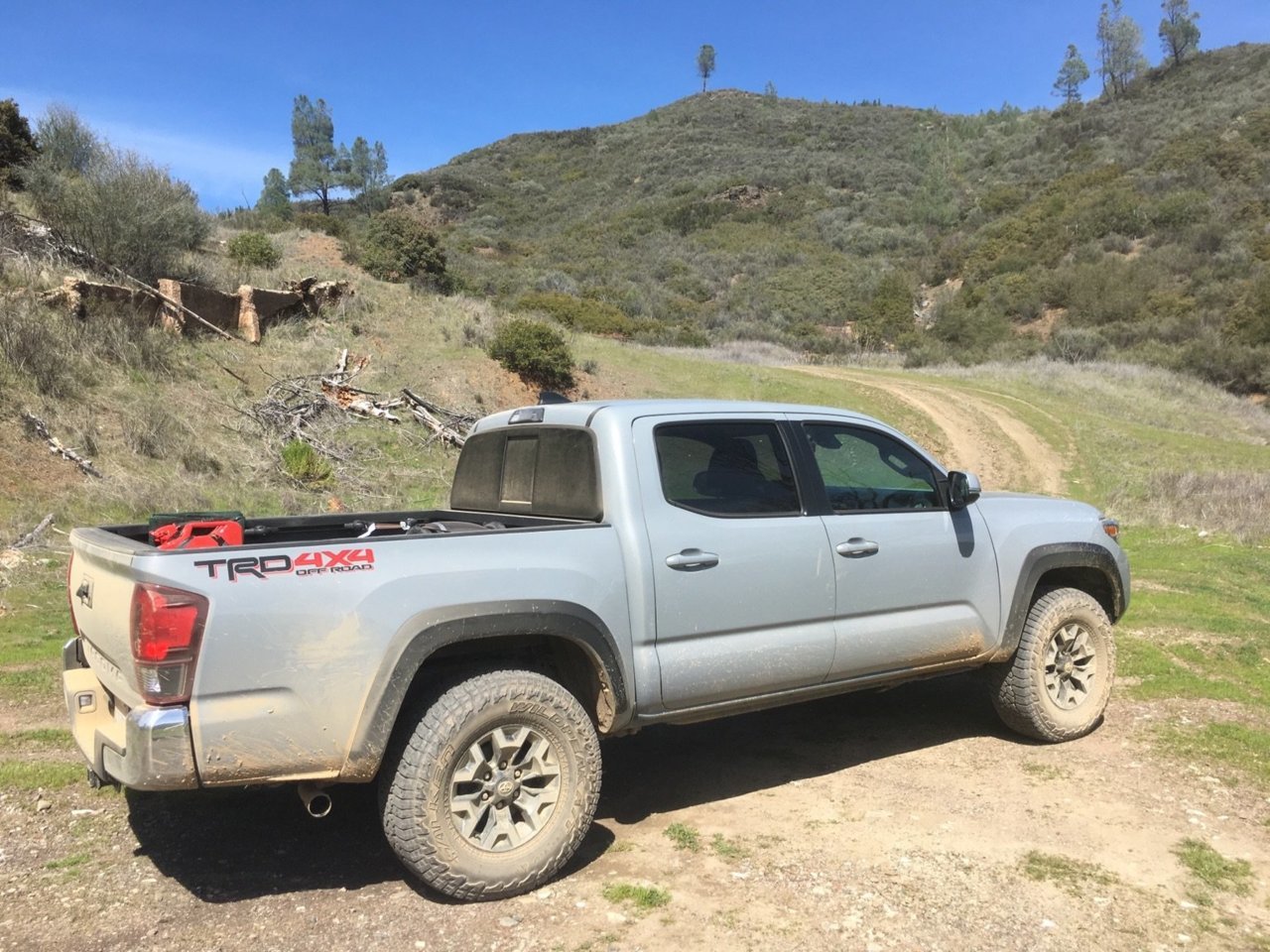

    First trip was to Mendocino National Forest OHV a year ago. At this point I had Falken Wildpeak 265/75/16 AT3Ws and they worked great.

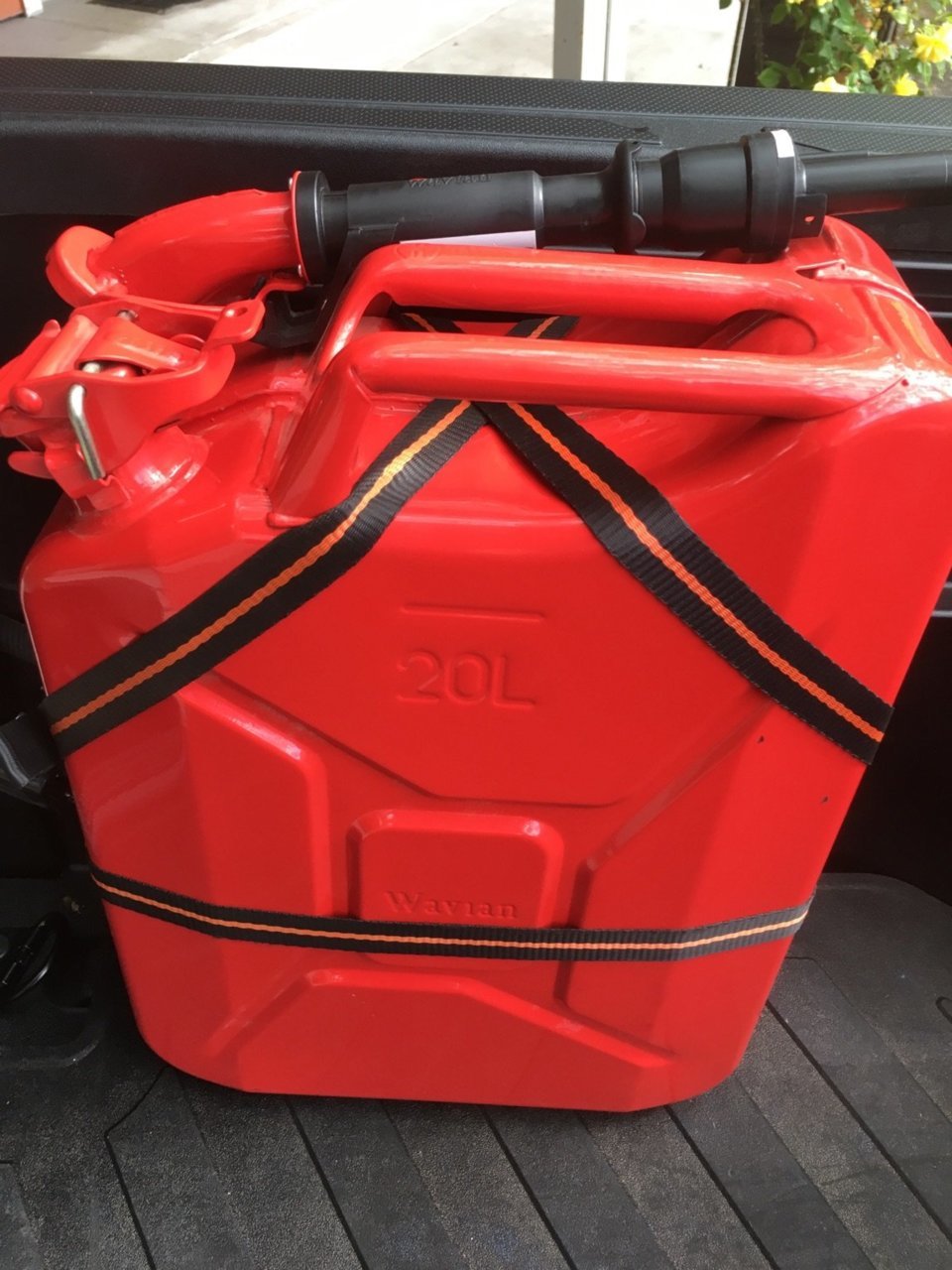

    Also installed four D Rings to hold my Wavian 20L Jerry Can


  5. Mar 18, 2019 at 8:09 PM
    #5
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma

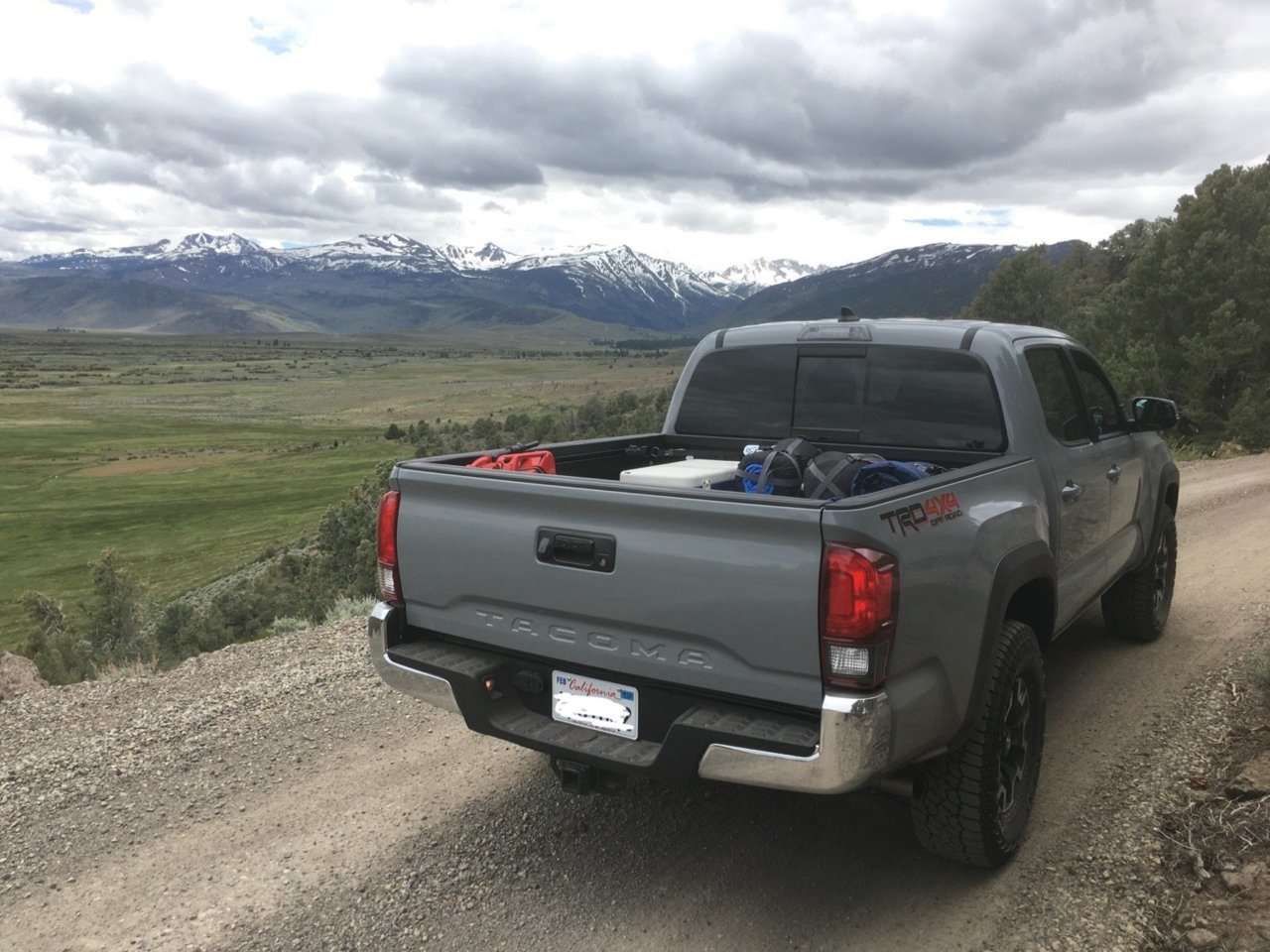

    Pictures from Bodie, CA in May 2018, was able to navigate most of Bodie pretty easily with the 265/75/16 AT3Ws and stock suspension. At times I wish I had a container to put my camping stuff in or a Soft Topper to cover the bed.



  6. Mar 18, 2019 at 8:09 PM
    #6
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma
    Thank you!

  7. Mar 18, 2019 at 8:09 PM
    #7
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma
    Thanks!

  8. Mar 18, 2019 at 8:17 PM
    #8
    Jarlaxle73

    Jarlaxle73 Well-Known Member

    Joined:
    Jan 21, 2019
    Member:
    #280105
    Messages:
    69
    Gender:
    Male
    First Name:
    Clinton
    Newport, Oregon
    Vehicle:
    2019 Crew Cab TRD Off Road
    285/70/17 17 in TRD PRO wheels
    How was the ride after the lift?

    drewhaus [OP] likes this.
  9. Mar 18, 2019 at 8:18 PM
    #9
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma

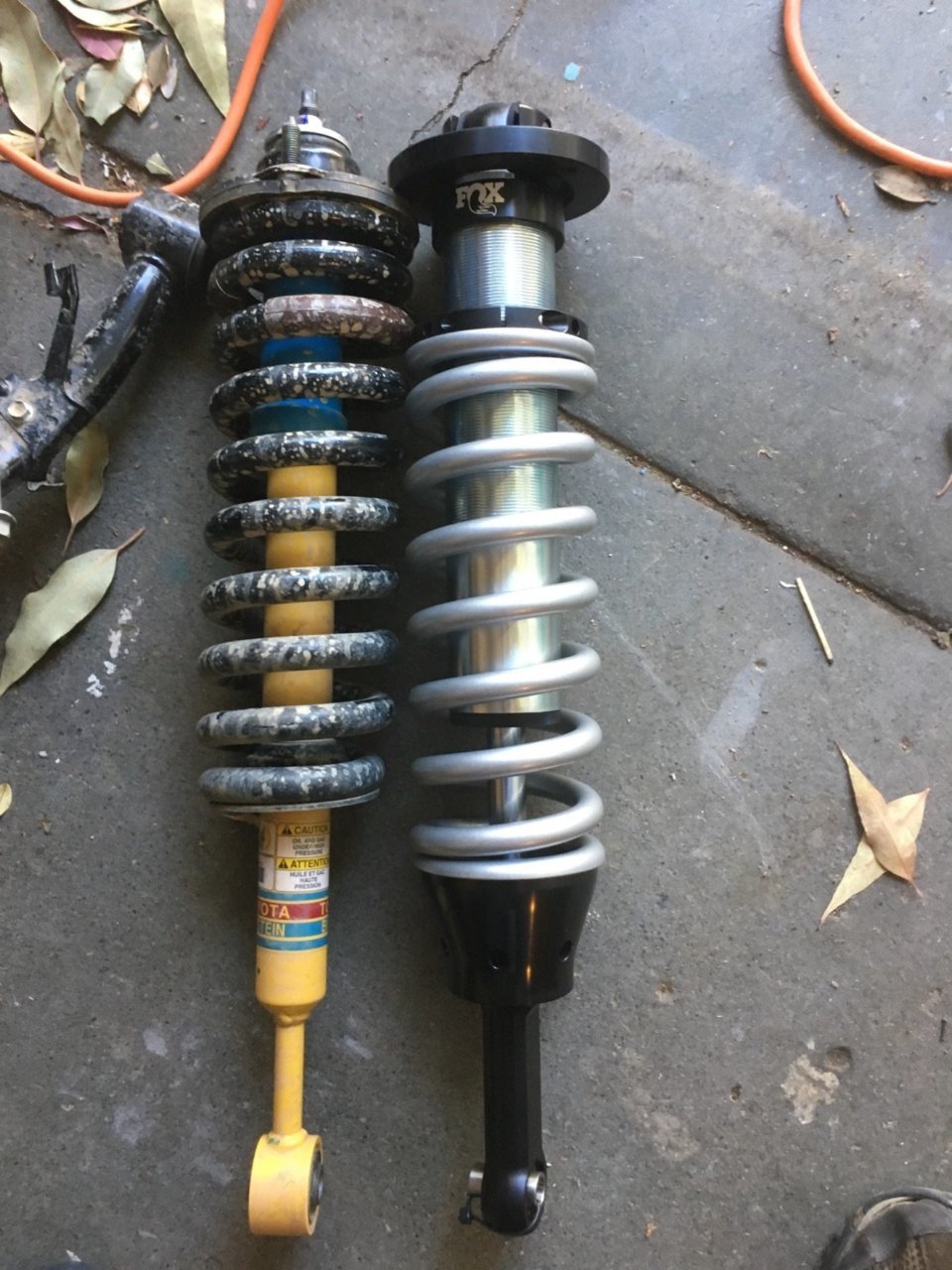

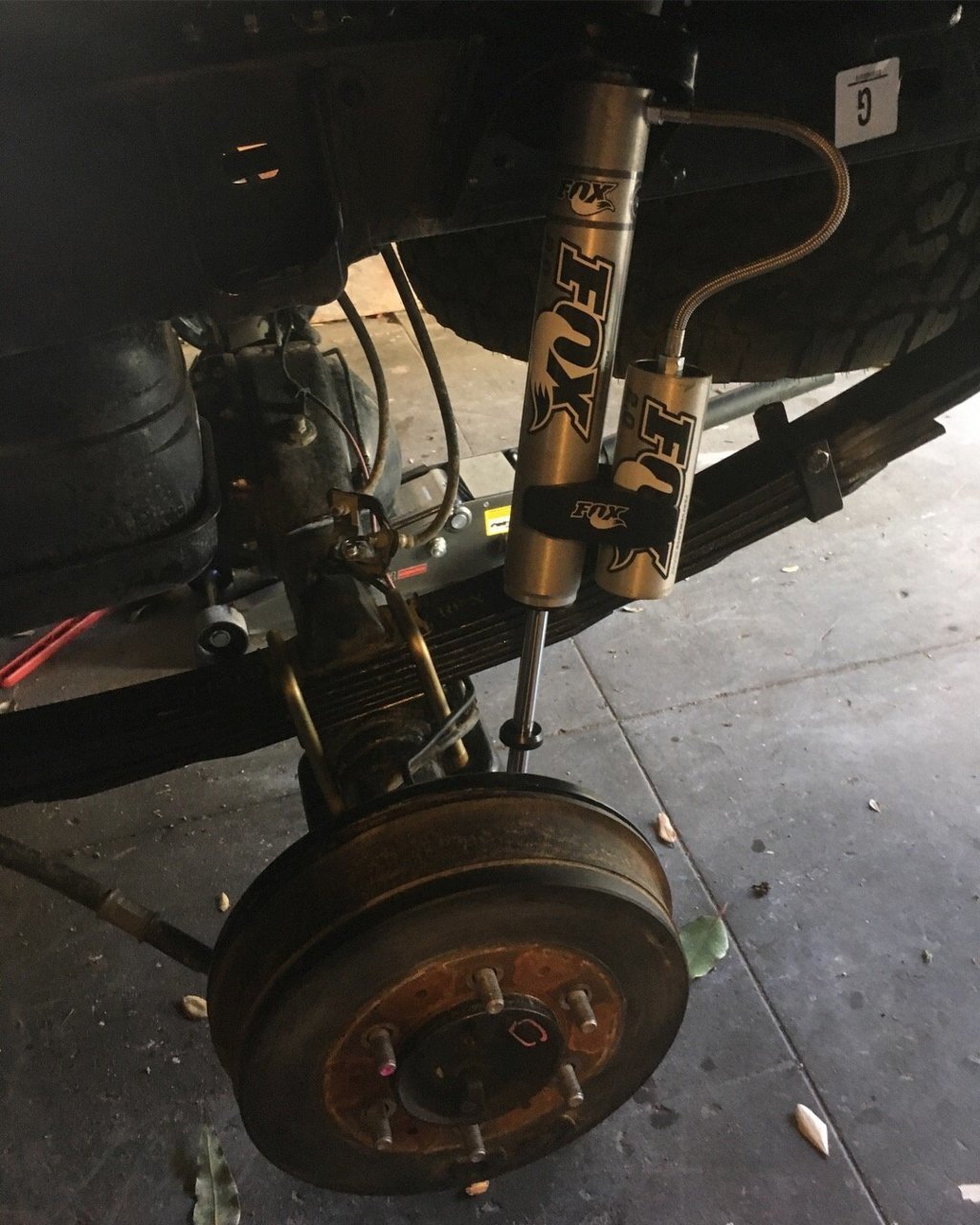

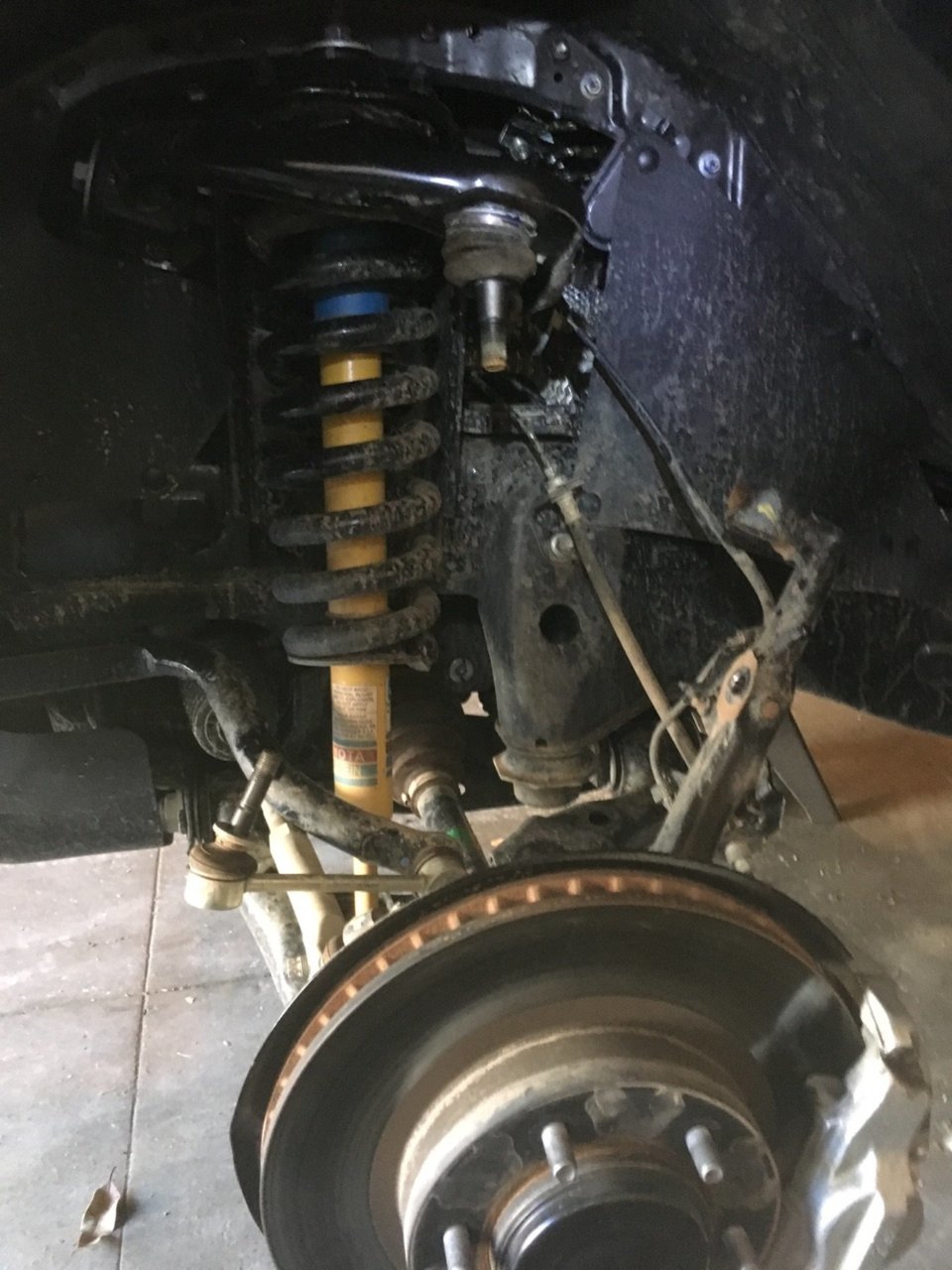

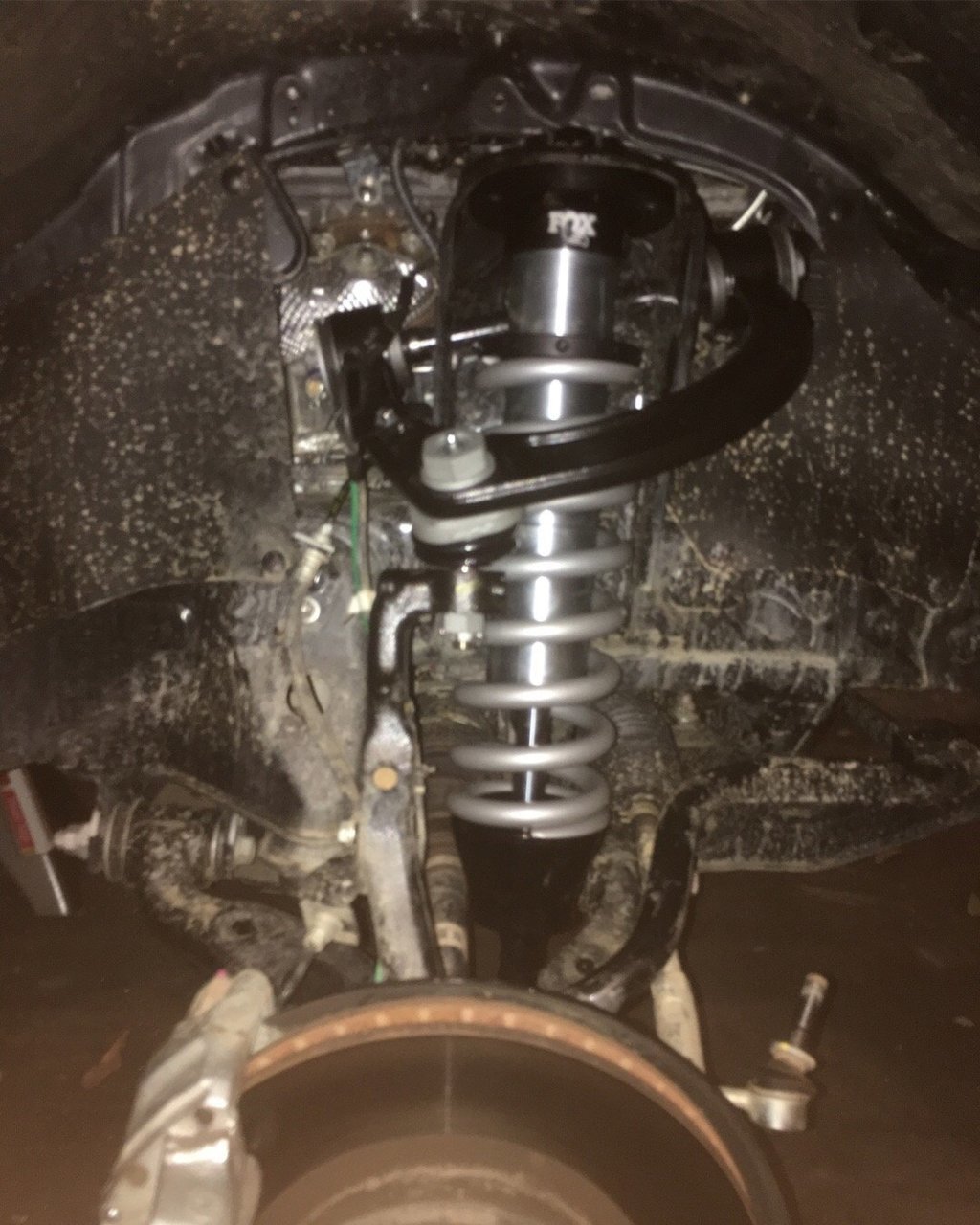

    At the beginning of June 2018 a friend and I installed the Fox Suspension, SPC UCAs, and the 3 Leaf AAL




  10. Mar 18, 2019 at 9:03 PM
    #10
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma
    Much better, especially off road. It's been awhile since I've ridden on stock suspension but I remember it being more floaty and uncontrolled.

  11. Mar 18, 2019 at 9:09 PM
    #11
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma

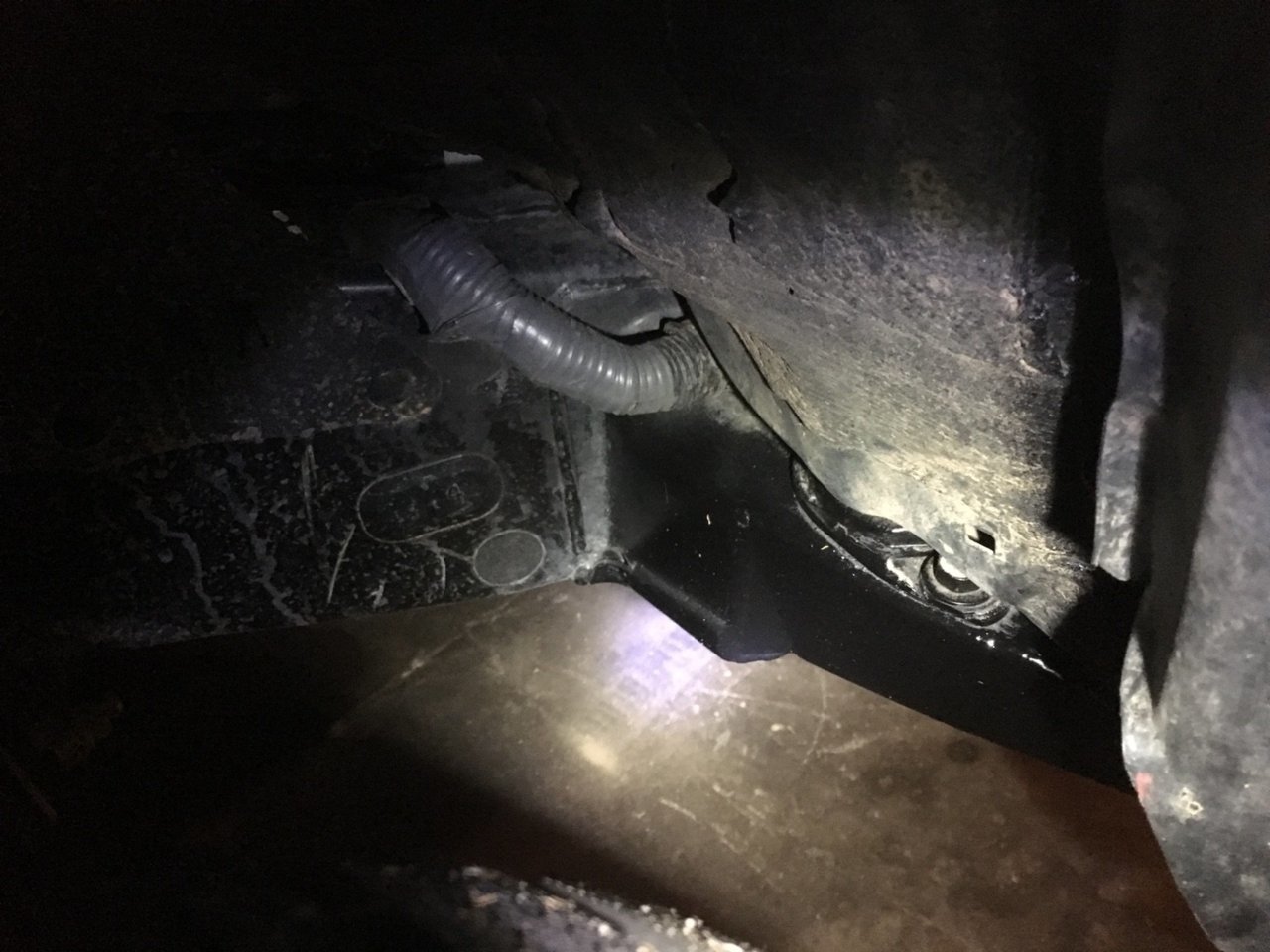

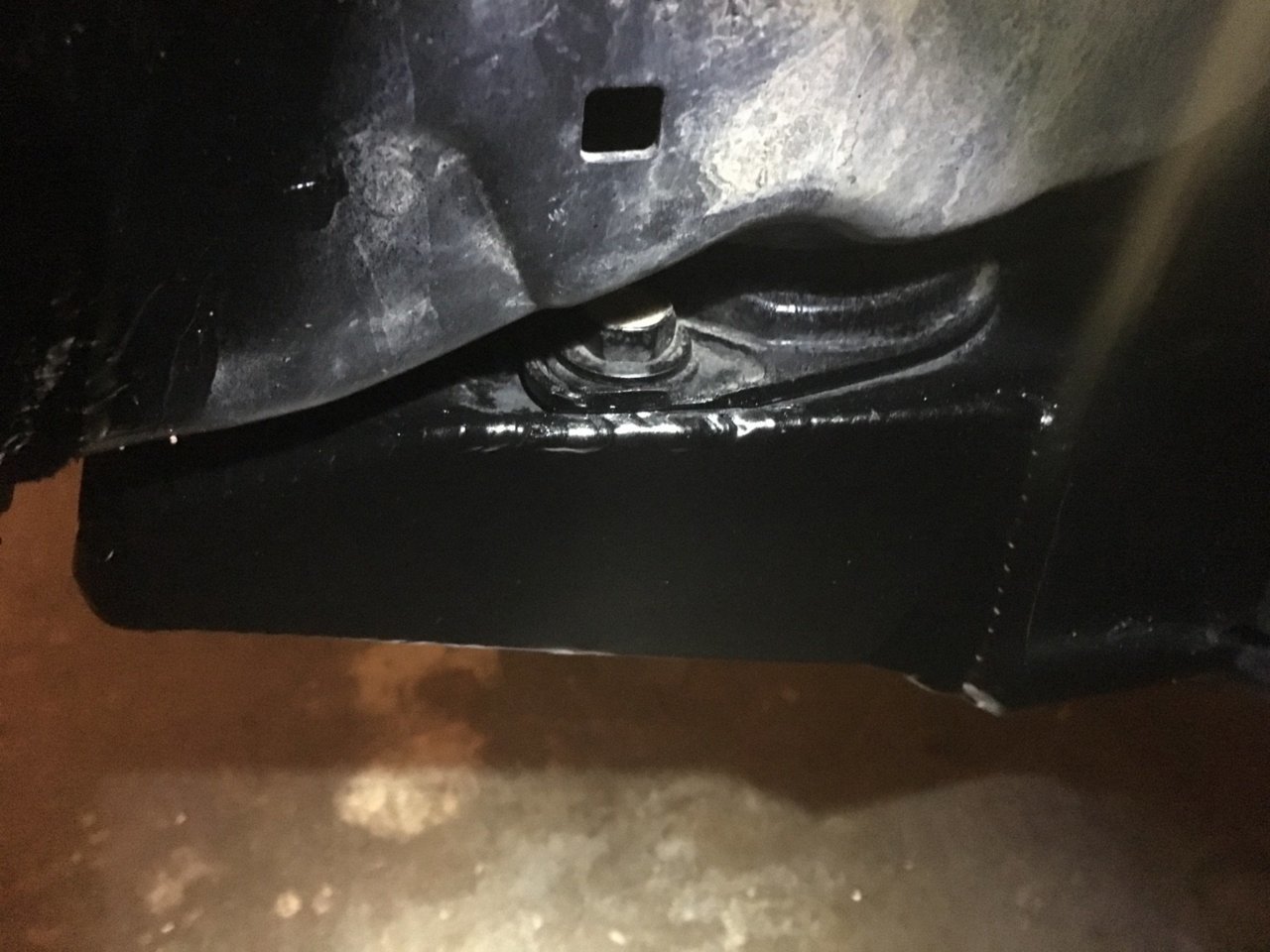

    After the lift was installed I wanted to up my tires from 265/75/16 to 285/75/16. In order to clear the 33s without rubbing a CMC, hammering the pinch weld, and minor fender trim was necessary. The CMC and pinch weld was done by Milogen Fabrications in San Jose. Milo does a great CMC (and other fab work) I highly recommend his shop if you're in the Bay Area.

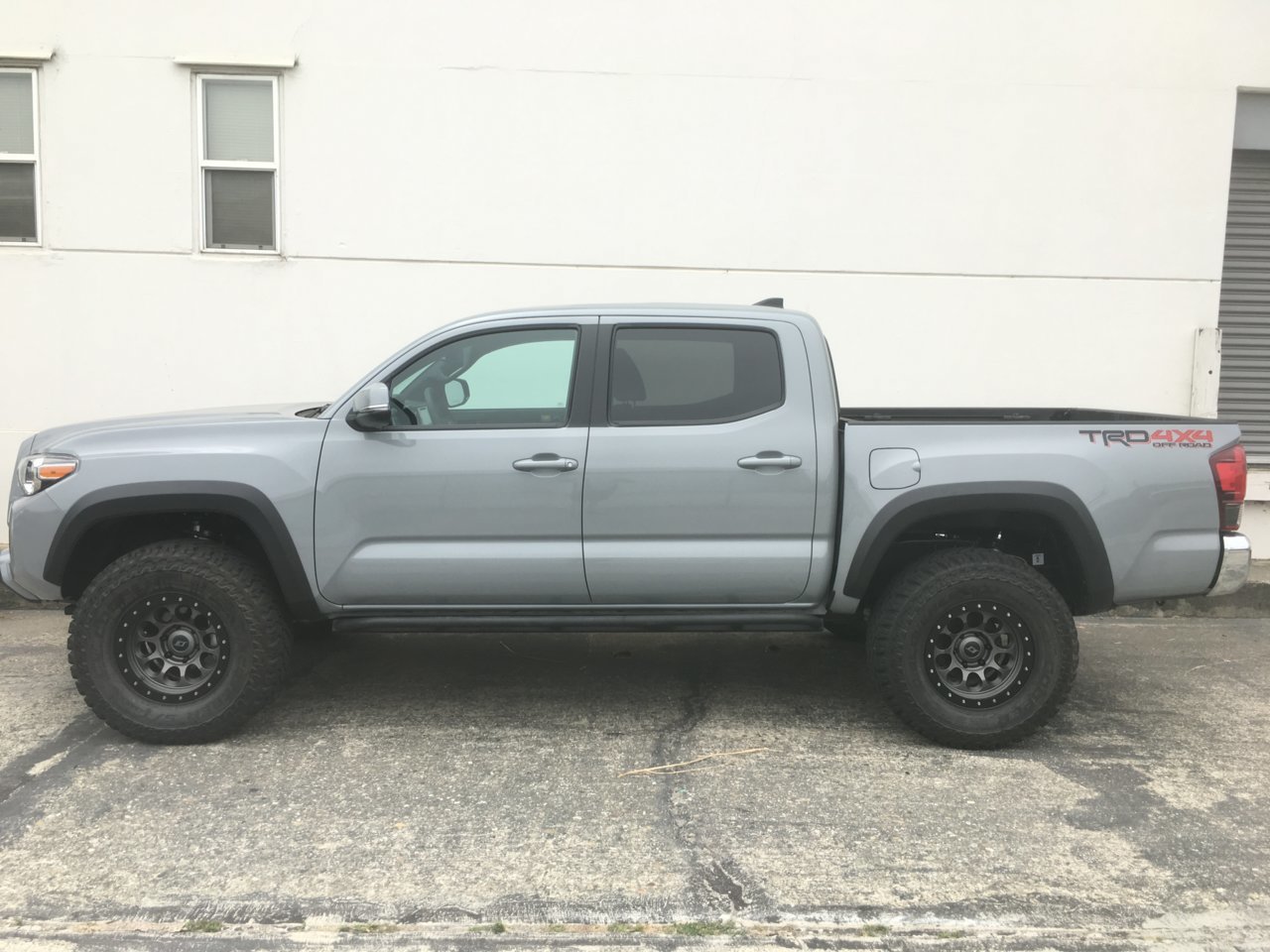

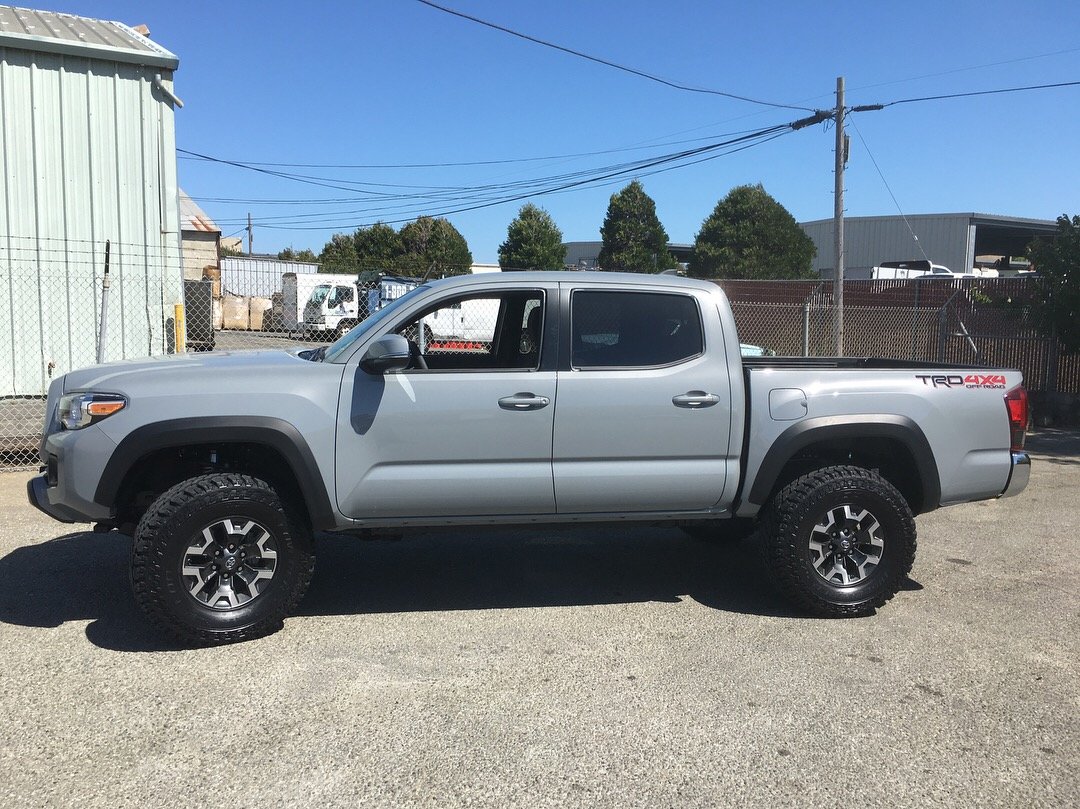

    Picture of the truck with the 33s mounted and lift. Since I was still on OR wheels Spidertrax spacers were needed to clear the SPC UCAs.


  12. Mar 18, 2019 at 9:30 PM
    #12
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma
    Next up was armor, I'd done my research and heard plenty of good things about BAMF. I placed my slider order in around end of March and picked them up mid June. The sliders were beefy and easy to install, well worth the wait.

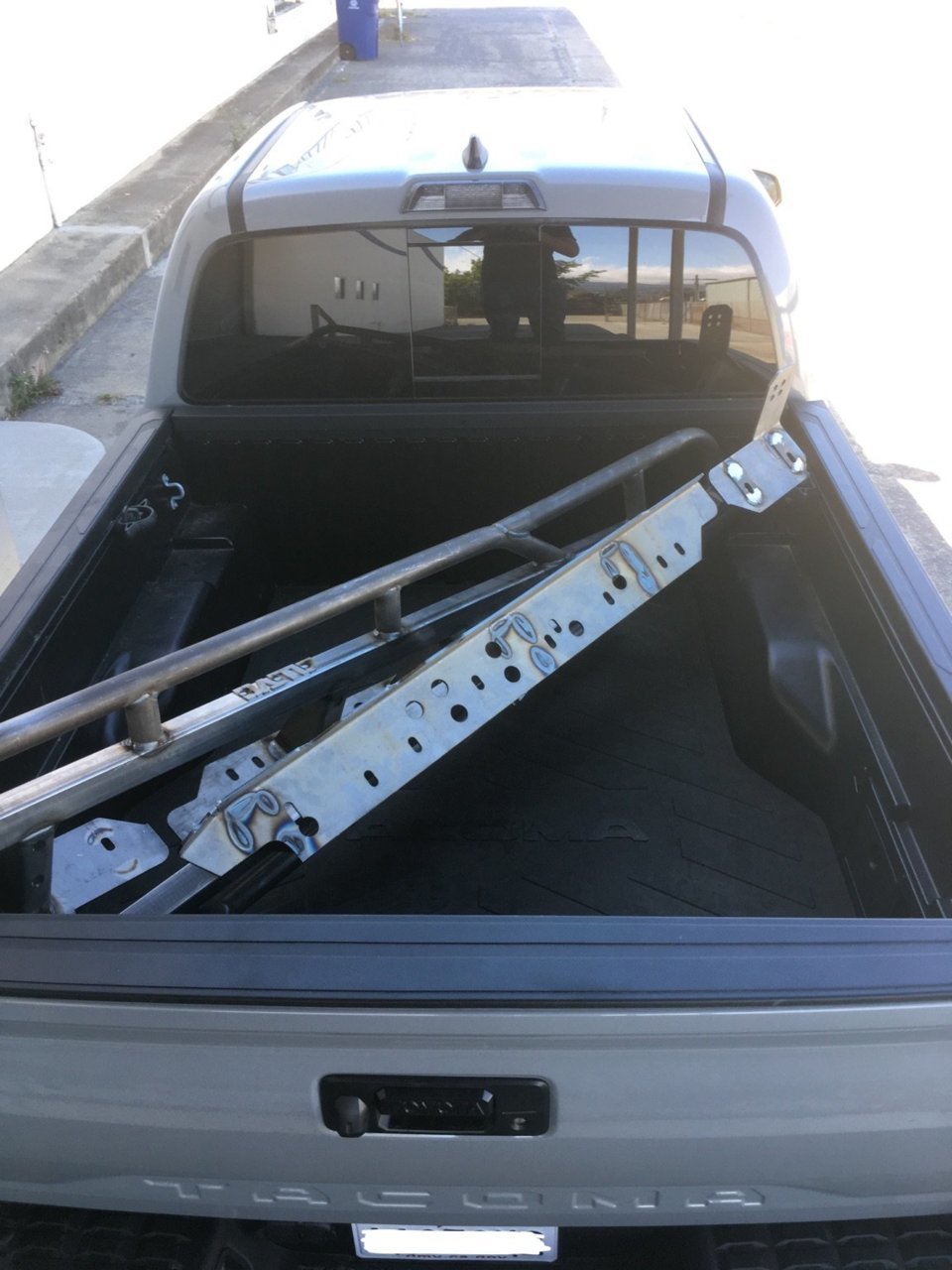

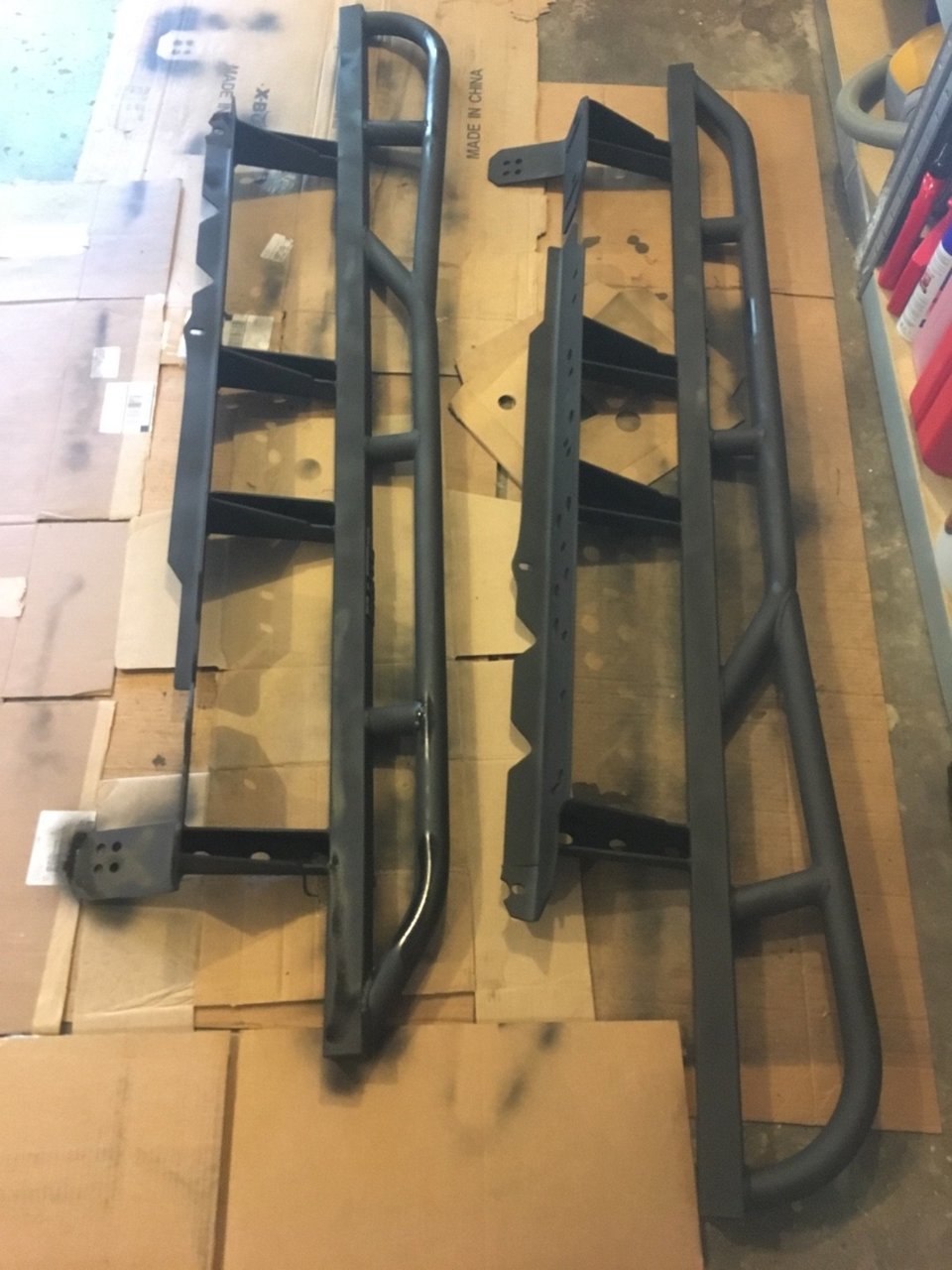

    I ordered the sliders bare metal because I planned on putting them to work and figured it'd be easier to touch them up with a rattle can. My process for prepping was pretty straight forward, sand the sliders down, hit them with Isopropyl Alcohol while scrubbing, then dry them off. For priming I coated them 3-4 times using Rusto Bare Metal Primer waiting about 5 minutes between coats. After 20 minutes I hit them with another 3-4 coats of Rusto Flat Black waiting about 5 minutes between coats. After drying off I staged them for install and touched up any places I missed. I didn't actually get around to installing the sliders for a few weeks because I injured my hand.


    Rusto Flat Black BAMF sliders and SCS Ray 10s in Gunmetal



    Attached Files:

  13. Mar 18, 2019 at 9:34 PM
    #13
    drewhaus

    drewhaus [OP] Well-Known Member

    Joined:
    Feb 28, 2018
    Member:
    #245938
    Messages:
    238
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, CA
    Vehicle:
    2018 Tacoma
    My next goal is to up my recovery gear a bit more. I'm wanting a front bumper, winch, and to swap my 13" 600lb stock coils out for some Eibach 14" 650lb coils so the front doesn't sag. Still need to save a few more dollars before pulling the trigger though!
