Drive Shaft Lube Points 2nd Gen 4WD

Discussion in '2nd Gen. Tacomas (2005-2015)' started by moondeath, Jun 18, 2012.

  1. Jun 18, 2012 at 9:06 AM
    #1
    moondeath

    moondeath [OP] The answer to divorce...... Tequila!

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    5,840
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    2013 TRD Sport DCLB 4x4
    5100 @ 1.75", 1.5" Icon Progressive 3 leaf, Procomp Wheels, Grill Thin Lip (Custom Car Grills Mod), Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    Just lubed the chassis today, but the only zerks are for the u joints. I only count 5 from front to back. Is there no way to lube the slide yolks without taking the boots off? Owners manual says to lube slide yolks with moly. Doesn't make any sense to me that they would say to lube it and not have any way to do it. Truck is a 2011 TRD OffRoad 4WD Access Cab. Heres some pictures. Any input will be appreciated.
    Also, I have the typical thump/bump when I stop and/or start to go. Its been doing that since around the time I bought it new.

    ***Just an FYI, I now have a DCLB 4wd and the lube points are the same as the Access Cab 4wd.***

    **I reloaded these pics. I'm pretty sure they are in the right order. The only ones I'm not positive about would be the 'front differential' and the 'rear transfer case' photos.**

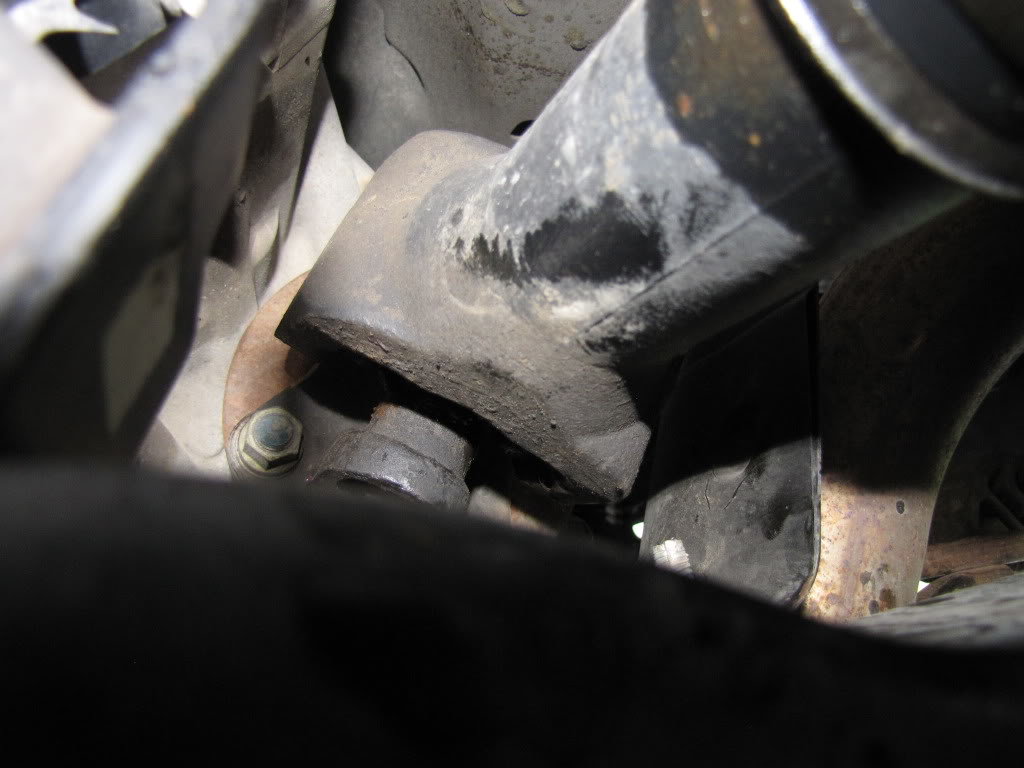

    Front differential

    Front of transfer case ( cant see the zerk from this angle)

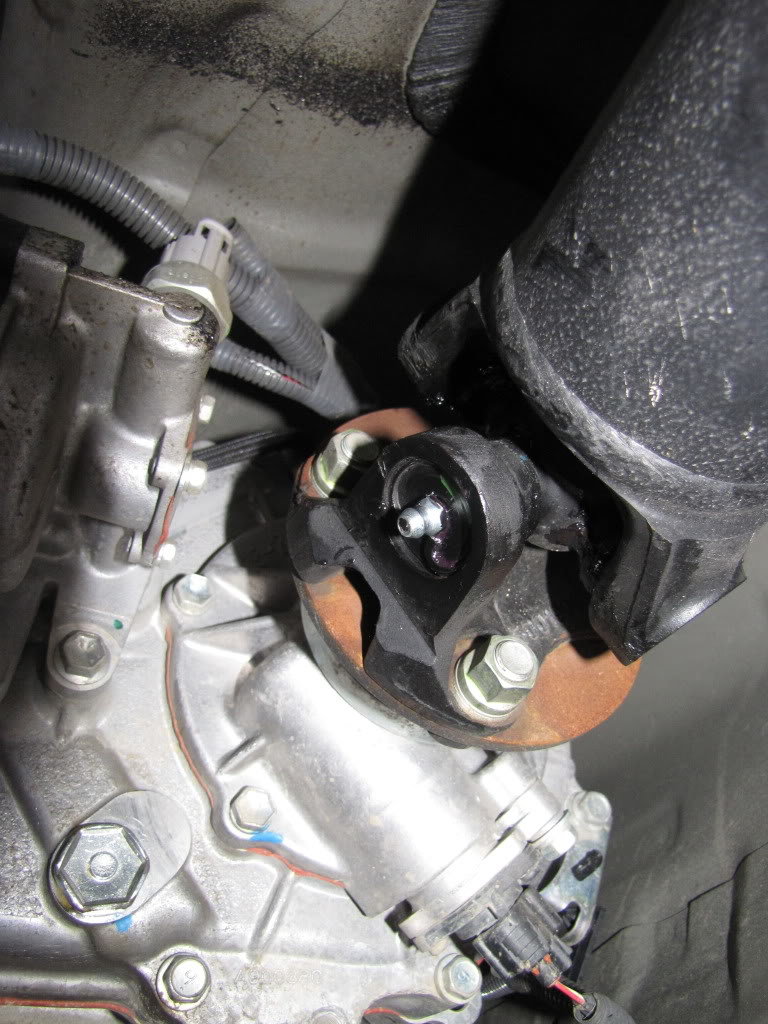

    Rear of transfer case

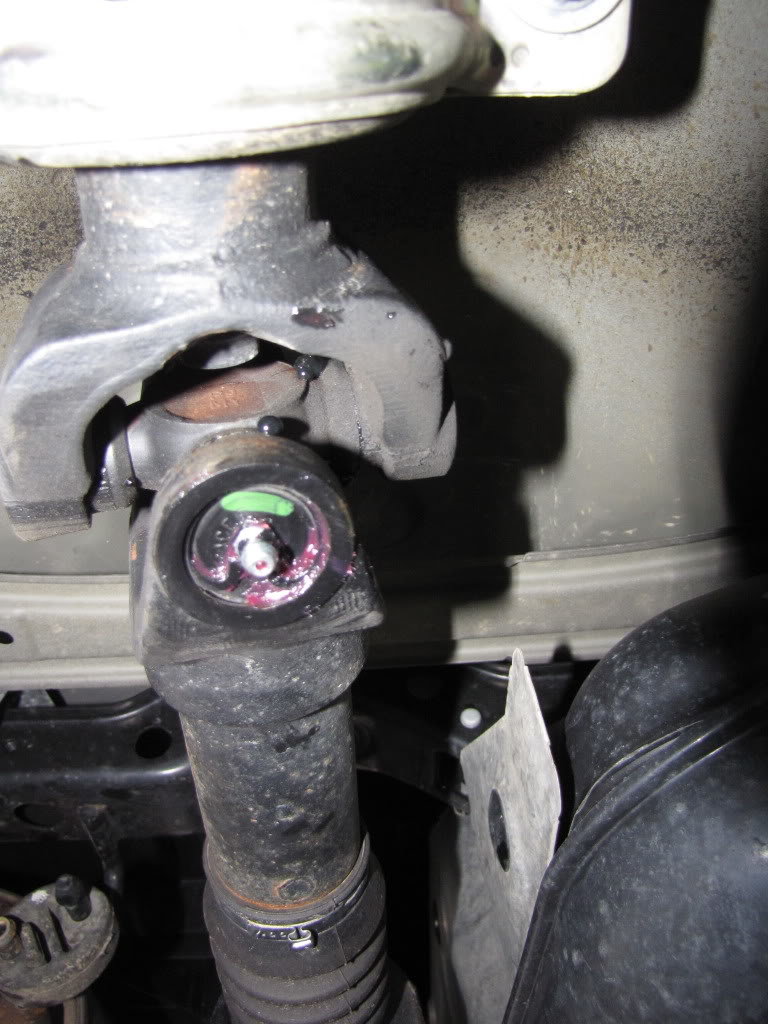

    After carrier bearing

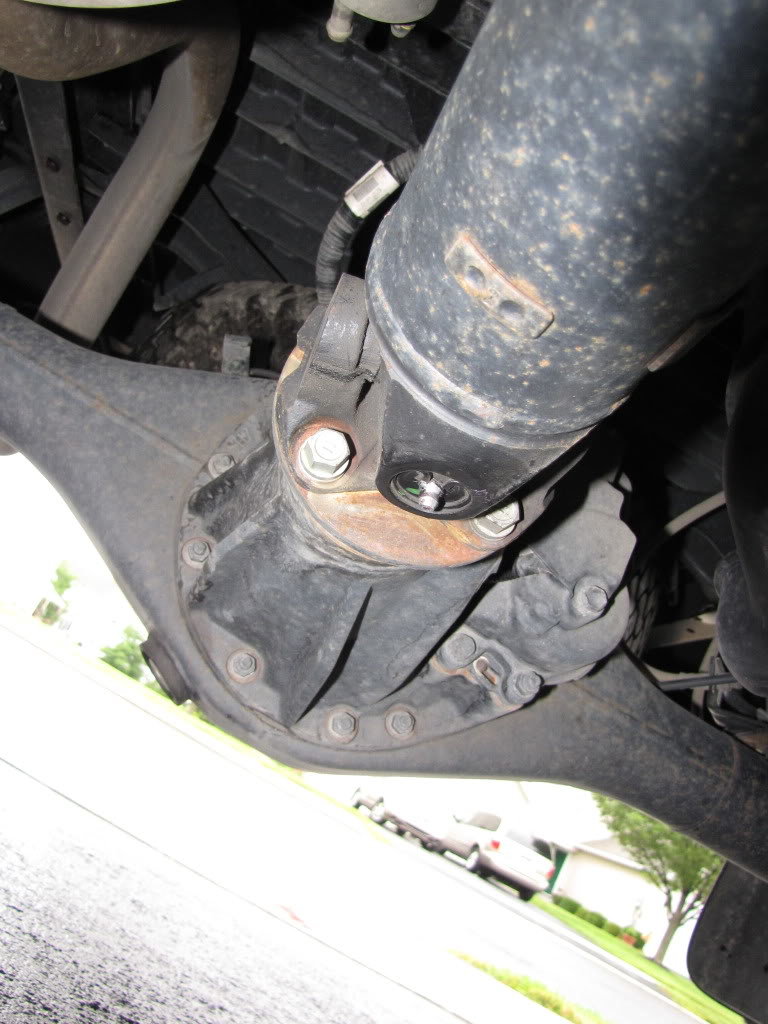

    Rear differential

    Last edited: Aug 31, 2016
