Drive Shaft Vibration After Installing 3 degree axle shims

Discussion in 'Suspension' started by lpfe42, Jun 4, 2018.

  1. Jun 4, 2018 at 6:31 PM
    #1
    lpfe42

    lpfe42 [OP] Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    392
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
    I have a 2017 DCSB OR After the shop installed 3 degree shims to fix a little Vibration then the vibration got worse its happenes when i'm slowing down between 15-5 mph I have the OME EL095R 2.75" Leaf Spring Any help to fix this would be appreciated

  2. Jun 5, 2018 at 11:14 AM
    #2
    STexaslovestacos

    STexaslovestacos Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205817
    Messages:
    434
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2017 MT TRD OR
    You need to actually go out and measure your angles. You don't solve driveline vibrations by blindly throwing parts at things.

    In short, you want your axle nose to be just barely nose-down from parallel with your transmission output (like -0.3 degrees from exactly parallel) and your driveshaft halves need to be almost, but not perfectly, straight with respect to each other.

    I just put Dakars on my truck and found that they were arched perfectly to get the axle angle correct, and all I had to do was shim the carrier bearing down to get the driveshaft stubs close to being in line.

    Toynado and lpfe42 [OP] like this.
  3. Jun 5, 2018 at 12:15 PM
    #3
    lpfe42

    lpfe42 [OP] Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    392
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca
    Thank you for the info:thumbsup:

    STexaslovestacos likes this.
  4. Jun 5, 2018 at 12:16 PM
    #4
    STexaslovestacos

    STexaslovestacos Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205817
    Messages:
    434
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2017 MT TRD OR
    Harbor Freight sells a digital angle-finder doohickey for like $40! I'd recommend using a good metal ruler or something and checking your nose angle using the u-joint bolts as a flat surface.

    For reference, you want a slight nose-down on the axle nose because it will want to rotate upwards under power, so if you put it slightly nose down it should pretty much line up once you apply the fun pedal.

    The driveshaft stubs need to be ever-so-slightly off from each other because otherwise the u-joints won't keep themselves lubricated. less than a degree is the target.

  5. Jun 5, 2018 at 12:24 PM
    #5
    Littles

    Littles Stupid is as stupid does.

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    2,491
    Gender:
    Male
    First Name:
    Bryan
    Castle Rock, CO
    Vehicle:
    3 tons of fun
  6. Jun 5, 2018 at 12:56 PM
    #6
    STexaslovestacos

    STexaslovestacos Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205817
    Messages:
    434
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2017 MT TRD OR
  7. Jun 5, 2018 at 1:31 PM
    #7
    lpfe42

    lpfe42 [OP] Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    392
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    20 DCSB CEMENT
    5100/887 Icon uca

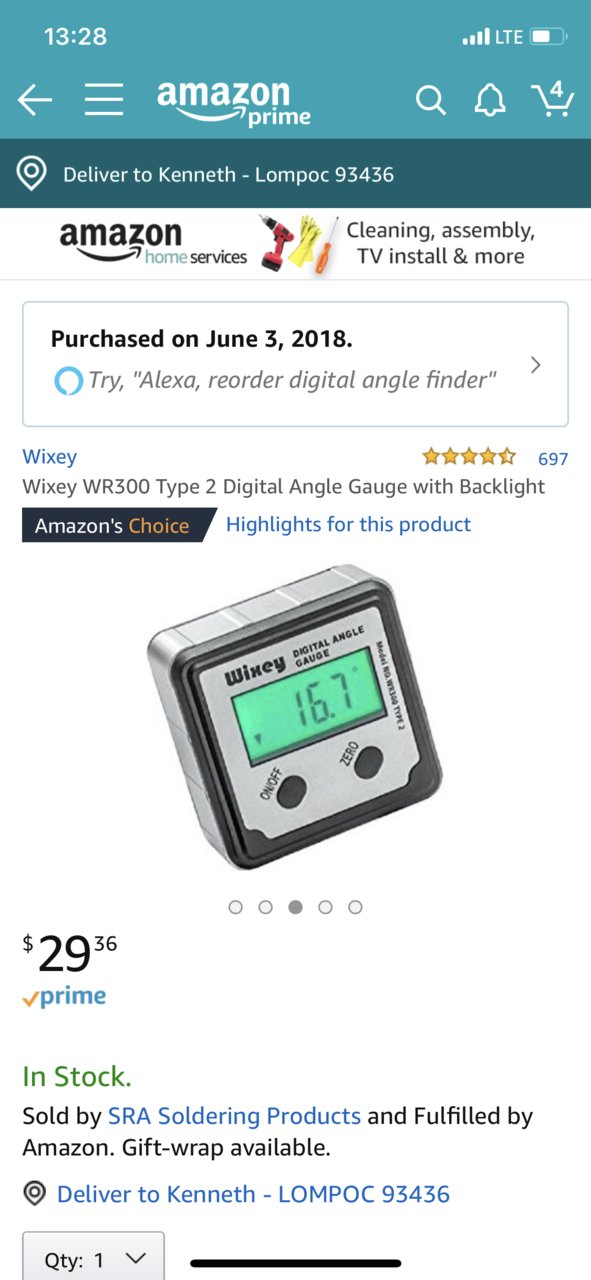

    I have One of these on order


    STexaslovestacos likes this.
  8. Apr 12, 2019 at 1:27 AM
    #8
    Vjtrey1

    Vjtrey1 Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255076
    Messages:
    127
    Gender:
    Male
    Houston, Tx
    Vehicle:
    2018 Super White Tacoma TRD OR DCSB
    Simple mods
    Hey buddy I did the same thing but I experiencing deceleration shudder at 25-15 mph. Here is my measurements.

    TC 2.8
    1st shaft 7.2
    2nd shaft 7.5
    Pinion 3.0

    TC - Pinion = 0.2
    2nd joint near cb= 0.3

    1st joint - 4.4
    2nd joint - 0.3
    3rd joint - 4.5

    Hope you can help me thanks.

    unk likes this.
  9. Apr 27, 2019 at 1:21 PM
    #9
    surfyota

    surfyota Well-Known Member

    Joined:
    May 26, 2016
    Member:
    #187998
    Messages:
    187
    Gender:
    Male
    First Name:
    mike
    Tampa, Florida
    Vehicle:
    17 mgm dcsb Trd sport 4x4
    Lifted, kmc 17x9, Cooper 33s, katzskin leather, topper, front bumper light bar.
    If it only happens when slowing down could possibly be the brakes. You don't have an vibes while accelerating or highway speeds?

  10. May 8, 2019 at 8:58 PM
    #10
    whatjones911

    whatjones911 Well-Known Member

    Joined:
    Feb 13, 2016
    Member:
    #178058
    Messages:
    126
    Gender:
    Male
    Vehicle:
    2018 DCSB OR 4x4 MT
    What size carrier bearing drop did you use to get those angles?

  11. May 9, 2019 at 9:42 PM
    #11
    08BajaBoy

    08BajaBoy Well-Known Member

    Joined:
    Oct 3, 2010
    Member:
    #44164
    Messages:
    389
    Gender:
    Male
    First Name:
    Brian
    Southern Cal
    Vehicle:
    08 Rugged Trail PreRunner
    AFE Pro Dry S air filter, Magnaflow muffler, FabTech DirtLogic UCA, FabTech 2.5 remote resi (front) and 2.25 remote resi (rear)
    @lpfe42 how many miles do you have on you're rig? Did you add a larger tire size when you added the leaf springs? Did you make sure the ubolts were torqued to spec?

  12. May 10, 2019 at 2:21 PM
    #12
    Vjtrey1

    Vjtrey1 Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255076
    Messages:
    127
    Gender:
    Male
    Houston, Tx
    Vehicle:
    2018 Super White Tacoma TRD OR DCSB
    Simple mods
    Update I already fixed the issue, i removed the cb drop and install the 3 degree axle shim. Fixed the problem!

    whatjones911 and LostHusker like this.
  13. May 10, 2019 at 3:24 PM
    #13
    whatjones911

    whatjones911 Well-Known Member

    Joined:
    Feb 13, 2016
    Member:
    #178058
    Messages:
    126
    Gender:
    Male
    Vehicle:
    2018 DCSB OR 4x4 MT
    @Vjtrey1 did you happen to measure the angles?

  14. May 10, 2019 at 3:36 PM
    #14
    Vjtrey1

    Vjtrey1 Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255076
    Messages:
    127
    Gender:
    Male
    Houston, Tx
    Vehicle:
    2018 Super White Tacoma TRD OR DCSB
    Simple mods
    Sorry i didn't i was tired as f*** adjusting the angles. No matter how perfect your angles are if the diff axle is warping in various speed it will shrud or vib so what happen is when you accelerate the rear diff goes up and when slowing down it goes down. In my case my rear diff angle is pointing down due to lift but not too much. So when I am slowing down to 30mph it shudder. I fixed it by installing axel shims which is 3 degree pointed side facing front compensate with the axle warp.

    whatjones911 likes this.
  15. May 10, 2019 at 3:40 PM
    #15
    Vjtrey1

    Vjtrey1 Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255076
    Messages:
    127
    Gender:
    Male
    Houston, Tx
    Vehicle:
    2018 Super White Tacoma TRD OR DCSB
    Simple mods
    I used 2 flat thick washer stock together. I got it from lowes.

  16. May 10, 2019 at 8:05 PM
    #16
    whatjones911

    whatjones911 Well-Known Member

    Joined:
    Feb 13, 2016
    Member:
    #178058
    Messages:
    126
    Gender:
    Male
    Vehicle:
    2018 DCSB OR 4x4 MT
    Happy to hear you’ve reached a vibration free setup.

    My best combo I’ve discovered so far is a 4* degree shim and a 1/2 inch carrier bearing drop. Only take off shudder 5-10 mph, a lot less violent shudder than at 3* shim. No deceleration vibration, which it had as stock from day one so that’s an improvement.

    I’m pretty much defeated. I will just stick with the take off shudder. It seems to me the center working angle needs to be close to zero as possible. I could drop the carrier bearing more but that would bring the TC working angle well over 5* and that itself will introduce new vibrations.

  17. May 10, 2019 at 8:33 PM
    #17
    Vjtrey1

    Vjtrey1 Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255076
    Messages:
    127
    Gender:
    Male
    Houston, Tx
    Vehicle:
    2018 Super White Tacoma TRD OR DCSB
    Simple mods
    Try to remove the cb drop and see unless you tried it already.

  18. May 10, 2019 at 8:48 PM
    #18
    TheGoat

    TheGoat Well-Known Member

    Joined:
    Jun 26, 2013
    Member:
    #107094
    Messages:
    1,098
    Gender:
    Male
    First Name:
    Justin
    Greenville, SC
    Vehicle:
    White 07 SR5 4x4 6spd
    OME 885 springs on 90000 shocks, sway bar removed 1.5" AAL on 285/75/16s
    Last edited: May 10, 2019
    SR-71A likes this.
  19. May 10, 2019 at 8:53 PM
    #19
    whatjones911

    whatjones911 Well-Known Member

    Joined:
    Feb 13, 2016
    Member:
    #178058
    Messages:
    126
    Gender:
    Male
    Vehicle:
    2018 DCSB OR 4x4 MT
    Tried that. It made it worse. The 4* and CB drop has the least shudder from the many combos I tried.

  20. May 10, 2019 at 10:22 PM
    #20
    Murkules

    Murkules Well-Known Member

    Joined:
    Feb 12, 2012
    Member:
    #72702
    Messages:
    312
    Gender:
    Male
    First Name:
    Dane
    Hawaii
    Vehicle:
    2016 Tacoma TRD Offroad DCSB Super White
    Did you face the shims the correct way? had a friend complain about the same issue, turned out he had the skinnier side facing the rear..
