Driver's Side Engine Bay to Cab Grommet for Wiring? - 2nd Gen

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Geronimo1111, Mar 29, 2021.

  1. Mar 29, 2021 at 4:55 PM
    #1
    Geronimo1111

    Geronimo1111 [OP] Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198162
    Messages:
    345
    Gender:
    Male
    Ventura, Flagstaff & Phoenix
    Vehicle:
    '07 Silver Streak Mica 2.7L AC
    Ride-Rites LEER 100 XQ Cap Homemade Bedslider Bilsteins
    Are there any other grommets for passing wire from the engine bay (battery) through the cab?

    I see a lot of people use the large grommet, but that some also say there are some smaller grommets in that area (behind the brake booster)...they were talking about 3rd gens...don't know if that applies to 2nd gens as well.

    I'm trying to run 10ga to the bed storage compartment for 12v outlet and other accessory installs...I was thinking of going under the driver's side floorboard trim and out that grommet there.

    Any tips on routing through the grommet on the side of the driver's seat would be greatly appreciated...it seems like it tucked under the seat a bit and a little difficult to access. :thumbsup:

  2. Mar 29, 2021 at 5:10 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    8,708
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Geronimo1111[OP] and whatstcp like this.
  3. Mar 29, 2021 at 5:17 PM
    #3
    Geronimo1111

    Geronimo1111 [OP] Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198162
    Messages:
    345
    Gender:
    Male
    Ventura, Flagstaff & Phoenix
    Vehicle:
    '07 Silver Streak Mica 2.7L AC
    Ride-Rites LEER 100 XQ Cap Homemade Bedslider Bilsteins
    It's going to be running a Dometic 95 fridge/freezer using the Dometic hardwiring kit...They recommended going straight to the battery.

    Would tying in to the battery junction box work for that much draw?

    And, honestly, I don't even know what the junction box is or where it is located...Any advice in this area would be greatly appreciated.


    Last edited: Mar 29, 2021
  4. Mar 29, 2021 at 5:26 PM
    #4
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    8,708
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    How many amps are you needing back there?

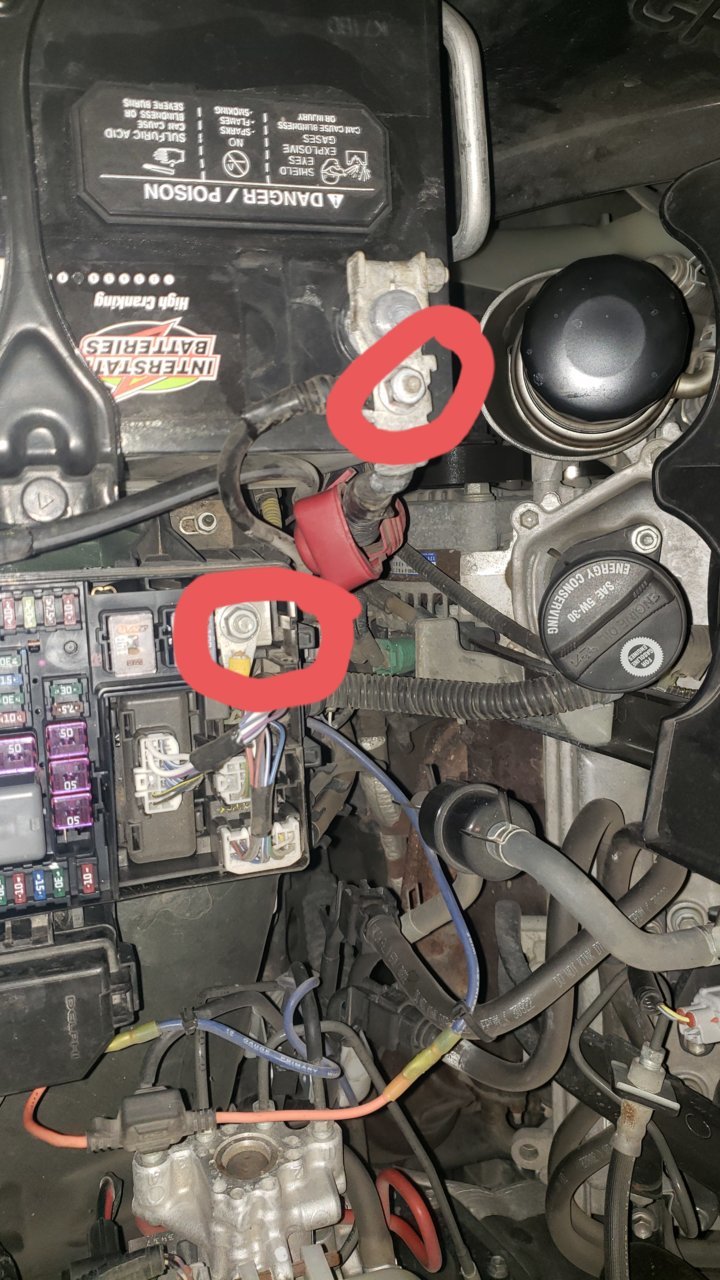

    If you just want constant battery power I would put it on one of the 2 posts I circled just make sure you use the apropriate sized fuse inline. 20210329_192331.jpg

    Geronimo1111[OP] likes this.
  5. Mar 29, 2021 at 5:44 PM
    #5
    Geronimo1111

    Geronimo1111 [OP] Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198162
    Messages:
    345
    Gender:
    Male
    Ventura, Flagstaff & Phoenix
    Vehicle:
    '07 Silver Streak Mica 2.7L AC
    Ride-Rites LEER 100 XQ Cap Homemade Bedslider Bilsteins

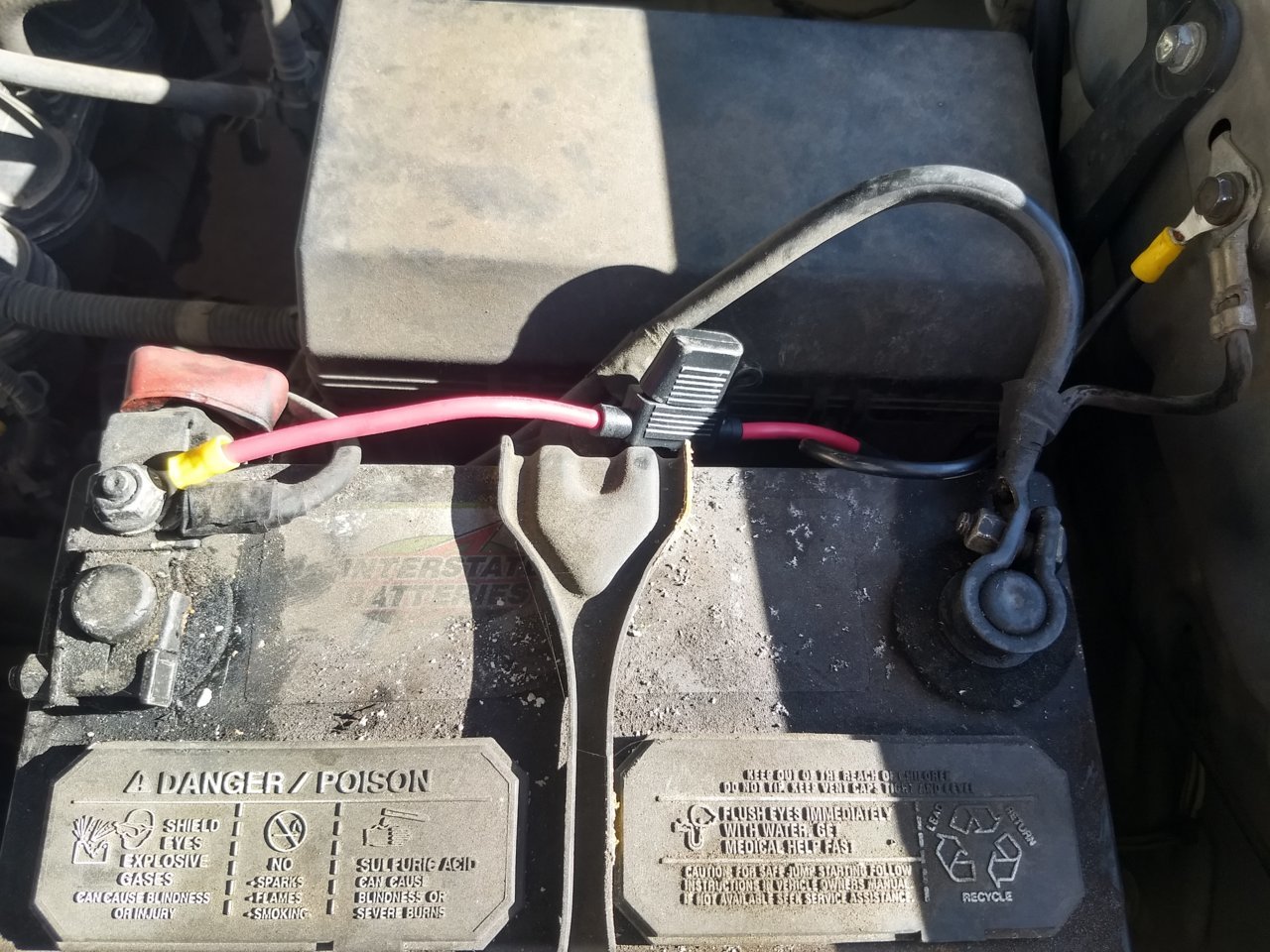

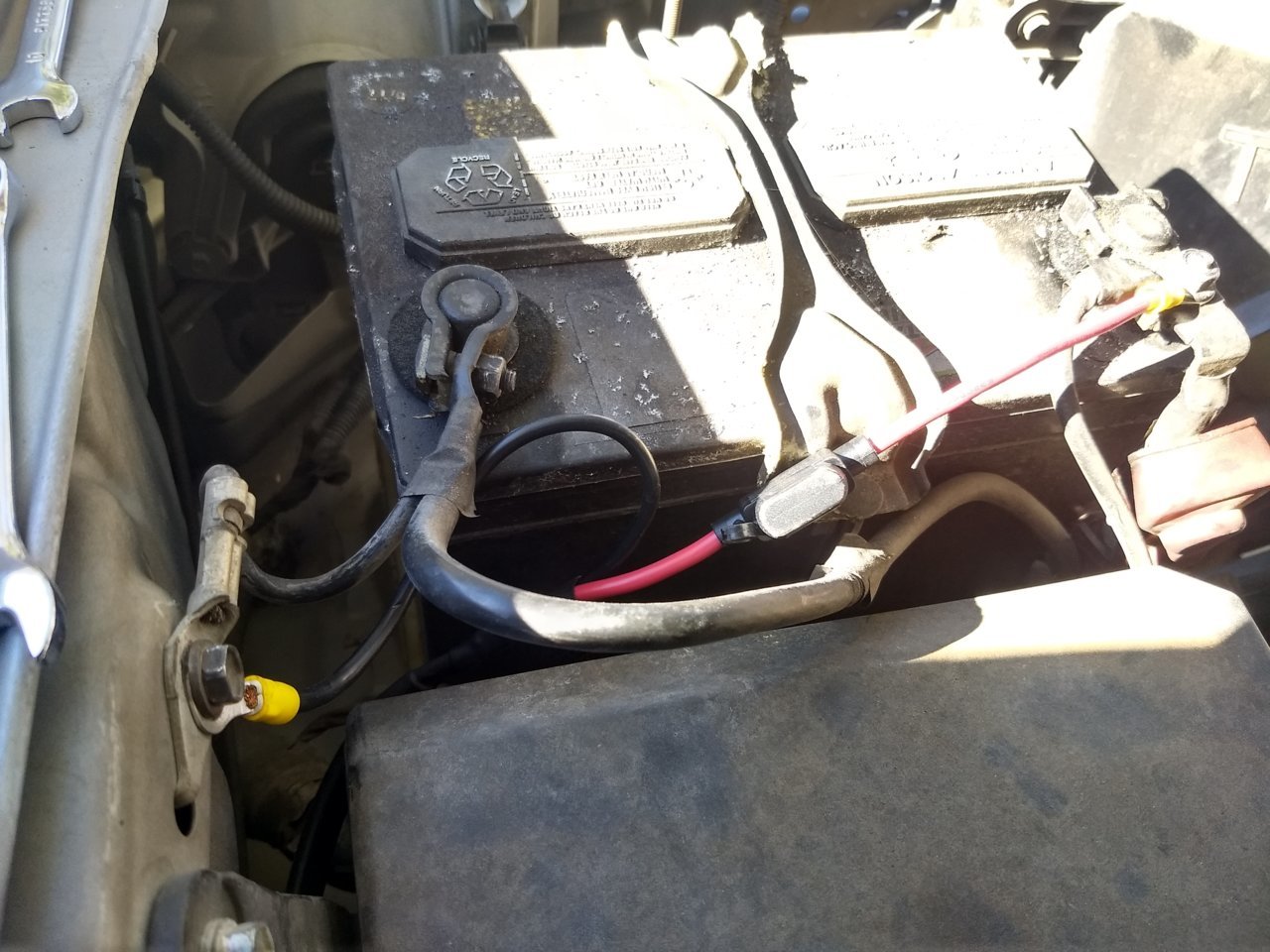

    Thank you. I think it's something like 7-8 amps? I've got the positive wire to the positive battery post and the black wire to what I am assuming is the battery ground on the side wall...I'll post a couple of pics...I'm wondering if the black wire connection is correct.

    IMG_20210329_161634525_HDR.jpg IMG_20210329_161649653_HDR.jpg


  6. Mar 29, 2021 at 5:48 PM
    #6
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    8,708
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Looks good to me, that's body ground but it's connected directly to battery negative so your good.
    I would get you some baking soda and water and clean that battery before it starts corroding your cables.

    Geronimo1111[OP] and TnShooter like this.
  7. Mar 29, 2021 at 5:56 PM
    #7
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    16,645
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Disregard my previous post.
    Looks like you have it figured out.

    Looks good to me. :thumbsup:

    Geronimo1111[OP] likes this.
  8. Mar 29, 2021 at 5:58 PM
    #8
    Geronimo1111

    Geronimo1111 [OP] Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198162
    Messages:
    345
    Gender:
    Male
    Ventura, Flagstaff & Phoenix
    Vehicle:
    '07 Silver Streak Mica 2.7L AC
    Ride-Rites LEER 100 XQ Cap Homemade Bedslider Bilsteins
    Thanks for the confirmation on the wiring @Dm93 10-4 on the baking soda and water. :thumbsup:


  9. Mar 29, 2021 at 5:59 PM
    #9
    Geronimo1111

    Geronimo1111 [OP] Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198162
    Messages:
    345
    Gender:
    Male
    Ventura, Flagstaff & Phoenix
    Vehicle:
    '07 Silver Streak Mica 2.7L AC
    Ride-Rites LEER 100 XQ Cap Homemade Bedslider Bilsteins
    You had the right model there...Thanks for confirmation on amp draw...Hardwiring kit has the fuse in line.


    TnShooter[QUOTED] likes this.
  10. Mar 29, 2021 at 6:01 PM
    #10
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    16,645
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Then you should be good to go. :thumbsup:

  11. Mar 29, 2021 at 6:01 PM
    #11
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    8,708
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Make sure you rinse it good with water when you are done.

    Geronimo1111[OP] likes this.
  12. Mar 29, 2021 at 9:55 PM
    #12
    Geronimo1111

    Geronimo1111 [OP] Well-Known Member

    Joined:
    Sep 24, 2016
    Member:
    #198162
    Messages:
    345
    Gender:
    Male
    Ventura, Flagstaff & Phoenix
    Vehicle:
    '07 Silver Streak Mica 2.7L AC
    Ride-Rites LEER 100 XQ Cap Homemade Bedslider Bilsteins

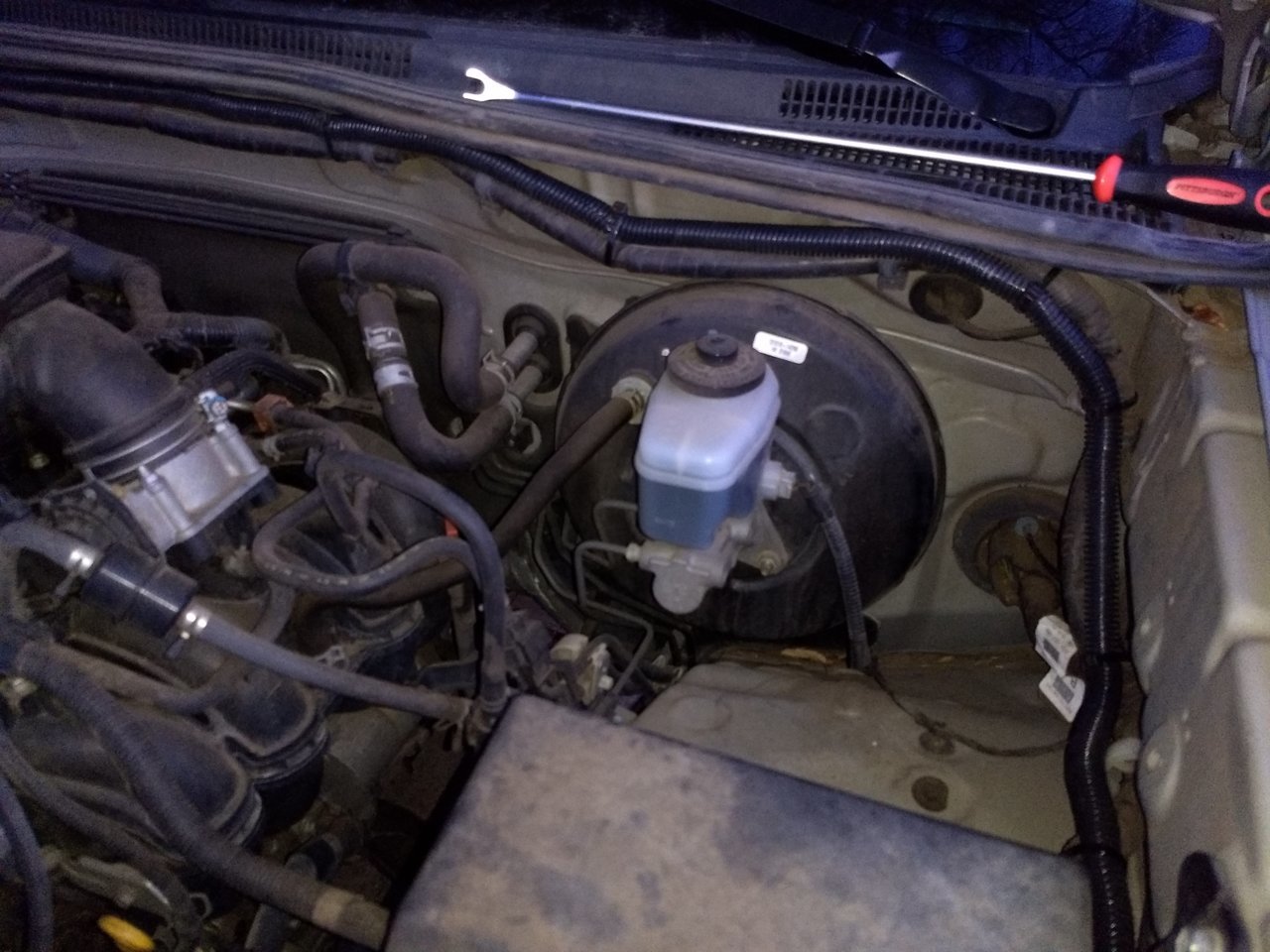

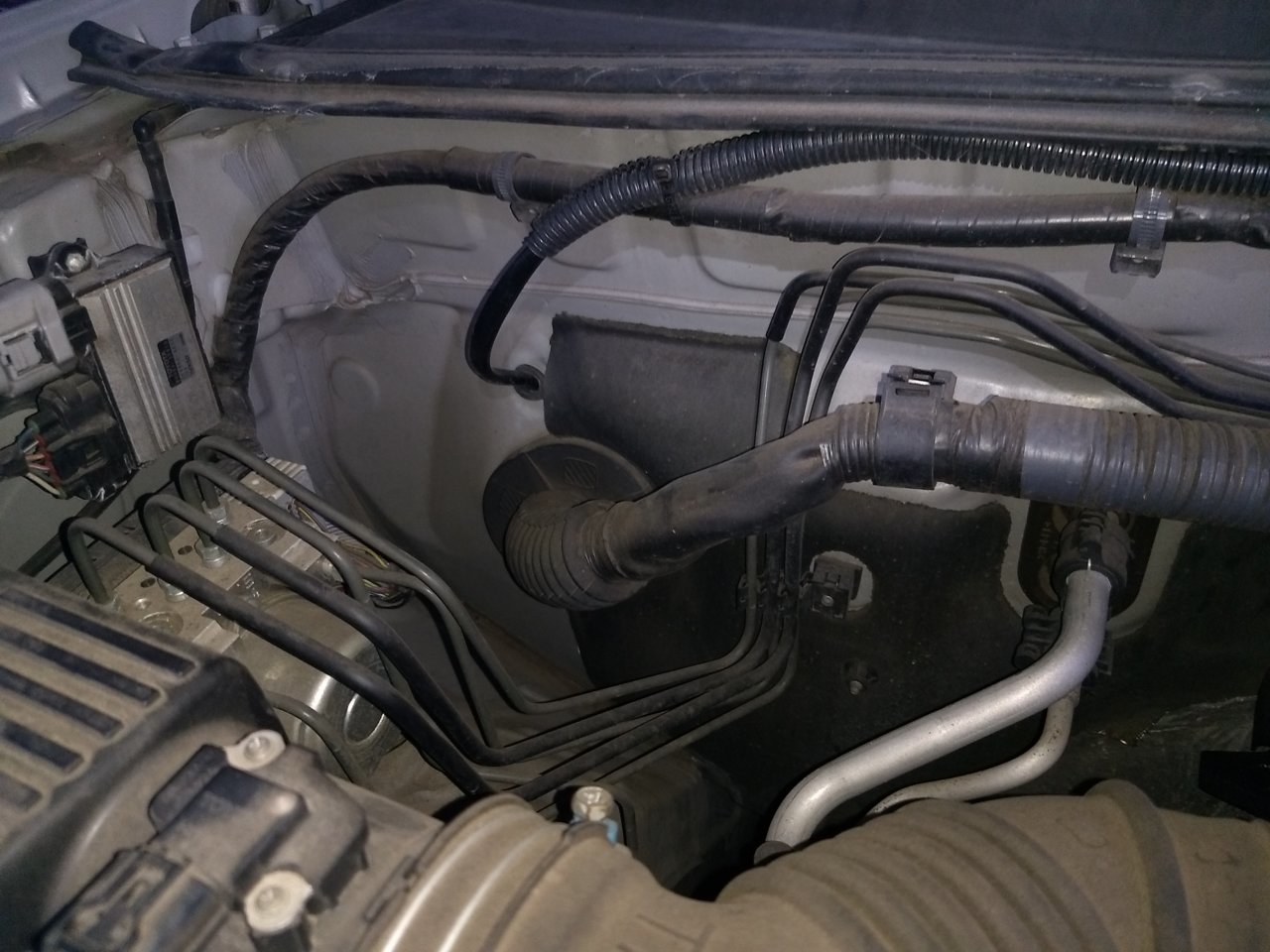

    Just a bit of an update...I ran the cable from the battery and followed another loom at the top of the engine compartment firewall. I'll post pics....I cut the nub off the grommet on the passenger side firewall (is that the correct term?), cut an "x" in it with a utility knife, poked a hole through the carpet with a screwdriver, fished the wire through...and that's where I left it for today...zip tied and wire loom in the engine compartment....

    I'm going to go back tomorrow and run the cable through the grommet under the passenger seat, down the frame rail and up into the storage compartment.

    Thanks for everyone's help on here. MUCH appreciated. :thumbsup:

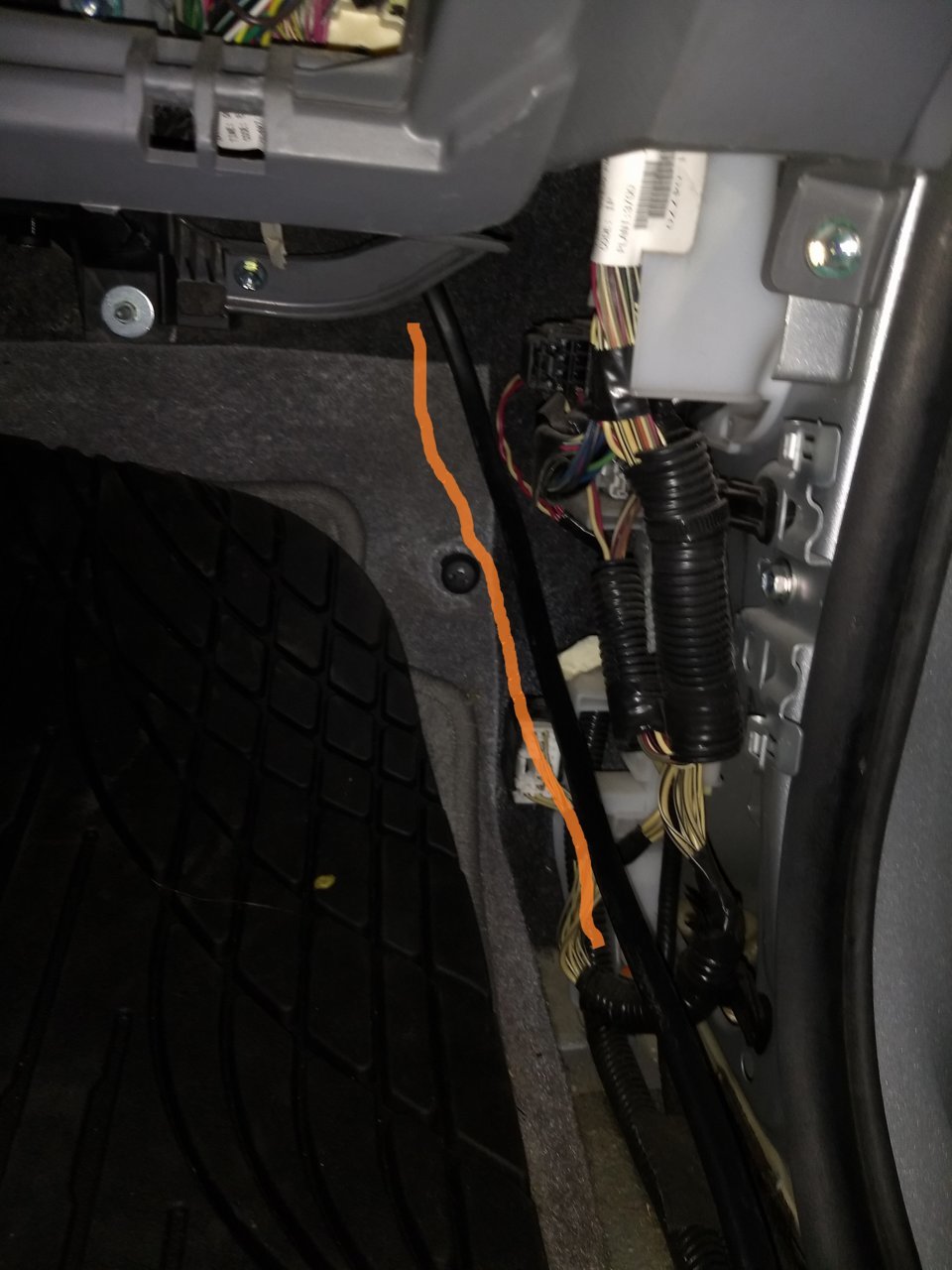

    IMG_20210329_185139994.jpg IMG_20210329_185154821.jpg Wire inside cab - passenger side.jpg
