Driveshaft Angles

Discussion in '2nd Gen. Tacomas (2005-2015)' started by SpearInHand, Dec 15, 2016.

  1. Dec 15, 2016 at 4:14 PM
    #1
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    Long time lurker first time poster. Hello all! I am coming here looking for some help.

    I have a 2007 Toyota Tacoma double cab TRD sport, 2 wheel drive. It had a 3 inch lift kit. I have been struggling with driveshaft vibrations for months now and I am running out of ideas. I've searched the many threads on this very issue, I have replaced all ujoints twice (they keep going bad, I suspect from the vibes), replaced and dropped the carrier bearing, but my vibes just keep coming back.

    I am here to ask a huge favor of another member. I feel like my issue is still with my angles, even though all of mine are within 3 degrees, I feel like this is the culprit.

    Could anyone with a relatively stock double cab, 2 wheel drive Tacoma (2 piece drive shaft) that is not experiencing any driveshaft vibrations take an angle finder, be kind enough to measure their stock angles and post them here? I'm looking for the angle between the transfer case and the first driveshaft...The transfer case compared to the rear axle driveshaft output (pinion I believe?) And then the angles of both shafts. Please and thank you in advance.

  2. Dec 15, 2016 at 4:17 PM
    #2
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,120
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  3. Dec 15, 2016 at 4:18 PM
    #3
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    I have seen that video...But doesn't the fact that these trucks have leaf springs the axle wrap will change what angles you need?

    I'm going to watch this video again though. It's been a while since I watched it. Thanks for posting

  4. Dec 15, 2016 at 4:20 PM
    #4
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Buy digital angle finder for $30. Make the pinion angle match the slope of the first shaft. That's usually all you need to do. This is usually accomplished by shimming the axle.

    Also good to make sure that center support bearing is centered. Use the string method. Easy.

  5. Dec 15, 2016 at 4:27 PM
    #5
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    I bought an angle finder already, that's how I'm measuring the angles now. String method?

  6. Dec 15, 2016 at 4:41 PM
    #6
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,120
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I believe that drivetrain is from a Tundra , and axle wrap is going to come and go as you drive , you still need to get a baseline

  7. Dec 15, 2016 at 4:44 PM
    #7
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    Yeah I think so. But still, driveshaft mechanics should still be the same.

    I have my carrier bearing all the way up, no shims or spacers, yet my operating angle between my transfer case and the first piece of the driveshaft is 2.9...In the video he states it needs to be less than .89 / as close as possible.

    It's a downward 2.9 angle...Which would mean I need the carrier bearing to be raised up? It doesn't go any higher?

  8. Dec 15, 2016 at 4:46 PM
    #8
    gordi

    gordi Only had a wheel fall off once

    Joined:
    Jul 16, 2013
    Member:
    #108373
    Messages:
    2,916
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2011 DCSB trd sport
    Fox 2.5 extended travel, dakars, rear 5125 255/80/17 cooper maxx ST
    Use shims

  9. Dec 15, 2016 at 4:47 PM
    #9
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    How can I use shims to raise my carrier bearing if it's already as high as it goes?

  10. Dec 15, 2016 at 4:50 PM
    #10
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male

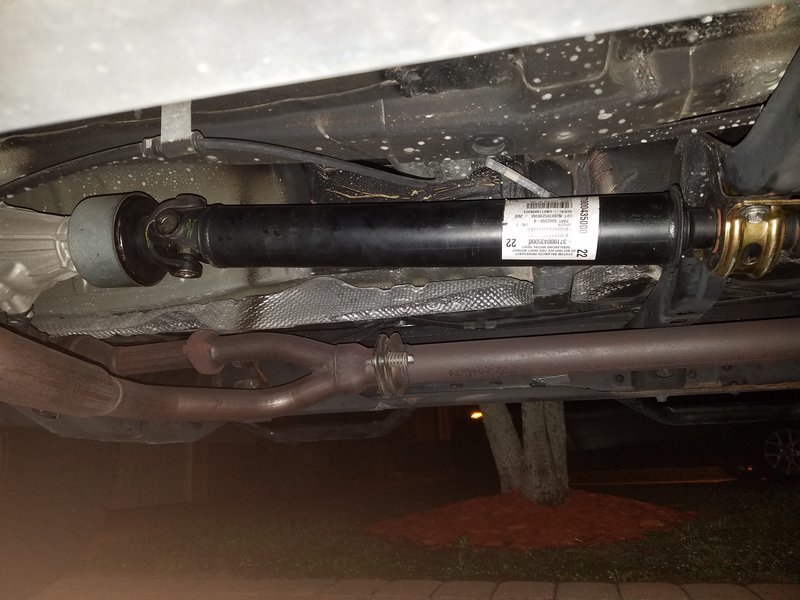

    This is a photo I just took.


  11. Dec 15, 2016 at 4:54 PM
    #11
    libagui

    libagui Well-Known Member

    Joined:
    Feb 16, 2009
    Member:
    #13689
    Messages:
    531
    Gender:
    Male
    Dominican Republic
    Vehicle:
    05 tacoma prerunner
    Bilsteins 5100 set at .085 Rear custom 1" add a leaf 265/70 R17 tires. Custom made aluminum tonneau cover with bike rack. 4x4 conversion with 4Runner transfer case.

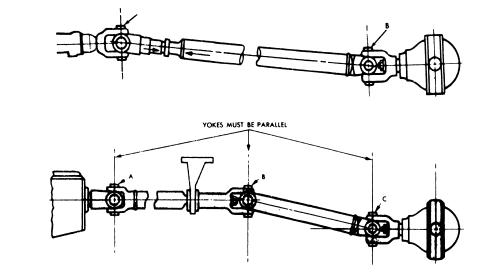

    Are the U-joints center aligned?0900c15280052d18.gif

  12. Dec 15, 2016 at 4:55 PM
    #12
    libagui

    libagui Well-Known Member

    Joined:
    Feb 16, 2009
    Member:
    #13689
    Messages:
    531
    Gender:
    Male
    Dominican Republic
    Vehicle:
    05 tacoma prerunner
    Bilsteins 5100 set at .085 Rear custom 1" add a leaf 265/70 R17 tires. Custom made aluminum tonneau cover with bike rack. 4x4 conversion with 4Runner transfer case.
    Can you post a Picture showing all of 3 joints?

  13. Dec 15, 2016 at 4:57 PM
    #13
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    They are 2.7 degrees off from being parallel. I bought 3 degree axle shims I plan on putting on. But I can't get the output shaft down from 2.9 degrees

  14. Dec 15, 2016 at 5:00 PM
    #14
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male

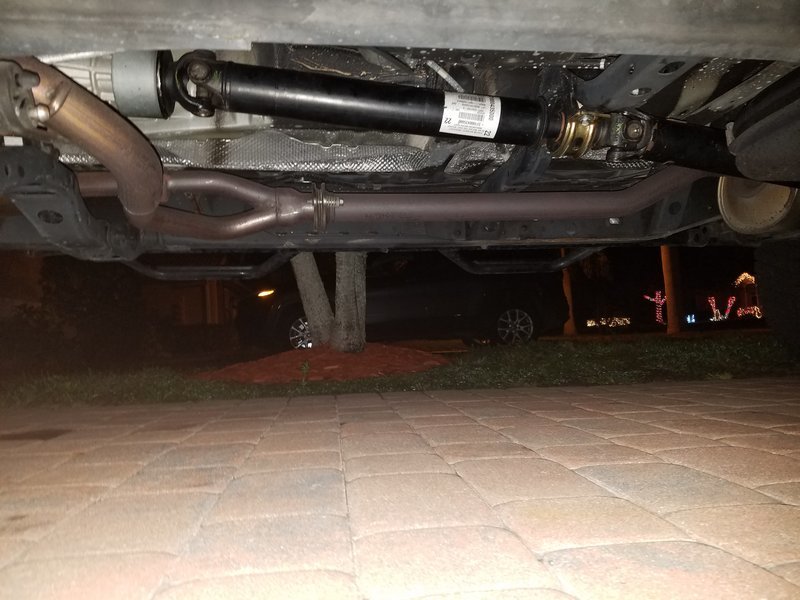

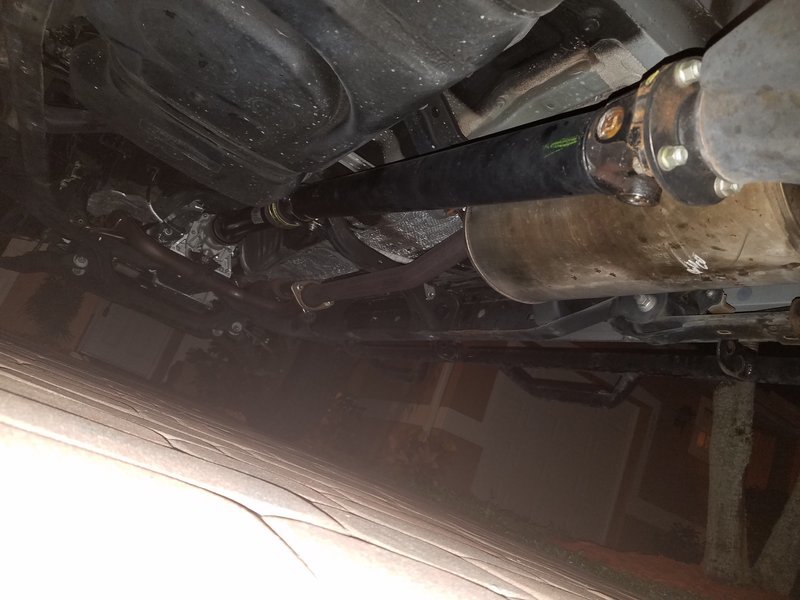

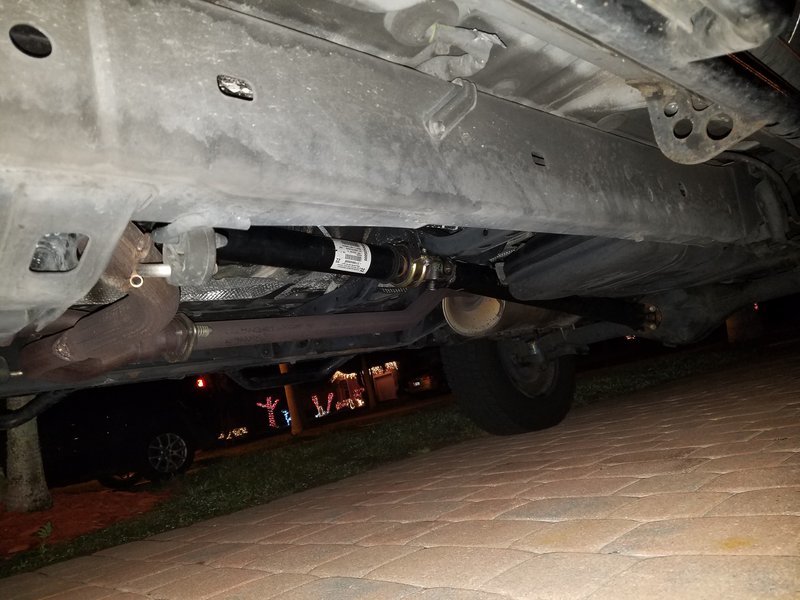

    This is the best shot I can get all three angles in


  15. Dec 15, 2016 at 5:02 PM
    #15
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,120
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    The angles he finds in the video are examples and aren't intended to be the numbers you should find , the key thing is how they relate to one another

  16. Dec 15, 2016 at 5:05 PM
    #16
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    Yes I completely understand that.

    But isn't my output shaft supposed to be very close to the angle of the transfer case? Because right now it's as high as I can put it and it's 2.9 degrees.

  17. Dec 15, 2016 at 5:07 PM
    #17
    libagui

    libagui Well-Known Member

    Joined:
    Feb 16, 2009
    Member:
    #13689
    Messages:
    531
    Gender:
    Male
    Dominican Republic
    Vehicle:
    05 tacoma prerunner
    Bilsteins 5100 set at .085 Rear custom 1" add a leaf 265/70 R17 tires. Custom made aluminum tonneau cover with bike rack. 4x4 conversion with 4Runner transfer case.

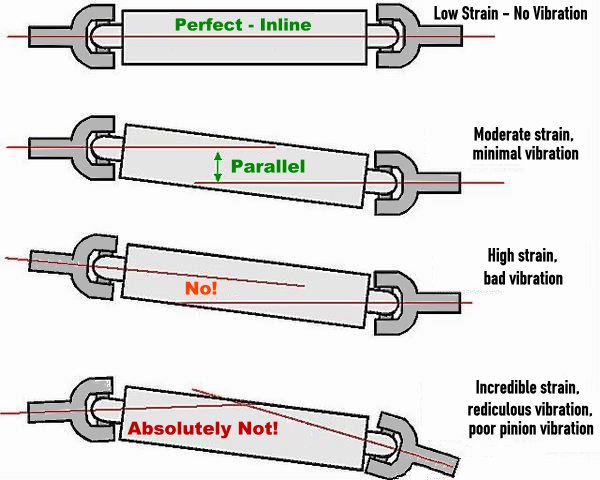

    images.jpg pinion_angle_bad_angles.jpg

    Crom likes this.
  18. Dec 15, 2016 at 5:14 PM
    #18
    SpearInHand

    SpearInHand [OP] Member

    Joined:
    Aug 11, 2016
    Member:
    #194318
    Messages:
    17
    Gender:
    Male
    The phasing of the rear shaft is perfectly lined up. The front shaft appears close, but not perfectly lined up I guess


  19. Dec 15, 2016 at 5:20 PM
    #19
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    How I measured my drive line angles.

    The way I did it was put my digital angle finder on the transfer case flange and set the unit to "Zero". That's my reference point.

    • Then hang the angle finder on the first shaft. The angle of the first shaft in my truck is 5.05* down. This is also the angle of the first u-joint.
    • Then hang the angle finder on the second shaft. In my case it was 5.75* down, Subtracting the two slopes I get 0.7* for the second u-joint.
    • Then using the a flat bar I measured the flange of the pinion and got 2.95*. The angle of the third u-joint is 2.8*.
    Now comparing the slope of the first shaft 5.05*, minus the pinion angle 2.95*, it looks like my pinyon is -2.1* down relative to the first shaft.

    Pinion angle should really match slope of first shaft.

    EDIT: 11/1/2016 - Measured again after modifying spring pack:

    • First u-joint operating angle (OA), closest to xfer case: 4.85° Down,
    • Second u-joint: 2.35° Down,
    • Third u-joint angle is somewhere between 2.45° - 3.9° Down
    Which means Pinion angle is within 0.10° - 1.55° Down, of first shaft.
    I can't get more accurate on the pinion without putting rear axle on jack stands.


    Here is some tech that I'm using to help me:

    From the factory the Tacoma has a two piece drive shaft. According to Dana who manufactured the center support bearing and shafts, I would want the pinion angle to match the output shaft of the transfer case.

    I snipped this picture out of their documentation.

    [​IMG]
    But there is more to the story, in practice, a lot of *performance* shops will make the pinion 1*-2* negative. The reason for this is because, when accelerating, the pinion will rotate up because of torque. In theory, when it's under load it will match or be very close to the slope of the first shaft.

    This is a good article with references to recognized industry experts and explains what they do in setting up built vehicles.

  20. Dec 15, 2016 at 5:22 PM
    #20
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    9,886
    Gender:
    Female
    First Name:
    Rebecca
    Sw Denver Concrete Jungle
    Vehicle:
    2008 TRD AC
    ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall Modified bed extender
    @Crom I was just going to link this:D :thumbsup:

    Crom likes this.
