DRL mirror switchbacks killed my truck

Discussion in '3rd Gen. Tacomas (2016+)' started by JordanJake25, Dec 4, 2019 at 5:59 PM.

  1. Dec 4, 2019 at 5:59 PM
    #1
    JordanJake25

    JordanJake25 [OP] Active Member

    Joined:
    May 8, 2019
    Member:
    #292723
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2019 tacoma
    Hey y'all, yet more problems with these mirror switchback turn signals. So they were tripping the tailight fuse... Finally isolated the problem when my buddy opened my passenger door really hard and blew everything. Realized the wire running from the mirror down into the door panel had been caught inside the hinge and shorted out. Now the turn signals work, fuse is good... But still no taillights or white LED on the mirrors. Now I desperately need my damn taillights to work, and even cut the wires off the DRL's but still no taillights... Any clues?

    TXpro4X4 likes this.
  2. Dec 4, 2019 at 6:06 PM
    #2
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    23,628
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee 5100's all the way around front set at .85 Rear locker any-time mod Abs kill switch mod
    I'm confused
    These are stock lights and having these issues?

    Chew and GreyBaldTaco like this.
  3. Dec 4, 2019 at 6:09 PM
    #3
    eurowner

    eurowner Duke Sky

    Joined:
    Feb 23, 2017
    Member:
    #211429
    Messages:
    953
    Gender:
    Male
    First Name:
    Scoty
    The Syncro Ranch, Salida ColoRADo
    Vehicle:
    '17 TRD Off Road DCLB Silver Sky Met
    TRD Exhaust, Mobtown 0* sliders W/fill plates, Mobtown Recovery Bar, Snugtop Hiliner Sport topper, Firestone airbags, 265-75-16 Toyo Open Country ATII.
    Correct your thread title.

  4. Dec 4, 2019 at 6:11 PM
    #4
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    695
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    Doubt it.

    Aftermarket - probably.

    GreyBaldTaco and TXpro4X4 like this.
  5. Dec 4, 2019 at 6:13 PM
    #5
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    695
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    Not sure where the associated fuses are located? But there are 2 fuse panels. Check both?

  6. Dec 4, 2019 at 6:23 PM
    #6
    JordanJake25

    JordanJake25 [OP] Active Member

    Joined:
    May 8, 2019
    Member:
    #292723
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2019 tacoma
    Yea, aftermarket blacked out mirror turn signals. They light up white when the DRL's are on, and then work as regular turn signals too. And yes I've checked all fuses.

    TXpro4X4 likes this.
  7. Dec 4, 2019 at 6:53 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,210
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Tells us how you wired them..like what wire (circuit) did you tap into that shorted.
    Does the Tacoma have LED DRL's or Incandescent DRL's?
    Does your dash dim when selecting Parking/Tails?
    Was it a visual check at the fuses or did you checked continuity?

  8. Dec 4, 2019 at 6:59 PM
    #8
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    23,628
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee 5100's all the way around front set at .85 Rear locker any-time mod Abs kill switch mod
    So I assume they worked....at one point.
    Did you install or a shop?

  9. Dec 4, 2019 at 7:03 PM
    #9
    JordanJake25

    JordanJake25 [OP] Active Member

    Joined:
    May 8, 2019
    Member:
    #292723
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2019 tacoma
    They come with a regular push and play harness for the turn signal function (which still works fine) and another wire that runs through the mirror itself, down into the door panel, through that rubber hose into the cabin, through the firewall into the engine bay, and is spliced onto the orange wire of the DRL'S. They are LED DRL's, and no my dash lights don't dim when selecting tail features, and yes I checked continuity on the fuse...
    Basically, they tripped the fuse a couple times and I couldn't figure out what was wrong until my buddy opened the passenger door and they tripped. There was a smell of electrical "fire" or heat for a short while, and haven't had tail lights for a couple days now. So tonight I had some time, took the door panel off to assess what might be the problem, and when running a new wire, I realized that the original wire had been caught on the inner door hinge and wasn't cut completely but was pretty damaged. So I took that piece out, butt- spliced a new wire in it's place, but no luck. So I went to the engine bay and cut the wires off both sides near where the splice is onto the DRL's, but still no taillights, and the fuses are good. So I've got no clue what to do about this.

  10. Dec 4, 2019 at 7:07 PM
    #10
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    695
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    You let the magic smoke out. There is no way to put it back in. :(

  11. Dec 4, 2019 at 7:08 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,210
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Would you be so kind to show us a picture of this orange wire...and its connector.

    Boghog1 likes this.
  12. Dec 4, 2019 at 7:21 PM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,210
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  13. Dec 4, 2019 at 7:22 PM
    #13
    Lt. Dangle

    Lt. Dangle Thinks skiploder needs a hug

    Joined:
    Jan 25, 2017
    Member:
    #208645
    Messages:
    3,124
    Ohio
    Vehicle:
    2017 TRDOR
    stuff
    Sounds like poor wiring killed your truck, not the lights. Maybe I am misunderstanding the problem though.

  14. Dec 4, 2019 at 7:23 PM
    #14
    GreyBaldTaco

    GreyBaldTaco Well-Known Member

    Joined:
    Mar 10, 2019
    Member:
    #286065
    Messages:
    1,641
    Gender:
    Male
    Vehicle:
    2018 Sr5 DCSB 4x4
    Did you disconnect the battery when wiring them up?

  15. Dec 4, 2019 at 7:27 PM
    #15
    JordanJake25

    JordanJake25 [OP] Active Member

    Joined:
    May 8, 2019
    Member:
    #292723
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2019 tacoma

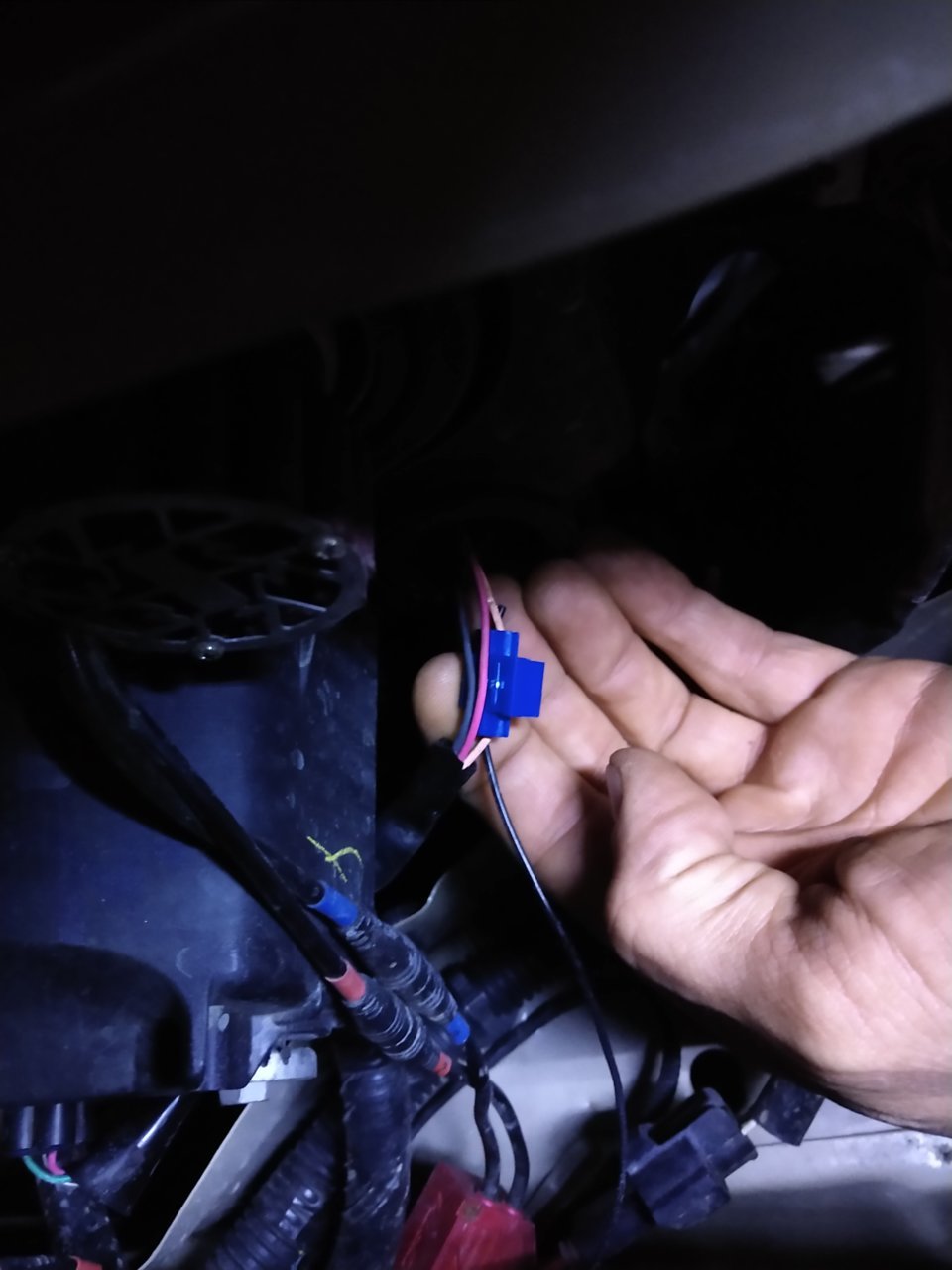

    Ok I think I added a photo?


  16. Dec 4, 2019 at 7:27 PM
    #16
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    695
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    Could have destroyed the contacts in the relay?

    MoneyMan55 likes this.
  17. Dec 4, 2019 at 7:29 PM
    #17
    JordanJake25

    JordanJake25 [OP] Active Member

    Joined:
    May 8, 2019
    Member:
    #292723
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2019 tacoma
    Yes I agree, not the lights that killed the truck, but my fault in the wiring, but in my defense, I had no idea a wire could even get caught in the inner door hinge... No excuse, but I still don't understand what could be causing them to not work

    Lt. Dangle likes this.
  18. Dec 4, 2019 at 7:31 PM
    #18
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    695
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    Might try replacing the relay. If that doesn't fix the problem ???

  19. Dec 4, 2019 at 7:36 PM
    #19
    JordanJake25

    JordanJake25 [OP] Active Member

    Joined:
    May 8, 2019
    Member:
    #292723
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordan
    Vehicle:
    2019 tacoma
    Don't even know where to begin with replacing the relay honestly. I've never been all that automotively mechanical... Just bought the truck last January, and have been slowly moding it out and youtubing things as I go... So far so good, up until this little blunder

    NMTrailRider and Mrtacoman88 like this.
  20. Dec 4, 2019 at 7:38 PM
    #20
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,210
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The relay to the Parking/Tail is soldered to a board...the board is inside a box. This board is connected to anther box that does the control of this relay board and controls lots of other stuff in the system.
