DTRL toggle switch mod (stealth mode)

Discussion in 'Lighting' started by Crom, Apr 4, 2010.

  1. Sep 7, 2012 at 8:44 PM
    #121
    1stacoma

    1stacoma Well-Known Member

    Joined:
    Jun 14, 2012
    Member:
    #80656
    Messages:
    513
    Gender:
    Male
    Austin
    Vehicle:
    2012 MGM SR5 DCSB 4.0
    5100's front and rear, front 2.5" rear 2" AAL, 18% tint front and rear, color matched grill. SCS wheels 275/70/17 BFG AT KO's. DTRL toggle switch.
    So I went and purchased my switch today. Instead of going with a small switch I went with one that I can visually see if my DTRL are on or not. I completed making the switch here it is. Thanks for the write-up.


  2. Sep 7, 2012 at 11:20 PM
    #122
    1stacoma

    1stacoma Well-Known Member

    Joined:
    Jun 14, 2012
    Member:
    #80656
    Messages:
    513
    Gender:
    Male
    Austin
    Vehicle:
    2012 MGM SR5 DCSB 4.0
    5100's front and rear, front 2.5" rear 2" AAL, 18% tint front and rear, color matched grill. SCS wheels 275/70/17 BFG AT KO's. DTRL toggle switch.
    Installed- I just have to mount the switch now. It took a few hours and was a pain getting to the plug. I ended up having to solder to the green wire to extend it but after that was done it didn't take to long. I took a pic of what I did I will post it below. Soldered to green wire/red stripe to extended it than put heat shrink to protect it. The two black wires hanging are what I added.

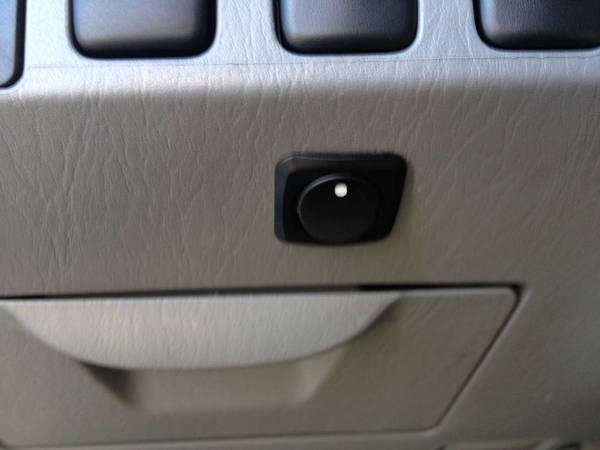

    Completed switch install and this is where I placed it. It was a little nerve racking drilling into the dash but all turned out well.

    [​IMG]

    Green wire extended.JPG

  3. Sep 10, 2012 at 8:45 AM
    #123
    Triton1217

    Triton1217 Member

    Joined:
    Mar 23, 2012
    Member:
    #75416
    Messages:
    6
    Gender:
    Male
    SouthAlabama
    Vehicle:
    2012 Tacoma 4x4 V6
    Now I have control of my DTRL, I would like to put brake lights on a switch also. Not much stealth involved when the world lights up red behind you.

  4. Sep 10, 2012 at 9:33 AM
    #124
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,215
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Yup. I actually have plans to do this, but it's not a high priority for me right now... Eventually though.

  5. Sep 10, 2012 at 11:49 AM
    #125
    Triton1217

    Triton1217 Member

    Joined:
    Mar 23, 2012
    Member:
    #75416
    Messages:
    6
    Gender:
    Male
    SouthAlabama
    Vehicle:
    2012 Tacoma 4x4 V6
    Do you have an idea for the brake light switch? Stealth mode gets blown out of the water when you touch the brakes!!

  6. Sep 10, 2012 at 12:28 PM
    #126
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,215
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Yes. My idea is to examine the wiring diagram for the truck and find the easiest simplest place to splice in a switch.

  7. Sep 27, 2012 at 11:20 AM
    #127
    HighTideTaco

    HighTideTaco The Way Life Should Be

    Joined:
    Jul 29, 2012
    Member:
    #83668
    Messages:
    36
    Gender:
    Male
    First Name:
    Jon
    Maine
    Vehicle:
    2010 TRD Sport
    Swapped Hoods (!!!), DTRL Toggle Switch, Disabled seatbelt/ignition chime, Disabled lock/unlock beeps, Installed D-Rings in bed, Debadged "Toyota" on transom (now just one line straight across), Removed mud flaps, Removed TRD Stickers, Custom aluminum "ladder rack" with CB mount (Wilson 2000 Trucker; Uniden 520), WeatherTech; Just getting started!
    Along with the seat belt chime and door lock/unlock beeps, this mod helped eliminate the "issues" I had with my truck. Love the option now.

    I agree with 1stacoma that a toggle switch is best so you know whether DTRLs are "on" or "off".

    Thanks, Crom! :cheers:

  8. Nov 4, 2012 at 8:39 PM
    #128
    Bookin

    Bookin Well-Known Member

    Joined:
    Jul 9, 2012
    Member:
    #82248
    Messages:
    74
    Gender:
    Male
    Sub'd

  9. Dec 2, 2012 at 10:27 AM
    #129
    2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    580
    Gender:
    Male

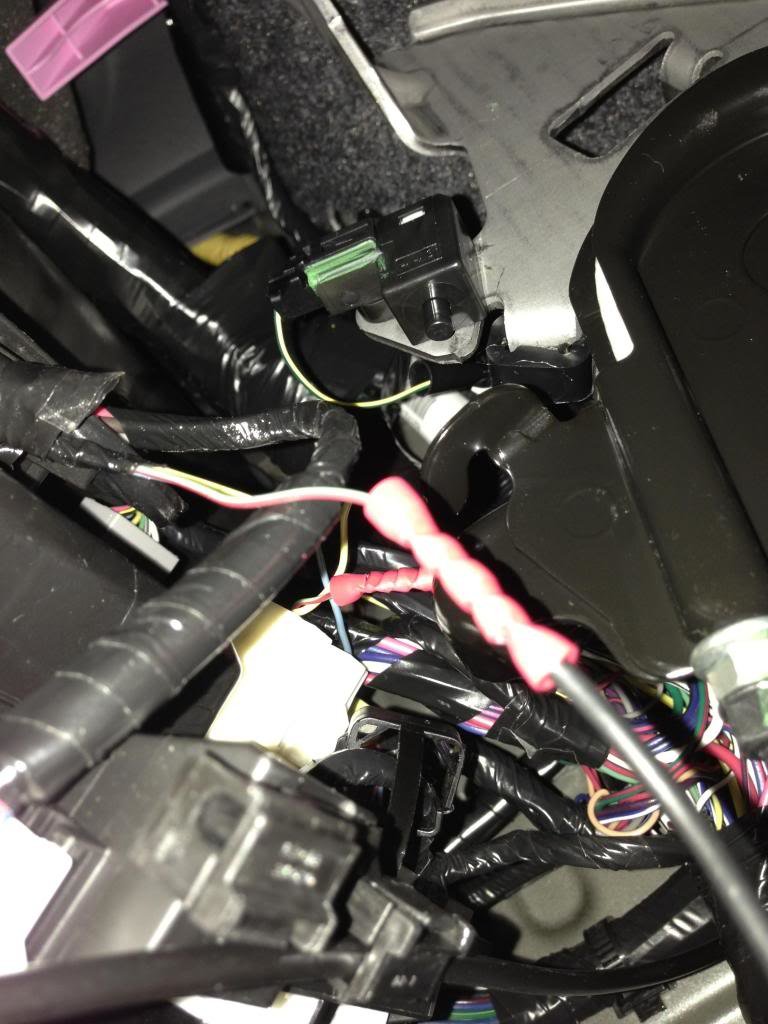

    So i did this mod... cut the green/red wire. DTRL's turned off. Put a red wire to one side of the green/red wire and a black to the other side. did the same with my switch (SPST switch). plugged it in to test... still do DTRL's. switch the wires on my switch... still no DTRL. connected the black wire to the red wire that i spliced into the green/red wire (so the green/red wire should've been connect BACK to the green/red wire) and still no DTRL.


    both the connections seem to be good.. i cant pull the wires out of either/any sides of my connectors.. so i know it's not loose.

    [​IMG]


    are the DTRL's fused with anything? it's possible thats my problems but i couldnt find the DTRL's fuse anywhere.


    UPDATE
    - when looking at the picture i just posted i saw a pin switch.. thought "what is that for".. then i thought.. "parking brake".. "PARKING BRAKE!!!!!" that was my answer. when the parking brake it on the DTRL's shut off. i just tired it without the parking brake on and everything works great!




    .

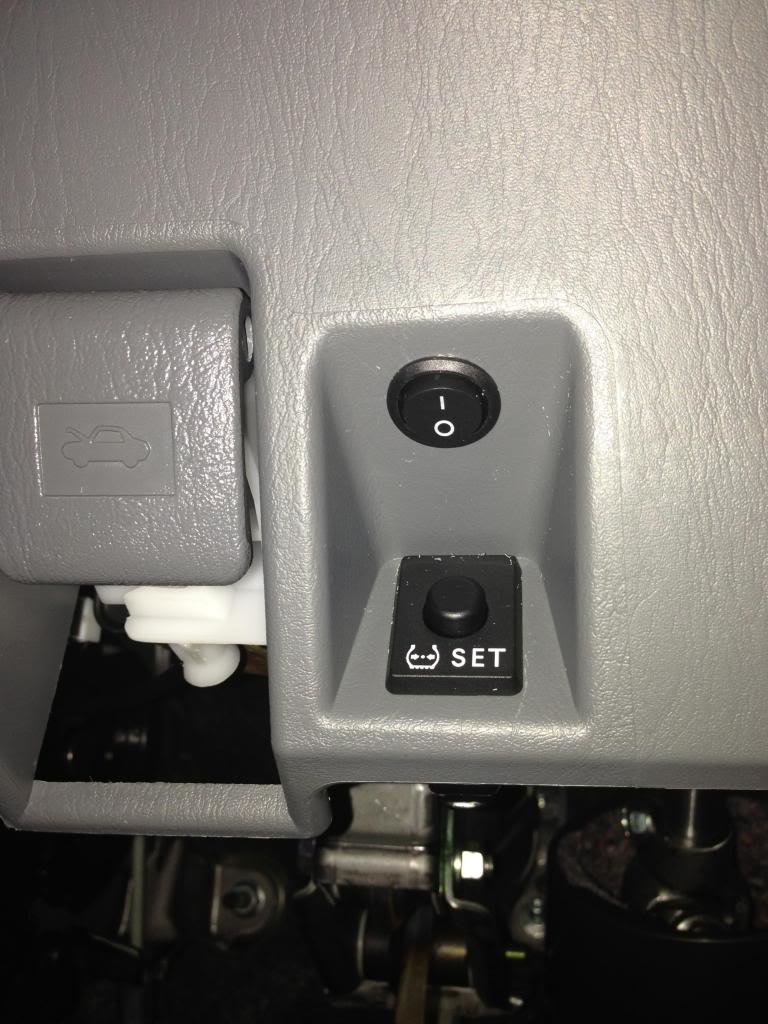

    this is where i put my switch... and this is the switch i used. http://www.ebay.com/itm/350641936947?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649
    [​IMG]

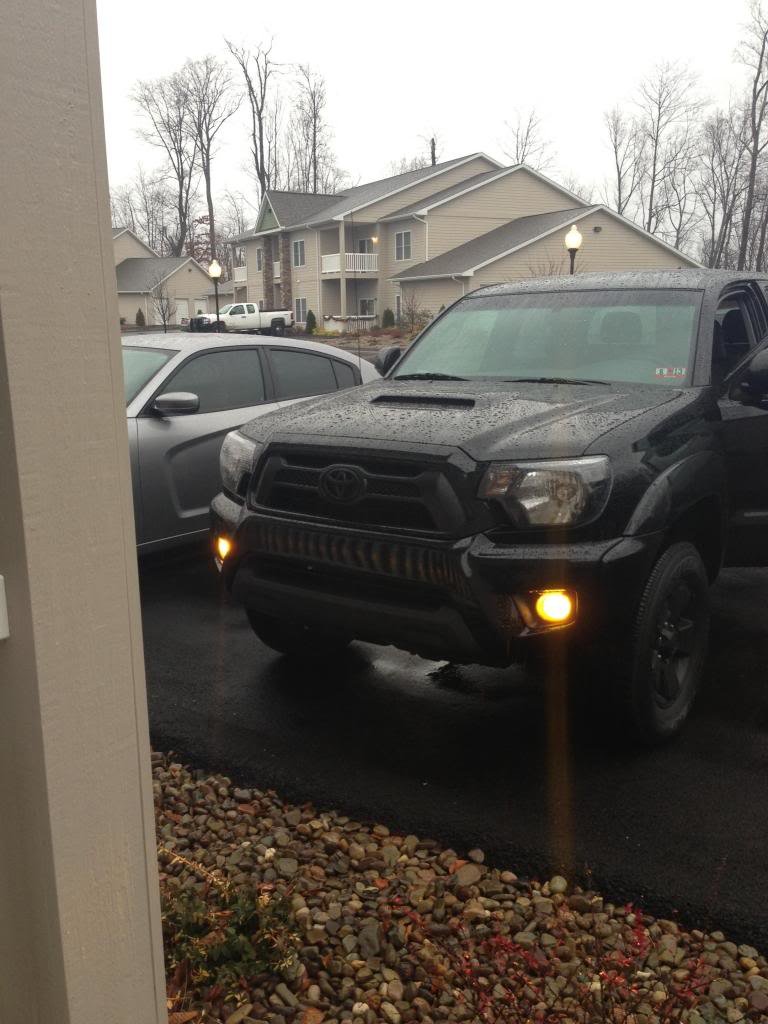

    now i can finally use my fog's only.
    [​IMG]

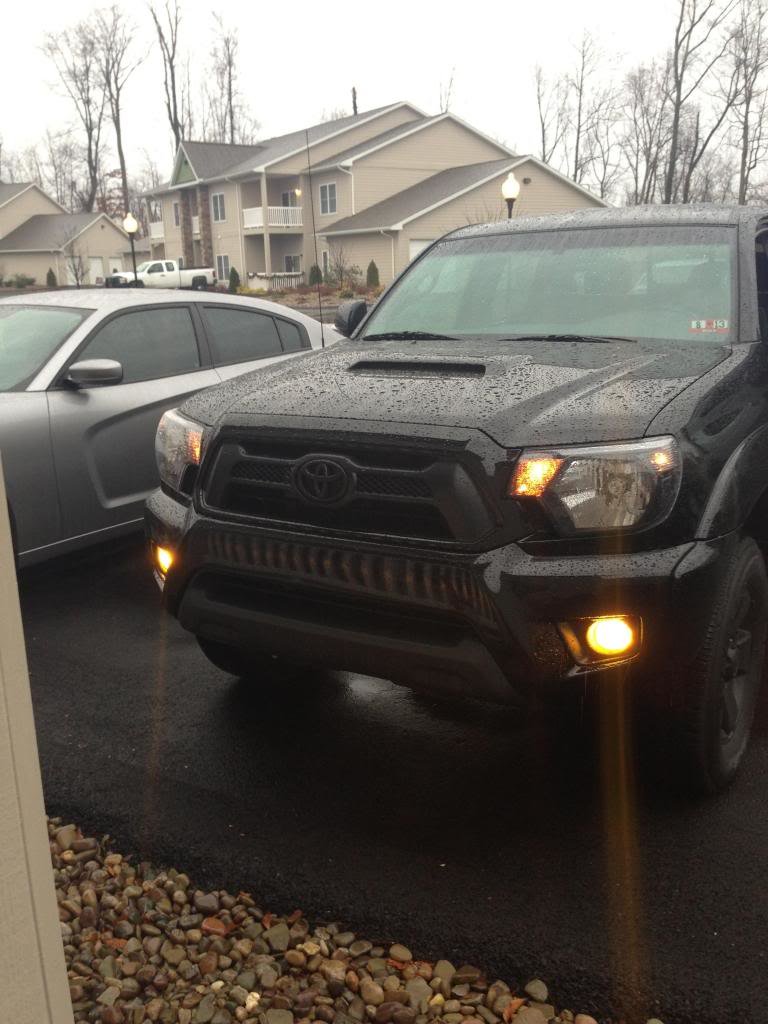

    or use my parking lights and fog's without the bright stupid DTRL's
    [​IMG]

  10. Dec 4, 2012 at 9:58 AM
    #130
    silverBullet2012

    silverBullet2012 Member

    Joined:
    Aug 14, 2012
    Member:
    #84761
    Messages:
    6
    Gender:
    Male
    IL
    Vehicle:
    2012 PreRunner SR5 V6

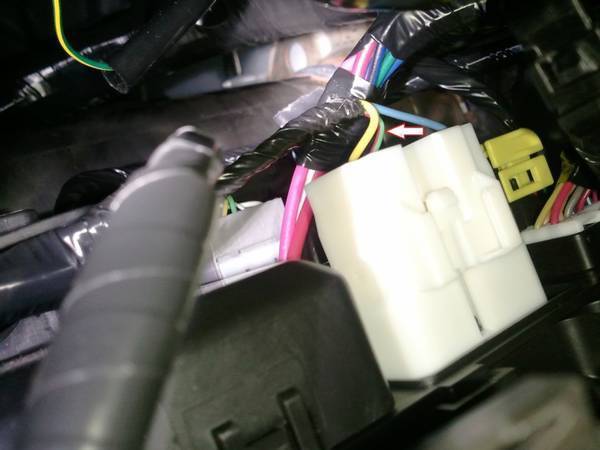

    I'm about to do this mod. I found a green/red wire but I noticed the other 2 wires in that plug are yellow & blue, in the other photos those wires are red. Can someone please confirm that this is the correct wire to cut? I just want to be sure before I go snipping underneath my dash. Thanks.

    [​IMG]

  11. Dec 4, 2012 at 12:10 PM
    #131
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,215
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Yeah, looks correct. The poster above you spliced into that wire and he had the same colored wires above you. I'm not sure what year the other colored wires changed, but the DTRL signal wire appears to remain the same [green with red tracer].

  12. Dec 4, 2012 at 3:28 PM
    #132
    2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    580
    Gender:
    Male
    that's the correct one.. just did it on my 2012. cut it! :eek:

  13. Dec 23, 2012 at 12:37 AM
    #133
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,689
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    Thread revive.

    Is it possible to do this switch on the mirrors with the turn signal and run them as DTRL's?

  14. Feb 23, 2013 at 4:10 PM
    #134
    TallTomsTacoma

    TallTomsTacoma New Member

    Joined:
    Sep 23, 2012
    Member:
    #87578
    Messages:
    4
    Gender:
    Male
    First Name:
    Tom
    missouri
    Vehicle:
    2011 Tacoma TRD Sport
    Ok after getting the harness unpluged on the rear of the fuse box and identifing the correct wire to splice i discovered that the harness wouldnt pull down far enough for me to work on it so i decided to save it for another day and i plugged the harness back in and now i dont have any DTRL. Does anyone have any sugestions? I dont get it, it worked befor i unpluged it and i put it back in the exact same place it came off. If anyone can help i would be very thankful.

    Last edited: Feb 23, 2013
  15. Mar 9, 2013 at 1:50 PM
    #135
    Eltacos

    Eltacos Well-Known Member

    Joined:
    May 26, 2011
    Member:
    #57303
    Messages:
    113
    Gender:
    Male
    BFE CA
    Vehicle:
    TRD Off Road
    LED conversion on every accessible bulb, TRD exhaust (dealership threw in for free along with the Blu-Logic).
    I removed the pin from the back of M1. Now I want to add a switch and I didn't mark where the pin goes. Anyone able to take a picture of the M1 plug for me and post here please? Now that I have V3 LEDs installed I am not worried about heat ruining my lens.

  16. Mar 13, 2013 at 2:07 PM
    #136
    Chad

    Chad Rand Paul 2016

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,790
    Gender:
    Male
    First Name:
    Chad
    Raleigh, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Pioneer AVIC-X920BT Headunit -- BHLM -- Pioneer TS-A1685R 4-way Coax Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- 09+ Access Cab Rear Headrest Removal

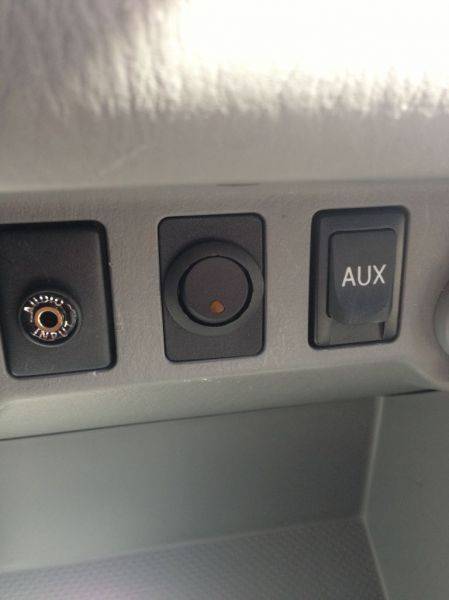

    I had originally done this mod over last summer, but left a small switch dangling up behind the dash. Then I stumbled upon these switches that t_e makes and decided to run the switch over to that location on the dash. Wired it up this weekend and couldn't be more pleased. Here's a pic:

    [​IMG]

    Last edited: Mar 13, 2013
  17. Mar 13, 2013 at 3:57 PM
    #137
    Crom

    Crom [OP] Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,215
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    ^ Nice that someone is making switches for the factory blanks. :)

  18. Mar 14, 2013 at 6:16 PM
    #138
    peterlthomas

    peterlthomas New Member

    Joined:
    Mar 14, 2013
    Member:
    #99724
    Messages:
    1
    Gender:
    Male
    First Name:
    Peter
    Midsouth
    Vehicle:
    Tacoma 4x4
    That's what I'm talking about! Thank you for the perfect instructions! Works great!

  19. Apr 7, 2013 at 5:18 PM
    #139
    Txfly

    Txfly Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23557
    Messages:
    45
    Gender:
    Male
    WNC
    Car Seat, Cookie Crumbs
    I love the search button (that's why my post count is so low)...but to add on to my other empty thread...
    I think I'm figuring this out, but one question...
    If the G/R is a ground, would it be possible to wire new lights hot and tap the G/R as the ground for them?

  20. Apr 7, 2013 at 6:43 PM
    #140
    Chad

    Chad Rand Paul 2016

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,790
    Gender:
    Male
    First Name:
    Chad
    Raleigh, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Pioneer AVIC-X920BT Headunit -- BHLM -- Pioneer TS-A1685R 4-way Coax Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- 09+ Access Cab Rear Headrest Removal
    I don't know the schematic for that specific circuit, but I'm almost 100% positive that that wire is part of the relay for the entire DTRL circuit. So, only use that wire for running as the turn on switch to a separate relay for your lights.

    However, I can't really answer your question as to if that is the ground or not. If you search google and maybe on here you can find the TSM (service manuals) that have each circuit for the electrical wiring in our trucks. That would show whether or not it is a ground.
