Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jul 22, 2018 at 9:47 AM
    #1981
    SamuelJ

    SamuelJ Darkhorse

    Joined:
    Sep 11, 2014
    Member:
    #138061
    Messages:
    251
    Gender:
    Male
    First Name:
    Samuel
    33.9269893 -118.0185768
    Vehicle:
    2012 DCLB 4x4 Trd Sport
    Shortened flowmaster exhaust with a turn down pipe, under cowl intake, throttle body spacer, train horn, underhood led lights, hood struts, dual 27f yellow tops. Led ditch lights, led front roof light bar, led fogs and headlights, behind grill mounted piaa dual color driving lights. Aux fuse and relay panel. Pro comp skid plate, bilstein 5100 leveling shocks on a 2in. lift, b110 rear 5100, ubolt flip kit with an add a leaf, front superbumps, light racing jounce rear bumpstops, sway bar relocation, brake line bracket extension, driveline carrier bearing drop, front diff drop, on board air compressor, 10 gal pump driven fresh water tank, cb radio, pioneer 4200 hu, infinity reference component front and component rear speakers powered by rockford fosgate 4 channel, kicker comp cvt102 10 pancake with a kicker 1600w class d amplifier. Big three upgrade, capacitor. Full cab sound deadening and thermal insulation. Led interior including added footwell, courtesy, cupholder, center console, and glovebox lighting, rock lights, bed lights, ring gear armor, under bed ammo can storage, pistol safe, body armor sliders, roof rack, hilift, 285/70 17 bfg km2 on american racing teflon atx, tailgate strut, and tailgate lock, retrofit projector headlights(home built), rgb halos inside turbine shrouds, black out surround, black chrome reflector and shroud, white halo outside shroud, white led drl, rgb behind grill on rf control. Mods followed from a TW thread: Anytime fogs Anytime rear view camera Anytime 400w inverter Alternating blinker/running lights 110v center console outlet ABS kill switch Engine kill switch (magnetic) 12volt bed socket Rear diff breather relocation Led bed lights Cargo net anchors Grid it center console top Grid it sun visor Locking center console Instrument cluster led swap Map lights on with dome Cigarette lighter add (shifter position) Dtrl kill switch Hilux lighted 4wd selector switch. Vios hvac knobs Hood scoop led bar
    This is why I love this forum, learn new things everyday. So maybe you can help me with another question. I did the big 3 a while back. I used 0 for that too but it isnt fused between alt. positive and batt. positive like I think it should be. What do you recommend, fuse or circuit breaker? What amperage would be correct? And if fuse, is one type better than another? As in ANL, MIDI, ect...

  2. Jul 22, 2018 at 10:40 AM
    #1982
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    The factory had a 100A fuse in the main box for the alternator. I'd personally consider putting one back in if you bypassed it. Strictly speaking since you upgraded from 6 ga (which is what I think the stock wire was) to a 0 ga there's really no way for the alternator to source enough current to risk melting the wire. However going the other way, the battery could if the alternator shorted. Also if the wire was cut or grounded a 100A fuse may protect the alternator from burning out, although I doubt that's why it was there stock since it's at the wrong end for that. It's probably there to make sure the battery is fused.

    Whether you use a fuse or breaker is your choice. I prefer fuses for reliability just because breakers can fail due to temperatures and vibration. If you do use a breaker the typical marine types you see are fine. As for fuses, I've been using the MRBF mostly but ANL, Maxi, Mega are all fine, too. It's about space and orientation when trying to fit any of them. There's a lot to consider with a protection device, so if it's something you're interested in I can explain that more, sizing, type, etc.

    SamuelJ and Kolunatic like this.
  3. Jul 23, 2018 at 12:04 AM
    #1983
    SamuelJ

    SamuelJ Darkhorse

    Joined:
    Sep 11, 2014
    Member:
    #138061
    Messages:
    251
    Gender:
    Male
    First Name:
    Samuel
    33.9269893 -118.0185768
    Vehicle:
    2012 DCLB 4x4 Trd Sport
    Shortened flowmaster exhaust with a turn down pipe, under cowl intake, throttle body spacer, train horn, underhood led lights, hood struts, dual 27f yellow tops. Led ditch lights, led front roof light bar, led fogs and headlights, behind grill mounted piaa dual color driving lights. Aux fuse and relay panel. Pro comp skid plate, bilstein 5100 leveling shocks on a 2in. lift, b110 rear 5100, ubolt flip kit with an add a leaf, front superbumps, light racing jounce rear bumpstops, sway bar relocation, brake line bracket extension, driveline carrier bearing drop, front diff drop, on board air compressor, 10 gal pump driven fresh water tank, cb radio, pioneer 4200 hu, infinity reference component front and component rear speakers powered by rockford fosgate 4 channel, kicker comp cvt102 10 pancake with a kicker 1600w class d amplifier. Big three upgrade, capacitor. Full cab sound deadening and thermal insulation. Led interior including added footwell, courtesy, cupholder, center console, and glovebox lighting, rock lights, bed lights, ring gear armor, under bed ammo can storage, pistol safe, body armor sliders, roof rack, hilift, 285/70 17 bfg km2 on american racing teflon atx, tailgate strut, and tailgate lock, retrofit projector headlights(home built), rgb halos inside turbine shrouds, black out surround, black chrome reflector and shroud, white halo outside shroud, white led drl, rgb behind grill on rf control. Mods followed from a TW thread: Anytime fogs Anytime rear view camera Anytime 400w inverter Alternating blinker/running lights 110v center console outlet ABS kill switch Engine kill switch (magnetic) 12volt bed socket Rear diff breather relocation Led bed lights Cargo net anchors Grid it center console top Grid it sun visor Locking center console Instrument cluster led swap Map lights on with dome Cigarette lighter add (shifter position) Dtrl kill switch Hilux lighted 4wd selector switch. Vios hvac knobs Hood scoop led bar
    Hmm considering it's under the hood I will go with a fuse then. In addition to a fuse at the batt, I have a circuit breaker in the cab for my main power line to my amps but the engine bay is a much more harsh environment. I have two fuse blocks I installed and one is MIDI. Seems like itd be more convenient to use the same style vs carrying around yet another type. Ive already got MIDI and mini as well as anl and the mini low profile that came with stock wiring (forgot the name). Thanks for the advice.

  4. Jul 25, 2018 at 11:11 AM
    #1984
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    495
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    What was the install like? It seems super straight forward, just want to make sure before I pull the trigger.

  5. Jul 25, 2018 at 2:35 PM
    #1985
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,897
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
    Question. I think I have all my necessary parts but im confused on the wiring, are there any diagrams you found helpful? and I have a smart isolator but I see I need a charging relay? like the blue sea acr? trying to get some help so I don't mess this up.

    Anyone? Bueller?

  6. Jul 25, 2018 at 3:09 PM
    #1986
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    So you just pushed it? Didn't loosen the lines or bend them? Gonna kick @Red Baron, I mean get him kickstarted on this.

    Red Baron and YamaDirtrider like this.
  7. Jul 25, 2018 at 5:03 PM
    #1987
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    I bent them then by hand a little bit. Push, bend, repeat till desired position. Iirc there was only 1 line that I had to do that to.

    Agreed. @Red Baron needs to get those 2 batteries separated. Too much weight on that side...

    Red Baron likes this.
  8. Jul 25, 2018 at 5:05 PM
    #1988
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Might help if you told us what smart isolator?

  9. Jul 25, 2018 at 5:09 PM
    #1989
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    We already ripped out that atrocity

  10. Jul 25, 2018 at 5:11 PM
    #1990
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Oh really.. :popcorn:

    Back to stock for now?
    Glad to know it gone and he can access his oil fill again. Lol

  11. Jul 25, 2018 at 6:26 PM
    #1991
    Red Baron

    Red Baron Let's call it livabetes, no more die

    Joined:
    Nov 11, 2014
    Member:
    #142111
    Messages:
    5,622
    Gender:
    Male
    First Name:
    Aaron
    Lost on a roundabout
    Vehicle:
    07 Radiant Red DCSB
    Things with metal, dog hair, more metal and lights
    I wouldn't say it's stock... but with changing the I'll once a month almost now from the driving this will be much easier on me. Good tray but needed pushed to the right a little more than it was at.

    Did you get that tray off the Amazon? Cuz I been looking at this...
    Blue Sea Systems 7650 Add-A-Battery Kit https://www.amazon.com/dp/B000RZNP5K/ref=cm_sw_r_cp_apa_XmswBbFF528F4

  12. Jul 25, 2018 at 6:42 PM
    #1992
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    You don't need the battery switch. The SI-ACR is cheaper alone.

  13. Jul 25, 2018 at 6:52 PM
    #1993
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    But the si dosent support the link power. That’s what the switch is for. The si says it’s rated for alt up to 120. Aren’t the tow packedge alt 140?

    Personally I’d suggest the ml-acr or if ya wanna stay cheep just get a continuous duty solenoid and have it activate with key on.

    Aaron, yea I got the battery tray off Amazon. And the hold down bolt from advance. Got the nut zert from ace

    Red Baron likes this.
  14. Jul 25, 2018 at 6:54 PM
    #1994
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    The link, self Jumpstart is silly, a good system will not use your starting battery so it won't go dead. You will never see all 140amps at the 2nd battery. I'm using an SI-ACR with no problems.


  15. Jul 25, 2018 at 7:02 PM
    #1995
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    You’ll never use self jump until that one time the truck stays on or somthing drains the battery, even age. Can also be useful if ya have to do some long winch pulls. But over all it’s not needed most of the time.

    Bastek and Sandman614 like this.
  16. Jul 25, 2018 at 7:07 PM
    #1996
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    @Red Baron I got those and the tool to install them.

    Red Baron and YamaDirtrider like this.
  17. Jul 25, 2018 at 7:24 PM
    #1997
    Red Baron

    Red Baron Let's call it livabetes, no more die

    Joined:
    Nov 11, 2014
    Member:
    #142111
    Messages:
    5,622
    Gender:
    Male
    First Name:
    Aaron
    Lost on a roundabout
    Vehicle:
    07 Radiant Red DCSB
    Things with metal, dog hair, more metal and lights
    Will the winch really drain the main battery that quick?

  18. Jul 25, 2018 at 7:39 PM
    #1998
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Only if you're Winching with the truck off. Or you're Winching up a dam
    https://youtu.be/7TZTa2tgJTs

    Chipskip and YamaDirtrider like this.
  19. Jul 25, 2018 at 7:43 PM
    #1999
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Depends on load. Long pulls you will use a lot of power. Some winches can pull over 400amps at full load. Your alt max output is realistically ~100A, therefor 300A is being removed from the battery. Most batteries can only sustain that load for a very short time. Then you add in the winch draws more amps as the voltage gets lower

  20. Jul 25, 2018 at 7:57 PM
    #2000
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

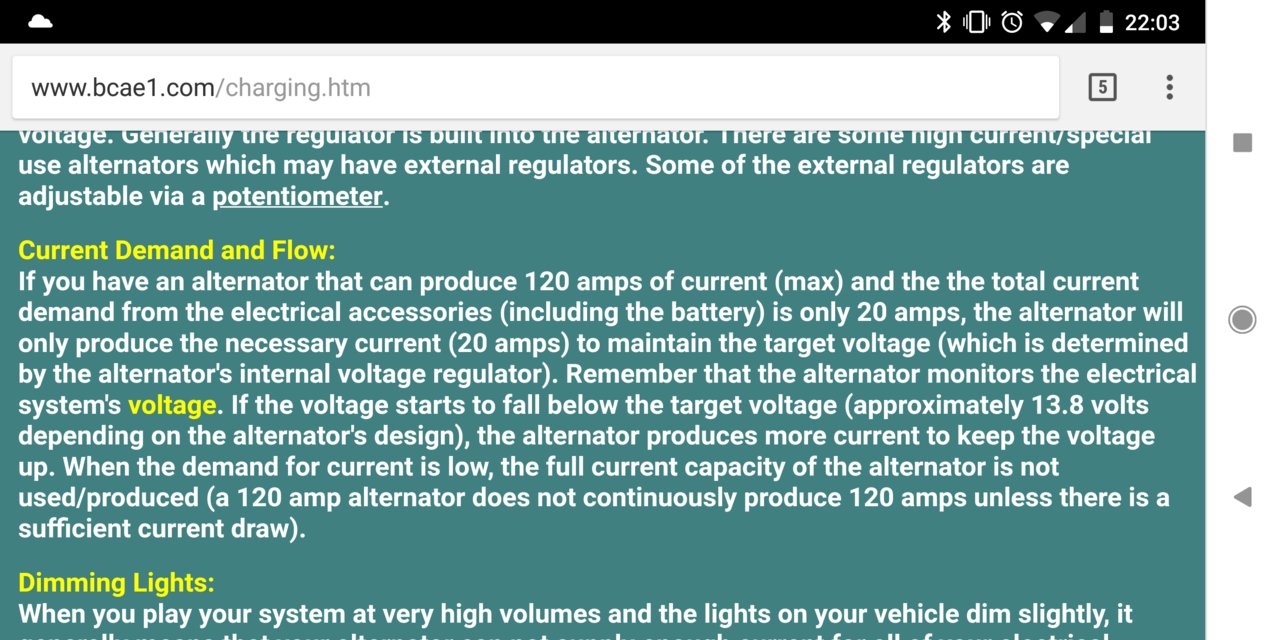

    Well.... Eh, it'd have to be a very tough, very long pull to worry about draining a battery.
