Dual Battery Setups! Lets see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Sep 20, 2013 at 4:33 PM
    #1
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,049
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    There are many different reasons why people put a secondary battery in their vehicle. With so many different electronic modifications we do on our trucks, and the prolonged usage of certain electronic modifications while camping/tailgating/etc, adding a secondary battery can ensure that you will be able to start your vehicle when the time is necessary.

    The different types of ways to install a secondary battery, its usage, and how it charges - will be all discussed in this thread in detail.

    _________________________________________________________

    Mounting Systems

    ATO Dual Battery Tray
    [​IMG]

    Columbia Overland version
    [​IMG]

    Custom trays by @Iggy. (Also has mount for ML-ACR)
    [​IMG]

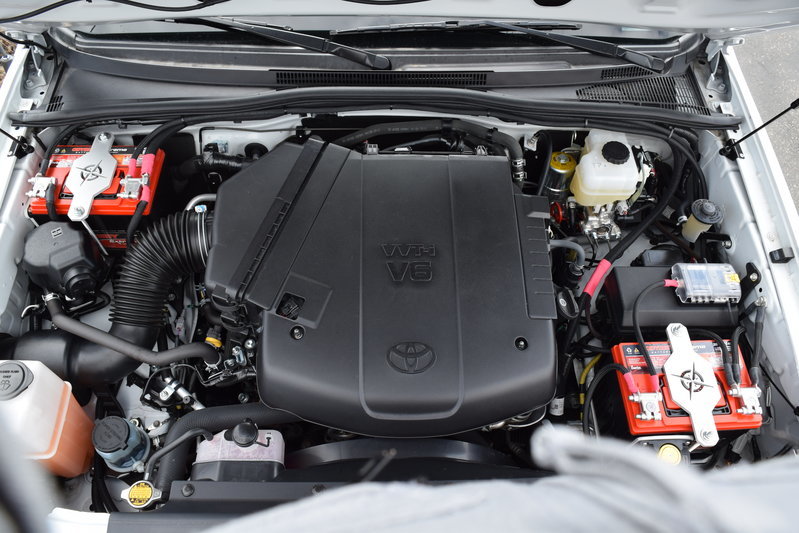

    OFF-GRID ENGINEERING (Also has mount for ML-ACR)
    [​IMG]
    _________________________________________________________

    Charging Systems

    National Luna
    [​IMG]

    Pro-
    1. Audible TOne
    2. dual monitor
    3. paddle is a switch also (con too)
    4. used by overlanders/offroaders all over the world
    5. This one is huge, they make a MONITORING DONGLE that does not have to be plugged into their proprietary Intelligent solenoid.
    6. they apparently make a recessed Dongle now too!

    [​IMG]

    Con

    1. Dongles are HUGE and do not really go anywhere in our vehicles.


    2. Solenoid system is actually a HYBRID and not really a 'smart' solenoid.


    3. Huge con for me, not really a sealed system. Whole thing could have been enclosed.
    4. Price - $395 - WOW!
    5. Weire wiring and solenoid setup. Whats up with all the large nodules on the solenoid ?
    6. Looks like someone garbled a few components together, not really a polished finished product.



    Intelligent Battery System (IBS)
    [​IMG][​IMG]

    Pro -

    1. Designed off road use
    2. Smaller setup than the National Luna (con too)
    3. easy install
    4. Audible tone
    5. dual visual gauges for the battery
    6. dongle is also a switch


    Cons

    1. Size, 200amp relay
    2. not waterproof/ sealed
    3. plastic relay -> Mounting and heat issues hypothetically.


    4. Price - At almost 500 with options, Most expensive option by far http://www.sierraexpeditions.com/index.php?l=product_detail&p=2074
    5. wiring is all over the place


    Blue Sea ML-ACR
    [​IMG] .


    Pro

    1. Sealed
    2. Full sized switch with built in blinking LEDs for battery states
    3. PRICE $261.63
    4. Easy to connect Leads for battery 1 and 2
    5. easy harness with options of a tinned leads or deutsch connector
    6. Manual shutoff/ isolation of batteries at the relay itself.
    7. Small form factor
    8. From start to finish, a truly thought out and well designed product. It is actually a BUSSMANN/ Blue Sea product.

    CONS

    1. No tone
    2. No graphical interface

    Painless Performance Dual Battery System
    [​IMG]

    WirthCo Battery Isolator
    [​IMG]




    Other important information
    Battery size chart
    Big 3 Upgrade
    Info about relocating 2nd battery in bed & wiring/gauge info
    How to separate OEM fuse box
    Connecting Batteries In Series vs. Parallel

    http://www.youtube.com/watch?v=e0v7GHrWUQc
    http://www.youtube.com/watch?v=YJDlFBW3nRI
    http://www.youtube.com/watch?v=BsQyxe4rtgA
    http://www.youtube.com/watch?v=c0Yc3D_79RM
    http://www.youtube.com/watch?v=PR498WWVpMo

    Links to Dual Battery Systems
    AllMountainToy
    shaneckc
    IgnorantlyAlberta
    killianeric
    Blackdawg
    abarber11
    Slimwood Shady
    H0LLYW00D
    MrGrimm
    NYCO
    Manwithouthaplan
    Linus
    tacomonazul
    Idaholandho
    MJonAgs32
    Whitecloud
    Nate87
    Iggy.
    InTheRough
    Cascades Tacoma
    hmcclung
    PeterVICEG
    Crom
    Mademan925
    docloco
    HeliMedic
    Chuy
    Subway4x4
    scott96929
    tacomgee
    Spansfelder

    Last edited: Jul 17, 2016
  2. Sep 20, 2013 at 5:21 PM
    #2
    Delmarva

    Delmarva Mayor of TW

    Joined:
    Oct 22, 2008
    Member:
    #10148
    Messages:
    36,560
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    12 Tundra TRDRW
    Nada, Zip, Zilch, Nothing
  3. Sep 20, 2013 at 8:56 PM
    #3
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    LOL- UM, I got 2 x 31M's I'm trying to squeeze under the hood.

  4. Sep 20, 2013 at 9:08 PM
    #4
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414

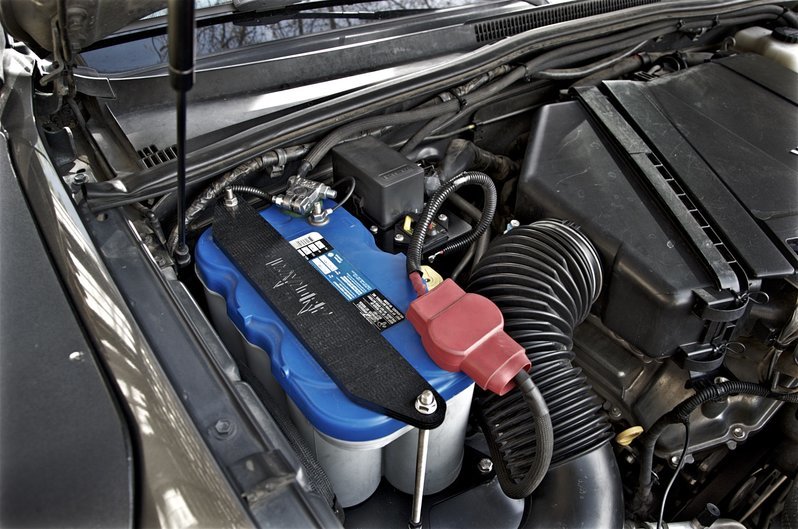

  5. Sep 20, 2013 at 9:08 PM
    #5
    AllMountainToy

    AllMountainToy Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62194
    Messages:
    417
    Gender:
    Male
    Northern California
    Vehicle:
    2011 Tacoma Double Cab 4X4 TRDOR
    2 3/4 OME Suspension Lift with 885, with trim packer, 1/4" top plate spacer, swaybar relo bracket. Dakar leaf pack with 3rd leaf removed. 285/70/17" BFG AT. XD Wheels with 4.5 BS, Best Top Soft Top, Undercover winch mount with Warn 8k winch (with synthetic line), Pioneer touchscreen double din head unit. 4X innovations welded sliders. roof mounted DVD system.ATO dual battery tray with dual yellow tops. Rugged ridge isolator kit.

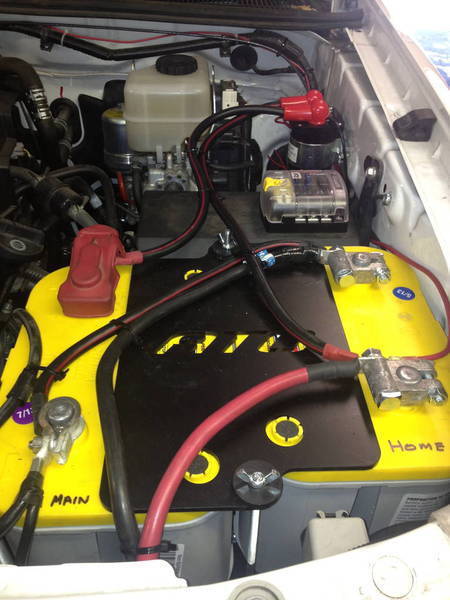

    I just did this over the weekend

    [​IMG]

  6. Sep 20, 2013 at 9:09 PM
    #6
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    If I had a newer gen, with the ABS on the opposite side, it would be a no brainer.

  7. Sep 20, 2013 at 9:10 PM
    #7
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I like that, "HOME" and "MAIN" - what do you have on them?

  8. Sep 20, 2013 at 9:17 PM
    #8
    AllMountainToy

    AllMountainToy Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62194
    Messages:
    417
    Gender:
    Male
    Northern California
    Vehicle:
    2011 Tacoma Double Cab 4X4 TRDOR
    2 3/4 OME Suspension Lift with 885, with trim packer, 1/4" top plate spacer, swaybar relo bracket. Dakar leaf pack with 3rd leaf removed. 285/70/17" BFG AT. XD Wheels with 4.5 BS, Best Top Soft Top, Undercover winch mount with Warn 8k winch (with synthetic line), Pioneer touchscreen double din head unit. 4X innovations welded sliders. roof mounted DVD system.ATO dual battery tray with dual yellow tops. Rugged ridge isolator kit.
    That is the ATO battery tray... $144.00
    2x yellow tops
    Rugged ridge dual battery wiring kit with 3 way switch
    Blu seas aux fuse box.

    If that is what you mean by "on them"

  9. Sep 20, 2013 at 9:18 PM
    #9
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    No I meant the batterys. you used a sharpie to label the batteries. I was wondering what you have on both sides there. Like main is for the truck electronics?

  10. Sep 20, 2013 at 9:24 PM
    #10
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I measured it out. I could put 2 of the 31's in the spot if* I move the fuse box back a little.
    Also would need to cut/ grind off the posts for the battery retention (spot where the "hook" goes into the metal tab between the fuse block and the battery) mount.
    With the studs, these are 9.5" high.

    Last edited: Sep 20, 2013
  11. Sep 20, 2013 at 9:24 PM
    #11
    AllMountainToy

    AllMountainToy Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62194
    Messages:
    417
    Gender:
    Male
    Northern California
    Vehicle:
    2011 Tacoma Double Cab 4X4 TRDOR
    2 3/4 OME Suspension Lift with 885, with trim packer, 1/4" top plate spacer, swaybar relo bracket. Dakar leaf pack with 3rd leaf removed. 285/70/17" BFG AT. XD Wheels with 4.5 BS, Best Top Soft Top, Undercover winch mount with Warn 8k winch (with synthetic line), Pioneer touchscreen double din head unit. 4X innovations welded sliders. roof mounted DVD system.ATO dual battery tray with dual yellow tops. Rugged ridge isolator kit.
    Ah ok. Yes the main is literally just the starting battery. No electronics other than factory are on this. The home battery is all aftermarket accessories. Winch, fridge/freezer, 12v outlet in bed.

  12. Sep 20, 2013 at 9:38 PM
    #12
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Makes sense now. :thumbsup:

    I was thinking of taking the inverter (stock) and seeing if i could isolate it from the other electronics. Then again, I do have my 2200w Pure Sine Inverter. That donkey is a behemoth.

    Mcamftw and Littletacotruck like this.
  13. Sep 20, 2013 at 9:42 PM
    #13
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    9,217
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    You have a link to that inverter?
    I always thought the winch and starter should be on one and then everything else on the other.

  14. Sep 20, 2013 at 9:49 PM
    #14
    AllMountainToy

    AllMountainToy Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62194
    Messages:
    417
    Gender:
    Male
    Northern California
    Vehicle:
    2011 Tacoma Double Cab 4X4 TRDOR
    2 3/4 OME Suspension Lift with 885, with trim packer, 1/4" top plate spacer, swaybar relo bracket. Dakar leaf pack with 3rd leaf removed. 285/70/17" BFG AT. XD Wheels with 4.5 BS, Best Top Soft Top, Undercover winch mount with Warn 8k winch (with synthetic line), Pioneer touchscreen double din head unit. 4X innovations welded sliders. roof mounted DVD system.ATO dual battery tray with dual yellow tops. Rugged ridge isolator kit.
    With this set up the winch can and should go on the aux. this is because with the flip of a switch both batteries are engaged and both push full charge from alternator. This is also used in an emergency when you want to pull juice from both to start the engine.

    jtrue likes this.
  15. Sep 20, 2013 at 9:57 PM
    #15
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Here you go. http://www.powerbright.com/aps2200.html

    It is the size of a VCR...

    Yep, so you can self "Jump" your vehicle too!

  16. Sep 20, 2013 at 10:06 PM
    #16
    AllMountainToy

    AllMountainToy Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62194
    Messages:
    417
    Gender:
    Male
    Northern California
    Vehicle:
    2011 Tacoma Double Cab 4X4 TRDOR
    2 3/4 OME Suspension Lift with 885, with trim packer, 1/4" top plate spacer, swaybar relo bracket. Dakar leaf pack with 3rd leaf removed. 285/70/17" BFG AT. XD Wheels with 4.5 BS, Best Top Soft Top, Undercover winch mount with Warn 8k winch (with synthetic line), Pioneer touchscreen double din head unit. 4X innovations welded sliders. roof mounted DVD system.ATO dual battery tray with dual yellow tops. Rugged ridge isolator kit.
    Did you need or should you upgrade the alternator with an inverter that large?

  17. Sep 20, 2013 at 10:26 PM
    #17
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    My plan was to get a bigger alternator anyways. There is one I was looking at a year ago that was same size as ours, custom built ~$450 for 450amps!

  18. Sep 20, 2013 at 10:29 PM
    #18
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Inverters only put out what is needed at the time. So its UP TO 2200W constant with peaks UP TO 4400W. SO if I am only pulling 100W, then it only puts out that much. These are more efficient being it is a true SINE wave. Vs a Modified one.

  19. Sep 20, 2013 at 10:33 PM
    #19
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    With the batterys I have and the plans for a larger amp alternator AND solar panels. I feel I will be good for a decent period of time. Originally I was looking at 3 batterys for my solar bank. I need to make the 2 I have work before I go any further here.

    Littletacotruck likes this.
  20. Sep 21, 2013 at 9:01 AM
    #20
    AllMountainToy

    AllMountainToy Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62194
    Messages:
    417
    Gender:
    Male
    Northern California
    Vehicle:
    2011 Tacoma Double Cab 4X4 TRDOR
    2 3/4 OME Suspension Lift with 885, with trim packer, 1/4" top plate spacer, swaybar relo bracket. Dakar leaf pack with 3rd leaf removed. 285/70/17" BFG AT. XD Wheels with 4.5 BS, Best Top Soft Top, Undercover winch mount with Warn 8k winch (with synthetic line), Pioneer touchscreen double din head unit. 4X innovations welded sliders. roof mounted DVD system.ATO dual battery tray with dual yellow tops. Rugged ridge isolator kit.
    On the passenger side I will be mounting my compressor in that cavernous open spot
