Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jul 25, 2018 at 8:11 PM
    #2001
    Blkvoodoo

    Blkvoodoo a Hooka smoking caterpillar has given me the call

    Joined:
    Jul 23, 2015
    Member:
    #160098
    Messages:
    4,125
    Gender:
    Male
    First Name:
    Kevin
    Near Clayton NC
    Vehicle:
    08 PreRunner SR5 DCSB
  2. Jul 26, 2018 at 6:25 AM
    #2002
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
  3. Jul 26, 2018 at 3:22 PM
    #2003
    Tricky Taco

    Tricky Taco Well-Known Member

    Joined:
    Dec 11, 2010
    Member:
    #47519
    Messages:
    93
    Gender:
    Male
    First Name:
    Kyle
    Colorado
    Vehicle:
    '17 DCSB OR M/T

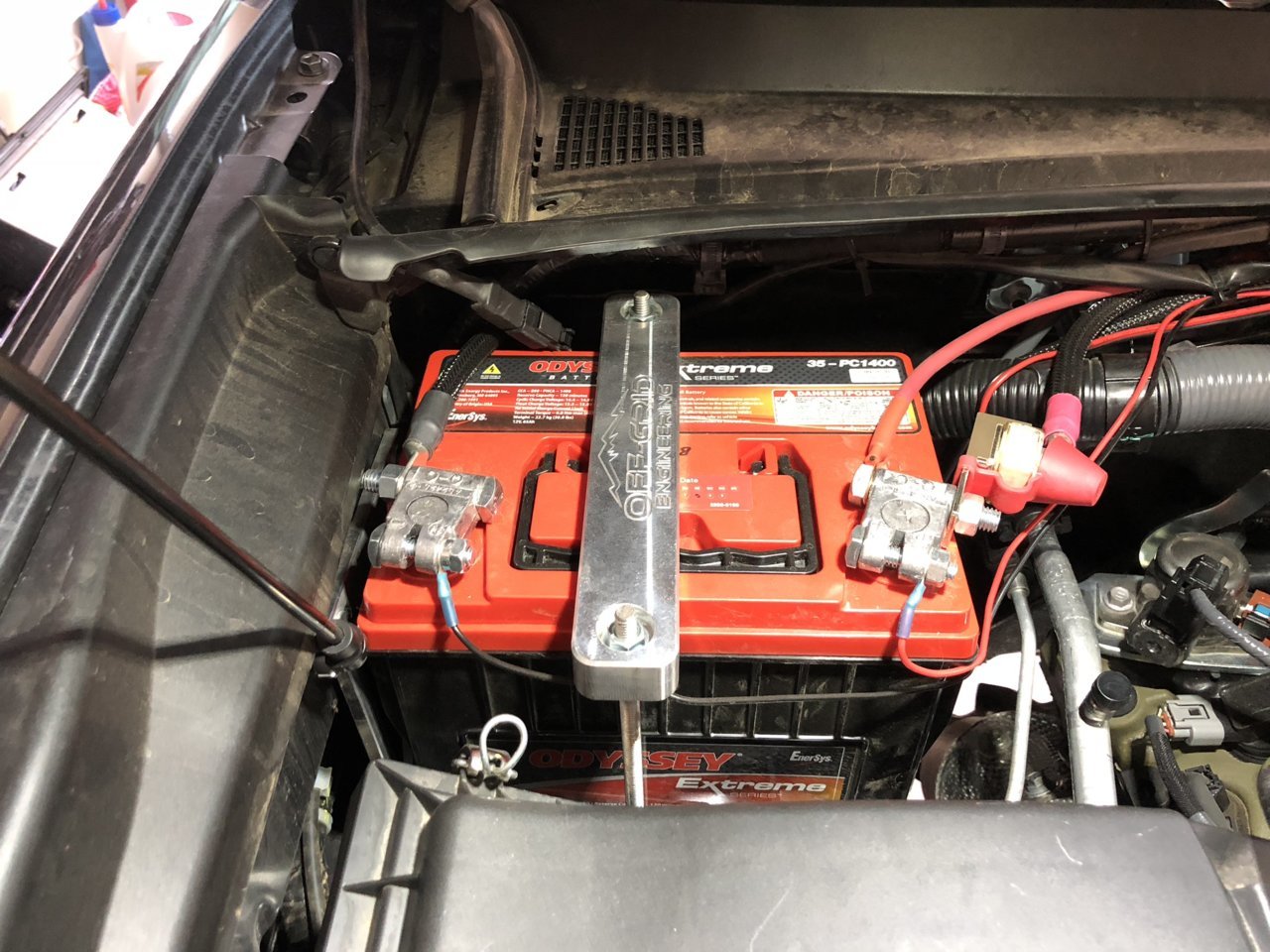

    Install was fine. The monitor wires were a little short to run through the firewall and to both batteries. I added some more wire, crimped/heat shrinked a couple of terminal ends and it worked well. Monitor is still a great purchase IMO.

  4. Jul 30, 2018 at 2:52 PM
    #2004
    El Taco Diablo

    El Taco Diablo Professional Pinstriper

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    9,796
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 DC, 5vz-fe, swapped 4wd, twin stick, F/R locked
    Just 3 tons of fun!!!
    Ok... So I think I'm getting the dual battery thing figured out. But I want to make sure before I start ordering shit. lol

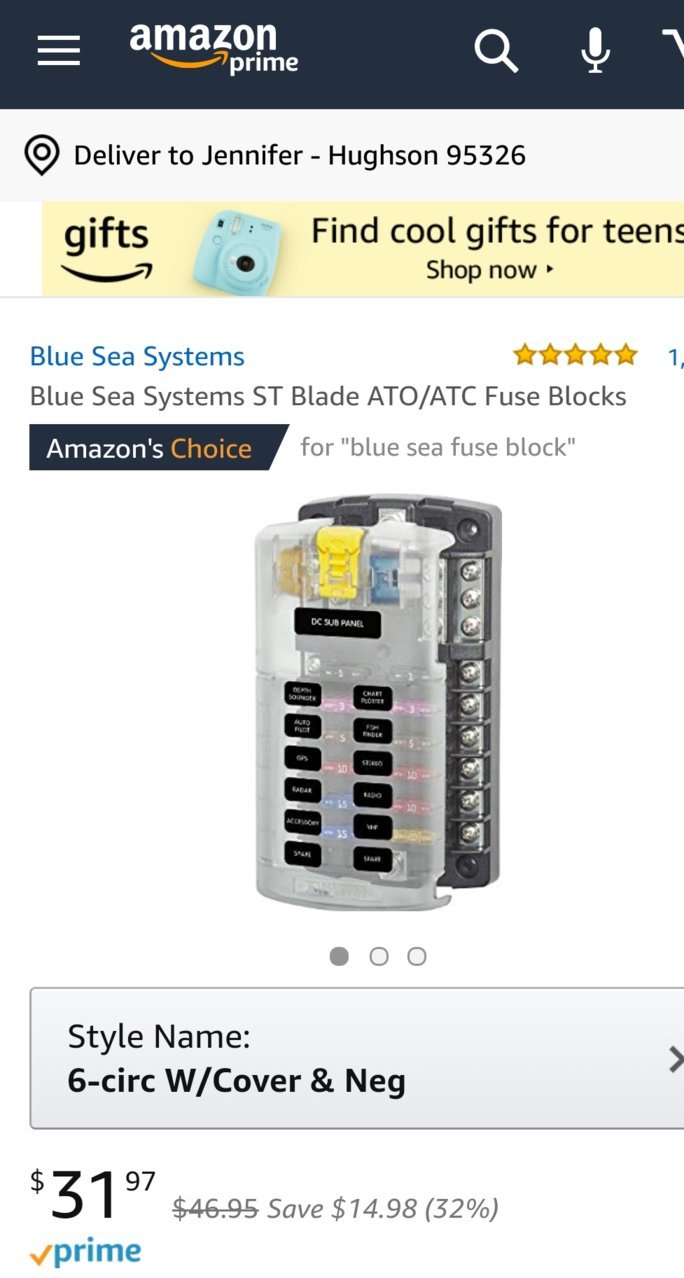

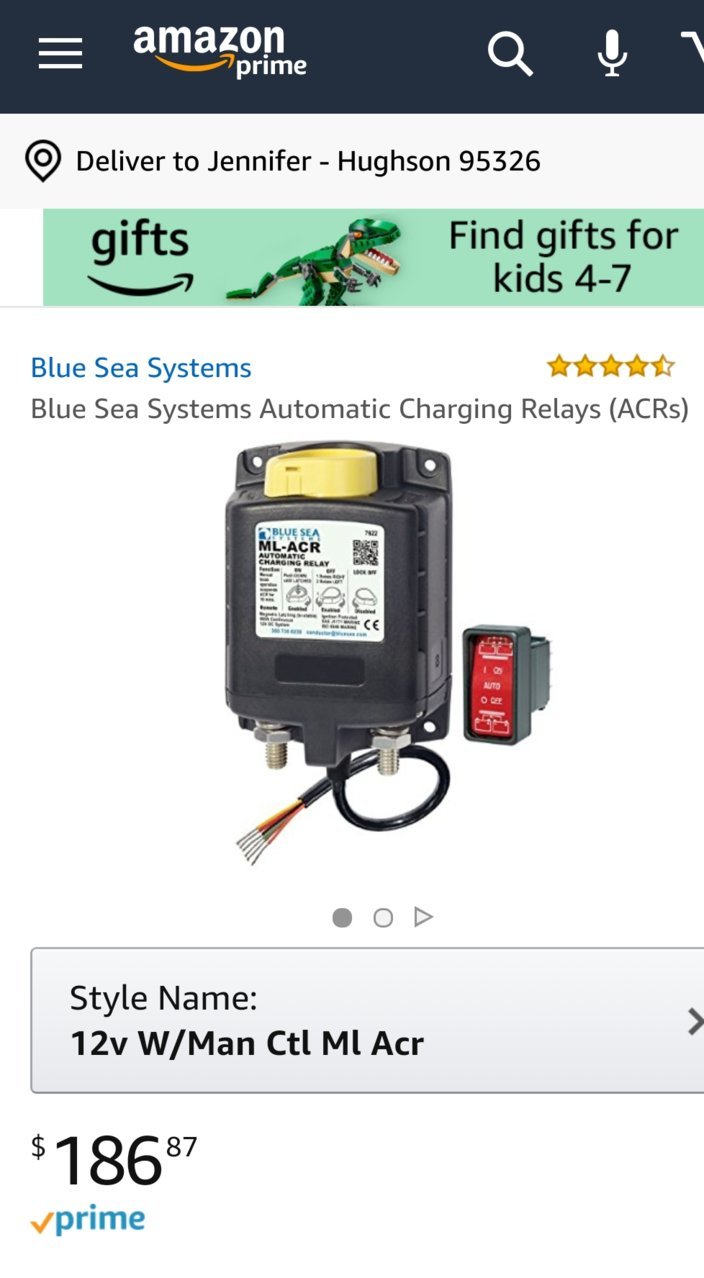

    As far as actual hardware is concerned, I am thinking this is all I need to get my dual battery setup rolling. Obviously I need a bunch of wires connectors etc... but correct me if I'm wrong that, in terms of hardware, this should get me going.


    OneFastGeek likes this.
  5. Jul 31, 2018 at 6:39 AM
    #2005
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
  6. Jul 31, 2018 at 6:42 AM
    #2006
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  7. Jul 31, 2018 at 6:44 AM
    #2007
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
    exactly what i was looking for. thank you

  8. Aug 3, 2018 at 12:30 PM
    #2008
    KillaBoDilla

    KillaBoDilla Member

    Joined:
    Apr 14, 2014
    Member:
    #127675
    Messages:
    18
    Gender:
    Male
    Savannah Ga
    Vehicle:
    04 PreRunner DBLcab
    Looking into installing a dual battery setup in my Tacoma. I am going to go with the BlueSea 7622 relay. I cannot find a dual battery monitor anywhere. I really like the peak DBI one but cannot seem to find it. Anyone have any knowledge on where to get a decent monitor?

  9. Aug 3, 2018 at 1:35 PM
    #2009
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    495
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    I am probably going to go with this one. But I want to ask someone that has already installed it how easy it was. I can't imagine it being that hard, but I'm tired of going through my firewall, so I want to make sure it's worth it.

  10. Aug 3, 2018 at 1:59 PM
    #2010
    Tricky Taco

    Tricky Taco Well-Known Member

    Joined:
    Dec 11, 2010
    Member:
    #47519
    Messages:
    93
    Gender:
    Male
    First Name:
    Kyle
    Colorado
    Vehicle:
    '17 DCSB OR M/T
    I posted a monitor a few pages back (#1953) that fits in daskboard blank. Works well.

    I install the one you are linking too. It works great and wasn't that hard to install. The end of the wires will require you to crimp terminal ends to them...not that difficult. You will have one set (+ / -) for the main and the other for the aux battery.

  11. Aug 3, 2018 at 3:46 PM
    #2011
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    495
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    Thanks for responding.

    Do you see any issue with going through my Blue Sea 12 port Aux fusebox for the aux battery? I'm not sure if I will do that or just go straight to the battery, but I'm just curious.

  12. Aug 3, 2018 at 4:05 PM
    #2012
    abarber11

    abarber11 Well-Known Member

    Joined:
    Jul 16, 2012
    Member:
    #82790
    Messages:
    421
    ATX
    Vehicle:
    2011 DCSB
    Yep, you've got it all besides 1/0 wire, 1/0 terminals, 1/0 crimper, 4ga wire, 4ga terminals, 18ga wire, 18ga terminals, 100 amp circuit breaker, 1-2 250 amp fuse and housing, second battery, battery tray, battery straps/clamp, assorted heat shrink tubing, assorted wire loom, electrical tape, propane torch, soldering iron, solder, solder paste, assorted fuses for the aux fuse box, mount for ACR and fuse box, battery voltage monitor...

    El Taco Diablo likes this.
  13. Aug 3, 2018 at 4:08 PM
    #2013
    Tricky Taco

    Tricky Taco Well-Known Member

    Joined:
    Dec 11, 2010
    Member:
    #47519
    Messages:
    93
    Gender:
    Male
    First Name:
    Kyle
    Colorado
    Vehicle:
    '17 DCSB OR M/T
    I'm running everything (lights, cb, rechargers) through my BlueSea 12 from my Aux battery except my winch. Winch is wired to my Main...need the alternator to help recharge when the winch is under load. I used 8 Gauge welding cables to run from my Aux Battery to the BlueSea 12. Got it off Amazon. It's heat resistant, flexible and it came with lugs. https://www.amazon.com/gp/product/B01BNRCRG8/ref=oh_aui_detailpage_o02_s01?ie=UTF8&psc=1

  14. Aug 3, 2018 at 4:11 PM
    #2014
    El Taco Diablo

    El Taco Diablo Professional Pinstriper

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    9,796
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red 02 DC, 5vz-fe, swapped 4wd, twin stick, F/R locked
    Just 3 tons of fun!!!
    Awesome... Good thing I have all the rest of that stuff. :thumbsup:

    abarber11 likes this.
  15. Aug 4, 2018 at 1:49 PM
    #2015
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,551
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/Vibrant Resonator and upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines Aeromotive Stealth 340 Fuel Pump AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    This is a shame. I really like mine. You might consider writing to:

    Keven Nel
    PO Box 11319
    Rynfield
    Benoni
    1514
    South Africa

    This is the person who was selling the Peak DBI 12v dual monitors on eBay. Sorry no phone number or email address.

  16. Aug 4, 2018 at 2:02 PM
    #2016
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,758
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I smell a Nigerian prince

  17. Aug 8, 2018 at 5:41 PM
    #2017
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter

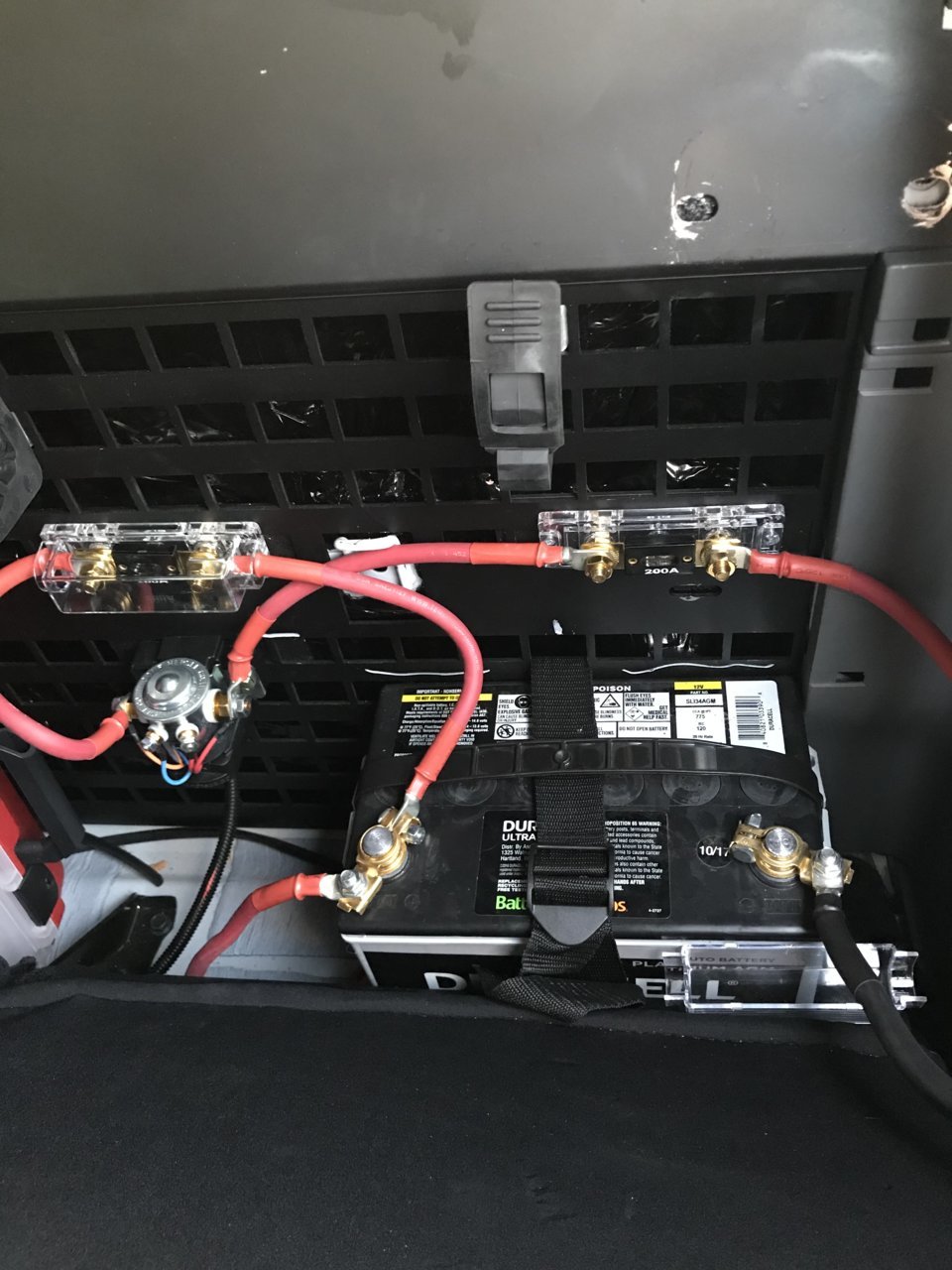

    FB89FE39-CBA2-4FF6-B2EC-6F9BDED6E6A6.jpgOk so here’s the set up so far. The ground is to be determined for the battery. The wire coming off the right fuse goes to the main battery. The cole hersee is wired to an led status and that’s grounded separate from the ground coming from the isolator but I can’t get a reading from the battery. Does everything look correct? I didn’t put a switch on the hersee either.

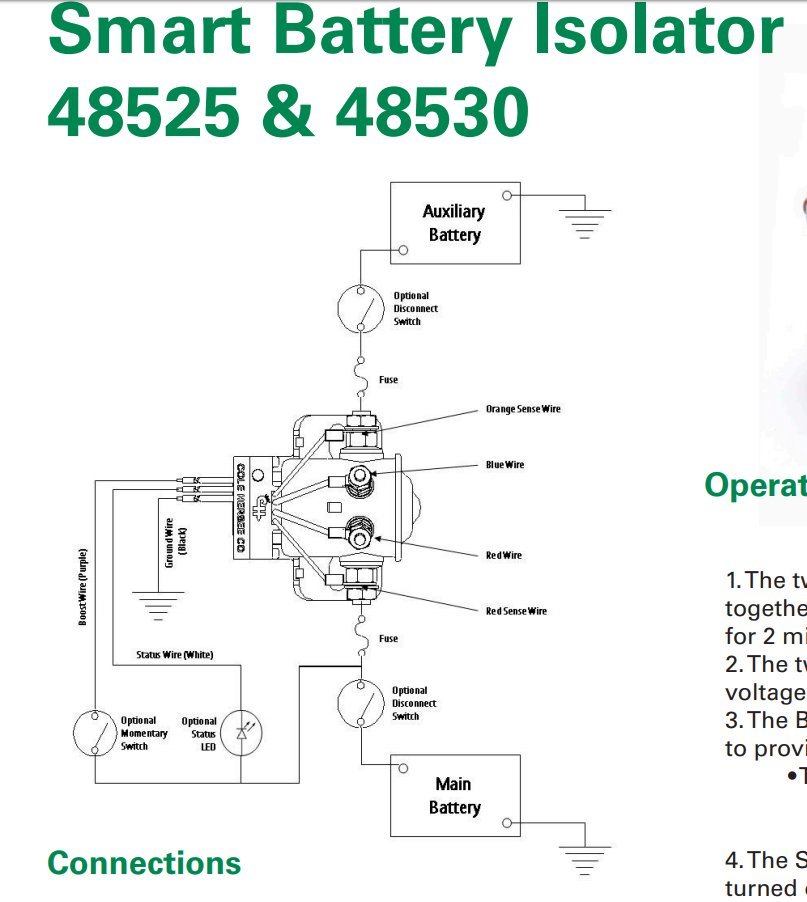

    Here’s the diagram I went off:


    geekhouse23 likes this.
  18. Aug 10, 2018 at 5:49 AM
    #2018
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
    anyone........bueller.........

  19. Aug 10, 2018 at 7:33 AM
    #2019
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    The isolator provides the ground connection for the status LED. Look at the connection drawing again and you'll see that the status LED is wired to 12V and the isolator. The isolator switches to ground internally to provide the ground to illuminator the LED. Fix that first and if the LED still doesn't work try reversing the wires as the polarity is probably backwards.

  20. Aug 10, 2018 at 7:34 AM
    #2020
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
    So i have to put the ground directly to the LED meter? I dont have to ground it to something first?
