Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. May 28, 2019 at 8:16 PM
    #2441
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    What head unit is that? Is it android auto?

  2. May 28, 2019 at 8:19 PM
    #2442
    ypahuboy

    ypahuboy Well-Known Member

    Joined:
    Apr 12, 2017
    Member:
    #216092
    Messages:
    88
    Gender:
    Male
    First Name:
    Brian
    Vehicle:
    2009 Tacoma DCSB TRD OR
    Alpine iLX-207 i got it for Apple CarPlay. I just checked online and it has android auto

    Last edited: May 28, 2019
  3. May 29, 2019 at 8:36 AM
    #2443
    foxrcing07

    foxrcing07 KO7FOX

    Joined:
    Aug 12, 2016
    Member:
    #194389
    Messages:
    3,845
    Gender:
    Male
    First Name:
    Morgan
    Modesto, CA
    Vehicle:
    2005 DCLB 2001 Reg cab 4x4
    Dirt
    CalTacoma09 likes this.
  4. Jun 18, 2019 at 2:55 PM
    #2444
    SIZZLE

    SIZZLE Pro-party

    Joined:
    Oct 3, 2013
    Member:
    #113785
    Messages:
    618
    Novato, CA
    Vehicle:
    2014 DCSB TRD Off Road
    A little a this, a little a that...
    I’m finally looking to do a dual battery system and I’m more of the simpler is better mindset. If I just wire the batteries in series (with breakers), do I avoid the issue with our smart alternator and need for a DC-DC charger? I realize that I would be giving up some functionality and protection that a ML ACR provides, but mostly I just want greater capacity and to keep it simple. Looking for some advice on things I might not be thinking of. Thanks in advance!

    YamaDirtrider likes this.
  5. Jun 18, 2019 at 4:14 PM
    #2445
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Well first off if you wire then in series you we fry your truck. You need to do them in parallel.

    The simplest wound wire them together without any breakers. The breaker Shound be as close to the battery as possible. If you add breakers you are not able to self jump since they Shound be ~80 amp breakers. If you go 200+ amp breakers you may as well not add them.

    Dc-dc controller is for 2 miss matching batteries. If you get 2 battery’s dates the same with the same make up they are vine being connected together.
    Another option is a continues duty relay and only connect the batteries when the truck is running

    SIZZLE likes this.
  6. Jun 18, 2019 at 4:45 PM
    #2446
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    15,237
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    I thought you wanted a breaker at whatever the alternator put out?

    Finally thinking i want to add a dual battery and looking at this (link) and a 140a breaker. Itll be going in the passenger fender spot.

    Also just wanting to buy another ots battery from oreilly (should be fine for my purposes)

    https://smile.amazon.com/gp/aw/d/B00WTAFR5W/ref=ox_sc_act_image_4?smid=A2QEJ1BGOVPAGN&psc=1

  7. Jun 18, 2019 at 4:54 PM
    #2447
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    If you go with a automatic disconnect like that then yes, you should use a breaker. Either way you will not be able to self jump with that controller because it does not have enough amp capacity.

    You should size the breaker to the wire or power draw that your intending. For 140amp draw, you’d wanna use 4 or 6 gauge wire. For instance wile the alt can only generate a max of 140 amps you wound not put a 140 amp breaker to a winch. Winches can draw over 300 amps as then get maxed out.

  8. Jun 18, 2019 at 4:57 PM
    #2448
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    15,237
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    Correct. Im not worried about the self jumping aspect. Itd be easy enough to throw jumper cables between the two.

    You reccommend 6 gauge? Cant imagine it being more than 5-6ft connecting the two batteries. Only going to be running my fridge on the house

  9. Jun 18, 2019 at 5:13 PM
    #2449
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    While you can get away with 8 gauge and probably be fine, I wound not go lower than 6 gauge. Better to be safe than have the wire heat up and melt. BC17A70E-DA0F-4971-AAA6-099B9A72D066.jpg

    While the fridge only draws 5ish amps an hr give it 24 hrs and that can add upwards of 100 amps out of the battery.

    Also the longer the run the more voltage drop occurs. Hence why going up 1-2 wire gauges helps so there is not as much resistance in the wire.

    xsf18cdf likes this.
  10. Jun 18, 2019 at 5:28 PM
    #2450
    SIZZLE

    SIZZLE Pro-party

    Joined:
    Oct 3, 2013
    Member:
    #113785
    Messages:
    618
    Novato, CA
    Vehicle:
    2014 DCSB TRD Off Road
    A little a this, a little a that...
    “Parallel”, thanks, that is what I meant.

    So no need for breakers or fuses in between the batteries when in parallel? I don’t care about self jumping because if there is no auto disconnect, both will be dead at the same time anyway. In that case I would use a jump pack.

    Also, I thought the DC DC controller helped since house vs starter batteries discharge at different rates, but our alternator only reads the starter battery and puts out voltage based on its need which could leave the house battery not getting fully charged. Did I go wrong somewhere?

    Thanks for helping me sort this stuff out.

  11. Jun 18, 2019 at 6:05 PM
    #2451
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,026
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Always use breakers or fuses. Breakers are easy to reset, fuses are cheap. You'll want 2, one at each end of the POS lead connecting the two batteries. Closer to the battery is better. The point is to prevent fires if the wire was the chafe through and contact metal. In that case you would basically have an unstoppable stick welder in the engine bay.. As far as the rating, that would probably need some more research but Id make a guess at 200A.

    If you wired them in parallel with no disconnects, then they would share the same voltage, charge, and discharge rates at all times (assuming the same group size). Only need to worry about different charge / discharge rates when there is a disconnect or when one is significantly smaller than the other. So the need for a DC-DC charger in this application you described kind of depends on what type of batteries you get. If you get standard wet lead-acid batteries, no problems. Just pick 2 similar sizes (group 27F and 35 are common in these trucks), wire them in and go, the truck will essentially just 'see' one really big battery. It doesnt care beyond that and will charge normally like I said. If you go for something like an AGM battery, then theres some debate on that. The short version: AGM batteries like to charge at a slightly higher voltage than regular batteries. Some people do DC-DC chargers designed for this, some do the alternator voltage booster upgrade thing (dont recall its exact name), and some dont do anything in the truck. Im in that last category. I run dual Northstar (AGM) batteries. Didnt want to mess with boosting the charge voltage, so I run it normally. What I do is put a good float charger designed for AGM chemistry on about once a month and bring them both to 100%. This method has worked fine for me so far, and to your original point this keeps it very simple.

    SIZZLE likes this.
  12. Jun 18, 2019 at 6:15 PM
    #2452
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Well to set it up properly you wound need a breaker at each battery.

    Agree with ^ to a point.

    When I ran my duals I used the ml-acr and did not use a breaker. But I did use an extra abrasive coverage on the wiring.

  13. Jun 18, 2019 at 6:18 PM
    #2453
    SIZZLE

    SIZZLE Pro-party

    Joined:
    Oct 3, 2013
    Member:
    #113785
    Messages:
    618
    Novato, CA
    Vehicle:
    2014 DCSB TRD Off Road
    A little a this, a little a that...
    Thank you very much! That’s just the info I needed.

    I’d like to do a split system in the engine bay on my second gen with a pair of group 35s. Anyone know what size breakers and gauge wire I should use?

  14. Jun 18, 2019 at 6:23 PM
    #2454
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?

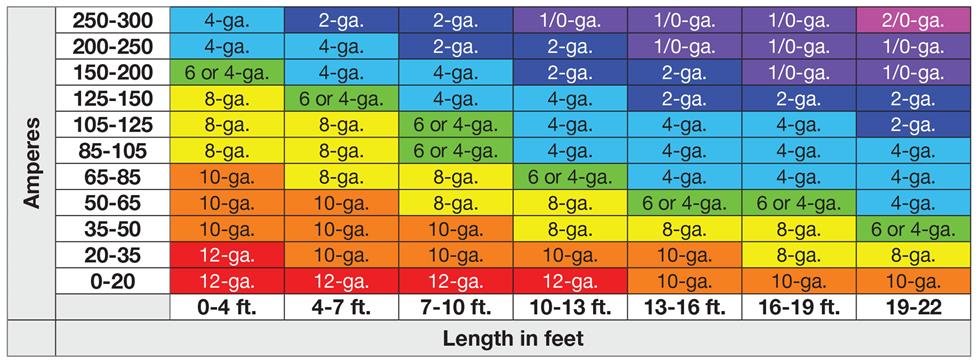

    I’d say 140-150amp breakers. And that puts ya at 4 or 6 gauge wire. 3B6E6843-B35E-484C-B59B-17DFAF59BA1F.jpg

    xsf18cdf likes this.
  15. Jun 18, 2019 at 6:52 PM
    #2455
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    15,237
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
  16. Jun 18, 2019 at 6:57 PM
    #2456
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
  17. Jun 18, 2019 at 7:07 PM
    #2457
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    15,237
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    YamaDirtrider likes this.
  18. Jun 18, 2019 at 7:21 PM
    #2458
    gixxerphil

    gixxerphil @concretelander

    Joined:
    Mar 31, 2018
    Member:
    #249012
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Phillip
    Auburn, Alabama
    Vehicle:
    2013 DCLB
    To keep from having to go through 123 pages, has anyone found a way to mount a 2nd battery on the passenger side of a SR5? I saw Flyingwill(sp?) did, but I couldn't really tell how to relocate the ABS on the passenger side.

  19. Jun 18, 2019 at 7:23 PM
    #2459
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    gixxerphil likes this.
  20. Jun 18, 2019 at 7:26 PM
    #2460
    gixxerphil

    gixxerphil @concretelander

    Joined:
    Mar 31, 2018
    Member:
    #249012
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Phillip
    Auburn, Alabama
    Vehicle:
    2013 DCLB
    Last edited: Jun 18, 2019
