Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jun 20, 2019 at 7:26 AM
    #2481
    ckrockets

    ckrockets i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    332
    Gender:
    Male
    Kalispell, MT
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    I've considered carrying a long set of jumper cables so I could self-jump :muscleflexing: :D

    SR-71A likes this.
  2. Jun 20, 2019 at 7:42 AM
    #2482
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,462
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Another good idea.

  3. Jun 20, 2019 at 7:43 AM
    #2483
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    15,818
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    A lot cheaper for sure

  4. Jun 20, 2019 at 7:51 AM
    #2484
    ckrockets

    ckrockets i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    332
    Gender:
    Male
    Kalispell, MT
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    Now you've done it ;), you've got me to thinking.

    30ft (15ft red, 15ft black) of 1 gauge wire *cheap CCA would be fine, 2 sets of high current DC quick disconnects, 4 - 1 gauge ring terminals, and my hydraulic crimper.

    Quick disconnect jump setup between my main battery and secondary battery.
    I've got 8 days to make it happen before my 2 week overlanding trip. :militarypress:

    WPNZ and SR-71A like this.
  5. Jun 20, 2019 at 7:59 AM
    #2485
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    15,818
    Gender:
    Male
    First Name:
    Chris
    KS
    Vehicle:
    DCSB OR 4X4 LT
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, ADS Rear Shocks, Deaver U402 Leafsprings, 35s, AllPro +2LT
    Getting more expensive than a set of cables from the vato zone or other

  6. Jun 20, 2019 at 7:59 AM
    #2486
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    35,879
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    That's all well and good until you run across someone else that you want to jumpstart.. Then you have to take apart your battery connections to be able to do it. Unless you make a set of Quick Disconnect to Clamp adapters. It's just money though.

    Pyrotech likes this.
  7. Jun 20, 2019 at 8:01 AM
    #2487
    ckrockets

    ckrockets i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    332
    Gender:
    Male
    Kalispell, MT
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    ;)

  8. Jun 20, 2019 at 8:02 AM
    #2488
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,462
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Don't rush the decision/design. Do what makes the most sense to you, long term.

    You can always rig up a temporary set up for your trip.

    I need to update my build thread with my dual battery set up and thought process. Reading that might give you a more thorough understanding of where my ideas come from.

  9. Jun 20, 2019 at 8:02 AM
    #2489
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,801
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
  10. Jun 20, 2019 at 8:02 AM
    #2490
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,462
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Isn't it always...

  11. Jun 20, 2019 at 8:03 AM
    #2491
    ckrockets

    ckrockets i don't own a couch

    Joined:
    Feb 16, 2008
    Member:
    #4757
    Messages:
    332
    Gender:
    Male
    Kalispell, MT
    Vehicle:
    2010 Tacoma 4X4 TRD sport DCB short bed
    True, the coolness factor has some value though. :D

    wmg likes this.
  12. Jun 20, 2019 at 8:09 AM
    #2492
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    4,462
    Gender:
    Male
    First Name:
    Scott
    Georgia
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    See 3 posts up...

  13. Jun 20, 2019 at 9:40 AM
    #2493
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    422
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    I used to think my wiring was neat and tidy.

  14. Jun 20, 2019 at 10:17 AM
    #2494
    xsf18cdf

    xsf18cdf Well-Known Member

    Joined:
    Jan 5, 2019
    Member:
    #278228
    Messages:
    181
    Gender:
    Male
    First Name:
    Gary
    Texas
    Vehicle:
    2019 TRD/OR/DC/LB/QS
    None

    Ok, I'm sportin' wood now.

  15. Jun 27, 2019 at 9:49 AM
    #2495
    turbodb

    turbodb AdventureTaco

    Joined:
    Feb 9, 2016
    Member:
    #177696
    Messages:
    8,450
    Gender:
    Male
    First Name:
    Dan
    PNW
    Vehicle:
    2000 Tacoma Xcab 4x4 SR5 V6 TRD
    AdventureTaco
    Got my dual batteries installed. "All that for a fridge." hahhaahah

    Was a project I'd procrastinated for a while - not because I don't like electrical/wiring - I'm actually more comfortable with that than all the mechanical stuff...but because I knew it would be a giant pain in the ass.

    Turned out pretty good though. Whole story and photos as usual:
    MOAR Power, More Redundancy - Dual AGM Battery Install


    [​IMG]

    [​IMG]

  16. Jul 9, 2019 at 8:37 PM
    #2496
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand

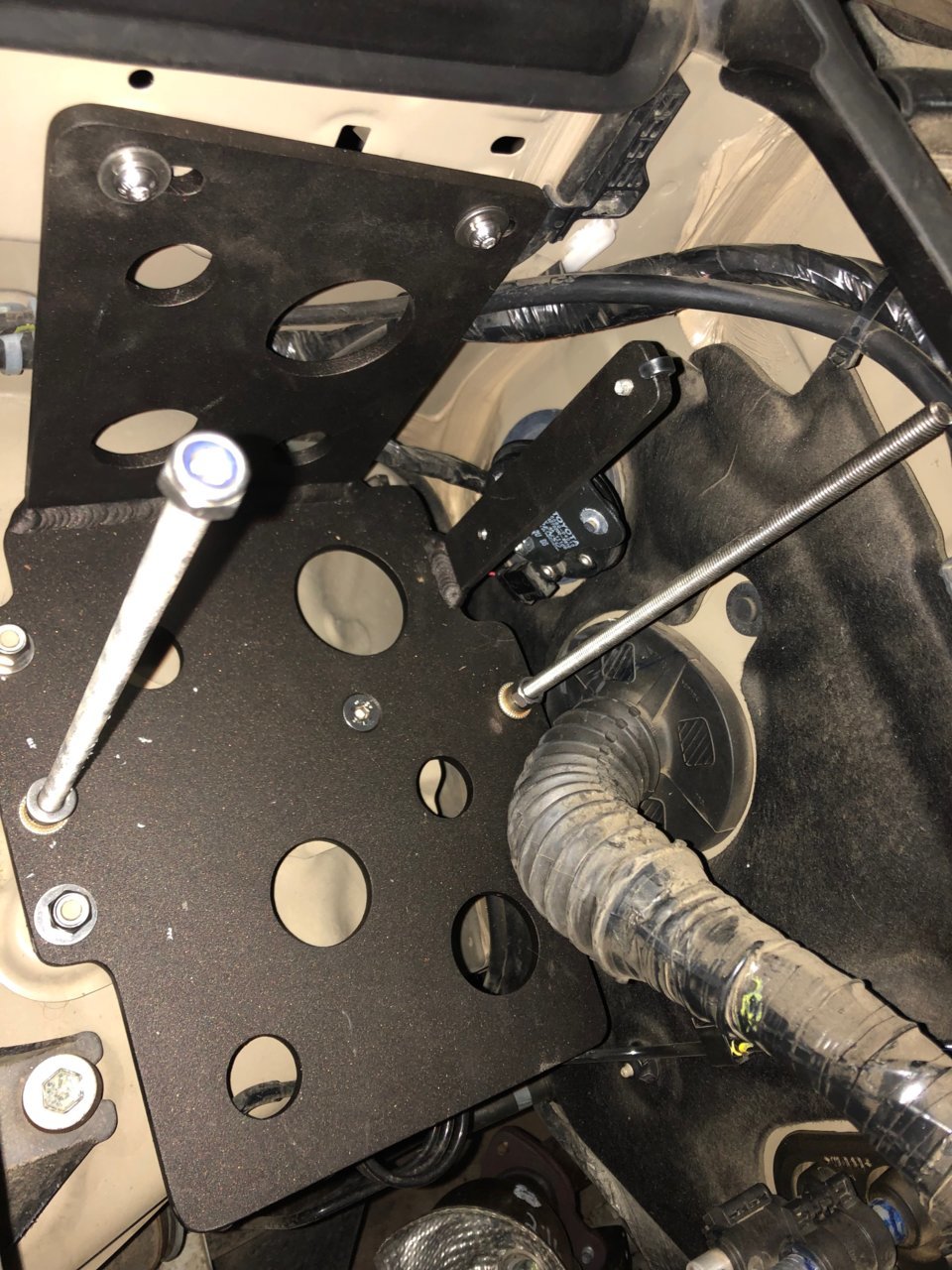

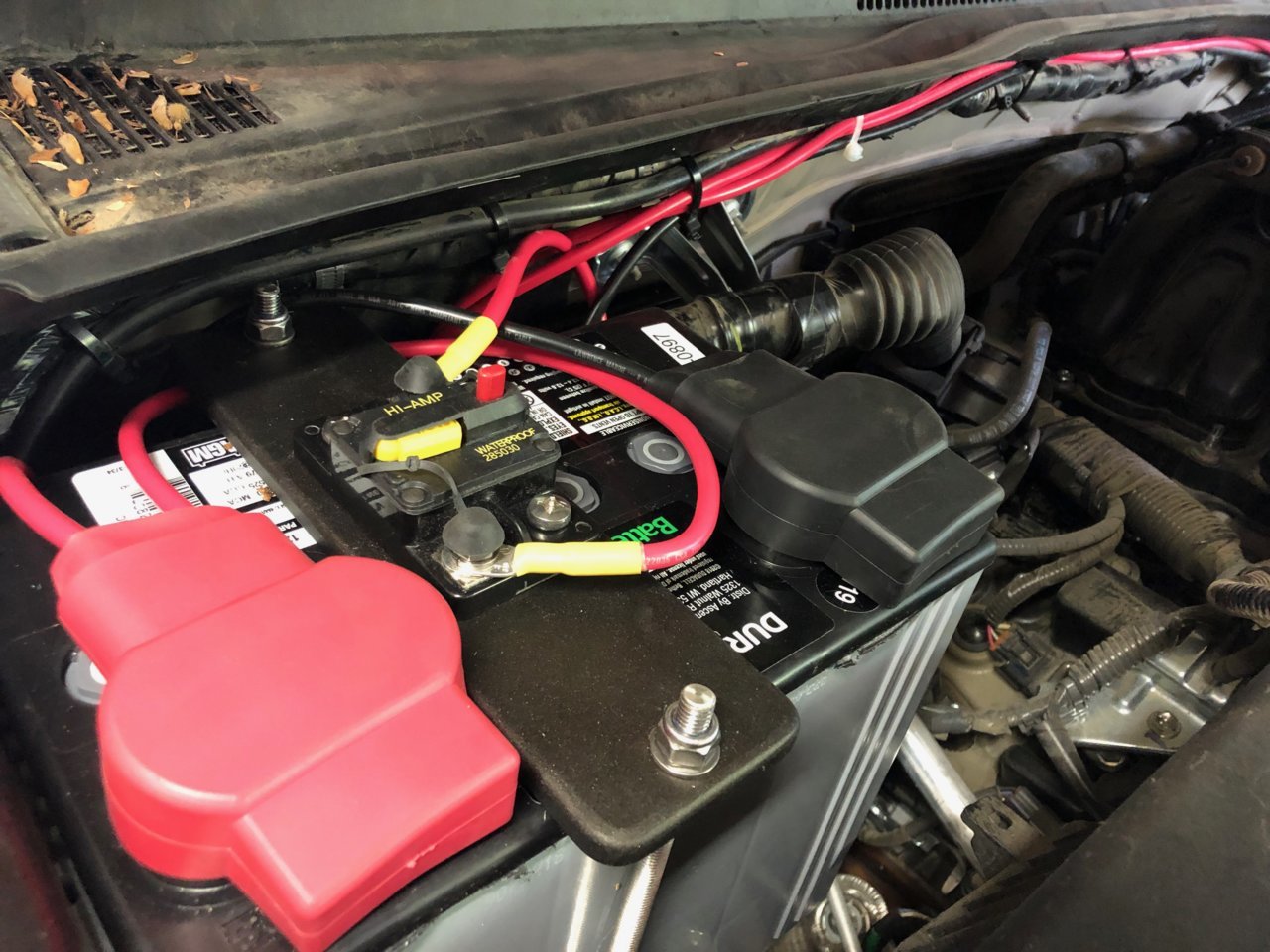

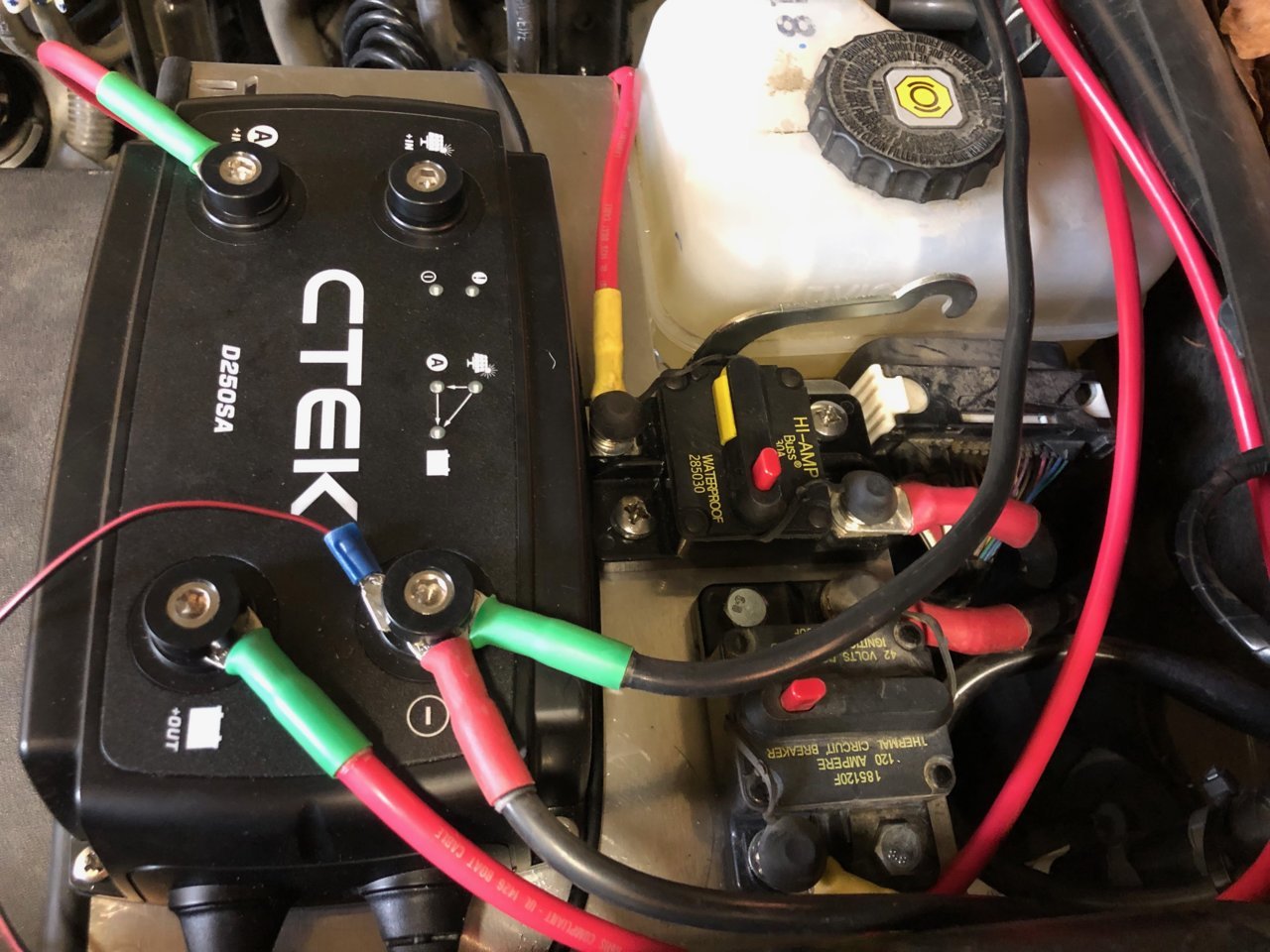

    I had installed a fuse box and circuit connected to main battery in the bed last year. This year with a long trip coming up I decided to invest in and install a 2nd deep cycle AGM battery. A dc-dc charger is what I decided I'd go with and leave my starter battery alone. After researching I decided to go with ctek instead of redarc since it seemed an easier install. Mainly I don’t have a hydraulic crimp tool for large gauge wires and connectors and with ctek since it has posts I could order pre-crimped cables with connectors of my choosing after measuring what I needed and basically hook up everything. The only thing needing some crimping is the 2 small wires for AGM and alternator ( which basically goes to an ignition enabled fuse in the fuse box and the other just goes to ground). I also got the battery tray from Mole overland ( aka adventure ready ). Hooked it all up yesterday and it works.

    IMG_1844.jpg IMG_1847.jpg IMG_1849.jpg IMG_1850.jpg

    Last edited: Jul 9, 2019
    k8md, SR-71A, chops749 and 1 other person like this.
  17. Jul 16, 2019 at 6:18 PM
    #2497
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,801
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Heres a question for you guys: Im getting ready to wire in my Bussmann relay block and Im wondering where I should land the main pos supply lead? Should I run it all the way back across the engine bay direct to the 'house' battery (maybe 5-6 feet of 4 AWG) or could I just use the existing 2 AWG wire from house batt. to ML-ACR? In that case I would pull power directly from the house side of the ML-ACR (maybe 2 feet 4 AWG in addition to the existing ~6 feet 2 AWG used to tie the two batteries together)

    I have enough 4 ga to run it all the way across, Im trying to get the best balance of simplicity, weight, safety, and looks. Ive already got 2x 2 ga wires for the dual setup as well as several smaller cables running along the factory harness behind the engine. Figure if I could avoid running another heavy wire there, that would be good.. Also, fusing is an issue. Id like to use a breaker located beside the Bussmann. Not sure Id want to have a run all the way across the engine bay without protection. Whereas just a foot or two unprotected wouldnt bother me as much

    Thoughts on each option?

  18. Jul 16, 2019 at 6:24 PM
    #2498
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,344
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    I’d run it the the ml-acr and call it a day.

    SR-71A[QUOTED] and k8md like this.
  19. Jul 16, 2019 at 7:24 PM
    #2499
    turbodb

    turbodb AdventureTaco

    Joined:
    Feb 9, 2016
    Member:
    #177696
    Messages:
    8,450
    Gender:
    Male
    First Name:
    Dan
    PNW
    Vehicle:
    2000 Tacoma Xcab 4x4 SR5 V6 TRD
    AdventureTaco
    Electrically, over the distances, wire gauges, and (likely) amperages you're going to be dealing with, there's no difference between running all the way back to the house battery or running to the house battery size of the ML-ACR.

    Doing the former, you'll have the possibility (but in reality, essentially immeasurable) of more voltage drop due to the longer run of 4ga wire. (vs. some 2ga + some 4ga if you go to the ML-ACR)

    Doing the later, you'll have the possibility (but in reality, likely immeasurable) of more RFI (electronic interference) being introduced to your Bussmann. (since you won't technically have an uninterrupted line to the battery; though really, with good contact at the ML-ACR post, it's essentially uninterrupted).

    So, it sounds like you're leaning towards the second option... and that'll be fine, electrically. Don't forget to put a circuit breaker in the positive line between the ML-ACR and Bussmann though - something like this in the 80A range is likely good.

    Next question: How are you grounding the Bussman (since the ML-ACR doesn't deal with grounds)? A direct line (5-6' of 4ga) back to the house battery? I'd definitely go that route, rather than grounding to the frame/body/etc., in order to reduce RFI.

    SR-71A[QUOTED] likes this.
  20. Jul 17, 2019 at 5:27 AM
    #2500
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,801
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Good point about the EMI.. I have to add ferrites to my one of my radios anyway, so it probably wont matter too much in the end.

    Yup I have an 80A panel mount breaker spec'd out, just need to iron out a few more details before I place the whole order

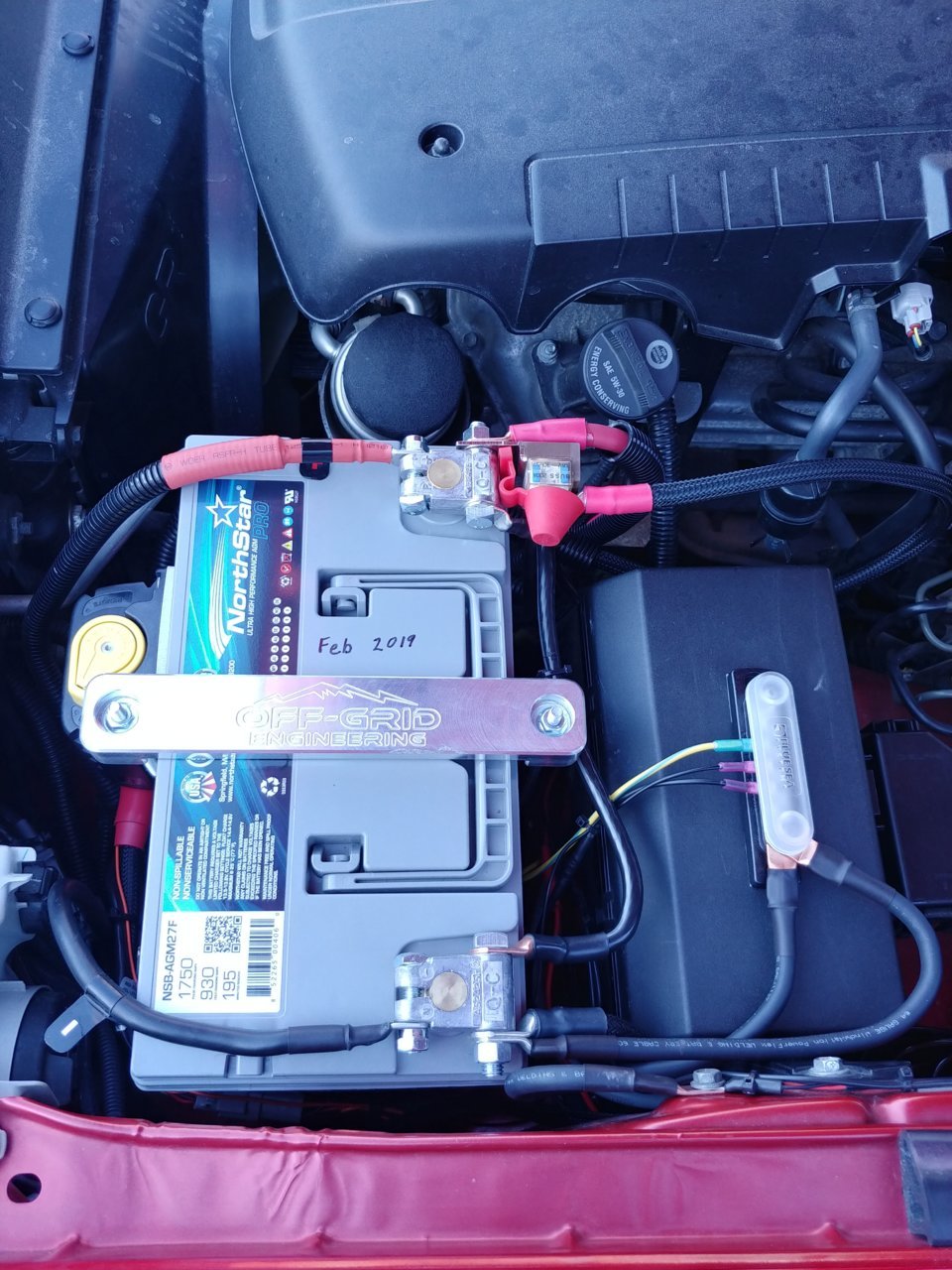

    This is my ground bar where Ill be running all of that. Direct back to the neg terminal of the main battery which is obviously tied to the house as well.

    So bottom line it sounds like Im not missing anything here, thanks for the sanity check guys :thumbsup:


    Toynado and turbodb[QUOTED] like this.
