Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jan 25, 2020 at 5:25 AM
    #2581
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    13,803
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4
    Drop bracket lift and booger welds
    Very clean work and labeling! How do you get those labels to stay?

    Toynado likes this.
  2. Jan 25, 2020 at 5:35 AM
    #2582
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    2,983
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    They look like they are shrink-wrap labels.

    Dymo makes shrink-wrap and a hand-held device to print on the shrink-wrap. It's not the cheapest shrink-wrap, but it really is convenient.

    SR-71A and Toynado like this.
  3. Jan 25, 2020 at 5:58 AM
    #2583
    Toynado

    Toynado Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166816
    Messages:
    1,384
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 TRD OR DCSB Quicksand
    EXTERIOR: Toytec Boss 2.0 Dakar CS047R Leaf Springs Tailpipe chopped Pelfreybilt Front full hoop front bumper w/ Pelfrey fairlead Pelfreybilt Rear standard bumper Pelfreybilt Aluminum IFS, Mid, Rear (exhaust reroute) & Gas tank skids Pelfreybilt Fuseplate w/ 12 circuit fuse block All-Pro Apex Sliders ProComp 7036 17"x9" -6 offset BFG 275/70R/17 KO2's Warn VR10000-S winch Baja Designs S8 light bar & Squadron sports amber pods in front bumper Baja Designs S2 flush pods in rear bumper Baja Designs Squadron Pro amber pods on Caliraised ditch light brackets @rrentrop reflective black tailgate inserts RSI LED's for regular & high beams Prinsu Cabrac Custom Tradesman Truck Top by Access Manufacturing w/ Powertank 8"propane tank mount & Yakima tracks on the roof INTERIOR: Warrior Products door sill protectors Husky Weather Beater floor mats front & rear Coverking arid multicam seat covers in the front Midland 75-822 CB w/ 4' Firestick antenna on C4 Fabrication tailgate mount Consolevault Hondo Garage iPhone mount
    thank you. It’s actually heat shrink tubing that goes in a label maker like @Scott B. said:

    R Molshine 2 Pack 18052 Heat-Shrink Tubes Cable Label Compatible for DYMO Black on Yellow (0.23inch 1/4inch 6mm) 1.5m https://www.amazon.com/dp/B01D83B59K/ref=cm_sw_r_cp_api_i_1IelEbRRHYCMA

    **this is showing black on yellow, but mine is black on white**

    DYMO Label Maker | LabelManager 160 Portable Label Maker, Easy-to-Use, One-Touch Smart Keys, QWERTY Keyboard, Large Display, for Home & Office Organization https://www.amazon.com/dp/B005X9VZ70/ref=cm_sw_r_cp_api_i_6KelEb7E74XFX

    rob1208, harryn and Kolunatic like this.
  4. Jan 25, 2020 at 10:23 AM
    #2584
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    12,037
    SoCal- SGV

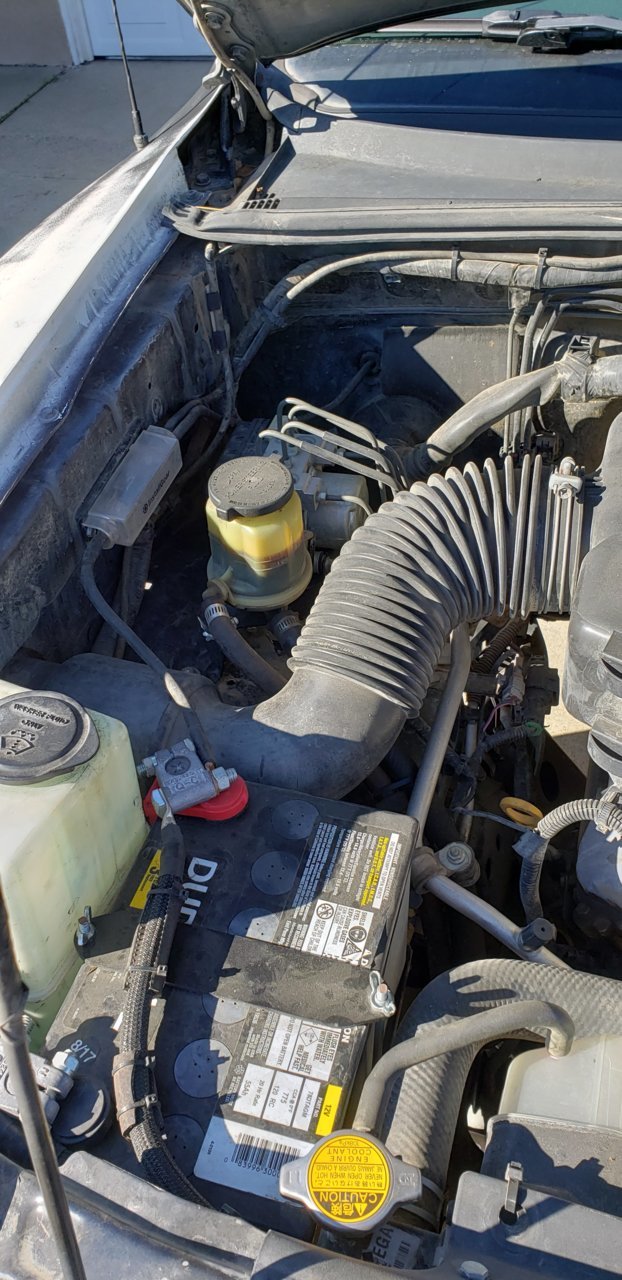

    I did the very same, pretty cool that I didn't have to modify the power steering fluid reservoir bracket in any way and how the holes lined up perfectly. There's some tearing and separation going on underneath that will require some immediate attention in the near future. Have you noticed the same?

  5. Jan 25, 2020 at 7:29 PM
    #2585
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,335
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears

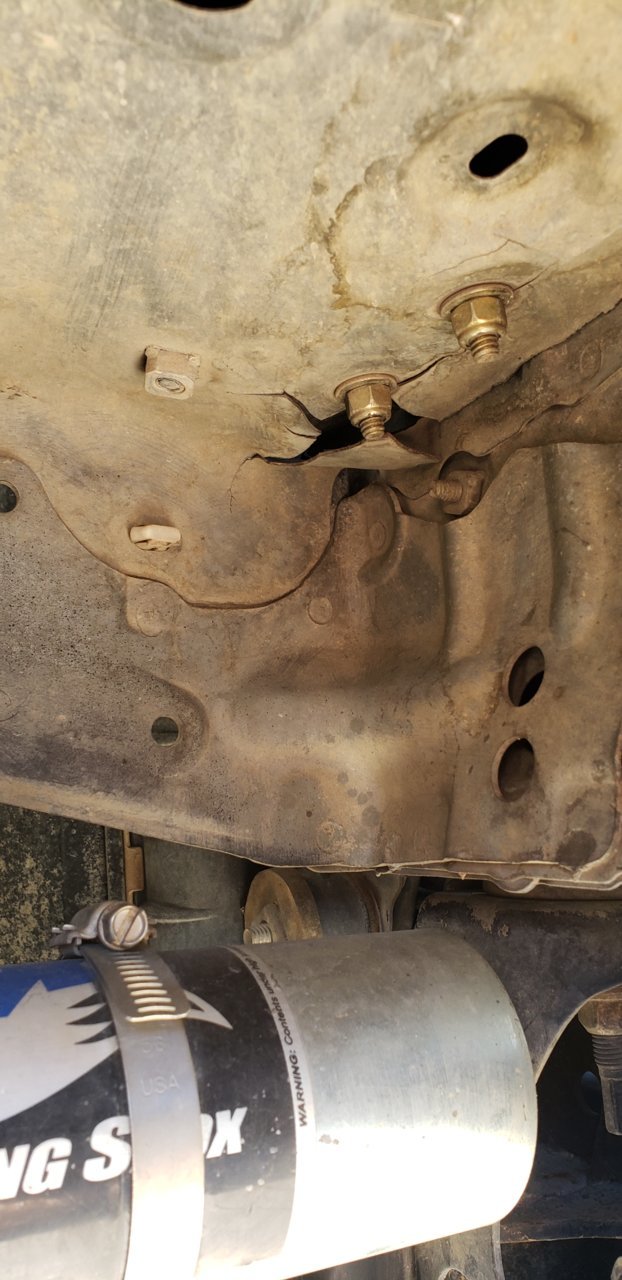

    That’s a bummer. A ton of ppl I know have sheet metal tipping there. I guess I just got lucky. Mine’s still in tact

    MonkeyProof likes this.
  6. Jan 26, 2020 at 3:32 AM
    #2586
    k8md

    k8md Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244081
    Messages:
    417
    Gender:
    Male
    First Name:
    Bob
    Vehicle:
    2015 Silver TRD Sport
    I love the jacket on that wire. Source?

  7. Jan 26, 2020 at 12:13 PM
    #2587
    Toynado

    Toynado Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166816
    Messages:
    1,384
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 TRD OR DCSB Quicksand
    EXTERIOR: Toytec Boss 2.0 Dakar CS047R Leaf Springs Tailpipe chopped Pelfreybilt Front full hoop front bumper w/ Pelfrey fairlead Pelfreybilt Rear standard bumper Pelfreybilt Aluminum IFS, Mid, Rear (exhaust reroute) & Gas tank skids Pelfreybilt Fuseplate w/ 12 circuit fuse block All-Pro Apex Sliders ProComp 7036 17"x9" -6 offset BFG 275/70R/17 KO2's Warn VR10000-S winch Baja Designs S8 light bar & Squadron sports amber pods in front bumper Baja Designs S2 flush pods in rear bumper Baja Designs Squadron Pro amber pods on Caliraised ditch light brackets @rrentrop reflective black tailgate inserts RSI LED's for regular & high beams Prinsu Cabrac Custom Tradesman Truck Top by Access Manufacturing w/ Powertank 8"propane tank mount & Yakima tracks on the roof INTERIOR: Warrior Products door sill protectors Husky Weather Beater floor mats front & rear Coverking arid multicam seat covers in the front Midland 75-822 CB w/ 4' Firestick antenna on C4 Fabrication tailgate mount Consolevault Hondo Garage iPhone mount
    tacomgee likes this.
  8. Jan 27, 2020 at 7:27 AM
    #2588
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    13,803
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4
    Drop bracket lift and booger welds
    Well shit, I already have a label maker. I wonder if there are tubes compatible for it. I need to check once I find out what model I have.

    Toynado likes this.
  9. Jan 27, 2020 at 12:29 PM
    #2589
    Fifthwind

    Fifthwind Master of None

    Joined:
    Oct 13, 2011
    Member:
    #65144
    Messages:
    1,947
    Gender:
    Male
    First Name:
    Murph
    Lehigh Valley, PA
    Vehicle:
    Scully
    Barcelona Red 09 DCOR- Icon 2.5" ECOs w/CDC - 14" 700lb, ICON 2.0 RR Ext rears, AP EXPO pack, Diff Wedge, Diff and Skid Drop, Discoverer S/T 255/85/16, Ride-Rite Bags w/ Daystars, ARB Bull/winch Bumper, Warn 8k, ARB CMK12, Budbuilt skids, BAMF bolt on sliders BAMF diff diaper, bedlights, hoodlights, BAMF CB, etc.
    Clear shrink tube over you label?:notsure:

  10. Jan 27, 2020 at 1:16 PM
    #2590
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    13,803
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4
    Drop bracket lift and booger welds
    Stop using common sense Murph!

    Fifthwind likes this.
  11. Feb 11, 2020 at 12:14 PM
    #2591
    Corny Taco

    Corny Taco The Sauce

    Joined:
    Dec 22, 2016
    Member:
    #205478
    Messages:
    414
    Gender:
    Male
    First Name:
    Blake
    Columbus/Carrollton Georgia
    Vehicle:
    06 Tacoma SR5 DCSB prerunner
    -33 inch General Grabber x3s -18 inch fuel kranks -Bilstein 5100s -OME normal duty dakars -Toytec/Eibach coils -Magnaflow off-road pro exhaust -Prinsu roof rack -nfab rock guards (temp) -EBay Fake Trd Pro Grille -rApToR lIgHtS durrrrr -12 inch 600w Skar Audio subwoofer running at 750w at 1ohm in ported box replacing single seat -Skar Audio 80w coaxial door speakers running at 120w -Skar Audio Spx-t 40w tweeters running on headunit power -750w Skar Audio amp powering sub -1000w Skar Audio amp powering door speakers (yes, I know it is overpowered)
    Hey everyone, thought this was a good thread to ask some question since the AV thread doesn't get much action. This summer I am looking into revamping my audio system in my taco. I am going to be upgrading to 3 skar zvx v2 8s behind the seats (its possible), 4 skar fsx 6.5s in the doors, some huge Skar VX4-STs in the a-pillar using customspeakerpod's pods, and some Skar VX35-st in the doors by also using pods from customspeakerpods. I'm not 100% sure on the amps I'm using since the zvxs can handle a LOT of power over their rms. It's going to be 4000w+ and before yall come out of the bushes asking why I'm doing this, its because I like loud boom boom.

    Now for the actual questions:
    So I know what I'm doing for wiring (0 gauge upgrades, distribution fuse blocks, ect), but I'm not exactly sure which route to take for producing all the volts I need for a system like this. About 15k miles ago, my stock alt went out and it was replaced with an aftermarket alt by a local shop. I imagine this new alt is probably to the same specs as the stock one. Should I go for dual batt, High output alt, or both? I have seen guys who run 4k systems on stock electrical so I know its possible, but I want to do this right the first time. Also, what voltage should I be shooting for with this much wattage draw? I know this thread is mostly oriented to setups for lighting, solar, and others, but I'm sure yall can interpret this for car audio.

    Any advice helps. Thanks :)

    Last edited: Feb 11, 2020
  12. Feb 11, 2020 at 6:10 PM
    #2592
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,210
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Drawing that much power I’d suggest a high output alt, voltage booster, and a sealed agm battery or Capacitor at the amp.

    4000watts is over 300amps.
    A stock Tacoma with tow package alt max is 160A. An upgraded alt will probably be ~260A which while still under is a lot better. If your running the alt at max you will quickly burn them up.

    MountainManGuy and Corny Taco like this.
  13. Feb 12, 2020 at 10:38 AM
    #2593
    PilotMM

    PilotMM Well-Known Member

    Joined:
    Jan 14, 2020
    Member:
    #316078
    Messages:
    175
    Gender:
    Male
    Las Vegas
    Vehicle:
    '17 TRDOR DCSB
    RLD Canopy, Icon Stage 4 plus RXT leaf

    Nice BBB. Are you using a Sterling alternator to battery charger? Do you have a build thread? I want to set up a dual battery system down the road and think LiFePo4 is the way to go.

    Cheers!
    -M

  14. Feb 12, 2020 at 5:02 PM
    #2594
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    3,721
    Gender:
    Male
    Apex, NC
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    Yeah, I love the weight ratio as well as power storage. I completely divorce this system from the truck. I do run a voltage booster to the truck battery (31 series AGM) at 14.7 volts float charge.

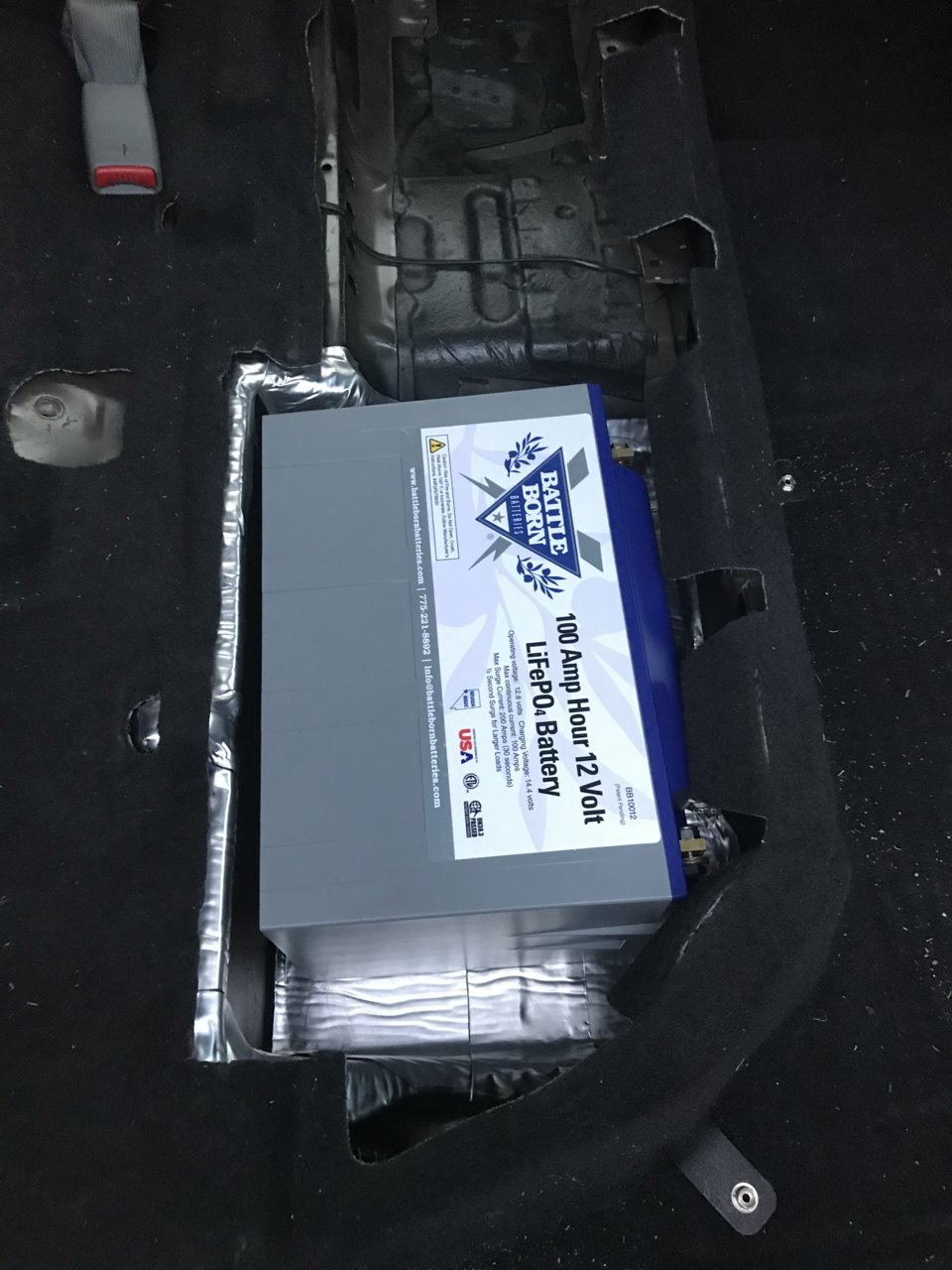

    I am woefully deficient on my build thread but I do have some more pics. I charge this battery through a MIPP Solar Charger/Inverter all in one. I have 3x100 watt solar panels mounted on top of the truck with a remote monitor installed. The Solar Charger allows you to manually set charge rates and also contains thermal protection for the LiFePO system.

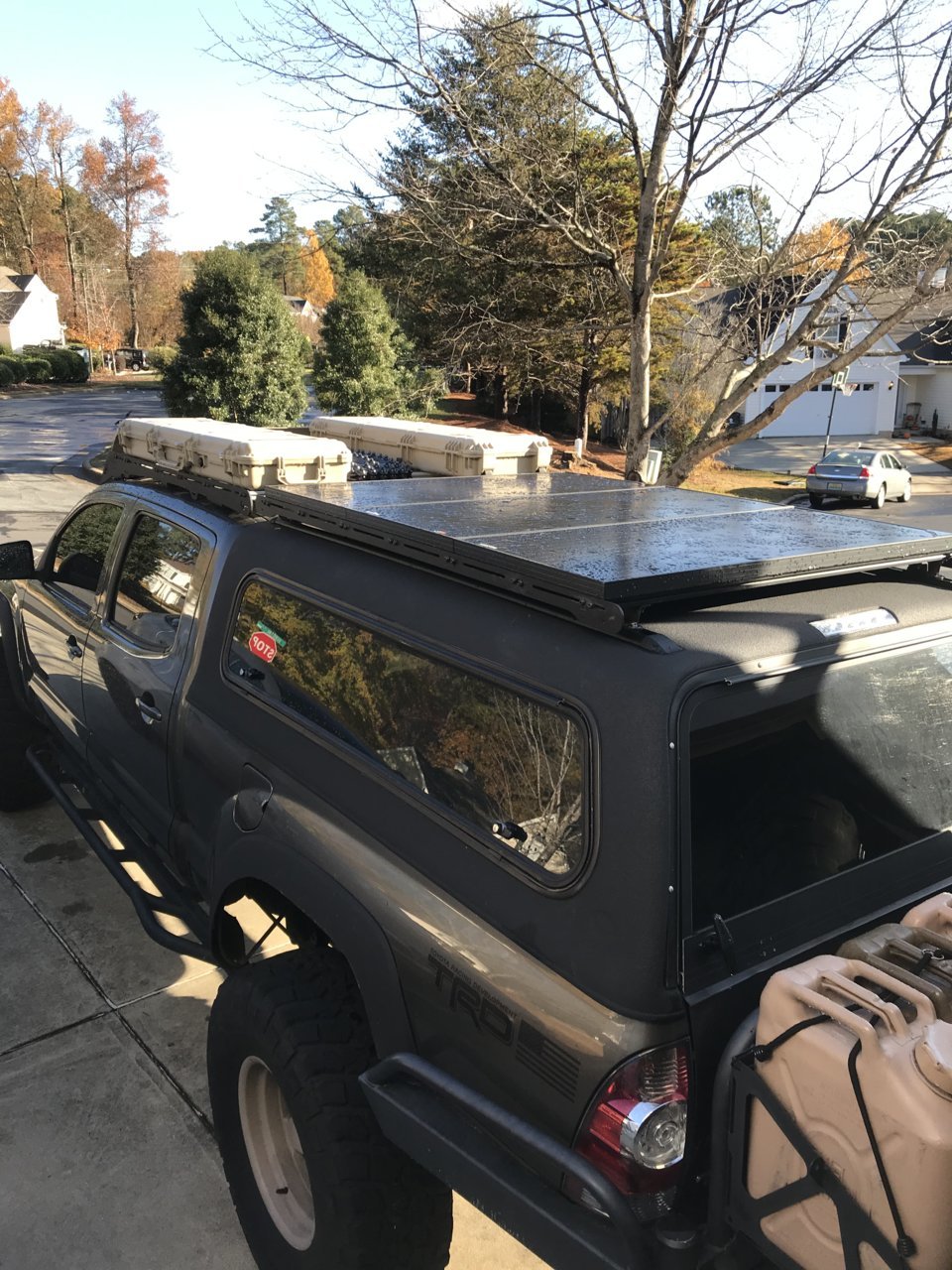

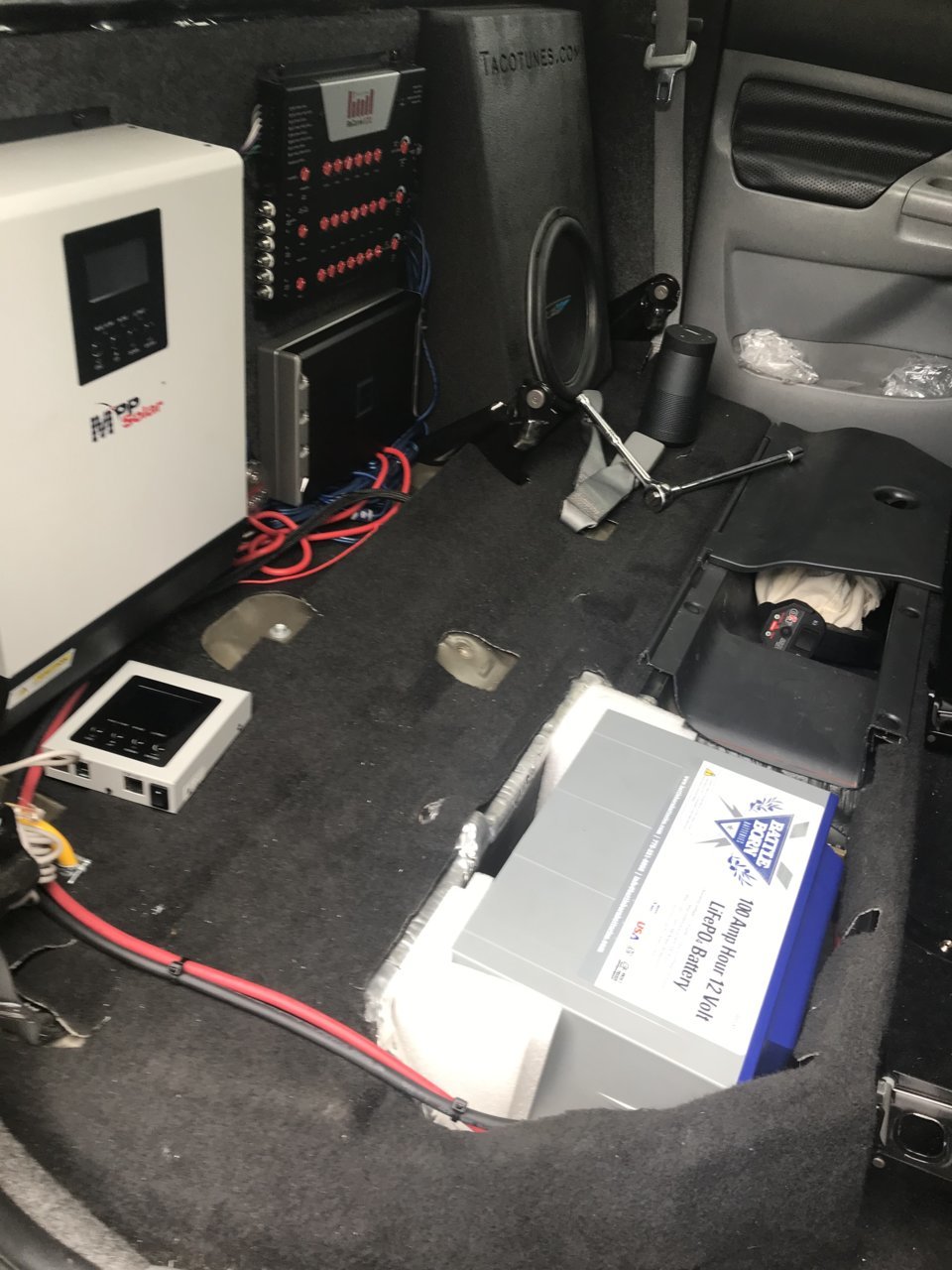

    B5F48270-7A76-4178-9B7A-4852985CD009.jpg E21851E7-099C-4028-BE10-BA1B4304E8A6.jpg

    CRUZZER, rob1208, harryn and 7 others like this.
  15. Feb 12, 2020 at 7:50 PM
    #2595
    PilotMM

    PilotMM Well-Known Member

    Joined:
    Jan 14, 2020
    Member:
    #316078
    Messages:
    175
    Gender:
    Male
    Las Vegas
    Vehicle:
    '17 TRDOR DCSB
    RLD Canopy, Icon Stage 4 plus RXT leaf
    Sweet! My buddy that builds out vans was trying to get me to buy a Merlin panel (Group buy thing) a little while back but I am still not ready to put in a second battery. He uses Victron for monitoring. I just got my RLD camper shell on last week and I want to build an Aux fuse system before I get an extra battery. You should do a thread on the details of your electrical set up. Its sweet and I would love to read more about it.

    Cheers! :cheers:
    -M

  16. Feb 15, 2020 at 9:15 AM
    #2596
    sawbladeduller

    sawbladeduller semi-realist

    Joined:
    Oct 3, 2014
    Member:
    #139583
    Messages:
    952
    Gender:
    Male
    North Cal
    Vehicle:
    '15 DCSB '98 2.7L
    semi zip tied
    @zippsub9 How did you ground this 'divorced' system?

  17. Feb 15, 2020 at 9:42 AM
    #2597
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    3,721
    Gender:
    Male
    Apex, NC
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    The solar inverter/controller is grounded on the frame just below the rear passenger seat by the exhaust.

    I will get off my ass and get a build thread together eventually.

    Last edited: Feb 15, 2020
    PilotMM and sawbladeduller like this.
  18. Feb 20, 2020 at 8:01 AM
    #2598
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    3,721
    Gender:
    Male
    Apex, NC
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    So, I misspoke before. My solar controller/inverter is not grounded to the truck. I have the PV panels grounded to it, the lithium battery grounded to it as well. My DC accessory panel runs off a ANL fused link to the back of the truck and also is grounded back to the lithium. No accessory or any part of the system is grounded to the frame or chassis.

    I recently went back to a single battery under the hood and removed the frame grounding strap to completely segregate the system. Sorry for any confusion.

  19. Feb 20, 2020 at 8:16 AM
    #2599
    sawbladeduller

    sawbladeduller semi-realist

    Joined:
    Oct 3, 2014
    Member:
    #139583
    Messages:
    952
    Gender:
    Male
    North Cal
    Vehicle:
    '15 DCSB '98 2.7L
    semi zip tied
    no worry. interesting, grounding leaves me wondering. I have a dual battery under the hood, grounded to chassis/body screw. I'm setting up a Lithium system in the truck bed under a campshell. no grounding wire to chassis. I have read no ground to chassis is OK for small system. I do plan to connect the lithium and AGM starter with an isolated DC/DC charger.

  20. Feb 20, 2020 at 8:30 AM
    #2600
    zippsub9

    zippsub9 Well-Known Member

    Joined:
    Nov 3, 2014
    Member:
    #141634
    Messages:
    3,721
    Gender:
    Male
    Apex, NC
    Vehicle:
    14 DCLB
    Shit bolted onto other shit, and junk.
    a general rule of thumb is to streamline the return of the charge back to its source. Chassis ground typically goes through very small contact points and spot welds. I use these for low current applications. A winch, for example, I go back directly as possible to the source of not exactly. Depending on what and where you want to run off it should help drive your decision. Because our beds are fiberglass composite I was grounded to the frame in the rear. My dual battery setup under the hood had a grounding strap to the frame and the chassis for my accessories to take either path.
