Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. May 25, 2020 at 12:51 PM
    #2761
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    17,129
    Gender:
    Male
    First Name:
    Matt
    NC
    Which battery would you guys recommend hooking up my winch and ARB twin to? The starting battery (X2 27F) or the aux battery (X2 group 35)?

    I have a Redarc BCDC.

    Both accessories will only be used while the truck is running, so I am thinking the starting battery is the most practical to hook them up to, yes?

    Bastek likes this.
  2. May 25, 2020 at 4:38 PM
    #2762
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,222
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Starting battery. They draw a lot of power and wound kill the other battery after a few hard winch pulls.

  3. May 25, 2020 at 7:42 PM
    #2763
    Loco_Barbon

    Loco_Barbon I Hate People

    Joined:
    Aug 20, 2019
    Member:
    #302807
    Messages:
    304
    Gender:
    Male
    Vehicle:
    2019 Tacoma DCSB TRD Offroad M/T
    Mostly stock.
    Thanks for the advice, I think I have a pretty firm grasp on what I'm going to do. Off Grid Engineering aux battery tray by the fire wall, ML-ACR, two 100w solar panels, charge controller connected to the aux battery, blue sea sub panel in the bed. I think a 50 amp breaker with 3/0 to the rear should be sufficient to run everything. It sounds like the solar will be able to top off two AMG batteries to the proper voltage to prolong the battery life. The last few things I'm trying to figure out is what charge controller to use and where to mount it, where to mount and what gauge to use, and where to mount the sub panel.

  4. May 25, 2020 at 8:17 PM
    #2764
    MountainManGuy

    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    524
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    I'd hook the compressor up to the aux battery. The winch can go to either one if the batteries are linked, but since the alt is directly connected to the starter battery and your overall wire runs would be shorter, I'd hook the winch to the starter batt.

    zerotimeouts likes this.
  5. May 27, 2020 at 10:59 AM
    #2765
    Gnarbuckle85

    Gnarbuckle85 Well-Known Member

    Joined:
    Sep 27, 2017
    Member:
    #231270
    Messages:
    179
    Gender:
    Male
    First Name:
    Sean
    H-Town, TX
    Vehicle:
    2011 TRD Sport DCLB Silver
    DON'T JOIN TACOMA WORLD!! JUST DON'T!
    Need some recommendations from you guys on my solar charger settings inline with my dual battery set up please.

    I have the OGE Dual Battery setup, w/MCLR - Running on "Auto", (2) Group 35 Ody AGMs, and recently just hooked up a 130W Solar Panel tied to a Victron MPPT 75/15 Solar Charge controller direct to my aux battery.
    What I am needing help with is utilizing the correct settings in the Victron Bluetooth app to optimize battery charging from solar.

    Battery specifications:

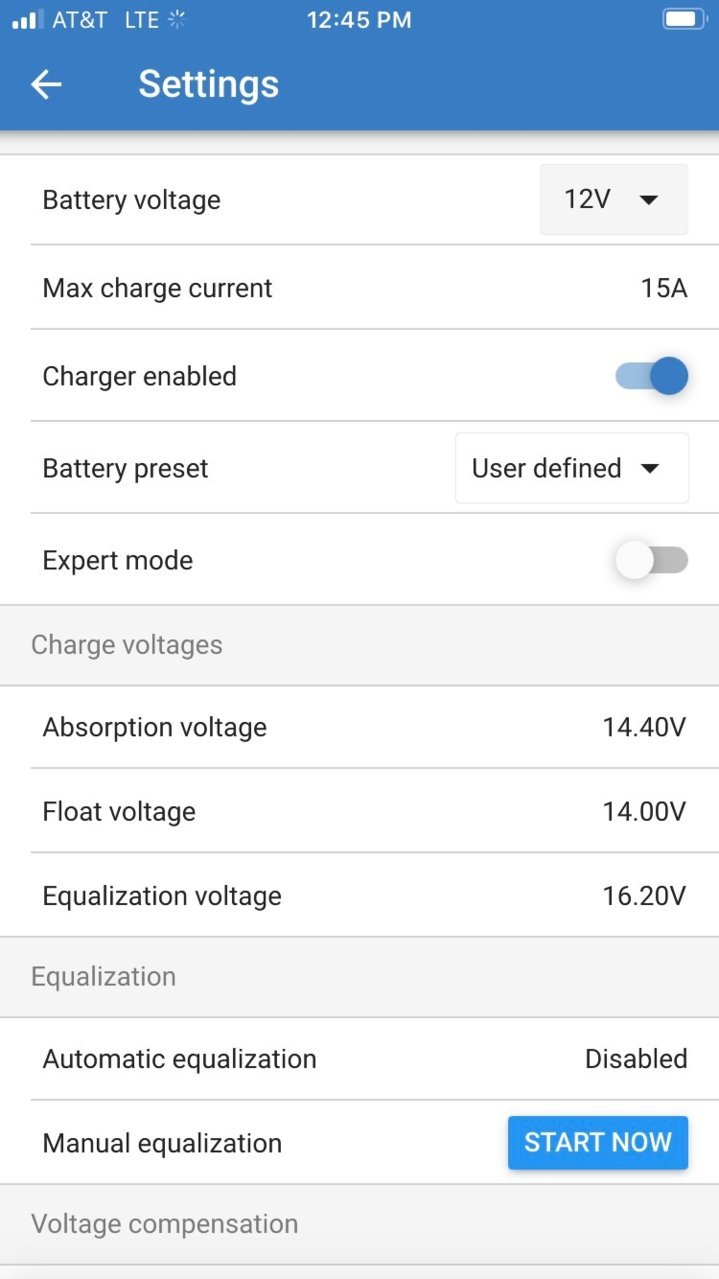

    Victron App Settings screen:


    Based on my batteries and running the mclr on "Auto", what should I set the the following to:
    (Battery Voltage) - I figured 12v but technically the MCLR being on Auto is transferring charge between (2) 12V batteries.. = (24) volts
    (Max current charge) - 15A I figured this is the max and why the controller is the 75/15 model. But should I reduce this down from 15v?
    (Absorption voltage) - What would you recommend?
    (Float voltage) recommendations?
    (Equalization voltage) recommendations?

    I have tried to do a ton of internet research but am getting frustrated.. Any help would be greatly appreciated.

    Thanks,

  6. May 27, 2020 at 11:03 AM
    #2766
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    17,129
    Gender:
    Male
    First Name:
    Matt
    NC
  7. May 27, 2020 at 11:53 AM
    #2767
    Gnarbuckle85

    Gnarbuckle85 Well-Known Member

    Joined:
    Sep 27, 2017
    Member:
    #231270
    Messages:
    179
    Gender:
    Male
    First Name:
    Sean
    H-Town, TX
    Vehicle:
    2011 TRD Sport DCLB Silver
    DON'T JOIN TACOMA WORLD!! JUST DON'T!
  8. May 29, 2020 at 10:14 PM
    #2768
    harryn

    harryn Active Member

    Joined:
    Apr 16, 2020
    Member:
    #324949
    Messages:
    43
    Gender:
    Male
    Auxiliary Power
    An mppt controller is intended for use when the panel Vmp (roughly its normal operating voltage) is substantially higher than the battery max charge voltage.

    In this case, the Vmp ~ 18 and the Vbat max is ~ 14-15 volts, so the 3 volt differential is marginal. Those are really for when you have 2 panels like that wired in series.

    I know that people like the cool victron phone application, but a better solar charge controller for this application is a pwm controller - example bogart enginering.

    It isn't completely obvious, but what these agm batteries need is not only total watts of charging, they need a lot of charging time. The pwn controller will operate on lower light levels, so charging starts earlier and ends later in the day.

    The effect is even stronger in areas that have overcast / diffused lighting. I have done the math on these systems and used mppt controllers when the calcs all said it should work - and then ended up replacing some mppt controllers on customer projects. You have to be watching the dials to really appreciate how panels and controllers really behave in poor lighting.

    As far as settings for the victron, usually you can use the default AGM settings as the ods are very well behaved.

    If you want to dig deeper, then just use the settings in the battery technical manual.

    Digiratus likes this.
  9. Jun 14, 2020 at 10:23 PM
    #2769
    Dalandser

    Dalandser ¡Me Gustan Las Tacos-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    14,733
    First Name:
    Anthony
    Downey, LB
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    Haven't learned much yet. Relocating a dual setup under my bed in my 5vz 1st gen and only need the primary vehicle battery connected at the beginning for getting out of my driveway. Any resources for building / sourcing wire / terminals / solder etc. and how to move primary starting battery wires for relocating?

    Few things I've sourced, but not married to if there's more cost effective / similar cost but higher quality alternatives:

    Battery Wire

    https://www.amazon.com/TEMCo-WC0180...NPKCX7B2KWY6&refRID=745972YGNPKCX7B2KWY6&th=1

    Crimpers

    https://www.amazon.com/WBHome-Hydra...g/dp/B0811VYCQ6/ref=psdc_553392_t1_B00KS4R3PI

    Terminals

    https://www.amazon.com/SELTERM-Gaug...DCDRHND1HPZ&psc=1&refRID=KKH3J7PQ6DCDRHND1HPZ

    Last edited: Jun 15, 2020
  10. Jun 15, 2020 at 8:16 AM
    #2770
    MountainManGuy

    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    524
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    My Victron mppt has been awesome. Even on cloudy or rainy days I still get enough voltage from my panels for a decent charge rate. The phone app is fantastic and after using it I wouldn't use any other controller that didn't have that feature. Using 2 100watt panels, my controller really only bulk charges for part of the day and usually float charges for a greater part of the day as the batteries are already full. My main power draw is an ARB fridge/freezer.

    Also, I live in Colorado so we do get a decent amount of sun.

    harryn, Bastek and Ngneer like this.
  11. Jul 6, 2020 at 10:18 PM
    #2771
    jmoto

    jmoto Active Member

    Joined:
    Sep 4, 2019
    Member:
    #304294
    Messages:
    32
    Gender:
    Male
    First Name:
    JT
    SoCal
    Vehicle:
    2020 Tacoma TRD Pro 6-Speed M/T
    C4 Step Sliders Toyo A/T III's OGE Dual Battery System (Auto Relay) OE Aux Fuse Bracket w/ Blue Sea Fuse & Breaker Blue Sea Rear Aux Power for Dometic CFX Leer 100XR Total Chaos Bed Stiffeners Prinsu Top Rack iKamper Skycamp 2.0
    1BEA631A-F800-4A37-A4FC-F99A606B3D6E_1_105_c.jpg AEA720D4-8420-4918-944E-93426E97B164_1_105_c.jpg

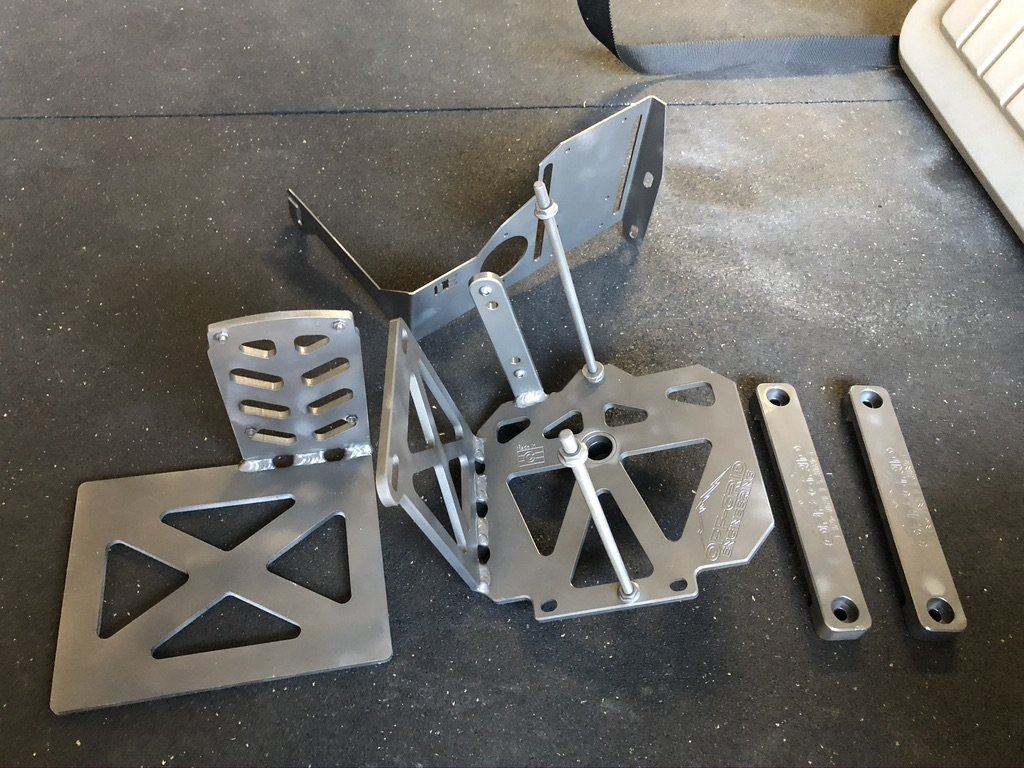

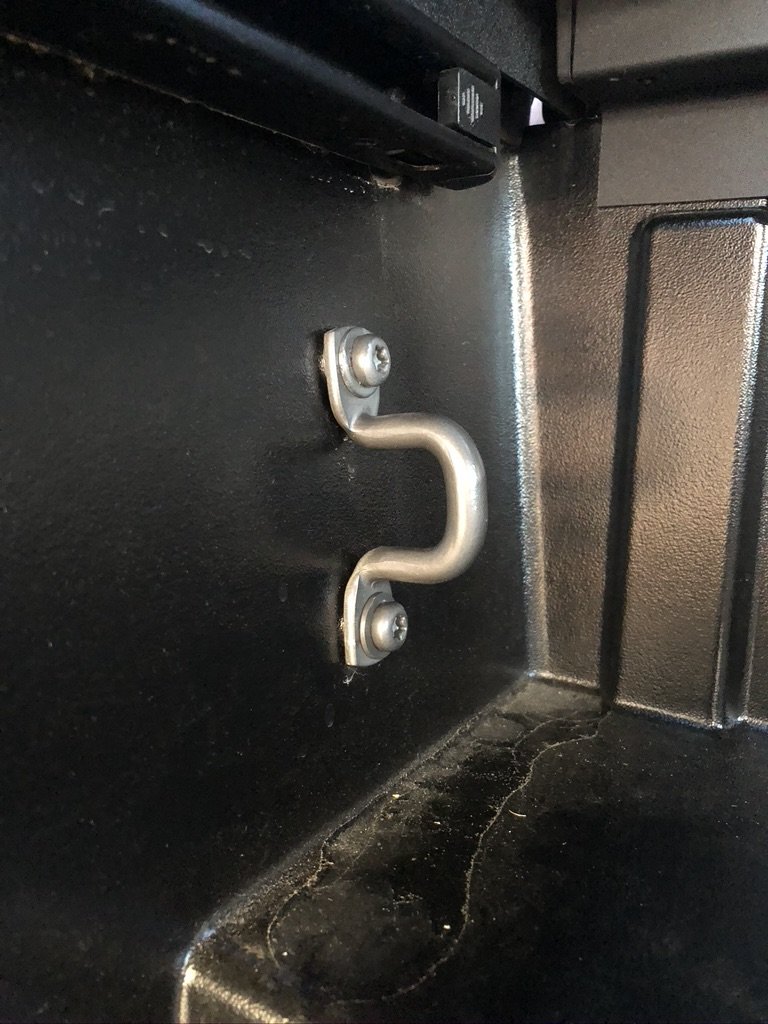

    First time testing out Gunkote (titanium) on the Off-Grid Engineering dual battery trays and Overland Equipped fuse block bracket. Also, put on a few layers on those two raw front bed hooks. Little bit of a sloppy job but good practice before working on the AR15.

    Dalandser likes this.
  12. Jul 7, 2020 at 5:39 AM
    #2772
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,123
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Man that looks good

    jmoto likes this.
  13. Jul 7, 2020 at 3:23 PM
    #2773
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,078
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    KDmax, plastidip, radio knobs and some stickers

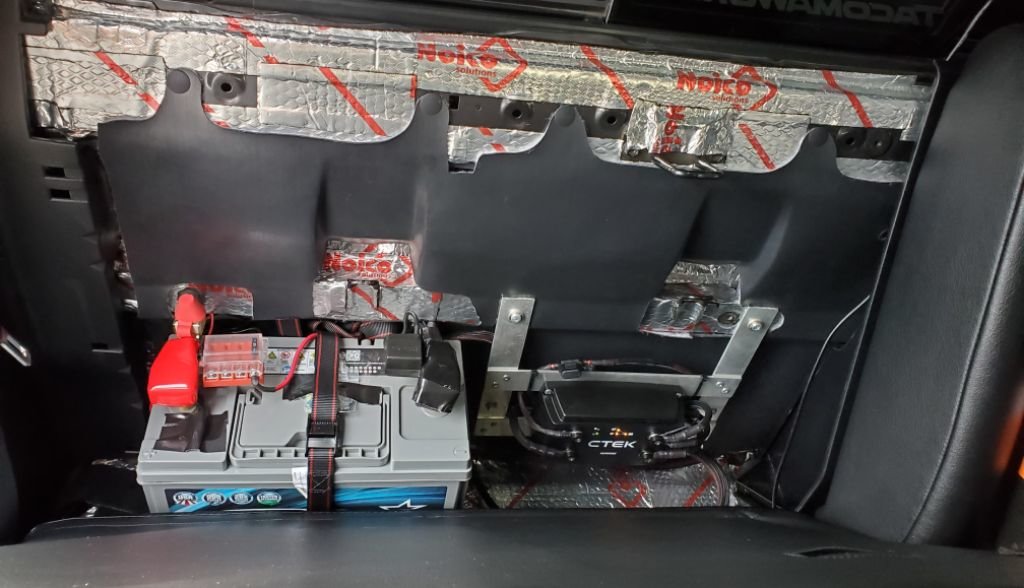

    After over thinking the heck out of it, I gathered and finally installed my dual battery set up. I also cleaned up wiring under the hood. It just had to be done...
    I opted for Northstar 31A AGM battery, Ctek D250se DCDC charger, and topped it off with 100W slim solar panel.
    IMG_20200707_20487.jpg IMG_20200707_23552.jpg IMG_20200707_51837.jpg IMG_20200707_53337.jpg

    Done all this work in order to run a 75qt fridge... :facepalm:

    Last edited: Aug 3, 2020
    Chux, SR-71A, samiam and 5 others like this.
  14. Jul 7, 2020 at 3:44 PM
    #2774
    crashngiggles

    crashngiggles Tacomaworld's Resident Psych Dr.

    Joined:
    May 17, 2015
    Member:
    #155446
    Messages:
    4,701
    Gender:
    Male
    First Name:
    Jared
    Wilbraham, Massachusetts
    Vehicle:
    2013 MGM TRD 4x4 DCLB Trail Limo
    But soooooooooo worth it.

    Bastek likes this.
  15. Jul 7, 2020 at 3:49 PM
    #2775
    John90XJ

    John90XJ Well-Known Member

    Joined:
    Aug 11, 2019
    Member:
    #301865
    Messages:
    86
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2006 Tacoma Access TRD OR
    Let us know how important the solar panel is to overall package. I've got basically the same thing and have debated the need for a panel as I generally move every day anyway and the fridge is such a low draw.

    Also, could you take a shot of the 2nd battery from a little further out so we can get a better idea how you laid it out? Did you have to forego any functionality after the install?

    Nice clean work. ;)

    Bastek likes this.
  16. Jul 7, 2020 at 5:48 PM
    #2776
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,078
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    KDmax, plastidip, radio knobs and some stickers
    Thanks! Took a WHILE to wrap all the wires in those sleeves!

    With child seats and all the crap, that's the best I can do

    Battery is installed on a group 31 sized tray and tied down with a strap i got in HD. And only downside I see right now, I lost behind the seat storage.

    As for solar, hmmm... When running fridge/freezer combo it can draw ~5Ah, so I'd get approx 11 hrs out of the battery. Of course finessing the hell out of setting, it is possible to almost double that. Sooo I figured adding solar would only help, not harm it.
    Also, when not running the fridge, it actually topped off my starting battery! So there is that.
    Is it really important, maybe not. But also I don't have enough real life data to argue it either way.

    samiam, John90XJ and fatfurious2 like this.
  17. Jul 7, 2020 at 9:23 PM
    #2777
    Tacman19

    Tacman19 Well-Known Member

    Joined:
    Jan 18, 2020
    Member:
    #316444
    Messages:
    1,938
    Gender:
    Male
    First Name:
    Dave
    Mid Missouri
    Vehicle:
    19 Tacoma
    As many as my wallet will allow
    Not sure if I dropped this in here, but ....here! Lol.
    Zim

    on off switch.jpg

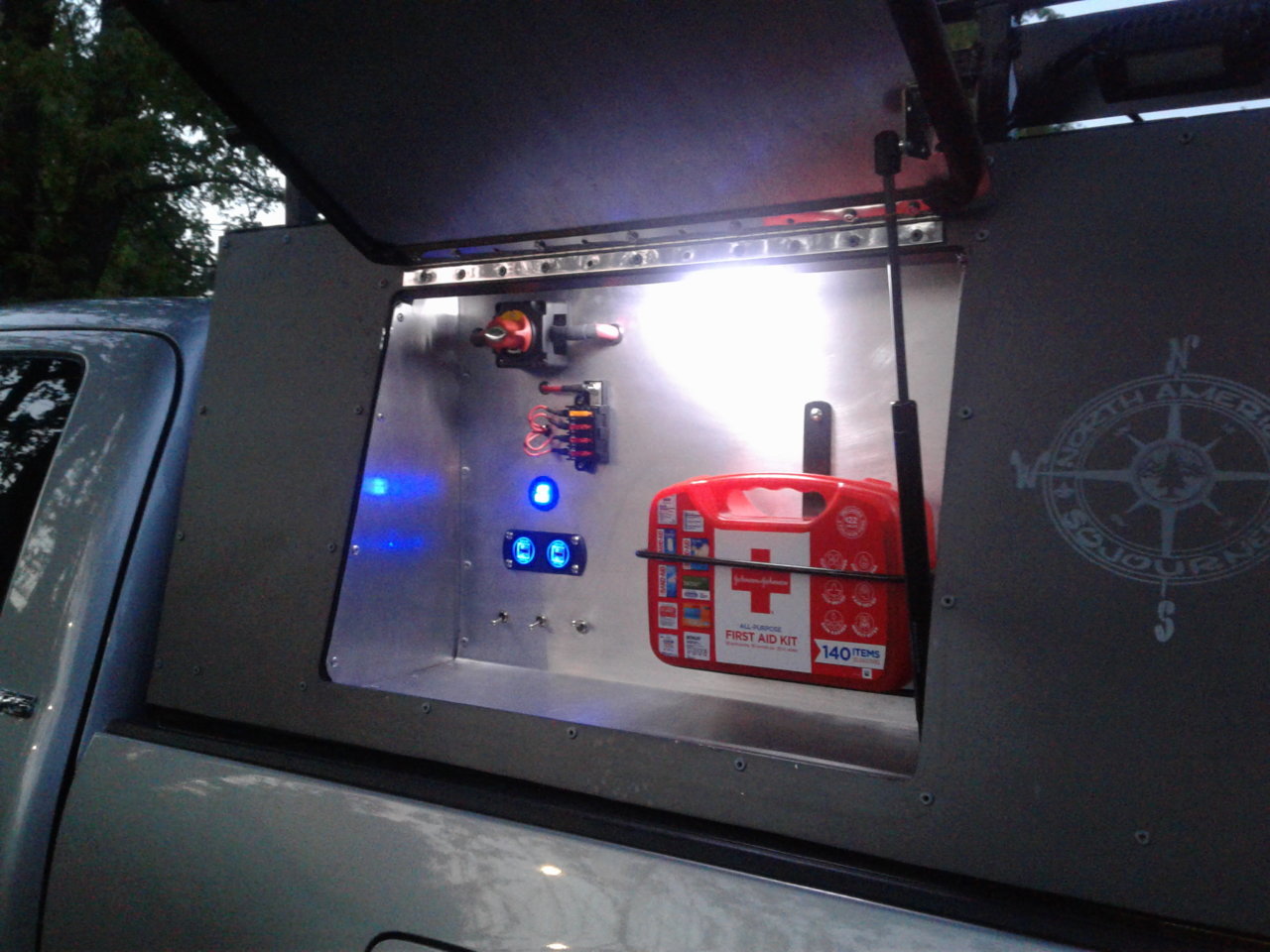

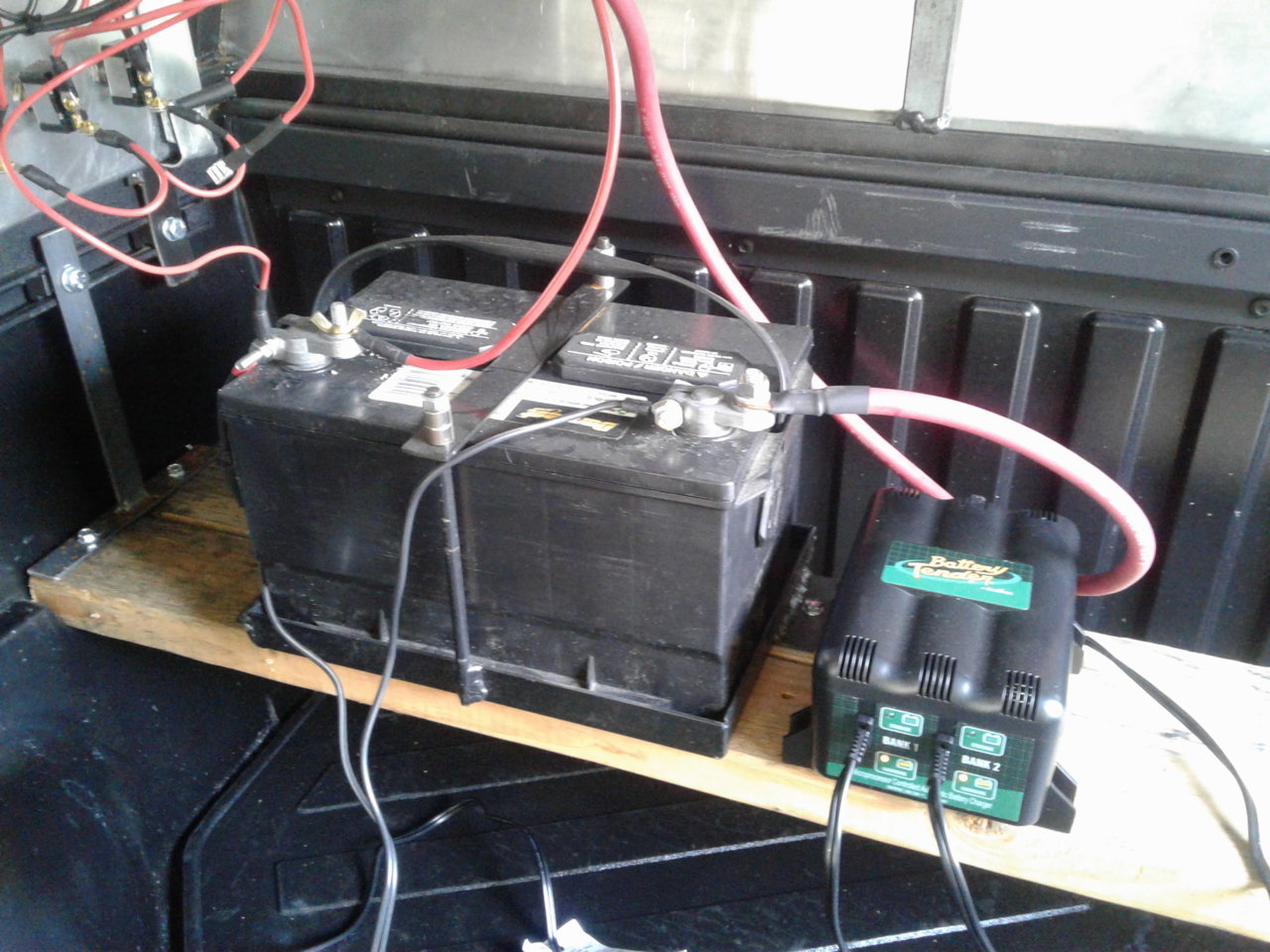

    So I'm still in the design/build mindset. I fab'd up this mount which I like and might keep. I've only drilled 4 holes in the truck, none in the bed, and no one will ever see 3 of them...lol. Does not take up much room, and it's neat and clean to a extent. I can store some things under, and over if I want. Already went camping, and just using the lights we had plenty of power. Charger will probably not live there as I charge my golf cart too. Just playing around and having fun. Film at 11.
    Zim


    Last edited: Jul 7, 2020
    tacoma16 and Bastek like this.
  18. Jul 19, 2020 at 5:25 PM
    #2778
    4wdExplorer

    4wdExplorer Well-Known Member

    Joined:
    Dec 31, 2009
    Member:
    #28499
    Messages:
    868
    Gender:
    Male
    Orange County, CA
    wi_taco likes this.
  19. Jul 19, 2020 at 5:31 PM
    #2779
    BEAR_KNIFE_FIGHT

    BEAR_KNIFE_FIGHT bearly famous

    Joined:
    May 21, 2016
    Member:
    #187524
    Messages:
    1,990
    Gender:
    Male
    First Name:
    Alex
    Minnesota
    Vehicle:
    2016 TRD OR 4X4 DCSB Quicksand
    Manual is listed on the page: https://cdn.shopify.com/s/files/1/2...ut_Instruction_Manual.pdf?7204406381448510702

    Fuses/breakers should be as close to the battery/ies as possible. Looks like they call for 40A fuses.

    thebaker and 4wdExplorer like this.
  20. Aug 3, 2020 at 10:23 AM
    #2780
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,963
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
    Alright so i have a dual battery set up and i have the accessories running off the aux battery but it only allows this when the isolator pops on since i have the cole hearse one. anyway around this without breaking the bank?
