Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Aug 11, 2020 at 4:23 PM
    #2781
    4wdExplorer

    4wdExplorer Well-Known Member

    Joined:
    Dec 31, 2009
    Member:
    #28499
    Messages:
    868
    Gender:
    Male
    Orange County, CA
    So I am intalling my Redarc DC to DC charger. Do I need make a full run of the negative wire from Starter battery to the Auxillary battery? I am just thinking of making a chassis ground for Auxillary battery? Is this okay to do?

    Looking at the Redarc Instructions on page 11. It dispays a chassis ground at the Auxillary battery in the diagram. When searching I see some people making a full length ground wire run from starter battery to auxillary batter.

    Dalandser likes this.
  2. Aug 11, 2020 at 4:30 PM
    #2782
    thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    2,277
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    Upgraded to a 3rd gen
    Never ending......$$$
    I'm in the process of finishing my redarc install. I ran the negative all the way back to starter battery.

  3. Aug 11, 2020 at 4:34 PM
    #2783
    SearArtist

    SearArtist Player Hater #001

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    17,129
    Gender:
    Male
    First Name:
    Matt
    NC
    chassis ground should be fine.

  4. Aug 11, 2020 at 4:37 PM
    #2784
    4wdExplorer

    4wdExplorer Well-Known Member

    Joined:
    Dec 31, 2009
    Member:
    #28499
    Messages:
    868
    Gender:
    Male
    Orange County, CA
    Got it I think I will do the same. I will do a chassis ground for the bluesea fuse box in the bed of the truck.

    I am also thinking of adding the Redarc low voltage disconnect in the future. The current layout the Redarc does not isolate the starter battery. So when running accessories off the house battery you could potentially drain the starter battery without an isolator.

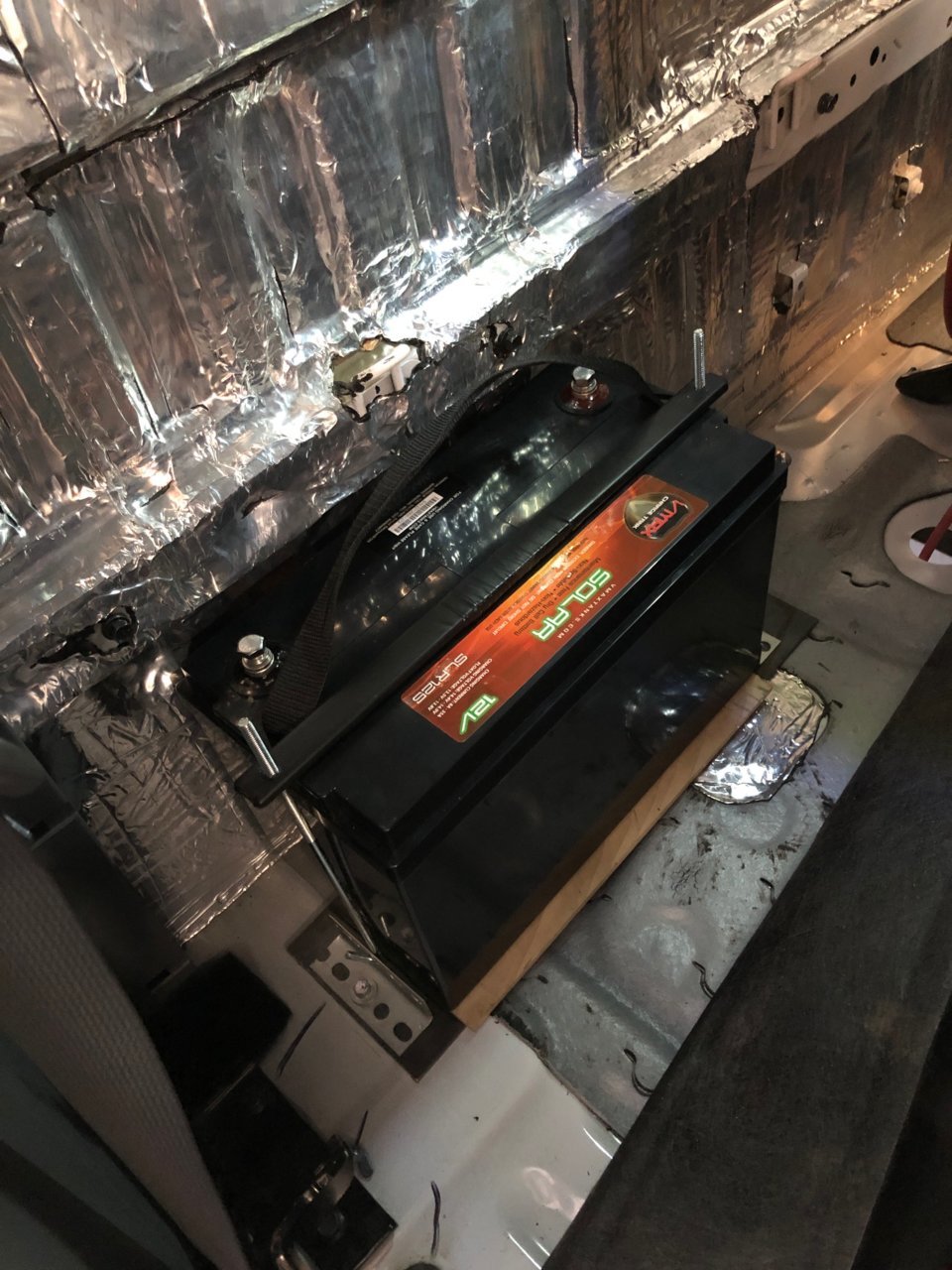

    Here is the battery setup behind the rear seat. 125ah battery.


    Bastek likes this.
  5. Aug 11, 2020 at 4:48 PM
    #2785
    4wdExplorer

    4wdExplorer Well-Known Member

    Joined:
    Dec 31, 2009
    Member:
    #28499
    Messages:
    868
    Gender:
    Male
    Orange County, CA

    I am thinking a chassis ground is fine too. The starter battery is chassis ground also. Going to make sure I sand off the paint behind the rear seats where I bolt the chassis ground cable to.

    Last edited: Aug 11, 2020
  6. Aug 11, 2020 at 8:15 PM
    #2786
    MountainManGuy

    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    524
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    Chassis ground is absolutely fine. I connected the ground from my aux battery to the frame. Works great. Did the same back in my car audio days and those amplifiers pulled way more current than any load you'll be throwing on that aux batt.

    4wdExplorer likes this.
  7. Aug 12, 2020 at 4:59 AM
    #2787
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    3,038
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Chassis ground is fine - probably preferred.

    I ran mine this way several years ago, and have not any problems. Also, used the chassis for ground on my previous truck with dual batteries.

  8. Aug 13, 2020 at 9:06 PM
    #2788
    yaapp

    yaapp Well-Known Member

    Joined:
    Feb 11, 2014
    Member:
    #122880
    Messages:
    418
    Gender:
    Male
    Bay Area, CA
    URD CAI front: Fox 2.5 w/ reservoir 700lbs coil Camburg UniBall Rear: 2.5 w/ reservoir
    Soooo I am planning to a dual split system but I have a few questions I hope you guys can help me answer

    Plan is to get a passenger tray from off-grid (unless there's other ones out there you suggest), question here is, do I need to replace both batteries or can I just my Deka 9a24f I just brought a few months ago as my starter?

    With the ML-ACR, do I have to run the switch? Was looking at the SI-ACR but it feels like a lot of you lean towards the ML

  9. Aug 14, 2020 at 8:40 AM
    #2789
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,123
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Switch is for convenience only. The ML-ACR will operate normally without it, or you can pop the hood and manually lock it out.

    Its always best to match the battery type (chemistry), size, and age when running multiple. Size is not really an option in these trucks, and a few months wont make a huge difference.

    yaapp and TacoEspecial like this.
  10. Aug 15, 2020 at 2:46 PM
    #2790
    JEEPNIK

    JEEPNIK Well-Known Member

    Joined:
    May 5, 2020
    Member:
    #326895
    Messages:
    1,634
    Gender:
    Male
    Vehicle:
    2020 Voodoo Blue TRD Sport
    Curious about the need to match batteries. Since 82' I have run a battery with cranking amps to start my Jeep and a deep cycle to power my winch and such. Are you concerned about the difference in charging characteristics?

  11. Aug 15, 2020 at 10:26 PM
    #2791
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,555
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/Vibrant Resonator and upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines Aeromotive Stealth 340 Fuel Pump AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Lead-acid plate starting batteries and agm type batteries have very different charging needs for optimal battery health and longevity. Also, as batteries age, their charging characteristics change. If the batteries in a dual system do not match, the ability to fully charge one or the other will be compromised.

    SR-71A and Scott B. like this.
  12. Aug 16, 2020 at 6:42 AM
    #2792
    JEEPNIK

    JEEPNIK Well-Known Member

    Joined:
    May 5, 2020
    Member:
    #326895
    Messages:
    1,634
    Gender:
    Male
    Vehicle:
    2020 Voodoo Blue TRD Sport
    How? What happens to the battery that causes damage? What damage?

  13. Aug 17, 2020 at 8:28 AM
    #2793
    MountainManGuy

    MountainManGuy Well-Known Member

    Joined:
    Jul 26, 2019
    Member:
    #300316
    Messages:
    524
    Gender:
    Male
    Colorado
    Vehicle:
    2019 Toyota Tacoma TRD Off-Road DCSB
    There is no damage. I don't really get why people keep saying you have to match the batteries exactly. You really don't.

    I ran a setup where one battery was group 34 and one was a smaller group 51. The group 34 battery was 4 years older than the group 51. They were both agm. I never had any issues starting my vehicle or running my accessories. That setup never failed me and it was in place that way for 3 and a half years. These batteries were directly linked the entire time, with no isolator. (also yes, I really did get 7+ years out of that group 34 agm, and it actually still starts the vehicle it's sitting in)

    I do not believe the batteries HAVE to be the same size or age, but I WOULD keep the chemistry the same.

    John90XJ likes this.
  14. Aug 17, 2020 at 10:08 AM
    #2794
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    3,038
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    I think the discussion was referring to battery chemistry, not size.

    Tacman19, SR-71A and MountainManGuy like this.
  15. Aug 17, 2020 at 10:11 AM
    #2795
    John90XJ

    John90XJ Well-Known Member

    Joined:
    Aug 11, 2019
    Member:
    #301865
    Messages:
    86
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2006 Tacoma Access TRD OR
    You absolutely don't need matched batteries if you're using a DC/DC charger that separates the starting battery from the house battery.

    And, as it relates to chemistry, the charger should allow you to determine the house battery type and charge it appropriately. The CTEK D250 I use has an AGM wire that gets grounded to increase the voltage to an AGM or is left ungrounded to charge as a flooded lead acid. Size and chemistry do not matter with a charger designed for the task.

    Bastek and Scott B. like this.
  16. Aug 17, 2020 at 11:39 AM
    #2796
    thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    2,277
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    Upgraded to a 3rd gen
    Never ending......$$$

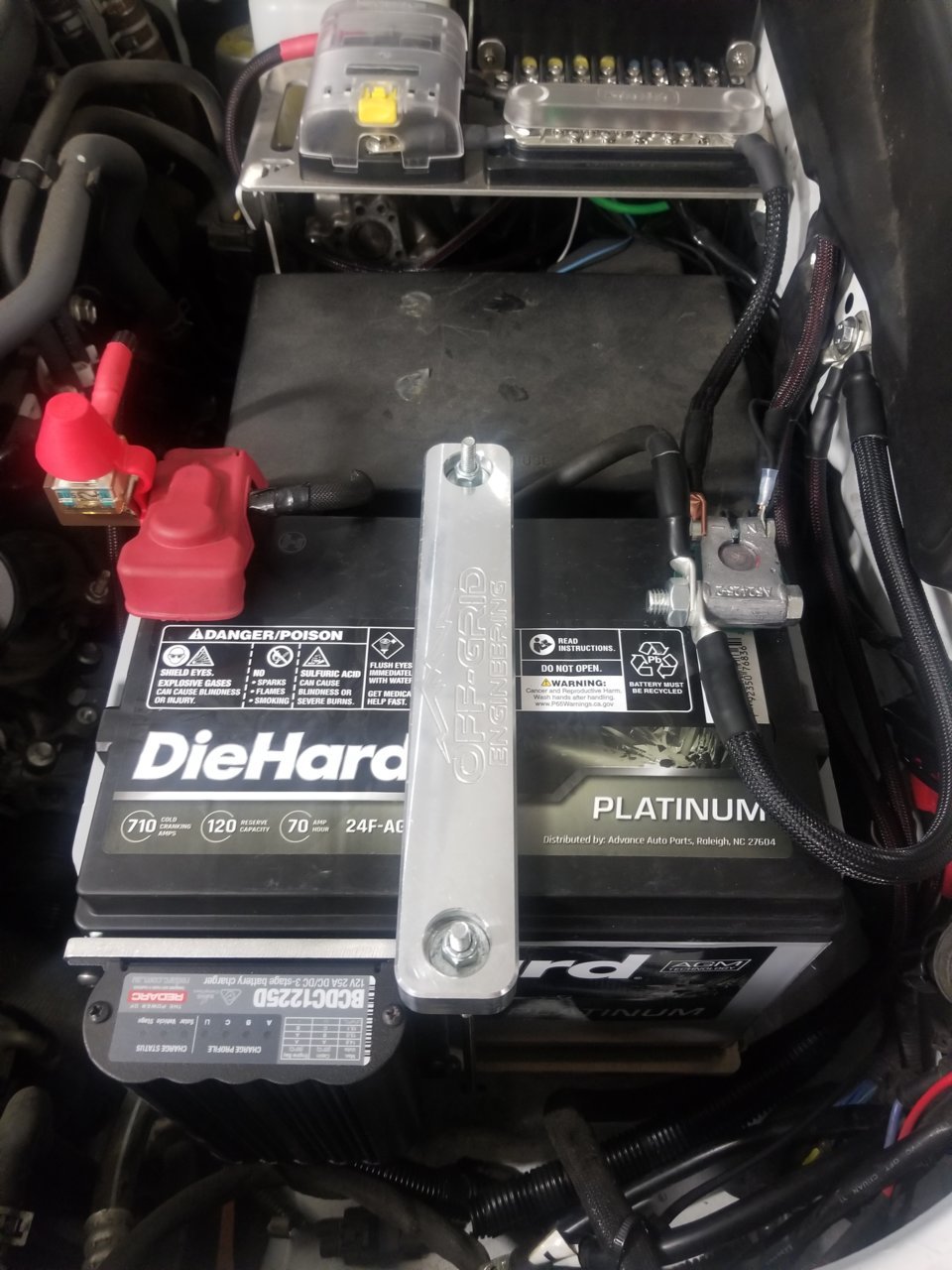

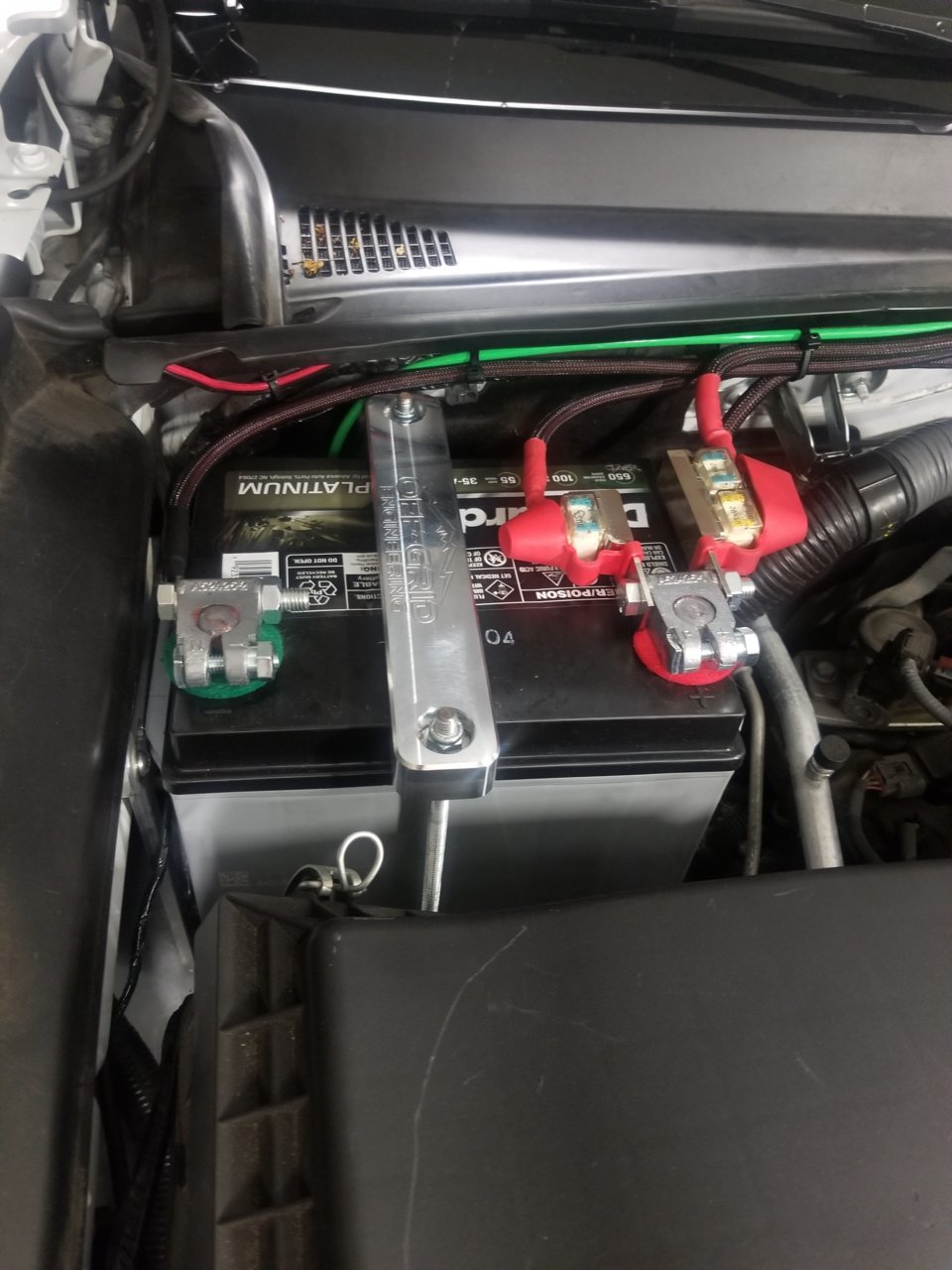

    Finally got the dual batteries installed. Big thanks to everyone that helped when i had questions, especially @Toynado and @rob1208.

    I just need to finish up extending the positive wire on the starter battery so i can run the mil spec terminal.


  17. Aug 17, 2020 at 12:43 PM
    #2797
    JEEPNIK

    JEEPNIK Well-Known Member

    Joined:
    May 5, 2020
    Member:
    #326895
    Messages:
    1,634
    Gender:
    Male
    Vehicle:
    2020 Voodoo Blue TRD Sport
    A bit overly complex and expensive but if you like it then ok. But you might want to look up how to run two batteries without all the extra electronics in case they go belly up in the middle of nowhere.

  18. Aug 17, 2020 at 7:55 PM
    #2798
    jimlangfordphotography

    jimlangfordphotography Well-Known Member

    Joined:
    Dec 1, 2018
    Member:
    #274423
    Messages:
    110
    Vehicle:
    2020 TRD OR LB
    Clean install! Love the use of cable wrap and heat shrink. Nice and clean, great job!

    thebaker likes this.
  19. Aug 18, 2020 at 11:45 AM
    #2799
    Dalandser

    Dalandser ¡Me Gustan Las Tacos-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    14,738
    First Name:
    Anthony
    Downey, LB
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    Any recommendations on isolator setups - just the usual ones on Amazon are all I'm looking at atm.

  20. Aug 19, 2020 at 8:49 PM
    #2800
    4wdExplorer

    4wdExplorer Well-Known Member

    Joined:
    Dec 31, 2009
    Member:
    #28499
    Messages:
    868
    Gender:
    Male
    Orange County, CA
    So I installed a ground 31 battery with Redarc Charger behind the rear seat of my DCSB.

    I installed an optional LED panel light to see if its blinking error codes and shows me when charging while vehicle is off.

    I noticed when I turn off my truck and remove key. The led light very faintly flickers. Hardly can see it, but you can see the flickering when looking close at it.

    The Redarc instructions say to run a 3v LED light but I installed a 12v. So I think this is the problem.

    I cannot find a 3v LED light. What are people running for the optional LED light display??
