Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jan 14, 2021 at 5:05 PM
    #3001
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    43,349
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    sure? Id guess normal BST rules apply, like local threads?

    geekhouse23 likes this.
  2. Jan 14, 2021 at 5:07 PM
    #3002
    geekhouse23

    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    14,567
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
  3. Jan 28, 2021 at 4:34 AM
    #3003
    MJTH

    MJTH PretenderLander

    Joined:
    Jun 20, 2020
    Member:
    #332029
    Messages:
    347
    Gender:
    Male
    First Name:
    Joe
    Unfortunately...Ohio
    Vehicle:
    19 OR- Land Yacht, w/ fireplace

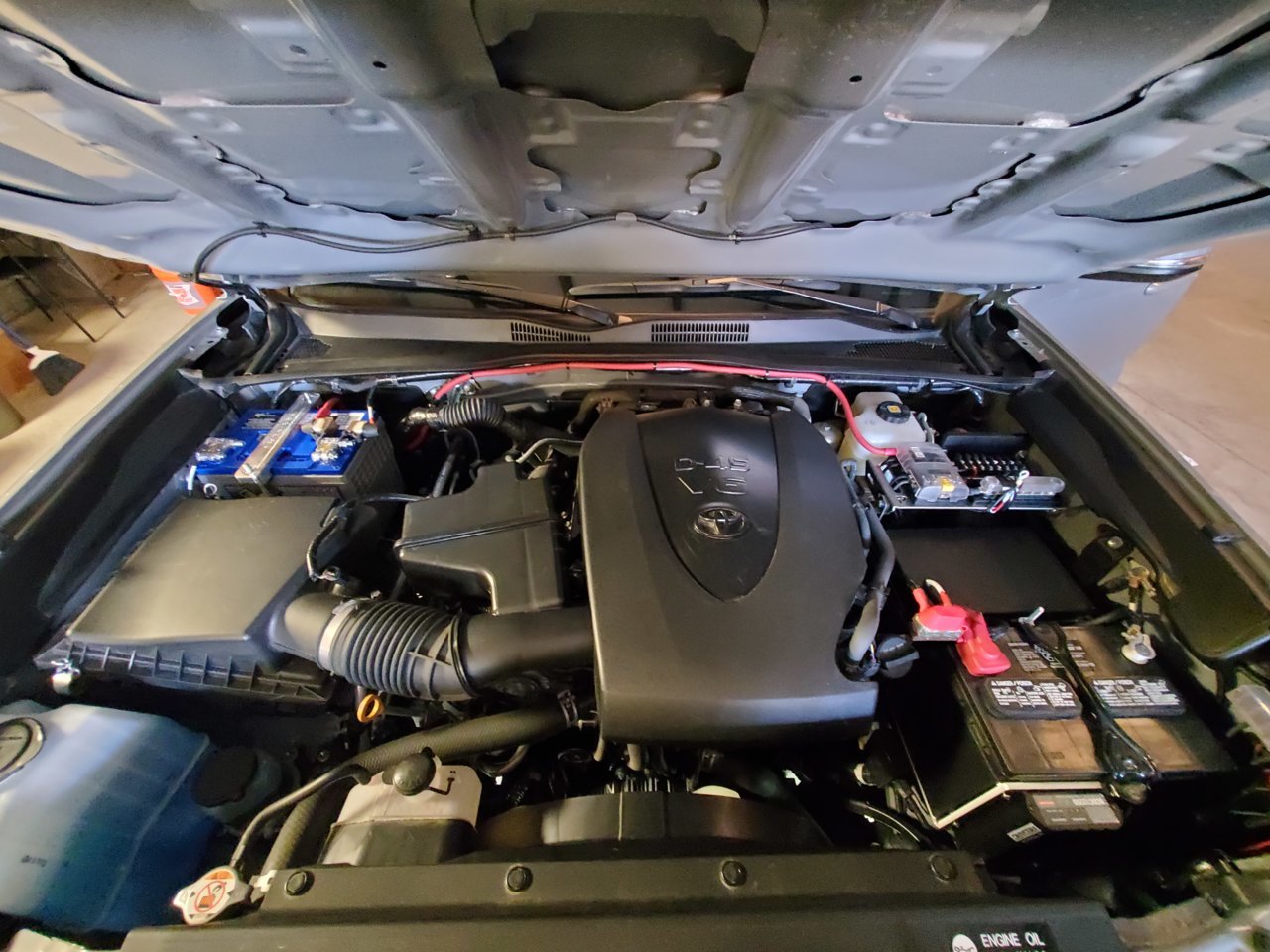

    OGE split system.

    House battery supplies power to the blue seas fuse block in the engine bay, and blue seas weather deck panel in the alucab canopy camper in the rear. Running 9 inside/outside lights, fridge, 6 USB outlets, 4 12v sockets.

    Starter battery supplies power for Switch pros, running compressor, multiple driving lights, rock lights.


  4. Feb 24, 2021 at 6:46 PM
    #3004
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,924
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    So this seems like the best place to ask since you guys that have multiple batteries are running lots of things off them.

    Here is the situation as it sits. I have too many wires coming off my battery and its ugly (ring terminals stacked on top of each other). I want to swap out the factory terminal clamps to make the wires a little cleaner.

    Currently connect to my battery is
    2 stock wires (power and starter or what ever it is)
    1 4 gauge wire for my amp
    1 16 gauge wire for aux fan
    1 14 gauge wire for light bar

    My light bar is a dual mode (yellow or white) so it has 2 relays, the wiring that came with it just daisy chains it. I am putting in a 4 spot fuse block (atc) that will run my light bar, my aux fan, and soon ditch lights.

    Do you guys think that these terminals will work just fine for me?
    https://www.amazon.com/gp/product/B07C41STTJ/ref=ox_sc_act_title_1?smid=A29WNUYJ8SYTGZ&psc=1

    I figure the dual 4 gauge will be able to handle the starter wire and my amp wire. Then the dual 8 gauge can handle the truck power and my fuse box (light bars, ditch lights, aux fan).

  5. Feb 24, 2021 at 7:15 PM
    #3005
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    43,349
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    I have this that needs to go on soon:

    https://sdhqoffroad.com/collections...dhq-built-billet-battery-terminal-upgrade-kit

    Maybe also look into investing into a SwitchPro or Spod? it will ease your wiring too

    Tacman19 likes this.
  6. Feb 24, 2021 at 7:31 PM
    #3006
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,924
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

    I had thought about getting the sdhq terminals, but that would just put the ring termials scattered on 3 sides of the terminal.

    As for the switchpro. I had looked into getting one, but in the end I just dont plan to have enough things plugged in to need that many switches. I have just the overhead switch panel (meso) that holds 6 switches. I have the 2 stock ones, then I added 4 more, only using 3 - yellow light bar, white light bar, rear lights, "push to turn something on" switch. Once I get my new bumper, that dual color light bar will turn into a single color light bar, then ditch lights, rear lights(reverse lights), and my mystery button (will probably end up being side lights).

    Tacman19 and fatfurious2 like this.
  7. Feb 24, 2021 at 7:56 PM
    #3007
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
  8. Feb 24, 2021 at 8:01 PM
    #3008
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I kinda prefer ring terminals myself. Those set screw retainers are shit on door knobs so I wouldn’t expect them to be any better on a battery clamp.

    SR-71A and Tacman19 like this.
  9. Feb 24, 2021 at 8:15 PM
    #3009
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,924
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

    Im starting to think the same. Guess Ill just wire up what I have now to the factory terminals, then when the weather gets better I can pull the battery out, see what I have for space and find some good terminals.

    Tacman19 likes this.
  10. Feb 26, 2021 at 10:30 AM
    #3010
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,123
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Along the lines of what bagleboy said I prefer these myself
    https://smile.amazon.com/gp/product/B00X36RILW/ref=ppx_yo_dt_b_search_asin_image?ie=UTF8&psc=1

    Its much easier to grab a HF hydraulic crimper, crimp on some copper ring terminals of the appropriate size, and bolt them on. For the set-screw style things to work well and not loosen over time I think you either want solid core wire, or crimp ferrule terminals on first. Not sure if they even make those for such large wire

  11. Feb 26, 2021 at 10:37 AM
    #3011
    5nahalf

    5nahalf I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    6,924
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

    Ive got some 4 gauge ferrules from my car audio stuff, but I hate them as half the time the set screw strips out before its even tight enough to hold them.

    I was looking at those terminals actually, I think it might of been your videos of the install that I watched.

  12. Feb 26, 2021 at 11:46 PM
    #3012
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    If you gotta have them you could crimp ring terminals on then cut the rings off to get your ferrules.

    SR-71A and Bastek like this.
  13. Feb 27, 2021 at 7:38 AM
    #3013
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,079
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    KDmax, plastidip, radio knobs and some stickers
    That's thinking outside the box right there! :thumbsup:

  14. Feb 27, 2021 at 10:59 AM
    #3014
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,799
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Use what you have if it will do the job well. I went the other way and converted the stock negative clamp to a ring connector by cutting off the the band clamp for the battery terminal and drilling a hole through the remaining tab. This preserves the stock crimp. The stock positive clamp has a lug for add-ons and already has a cover but the negative terminal has no such lug. If you ground all your accessories to the chassis you’ll need to upgrade that ground wire. If you don’t then it means a new battery clamp set up for a ground buss cable. I just needed one good connection on each battery terminal for the aux supply and buss bar grounds.

    Bastek likes this.
  15. Feb 27, 2021 at 12:13 PM
    #3015
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,079
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    KDmax, plastidip, radio knobs and some stickers
    I think this might be a mother of most inventions lol.

    I upgraded mine to one of those "mil spec" terminals when I installed my winch. A moment after cutting off stock negative clamp/rings I realized I should/could have left it alone, but it was already too late. I have a pic somewhere in this thread

  16. Mar 15, 2021 at 9:37 AM
    #3016
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    293
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)

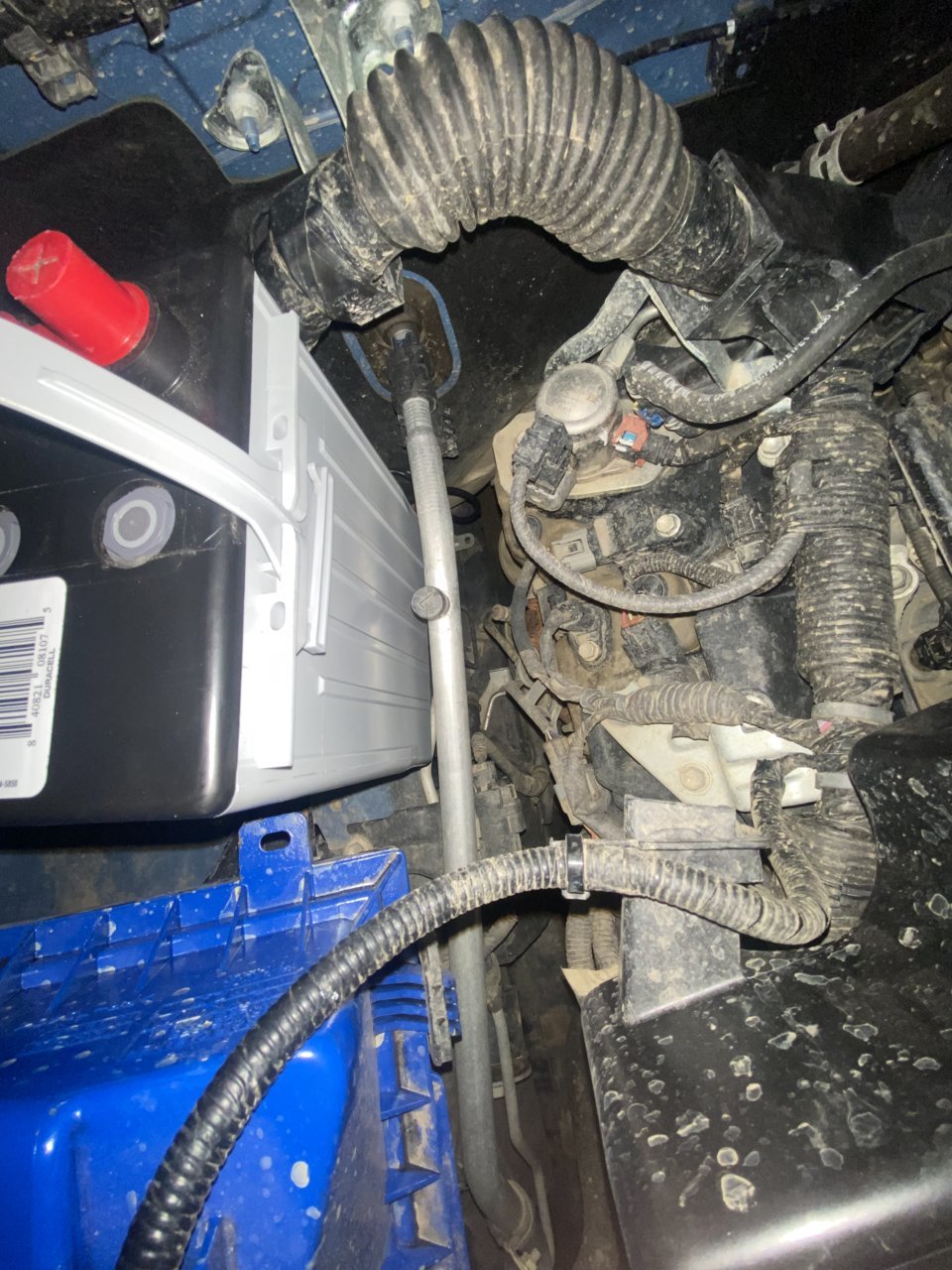

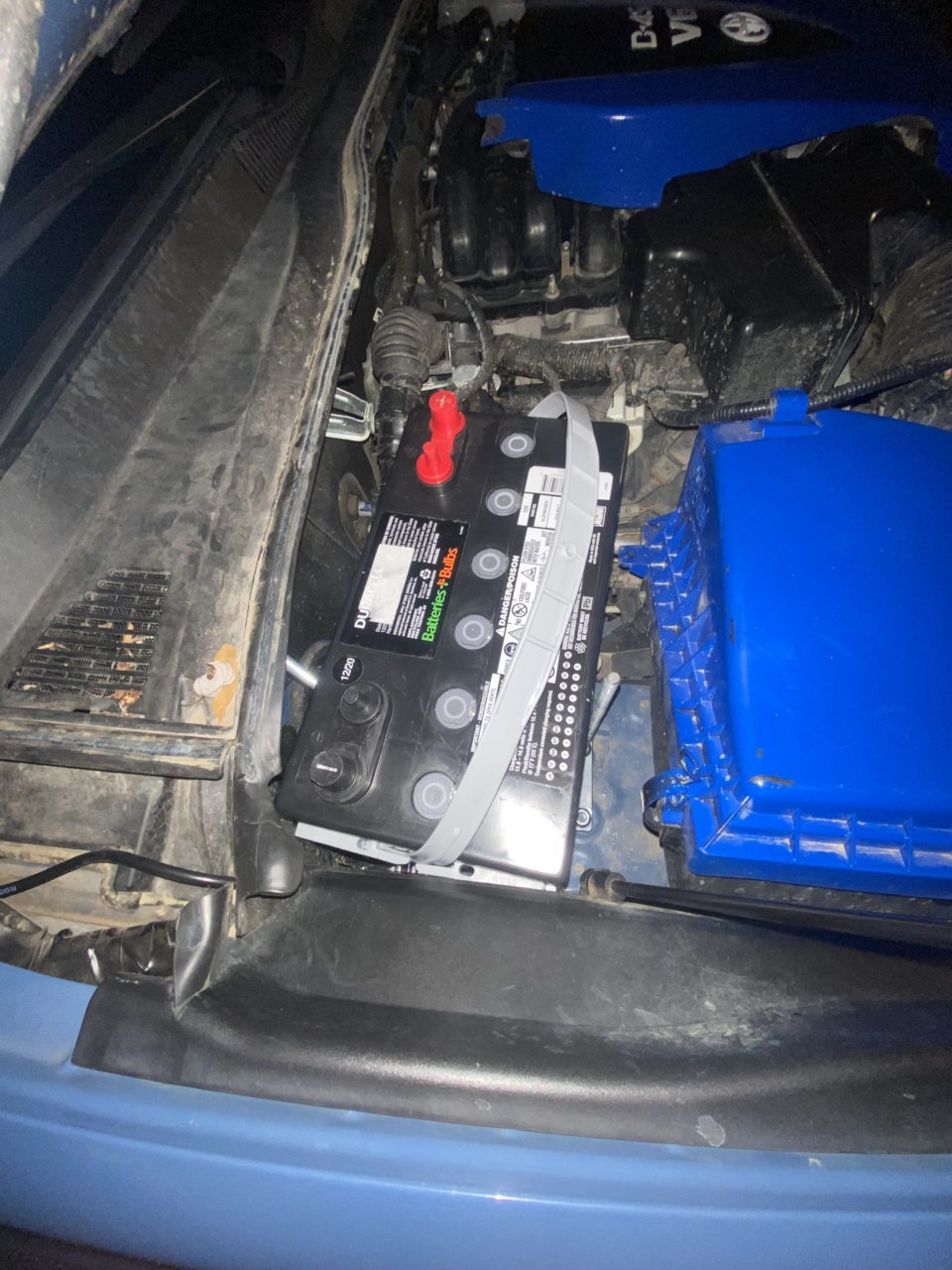

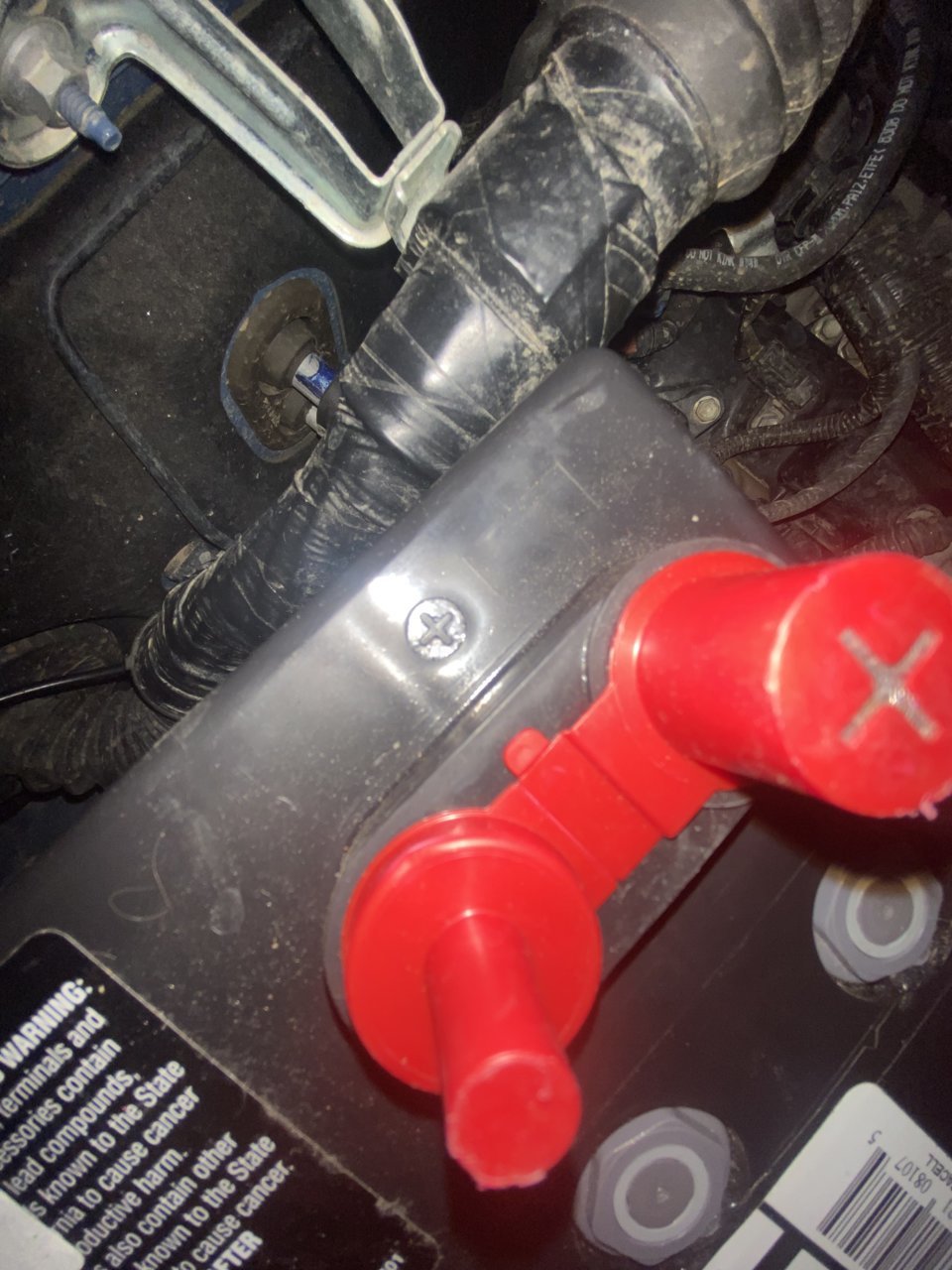

    Advise please! (questions at the bottom)

    Moving my starter battery to passenger side so I can put a bigger aux battery in the start location.

    I plan to
    Starter Set Up
    1) extend the stock positive charging cable across the engine bay to connect with my starter battery
    2)extend the fuse box wire across the engine bay and connect with starter
    3) find a ground point on passenger side

    Aux Battery Set Up
    1) hook it all up to RedArc to charge, likely mount on top of fuse box.
    2) use stock ground wire to ground the battery.


    Here are my questions
    1) where should I ground the starter battery which will be relocated on the passenger side. I’ve been told “engine or frame” but could anyone give more detail? How best to attach to engine or frame?
    2) can I use the stock ground wire to ground my aux battery (on the driver side) or is that wire tied into other things?
    3) Because I’m extending the fuse box wire, do I need a fuse coming off the starter battery going to the fuse box or is that redundant?


    Last edited: Mar 15, 2021
  17. Mar 15, 2021 at 12:47 PM
    #3017
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,079
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    KDmax, plastidip, radio knobs and some stickers
    From the looks of it, there is a possibility to install Group 27 battery on pass side. Might be easier than moving and flipping batteries around.

    Dual Battery Setups! Let's see them! Multiple Batteries Thread!
    Joe23 build and BS

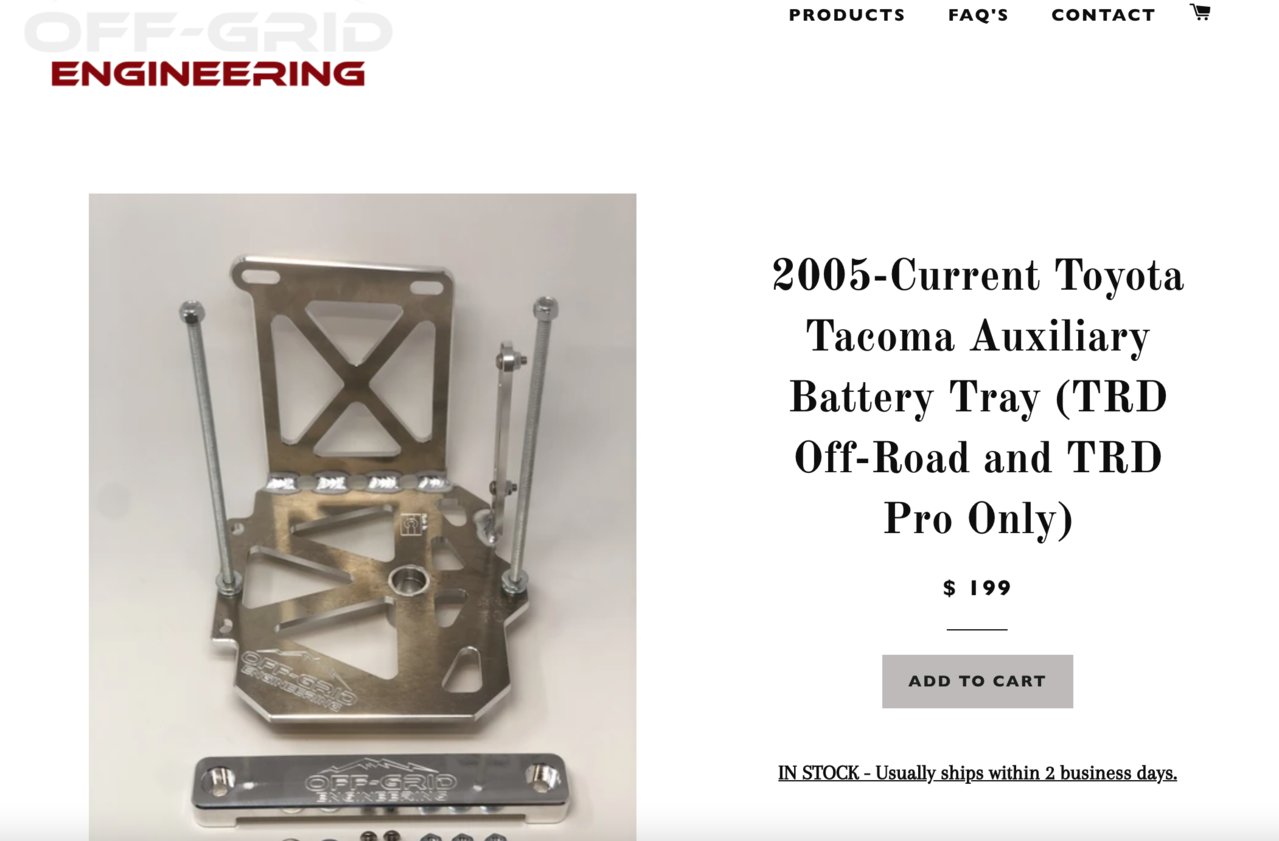

    Looks like this might be the bracket
    Screen Shot 2021-03-15 at 4.52.05 PM.jpg

    Last edited: Mar 15, 2021
    Greg.Brakes.Tacos likes this.
  18. Mar 15, 2021 at 4:47 PM
    #3018
    REDARC_Ryan

    REDARC_Ryan US Western Regional Sales Manager

    Joined:
    Mar 5, 2021
    Member:
    #358309
    Messages:
    45
    Gender:
    Male
    First Name:
    Ryan
    Puyallup, WA
    Vehicle:
    07 FJ Cruiser
    AllPro Long Travel, MetalTech Long Arms, KING coils front, Icon coils rear, Demello Offroad Bumper, Badlands 12k winch
    It's best to mount the BCDC's behind the grill in front of the radiator in some fashion. They are temperature sensitive, although it may work in that location just be aware that it will shut off at 175F and will taper in efficiency up to that point. We offer universal mounting brackets for the BCDC's that should be on our website soon!

    Last edited: Mar 15, 2021
  19. Mar 15, 2021 at 6:43 PM
    #3019
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    293
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)
    Last edited: Mar 15, 2021
  20. Mar 15, 2021 at 6:44 PM
    #3020
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    293
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)
    I know you are suppose to mount it as close as possible but how far is too far? I was thinking of mounting it in the glove compartment box or under the dash and run the wire through the firewall. Maybe 4-6 feet of wire
