Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Apr 11, 2021 at 10:00 PM
    #3041
    ivanza

    ivanza Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207121
    Messages:
    147
    Gender:
    Male
    Bay area, CA
    Vehicle:
    2017 MGM TRD OR MT
    Mobtown skids Fox 2.5 DSC OME heavy leaf

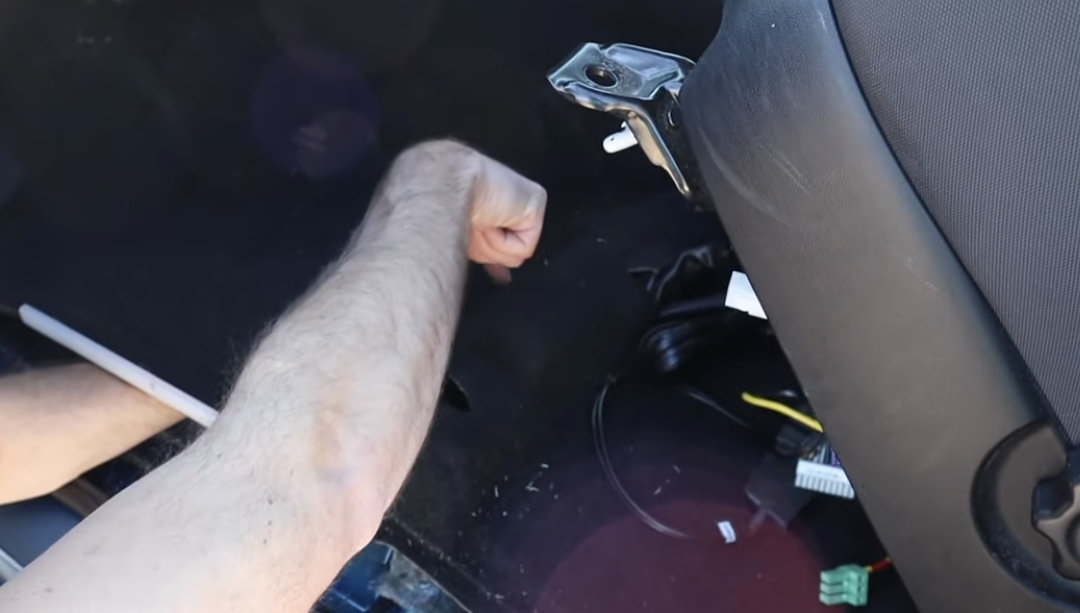

    There is apparently a harness ground under the drivers seat where pointed. Anyone use it?


  2. Apr 13, 2021 at 3:18 AM
    #3042
    Bastek

    Bastek Member

    Joined:
    Jun 6, 2017
    Member:
    #220876
    Messages:
    4,006
    Gender:
    Male
    First Name:
    Seb
    SI NY
    Vehicle:
    '17 OR dcsb
    MDtune, plastidip, radio knobs and some stickers

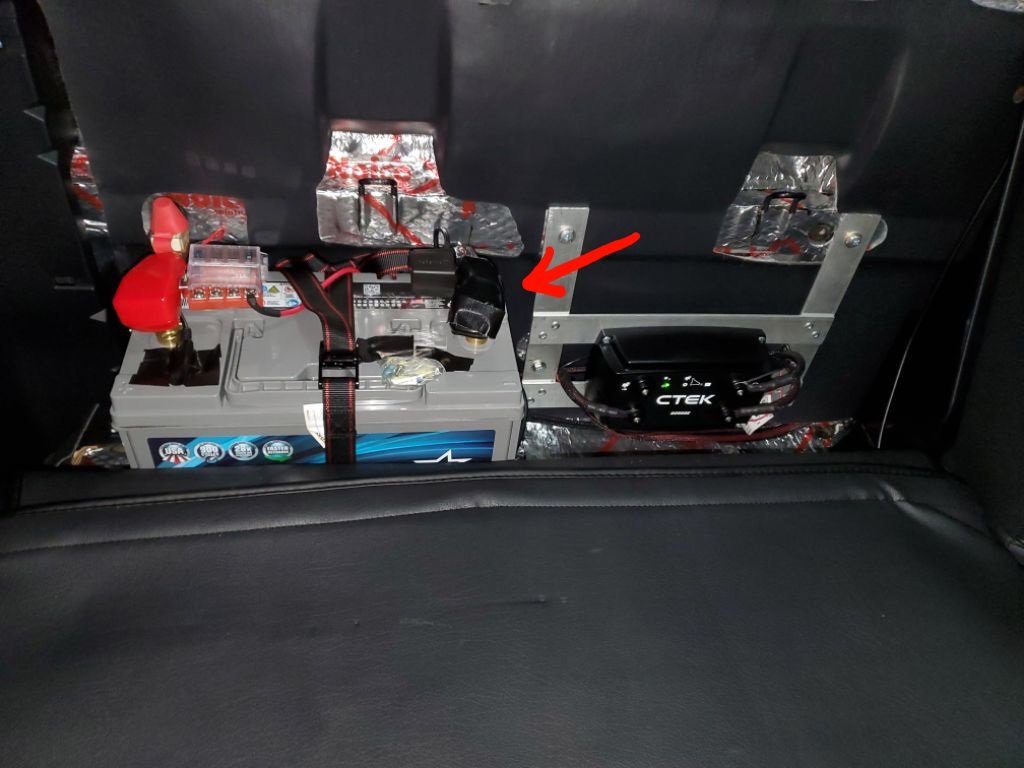

    I'm using a threaded hole behind rear passenger seat (in DC). I scraped off some paint from the face of it, and it works well for me.
    It's behind the battery, not visible in the pic.

    Last edited: Apr 13, 2021
    SR-71A likes this.
  3. May 10, 2021 at 9:55 AM
    #3043
    Lineback

    Lineback Well-Known Member

    Joined:
    Mar 4, 2016
    Member:
    #180258
    Messages:
    136
    Gender:
    Male
    Vehicle:
    2013 Tacoma DoubleCab TRD
    5 x 285/65/R18 Nitto Trail Grappler mud tires on 18" XD wheels (full sized matching spare) Bilstein 5100s with 3" spacer lift Prinsu roof rack Secondary air filter mod ARB Deluxe Bull bar front bumper + ARB LED fog lights ARB Recovery point Warn 9.5xp winch with steel cable SOS Concepts angled rock sliders with kick-outs 2 x Baja Designs LP9 Pro mounted to ARB bumper AVS window vents Interior knob mods Toyota bed mat Toyota hood deflector Toyota bed cargo divider Steelcraft 33250 Rear tail light cage guards Reverse light LED mod Wet Okole seat covers WeatherTec floor mats Tail gate anti-theft mod COMMS: On-board 2 meter VHF HAM radio (Boafeng F8HP mobile) + Bluetooth integrated mic External antenna: Nagoya UT-72 Super Loading Coil 19-Inch Magnetic Mount spotter radios: 2 x Cobra ACXT1035R FLT Gear: IFAK EMT Trauma wound kit 5lb fire extinguisher
    In the design phase for my first dual battery setup, and THIS comment about winch power got my attention, as I am running a Warn 9.5xp currently. I know it has been a few years, so I am curious how this setup has aged and if you ran into any issues?

    Ngneer likes this.
  4. May 10, 2021 at 9:56 AM
    #3044
    Camby

    Camby Well-Known Member

    Joined:
    Sep 10, 2015
    Member:
    #163939
    Messages:
    454
    Gender:
    Male
    First Name:
    Brian
    Denver
    Vehicle:
    2006 Tacoma TRD Off-Road
    Magnuson Supercharger TRD CAI Catch Can After market dual exhaust Heated Mirror Kit Install Aftermarket Head and Tail lights Several accessory Mods
    Anyone install a fuse panel on the passenger side of the engine bay (over the top of the ABS module) as opposed to the drivers side?

  5. May 10, 2021 at 10:00 AM
    #3045
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    275
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)
    Most people do driver because most wires will come in through the driver side fire wall since the switch will be near the driver

  6. May 10, 2021 at 10:00 AM
    #3046
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,023
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Winches are high current draws. So short wire runs are king. In a Tacoma your closest battery is going to be the main (unless you do a side by side setup). Either way you will also want to make sure the batteries are linked together through the ML-ACR (or similar) before starting a pull

    Lineback likes this.
  7. May 10, 2021 at 10:06 AM
    #3047
    Camby

    Camby Well-Known Member

    Joined:
    Sep 10, 2015
    Member:
    #163939
    Messages:
    454
    Gender:
    Male
    First Name:
    Brian
    Denver
    Vehicle:
    2006 Tacoma TRD Off-Road
    Magnuson Supercharger TRD CAI Catch Can After market dual exhaust Heated Mirror Kit Install Aftermarket Head and Tail lights Several accessory Mods
    I realize that, however I have a catch can and a SC coolant reservoir on the driver side, hence why the only spot I have left in the engine bay is over the top of the ABS module.

  8. May 10, 2021 at 10:12 AM
    #3048
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    2,990
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    I have been considering it, but have not built a mount yet.

    I also have a catch can, and a supercharger waiting to be installed.

  9. May 10, 2021 at 10:12 AM
    #3049
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    275
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)
    what’s on top of the current fuse box?

  10. May 10, 2021 at 11:54 AM
    #3050
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,696
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I’ve seen a few. The other reason for the driver’s side install is shortest possible cables from the battery but some install in the cab or bed so there’s no real limitation.

  11. May 10, 2021 at 11:56 AM
    #3051
    Camby

    Camby Well-Known Member

    Joined:
    Sep 10, 2015
    Member:
    #163939
    Messages:
    454
    Gender:
    Male
    First Name:
    Brian
    Denver
    Vehicle:
    2006 Tacoma TRD Off-Road
    Magnuson Supercharger TRD CAI Catch Can After market dual exhaust Heated Mirror Kit Install Aftermarket Head and Tail lights Several accessory Mods

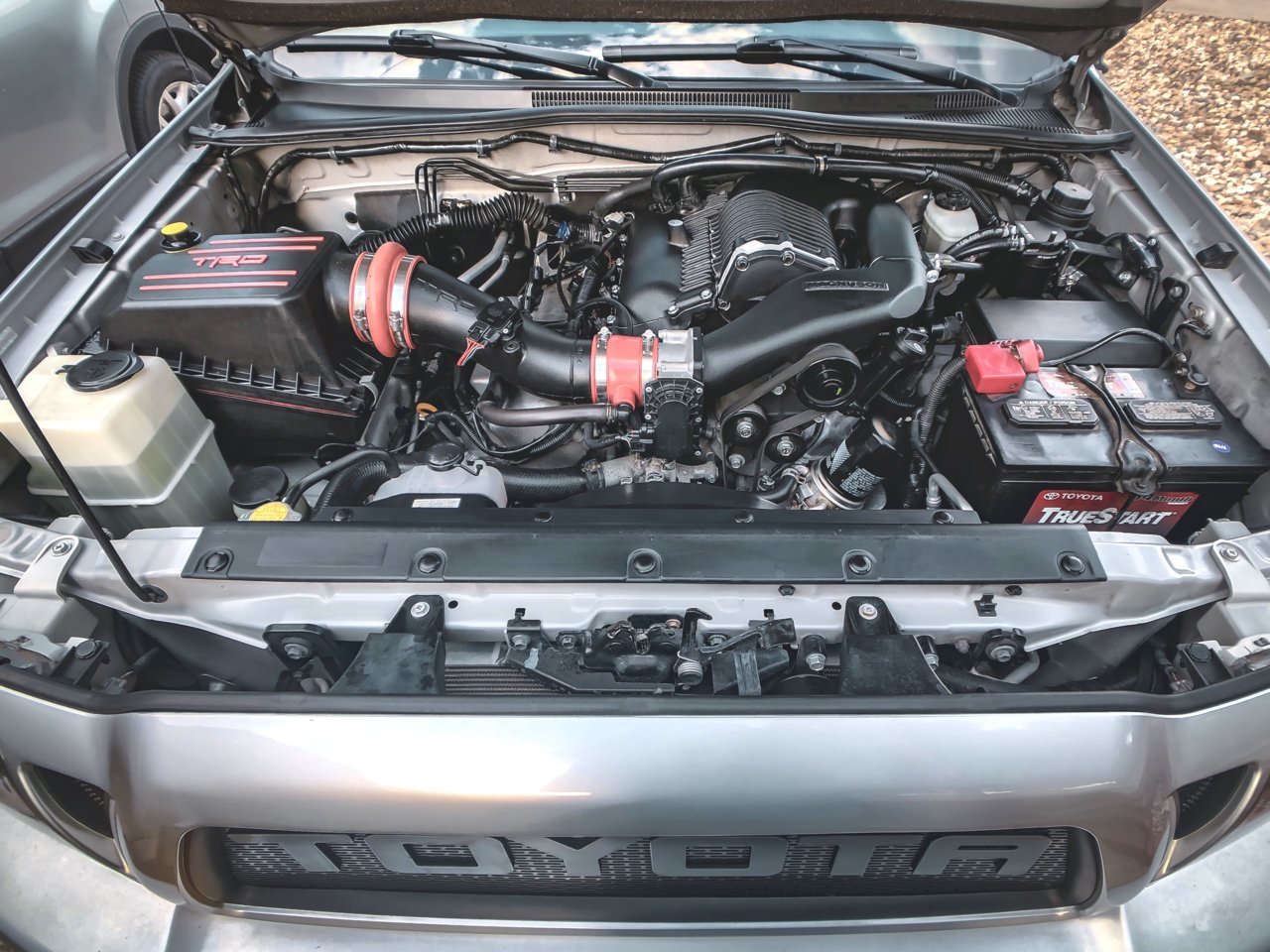

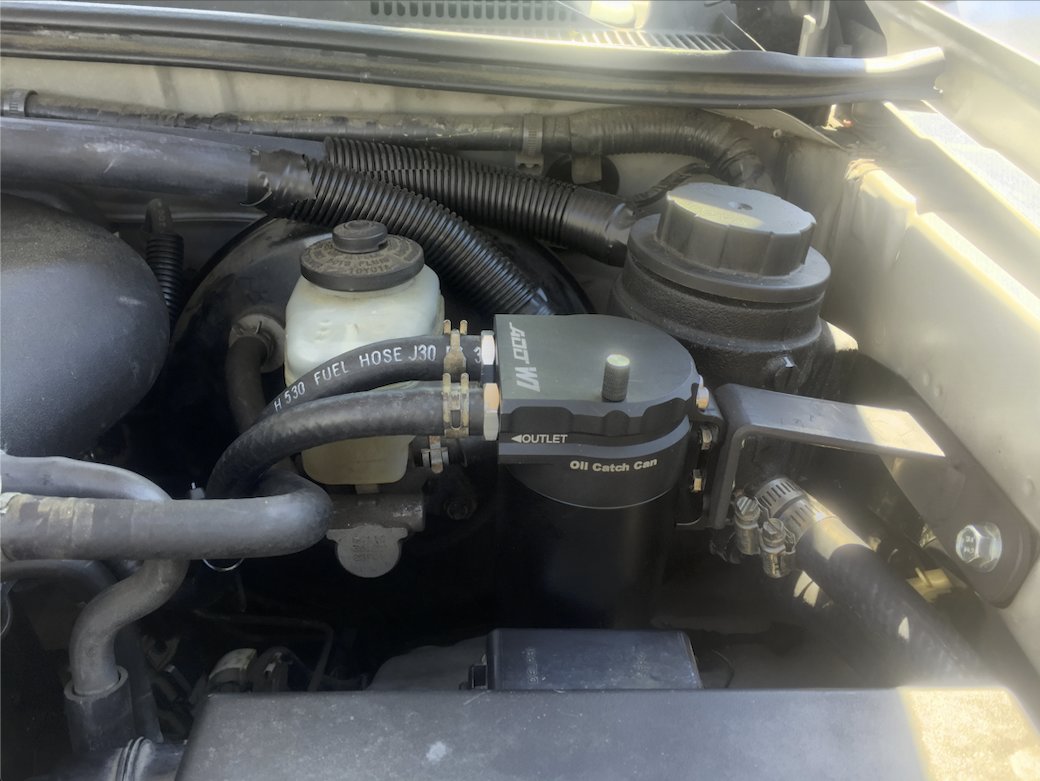

    2019-09-01_17-57-01-0600.jpg Screen Shot 2021-05-10 at 12.55.21 PM.jpg

    There be no room in the driver side corner

  12. May 10, 2021 at 12:45 PM
    #3052
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    275
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)

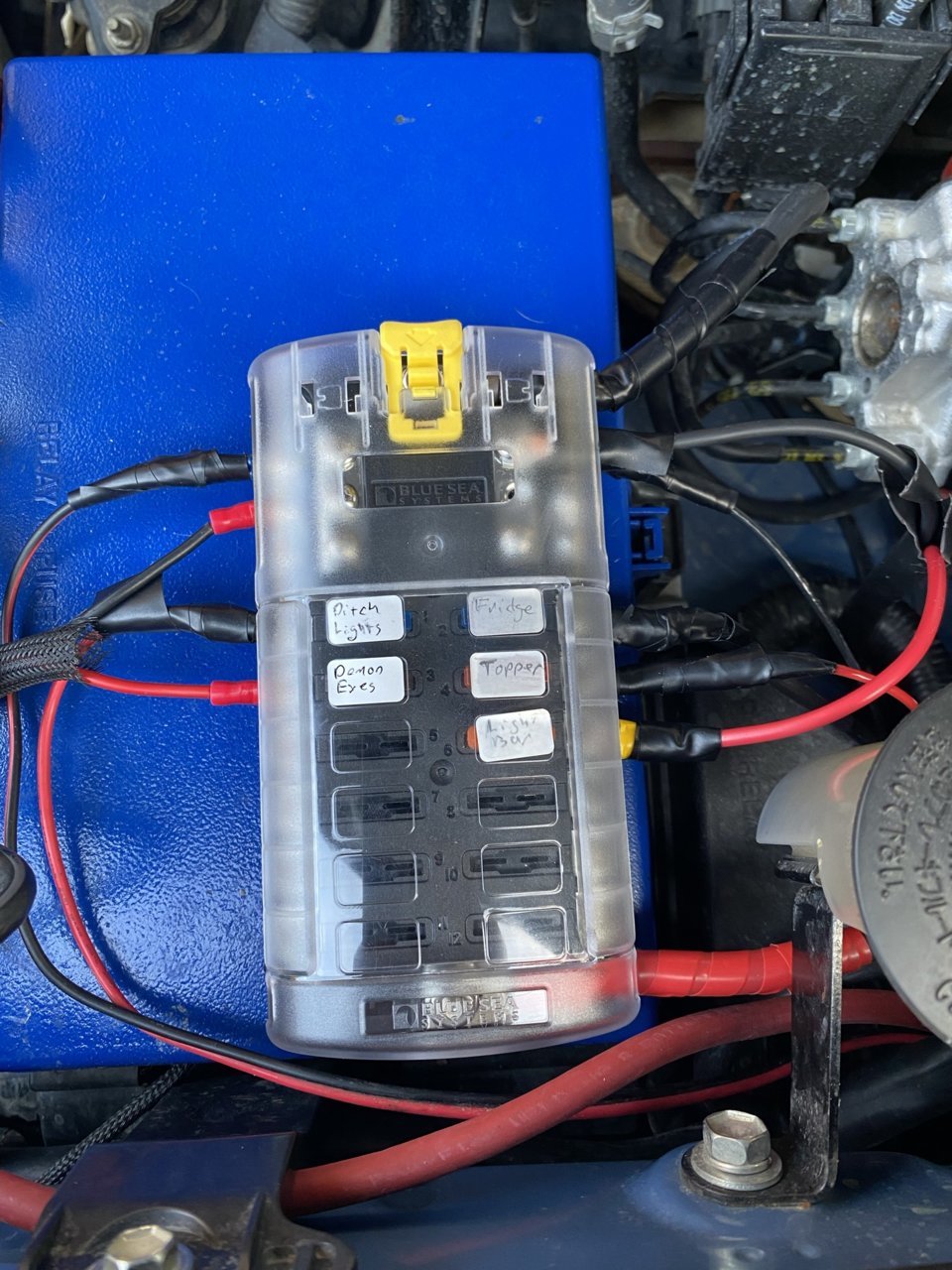

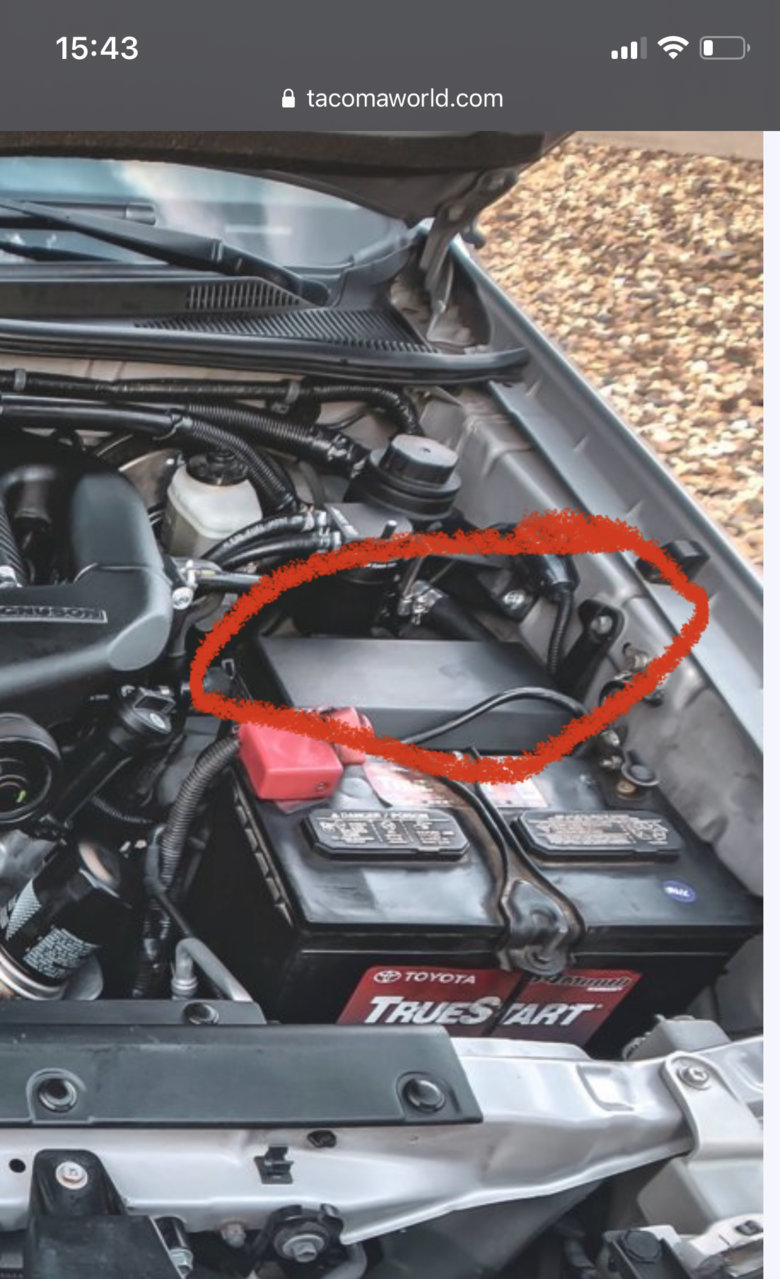

    yea there is, put it in top of the OEM fuse box


    Like this

  13. May 12, 2021 at 6:39 AM
    #3053
    Camby

    Camby Well-Known Member

    Joined:
    Sep 10, 2015
    Member:
    #163939
    Messages:
    454
    Gender:
    Male
    First Name:
    Brian
    Denver
    Vehicle:
    2006 Tacoma TRD Off-Road
    Magnuson Supercharger TRD CAI Catch Can After market dual exhaust Heated Mirror Kit Install Aftermarket Head and Tail lights Several accessory Mods
    I’d like to keep access to my stock fuse box

    bagleboy likes this.
  14. May 15, 2021 at 9:34 PM
    #3054
    Tacman19

    Tacman19 Well-Known Member

    Joined:
    Jan 18, 2020
    Member:
    #316444
    Messages:
    1,795
    Gender:
    Male
    First Name:
    Dave
    Mid Missouri
    Vehicle:
    19 Tacoma
    As many as my wallet will allow
    I put a hinge on mine with a wing nut. Couple of turns and I can get to it.
    Zim
    EDIT: honestly if you're blowing a fuse or having a relay issue, there's a problem some where else....just saying.

  15. May 16, 2021 at 12:45 AM
    #3055
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,696
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Yeah but it’s there for a reason...ditto. It’s tempting and I see it plenty but its not for me either.

    Tacman19 likes this.
  16. May 16, 2021 at 12:57 AM
    #3056
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    4,696
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I prefer to run ground returns rather than scraping paint and having to upgrade the chassis ground to the battery. For in-cab stuff I use a common buss w/#10 back to the battery for the low-medium draw accessories and dedicated returns for big stuff but there are threaded holes all over the place, mostly M6 and M8.

  17. May 25, 2021 at 5:43 PM
    #3057
    Bunk Moreland

    Bunk Moreland Well-Known Member

    Joined:
    Jun 16, 2019
    Member:
    #296509
    Messages:
    534
    Gender:
    Male
    First Name:
    Bunk
    Austin, Texas
    Any chance you have a photo or three? And a wiring schematic? Thanks.

  18. Jul 5, 2021 at 4:37 AM
    #3058
    Overland&UpMoutains

    Overland&UpMoutains Well-Known Member

    Joined:
    Feb 7, 2019
    Member:
    #282169
    Messages:
    275
    Gender:
    Male
    First Name:
    Parker
    Washington DC
    Vehicle:
    2018 TRD Pro MT Blue
    Exterior: -Prinsu Access Cab Rack -ARE OVERLAND Camper Shell -Rain deflectors Armor: Victory 4x4 Blitz Steel Front Bumper Victory 4x4 Strike Steel Rock Sliders Victory 4x4 Strike Steel Rear Bumper Toyota TRD Front Skid (standard) Lighting: 20” Front Bumper LED Light Bar Cab mounted LED Ditch Lights Performance: Dobson 4x4 Snorkel Overland/Camping EZ Topper Lift Elevated Sleeping Platform (removable)
  19. Jul 28, 2021 at 8:51 PM
    #3059
    panardo

    panardo Active Member

    Joined:
    Oct 1, 2017
    Member:
    #231699
    Messages:
    42
    Gender:
    Male
    Vehicle:
    Taco 2000 4x4 V6 manual w/RDlock

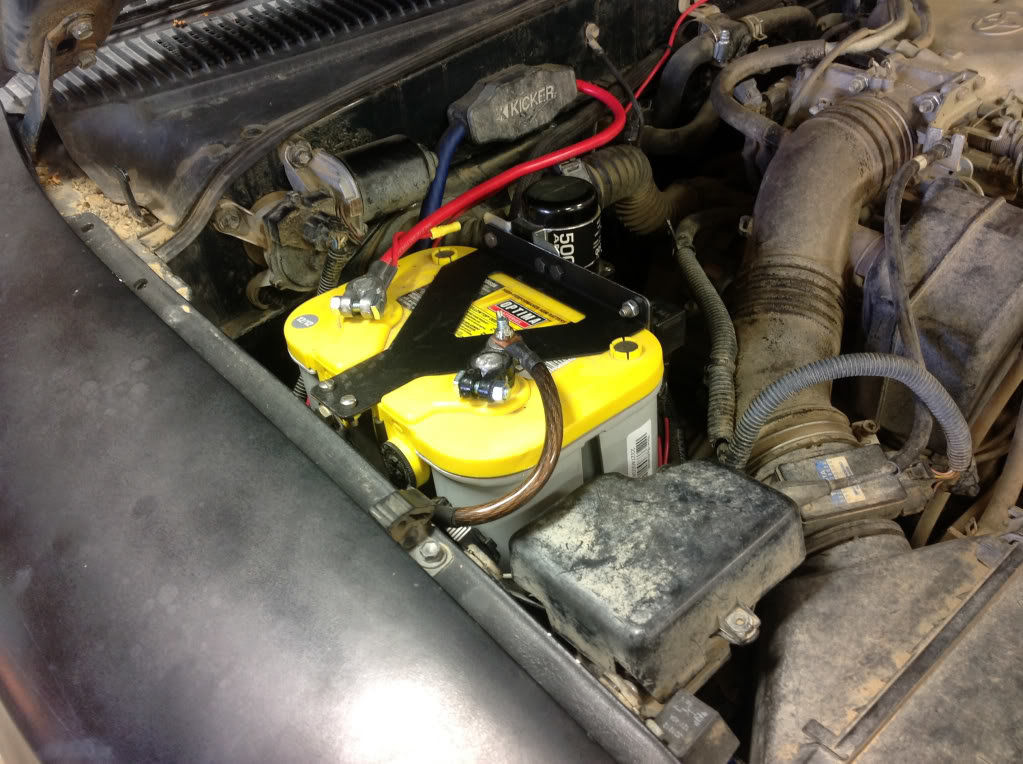

    which size is that yellow optima?

  20. Jul 28, 2021 at 11:10 PM
    #3060
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,315
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Based on the post configuration, I'd say it a group 34/78. @Blackdawg
