Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Dec 15, 2013 at 8:41 PM
    #121
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I sold ford for a time. Gave my 'modding' client base loads of ideas. Even a helping hand whenever asked.. Almost grabbed a Platinum myself. Wanted to wait til it came with the turbo. Then I drove the 6.8 Raptor. Boy was I torn between the two. Wanted the engines swapped. Then recently i see that someone did just that.

    http://www.youtube.com/watch?v=wYWE11Oo5rg

    Last edited: Dec 15, 2013
  2. Dec 15, 2013 at 9:00 PM
    #122
    ruggedT

    ruggedT The Sticker Guy

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    3,177
    Gender:
    Male
    First Name:
    Stan
    Midlothian, Va
    Vehicle:
    2016 Ford F250
    Diesel on 35's
    The Ford dealership let me gallivant in a raptor while I was waiting on some paperwork to be done. Fun truck... not worth the money imo. I can sink a little into mine and come out with same thing minus the engine. Eco raptor gets good mpg tho ^^

  3. Dec 15, 2013 at 9:03 PM
    #123
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I know. neighbor has one. babys it. I smirk when I think of the cost of it. Then the pricing I could have got the truck I want and then invest in better suspension and still be less than his.

  4. Dec 19, 2013 at 5:49 AM
    #124
    justchil

    justchil Well-Known Member

    Joined:
    Nov 11, 2013
    Member:
    #116339
    Messages:
    227
    Gender:
    Male
    First Name:
    Andy
    WV
    Vehicle:
    13 AC TRD OR
    Really dig this setup... have some room here but there is 'something' in the way. I haven't had time to determine what component is in the way. Have the service manual so I'll take a look until I can get under the hood. Looks like earlier 2nd gens had plenty of room in that area.

    I have a 27f in my truck. Would like the 2nd battery to help out with a larger inverter / wench / additional electronics.

    [​IMG]

    [​IMG]

    Last edited: Dec 19, 2013
  5. Jan 1, 2014 at 11:29 PM
    #125
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    A bit of a dream here. But for anyone, myself included, check these monsters out.
    http://lithiumpros.com/shop/12v-startingdeep-cycle-lithium-powerpack-with-bms/
    http://lithiumpros.com/shop/12v-deep-cycle-lithium-powerpack-with-bms/

    My current batterys are weighing in at 78# each. for a total of 156#. If I had 2 of these LithiumPro battery's (29# for starting/ deep cycle and 31# for the Deep Cycle) I could be in the 60# range. Thats less than the weight of the one of the current monsters I have.

    These spec out to better than the Current 31M's, in almost every area from what I am reading. Been watching these for a long time waiting for a nice price drop. NO JOY..

    Thats comparing them directly to the http://www.odysseybattery.com/battspecs.html 31M-PC2150 Which , spec wise, the POWER X2 is, my battery's/.

  6. Jan 1, 2014 at 11:30 PM
    #126
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Looks like it might be some new emision control device.

  7. Jan 2, 2014 at 12:00 AM
    #127
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    MrGrimm


  8. Jan 2, 2014 at 12:05 AM
    #128
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    9,214
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    I keep going back and forth between two group 35's or one big group 31. Help.

  9. Jan 2, 2014 at 6:38 AM
    #129
    Scalded_Dawg

    Scalded_Dawg Not as new as my post count would appear

    Joined:
    May 2, 2010
    Member:
    #36397
    Messages:
    1,646
    Gender:
    Male
    First Name:
    Brent
    Yorktown, VA
    Vehicle:
    Stripped Steel and Sex Appeal
    Tacoma daily and 4Runner to play
    :eek: big money $$$$
    Would be nice though!

  10. Jan 2, 2014 at 7:25 AM
    #130
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Get one or two of the LithiumPro's, at 1/3 of the weight of a comparable group, yet superior spec'd in every other way. Well, that is, from what I can tell.

    Yeah, for the people that are concerned with weight. Especially on a heavy rig. These are a way to cut POUNDS off without sacrificing anything. It is at a cost though, big $$ per #.

    On my rig, I am out with my wife, our 4 children, and myself for a grand total of 6. I have tried to cut weight in many places, this could be a great way and not loosing anything and gaining additional power reliability. These can fully charge in less than an hour.

  11. Jan 4, 2014 at 12:40 PM
    #131
    joshroz2

    joshroz2 Active Member

    Joined:
    Jun 20, 2013
    Member:
    #106712
    Messages:
    37
    Gender:
    Male
    First Name:
    Josh
    New Jersey
    [​IMG]

    Can I run 2 of these Marine batteries in my truck?
    Seems like a little less CCA's but more amp hours than the standard 27F.
    What do you guys think?

  12. Jan 4, 2014 at 12:58 PM
    #132
    2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,358
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    Should be able to if you can make them fit.

  13. Jan 4, 2014 at 1:01 PM
    #133
    joshroz2

    joshroz2 Active Member

    Joined:
    Jun 20, 2013
    Member:
    #106712
    Messages:
    37
    Gender:
    Male
    First Name:
    Josh
    New Jersey
    For comparison
    27F
    -diehard gold has 825 CCA, 140 reserve, ~58.3 amp hours*
    -Bosch has 750CCA, 850CA, 120 min reserve, ~50 amp hours*

    27DC
    -Kirkland has ~600CCA, 750MCA, ~276 min reserve*, 115 amp hours
    -Everstart has 720MCA, ~276 min reserve*, 115 amp hours

    *= calculated

  14. Jan 4, 2014 at 2:02 PM
    #134
    H0LLYW00D

    H0LLYW00D Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40499
    Messages:
    250

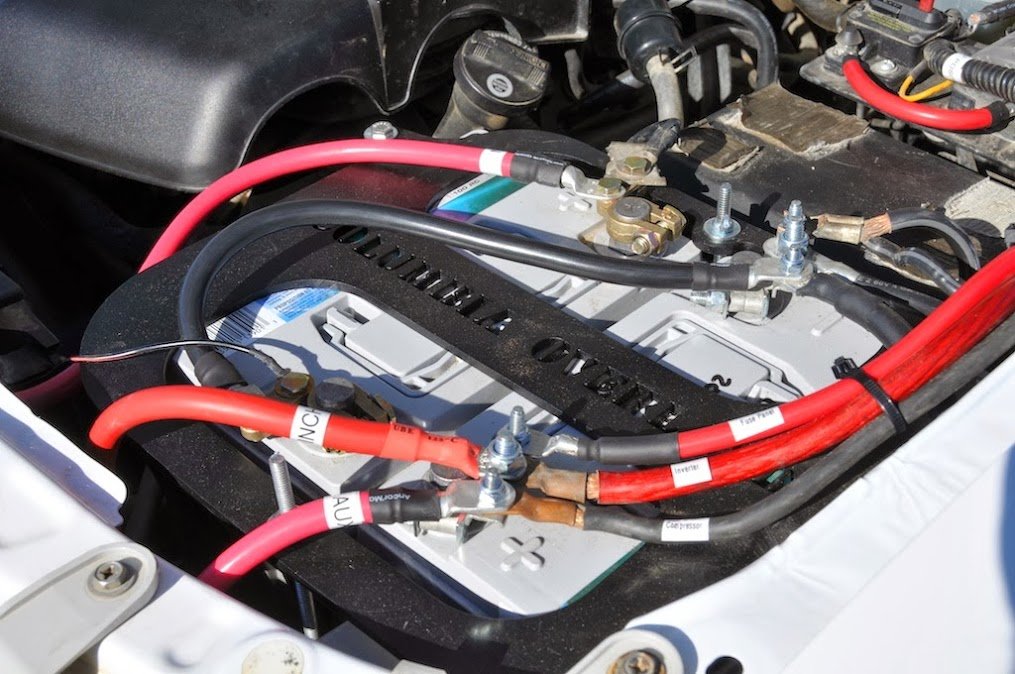

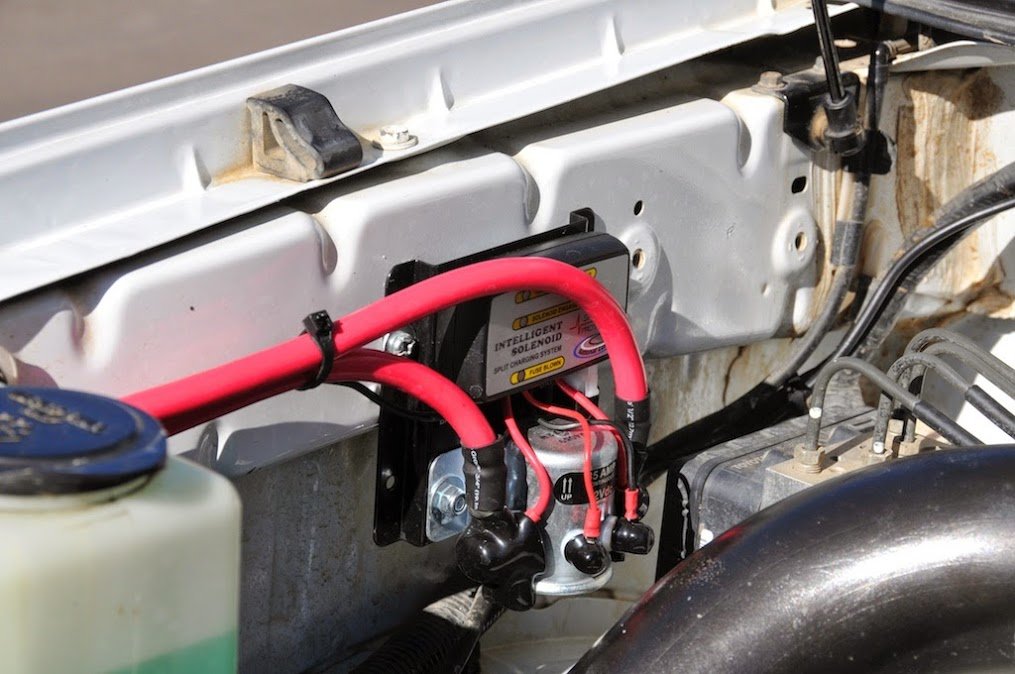

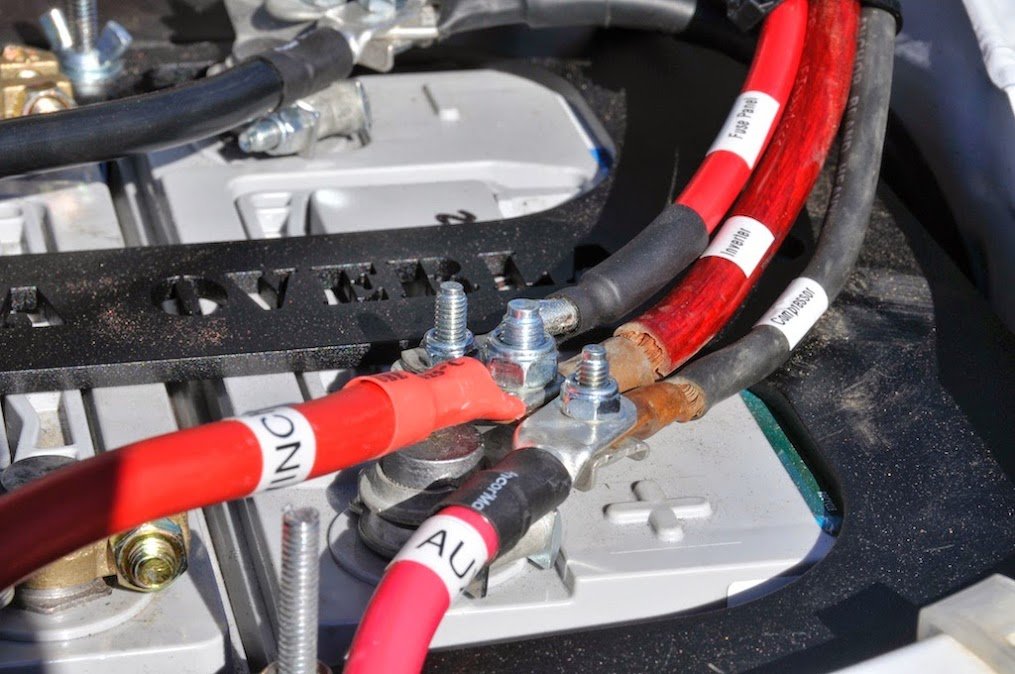

    Here are some pictures of my 3 battery setup. I originally went with 2 but after a bad solenoid and having to up the amp rating I had an extra battery so i figured might as well put it under the hood. I have a red top main battery and 2 yellow top aux batteries. I still had room to get a snorkel in but now I have no extra room for anything under the hood. I have a switch in the cab to link the batteries if needed but other than that its all automagical. The black box on top of the batteries is a charger/conditioner much like you would find in an emergency vehicle which allows me to plug the truck in and charge all three batteries at once on shore power.


  15. Jan 4, 2014 at 2:31 PM
    #135
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Looks good

  16. Jan 5, 2014 at 8:12 AM
    #136
    Shadetree

    Shadetree Well-Known Member

    Joined:
    Dec 22, 2010
    Member:
    #48053
    Messages:
    753
    Gender:
    Male
    First Name:
    BiLL
    Bozeman, Montana
    Vehicle:
    2011 Access Cab 4x2
    Locking Tailgate & Gas Cap and extra bed D-rings
    Some tips.....

    Relocating your batteries away from the high underhood heat will increase the the total number of cycles because there is less corrosion of the positive plate grids. Match the batteries and the charging system, so they can be fully recharged based on your driving habits. Use deep cycle batteries with thicker plates that will produce enough cranking amps to start your engine in the coldest temperature you might experience. Mind the wiring and isolator voltage losses to achieve fully charged batteries. Maintain 'em.

    Ngneer likes this.
  17. Jan 5, 2014 at 10:15 AM
    #137
    pa blaster

    pa blaster Well-Known Member

    Joined:
    Jan 27, 2012
    Member:
    #71544
    Messages:
    1,716
    Gender:
    Male
    First Name:
    Scott
    central pa
    Vehicle:
    2015 DCSB TRD OR 4x4
    5100's front & rear , Eibach springs, LR uca,Icon progressive aal
  18. Jan 13, 2014 at 7:39 AM
    #138
    12thmanhawkfan

    12thmanhawkfan Well-Known Member

    Joined:
    Mar 13, 2013
    Member:
    #99628
    Messages:
    1,071
    Gender:
    Male
    First Name:
    Robby
    Bellingham, WA
    Vehicle:
    Access Cab 6-speed
    It's got some Mods
    Subbed. There are some creative ideas on here. Some day down the road I might want to go with a dual battery setup.

    Uthmoelleri and Ngneer like this.
  19. Jan 13, 2014 at 7:46 AM
    #139
    BamaToy1997

    BamaToy1997 Wheel Bearing Master

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    10,800
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    best wheel bearings around! www.marionbumper2bumper.com

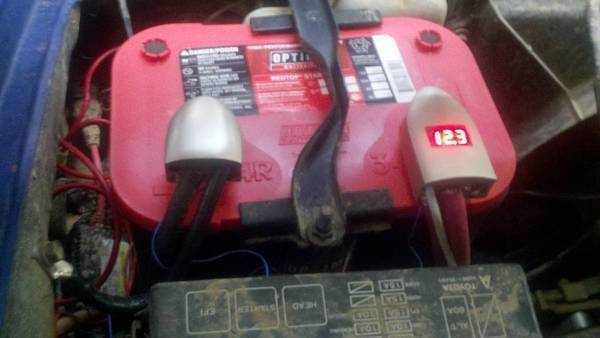

    Just completed stage-1 of my dual battery setup. I have the Optima red top installed in the factory spot, replaced the alternator with a higher output, and replaced all of the main power cables (positive and negative) with new terminals. Here is a pic of the battery. I will have the details added later to my build thread. Next step will be getting the yellow top and the battery tray installed on the passengers fender, then the new cables there, and the 140A battery isolator.

    [​IMG]

    Ngneer likes this.
  20. Jan 13, 2014 at 9:06 AM
    #140
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Who makes the terminals?
