Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Dec 20, 2016 at 8:07 PM
    #1441
    Mr.PowerTrays

    Mr.PowerTrays Well-Known Member Vendor

    Joined:
    Dec 19, 2015
    Member:
    #172624
    Messages:
    1,753
    Gender:
    Male
    First Name:
    Maverick
    Colorado
    Vehicle:
    2011 dcsb trd or
    :rofl::rofl::rofl:

    Jim Bob likes this.
  2. Dec 23, 2016 at 7:39 PM
    #1442
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    DaveInDenver and Thelgord like this.
  3. Dec 26, 2016 at 4:54 PM
    #1443
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,485
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it

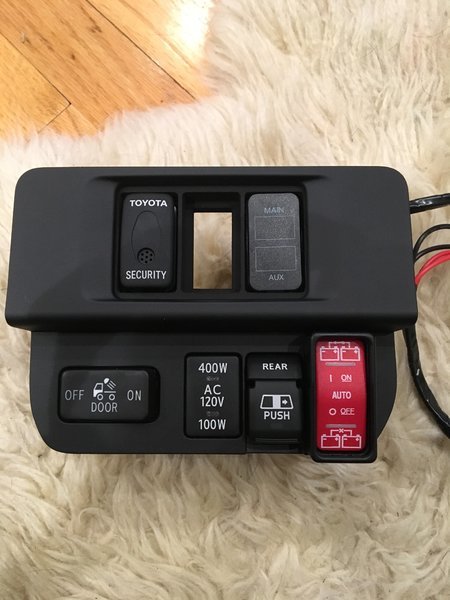

    Off Grid dual battery going on-


  4. Dec 28, 2016 at 7:34 AM
    #1444
    orafrith

    orafrith Well-Known Member

    Joined:
    Apr 10, 2016
    Member:
    #183836
    Messages:
    65
    Gender:
    Male
    Keep the pics coming

    BountyOR_VF2 likes this.
  5. Jan 10, 2017 at 9:22 AM
    #1445
    thesloppy1

    thesloppy1 Well-Known Member

    Joined:
    Oct 28, 2016
    Member:
    #200937
    Messages:
    284
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2016 quicksand Tacoma trd sport

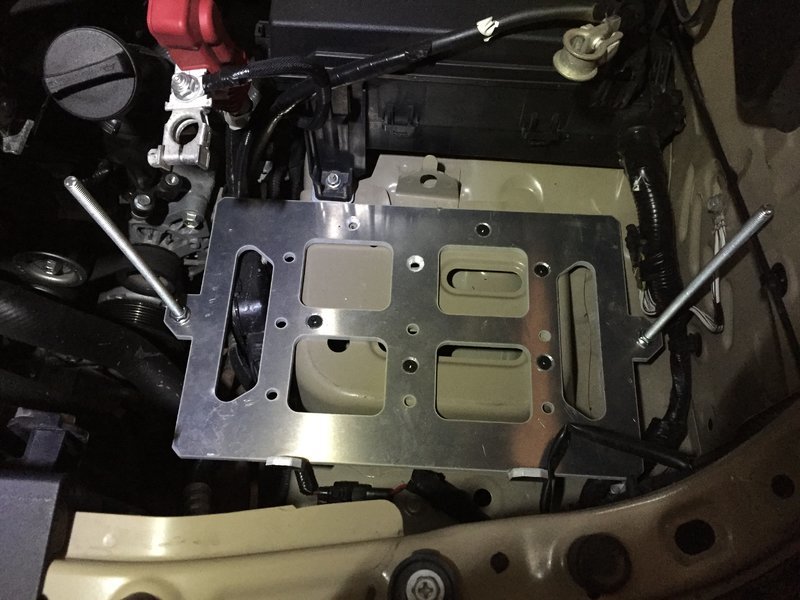

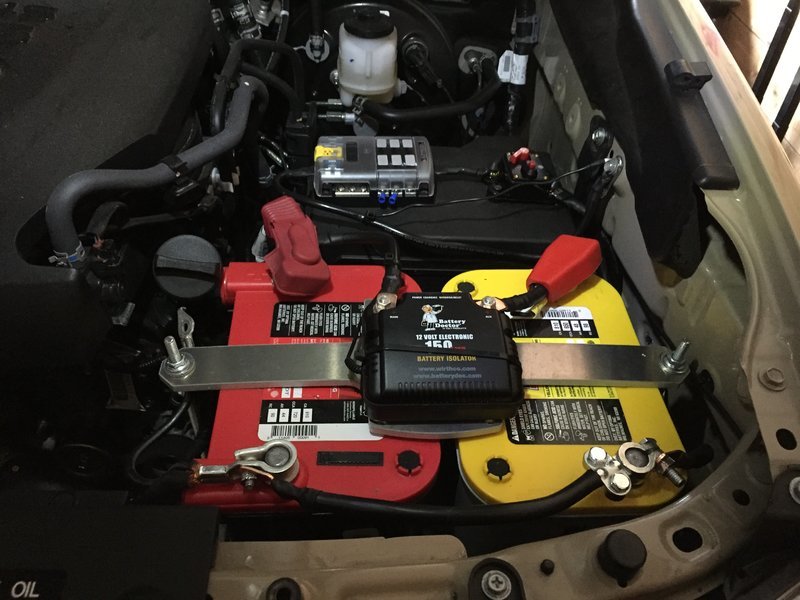

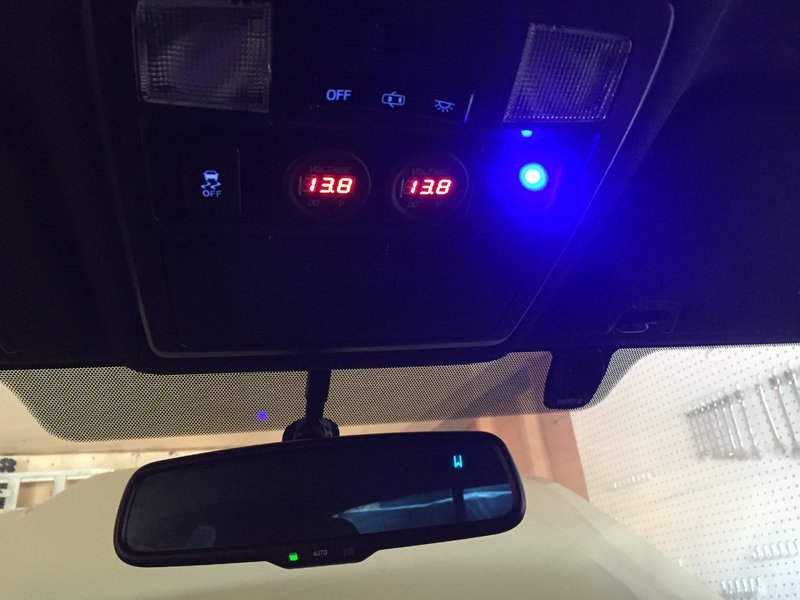

    Some pics of my setup. Also posted in another thread. IMG_0636.jpgIMG_0636.jpg IMG_0637.jpg IMG_0653.jpg

  6. Jan 10, 2017 at 10:17 AM
    #1446
    Subway4X4

    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    11,622
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    Yeah. Mine is home made too. With the Wirthco tray. See OP. I think there's a link to my setup.

  7. Jan 13, 2017 at 6:18 AM
    #1447
    Mr.PowerTrays

    Mr.PowerTrays Well-Known Member Vendor

    Joined:
    Dec 19, 2015
    Member:
    #172624
    Messages:
    1,753
    Gender:
    Male
    First Name:
    Maverick
    Colorado
    Vehicle:
    2011 dcsb trd or
    Battery Mart is the cheapest place I found them

  8. Jan 14, 2017 at 2:36 PM
    #1448
    Kilroy

    Kilroy Well-Known Member

    Joined:
    Sep 8, 2016
    Member:
    #196758
    Messages:
    55
    Gender:
    Male
    First Name:
    Dango
    Republic of Texas
    Vehicle:
    Silver 2013 TRD Off-road DCSB
    Stuff and things.
    Subd for reference.

  9. Jan 15, 2017 at 10:27 AM
    #1449
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Should I ground 2nd battery in bed of truck to the frame or run a ground wire to the 1st battery? *note: system not designed to self-jump-start.

  10. Jan 15, 2017 at 10:40 AM
    #1450
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    1,996
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sp
    2.5 inch lift; 5100's front; OME rear; Air Lift; dual batteries; Bestop bed cover; Nfab nerf steps; EBC rotors; Threadwright Claw MT tires; hood scoop LED light install.
    I did both, and to the engine block as well, but my system is designed to start the engine. I would still wire to all three points, just not be too concerned with wire gauge, maybe 4AWG.

  11. Jan 15, 2017 at 10:43 AM
    #1451
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Well that sounds redundant. I know the body and engine are grounded. The frame has to be grounded somewhere because I hookup all accessory (lights, etc) grounds to the frame.

  12. Jan 15, 2017 at 6:04 PM
    #1452
    ClevSix

    ClevSix Well-Known Member

    Joined:
    Jun 29, 2015
    Member:
    #158382
    Messages:
    1,382
    Gender:
    Male
    First Name:
    John
    IL/IA
    Vehicle:
    01 DCSB SR5 TRD, 13 T4r SR5
    Suspension, 33s, some armor... Rust, Gray wire and 2Low, and more. T4r is stock.
    If anyone is looking for a good deal on batteries Sam's is having a sale... at least the Sam's in my area is..
    [​IMG]

    tacomgee and Whitecloud like this.
  13. Jan 15, 2017 at 9:34 PM
    #1453
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,271
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    I ran a full ground cable (1/0) all the way back to the starting battery. The last thing I wanted was to create potential ground gremlins.

  14. Jan 17, 2017 at 3:43 AM
    #1454
    Chux

    Chux Pura Vida

    Joined:
    Oct 1, 2013
    Member:
    #113652
    Messages:
    5,956
    Gender:
    Male
    NJ beaches
    Vehicle:
    2013 TRD O/R Beach Buggy
    Click on my Build
    Subd.

  15. Jan 21, 2017 at 6:12 PM
    #1455
    sawbladeduller

    sawbladeduller semi-realist

    Joined:
    Oct 3, 2014
    Member:
    #139583
    Messages:
    952
    Gender:
    Male
    North Cal
    Vehicle:
    '15 DCSB '98 2.7L
    semi zip tied
    I had a 31M in service, then installed a dual battery system, with a 35 as the start battery. Used this un-even combo (35/31M) about ten months. Last week i swapped out the 31M for a second 35. After about 5 days, I turned off the truck in the parking structure at work, and my winch began beeping. only way to stop the beep was to lock off the ML-ACR. With a hand-held voltmeter I get 12.9V on the start battery with engine off. With engine running the start battery reads 14.2V. The new 35 does not read any volts. I can get the winch to work with the ML-ACR in the ON position, but without the start battery connected the winch won't run...

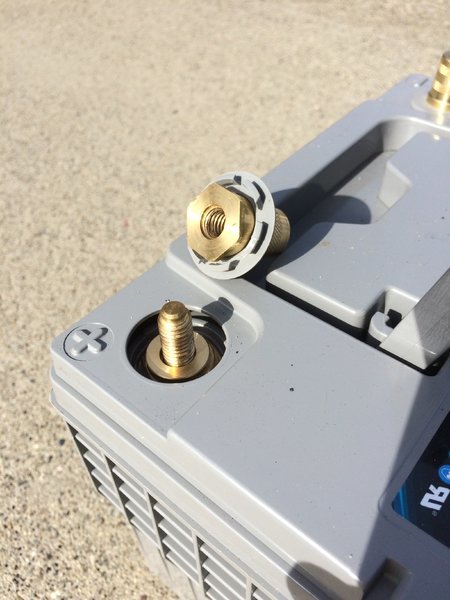

    The curious thing about the new 35 battery is the positive terminal rotates relative to the plastic case. I was thinking maybe the shiny brass color post is a thread-on cap over the real battery post and is just not threaded on properly. I do not think the battery post should be moving at all, but I don't know how these units are put together.
    Any ideas about battery post movement?

  16. Jan 21, 2017 at 6:18 PM
    #1456
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    They should NOT be moving

    Sandman614 likes this.
  17. Jan 21, 2017 at 6:20 PM
    #1457
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    correct, get it warrantied

  18. Jan 22, 2017 at 12:37 PM
    #1458
    sawbladeduller

    sawbladeduller semi-realist

    Joined:
    Oct 3, 2014
    Member:
    #139583
    Messages:
    952
    Gender:
    Male
    North Cal
    Vehicle:
    '15 DCSB '98 2.7L
    semi zip tied
    Took the battery out of truck. the Terminal is a cap and is threaded on, and was moving because it was not threaded on adequately. I have tightened it up. I do get 12.8V across the terminals outside of the truck. There must be some other issue in my winch wire-up, explore further.

    Last edited: Jan 22, 2017
  19. Jan 22, 2017 at 2:50 PM
    #1459
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,607
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Oh weird lol

  20. Jan 31, 2017 at 11:12 PM
    #1460
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,335
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    I basically did the same but my batteries are under the hood.

    @Sandman614 Look up Big 3 upgrade. I actually did a Big 4 upgrade.
