Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Feb 15, 2017 at 7:38 AM
    #1461
    twhalm

    twhalm Well-Known Member

    Joined:
    Aug 19, 2016
    Member:
    #194983
    Messages:
    216
    Denver, CO
    Vehicle:
    2015 TRD/OR Manual, OME , Dual battery

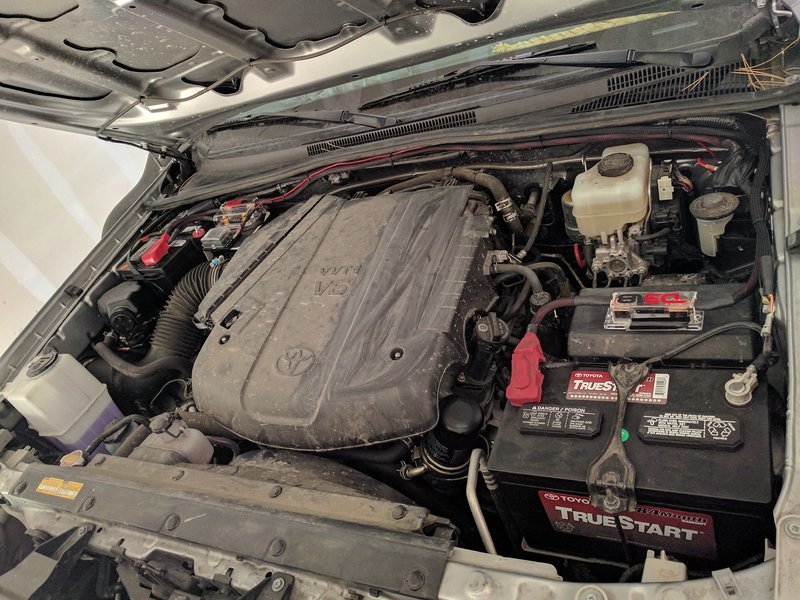

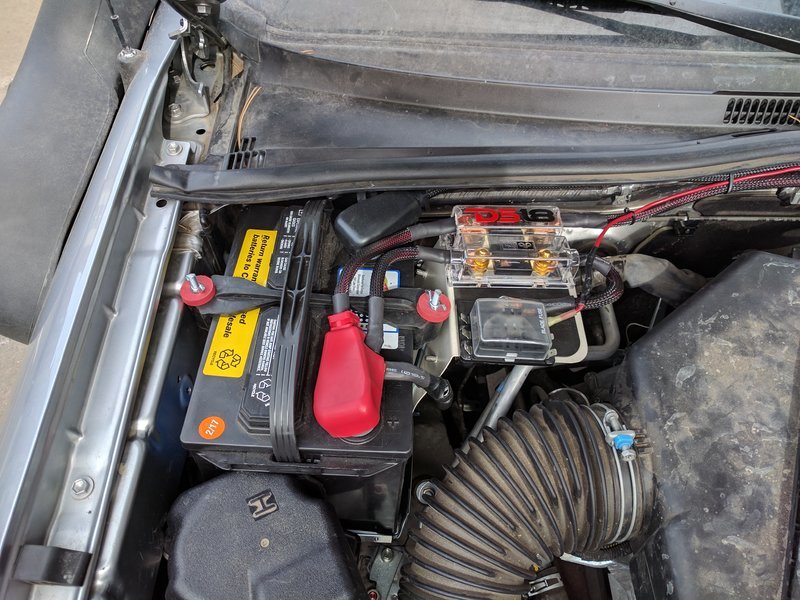

    I just completed my "budget" dual battery setup.


    I fit a 24M Deep Cycle battery in my 2015 TRD OR, which was a massive ordeal. I made a custom battery tray and had to move the exhaust pump a couple inches to fit. I have a 200A isolator wired to a dash switch that lets me choose between auto, off, and self-jump settings. I put in two fuse boxes, one for the front and I wired one to the rear as I have a sleeping platform back there.

    Things I learned while doing this:

    -CrimpSupply on Amazon is GREAT place to get good cable at a good price. No where else had pure copper cable for such a good price and they threw in lugs to boot.
    -Watch out for CCA cable. People use this cable for audio setups and it is not as good of a conductor as pure copper so 4 or 2 AWG CCA will not perform as well as pure copper of the same gauge.
    -I got OLS 6-way fuse boxes over Blue Sea varieties to save some cash. These work, BUT they do not isolate your system when a fuse blows unless you rip out the shitty LED system (really easy to do).
    -There are a lot of places to ground things so don't worry too much about having a fuse box with a ground bus.
    -It takes a lot more cable than you think to reach the bed from the engine bay.
    -Wiring switches to the center dash is a huge PITA

  2. Feb 15, 2017 at 11:16 PM
    #1462
    r.shackleford

    r.shackleford ...

    Joined:
    Dec 24, 2014
    Member:
    #144884
    Messages:
    109

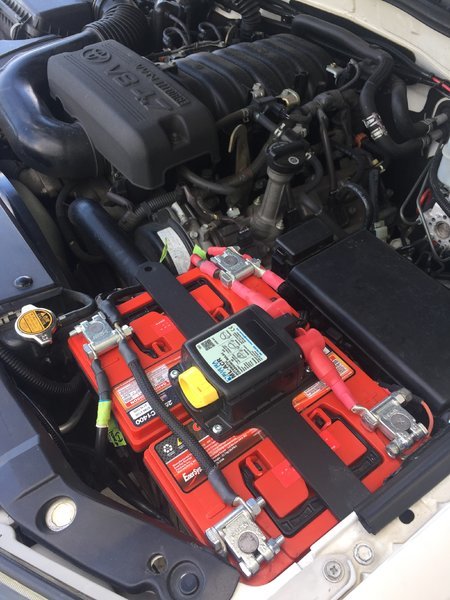

  3. Feb 19, 2017 at 6:21 PM
    #1463
    motor-vater

    motor-vater Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #211047
    Messages:
    77
    Gender:
    Male
    This is a pretty slick set up, I am thinking about going this route on my 3rd gen TRD Offroad. I know the split system is the way but I can not justify the added expense so long as this works. How was the install? any need to relocate anything?

  4. Feb 23, 2017 at 8:04 PM
    #1464
    Zandroid

    Zandroid Well-Known Member

    Joined:
    Nov 27, 2016
    Member:
    #203414
    Messages:
    213
    Gender:
    Male
    First Name:
    Zander
    SoCal
    Vehicle:
    '16 TRD-OR DCSB 44
    King Ext Coilovers LR-UCAs BAMF Relocation w/ 12" 2.5 King Pelfreybilt Armor: Bumper, Skids, Sliders Prinsu Roofrack ARB Snorkel & Twin Compressor sPod
    Is it possible to fit side by side batteries in the TRD OR (16)? I've only seen that configuration in the Sport.

  5. Feb 24, 2017 at 6:50 AM
    #1465
    Cold_Toad

    Cold_Toad Well-Known Member

    Joined:
    Nov 3, 2016
    Member:
    #201446
    Messages:
    589
    Gender:
    Male
    Should be able to. You only usually see this configuration on the sports because it's their only option. The OR's can put a spare in the passenger rear corner, but do to the ABS module in the Sports they can't.

  6. Feb 24, 2017 at 5:02 PM
    #1466
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    By placing it in the passenger corner you can also get a larger battery in there.

  7. Mar 1, 2017 at 9:46 AM
    #1467
    bilplat

    bilplat Simply Driving Into Mordor

    Joined:
    Nov 30, 2016
    Member:
    #203675
    Messages:
    243
    Gender:
    Male
    First Name:
    Bill
    Denver, CO
    Vehicle:
    '17 White A/T 4x4 TRD OR DCSB
    ARE Hard Top
    Anybody rewire the bed outlet to be powered by their aux battery instead of their main?

  8. Mar 1, 2017 at 9:46 AM
    #1468
    twhalm

    twhalm Well-Known Member

    Joined:
    Aug 19, 2016
    Member:
    #194983
    Messages:
    216
    Denver, CO
    Vehicle:
    2015 TRD/OR Manual, OME , Dual battery
    I want to know this too. Any insight would be great.

  9. Mar 1, 2017 at 10:01 AM
    #1469
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    I looked at it a little.

    On my truck the bed-mounted 115V outlet is powered from an inverter under the center console. That's fed by a 100A circuit from under the hood, which is a fuse in the main fuse box and a relay in a little box on the side. It would seem to be easiest to take the feed from the 100A fuse in the main box and re-route it to a 100A fuse right on the battery you want to use.

    But I never pursued it any further because it seemed like more trouble than it was worth for a 400W inverter that would still be controlled by the truck to be 100W when idling and shut off with the key. So I figured that if I ever needed to install an inverter I'd just wire a stand-alone one in that was just on/off and had a little more power. Even 400W isn't all that much. And I'd kind if like to take the factory inverter out anyway to make room for a larger center console anyway.

    abarber11 likes this.
  10. Mar 1, 2017 at 10:04 AM
    #1470
    twhalm

    twhalm Well-Known Member

    Joined:
    Aug 19, 2016
    Member:
    #194983
    Messages:
    216
    Denver, CO
    Vehicle:
    2015 TRD/OR Manual, OME , Dual battery

    I know there are ways to make it always 400W

    See here: https://www.tacomaworld.com/threads/how-to-ac-outlet-in-cab-400-watt-anytime-mod.322320/

    So a combination of wiring to that fuse and the 400W anytime mod looks like the solution.

    Memmes likes this.
  11. Mar 1, 2017 at 10:15 AM
    #1471
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    It does look possible and I know there are ways to bypass the low engine RPM nanny. It's still only on with the key. Like I say, 400W is just not of much use to me since anything that would run there I already have running on 12V and anything larger (power tools specifically) need a lot more power. So just not something I bothered pursuing since I plan to either remove or replace the whole thing anyway.

  12. Mar 1, 2017 at 11:10 AM
    #1472
    bilplat

    bilplat Simply Driving Into Mordor

    Joined:
    Nov 30, 2016
    Member:
    #203675
    Messages:
    243
    Gender:
    Male
    First Name:
    Bill
    Denver, CO
    Vehicle:
    '17 White A/T 4x4 TRD OR DCSB
    ARE Hard Top
    These are my biggest concerns. I'm thinking ideally, I'll get a much larger inverter (in the 3KW range methinks) and mount that in the bed (or maybe just rewire the existing bed outlet to run off the new inverter). When I need power for camping or working out of my truck I can use clamp cables to attach the inverter to the aux battery. Car isn't on and I don't drain starter battery. I'll still need a relay to charge aux battery.

    Last edited: Mar 1, 2017
  13. Mar 1, 2017 at 11:18 AM
    #1473
    twhalm

    twhalm Well-Known Member

    Joined:
    Aug 19, 2016
    Member:
    #194983
    Messages:
    216
    Denver, CO
    Vehicle:
    2015 TRD/OR Manual, OME , Dual battery
    3kW is quite a ton... You'll need to have a huge battery for that. If you are actually using 3kW you'll be drawing 250 amps from the batter and you'll drain your pack in minutes.

    abarber11 likes this.
  14. Mar 1, 2017 at 11:28 AM
    #1474
    bilplat

    bilplat Simply Driving Into Mordor

    Joined:
    Nov 30, 2016
    Member:
    #203675
    Messages:
    243
    Gender:
    Male
    First Name:
    Bill
    Denver, CO
    Vehicle:
    '17 White A/T 4x4 TRD OR DCSB
    ARE Hard Top
    Just spitballing now. I'd rather have too much capacity than too little. And no way I'll actually be using 3kW for any prolonged amount of time. Definitely will go with a oversized deep-cycle battery. Might end up just continuing with a generator, but the idea of an aux battery solution that can also be used for light camping (read: glamping) applications (and jump-starting) is enticing.

    Last edited: Mar 1, 2017
  15. Mar 1, 2017 at 11:33 AM
    #1475
    twhalm

    twhalm Well-Known Member

    Joined:
    Aug 19, 2016
    Member:
    #194983
    Messages:
    216
    Denver, CO
    Vehicle:
    2015 TRD/OR Manual, OME , Dual battery
    I gotcha. For my needs (charging devices and such) 400 watts is enough, but to each their own.

    Last edited: Mar 1, 2017
    bilplat likes this.
  16. Mar 1, 2017 at 2:07 PM
    #1476
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    And don't forget that 3kW/250A would mean huge cables on the 12V side to feed it. I was thinking more like ~1kW for an inverter so I could run smaller power tools if I had to. And @twhalm is right, running this much is not a prolonged affair, at 3kW you're fully draining a group 27 deep cycle in about 20 minutes.

    bilplat likes this.
  17. Mar 1, 2017 at 8:19 PM
    #1477
    MJonaGS32

    MJonaGS32 [OP] MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,335
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears

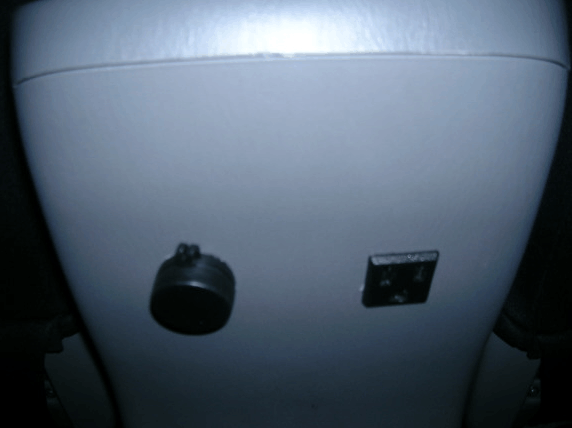

    Yea too much work for that 400W inverter in the bed. I ended up adding a 750W inverter in the cab (hooked up to the 2nd battery) with outlets in the front and rear of the center console.

    [​IMG]

    [​IMG]
    (old pic. added a usb charger back there too)

    Iggy, bilplat, tacomgee and 1 other person like this.
  18. Mar 5, 2017 at 10:48 PM
    #1478
    44357

    44357 Whithersoever...

    Joined:
    May 9, 2013
    Member:
    #103847
    Messages:
    244
    Gender:
    Male
    First Name:
    Eric
    Desert RATS
    Vehicle:
    2017 T4R ORP MF
    Sub'd: I will be using this thread to build a dedicated dual battery, 400-650 inverter, flex solar system.

    Just curious if there was any use (without OEM inverter) of the pin plug under console?

    Note: I have now seen one banned OP and a "Delete" OP in two days of looking into Tacoma inverters?

  19. Mar 6, 2017 at 10:17 PM
    #1479
    mtnlobo1

    mtnlobo1 Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207800
    Messages:
    163
    Gender:
    Female
    Denver, CO
    Vehicle:
    2017 Cement Tacoma MT TRD Pro
    Stock with stuff, aka Backcountry Gear Hauler
  20. Mar 6, 2017 at 10:24 PM
    #1480
    BountyOR_VF2

    BountyOR_VF2 "If in doubt, flat out!"

    Joined:
    Feb 13, 2017
    Member:
    #210511
    Messages:
    624
    Gender:
    Male
    NorCal Bay Area
    Vehicle:
    2017 WHITE TRD TCSB OR
    Please share more photos and the circuit diagram
