Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Mar 10, 2017 at 3:52 PM
    #1481
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    With the ATO/4xInnovations bracket...I'm assuming group 34 is more than enough to be used as the main/starter battery? What are you loosing out on by going smaller for the starter battery (group 34)?

  2. Mar 10, 2017 at 4:03 PM
    #1482
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    My current battery is 24F (OEM) and it is listed as 880 cranking amps and 70 Amp hours. The yellow top group 34 is rated at 55 Amp hours and 750 cranking amps.

    However, if you get two batteries, you could in theory (there is line resistance and other factors that won't make it perfect, but close enough for our discussion) get 110 amp hours and 1500 cranking amps.

  3. Mar 11, 2017 at 8:40 AM
    #1483
    cameron knust

    cameron knust Well-Known Member

    Joined:
    Nov 27, 2016
    Member:
    #203456
    Messages:
    265
    Gender:
    Male
    Looking for someone to build me a dual battery tray so I can run 2 deep cycle batteries with my truck off like a boat. 2017 trd off-road Tacoma. You hear about a reasonably priced solution for my wishes let me know.

  4. Mar 11, 2017 at 9:26 AM
    #1484
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    Is 750 cranking amps enough?

  5. Mar 11, 2017 at 11:58 AM
    #1485
    hamiltonuh60

    hamiltonuh60 Well-Known Member

    Joined:
    Oct 21, 2015
    Member:
    #167348
    Messages:
    325
    Gender:
    Male
    Texas
    Vehicle:
    2016 DCSB TRD OR 4WD
    Frontrunner, CVT RTT, Foxwing, Switch Pros, OGE, Fox, ADS, TC UCA, Dakar, Superbumps, U bolt flip, blah blah blah
    I see from another thread you have already made contact with @HeliMedic and I highly recommend his dual batt setup. I don't think you will find a complete higher quality solution.

    seoulja99 and HeliMedic like this.
  6. Mar 11, 2017 at 8:25 PM
    #1486
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    Never had an issue.

  7. Mar 11, 2017 at 8:34 PM
    #1487
    cameron knust

    cameron knust Well-Known Member

    Joined:
    Nov 27, 2016
    Member:
    #203456
    Messages:
    265
    Gender:
    Male

    Yeah I've been emailing him just found it. Didn't know he had the separate set up.

    Mr.PowerTrays likes this.
  8. Mar 11, 2017 at 8:50 PM
    #1488
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    Wonder if a group 31 Optima battery would provide me just as much power as two little guys.

    cameron knust likes this.
  9. Mar 11, 2017 at 9:33 PM
    #1489
    preybird1

    preybird1 02 taco on 37's

    Joined:
    Jun 14, 2015
    Member:
    #157414
    Messages:
    326
    Gender:
    Male
    First Name:
    Russ
    Salt lake city Utah
    Vehicle:
    2002 taco s\c
    Trd S\C with nosecone hybrid bearing upgrade kit. 2.0 urd pulley, 7th injector kit-urd "6 fabtech lift with 3" body lift. 20" XD spy wheels with toyo open country r\t's in 37"x 12.50x20. Front and rear diffs re-geared to 4.88 dirty 30 drive axles. and a rhino pack clutch. Custom exhaust and huge mudflaps!

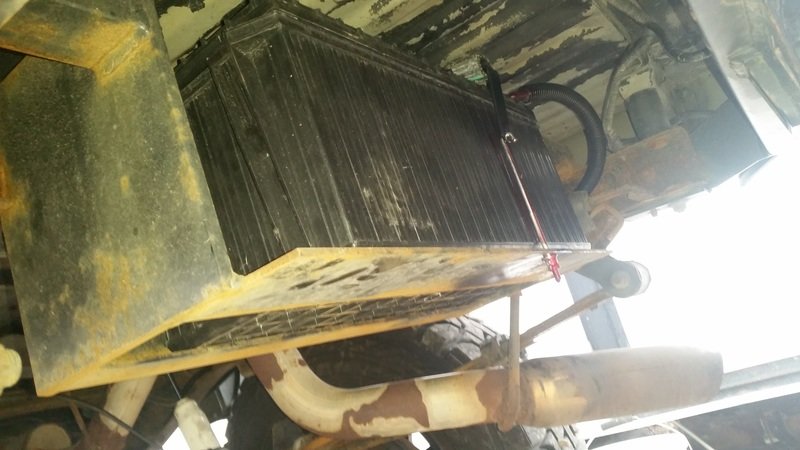

    I don't like generators at all but i do like having power. I went with a group srm4d deep cycle. http://www.interstatebatteries.com/...Commercial).aspx?dsNavigation=Ntk~SearchGroup

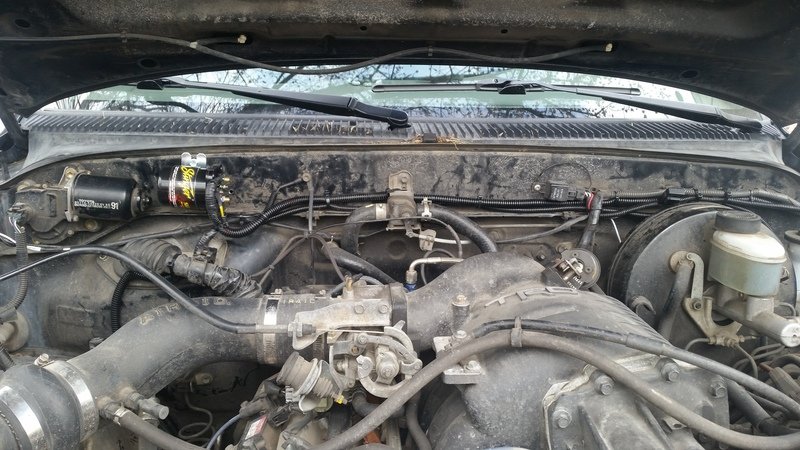

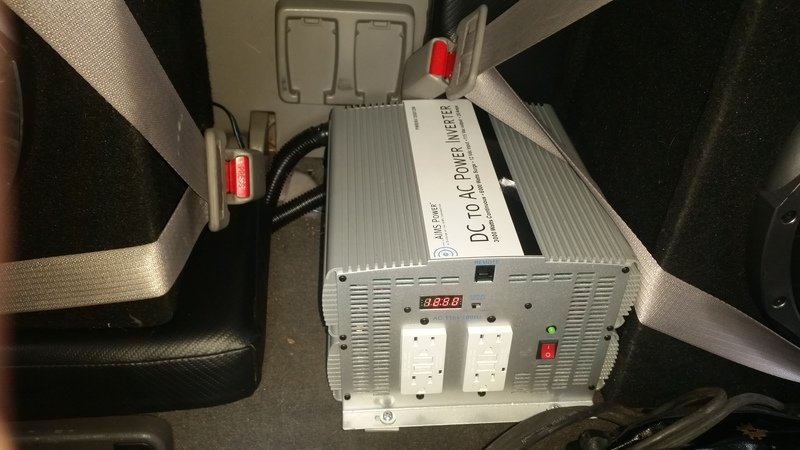

    and an aimespower 3000 watt constant 5000 watt peak modified sine wave inverter with 4 GFI outlets. Then i ran it all into a stinger battery isolator. And from the battery to invert-er i have 0 gauge cable for max power into it.

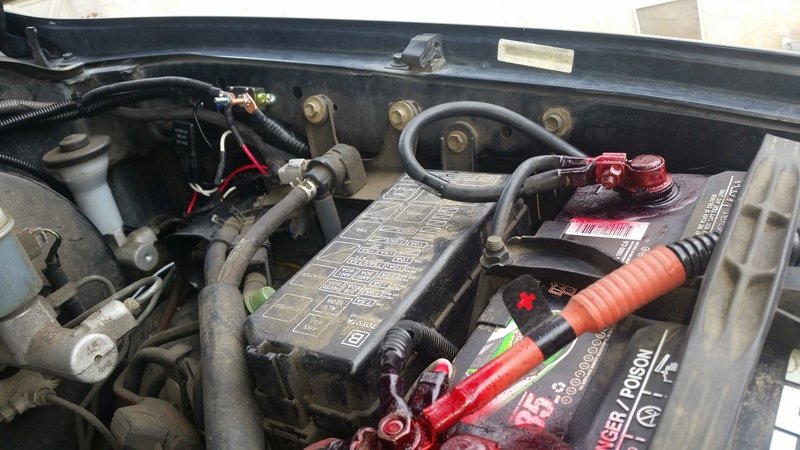

    I have it looped into a small circuit breaker that is 8" from the main truck battery so i can jump my self from the second battery if i were stranded. That way if i use lots of power it only comes off the aux battery after 30 seconds of power drain detection.

    Last edited: Mar 11, 2017
  10. Mar 11, 2017 at 11:09 PM
    #1490
    Zebinator

    Zebinator Well-Known Member

    Joined:
    Nov 30, 2014
    Member:
    #143381
    Messages:
    433
    Gender:
    Male
    Norcal
    Vehicle:
    06 Tacoma TRD Offroad
    That is one hell of a battery and battery tray! How much does it weigh? What are you powering!?

  11. Mar 12, 2017 at 12:17 AM
    #1491
    Zebinator

    Zebinator Well-Known Member

    Joined:
    Nov 30, 2014
    Member:
    #143381
    Messages:
    433
    Gender:
    Male
    Norcal
    Vehicle:
    06 Tacoma TRD Offroad
    After months of fettling, I finally finished the panel to control all my planned electronics, now that i have a dual battery setup. Here's the full post in my build thread. I have one more thing to fabricate, and then it's off to Santa Rosa Cartronics to get it all wired up...


    Last edited: Mar 12, 2017
  12. Mar 12, 2017 at 7:18 AM
    #1492
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    4,421
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Did you make the dash mount?

  13. Mar 12, 2017 at 8:38 AM
    #1493
    Zebinator

    Zebinator Well-Known Member

    Joined:
    Nov 30, 2014
    Member:
    #143381
    Messages:
    433
    Gender:
    Male
    Norcal
    Vehicle:
    06 Tacoma TRD Offroad
    I sure did... click the link (which i have now fixed :facepalm:) to see the whole process.

    Whitecloud likes this.
  14. Mar 12, 2017 at 8:46 AM
    #1494
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    4,421
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Thanks

  15. Mar 12, 2017 at 11:40 AM
    #1495
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,307
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    That thing is awesome.

    Zebinator likes this.
  16. Mar 12, 2017 at 2:23 PM
    #1496
    Zebinator

    Zebinator Well-Known Member

    Joined:
    Nov 30, 2014
    Member:
    #143381
    Messages:
    433
    Gender:
    Male
    Norcal
    Vehicle:
    06 Tacoma TRD Offroad
    Thanks!

  17. Mar 13, 2017 at 12:12 PM
    #1497
    16Tacos

    16Tacos Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146382
    Messages:
    889
    Gender:
    Male
    First Name:
    Zach
    Boston
    Vehicle:
    08 Access Cab 4x4 V6 SR5
    OME Nitrochargers w/886s & Dakars, ARB Deluxe Bull Bar w/Warn winch, RCI sliders with kick out, IFS & Mid skids, BFF Hi-clearance rear bumper, Brushed Copper 17" SCS Ray10s w/285-70 KO2s, Black OEM 16" steelies w/255-85 KM2s, Leer contractor cap w/Smittybilt overlander xl RTT, Off-Grid Engineering dual battery kit and bed power panel, Blue sea aux fuse block, Wyntner 60L fridge freezer, ARB dual compressor, Pioneer 720BT head unit, CB radio, @Matt_Gecko bed and engine bay lights, @TacomaTruckParts Dirt bike tie down bar, color matched OEM grill, A-Pillar phone mount mod, @Docloco rear seat molle panel
    Zebinator and Sandman614 like this.
  18. Mar 13, 2017 at 12:39 PM
    #1498
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    16Tacos likes this.
  19. Mar 13, 2017 at 6:56 PM
    #1499
    Zebinator

    Zebinator Well-Known Member

    Joined:
    Nov 30, 2014
    Member:
    #143381
    Messages:
    433
    Gender:
    Male
    Norcal
    Vehicle:
    06 Tacoma TRD Offroad

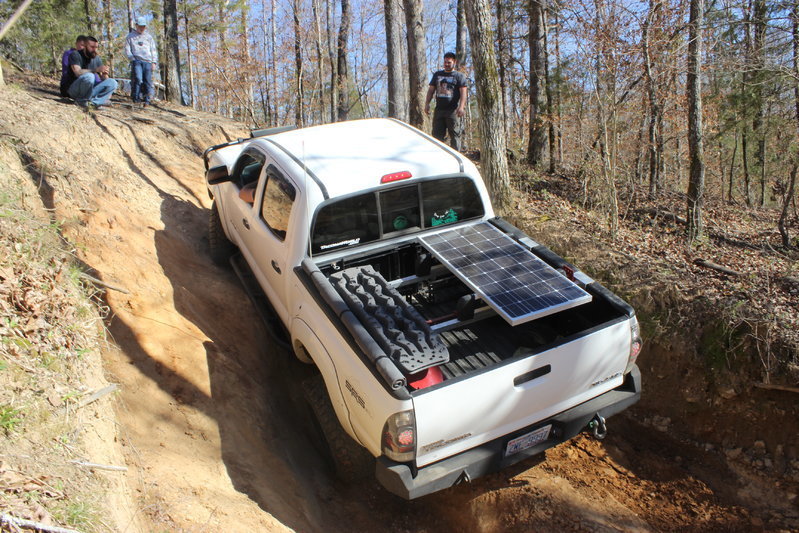

    How many watts on that panel? Looks serious! (I'm a-shoppin')

  20. Mar 13, 2017 at 6:56 PM
    #1500
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,659
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    100watt, same one linked in the post I quoted.

    Zebinator likes this.
