Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jan 13, 2014 at 2:10 PM
    #141
    BamaToy1997

    BamaToy1997 Wheel Bearing Master

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    10,800
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    best wheel bearings around! www.marionbumper2bumper.com
    They are made by IMC Audio.

    Bobcdn likes this.
  2. Feb 17, 2014 at 6:26 AM
    #142
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,941
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    yay i can finally join the club :D

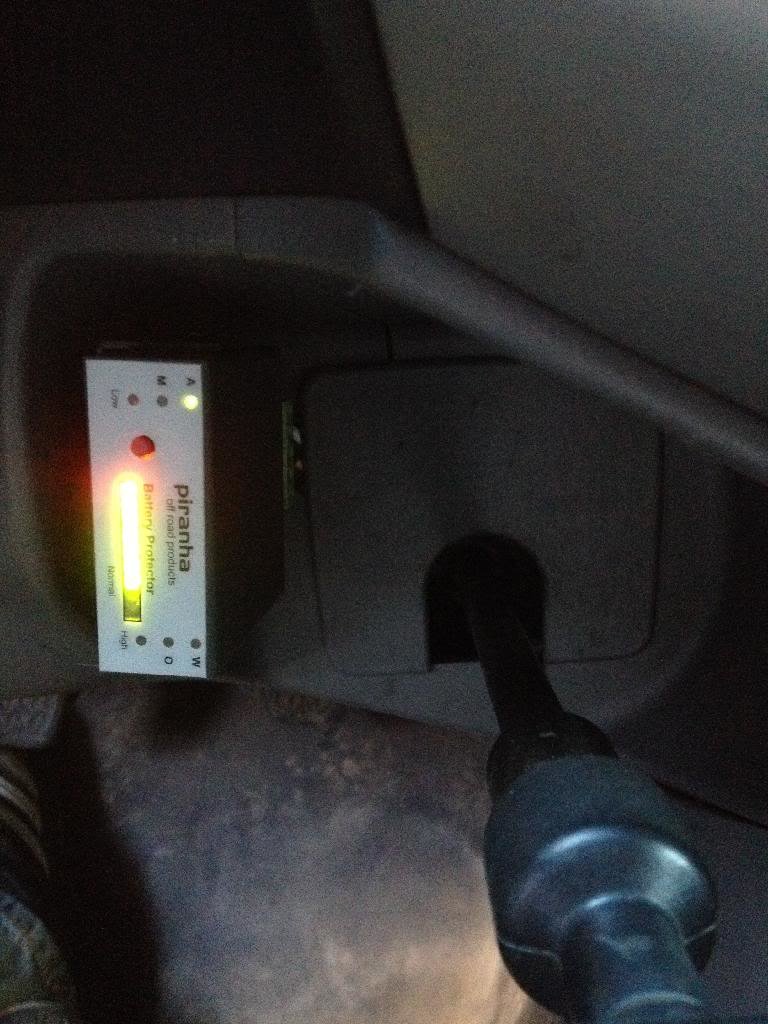

    Outback Proven has a kit available for 2nd gens using Piranha components..they proved the kit for my dual battery setup. using 2 yellow tops.

    97717906-B7EC-43DE-BF7A-108C3C610C87_zps_d52bcb6c27665eaebc9e96887e9e33e1674e74c6.jpg

    98D6340E-DA21-45E3-95BA-927C77E3CEC0_zps_2170f6a506f12b1894832dca52c6d480e0fa2691.jpg

    SilverGhost and Pirhett like this.
  3. May 26, 2014 at 8:10 PM
    #143
    SGTCap

    SGTCap Well-Known Member

    Joined:
    Oct 30, 2013
    Member:
    #115529
    Messages:
    3,823
    Gender:
    Male
    First Name:
    Cap
    Summerville, SC
    Vehicle:
    4x4 6-spd,
    37s, 4x4 6-spd, OME 886s, Allpro Expos, SOS sliders and front/rear bumpers,Rack,Skids, 4.56s, Lockers,Recon Winch, TJM RTT, Lots of tools, boxes and gear. Shaggy mutt behind the seat
    subscribed

  4. May 26, 2014 at 11:44 PM
    #144
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,345
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  5. Jun 3, 2014 at 11:17 PM
    #145
    pasotaco

    pasotaco Well-Known Member

    Joined:
    Jul 5, 2011
    Member:
    #59378
    Messages:
    136
    Gender:
    Male
    First Name:
    Ryan
    Central Coast, CA
    Vehicle:
    2013 4x4 Access Cab
    LCE headers, King 2.5 Coilovers w/ res, TC UCA's, King resi's in rear, Geared to 4.88, rear locker, Timbren Bump stops, All Pro Leafs, Carrier bearing drop kit, ARB onboard air,
  6. Jun 3, 2014 at 11:32 PM
    #146
    robssol

    robssol If it ain't broke, leave it the eff alone!

    Joined:
    Jun 4, 2013
    Member:
    #105622
    Messages:
    7,661
    Gender:
    Male
    First Name:
    Rob
    S. Wisconsin
    Vehicle:
    06 Tacoma, TRD Sport, SR5, 4X4, AC
    Frame 2.0, Fog lights anytime, Seatbelt reminder delete, Secondary air filter delete, LED bed lights, Running boards, 2017 Rims, Devil Horns by Andres, Ultra gauge, Cup holder/consol/glove compartment lights, Interior LED conversion, Blue Sea aux. fuse panel, fuse panel mounting plate by Yotamac, ProEFX heated towing mirrors, LED engine bay lights, Redline Quicklift Elite hood struts, Wet Okole Heated Seat Covers, Pop and Lock tailgate theft deterrent mod 2.0, Plasti-dip rear bumper. Decal free visors, Washable cabin air filter, Overhead consol auto dimming override switch, BulletProof Fabricating Skid plate, 2lo module.
    Ditto

  7. Jul 11, 2014 at 3:08 PM
    #147
    Linus

    Linus Well-Known Member

    Joined:
    Mar 23, 2014
    Member:
    #125976
    Messages:
    89
    Gender:
    Male
    Pierce County, WA
    Vehicle:
    '13 DCSB TRD 4x4
    Relentless front/rear armor and skids, CVT hardshell RTT, BAMF slider, ENGO EPF10k winch, dual batt, OME 886 & Dakar leafs, ARB 63qt fridge w/ rear seat mount, BajaRack, ARB awning, Pioneer audio

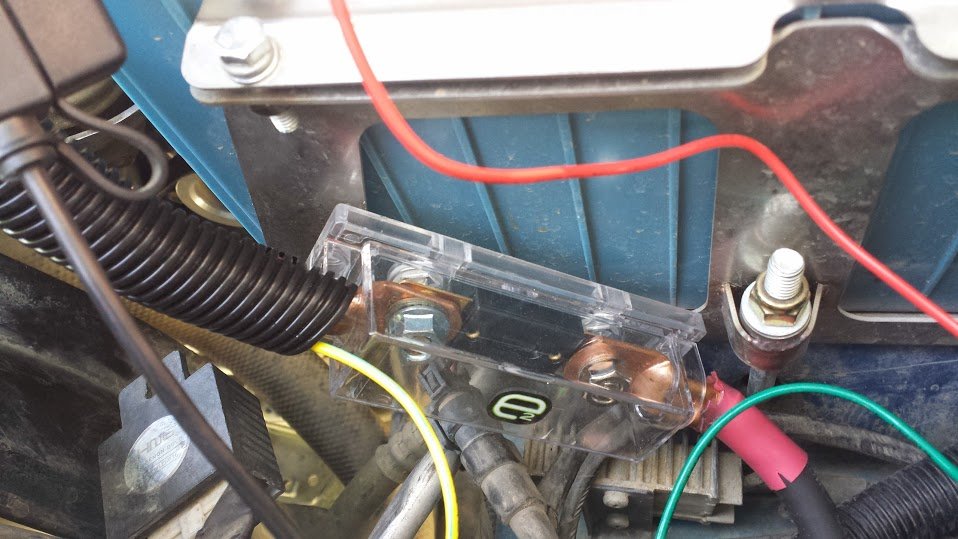

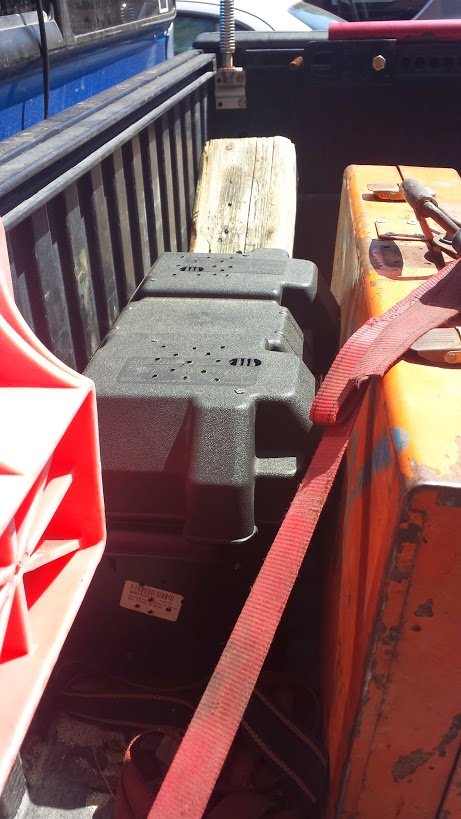

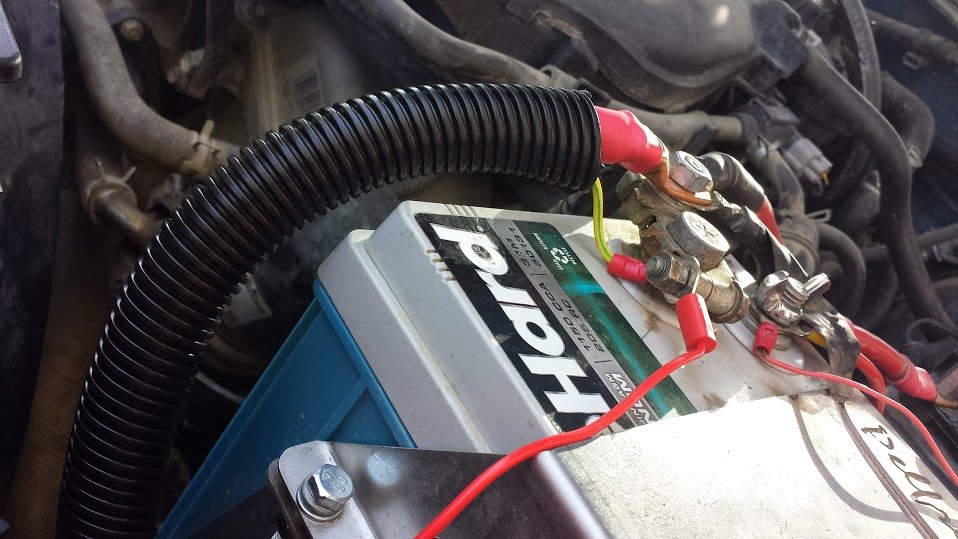

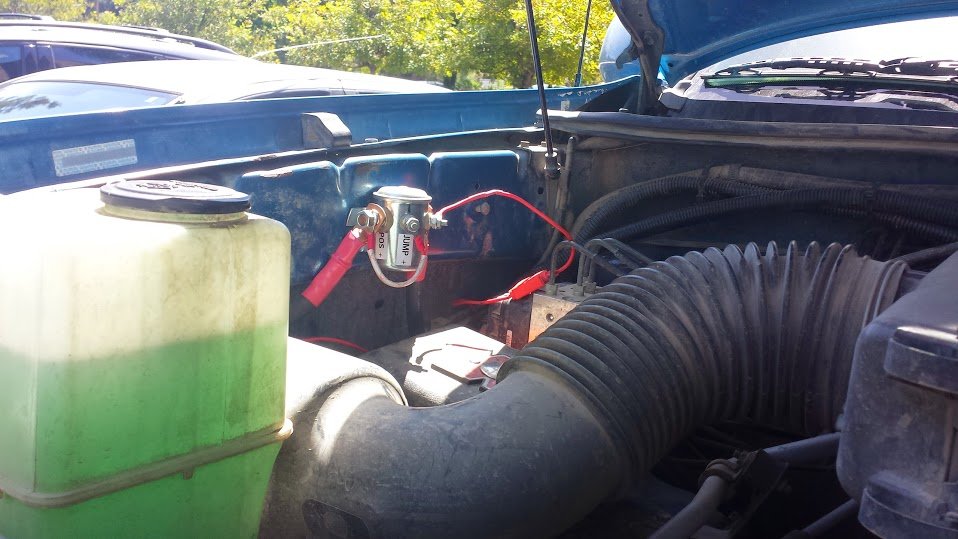

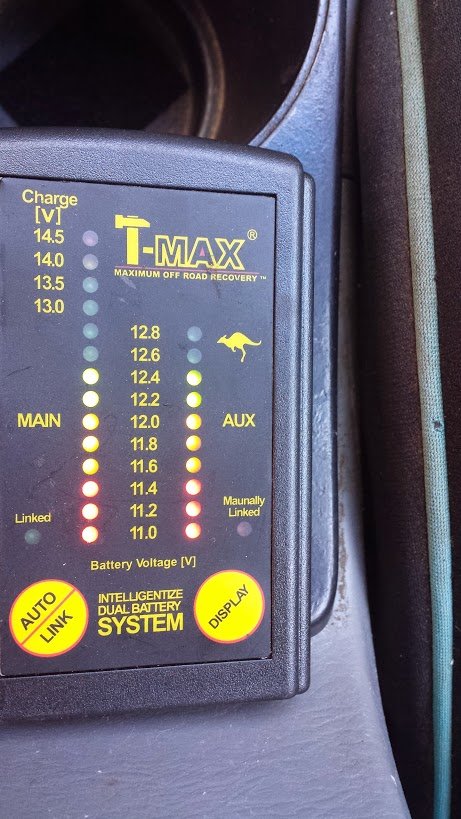

    So I'm part of the way through my dual battery install. Attached a pic of the work in progress.

    But I have a question for anyone who's installed the Blue Sea 7622. I want to use the Start Isolation function. The instructions say to connect the brown wire from the 7622 harness "to the terminal or wire running from the start key switch to the starter solenoid". Where is the best place to tap into that wire? I haven't been able to trace it into the engine compartment with enough confidence. Any chance I can tap into it in the fuse box? Just looking for the best approach on this one.


  8. Jul 11, 2014 at 10:09 PM
    #148
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I haven't hooked mine up in that manner. I just use the ON and OFF part of it. AUTO has not been used yet. I will track it down this week though. Now that I have my RFRM installed, I want to get ALL my wiring 100%. No more half assing it.

  9. Jul 11, 2014 at 10:49 PM
    #149
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    4,421
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.

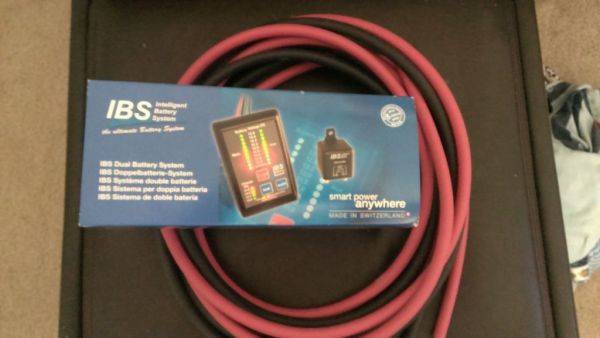

    Sooon..... Going to get my 2nd yellow top hopefully next week then to fab up a box and wire it all.

    [​IMG]

  10. Jul 11, 2014 at 11:17 PM
    #150
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    What did yo uget it for?

  11. Jul 11, 2014 at 11:21 PM
    #151
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    you have a long bed. non HCRB right>? put it in the wheel well, in front or behind it that is...

  12. Jul 11, 2014 at 11:28 PM
    #152
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Looked, you do have HC, but still should be able to stuff it in there. Get some THICK wire though. 2/0 would be my preference

  13. Jul 11, 2014 at 11:31 PM
    #153
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I've been running multiple batteries in different vehicles since the 90's in my AV setups. How much of an Authority are you looking for. ?

    I just hate to see bed space sacrificed for something that can be tucked away or otherwise relocated to a better spot.

  14. Jul 11, 2014 at 11:49 PM
    #154
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Any future plans for OBW or OBA? Just asking based on mounting space.

    I like the fender well locations myself. Had been thinking of moving one of mine into it. For me though, I might do a 3rd there.

    I like having the winch battery as close as possible to the winch. That way al the accessories and winch are in the same spot.

    Realistically, if you do the dual yellow tops/ red tops, you should just do the engine bay. Run all the accessories off the second one including the winch. Keep your main untouched as far as accessories go.

    wavytrent likes this.
  15. Jul 11, 2014 at 11:55 PM
    #155
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Just remember to take into account additional cost on WIRE to mount farther away. Not just the 15'-20' of 2/0 gauge wire, but the 20'-40' of 2 gauge for the winch also. Fabbing a mount for the new position as well.

  16. Jul 12, 2014 at 12:03 AM
    #156
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    You can get a management system, but like some of have done, use the BLUE SEA ML-ACR. Comes with a switch for the On (Linked/ Self Jump), Off (completely separate, not connected) , Auto (links after the engine starts) - plus the Led indicators on the Switch blinks mean different things.

    Been working with a manufacturer to add 2 battery gauges in thin film LEDs to it also. Or a similar version of the switch. Having it fill a full sized switch bank is nice instead of another LARGE box sitting around to find a mounting spot for.

    Its really a You decision though.

  17. Jul 12, 2014 at 12:45 AM
    #157
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    With my setup as it is now, I use none of the meters besides the ones I have on my Terminals.

    Here is the mockup of the switch, and the digital gauges.

    [​IMG][​IMG]

  18. Jul 12, 2014 at 12:53 AM
    #158
    skygear

    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    The pic isn't current. I now have the ML-ACR (Manual Latching Automatic Charging Relay), and RFRM (Rear Fed Relay Module). Later today I will be building a mounting platform for them both and map out a 150 amp breaker or two on it also. If I had one of the WARN Connector Solenoids, I would mount it under there also. Cant even find the dimensions for one either.

    Barlowrs did an awesome multiple piece mounting system for his setup. Would love to get the dimensional drawings to mimic his.

  19. Jul 12, 2014 at 4:42 AM
    #159
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    4,421
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    This is kinda my plan. Hoping to keep everything in the engine bay and running everything of the 2nd and using the solar system that I have on the rack to keep it all charged.

  20. Jul 12, 2014 at 9:59 AM
    #160
    luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    3,458
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt, Warn, BAMF, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech , Rigid, Tint, Roto-Pax, Bestop, OME, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims
    wow you have a lot of wires on your main battery...

    I don't remember a brown wire, I just ran the bundle for the control into the cab and connected the difference wires to the required locations on each battery and the big relay. I also have the IBS booster, so that may be where my setup is different.

    I've noticed my spade connectors on the relay sometimes loose contact enough for the display/control to flash a warning and the relay won't cycle until I finally used some pliers and made the spade fit tighter on the relay contacts.
