Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jun 15, 2017 at 3:29 AM
    #1621
    Pushincaskets

    Pushincaskets Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123901
    Messages:
    816
    Gender:
    Male
    First Name:
    Mike
    High Point, NC
    Vehicle:
    07 PreRunner DCSB
    4" Maxtrac Spindles, Dakars and extra leaf, SOS Concepts bed rack, Lund tonneau cover, RTT,
    No I don't think so.

    I think you should research some more. Here is a second source
    http://www.batteryuniversity.com/learn/article/absorbent_glass_mat_agm

    And another
    http://www.surplusbattery.com/batteryimg/10_facts_about_agm_batteries.html
    8. A 'normal' car alternator will only charge a wet-cell type battery to around 70-80% of its capacity. Because of its higher charging rates an AGM battery will just about fully charge and at a faster rate from the same type of alternator

    I think you are confused about effects of charging rate vs capacity with respect to our alternators. In fact due to the lower resistance some small car alternators might have a hard time keeping up since the battery will accept a fast rate of charge. This won't be an issue with even our standard truck alternators, if you have the towing package then even less. IT WILL fully charge in fact better and faster than a conventional battery.

    Due to the lower resistance you have less heat loss. With a typical lead acid battery 20-25 percent of charging is lost to heat, with an AGM its only 12-15 percent. Thus a shorter more efficient and more complete charge.

  2. Jun 15, 2017 at 3:34 PM
    #1622
    fishfinder

    fishfinder Whoever dies with the most toys wins

    Joined:
    Feb 23, 2015
    Member:
    #149437
    Messages:
    1,274
    Gender:
    Male
    First Name:
    Mikey
    Santa Barbara
    Vehicle:
    2015 MT DCLB
    CBI armor, Kings, 35s, Lockers

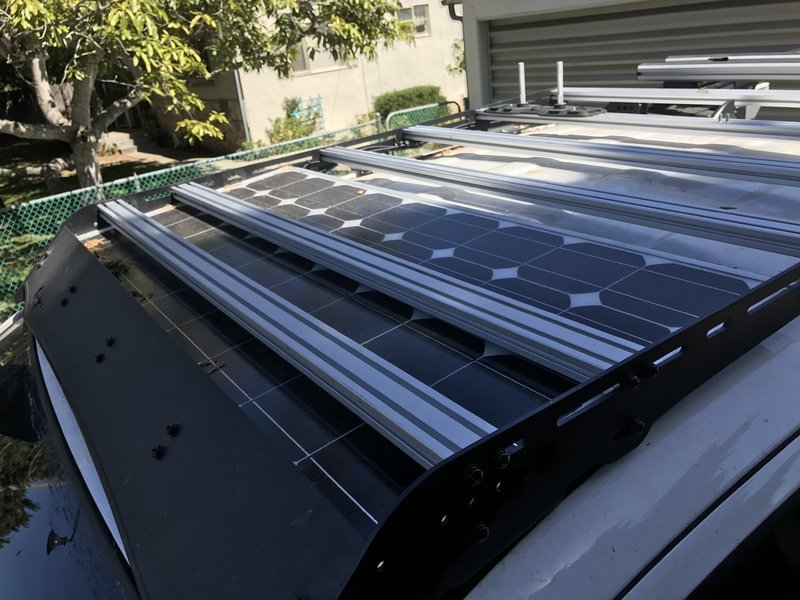

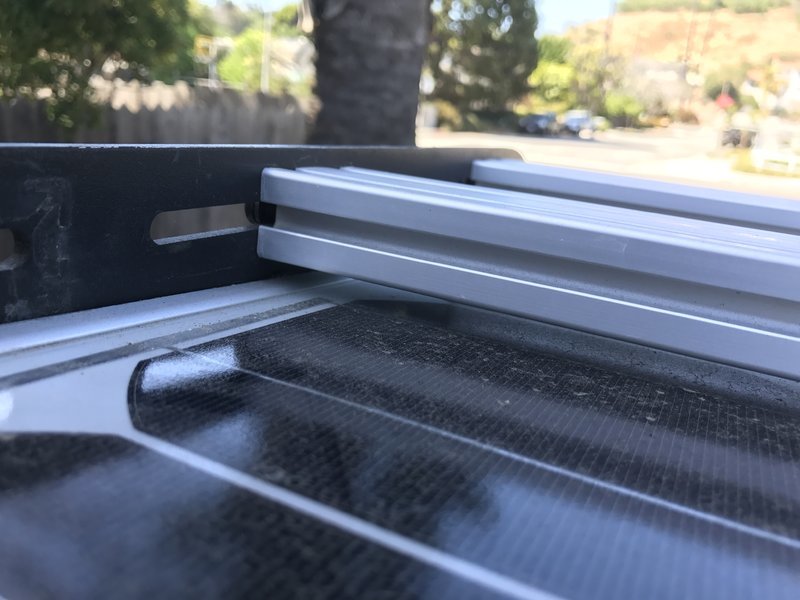

    There are a couple mms between the edge of the panel and the cross bars, and the glass is another 2mm or so down from the edge:

    I'm still messing with the location of the crossbars, this is where it sits now. Slightly tilted forward to line up with the existing holes on the prinsu:

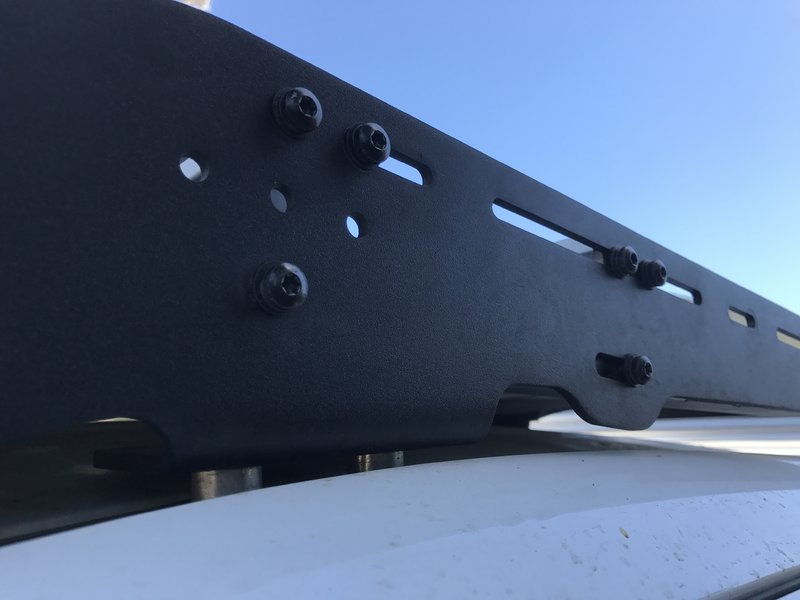

    Drilled some holes in the edge of the panel and bolted through twice on each side, and the back just rests on a piece of marine door sealant foam on the roof:

  3. Jun 16, 2017 at 12:20 AM
    #1623
    TucsonAZ

    TucsonAZ Well-Known Member

    Joined:
    Apr 29, 2017
    Member:
    #217629
    Messages:
    217
    Gender:
    Male
    Vehicle:
    2006 Crew Cab TRD
    ARB Bumper
    Just an FYI that any shade on your solar will drastically reduce the output, even something small like the shade from an antenna. I'm not a solar expert but damn close, I did a 1,500 watt install on my van for traveling.

    elnip, dziner and ClevSix like this.
  4. Jun 16, 2017 at 4:39 AM
    #1624
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,652
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Depends on the panel, some are better in partial shade than others, but generally true. When I put mine on a roof rack I plan to have mine below the crossbars, but in between them. It will only be covered when there's items on the rack.

    dziner likes this.
  5. Jun 16, 2017 at 6:09 AM
    #1625
    TucsonAZ

    TucsonAZ Well-Known Member

    Joined:
    Apr 29, 2017
    Member:
    #217629
    Messages:
    217
    Gender:
    Male
    Vehicle:
    2006 Crew Cab TRD
    ARB Bumper
    Do you have a link to support this? I have never seen a panel that doesn't decline fairly drastically with partial shade. This is just based on the design of electrical circuits and I would assume rather universal.

  6. Jun 16, 2017 at 7:06 AM
    #1626
    ClevSix

    ClevSix Well-Known Member

    Joined:
    Jun 29, 2015
    Member:
    #158382
    Messages:
    1,382
    Gender:
    Male
    First Name:
    John
    IL/IA
    Vehicle:
    01 DCSB SR5 TRD, 13 T4r SR5
    Suspension, 33s, some armor... Rust, Gray wire and 2Low, and more. T4r is stock.
    There are several factors that can impact how a pannel reacts to different lighting.

    Here is a link for you that explaines some of the differences.
    http://energyinformative.org/best-solar-panel-monocrystalline-polycrystalline-thin-film/

  7. Jun 16, 2017 at 7:16 AM
    #1627
    16Tacos

    16Tacos Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146382
    Messages:
    889
    Gender:
    Male
    First Name:
    Zach
    Boston
    Vehicle:
    08 Access Cab 4x4 V6 SR5
    OME Nitrochargers w/886s & Dakars, ARB Deluxe Bull Bar w/Warn winch, RCI sliders with kick out, IFS & Mid skids, BFF Hi-clearance rear bumper, Brushed Copper 17" SCS Ray10s w/285-70 KO2s, Black OEM 16" steelies w/255-85 KM2s, Leer contractor cap w/Smittybilt overlander xl RTT, Off-Grid Engineering dual battery kit and bed power panel, Blue sea aux fuse block, Wyntner 60L fridge freezer, ARB dual compressor, Pioneer 720BT head unit, CB radio, @Matt_Gecko bed and engine bay lights, @TacomaTruckParts Dirt bike tie down bar, color matched OEM grill, A-Pillar phone mount mod, @Docloco rear seat molle panel
    Installing OGE side-by-side this weekend, any last minute suggestions?

    Mr.PowerTrays likes this.
  8. Jun 16, 2017 at 7:47 AM
    #1628
    fishfinder

    fishfinder Whoever dies with the most toys wins

    Joined:
    Feb 23, 2015
    Member:
    #149437
    Messages:
    1,274
    Gender:
    Male
    First Name:
    Mikey
    Santa Barbara
    Vehicle:
    2015 MT DCLB
    CBI armor, Kings, 35s, Lockers
    Thanks for the tip!

  9. Jun 16, 2017 at 11:32 AM
    #1629
    Shytrex

    Shytrex Well-Known Member

    Joined:
    May 3, 2017
    Member:
    #218063
    Messages:
    159
    Gender:
    Male
    Tagging to follow for my build .. great stuff

  10. Jun 16, 2017 at 1:50 PM
    #1630
    abarber11

    abarber11 Well-Known Member

    Joined:
    Jul 16, 2012
    Member:
    #82790
    Messages:
    421
    ATX
    Vehicle:
    2011 DCSB
    AGMs like a much higher absorption charge voltage (14.6-14.8V) than our alternators put out (13.2-13.6) but their ideal float charge is around 13.4-13.8V. Its probably good enough for day-to-day starting and electronics, but not after a weekend camping trip. I always plug my batteries in at least once a month to a proper charger to keep them going strong and extend life. This is especially key after a big discharge because even the 130A alternator at normal operating range of 13.2-13.6V just doesn't have the voltage to get a good absorption charge on an AGM.

  11. Jun 17, 2017 at 2:10 AM
    #1631
    TucsonAZ

    TucsonAZ Well-Known Member

    Joined:
    Apr 29, 2017
    Member:
    #217629
    Messages:
    217
    Gender:
    Male
    Vehicle:
    2006 Crew Cab TRD
    ARB Bumper
    There is nothing in that link to state that some panels do better with partial shade. Panels do respond differently to angles and so on but no panel does better when partially shaded. There is A LOT of misinformation online about solar, feel free to ask me anything you would like if you run into a snag. Here's a photo of my last solar install on a vehicle of mine. I ran EVERYTHING with this, chest freezer to fridge conversion, toaster oven, angle grinder, microwave, even an AC for a few hours on occasion.

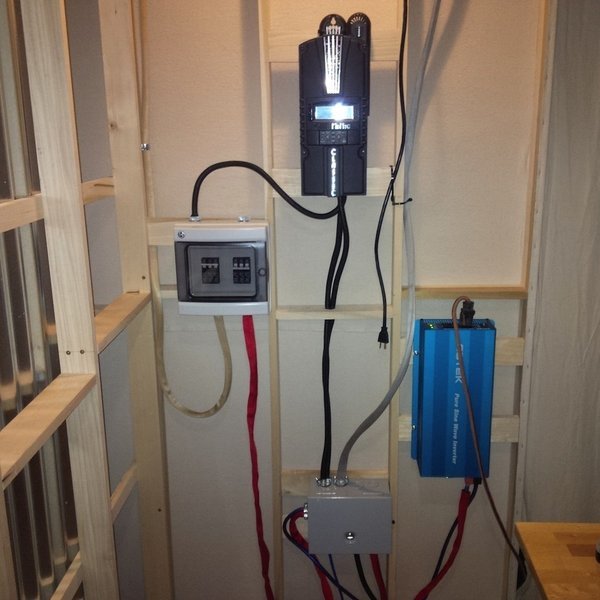

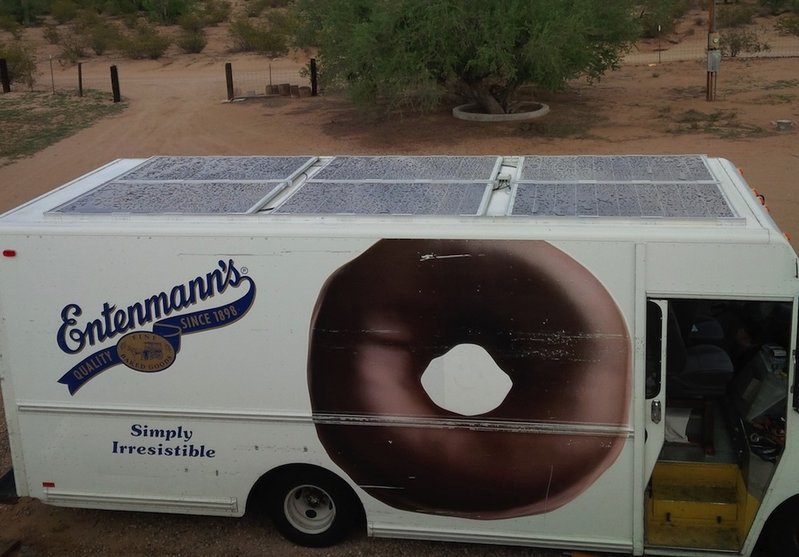

    03.jpg 04.jpg

    Chipskip likes this.
  12. Jun 17, 2017 at 7:01 PM
    #1632
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,652
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    When I get a chance I'll get some data from various shading on my panel. I have an inline watt-amp-volt meter.

    ClevSix and Pushincaskets like this.
  13. Jun 17, 2017 at 7:48 PM
    #1633
    Pushincaskets

    Pushincaskets Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123901
    Messages:
    816
    Gender:
    Male
    First Name:
    Mike
    High Point, NC
    Vehicle:
    07 PreRunner DCSB
    4" Maxtrac Spindles, Dakars and extra leaf, SOS Concepts bed rack, Lund tonneau cover, RTT,
    Actual data, proposterous. Who would Deomonstrate an effect using real world data?

  14. Jun 18, 2017 at 3:25 AM
    #1634
    ClevSix

    ClevSix Well-Known Member

    Joined:
    Jun 29, 2015
    Member:
    #158382
    Messages:
    1,382
    Gender:
    Male
    First Name:
    John
    IL/IA
    Vehicle:
    01 DCSB SR5 TRD, 13 T4r SR5
    Suspension, 33s, some armor... Rust, Gray wire and 2Low, and more. T4r is stock.
    This is an exact quote from that site stating a disadvantage of one type of pannel, monocrystalline silicon to be specific, "If the solar panel is partially covered with shade, dirt or snow, the entire circuit can break down."

    And here is another quote stating an advantage of another, Thin-Film, "High temperatures and shading have less impact on solar panel performance."

    There are many types of solar pannels these days and many advantages and disadvantages of each. There are also ways to mitigage some of the disadvantages.
    I completely agree that shading the pannel is not good. Any shade will reduce output on any pannel and it happens quickly but some types deal with it better than others. How they are wired up will also make a difference.

  15. Jun 18, 2017 at 3:29 PM
    #1635
    doyouquaxu

    doyouquaxu Well-Known Member

    Joined:
    Dec 6, 2014
    Member:
    #143779
    Messages:
    864
    Gender:
    Male
    Ok, gentlemen I need some help please. I have dual batteries mounted in the bed of my truck. I have both batteries wired to a blue sea battery switch. I also have a charge cable from the alternator through a 150 amp breaker then into my batteries.

    This is my first time wiring all this crap up. I'm lost when it comes to how to run the positive cable from the alt to recharge my batteries. As it is now, and how I believe I've found it from the 'big 3' threads, I should run a power cable from my alt straight to the positive of my batteries, and a larger wire goes from the alternator to the fuse box under the hood. But with it run like that, I can still crank my truck over with my battery switch in the off position. How am I supposed to run it??

  16. Jun 18, 2017 at 8:41 PM
    #1636
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,302
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Is this an ML-ACR? The 7622 model?

    Run the alt power wire only to the starting battery. The ML-ACR will keep the 2nd battery charged.

    With that long of a run you probably should use a bigger gauge wire like 1/0 gauge.

    You do not need to upgrade the stock fuse panel wiring.

  17. Jun 18, 2017 at 8:42 PM
    #1637
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    1,996
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sp
    2.5 inch lift; 5100's front; OME rear; Air Lift; dual batteries; Bestop bed cover; Nfab nerf steps; EBC rotors; Threadwright Claw MT tires; hood scoop LED light install.
    Which Blue Sea switch? Are you using this switch to manually isolate the batteries?

    Assuming you have the 6007 or similar connections ... Alt wire goes to the switch, then to the fuse box where the original alt wire connected. There should be a wire from fuse box to the battery. Then a fused wire goes from switch to aux battery. If switch has an off position, I would never set it to that because power will be cut off to both batteries and you'll never charge the primary battery. When you want to charge both batteries, switch is set at 1+2, but it should be set to 1 when car is turned off, isolating the aux battery.

  18. Jun 18, 2017 at 10:42 PM
    #1638
    Sna

    Sna Well-Known Member

    Joined:
    Mar 21, 2015
    Member:
    #151425
    Messages:
    1,320
    Gender:
    Male
    Alberta
    Vehicle:
    ‘15 trd sport 6MT dcsb 4.56 gears w/Harrop e-lockers
    I would like a side by side dual battery set but am concerned about the core support cracking...I see lots of people with this set up so is this a legitimate concern?

    I have a MY15 so there is not much extra room in the engine bay for an extra battery. There is some room where the power steering reservoir is but I'm not sure where that could then be moved to if the battery went there.

  19. Jun 18, 2017 at 11:04 PM
    #1639
    doyouquaxu

    doyouquaxu Well-Known Member

    Joined:
    Dec 6, 2014
    Member:
    #143779
    Messages:
    864
    Gender:
    Male

    I have the 6007 Blue Sea switch, and this isolator I just got from Amazon, but have not installed yet:
    https://www.amazon.com/Stinger-SGP3...d=1497849499&sr=8-3&keywords=battery+isolator

    The way I have it set up is that the 6007 switch controls the power cable.
    My battery switch is at the back of the truck where the batteries are. Positive from each of those goes to the switch, then one cable to the front of the truck.

    I think my issue is from when the previous owner originally did the rear battery set up. He had installed a battery post that bolts on to sheetmetal in the engine bay, with the positive wire from the battery run to that.

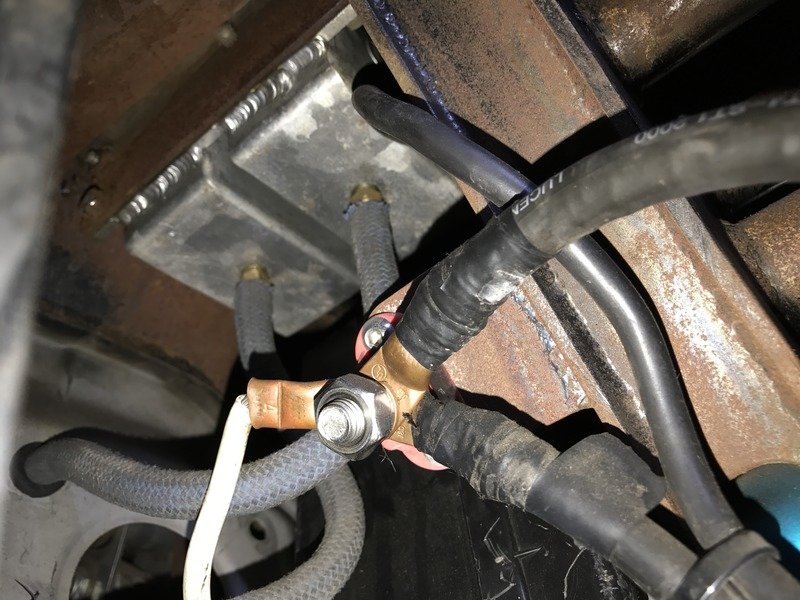

    Picture for reference. White wire at 10 o'clock is from the fuse box under hood. There is a wire of similar gauge going from the alternator into the fuse box. Wire at 2 o'clock is positive from the batteries. Wire at 4 o'clock is going to the starter.
    EA028463-8ABC-4DA2-909E-9A70C35BB19F_zps_4c5bba5180e81f762ea8c54d4010936a6d289766.jpg

  20. Jun 18, 2017 at 11:09 PM
    #1640
    tetten

    tetten Cynical Twat Waffle

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    2,425
    First Name:
    Andy
    Socal
    It depends on how you drive and where you live. I don't think I've seen any reports of cracked core supports from anyone besides those living in the southwest United States. I'm sure there are people in other areas that have cracked supports but I haven't seen those reports. Outside of the desert southwest there isn't much opportunity for driving fast off-road over long distances, I think this is what causes a lot of stress on the supports.

    For reference, I live in Socal, drive like an asshole, and my driver side is cracking and my passenger side is folding in on itself. I'm at 47000mi-ish. I am currently finishing up a battery relocate to the bed.
