Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jan 19, 2018 at 6:25 AM
    #1821
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Then it's maybe failed assuming the middle button is still pushed in. It would pop back out after 10 minutes if you pushed it in to use the manual override.

    http://assets.bluesea.com/files/resources/instructions/990180180.pdf


    Last edited: Jan 19, 2018
    Manwithoutaplan likes this.
  2. Jan 22, 2018 at 10:57 AM
    #1822
    Rcarreras94

    Rcarreras94 Member

    Joined:
    Jan 7, 2018
    Member:
    #240573
    Messages:
    8
    Gender:
    Male
    First Name:
    Ruben
    Vehicle:
    2017 quicksand Tacoma trd Offroad
    Cali raised led side projecting ditch lights
    Does anyone have the genesis Offroad dual battery kit for the 3rd gen I’m looking for a dual battery kit but I’m having a hard time picking which one

  3. Jan 22, 2018 at 11:28 AM
    #1823
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,345
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    it is working again :bananadance:

  4. Feb 8, 2018 at 7:44 PM
    #1824
    ChamYota

    ChamYota Crash Bandicoot Or Groot, Just Depends

    Joined:
    Jul 6, 2011
    Member:
    #59431
    Messages:
    12,050
    Gender:
    Male
    First Name:
    Cam
    Columbia,South Cakalacky
    Vehicle:
    05' Taco 4x4 swapped/ 03' GX470
    H1 Morimoto projector with XB35 4300K bulbs with Mini-gatling gun shrouds, BHLM. Debadged,OEM roof rack,TW sticker,Sockmonkey Beside decals,265/70/16 Nitto terra grapplers with dick cepek DC'2 wheels,weathertech floor liners(front/back),USA Spec Ipod reader,Scanguage II,Bestop Supertopper and more in the works...

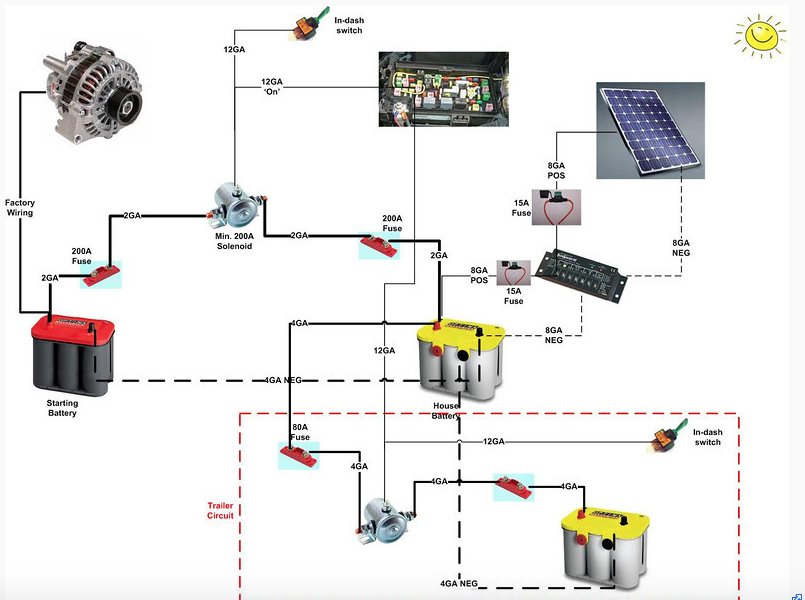

    After doing a shit ton of reading i think ive finally decided how im going to go about doing my setup. I only plan on running a winch/fridge/air compressor(still not super sold on this, may go CO2 but whateves) This diagram shows two house batteries which i'll prob end up running anyway. Found a killer deal on a optima yellow top for 130$. I'll link where i got this diagram and leave you guys to punch any holes in my plan. I dont see the usage personally in paying 200$+ for a fancy solenoid when my needs dont really require it. The indash switch is my fav part of the diagram. If a battery goes dead, i flip the switch and power the solenoid

    http://forum.expeditionportal.com/t...heap-isolated-dual-battery-setup-for-50/page3

    HolyReptar and the_taco_times like this.
  5. Feb 11, 2018 at 1:32 PM
    #1825
    hammertaco11

    hammertaco11 Well-Known Member

    Joined:
    Mar 29, 2017
    Member:
    #214793
    Messages:
    130
    Gender:
    Male
    East Bay, Ca
    Vehicle:
    2014 Tacoma SR5 Pyrite Mica
    OME lift w/ HD Dakars Pro Comp 17" 7069 BFG KO2 275/70

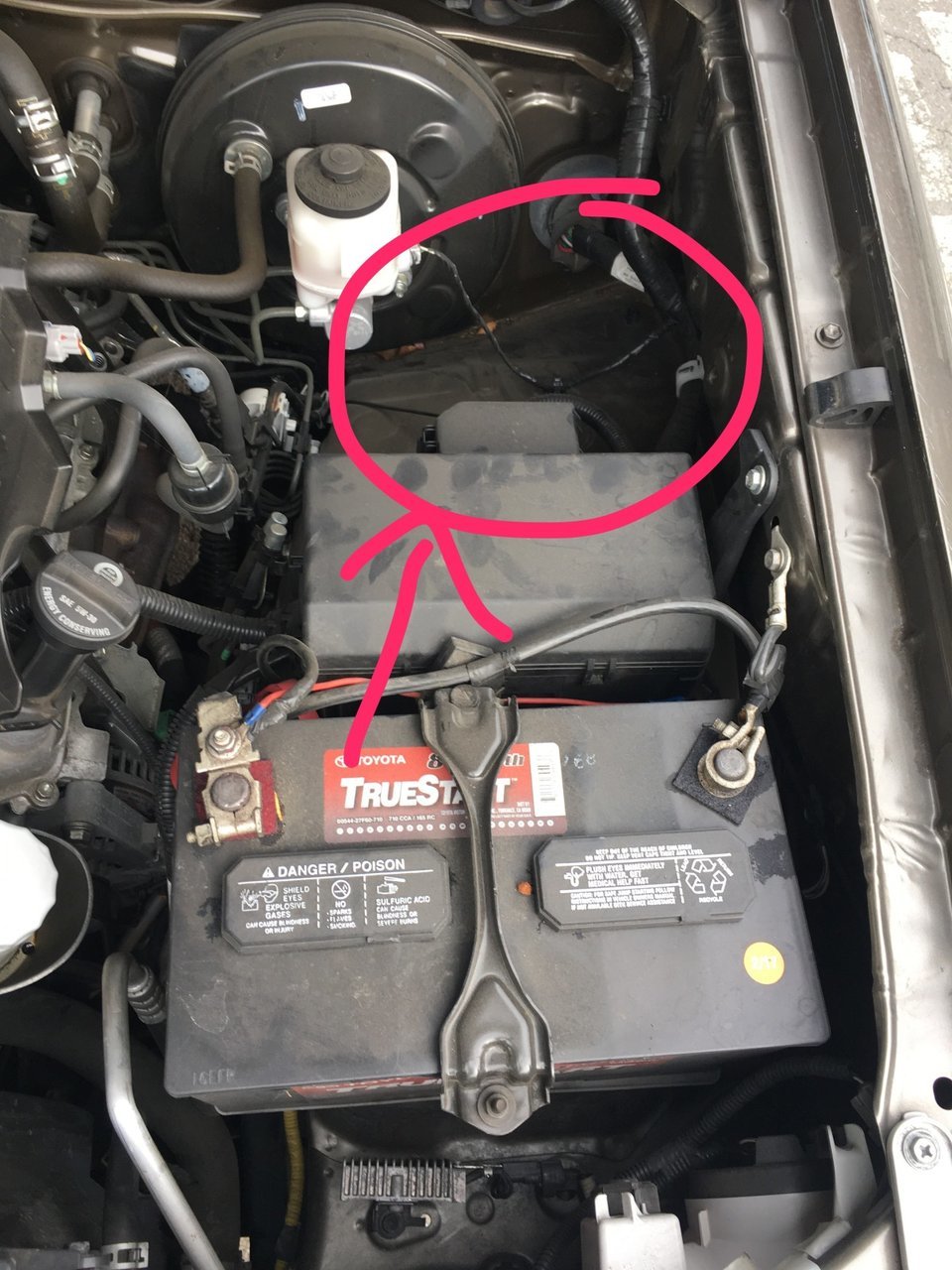

    I see most people are running their auxiliary battery as the same size as their original battery, seeing as though I'm not planning on running too many other lights and such off my aux battery, can I use a smaller battery, like a motorcycle battery and use the same type of isolator relay kit that you guys usually use? I'm just wondering because I'm thinking of putting it in the 7"x7" space highlighted in my picture below. Can any isolator relay kit work for a set up like this? Am I wrong on any thinking? I'm just planning on running an aux panel off of it. I've had a small aux battery before to push a sound system I had, but it was never connected to a iso relay kit. It was just ran on its own. Would that help? thanks!


  6. Feb 11, 2018 at 1:36 PM
    #1826
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    My main battery is a 31m and Im running a group 27 or 24 as the auxiliary. So far I haven't experienced any issues. I am using the blue sea ml-acr and it has worked very well in my application of running a fridge, lights, inverter and a couple usb's

  7. Feb 11, 2018 at 1:46 PM
    #1827
    hammertaco11

    hammertaco11 Well-Known Member

    Joined:
    Mar 29, 2017
    Member:
    #214793
    Messages:
    130
    Gender:
    Male
    East Bay, Ca
    Vehicle:
    2014 Tacoma SR5 Pyrite Mica
    OME lift w/ HD Dakars Pro Comp 17" 7069 BFG KO2 275/70
    Thanks for the reply! Are you running a regular iso relay kit? is there different amps or anything I need to worry about when buying the kit do you think?

  8. Feb 11, 2018 at 1:48 PM
    #1828
    hammertaco11

    hammertaco11 Well-Known Member

    Joined:
    Mar 29, 2017
    Member:
    #214793
    Messages:
    130
    Gender:
    Male
    East Bay, Ca
    Vehicle:
    2014 Tacoma SR5 Pyrite Mica
    OME lift w/ HD Dakars Pro Comp 17" 7069 BFG KO2 275/70
    @tacoma16 oh I see, the blue sea ml-acr is the iso kit. got it. Thanks!

    tacoma16 likes this.
  9. Feb 11, 2018 at 1:49 PM
    #1829
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    hammertaco11 likes this.
  10. Feb 12, 2018 at 1:30 PM
    #1830
    PintSize

    PintSize Crossthreaded & torqued down

    Joined:
    Jun 16, 2016
    Member:
    #189793
    Messages:
    2,511
    Gender:
    Male
    Texas
    Vehicle:
    2011 2.7L 5 spd RC 4x4

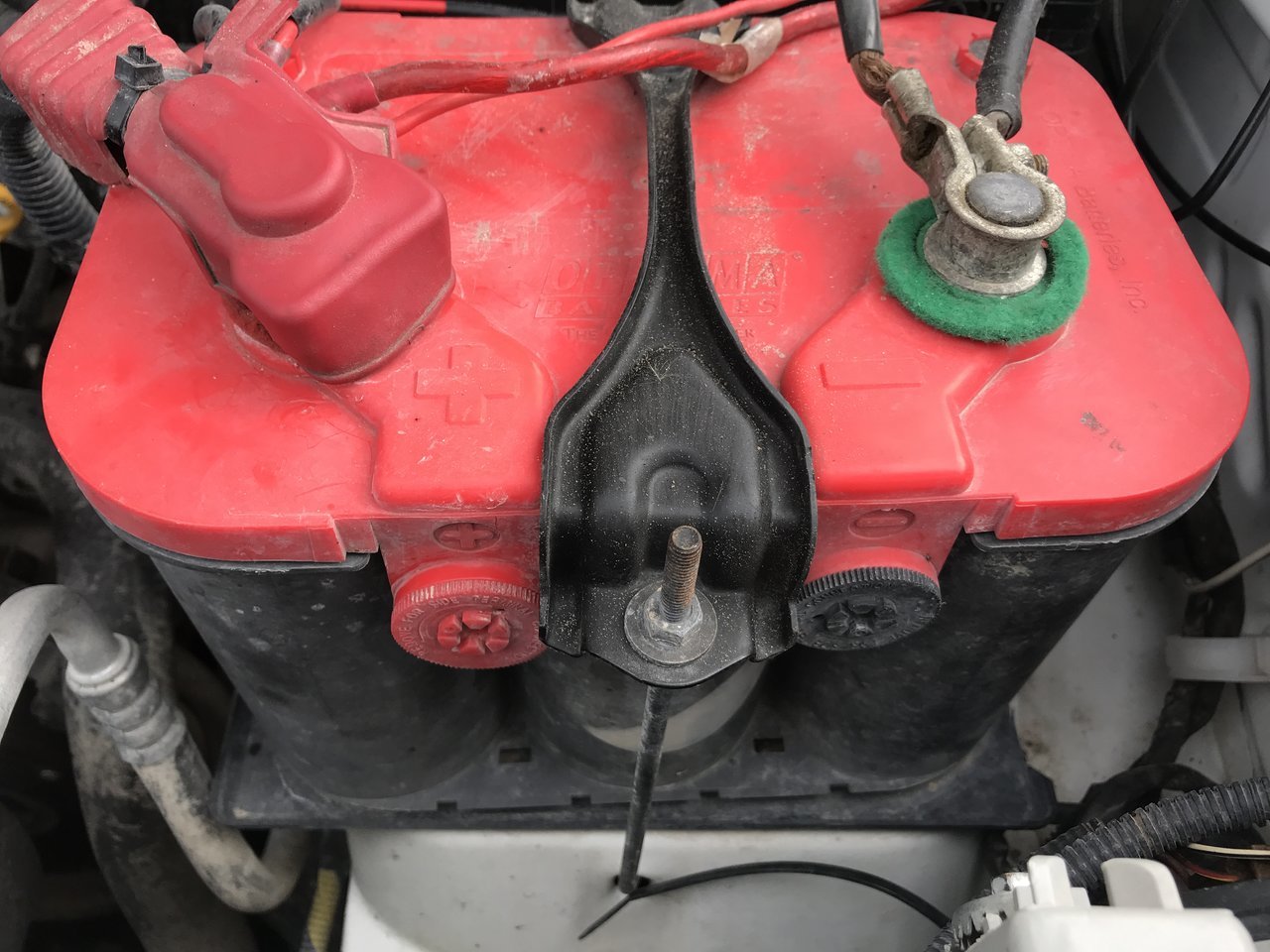

    Thinking of going dual battery to run stuff in the bed while camping. I have a optima but I’m not certain what type, all the labels had been removed before I got the truck used.


    If I run a basic isolator system, is it really nessicary to buy two new fancy batteries? Or just buy a decent priced AGM house battery that has a fair amount of amp hours for things I plan to run?

    tacoma16 likes this.
  11. Feb 12, 2018 at 4:08 PM
    #1831
    hammertaco11

    hammertaco11 Well-Known Member

    Joined:
    Mar 29, 2017
    Member:
    #214793
    Messages:
    130
    Gender:
    Male
    East Bay, Ca
    Vehicle:
    2014 Tacoma SR5 Pyrite Mica
    OME lift w/ HD Dakars Pro Comp 17" 7069 BFG KO2 275/70
  12. Feb 12, 2018 at 6:48 PM
    #1832
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    By putting them in parallel you are upping your amps. However if you drop too low you won’t be able to start the truck which is why most guys isolate them. What ever isolated you use it will work. Can’t discuss the benefits of one from another. I went with the blue sea unit it as I understood it required less amps for it to connect and disconnect (essentially run).

    hammertaco11 likes this.
  13. Feb 12, 2018 at 6:49 PM
    #1833
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    I just kept my starter and got a new smaller auxiliary. Don’t know if that’s the right way but it has worked. I have a five year warranty on my auxillary worst case.

    PintSize likes this.
  14. Feb 13, 2018 at 9:13 AM
    #1834
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,312
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    It is obviously an Optima Red Top which means it is a starting type. Perhaps by 'type' you were asking about size or group? Might be hard to determine that without some labeling but you might be able to figure out which group size it is by the location of the positive and negative posts and the overall dimensions of the case. Compare it to the info on Optima's website.

    The reasoning behind matching batteries is so they will behave the same. Mismatched batteries may not get recharged the same regardless of isolator setup.

    PintSize likes this.
  15. Feb 13, 2018 at 8:06 PM
    #1835
    PintSize

    PintSize Crossthreaded & torqued down

    Joined:
    Jun 16, 2016
    Member:
    #189793
    Messages:
    2,511
    Gender:
    Male
    Texas
    Vehicle:
    2011 2.7L 5 spd RC 4x4

    Yeah it’s a Optima Red Top 34/78. Verified online and with a local battery shop, we tested it and it’s still strong so I got a matching Yellow Top 34/78.

  16. Mar 9, 2018 at 3:34 PM
    #1836
    jcloer1

    jcloer1 Well-Known Member

    Joined:
    Sep 22, 2015
    Member:
    #164909
    Messages:
    156
    Gender:
    Male
    First Name:
    Jim
    Hillsboro, OR
    Vehicle:
    2007 White Tacoma 4WD Access cab (I call her Goat)
    Leveling kit, console organizer, ATO dual battery tray, dual Optima yellow tops, Mobtown recovery bar, quick disconnect wiring for hitch mounted winch, Omix-Ada dual battery relay kit, quick disconnect to rear for hitch mounted winch using a custom dash switch and solenoid, multiple bed D rings, All Pro Offroad Hi Lift bedrail mounts, quickfist mounts for shovel and axe in bedrail (TW member made), Blue Sea Systems 12 circuit panel, driving lights, two bullet holes in driver side mirror ;)
    OOOH! That's just sneaky! I like it!

  17. Mar 17, 2018 at 7:20 PM
    #1837
    Skeletoy

    Skeletoy ARB Wanna-be

    Joined:
    Jan 17, 2018
    Member:
    #241534
    Messages:
    104
    Gender:
    Male
    ORYGUN
    Vehicle:
    JDM Diesel Landcruiser
    Lots!

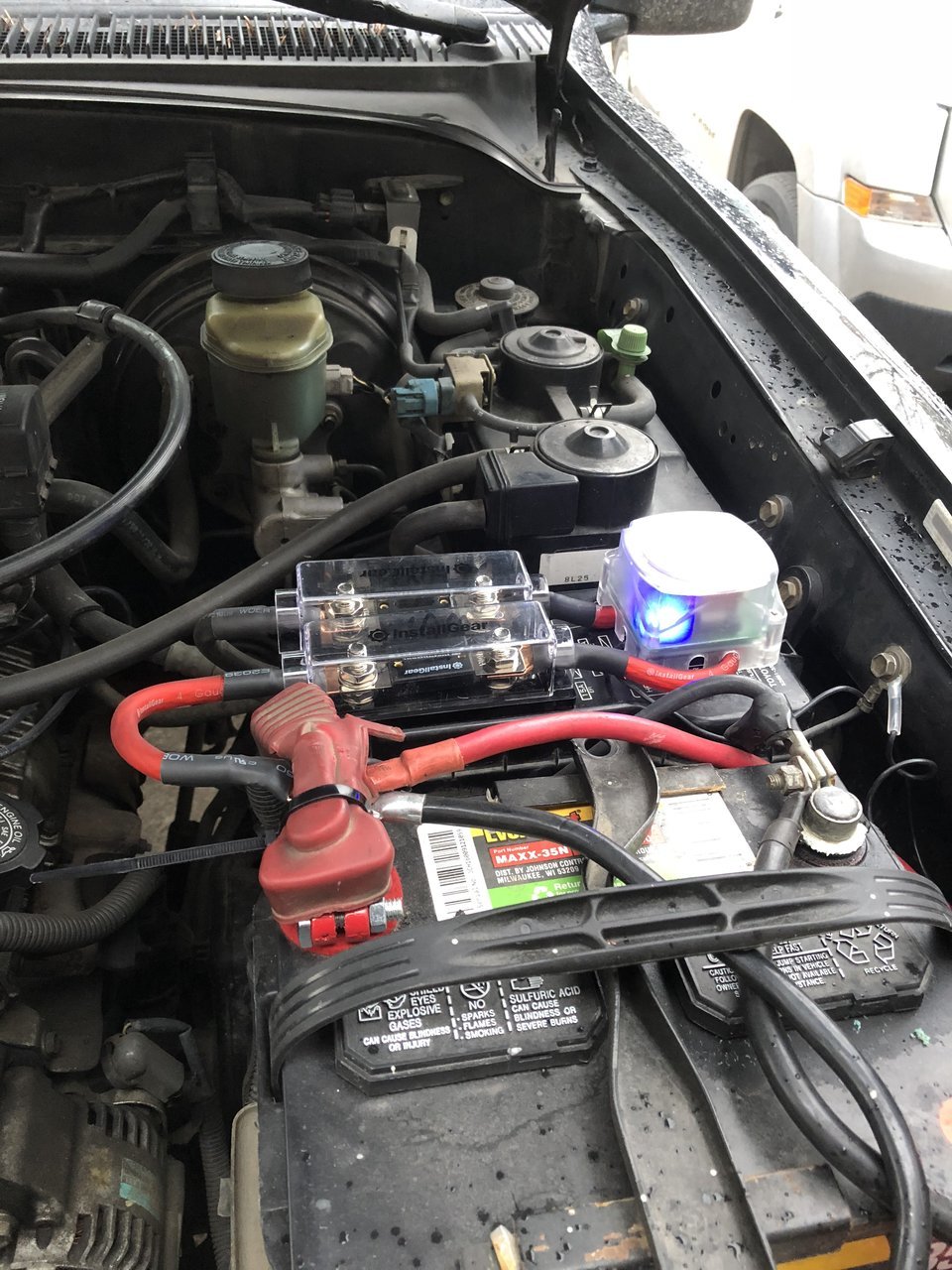

    Finished my swap today!

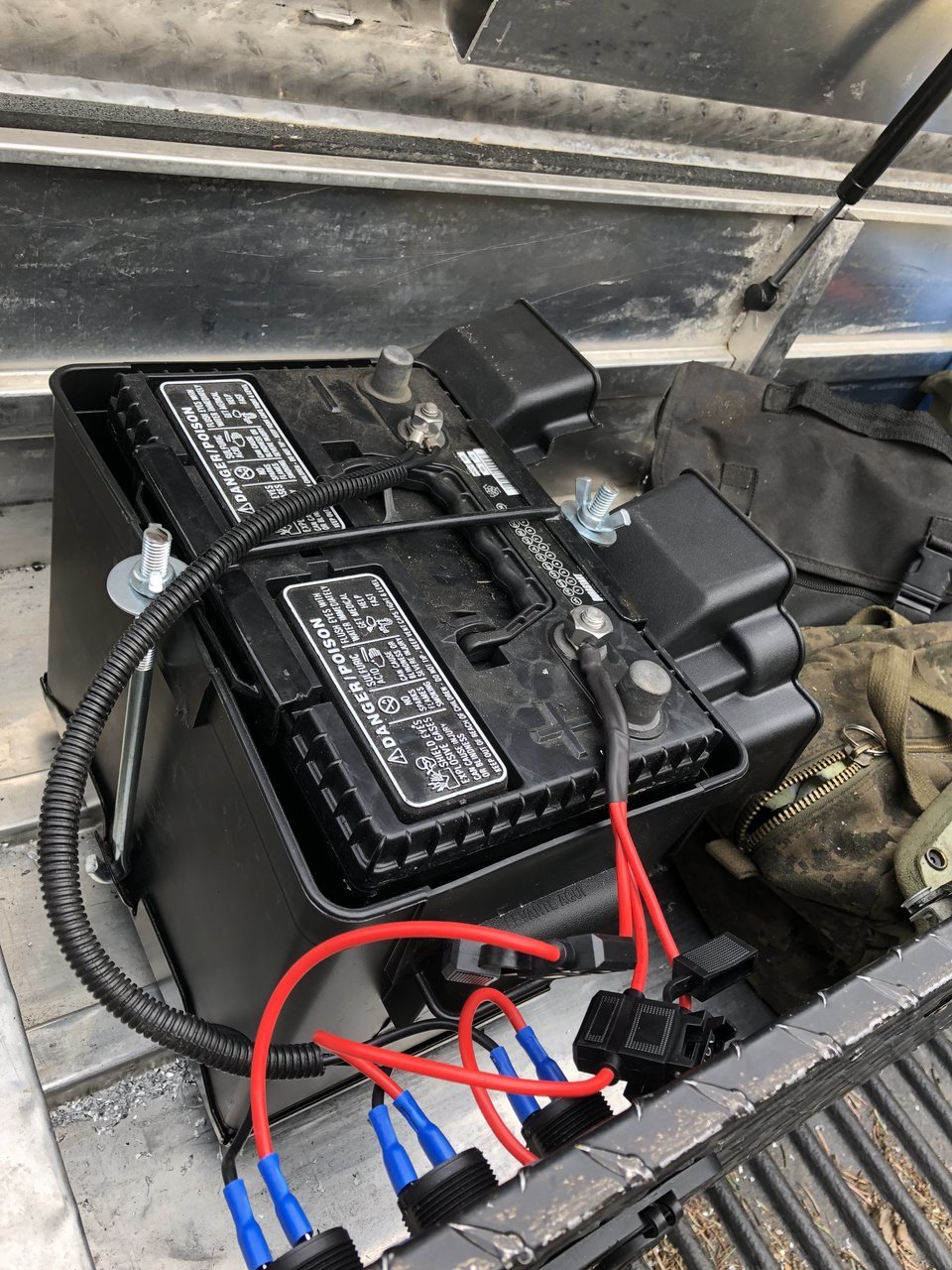

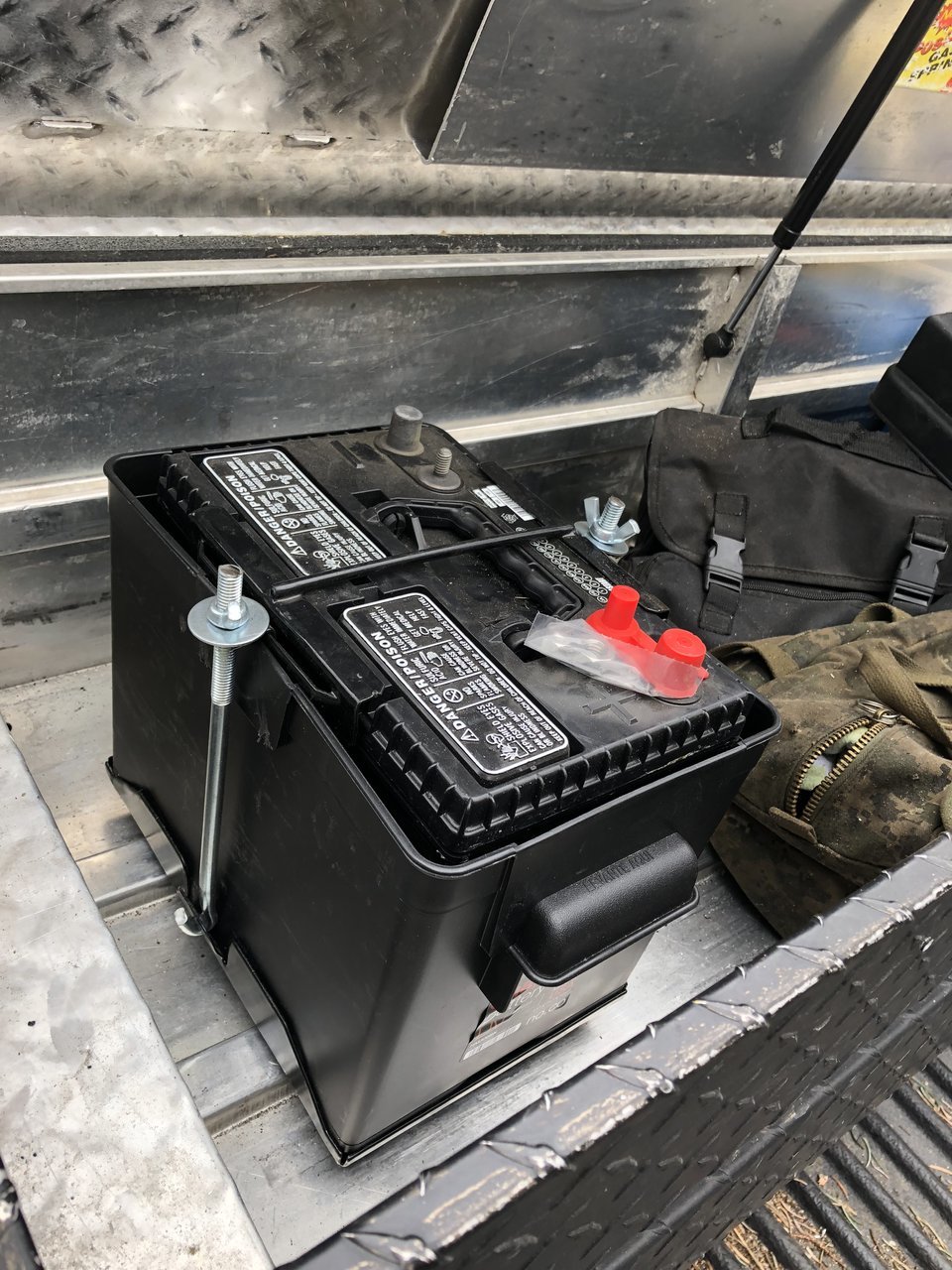

    Group 24 deep cycle wet cell marine battery from Walmart, plastic battery box, Jegs battery tray/mount, all bolted into my toolbox:


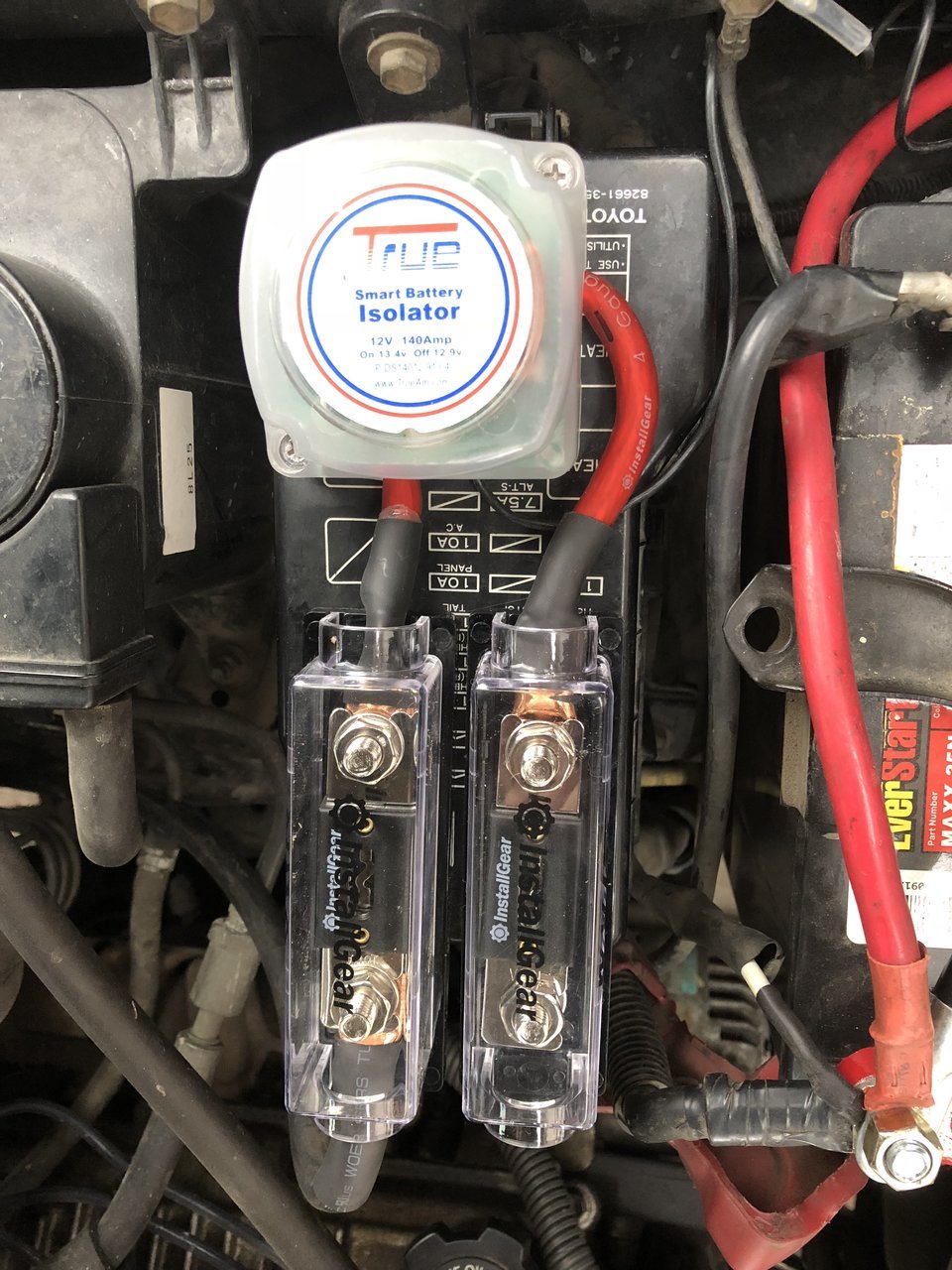

    This Isolater solenoid from Amazon:

    https://www.amazon.com/gp/product/B00400IYTK/ref=oh_aui_search_detailpage?ie=UTF8&psc=1

    couple 100amp fuses and fuse holders, some 4ga audio cable, some 3ga welding cable and a bunch of copper lugs and heatshrink.

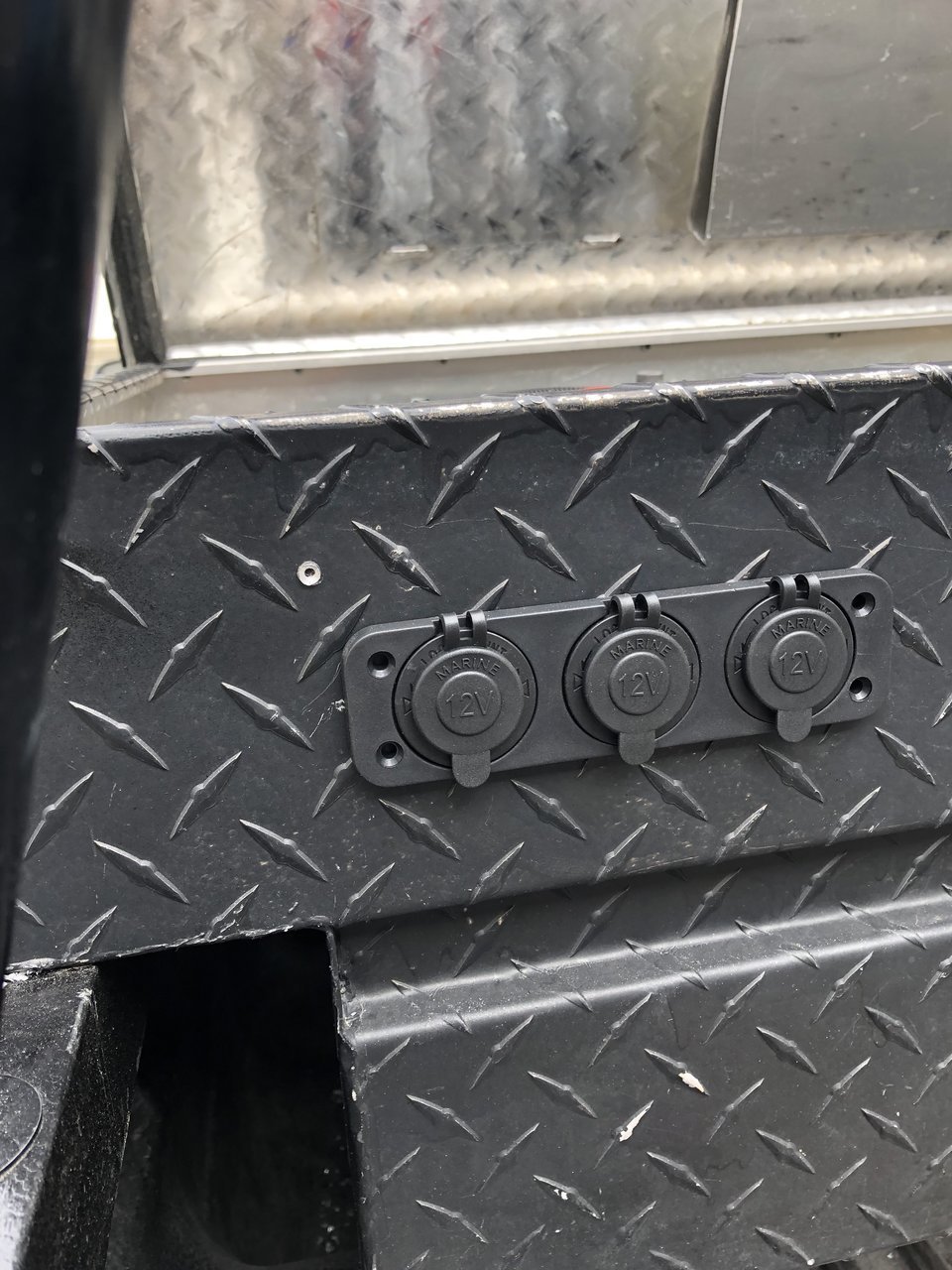

    and then I installed three marine 12v sockets in the side of the bedbox



    Now I can run power for the LED lights in my CVT RTT, a 12v heated blanket and hopefully a 12v fridge someday

  18. Mar 17, 2018 at 7:22 PM
    #1838
    Skeletoy

    Skeletoy ARB Wanna-be

    Joined:
    Jan 17, 2018
    Member:
    #241534
    Messages:
    104
    Gender:
    Male
    ORYGUN
    Vehicle:
    JDM Diesel Landcruiser
    Lots!
    well, i think i have a problem. I thought i'd save cable and ground the aux battery to the frame and it would still work...however, when the truck is running I only see 13.6V at the aux battery. Do I have to run the neg cable from the aux battery all the way to the neg terminal on the starter battery for it to all work right? Or is it likely that my isolator isn't working?

    Last edited: Mar 17, 2018
  19. Mar 17, 2018 at 10:07 PM
    #1839
    twhalm

    twhalm Well-Known Member

    Joined:
    Aug 19, 2016
    Member:
    #194983
    Messages:
    216
    Denver, CO
    Vehicle:
    2015 TRD/OR Manual, OME , Dual battery

    How long is the cable to your aux and what gauge?

  20. Mar 17, 2018 at 10:09 PM
    #1840
    Skeletoy

    Skeletoy ARB Wanna-be

    Joined:
    Jan 17, 2018
    Member:
    #241534
    Messages:
    104
    Gender:
    Male
    ORYGUN
    Vehicle:
    JDM Diesel Landcruiser
    Lots!
    3gauge welding cable, maybe 7-8ft for the postitive lead.

    probably only 4-5ft for the negative since it went straight to a bolt hole in the framerail, which I ground to bare metal.

    I was certain i'd seen several people do almost the exact same setup with the Blue Sea ML-ACR and the cable lengths were not a problem.


    EDIT: I must be thinking about this wrong, with the truck off both batteries are about 12.5V. When running the start battery is about 14v and the aux is 13.65v. that must mean it's charging, but i'm losing some because of cable length and diameter then? I need a little reassurance :/

    Last edited: Mar 17, 2018
