Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. May 10, 2018 at 6:27 PM
    #1881
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,206
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread

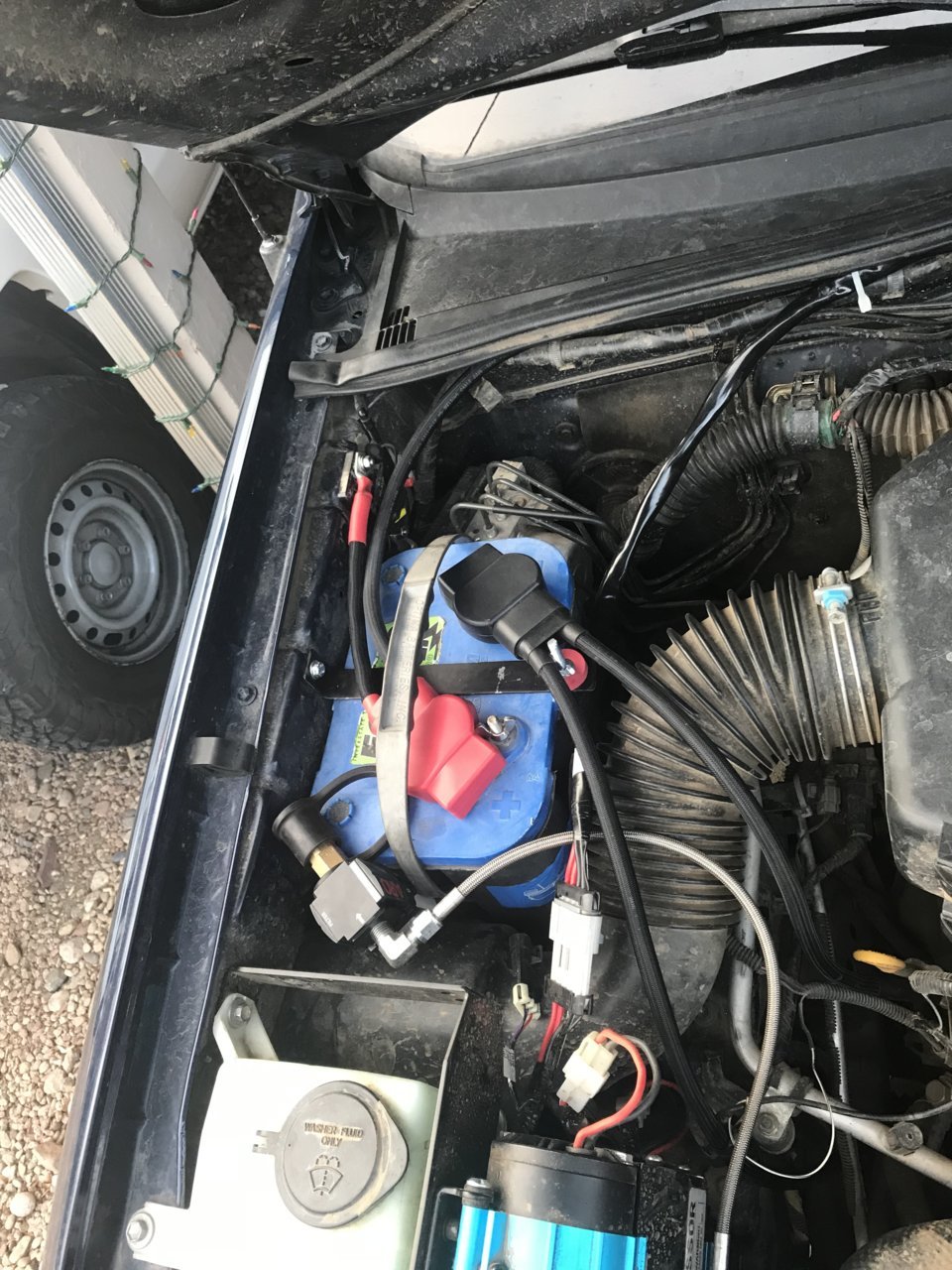

    did the install finally
    [​IMG]

    SonnyBones likes this.
  2. May 16, 2018 at 8:10 AM
    #1882
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    Where do I buy that?

    tacoma16 likes this.
  3. May 16, 2018 at 10:14 PM
    #1883
    steveo27

    steveo27 Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,997
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
  4. May 25, 2018 at 5:32 PM
    #1884
    Lilikoibars

    Lilikoibars Member

    Joined:
    Mar 30, 2017
    Member:
    #214919
    Messages:
    24
    Vehicle:
    2006 Off Road
    Anyone out there have tips for the ABS relocation? I've seen it moved back closer to the firewall in order to fit a battery tray and keep the stock air duct. It's the best space to put a second battery; I already have a compressor between the radiator and washer tank.

  5. May 26, 2018 at 5:06 AM
    #1885
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Personally I think it’s the best locating for a second battery. The abs module is not to hard to push out of the way. A small Wilco battery tray, and some cutting and can get one to fit 328F98DD-E404-4F81-A906-9A1882F1D631.jpg

    Brandon.C.H, Cadmus and POOLGUY like this.
  6. Jun 6, 2018 at 7:34 PM
    #1886
    BountyOR_VF2

    BountyOR_VF2 "If in doubt, flat out!"

    Joined:
    Feb 13, 2017
    Member:
    #210511
    Messages:
    624
    Gender:
    Male
    NorCal Bay Area
    Vehicle:
    2017 WHITE TRD TCSB OR
    The small black switch next to the voltmeter, is that for switch it on? I was wondering how to avoiding it on all the time, so I think this is the solution.
    Please correct me if I'm wrong.

    wmg likes this.
  7. Jun 10, 2018 at 1:43 AM
    #1887
    wmg

    wmg Well-Known Member

    Joined:
    Jan 20, 2017
    Member:
    #208119
    Messages:
    1,008
    Gender:
    Male
    First Name:
    bill
    Vehicle:
    2015 Tacoma ..Off Road
    BP-51 OEM LIFT..33;s...xd9000...ARB bumpers...cat back...rockers...bed tire rack....

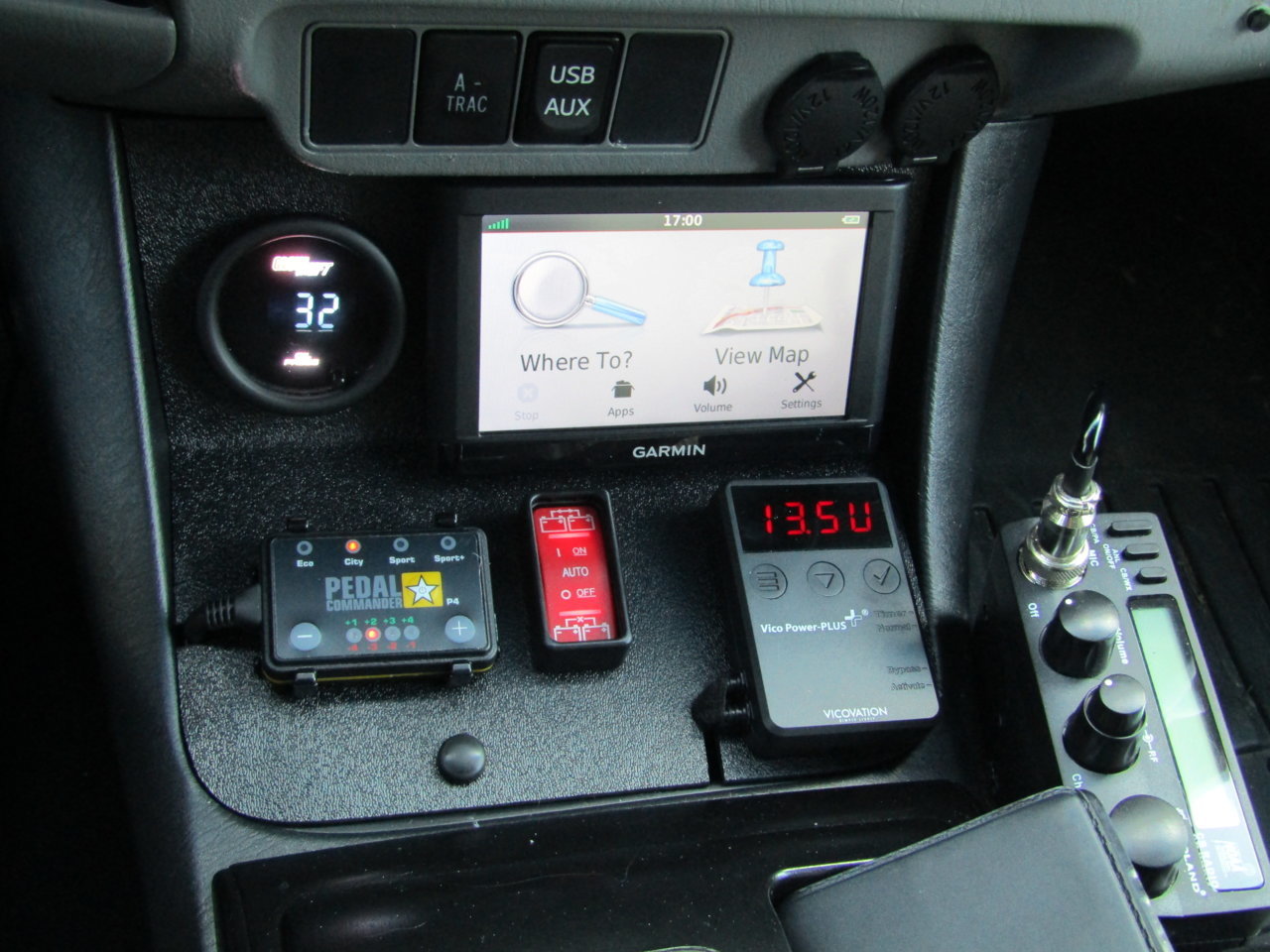

    finished my console mod or "cup holder... we doan need no stinkini cup holder" been done for awhile, moved the battery ACR switch and everything else onto one mounting ...



    xsf18cdf, jubei, SonnyBones and 5 others like this.
  8. Jun 10, 2018 at 3:53 AM
    #1888
    wmg

    wmg Well-Known Member

    Joined:
    Jan 20, 2017
    Member:
    #208119
    Messages:
    1,008
    Gender:
    Male
    First Name:
    bill
    Vehicle:
    2015 Tacoma ..Off Road
    BP-51 OEM LIFT..33;s...xd9000...ARB bumpers...cat back...rockers...bed tire rack....
    Yup that is an MT wallet in the picture....

  9. Jun 14, 2018 at 6:52 PM
    #1889
    coleone32

    coleone32 Well-Known Member

    Joined:
    Mar 17, 2014
    Member:
    #125566
    Messages:
    55
    Gender:
    Male
    First Name:
    Nick
    90640
    Vehicle:
    2015 Tacoma! First Toyota ever.
    Only The Good Things! Alot more needed...
    Hey guys I want to get in on this group buy for 2 batteries, but I got one problem, and that is what SIZE batteries can (or should) I get? I'm going to go with the Off-Grid side mount for the aux battery and also the front mount with the bluesea mount. I greatly appreciate any input, I already have 2 amps, adding led lights very soon, and also to have some room to grow... I h8 you tacomaworld haha
    oh this is what I'm putting it in 2015 crewcab 4x4 offroad trd

  10. Jun 14, 2018 at 7:15 PM
    #1890
    wmg

    wmg Well-Known Member

    Joined:
    Jan 20, 2017
    Member:
    #208119
    Messages:
    1,008
    Gender:
    Male
    First Name:
    bill
    Vehicle:
    2015 Tacoma ..Off Road
    BP-51 OEM LIFT..33;s...xd9000...ARB bumpers...cat back...rockers...bed tire rack....
    -2- Odyssey 35-PC1400 Battery

    Additional Specs:

    • 850 CCA, 950 MCA, 1150 HCA
    • 1400 Cranking Amps for 5 Seconds
    • 130 Minute Reserve Capacity
    • Cycle life @ 77° F 400 at 100% DOD
    • -40° F to 140° F Temperature Range
    • More Specs: (Adobe PDF)
    • Made in the USA
    BM Part #: 35-PC1400
    Made In: U.S.A.
    Voltage: 12 Volt
    Capacity: 55 Ah
    Type: AGM
    Battery Size: Group 35
    Length: 9.46"
    Width: 6.84"
    Height: 8.69"
    Cold Cranking Amps: 850 CCA
    Shipping Weight: 54.00Lbs
    Warranty: 4 Year (Warranty Info)

    IMG_0279.jpg IMG_0001.jpg


    SonnyBones likes this.
  11. Jun 14, 2018 at 7:22 PM
    #1891
    coleone32

    coleone32 Well-Known Member

    Joined:
    Mar 17, 2014
    Member:
    #125566
    Messages:
    55
    Gender:
    Male
    First Name:
    Nick
    90640
    Vehicle:
    2015 Tacoma! First Toyota ever.
    Only The Good Things! Alot more needed...
    Thank You kind sir

  12. Jun 14, 2018 at 9:11 PM
    #1892
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,271
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Which group buy? The one for the Northstar batteries?

    I am pretty sure the group 35 Northstar's are same dimensionally as the Odyssey PC-1400s and very similar specs too. Should fit like a glove in the Off-Grid kit.

  13. Jun 15, 2018 at 5:40 AM
    #1893
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    2,983
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Your dual battery setup looks very nice. I really like the neatness of the wiring.

    So I gotta ask...

    What are you venting in your oil filler cap?
    What are you filtering in your oil catch can line?

    OmegaMan73 likes this.
  14. Jun 15, 2018 at 6:01 AM
    #1894
    wmg

    wmg Well-Known Member

    Joined:
    Jan 20, 2017
    Member:
    #208119
    Messages:
    1,008
    Gender:
    Male
    First Name:
    bill
    Vehicle:
    2015 Tacoma ..Off Road
    BP-51 OEM LIFT..33;s...xd9000...ARB bumpers...cat back...rockers...bed tire rack....

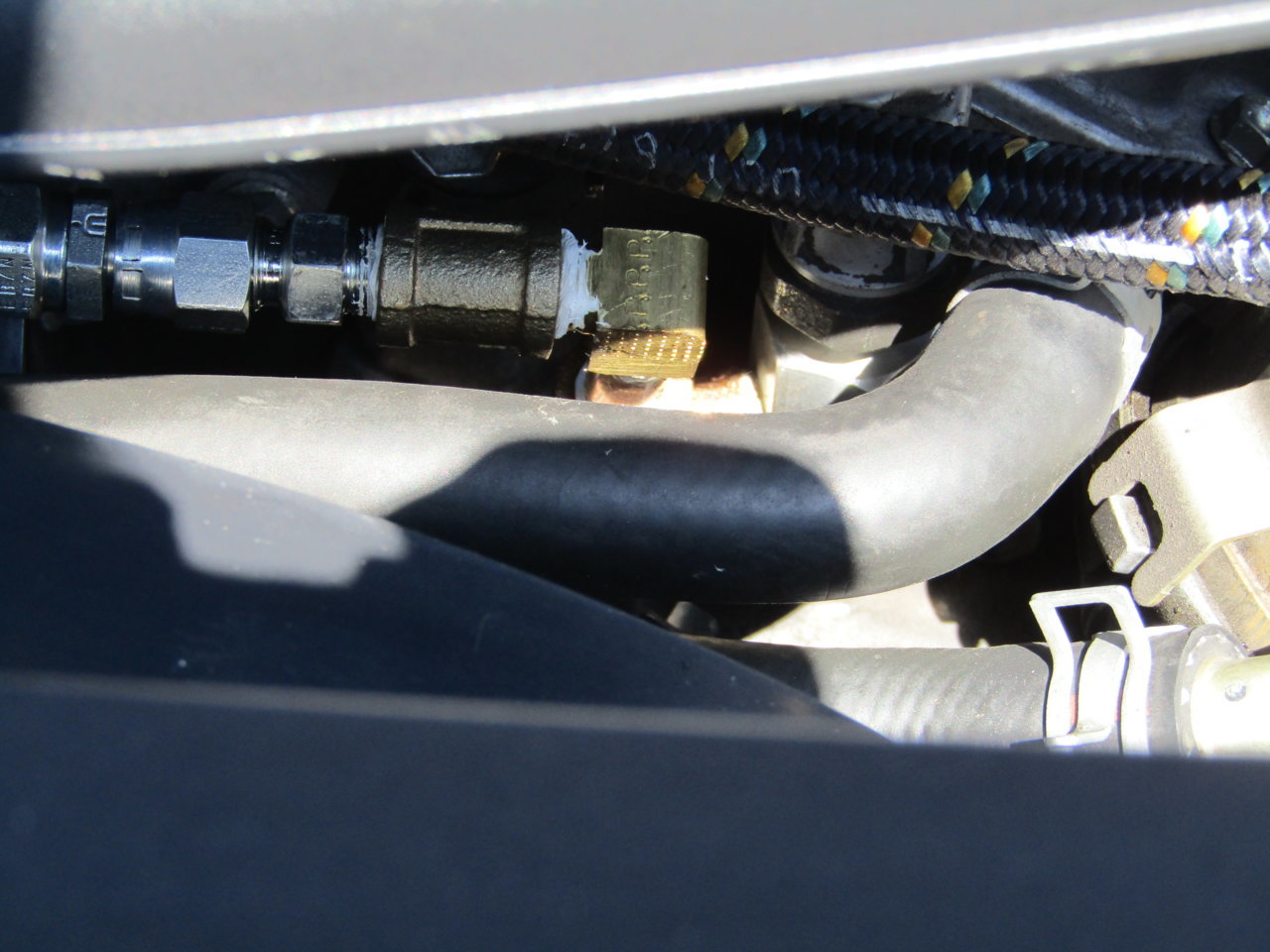

    oil catch line filter is a gas line filter with the basket removed, used as a sight glass , when it starts to show oil on the glass the can is full enuf that it is starting to carry over,,,a just in case thing....

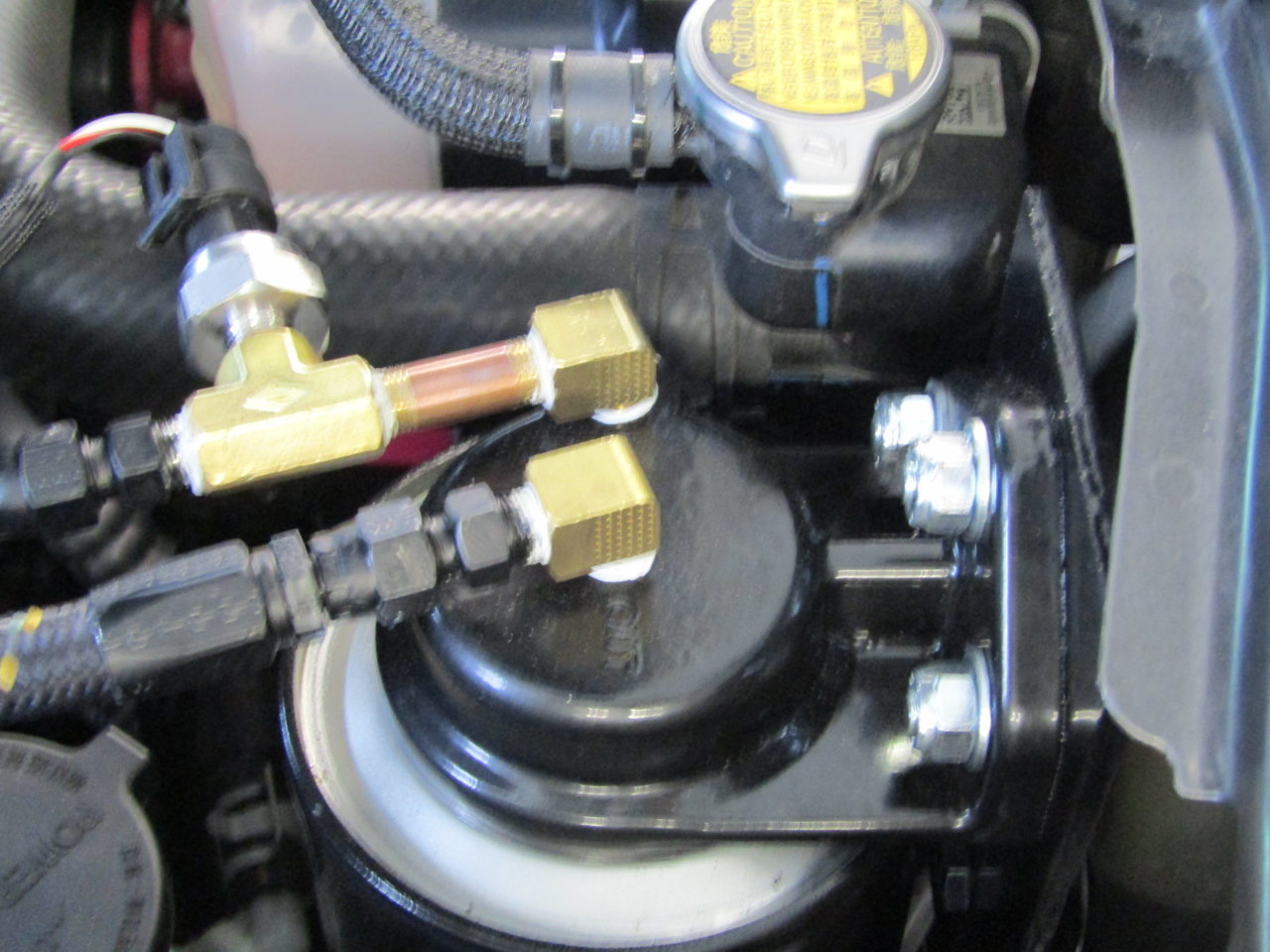

    oil filler line is the return line from the by pass filter.....its a 98% eff at 2 micron oil filter that functions full time at a reduced flow..Oil is supplied from the oil pressure switch port using a tee ....IMG_0278 (1).jpg IMG_0268.jpg

    SonnyBones likes this.
  15. Jun 15, 2018 at 6:02 AM
    #1895
    wmg

    wmg Well-Known Member

    Joined:
    Jan 20, 2017
    Member:
    #208119
    Messages:
    1,008
    Gender:
    Male
    First Name:
    bill
    Vehicle:
    2015 Tacoma ..Off Road
    BP-51 OEM LIFT..33;s...xd9000...ARB bumpers...cat back...rockers...bed tire rack....
    btw tnx.....

  16. Jun 15, 2018 at 6:16 AM
    #1896
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    2,983
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Sight glass - makes sense. I have never overfilled my catch can, but have come close. That is a good idea.

    A friend of mine runs a bypass filter. Another good idea...

  17. Jun 15, 2018 at 6:21 AM
    #1897
    wmg

    wmg Well-Known Member

    Joined:
    Jan 20, 2017
    Member:
    #208119
    Messages:
    1,008
    Gender:
    Male
    First Name:
    bill
    Vehicle:
    2015 Tacoma ..Off Road
    BP-51 OEM LIFT..33;s...xd9000...ARB bumpers...cat back...rockers...bed tire rack....
    I run a 10K Amsoil syn, pull a sample for testing at 5K, dump the can then.....but nice to see real time how the system is working and if it needs to be dumped...


    Retired Utility plant/Ultra Pure Water plant /Waste Treatment plant manager...been messing with oil in that capacity for a few years

  18. Jun 15, 2018 at 6:25 AM
    #1898
    KaptainH

    KaptainH Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,275
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    YES- I guess I didn't realize how easy it was to do this. Any more info/write up?

  19. Jun 15, 2018 at 6:41 AM
    #1899
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    2,983
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Do you change your oil filter at 5K? My friend changes his at 3K or 4K (I forget which) and adds a quart of oil at the same time.

  20. Jun 15, 2018 at 6:51 PM
    #1900
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,207
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?

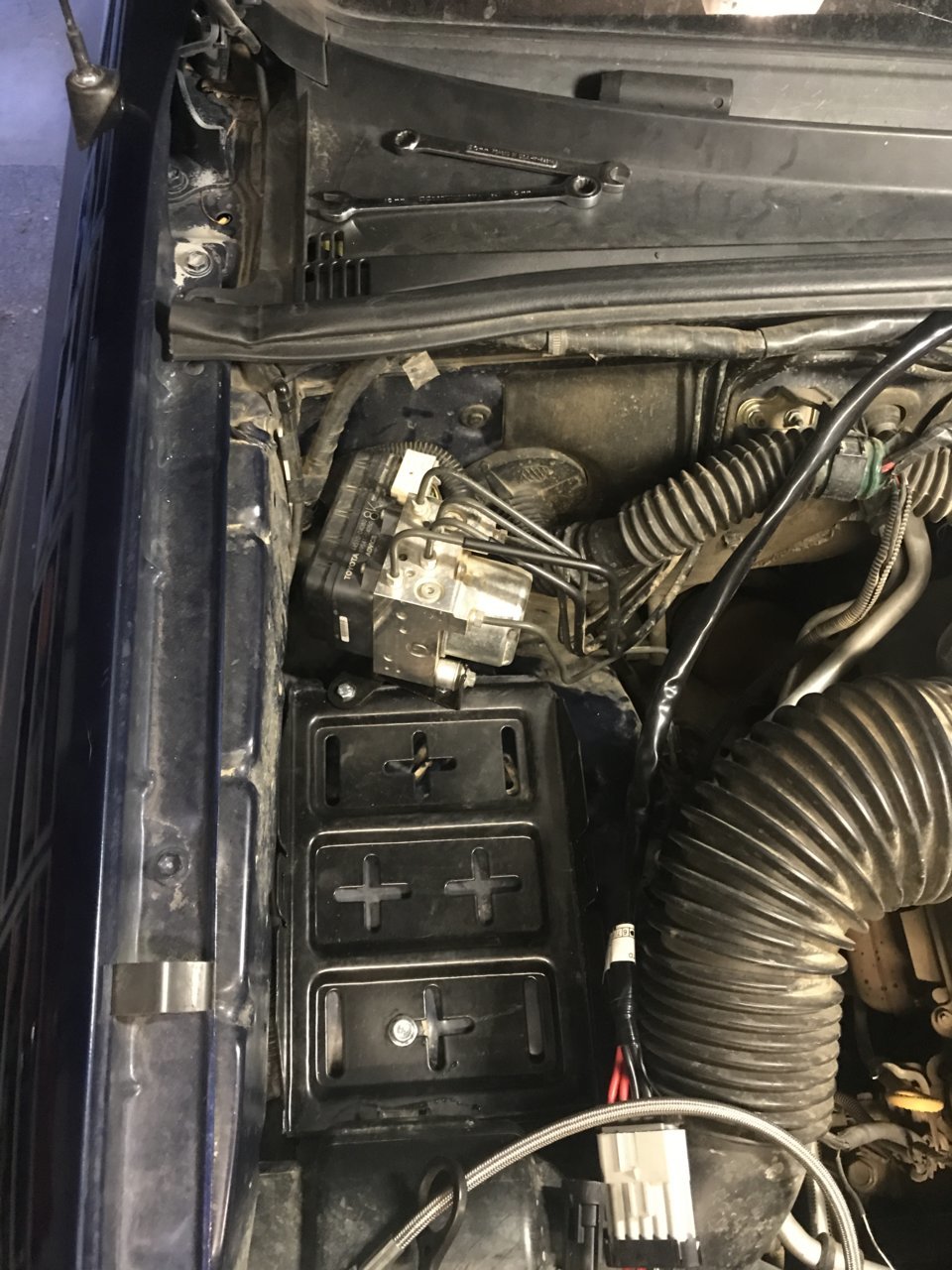

    Don’t really have a right up, just made the space for it to fit. I used a WirthCo 21085 Battery Tray
    https://www.amazon.com/dp/B00JPJHUHS/ref=cm_sw_r_cp_api_i_iLLiBbZTC2K5R

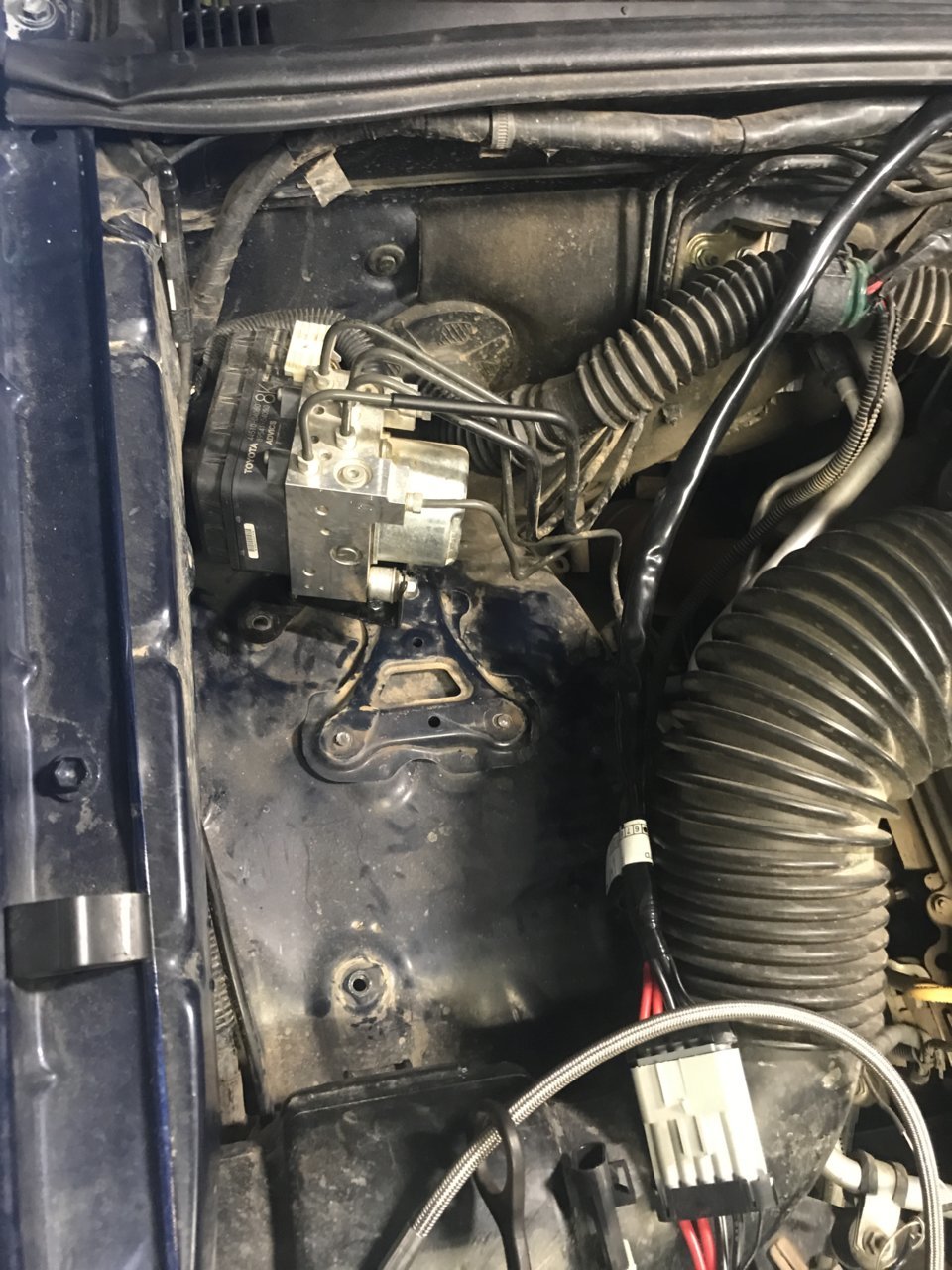

    Then had to cut off the one mounting foot for the air box. Then once the abs modul Mount was removed I cut and grinder the 2 studs that are welded to the fender, this allowed for the try to sit flat. 8C671997-67C8-4788-B9B8-37ED5499ECFA.jpg
    Once the mount is out I drilled out the 2 spot welds on the flat bar mounting foot. Repurposed this piece to extend the lower mounting. B9720784-279D-4A8D-BDF1-719F63B861BB.jpg
    Assembling everything back together I drilled 2 holes in the battery tray to mount one side of the abs bracket to not only secure it but also the tray. 0C08C150-A06C-4744-B21D-592BD5A22867.jpg
    This gave enough room for a standard optima (group 35) to fit.

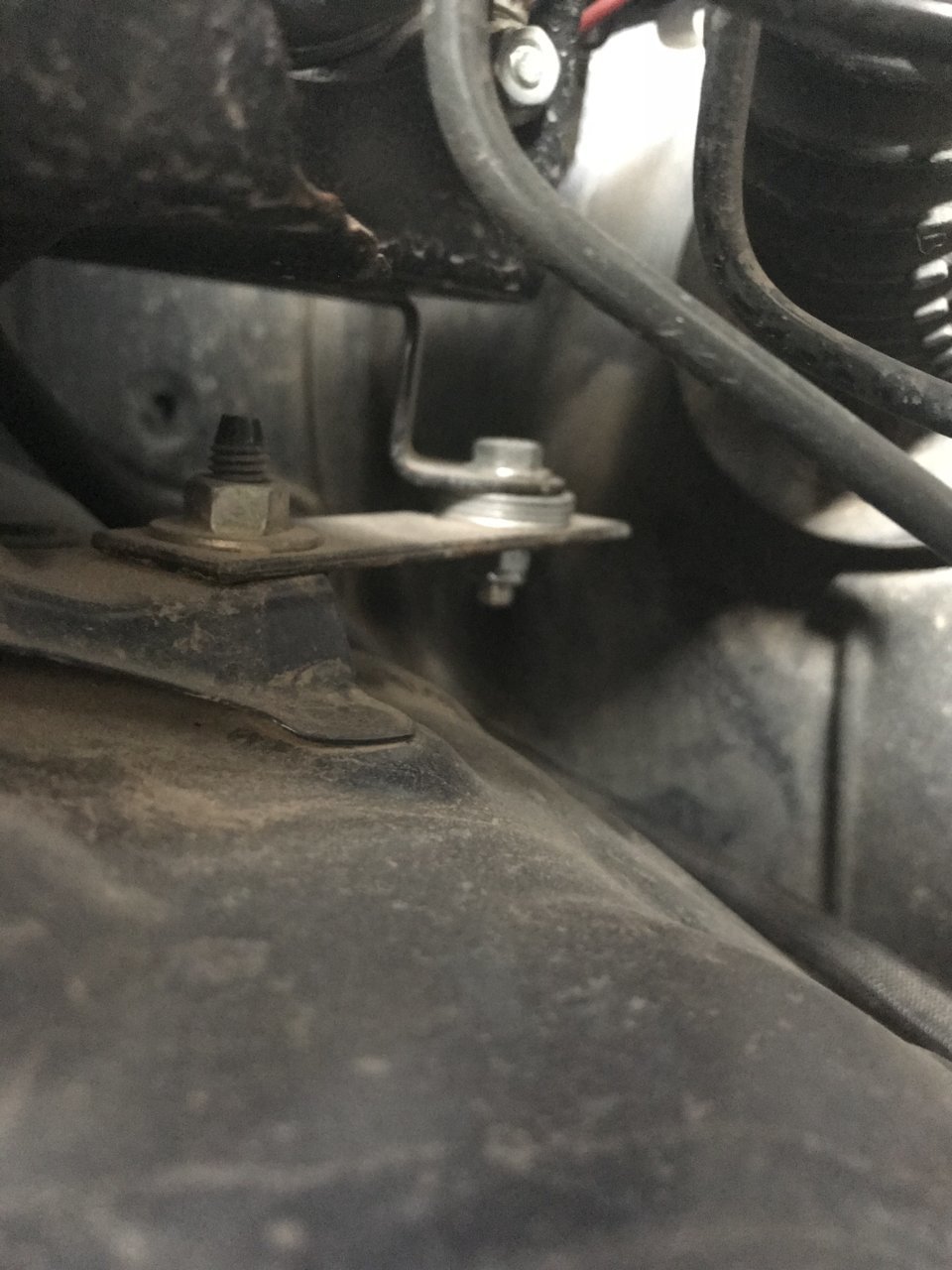

    Bent a price of steel to make a battery hold down. Drilled a hole in the fender and added a riv-nut so it’s secure and easy to remove when the time comes. 8F6D86E4-8737-42A7-B6FB-0A70B8B9BF2C.jpg

    Brandon.C.H likes this.
