Dual Battery Setups! Let's see them! Multiple Batteries Thread!

Discussion in 'Technical Chat' started by MJonaGS32, Sep 20, 2013.

  1. Jul 6, 2018 at 12:24 PM
    #1921
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    Honestly, depending on your dual battery setup, with the ignition on, you'll likely be reading alternator voltage output much of the time instead of the battery. This is why with the ignition off, you'll see a true voltage of the batteries. Also be careful with losses in the lines or trying to read off of the power while another device is running. I had a voltmeter mounted in the back of my topper, but I tied it to the feed of other things, it shows a dip in voltage with other stuff turning on and off. I ended up running independent hot and ground to each main and aux.

    Last edited: Jul 6, 2018
  2. Jul 8, 2018 at 9:27 AM
    #1922
    SportsmanJake

    SportsmanJake Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    405
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    I am ordering parts for a dual battery setup (both in the engine bay) with a Blue Sea ML-ACR.

    What wire gauge do you guys recommend to connect the batteries?

    Also, Do any brick and mortar stores carry good welding wire? I've got a good online source, but shipping is expensive.

    I know I could get wire from West Marine, but I don't know if it would be as flexible.

    Last edited: Jul 8, 2018
  3. Jul 8, 2018 at 12:16 PM
    #1923
    KaptainH

    KaptainH Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,278
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    Home Depot should have the wire you need- it’s on their bulk racks

  4. Jul 9, 2018 at 3:54 PM
    #1924
    crymes

    crymes Well-Known Member

    Joined:
    Oct 6, 2016
    Member:
    #199099
    Messages:
    265
    Gender:
    Male
    First Name:
    Cameron
    CT
    Vehicle:
    2017 TRD OR DCSB QS
  5. Jul 10, 2018 at 3:36 PM
    #1925
    PNUT

    PNUT Snake is just sneak spelled sideways

    Joined:
    Oct 18, 2015
    Member:
    #166976
    Messages:
    380
    Gender:
    Male
    North Bay
    Vehicle:
    2016 Tacoma DCSB TRD OR 4X4
    Ray 10s Prinsu Switch Pro
    Need info on group buy please

    NM I missed it.

    Last edited: Jul 10, 2018
  6. Jul 11, 2018 at 9:41 AM
    #1926
    BrewDog Lemons

    BrewDog Lemons Member

    Joined:
    Jan 16, 2018
    Member:
    #241443
    Messages:
    24
    Gender:
    Male
    First Name:
    Doug
    Vehicle:
    99 Tacoma "Brown Trout"
    Hello guys i'm trying find any information on a secondary battery location for the 1st gens any links or pics that someone could share thanks in advance

    QMEDJoe likes this.
  7. Jul 12, 2018 at 7:12 AM
    #1927
    SportsmanJake

    SportsmanJake Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    405
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    Blue Sea ML-ACR Wire Gauge

    I see a lot of people using 1/0 gauge when connecting to a battery in the bed.
    A user in this thread who had the batteries next to each other used 4 gauge.

    What is the general consensus for batteries in the same engine bay but on different sides?
    I want to use 2 awg but am not sure if that will be big enough.

  8. Jul 12, 2018 at 7:27 AM
    #1928
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    Be certain to fuse the connections, but honestly, it's all about powerloss over distance and the amount of current you push.
    http://circuitwizard.bluesea.com/
    The above site is a pretty good tool.

  9. Jul 12, 2018 at 7:36 AM
    #1929
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    I have a battery on each side of he engine bay and used 2awg. It’s perfectly fine. Personally 4awg is getting a little small to feed the starter, but factory is somthing like 5awg. The longer the run the thicker the wire you want. So in the bed you wound want a 1/0 or larger because of wire resistance.

    As I was building/wiring mine I started the truck only off the aux battery running 2awg to the stock location
    I wound not fuse your system if you will be using the aux battery to self jump.

    OneFastGeek and SportsmanJake like this.
  10. Jul 12, 2018 at 7:56 AM
    #1930
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    I fused at 200 amps, there are limitations on what the ML-ACR can pass.

  11. Jul 12, 2018 at 8:38 AM
    #1931
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    200A is the max of some other isolaters, the ml-acr is meant to be able to pass starting voltages

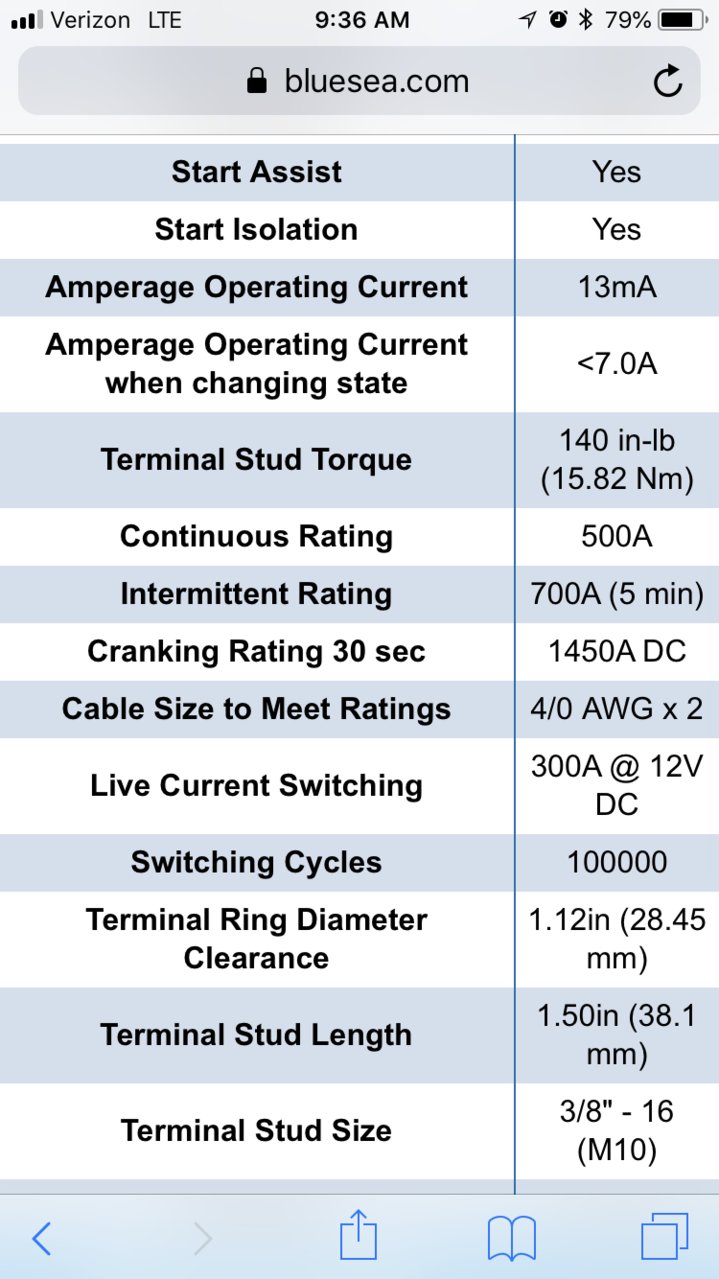

    500A for continuous duty. It can peak at 1450A for 30 sec or 700A for 5 min

    OneFastGeek and tacofort like this.
  12. Jul 12, 2018 at 10:01 AM
    #1932
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    All of what you say is entirely accurate, I would also look at the max charging current for your specific batteries. My Renogy 200AH AGM battery has a max charging current of 80A, though a discharge current of 2000A for 5s. My personal opinion and the biggest reason I fuse my leads, if a wire gets abraided somehow and grounds, I may prevent a fire or damage to the battery or other things. To each their own, as far as jump starting, it may take longer with the fuses or I could bypass with jumper cables.

    The only thing I haven't fused is the winch, but that requires large draws, so any fuse would be ineffective relative to the battery. I did however isolate the winch with a solenoid.

  13. Jul 12, 2018 at 10:04 AM
    #1933
    -40

    -40 Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160383
    Messages:
    1,056
    Gender:
    Male
    North Dakota
    Vehicle:
    01 DC Camburg LT & 17 OR OME BP-51
    1 st Gen TRD Supercharger. URD 7th Inj. Camburg 4x4 LT Kit. Tundra Brakes. 3rd Gen just get’n started, OME BP51 Dakar HD, Camburg UCA & various armor.
    Just realized I have 4 batteries sitting in my garage from October -April. When I put my boat away for the year they sit on a trickle charger. Be nice to have a extra battery during hunting season and cold weather.
    Is there a simple way to hook up a second battery that doesn’t require charging equipment, monitors, switches, upgraded alternator?

  14. Jul 12, 2018 at 10:08 AM
    #1934
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    Depends on what type of battery. You should not need an upgraded alternator, what do you want to do with it? What's the plan for the second battery?

  15. Jul 12, 2018 at 10:25 AM
    #1935
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Also true. :p Lol depends on your reason for haveing the second battery. Mine was for self jump. Yours sounds more for extra accessories.

    While I dident fuse my wire runs, I crimped the ends, used heat shrink, and added a abrasion resistant wire loom for the whole run.

  16. Jul 12, 2018 at 10:36 AM
    #1936
    -40

    -40 Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160383
    Messages:
    1,056
    Gender:
    Male
    North Dakota
    Vehicle:
    01 DC Camburg LT & 17 OR OME BP-51
    1 st Gen TRD Supercharger. URD 7th Inj. Camburg 4x4 LT Kit. Tundra Brakes. 3rd Gen just get’n started, OME BP51 Dakar HD, Camburg UCA & various armor.
    Just too have a back up really. It’s a marine battery for electric trolling motors. I’m looking to just keep a charge on the second battery. If need be I can unhook the dead battery and hook up the fresh one. I’m looking for a low tech method.

    tacofort likes this.
  17. Jul 12, 2018 at 10:41 AM
    #1937
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    So, run a 6 awg wire to the back and get a solenoid or heavy duty switch at the main battery. You’ll have to wire the solenoid to a circuit that is on when truck is on. Or the switch you’d have to go turn it on and off every time.

    Another option is wire in with 6 or 4 gauge an Anderson plug in the rear to plug in the extra battery

    -40 and tacofort like this.
  18. Jul 12, 2018 at 10:48 AM
    #1938
    tacofort

    tacofort Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211102
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Joe
    Cincinnati, OH
    Vehicle:
    2017 Toyota Tacoma TRD PRO, Automatic, Cement
    Adventure Trailers Tacoma Habitat Pelfreybilt Rock Sliders Line-X Pelfreybilt Pro mid, Gas, Exhaust Reroute Skids Hondo Unholey Dash mount Total Chaos Bed Stiffeners Redline Tuning Hood Lift Struts Weathertech Floor Liners
    Certainly sounds like you did it right. :cheers: Applications vary.

    YamaDirtrider likes this.
  19. Jul 13, 2018 at 12:06 PM
    #1939
    SamuelJ

    SamuelJ Darkhorse

    Joined:
    Sep 11, 2014
    Member:
    #138061
    Messages:
    251
    Gender:
    Male
    First Name:
    Samuel
    33.9269893 -118.0185768
    Vehicle:
    2012 DCLB 4x4 Trd Sport
    Shortened flowmaster exhaust with a turn down pipe, under cowl intake, throttle body spacer, train horn, underhood led lights, hood struts, dual 27f yellow tops. Led ditch lights, led front roof light bar, led fogs and headlights, behind grill mounted piaa dual color driving lights. Aux fuse and relay panel. Pro comp skid plate, bilstein 5100 leveling shocks on a 2in. lift, b110 rear 5100, ubolt flip kit with an add a leaf, front superbumps, light racing jounce rear bumpstops, sway bar relocation, brake line bracket extension, driveline carrier bearing drop, front diff drop, on board air compressor, 10 gal pump driven fresh water tank, cb radio, pioneer 4200 hu, infinity reference component front and component rear speakers powered by rockford fosgate 4 channel, kicker comp cvt102 10 pancake with a kicker 1600w class d amplifier. Big three upgrade, capacitor. Full cab sound deadening and thermal insulation. Led interior including added footwell, courtesy, cupholder, center console, and glovebox lighting, rock lights, bed lights, ring gear armor, under bed ammo can storage, pistol safe, body armor sliders, roof rack, hilift, 285/70 17 bfg km2 on american racing teflon atx, tailgate strut, and tailgate lock, retrofit projector headlights(home built), rgb halos inside turbine shrouds, black out surround, black chrome reflector and shroud, white halo outside shroud, white led drl, rgb behind grill on rf control. Mods followed from a TW thread: Anytime fogs Anytime rear view camera Anytime 400w inverter Alternating blinker/running lights 110v center console outlet ABS kill switch Engine kill switch (magnetic) 12volt bed socket Rear diff breather relocation Led bed lights Cargo net anchors Grid it center console top Grid it sun visor Locking center console Instrument cluster led swap Map lights on with dome Cigarette lighter add (shifter position) Dtrl kill switch Hilux lighted 4wd selector switch. Vios hvac knobs Hood scoop led bar
    I've read all 99 pages and learned more than I thought. I already had a fuse block and relays setup under my hood and there is not enough room for two 27f yellow tops. I mounted the second battery in the bed and ran 0 to the engine bay. Since the power consumption for my block is rated to require 4 gauge and I ran 0 gauge would it be ok to use the same wire to feed the fuse block from the battery in the bed or do I need a second line from aux batt to fuse block?

  20. Jul 13, 2018 at 1:30 PM
    #1940
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,211
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    You can run it all off the same line

    tacofort likes this.
