dually's Simple&Clean Build

Discussion in '2nd Gen. Builds (2005-2015)' started by dually, Mar 15, 2013.

  1. Mar 15, 2013 at 9:03 PM
    #1
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    Current Mods:

    Suspension:
    Bilstein 5100s set @ 0
    OME 885x Coils
    Toytec AAL
    Firestone Helper Bags

    Wheels and Tires:
    Konig Six Shooters in Matte Bronze 17x9 0mm offset
    Dick Cepek Crushers 285/70-17
    Muteki Purple Lugs

    Exterior:
    BHLM w/ Morimoto D2S Retrofit 5000k HIDs, Color matched shrouds
    DeBadge
    Satoshi Grill w/ 3M DiNoc wrapped dish and FJ 'Toyota' emblem
    LED corner bulbs
    Foglight Anytime Mod
    Yellow vinyl wrapped fogs
    Tint 10% rear, 35% front
    Tonneau cover
    Yakima bed rail system
    -54'' tracks
    -(2) Frontloader bike carriers
    -Loadwarrior

    Interior:
    LED gauge cluster swap (White)
    Scangauge II mounted on steering column
    LED dome lights (White)
    Weathertech floor mats
    Alpine Headunit

    Performance:
    Homebuilt 'TCAI' clone
    Dynomax muffler, dumped after axle






    I purchased this 05 DCLB SR5 in January of 2012 with 86k on the clock. It had a Rough Country spacer and block lift, Firestone helper bags, Ultra Drifter wheels and a Tonneau cover.

    It also had hideous running boards that came off as soon as I pulled it off the lot and broken window visors. It was debadged that day too.

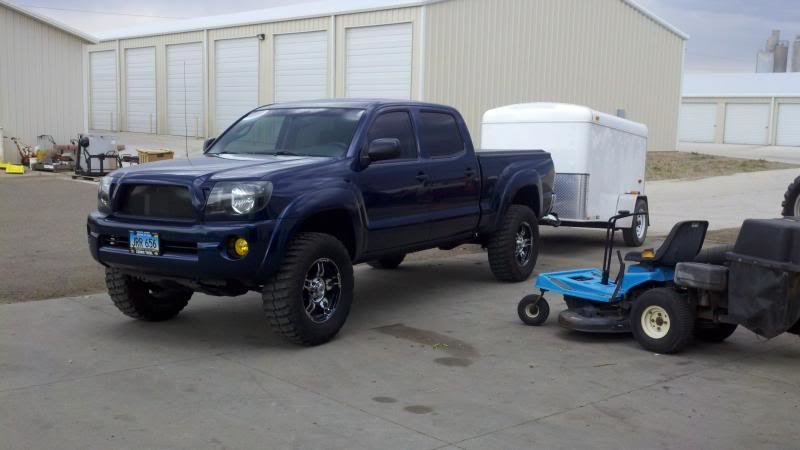

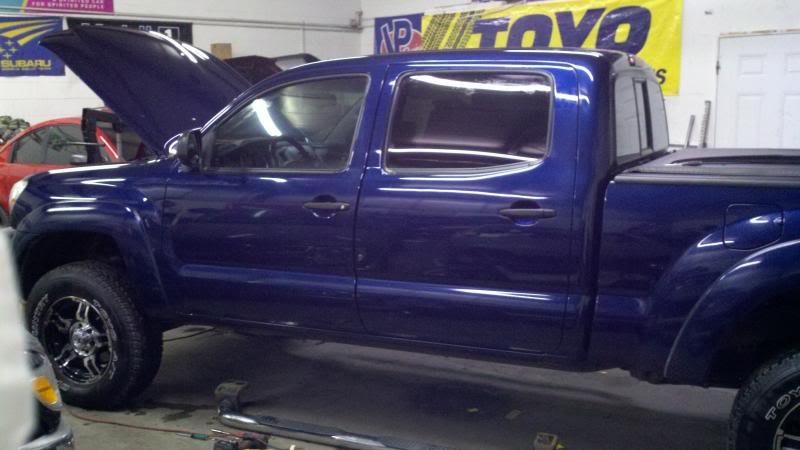

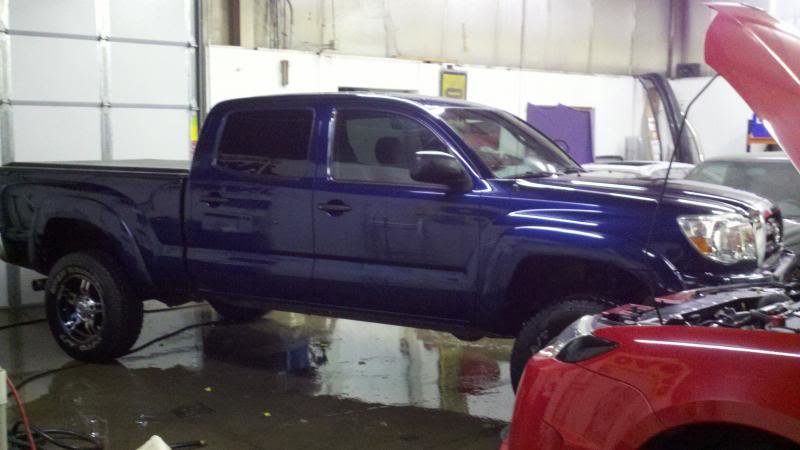

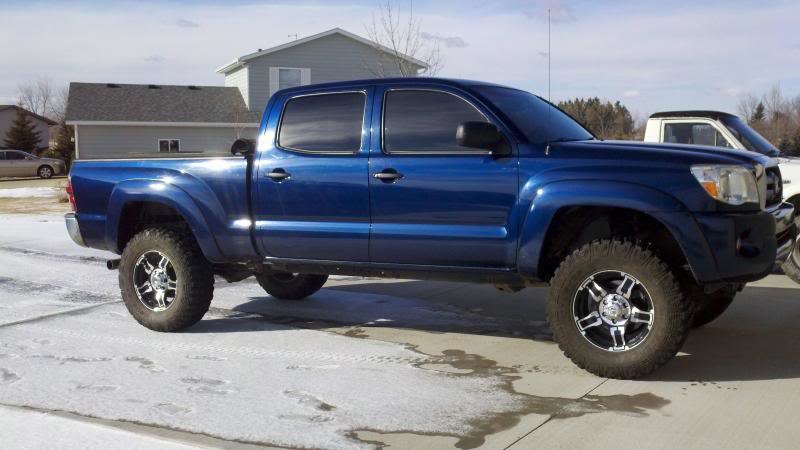

    Here is after I cleaned it up the day I bought it:

    I went a few days and found a set of insurance take-off Dick Cepek 285/70-17s for $350 mounted and balanced. Couldnt pass it up!

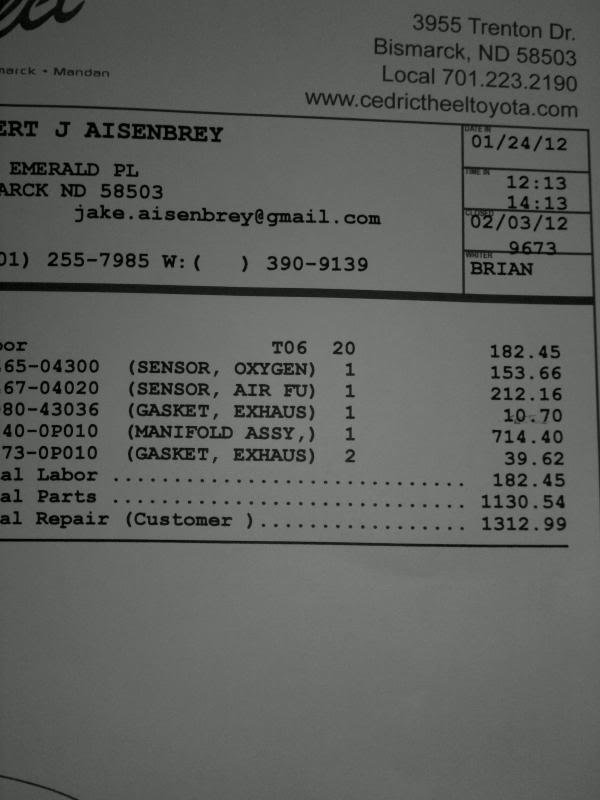

    I put on a few more miles and the CEL came on.... good thing the dealership is awesome and the repair up!

    At some point the BHLM was done, HIDs were added. The Rough Country lift was scrapped for 5100s, OME 885s and Toytec AALs!

    I wrecked a motorcycle

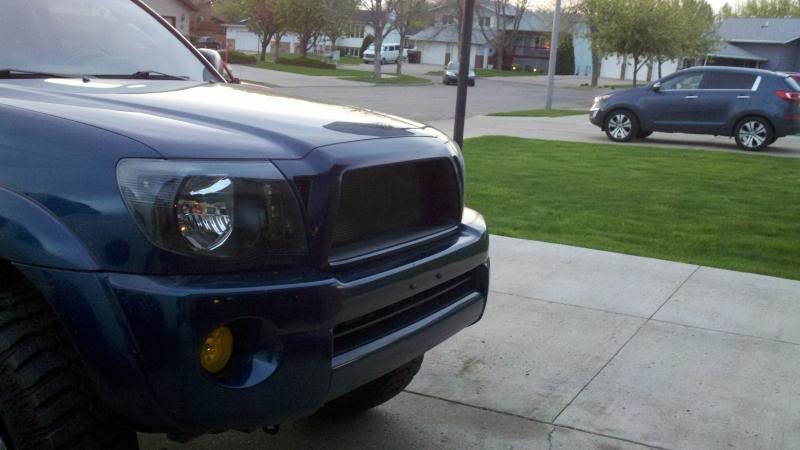

    So I built a satoshi

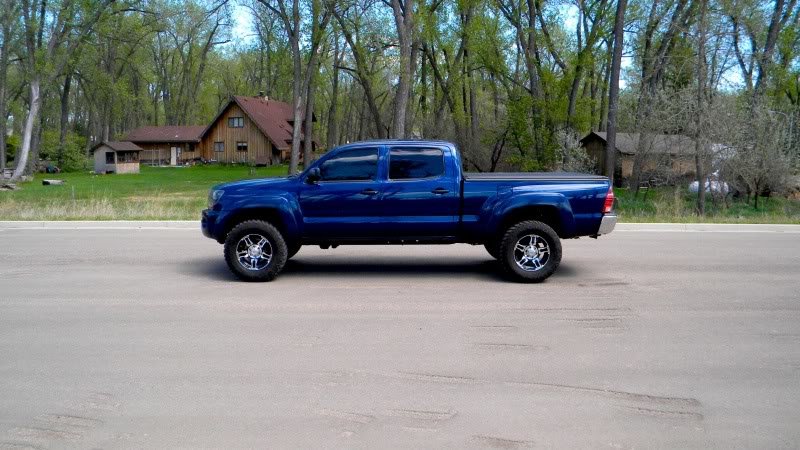

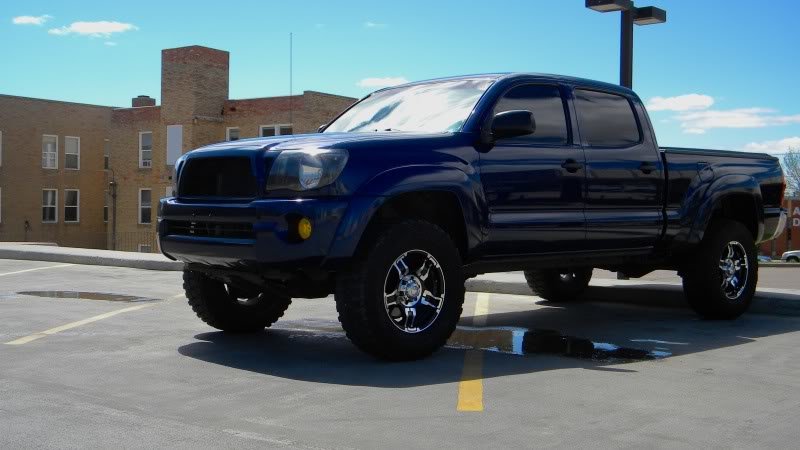

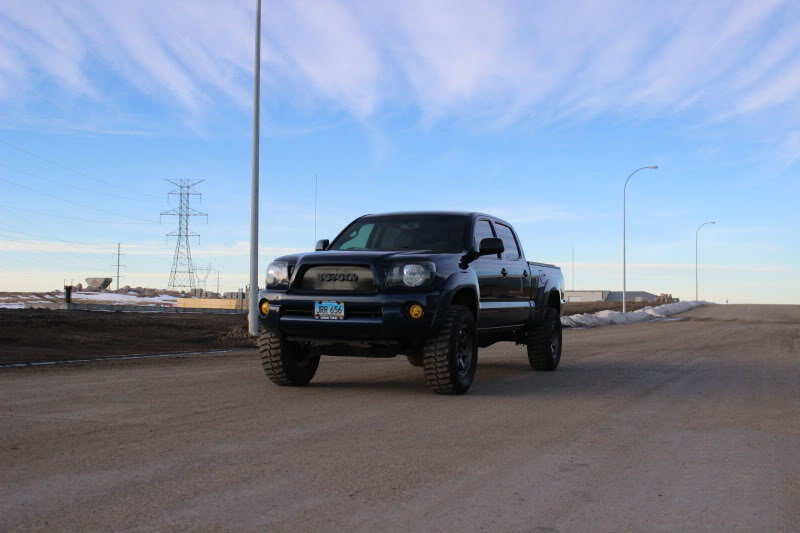

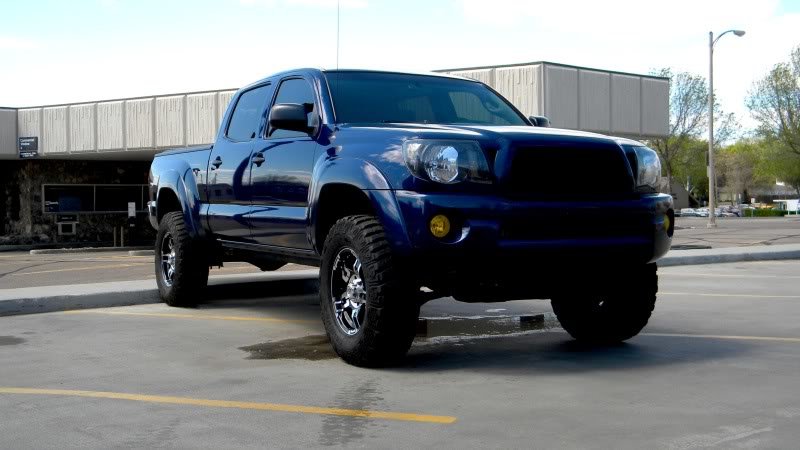

    A quick photoshoot I did around May of 2012

    Loaded up for Sturgis 2012

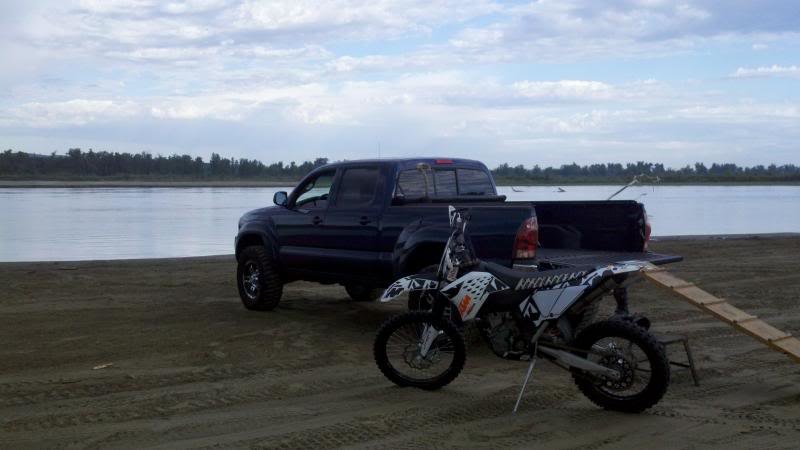

    Doubles as a dirtybike hauler

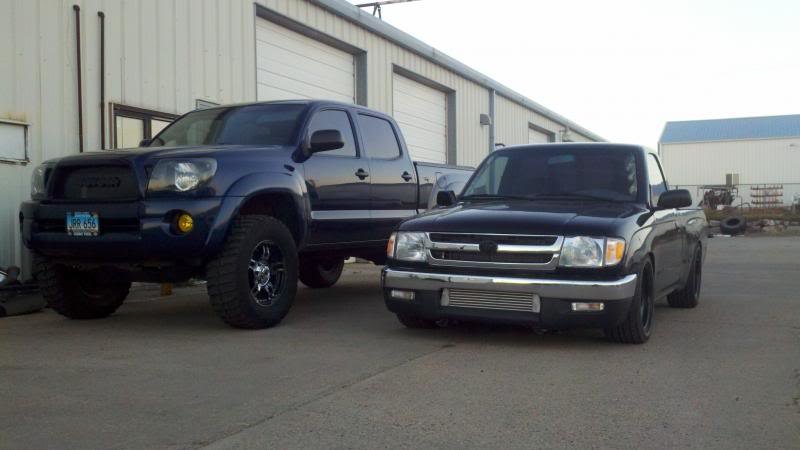

    Big & Little

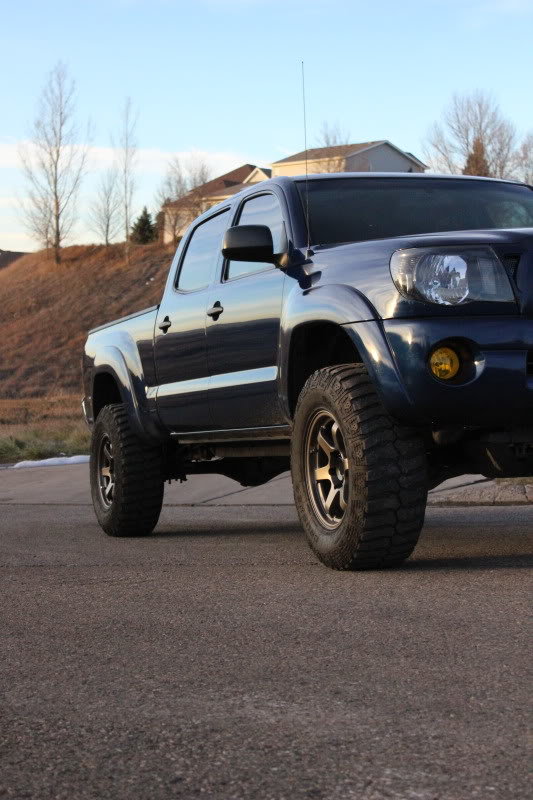

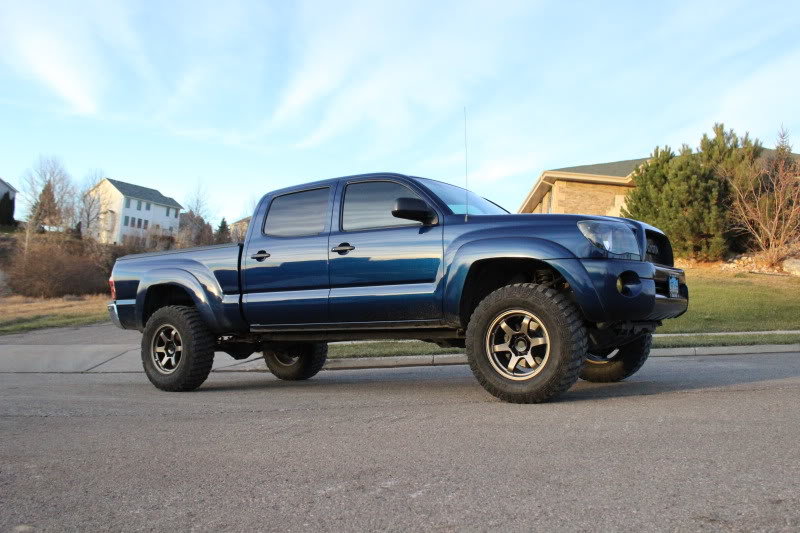

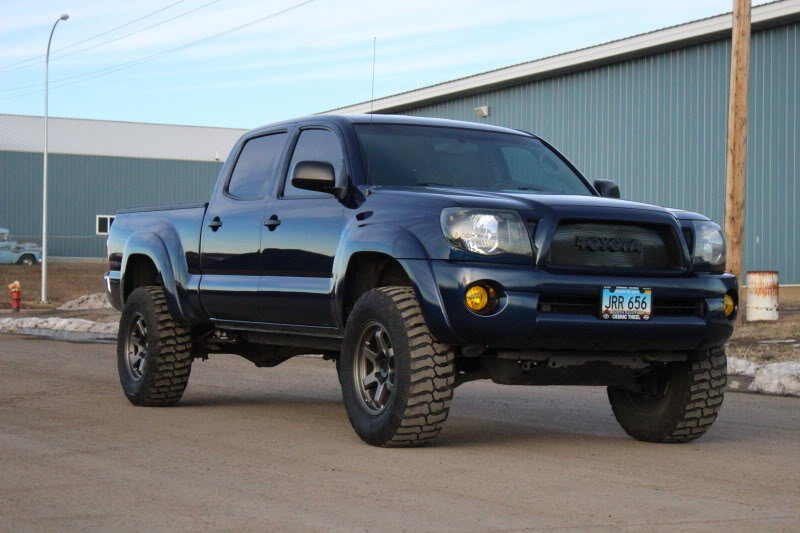

    Bought a set of Konig Six Shooters in matte bronze around November 2012

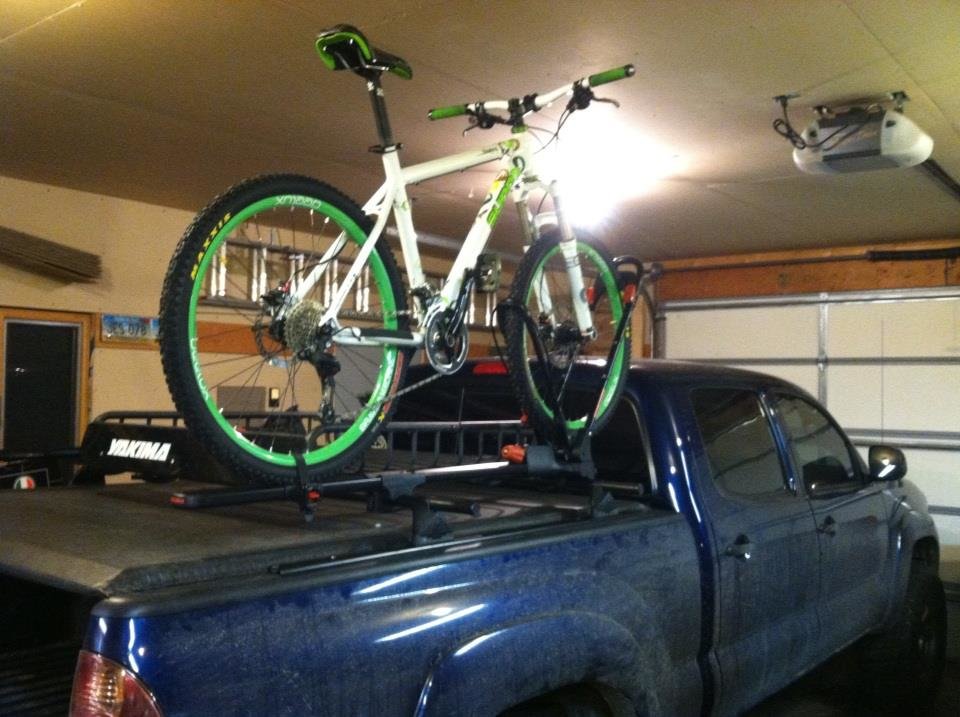

    Taken 13Mar13, when I finished my bed rack
    420117_10152651212015455_49077706_n_zpsf_9725b839870ffe67a9661345ef22d7309d407bbb.jpg

    Will update with modlist and current pics!

    Last edited: Mar 17, 2013
  2. Mar 15, 2013 at 9:21 PM
    #2
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    Mod & Maintenance Log

    20Jan12
    -Purchased
    -Removed running boards
    -Removed window deflectors
    -Debadge
    25Jan12
    -Front windows tinted to 15%
    26Jan12
    -Weathertech floormats
    -PDR work @ Profinish
    27Jan12
    -285/70-17 Dick Cepek Crushers installed
    -Fixed fan tick
    -Installed cabin filter
    31Jan12
    -Installed Alpine HU
    -Wrapped dash kit in DiNoc
    3Feb12
    -Warranty repair work done @ Theel
    5Feb12
    -BHLM
    7Feb12
    -Installed 5000k DDM HID kit
    12Feb12
    -Oil change (Mobil 1 5w-30 syn)
    -NAPA Gold filter
    -NGK Iridium plugs
    86881mi
    17Feb12
    -New serpentine belt
    23Mar12
    -Toytec AAL
    -Rear Bilstein 5100s
    87664mi
    1Apr12
    -Installed OME 885 coils
    -Installed front 5100s
    12Apr12
    -Alignment
    25Apr12
    -Installed foglight tint
    29Apr12
    -Installed interior LEDs, reverse light and license plate
    1May12
    -Installed Satoshi
    7Jul12
    -Oil change (Mobil 1 52-30syn)
    -OEM filter
    89561mi
    26Jul12
    -Front windows tinted to 35%
    9Oct12
    -Recall 90L
    13Oct12
    -Installed new battery, NAPA P/N 8434R
    30Oct12
    -Konig Six Shooters
    -Muteki Lugs
    16Nov12
    -Oil change (Mobil 1 5w-30syn)
    -Cleaned TB and MAF
    -Seafoam
    92589mi
    26Dec12
    -Brake fluid flush
    -Painted calipers and drums (black)
    93395mi
    20Jan13
    -LED cluster swap (white)
    21Jan13
    -Foglight anytime mod
    25Jan13
    -Alignment, ABS light diagnose
    94000mi
    19Feb13
    -Morimoto retrofit completed
    13Mar13
    -Installed custom built 'TCAI'
    -Installed Yakima bed rack

    Last edited: Mar 16, 2013
  3. Mar 15, 2013 at 9:26 PM
    #3
    06 tacoma owner

    06 tacoma owner Well-Known Member

    Joined:
    Jul 31, 2012
    Member:
    #83845
    Messages:
    1,256
    Gender:
    Male
    First Name:
    Will
    Western KY
    Vehicle:
    2006 AC super white 4x4
    4 inch lift, 6000k HIDs, weathertechs, Pioneer head unit with bluetooth, 285/70 trail grapplers, aero turbine muffler w/ flowmaster 3 inch stainless tip
  4. Mar 16, 2013 at 7:39 AM
    #4
    teneighty

    teneighty I'd rather be skiing...

    Joined:
    Oct 5, 2012
    Member:
    #88357
    Messages:
    5,722
    Gender:
    Male
    Right behind you. NY
    Vehicle:
    2013 DCLB SR5 4X4 Nautical Blue
    Check out my Build
    Sub'd

    Was this for me?! LOL

    Looks good man!

  5. Mar 16, 2013 at 11:00 AM
    #5
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    Figured it was time!

  6. Mar 16, 2013 at 4:39 PM
    #6
    2TRunner

    2TRunner Well-Known Member

    Joined:
    Jul 30, 2010
    Member:
    #40980
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Chris
    Dig the dark blue trucks big time. Great truck to look at.

  7. Mar 26, 2013 at 6:52 AM
    #7
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    I originally bought my truck with a 2" block in the rear and leveling bags (ones mounted in front of axle). I quickly changed out the block for a AAL. All was good.. now fast forward about a year..

    A month ago I started getting a creak and feeling of axle wrap like the stock leafs are notorious for.

    Well this morning I headed out to the junkyard and found some good leafs off of a 1996 Chevy 1/2ton 4x4. They are three leafs and a overload. Picked them up for $47.25 with tax and I grabbed a 6leaf spring for good measure as well. They were 2.5" wide and 1/4" thick so they looked like they would work.

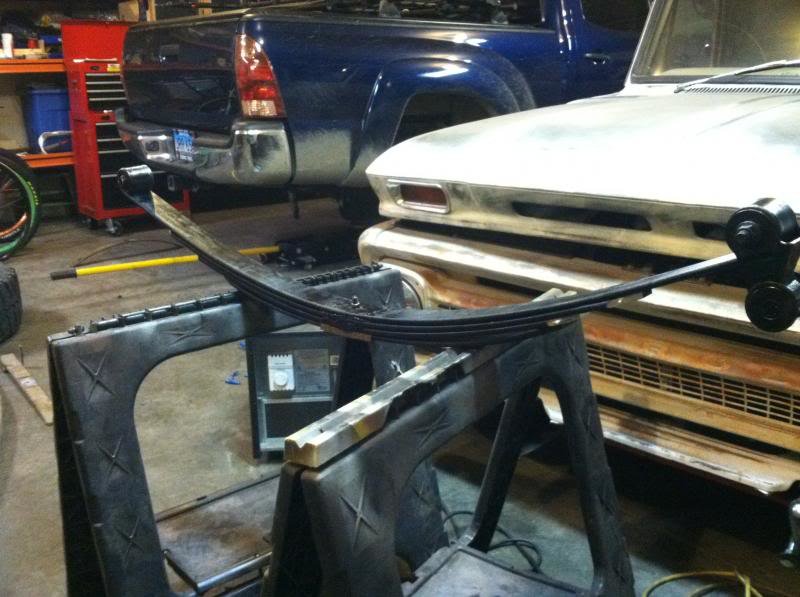

    I bought them home and cleaned them up and decided I was gonna use two leafs on either side. I backed my truck in and got to work... I pulled my leveling bags out, but took measurements with them @ 50psi and deflated (i'll post those measurements). About 8hrs later I had my hybrid packs installed back on the truck.

    I used:
    Main Toyota
    Smaller Chevy (out of the 3leaf pack)
    Longer Chevy (out of the 3leaf pack cut to 36.5" total length)
    AAL (I kept it at its original length, with the long side to the rear)

    My measurements before:
    Driver (bags @ 50): 40 3/4"
    Pass (bags @ 50): 41"
    Driver (bags deflated): 39 3/4"
    Pass (bags deflated): 40"

    The completed pack was the same thickness as my non TSB pack with AAL and overload (1 3/4")

    After measurements:
    Driver: 41 5/8"
    Pass: 41 7/8"

    I it rides great, plush and smooth but firm enough to not blow through the stroke.

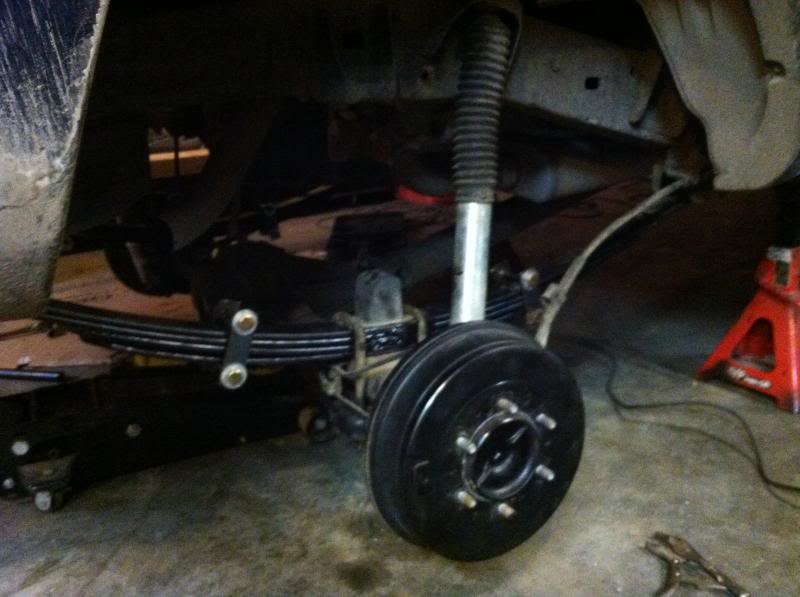

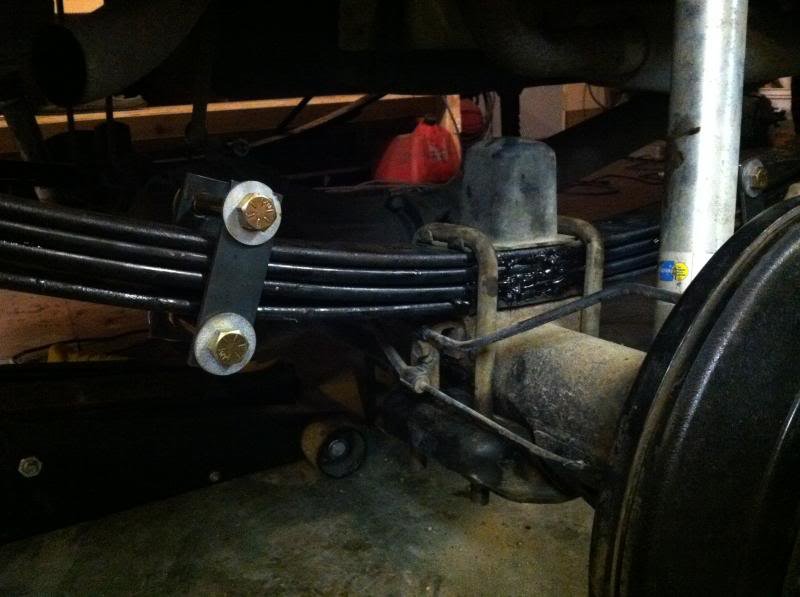

    Here are the pics I did take:

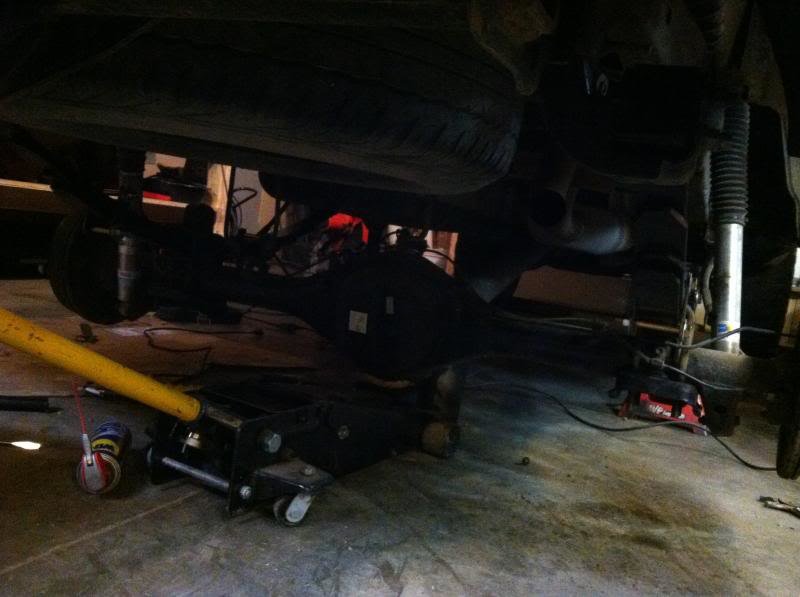

    DROOOOP

    Anyway, I'm $60 dollars into it and a day of my life.. right now, can't say it was a loss!

  8. Mar 26, 2013 at 7:03 AM
    #8
    Hambone155

    Hambone155 Well-Known Member

    Joined:
    Jul 9, 2008
    Member:
    #7844
    Messages:
    729
    Gender:
    Male
    omaha
    Vehicle:
    Causing Butthurt is my job
    port and polish intake manifold, supercharger, pulley for charger, lifted, tires, deckplate, (doing full engine build)
    want to sell the 2WD turbo? or trade i got toys....

  9. Mar 26, 2013 at 7:07 AM
    #9
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
  10. Mar 26, 2013 at 7:09 AM
    #10
    Hambone155

    Hambone155 Well-Known Member

    Joined:
    Jul 9, 2008
    Member:
    #7844
    Messages:
    729
    Gender:
    Male
    omaha
    Vehicle:
    Causing Butthurt is my job
    port and polish intake manifold, supercharger, pulley for charger, lifted, tires, deckplate, (doing full engine build)
    trade for 08 zx6r? i give me a min and i can post a pic.

  11. Mar 26, 2013 at 7:10 AM
    #11
    Hambone155

    Hambone155 Well-Known Member

    Joined:
    Jul 9, 2008
    Member:
    #7844
    Messages:
    729
    Gender:
    Male
    omaha
    Vehicle:
    Causing Butthurt is my job
    port and polish intake manifold, supercharger, pulley for charger, lifted, tires, deckplate, (doing full engine build)
  12. Mar 26, 2013 at 7:10 AM
    #12
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    No, not interested in a bike, unless its a triumph or ducati. Cash only at this point.

  13. Mar 26, 2013 at 7:13 AM
    #13
    saundern

    saundern Swerve for nothing

    Joined:
    Dec 10, 2009
    Member:
    #27342
    Messages:
    4,212
    Gender:
    Male
    First Name:
    Nick
    Greenville, SC
    Vehicle:
    2005 TRD Sport
    wrecked the motorcycle...so i made the satoshi haha looking good man!

  14. Mar 26, 2013 at 7:41 AM
    #14
    Hambone155

    Hambone155 Well-Known Member

    Joined:
    Jul 9, 2008
    Member:
    #7844
    Messages:
    729
    Gender:
    Male
    omaha
    Vehicle:
    Causing Butthurt is my job
    port and polish intake manifold, supercharger, pulley for charger, lifted, tires, deckplate, (doing full engine build)
    Damn, sounds good man. You got a build thread on that one?

  15. Mar 26, 2013 at 7:48 AM
    #15
    Toyota Truck

    Toyota Truck Well-Known Member

    Joined:
    Nov 21, 2008
    Member:
    #10925
    Messages:
    1,963
    Gender:
    Male
    First Name:
    JT
    Texas
    Vehicle:
    2008 Prerunnner
    Magnaflow Muffler-TSB springs-Nuvi 265wt-aFe pro dry s filter-Husky Liners-Blue dome light-extra d-rings-OME 90000 sport struts-885 coils-N182 shocks-TSB AAL-LR UCAs-procomp black alloy rims- nitto terra grapplers-20% tint
    I see that you have OME coils and use the 5100s. Why did you do this instead of using the OME struts and shocks?

  16. Mar 26, 2013 at 11:46 AM
    #16
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    I got a good deal on both, the 5100s and 885s I couldn't pass up

  17. Mar 26, 2013 at 12:43 PM
    #17
    Toyota Truck

    Toyota Truck Well-Known Member

    Joined:
    Nov 21, 2008
    Member:
    #10925
    Messages:
    1,963
    Gender:
    Male
    First Name:
    JT
    Texas
    Vehicle:
    2008 Prerunnner
    Magnaflow Muffler-TSB springs-Nuvi 265wt-aFe pro dry s filter-Husky Liners-Blue dome light-extra d-rings-OME 90000 sport struts-885 coils-N182 shocks-TSB AAL-LR UCAs-procomp black alloy rims- nitto terra grapplers-20% tint
    I see. Was thinking about doing the same. Just wanted to know if there was a ride difference between the two

  18. Mar 26, 2013 at 1:37 PM
    #18
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    Doesn't ride bad. Stiffened up the ride but still a very exceptional riding and driving experience

  19. Jan 28, 2014 at 7:00 PM
    #19
    dually

    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,161
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    265/75R16 Falken Wildpeak AT3 LED Bulbs Access Lorado
    I've been 'deployed' as the army calls it to Virginia/DC area since May last year. Only a few months left and I'll be back to install the parts I've accumulated since being away.

    URD MAF Calibrator
    AEM Uego Wideband
    Lotek gauge pod
    LCA bushings
    Light Racing UCAs
    Toytec top plate spacers
    SKS locks for yakima system
    K&N Hydrophobic sock
    CSX3 Squash freshener

    With plans to build a swing gate, tire carrier/plate rear bumper equipped with Rigid lights and a plate front bumper. Just have to pick out a new 220v Mig!
