Dust Seal replacement and O-ring placement?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Bwthomas77, Aug 8, 2020.

  1. Aug 8, 2020 at 11:49 AM
    #1
    Bwthomas77

    Bwthomas77 [OP] Well-Known Member

    Joined:
    Sep 27, 2014
    Member:
    #139205
    Messages:
    134
    Gender:
    Male
    North Carolina
    Vehicle:
    12 dbl cab trd sport 6spd
    Supercharger, flowmaster exhaust, 4runner disc brakes, Volant CAI, ECGS bushing
    Hello everyone,

    I'm in the process of doing the ECGS needle bearing replacement, while I am at it, I'm replacing all the seals.

    I'm using National 710573 dust seal where the CV interacts with the hub assembly. I have the 90301-A0005 O ring but can't figure out where it is supposed to be. When I pulled the existing dust seals, there is no evidence of an O ring.

    I think it's supposed to go around the seal?

    Any help would be appreciated.

  2. Aug 8, 2020 at 11:51 AM
    #2
    Bwthomas77

    Bwthomas77 [OP] Well-Known Member

    Joined:
    Sep 27, 2014
    Member:
    #139205
    Messages:
    134
    Gender:
    Male
    North Carolina
    Vehicle:
    12 dbl cab trd sport 6spd
    Supercharger, flowmaster exhaust, 4runner disc brakes, Volant CAI, ECGS bushing

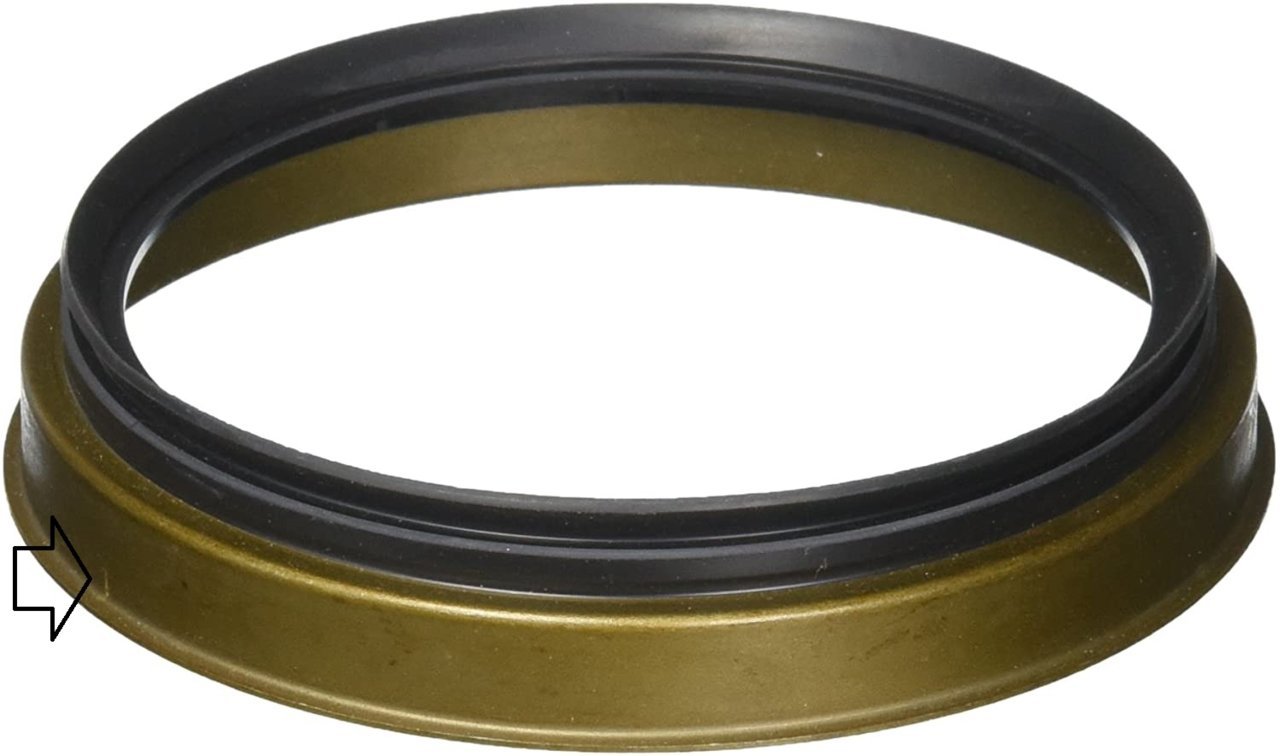

    I put an arrow on the pick where I think it is supposed to go. 71FCjUqrdDL._AC_SL1500_.jpg

  3. Aug 8, 2020 at 11:52 AM
    #3
    JCzerosixtaco

    JCzerosixtaco Active Member

    Joined:
    Sep 29, 2018
    Member:
    #267853
    Messages:
    43
    Gender:
    Male
    KY
    Vehicle:
    2006 SUPER WHITE ACLB MT, TRD OR, TP, SR5
    Total stereo replacement, TRD Exhaust, Fox 2.0 coilovers, 2.0 reservoirs with an AAL in rear for about 2.5 inch lift, gunmetal TRD 4Runner wheels wrapped in K02
    The only o-ring I’m aware of is the one that seals the outside of the wheel bearing as it’s seated into the spindle.

  4. Aug 8, 2020 at 11:56 AM
    #4
    tirediron

    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    843
    First Name:
    John
    Vehicle:
    2018 4x4 Sport, Auto, BBP
    There would not be an o-ring where indicated by the arrow on any normal oil-seal.

  5. Aug 8, 2020 at 11:59 AM
    #5
    JCzerosixtaco

    JCzerosixtaco Active Member

    Joined:
    Sep 29, 2018
    Member:
    #267853
    Messages:
    43
    Gender:
    Male
    KY
    Vehicle:
    2006 SUPER WHITE ACLB MT, TRD OR, TP, SR5
    Total stereo replacement, TRD Exhaust, Fox 2.0 coilovers, 2.0 reservoirs with an AAL in rear for about 2.5 inch lift, gunmetal TRD 4Runner wheels wrapped in K02

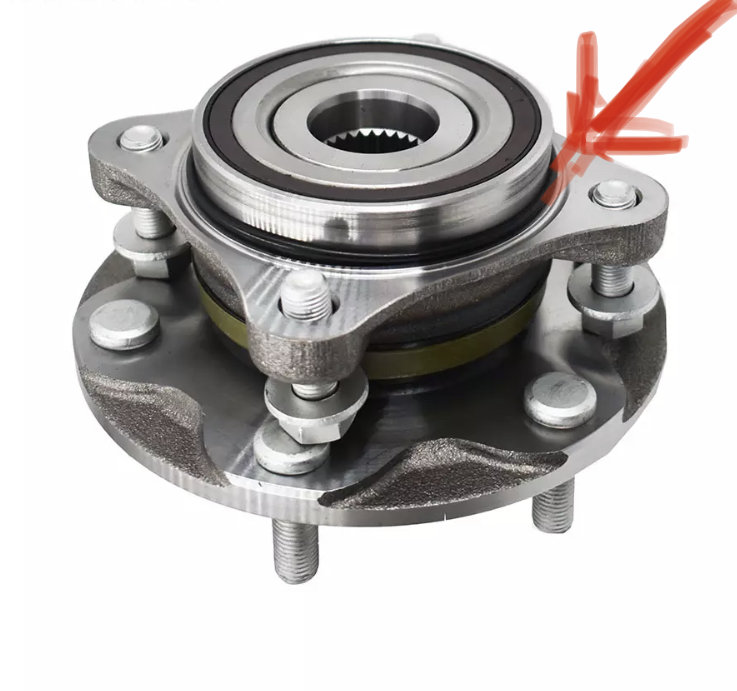

    This is probably the O-ring placement your looking for


  6. Aug 8, 2020 at 12:30 PM
    #6
    Bwthomas77

    Bwthomas77 [OP] Well-Known Member

    Joined:
    Sep 27, 2014
    Member:
    #139205
    Messages:
    134
    Gender:
    Male
    North Carolina
    Vehicle:
    12 dbl cab trd sport 6spd
    Supercharger, flowmaster exhaust, 4runner disc brakes, Volant CAI, ECGS bushing
    that makes much more sense, thanks

  7. Aug 8, 2020 at 12:31 PM
    #7
    Bwthomas77

    Bwthomas77 [OP] Well-Known Member

    Joined:
    Sep 27, 2014
    Member:
    #139205
    Messages:
    134
    Gender:
    Male
    North Carolina
    Vehicle:
    12 dbl cab trd sport 6spd
    Supercharger, flowmaster exhaust, 4runner disc brakes, Volant CAI, ECGS bushing
  8. Aug 8, 2020 at 12:32 PM
    #8
    Bwthomas77

    Bwthomas77 [OP] Well-Known Member

    Joined:
    Sep 27, 2014
    Member:
    #139205
    Messages:
    134
    Gender:
    Male
    North Carolina
    Vehicle:
    12 dbl cab trd sport 6spd
    Supercharger, flowmaster exhaust, 4runner disc brakes, Volant CAI, ECGS bushing

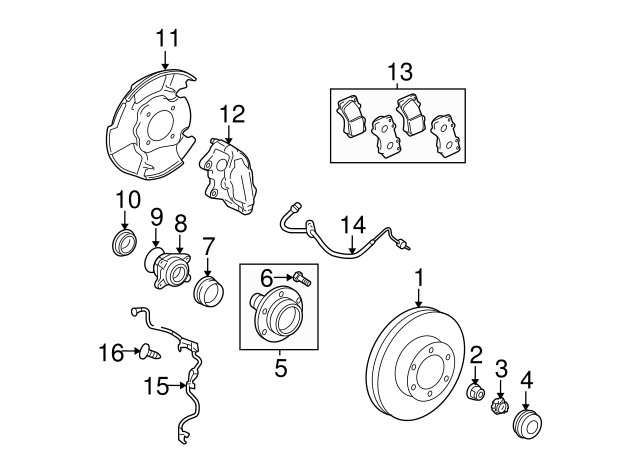

    was getting thrown off by diagram

  9. Aug 8, 2020 at 12:41 PM
    #9
    JCzerosixtaco

    JCzerosixtaco Active Member

    Joined:
    Sep 29, 2018
    Member:
    #267853
    Messages:
    43
    Gender:
    Male
    KY
    Vehicle:
    2006 SUPER WHITE ACLB MT, TRD OR, TP, SR5
    Total stereo replacement, TRD Exhaust, Fox 2.0 coilovers, 2.0 reservoirs with an AAL in rear for about 2.5 inch lift, gunmetal TRD 4Runner wheels wrapped in K02
    No prob
