E Locker not engaging - Advanced troubleshooting? NOW WITH SOLUTION

Discussion in '2nd Gen. Tacomas (2005-2015)' started by steveo27, Oct 24, 2021.

  1. Oct 24, 2021 at 10:17 PM
    #1
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,757
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    ‘11 TRD OR.

    Rear E Locker stopped engaging recently. Noticed it would engage and randomly disengage while using or it would be hard to disengage.

    Did all the basic stuff. Relay under the dash makes noise. Light just blinks. Drove in circles, figure 8s, ect.

    Unbolted it from the diff, cycle the button and the actuator motor spins & light stays solid. Depress the button, spins the other way and light goes off.

    You can physically slide the gear bar in the diff to manually lock & unlock it. It meshes super easy without any binding.

    Realigned everything and slap it back together, locker doesn’t engage.

    Seems the actuator motor is binding on the gear bar when everything is back together.

    The only thing I haven’t tried was realigning the actuator gear per the Toyota FSM or rebuilding the actuator.

    Any suggestions before I start tearing into the actuator itself?



    Thanks.

    Last edited: Oct 28, 2021
  2. Oct 24, 2021 at 10:25 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    16,645
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
  3. Oct 24, 2021 at 10:30 PM
    #3
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,497
    Deep South
    Herculiner Hootus
    Do you have the timing lined up right? Is the motor assembly bolted up flat against the diff housing without issue? Are you sure when you engage it manually it’s actually locking up and not something screwed up with the diff shift fork itself?

    Dm93, steveo27[OP] and TnShooter like this.
  4. Oct 24, 2021 at 10:32 PM
    #4
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,497
    Deep South
    Herculiner Hootus
    One thing you can also try is to engage it electrically and drive around to see if it locks in, the leave the switch on and unbolt to verify if the actuator moved the shift fork. If it did, that’s verification that the actuator isn’t the problem and something is broken in the differential.

    Dm93 likes this.
  5. Oct 24, 2021 at 10:40 PM
    #5
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,757
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Timing should be correct, unless it can somehow “jump” while it’s all bolted together. I need to double check this though.


    Motor bolts flat without issue.


    Slide gear moves freely. Manually engaging it, the diff locks, both wheels spin together. Manually disengaging it, it disconnects, both wheels spin separately. Seems no issue with the fork.


    I spent about 30 minutes today trying to get it to engage with zero luck.

    6 gearT444E likes this.
  6. Oct 24, 2021 at 10:43 PM
    #6
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,497
    Deep South
    Herculiner Hootus
    Could be the motor is weak and not spinning under “load”. Test to try and see what I posted above and see the position of the shift fork after you’ve tried to engage it.

    Dm93 likes this.
  7. Oct 24, 2021 at 11:13 PM
    #7
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,497
    Deep South
    Herculiner Hootus

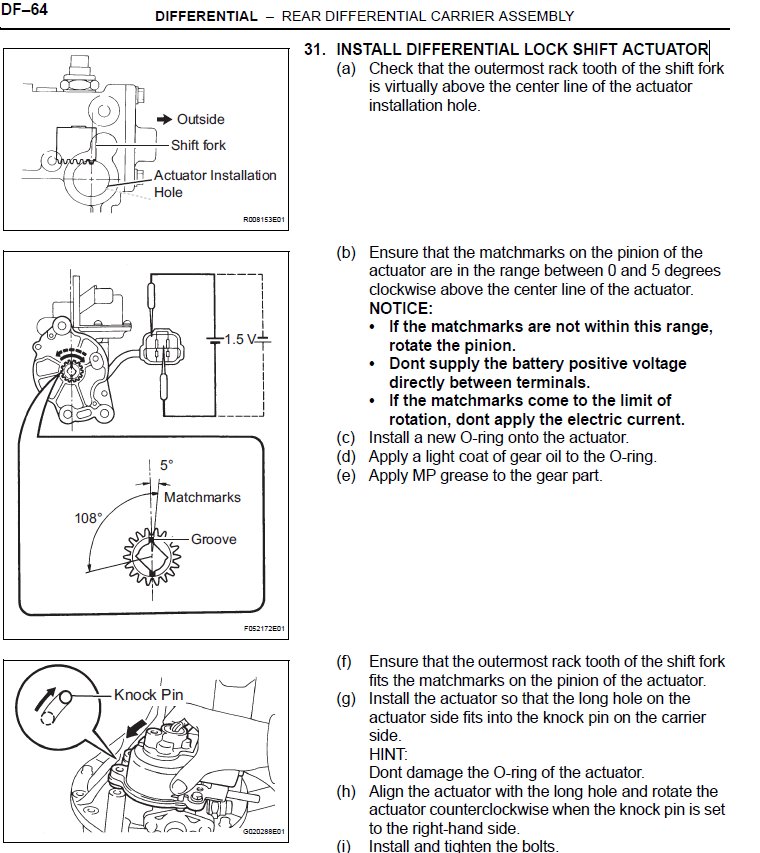

    Lastly, make sure you are re-installing correctly. A slight CCW rotation is needed to ensure the rack on the actuator pinion are properly meshed and timed. Need to move rack to the unlocked position, and make sure actuator is in the unlocked position, when reassembling.


    DoulosXP, Dm93 and steveo27[OP] like this.
  8. Oct 25, 2021 at 6:43 AM
    #8
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,757
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    I’ll pull it and double check the timing

    6 gearT444E likes this.
  9. Oct 28, 2021 at 6:08 PM
    #9
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,757
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Welp.

    Went to fuck with it tonight.

    Unbolted it from the axle, attempted to cycle the motor, I wont even cycle now. It cycled no problem the last time I had it apart a month or so ago.

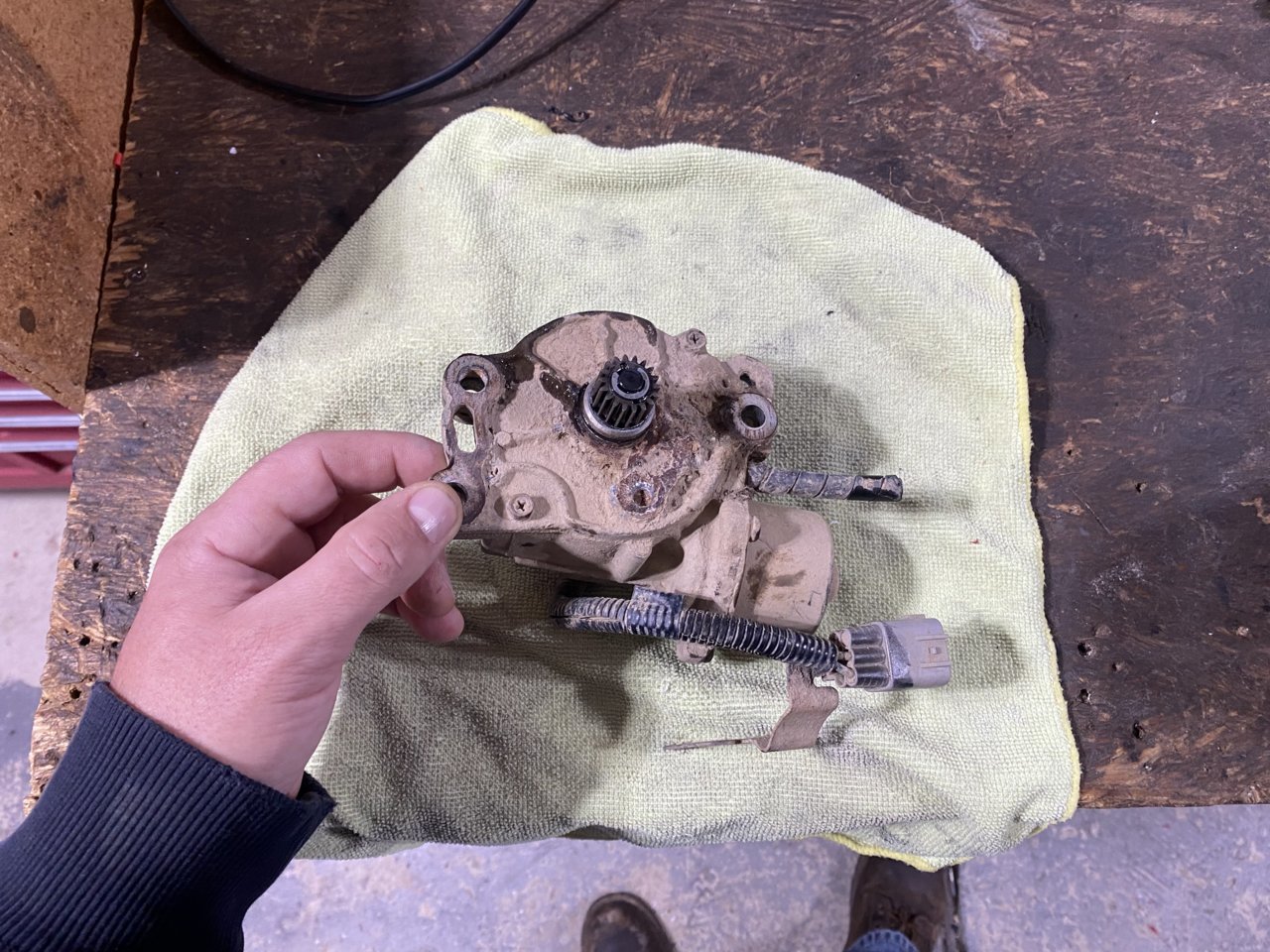

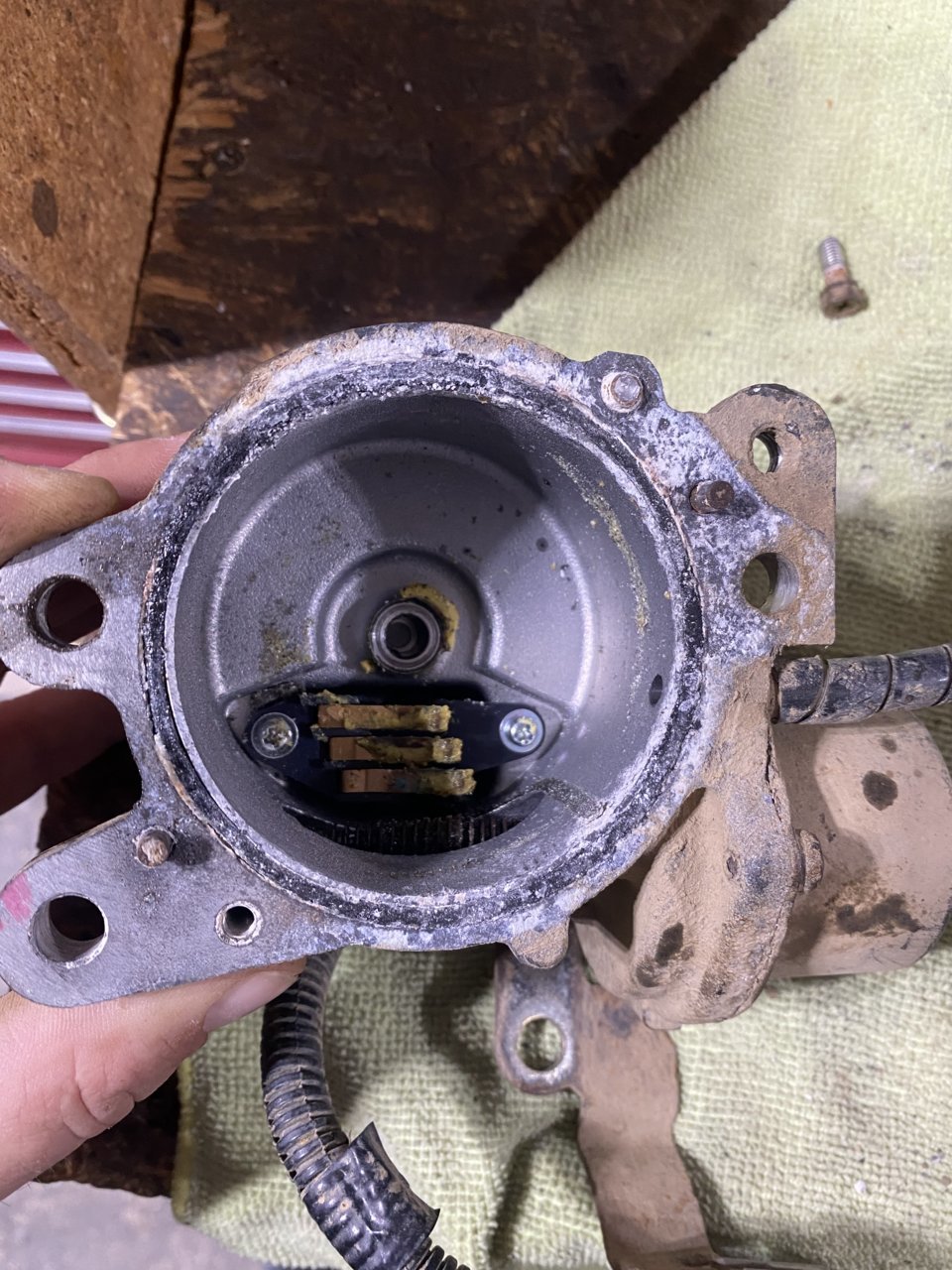

    I’ll let the pictures do the talking….

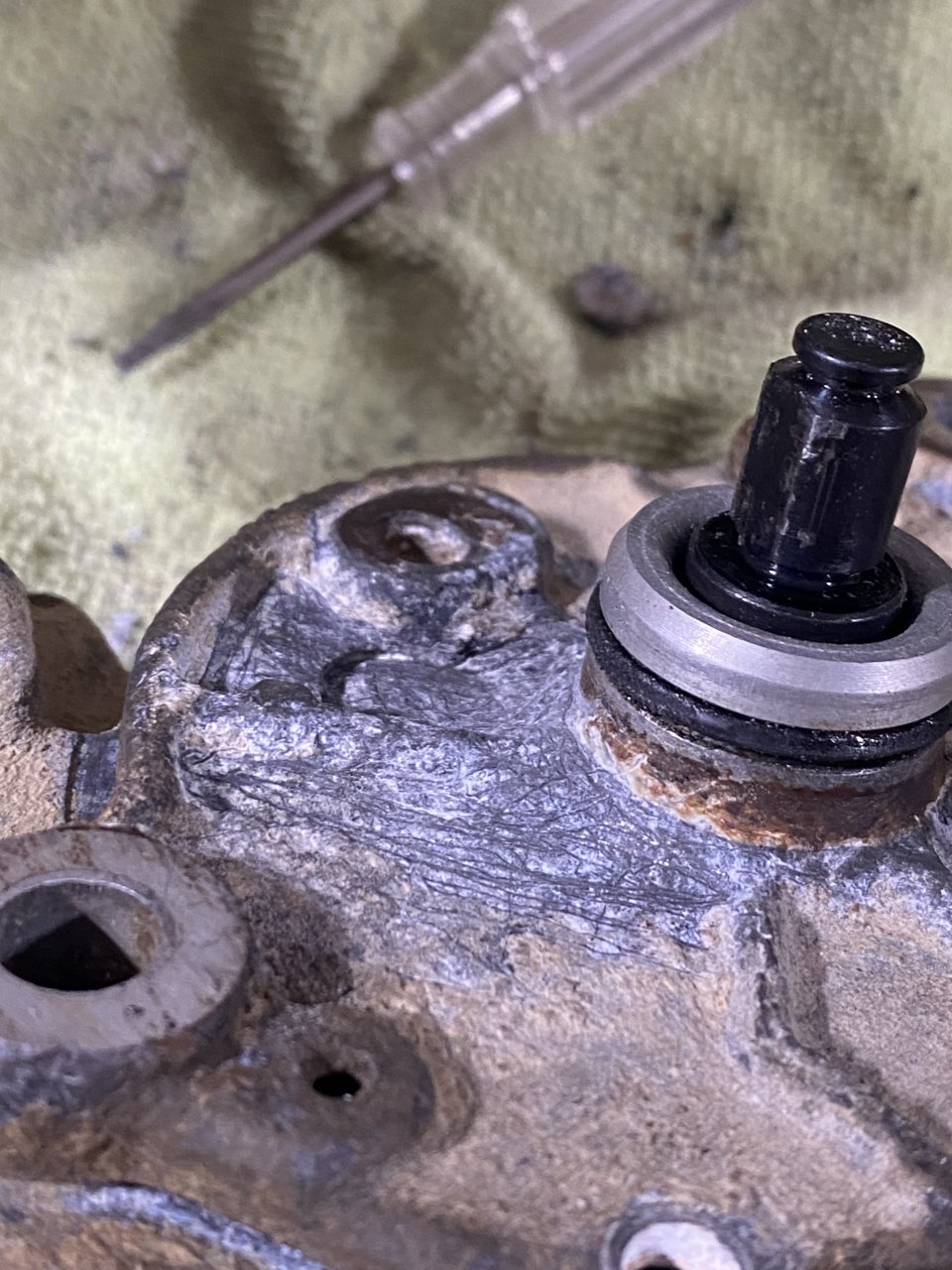

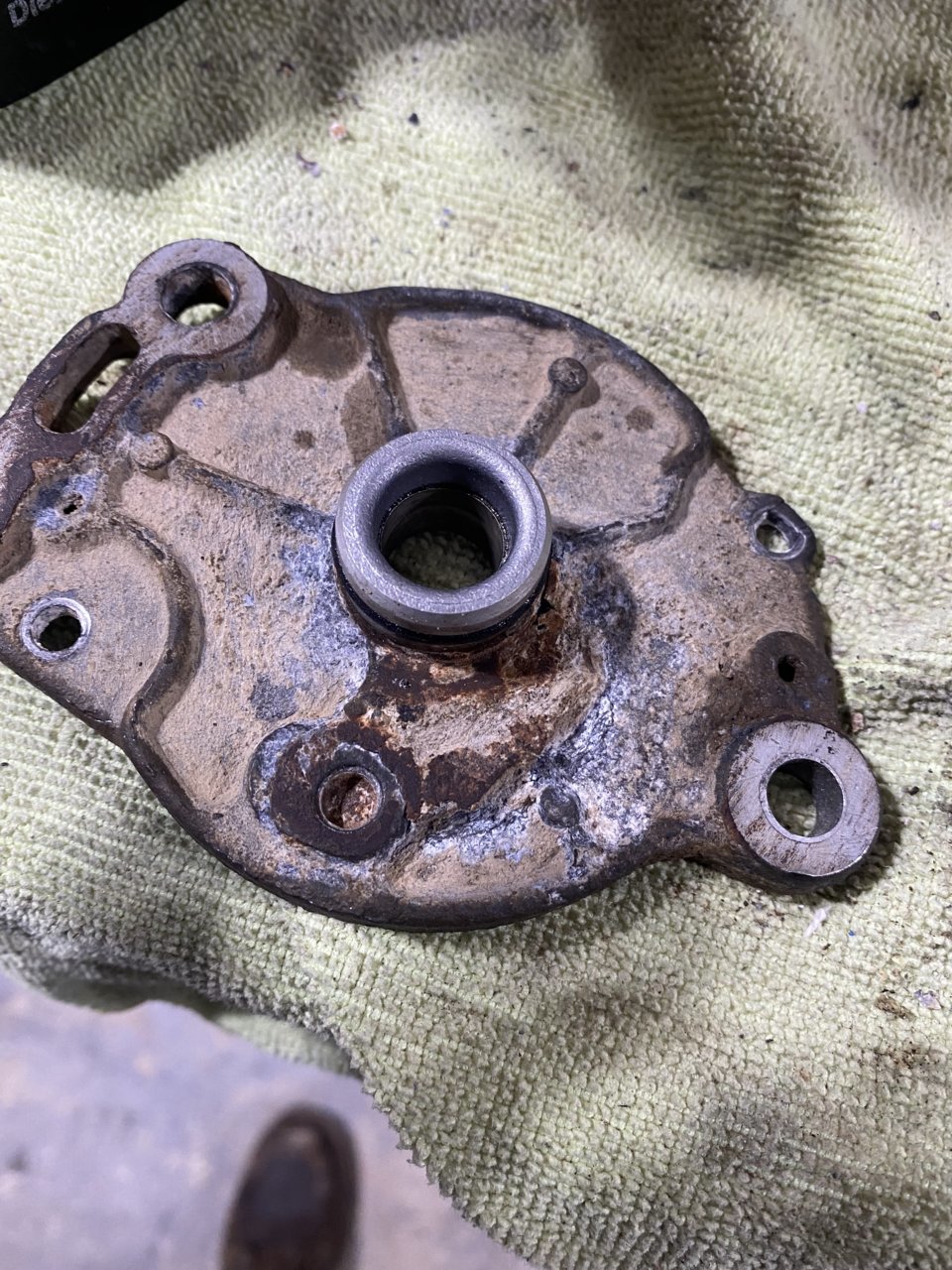

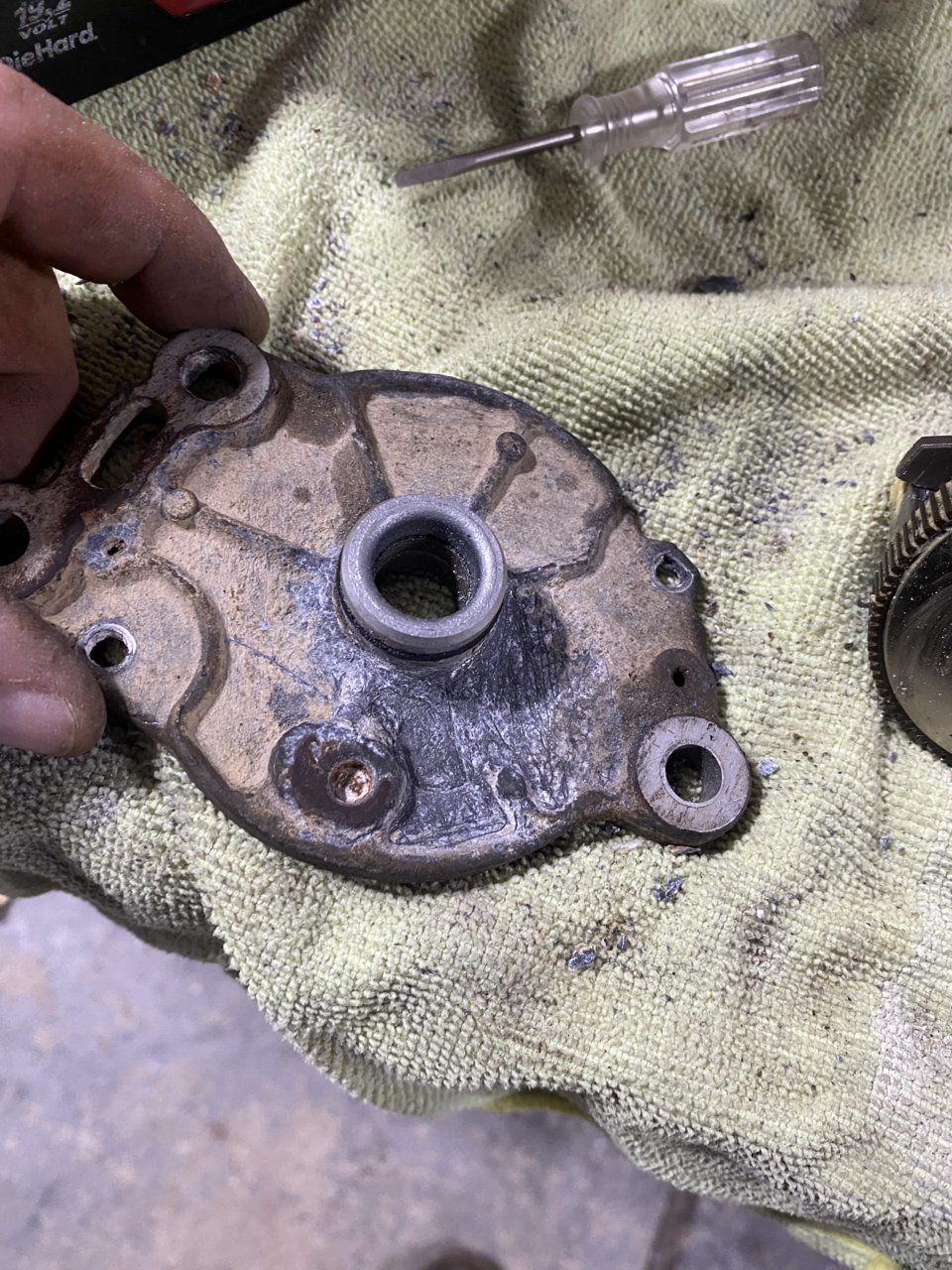

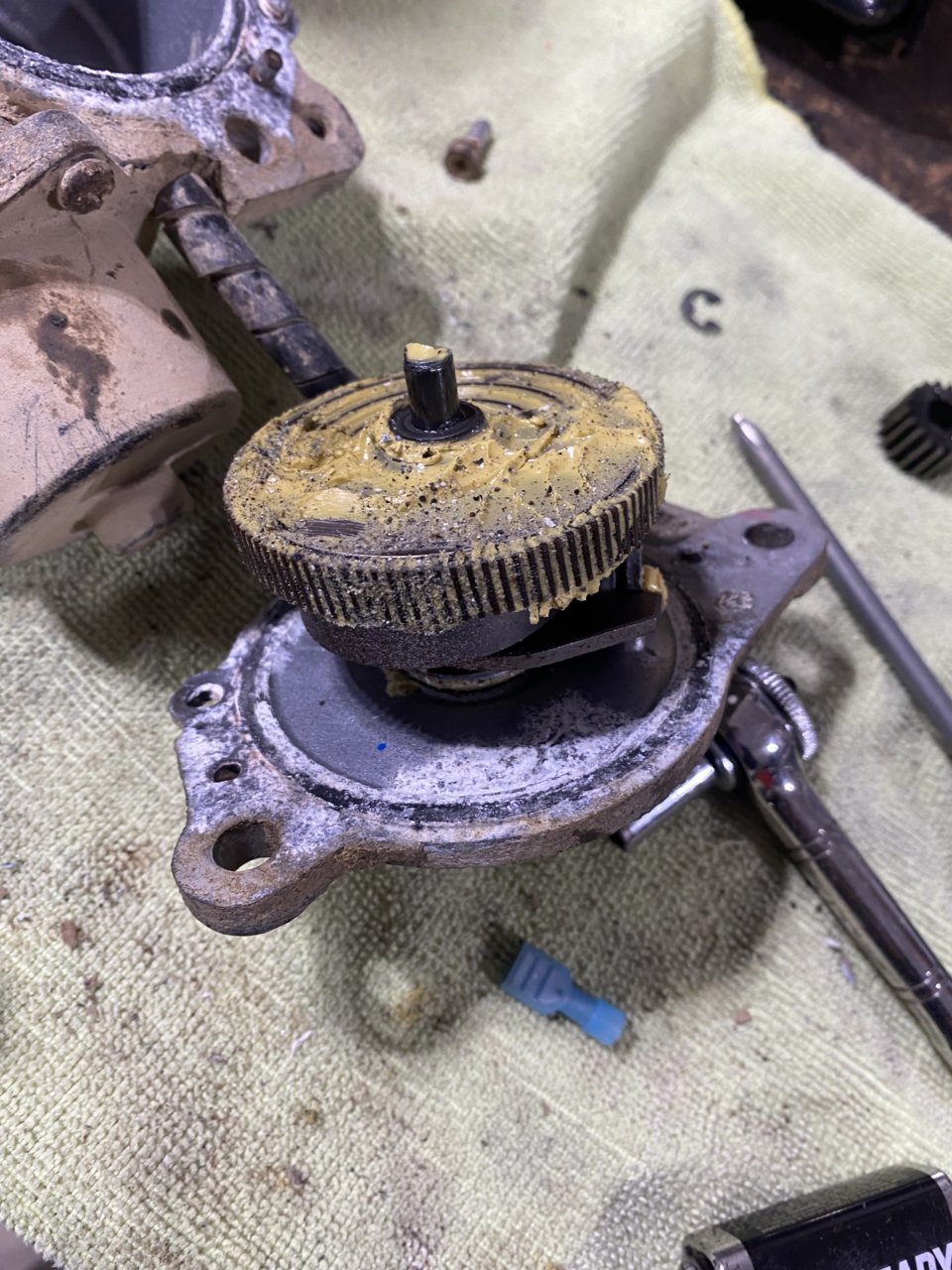

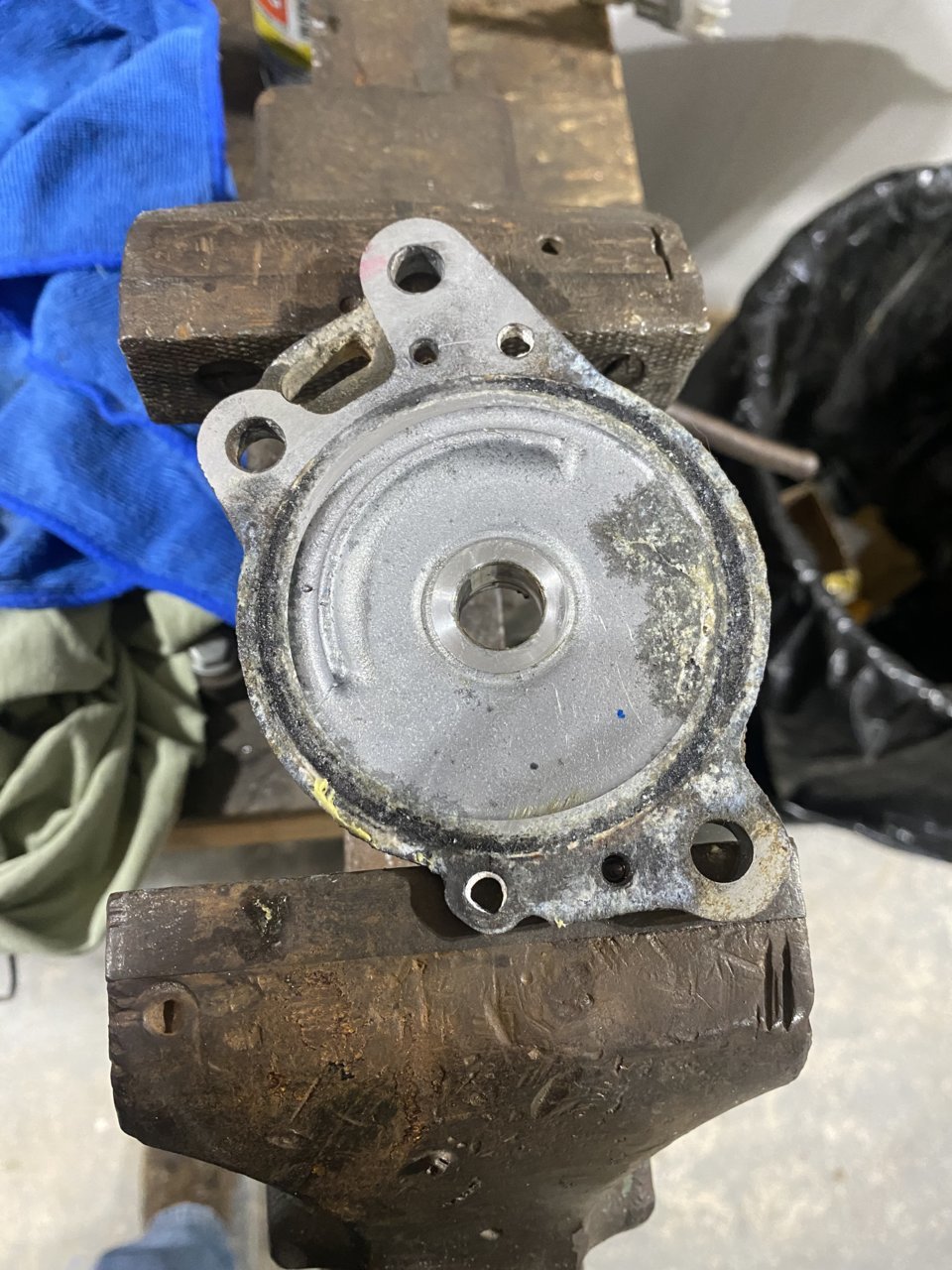

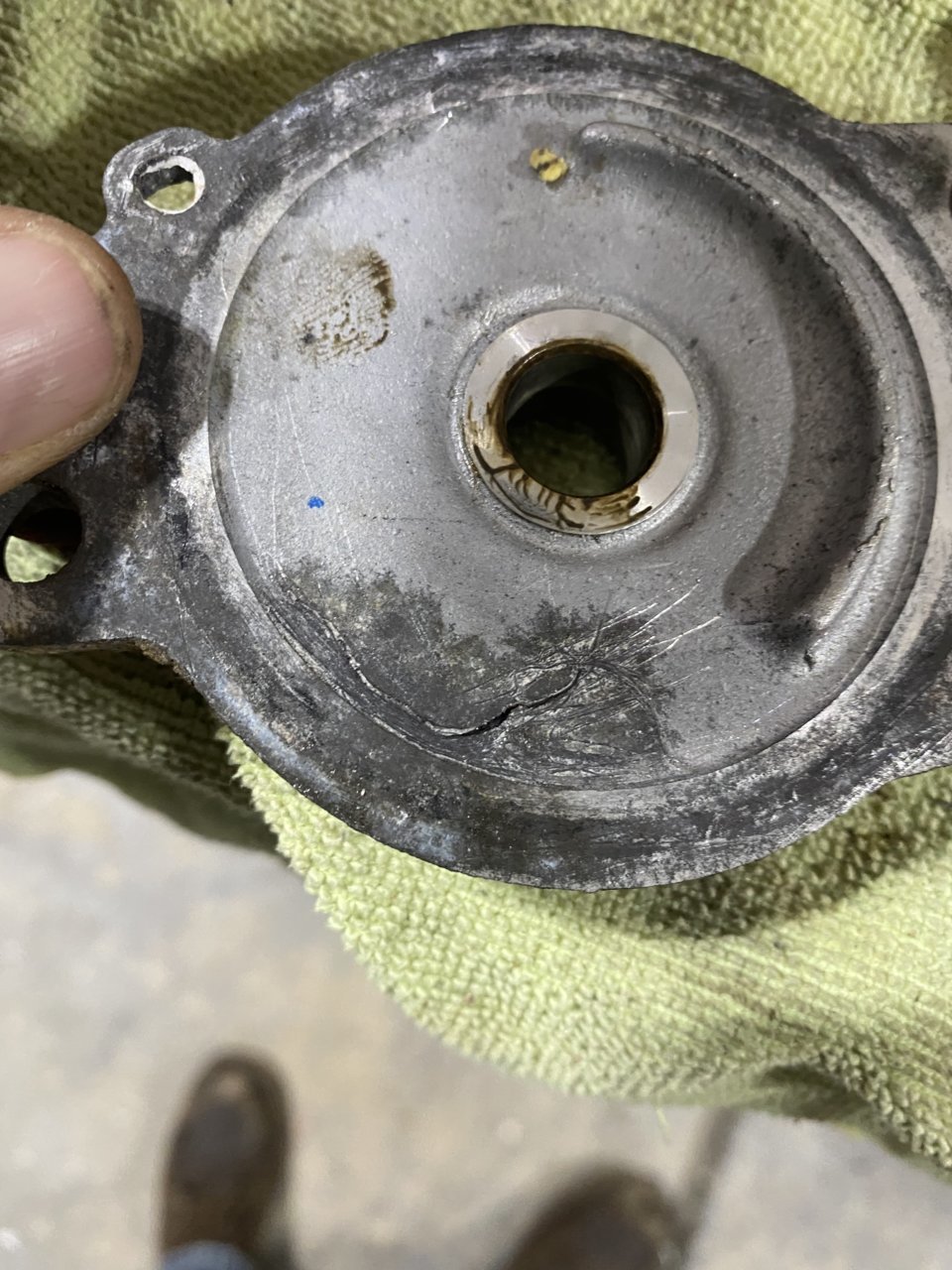

    The actuator is shot. The housing is corroded and cracked.

    I went through and cleaned it up, aligned the gear, and put it back together just to see what would happen. It cycled once and stopped working.

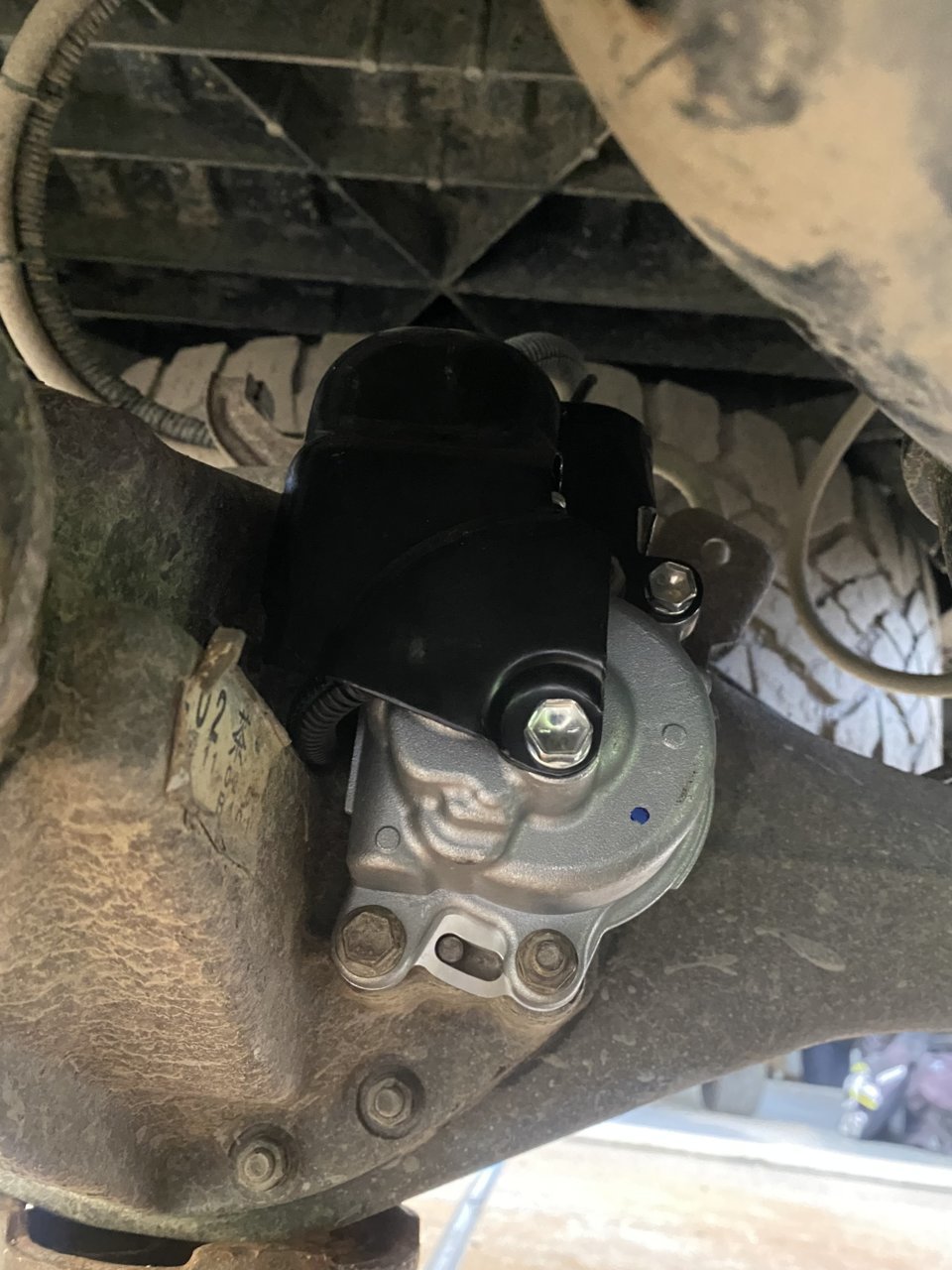

    New one is on its way.


    TnShooter and 6 gearT444E like this.
  10. Nov 1, 2021 at 3:45 PM
    #10
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    5,757
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Last edited: Nov 2, 2021
    GabrielTacoma, 6 gearT444E and Dm93 like this.
  11. Nov 1, 2021 at 5:20 PM
    #11
    winkel

    winkel Well-Known Member

    Joined:
    Dec 24, 2015
    Member:
    #173039
    Messages:
    2,203
    Gender:
    Male
    Corydon, IN
    Vehicle:
    2014 Spruce Mica, TRD Off-Road, 6 Spd Manual
    Sliders, Tailgate Liner
    Thanks for circling back on the fix!

    steveo27[OP] likes this.
  12. Apr 27, 2022 at 10:52 AM
    #12
    GabrielTacoma

    GabrielTacoma Well-Known Member

    Joined:
    Feb 27, 2018
    Member:
    #245738
    Messages:
    50
    Gender:
    Male
    Vehicle:
    2001 TRD-off road 4x4 4D
    I have the same issue - original actuator is rotted. I just received the new one from Aisin and plan on doing this job within the next few weeks.
