E locker swap write up (easy way!)

Discussion in '1st Gen. Tacomas (1995-2004)' started by Kaitukoff656, Sep 8, 2015.

  1. Sep 8, 2015 at 5:35 PM
    #1
    Kaitukoff656

    Kaitukoff656 [OP] Well-Known Member

    Joined:
    Dec 10, 2012
    Member:
    #92803
    Messages:
    472
    Gender:
    Male
    First Name:
    Austin
    Crescent City, CA
    Vehicle:
    '16 DCLB trd offroad tacoma
    Whats up guys I successfully swapped over my elocker axle over and thought I would make a write up on it because I couldn't find many write ups on the swap!

    In my opinion first thing I did was take the bed off its 6 bolts and need a couple peoples help to lift it off and its off and you have all the room in the world after that. You can ever pressure wash everything with it off like I did:thumbsup:

    Unbolt everything off your STOCK axle Take the shocks off. Take the main brake line out. unbolt the portioning valve arm. and finally unhook the Ebrake and unhook the cable from the back plates. take the 4 through bolts off the drive shaft connecting to the 3rd member. drop the axle.

    Go ahead and bolt up the New elocker axle everything reversal of what was stated above. just dont worry about the ebrake because it wont fit anymore ill add to that later!

    like dis:D





    Wiring:

    I went to lowes and bought 5 25foot 14awg packs all different colors this was over kill but will help later down the road if i have a problem.

    making the wiring harness is easy this is how I did it. pictures below:p

    So what I did was tie the 5 wires to a spicket.... lol

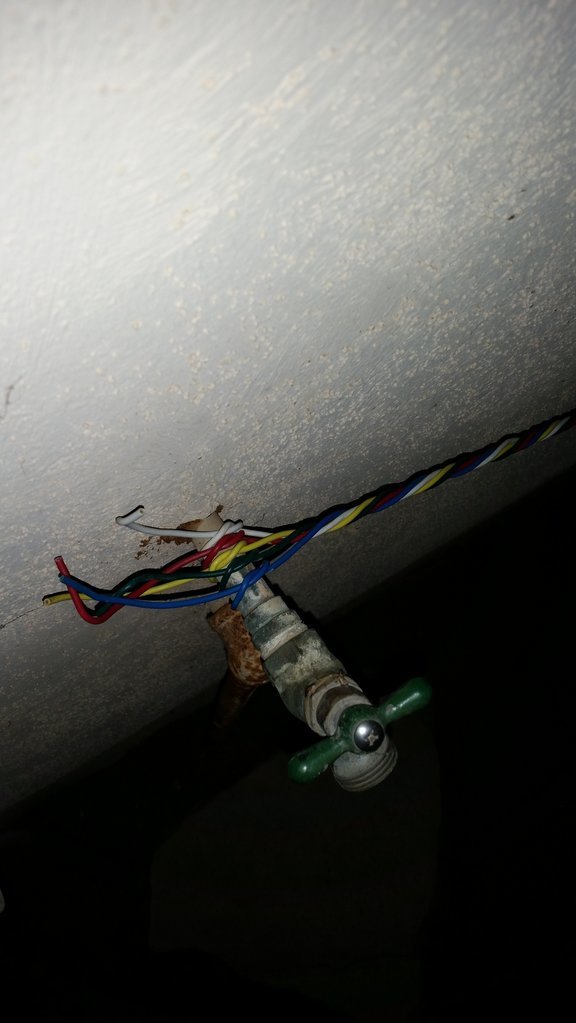

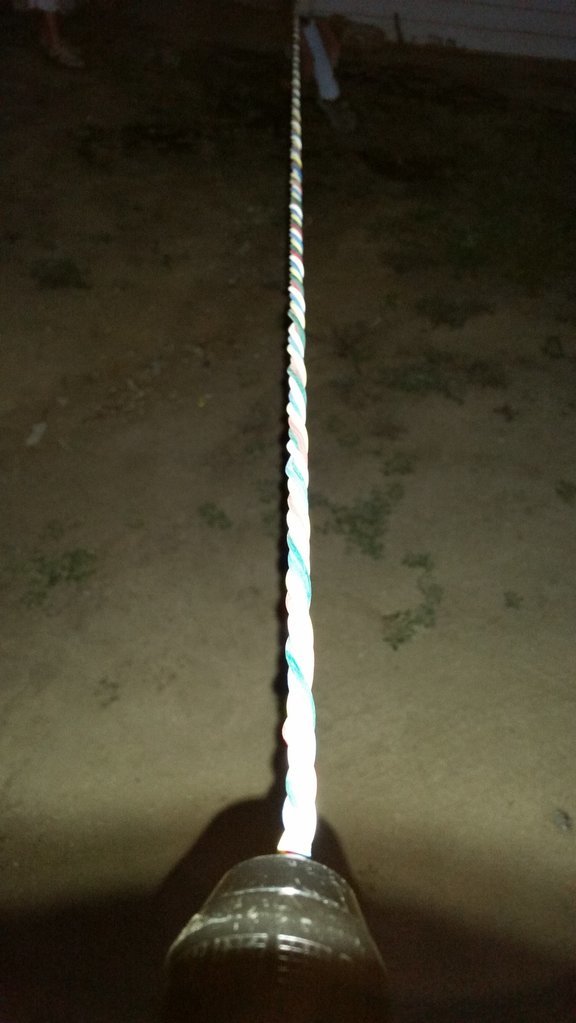

    stretch it wires out and cut it even. Then grab a drill and put the 5 wires in the chuck of the drill. then spin it. get it tight nut now so tight it breaks... lol


    now wrap both ends with some electrical tape to hold it from unspinning and take it out of the chuck.

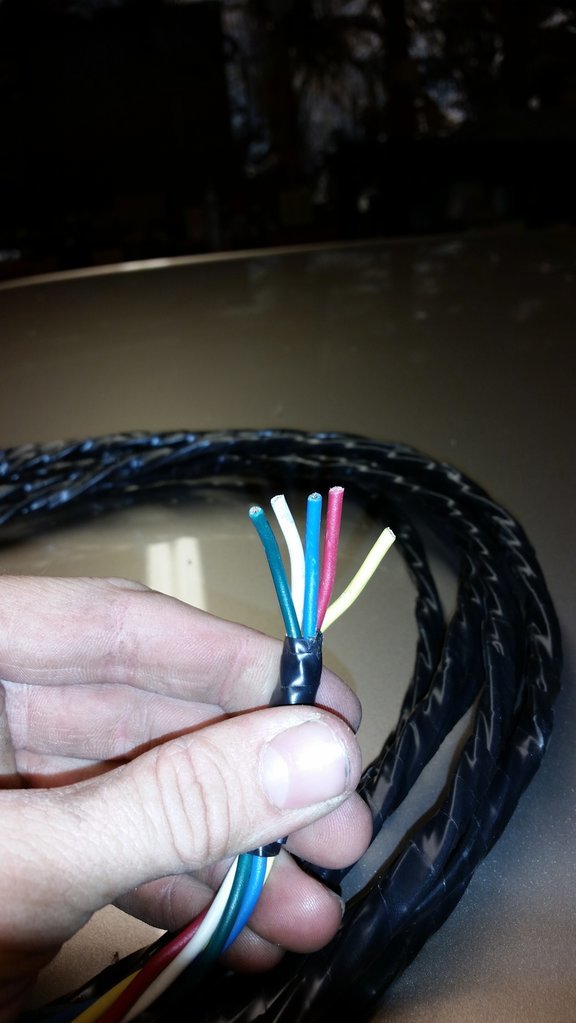

    take the harness and tie it to something like a clothes line and wrap it with electrical tape, wiring loom or something. I did electrical tape TOOK FOREVER...:(

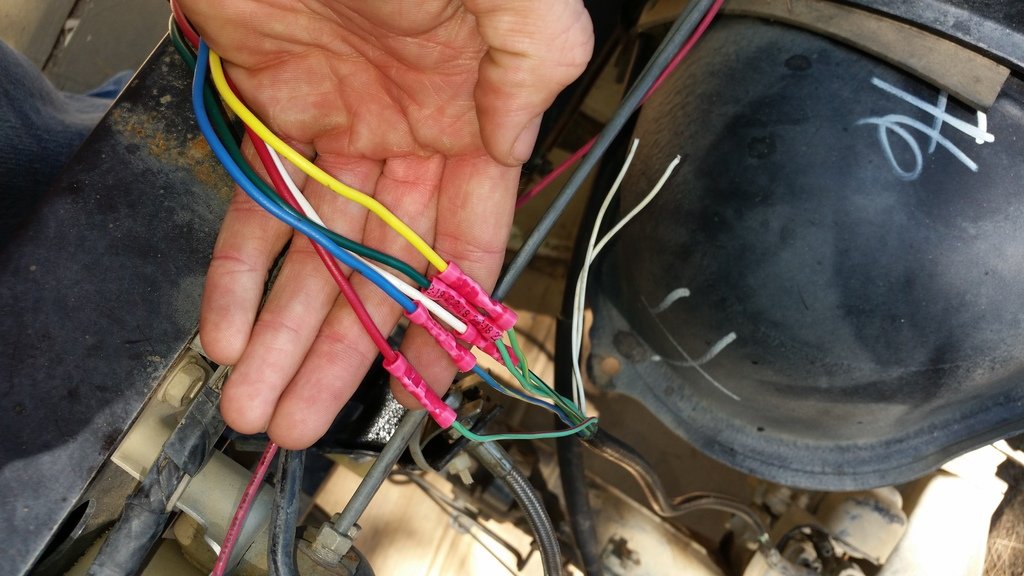

    now thats done you can start splicing it to the OEM short harness that plugs into the third member

    like dis:D


    leave the 2 white/black wires alone they are grounds that ground to the chassis.:thumbsup:


    This was mine

    RED to GREEN/RED
    BLUE to BLUE/YELLOW
    GREEN to GREEN
    WHITE to GREEN/BLACK
    YELLOW to GREEN/YELLOW

    BOTH BLACK/WHITE GROUND TO CHASSIS!!!!!

    (The colors on the right are oem from a standard pinion axle)

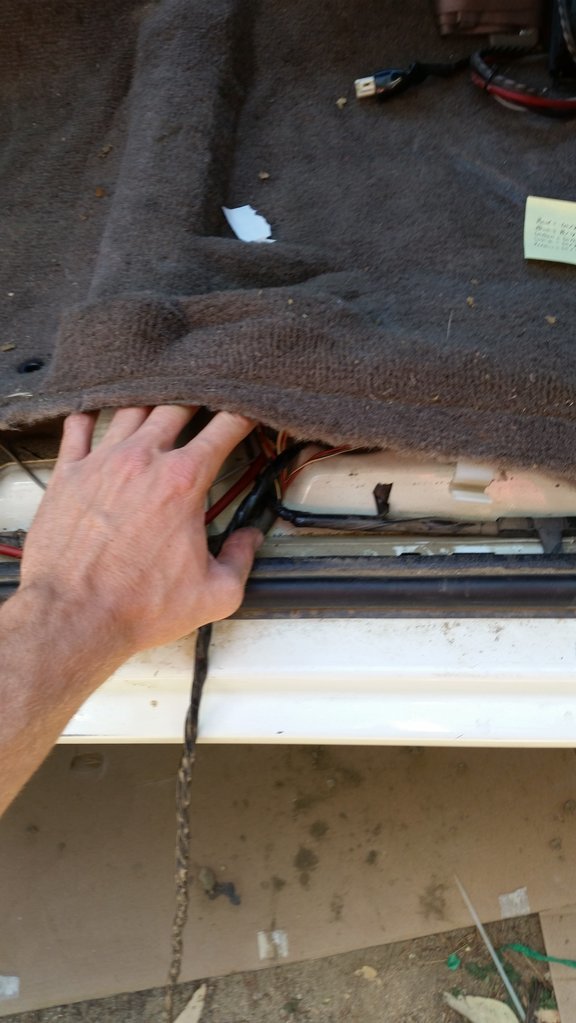

    Okay now run the wiring harness down the frame I went the route of the brake light wiring harness and went up through the cab right next to the driver door and seat


    Then into the dash.

    run a positive lead from the battery and fuse it.

    okay the switch
    http://www.lowrangeoffroad.com/toyota-e-locker-switches.html

    spend the money its worth every penny!

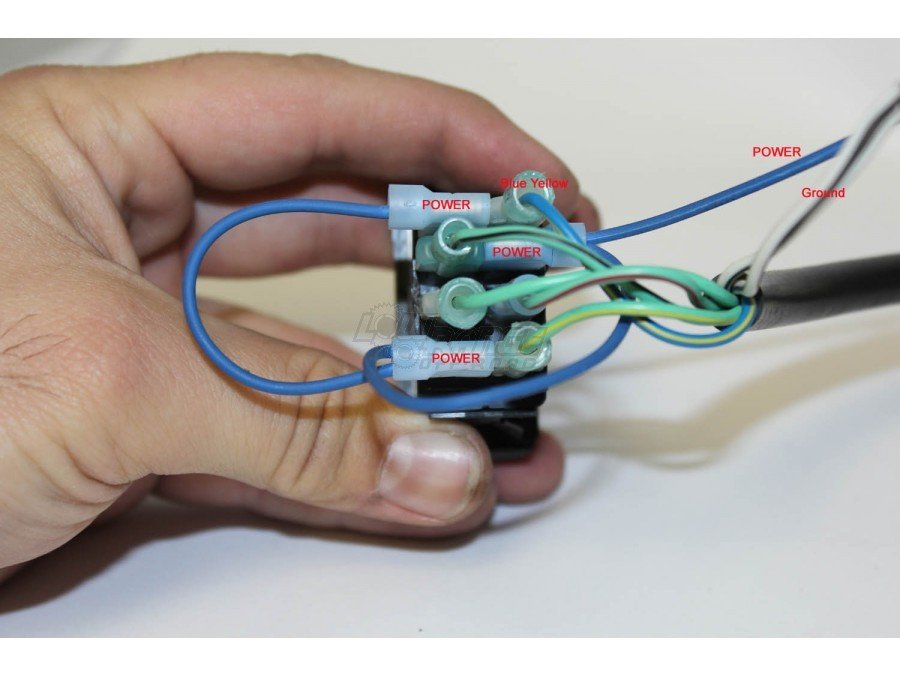

    here is the switch diagram with oem colors its as easy as that!:bananadance::bananadance::bananadance:elocker_switch_diagram_copy_1_zpsfqekv65_2af76de4b5d1791c25f9f387caf6ec52ba73a995.jpg

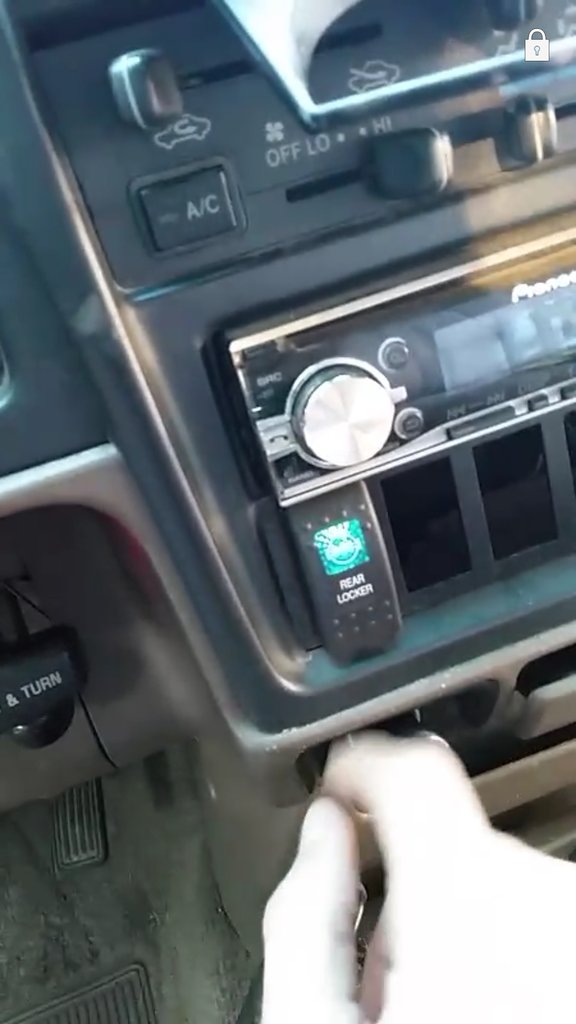

    Screenshot_2015-09-08-17-32-54_zpsyhssry_c0f36a30fd00af2736999848ae872c8ad3c25b5c.jpg

    EDIT: forgot about the ebrake replace the ebrake from the cab to the axle prt#46420-35740 comes with all the factory brakets for about 80 bucks. (make sure that your original doesnt fit before you buy it...)

    thank you hope it helps :thumbsup::thumbsup:
    My first write up!:oops::rolleyes::thumbsup::rofl:

    WARNING! Match the gearing of the new rear end to the front diff! VERY IMPORTANT note: if you have the same as the front you are good!
