Easy Bump-Stop Mod For U-Bolt Flip Kits

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CaliBluTaco, Dec 12, 2013.

  1. Dec 12, 2013 at 6:21 PM
    #1
    CaliBluTaco

    CaliBluTaco [OP] Well-Known Member

    Joined:
    May 28, 2013
    Member:
    #105094
    Messages:
    166
    Gender:
    Male
    First Name:
    Nathanael
    Ohio USA
    Vehicle:
    07 Tacoma TRD Off Road
    Brute Force Fab Hybrid Front Bumper, Brute Force Fab HC Rear Bumper, All Pro Kickout Sliders, Pelfreybilt IFS Skid and Mid Skid, Relentless Fab Tailgate Reinforcement, ICON Ext.Travel Coilovers w/ 14"x 650# Eibach coils and custom valving, LR UCA's, OME Heavy Duty Rear Leaf Pack w/ All Pro U-Bolt Flip, Icon 2.0 Aluminum Series Extended Travel rear shocks & Wheelers Super Bumpstops. 285/70R17 Hankook Dynapro MT RT03 Tires on 17x8 Pro Comp 7089's, ENGO E12000s Winch w/ Synthetic Rope, Locker Anytime Mod, Rear Diff Breather Mod, and more...
    So, after hours of searching the web and TW, i finally came up with a cheap and easy way to get the right height bump stop. I have an All-Pro U-Bolt Flip Kit and 1.5"-2" of lift with the Extended Bilstein Rear Shocks ( 3"-4" lift RCD Bilstein Shocks) I know running these longer shocks, you can bottom them out pretty easily with the stock bump-stops.

    I didn't want to spend alot of money on bump-stops, so i found some universal, single bolt, 5" bump-stops that can be cut to your desired length and mounted on the frame, the plate that the stock bump-stop hits.

    *** I AM NOT RESPONSIBLE FOR ANY DAMAGE TO YOUR SUSPENSION OR TRUCK WITH THIS MOD ***

    The Bump-Stops are Daystar part # KU09037BK

    Got mine from 4Wheel Parts cause i needed them in a hurry. Cost $27.99 for the Bump-Stops.

    First, figure the length you want your bump-stop to be so that you don't bottom out your shocks or damage your suspension. ( I left mine a little longer till i cycle my suspension off road and then trim them with a Sawzall if need be ) Then cut the bump-stop with a saw ( Sawzall, SkillSaw, ect...)

    Mark where you want it to be mounted on the top bump-stop plate. Drill a 3/8" hole in the top bump-stop plate, ( I was able to drill from the top down ), and bolt it on! It's that simple :D And quick too! Only took 10 minutes per side.

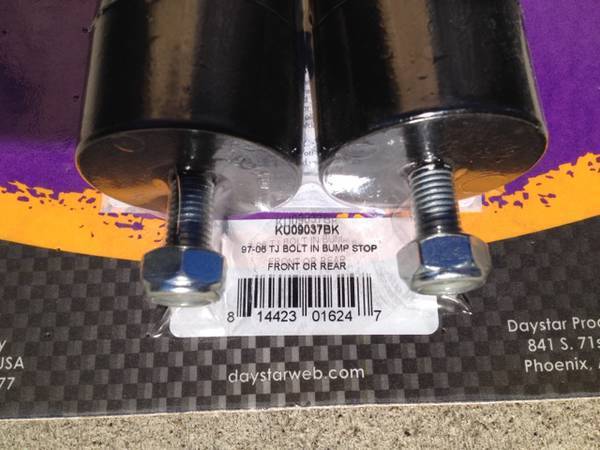

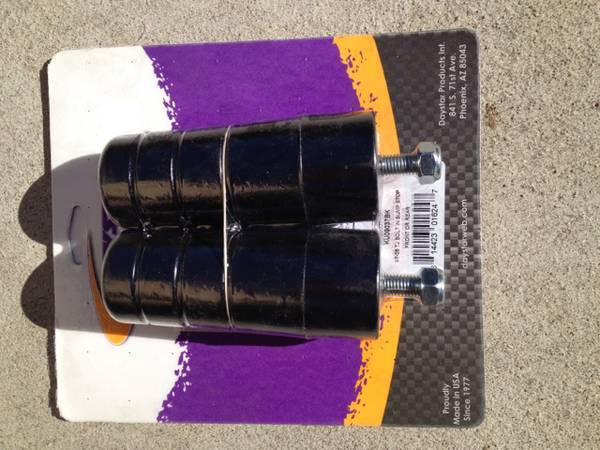

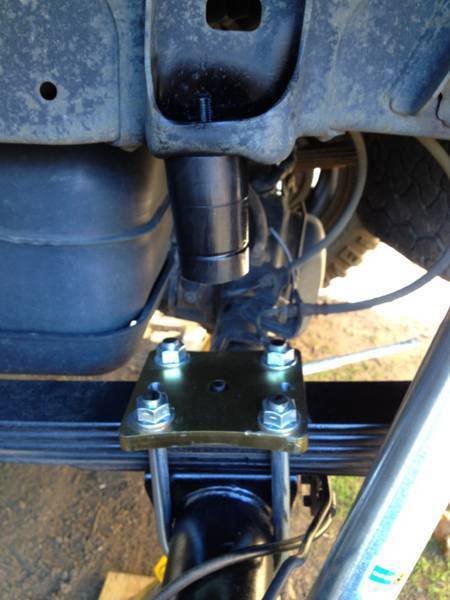

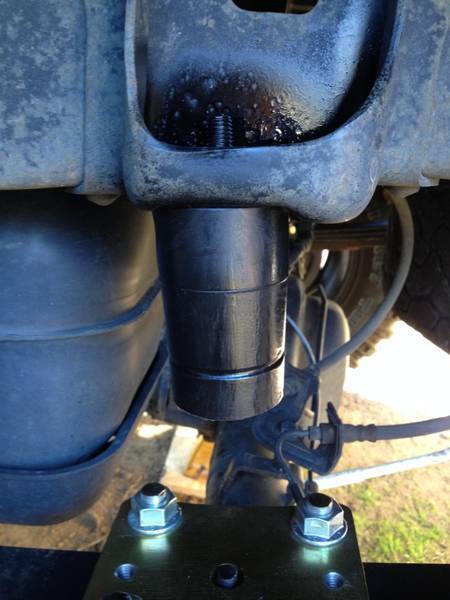

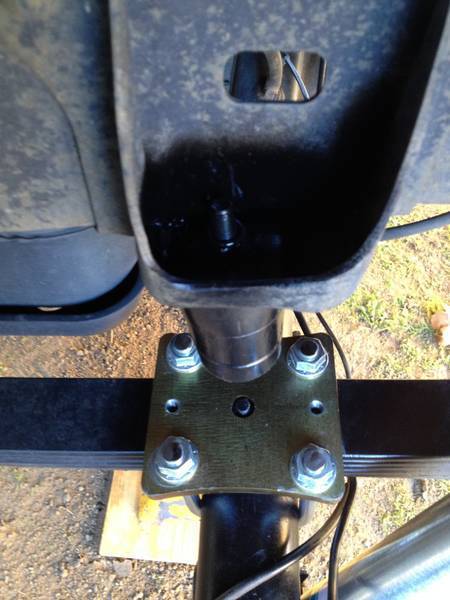

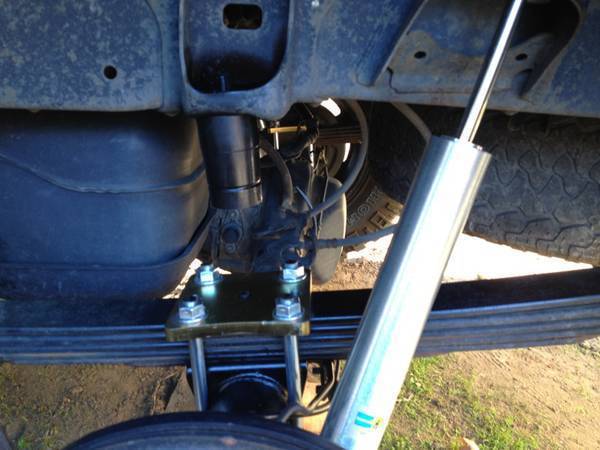

    Here are some picture's for reference.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Well, i hope this thread helps some people out there. Just figured i give back what TW has given me, alot of great mods and tons of valuable info :wink:

    Backcountry chef, taco06 and TacoIII like this.
  2. Dec 12, 2013 at 6:25 PM
    #2
    bzzr2

    bzzr2 Well-Known Member

    Joined:
    Jan 26, 2011
    Member:
    #49986
    Messages:
    1,679
    Gender:
    Male
    looks like they should do the trick.

  3. Dec 18, 2013 at 3:38 PM
    #3
    jaywrx7

    jaywrx7 Member

    Joined:
    Jul 6, 2013
    Member:
    #107707
    Messages:
    15
    Gender:
    Male
    is it just me or is the place you mounted the bump stop to smashed in a little? couldn't be from the bump stop right?

  4. Dec 18, 2013 at 3:45 PM
    #4
    KenLyns

    KenLyns 8.75" Third Member

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    29,373
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off-Road Full-Auto
    LED Headlights, Volant CAI, 32" Duratracs
  5. Dec 18, 2013 at 4:27 PM
    #5
    CaliBluTaco

    CaliBluTaco [OP] Well-Known Member

    Joined:
    May 28, 2013
    Member:
    #105094
    Messages:
    166
    Gender:
    Male
    First Name:
    Nathanael
    Ohio USA
    Vehicle:
    07 Tacoma TRD Off Road
    Brute Force Fab Hybrid Front Bumper, Brute Force Fab HC Rear Bumper, All Pro Kickout Sliders, Pelfreybilt IFS Skid and Mid Skid, Relentless Fab Tailgate Reinforcement, ICON Ext.Travel Coilovers w/ 14"x 650# Eibach coils and custom valving, LR UCA's, OME Heavy Duty Rear Leaf Pack w/ All Pro U-Bolt Flip, Icon 2.0 Aluminum Series Extended Travel rear shocks & Wheelers Super Bumpstops. 285/70R17 Hankook Dynapro MT RT03 Tires on 17x8 Pro Comp 7089's, ENGO E12000s Winch w/ Synthetic Rope, Locker Anytime Mod, Rear Diff Breather Mod, and more...
    It'a not smashed in at all. Thats how the top bump stop plate looks on my 07 Tacoma.

  6. Dec 18, 2013 at 4:30 PM
    #6
    CaliBluTaco

    CaliBluTaco [OP] Well-Known Member

    Joined:
    May 28, 2013
    Member:
    #105094
    Messages:
    166
    Gender:
    Male
    First Name:
    Nathanael
    Ohio USA
    Vehicle:
    07 Tacoma TRD Off Road
    Brute Force Fab Hybrid Front Bumper, Brute Force Fab HC Rear Bumper, All Pro Kickout Sliders, Pelfreybilt IFS Skid and Mid Skid, Relentless Fab Tailgate Reinforcement, ICON Ext.Travel Coilovers w/ 14"x 650# Eibach coils and custom valving, LR UCA's, OME Heavy Duty Rear Leaf Pack w/ All Pro U-Bolt Flip, Icon 2.0 Aluminum Series Extended Travel rear shocks & Wheelers Super Bumpstops. 285/70R17 Hankook Dynapro MT RT03 Tires on 17x8 Pro Comp 7089's, ENGO E12000s Winch w/ Synthetic Rope, Locker Anytime Mod, Rear Diff Breather Mod, and more...
    I would've got those stops but i needed 4 inches center to center to bolt it to the u-bolt flip plate. The stops alone are 4 1/2" long not including the mounting tabs. But thanks for the input :)

  7. Dec 18, 2013 at 4:45 PM
    #7
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,546
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.
    well this is some good info,think i may steal this idea. as much as speanding $250 on timbren bs ill talk this instead maybe lol

  8. Dec 18, 2013 at 4:50 PM
    #8
    oldracer

    oldracer Well-Known Member

    Joined:
    Jan 26, 2012
    Member:
    #71492
    Messages:
    310
    Gender:
    Male
    Good Information

    A lot of people forget to adjust the bump stop clearance, when they do a lift.

    oldracer

  9. Dec 18, 2013 at 5:00 PM
    #9
    CaliBluTaco

    CaliBluTaco [OP] Well-Known Member

    Joined:
    May 28, 2013
    Member:
    #105094
    Messages:
    166
    Gender:
    Male
    First Name:
    Nathanael
    Ohio USA
    Vehicle:
    07 Tacoma TRD Off Road
    Brute Force Fab Hybrid Front Bumper, Brute Force Fab HC Rear Bumper, All Pro Kickout Sliders, Pelfreybilt IFS Skid and Mid Skid, Relentless Fab Tailgate Reinforcement, ICON Ext.Travel Coilovers w/ 14"x 650# Eibach coils and custom valving, LR UCA's, OME Heavy Duty Rear Leaf Pack w/ All Pro U-Bolt Flip, Icon 2.0 Aluminum Series Extended Travel rear shocks & Wheelers Super Bumpstops. 285/70R17 Hankook Dynapro MT RT03 Tires on 17x8 Pro Comp 7089's, ENGO E12000s Winch w/ Synthetic Rope, Locker Anytime Mod, Rear Diff Breather Mod, and more...
    Day after i put these stops in, I hauled 15 -90lb bags of concrete in the bed and had 1" between bump stop and the flip plate and 2" before my shocks would bottom out. They worked really good. I plan on trimming them a half inch for a little more up-travel.

  10. Jan 3, 2014 at 5:48 PM
    #10
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    14,334
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    I'm not trying to threadjack here but there is a way better bump stop out there then this one for around the same price too made of the same material wheelers has on theirs.

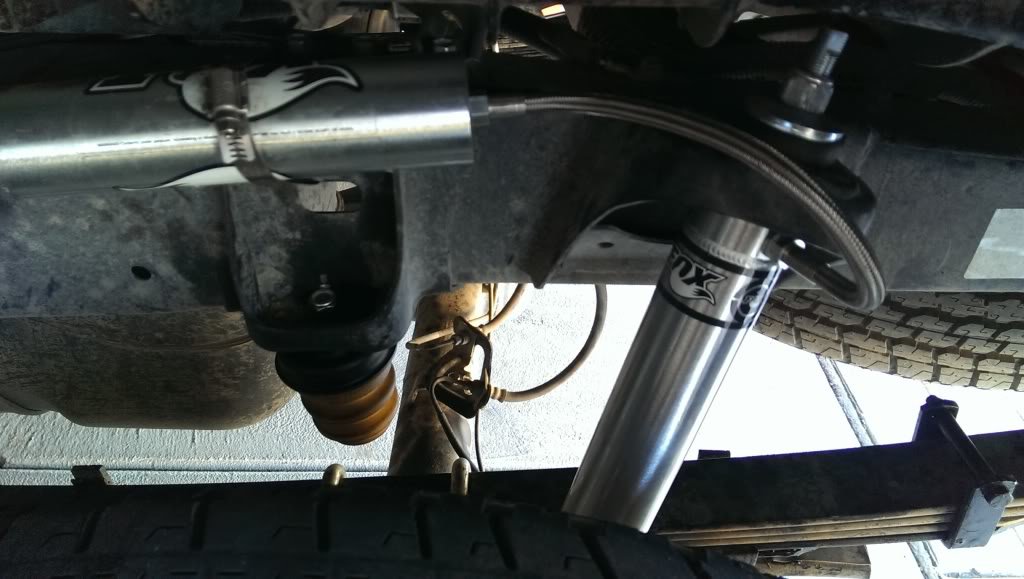

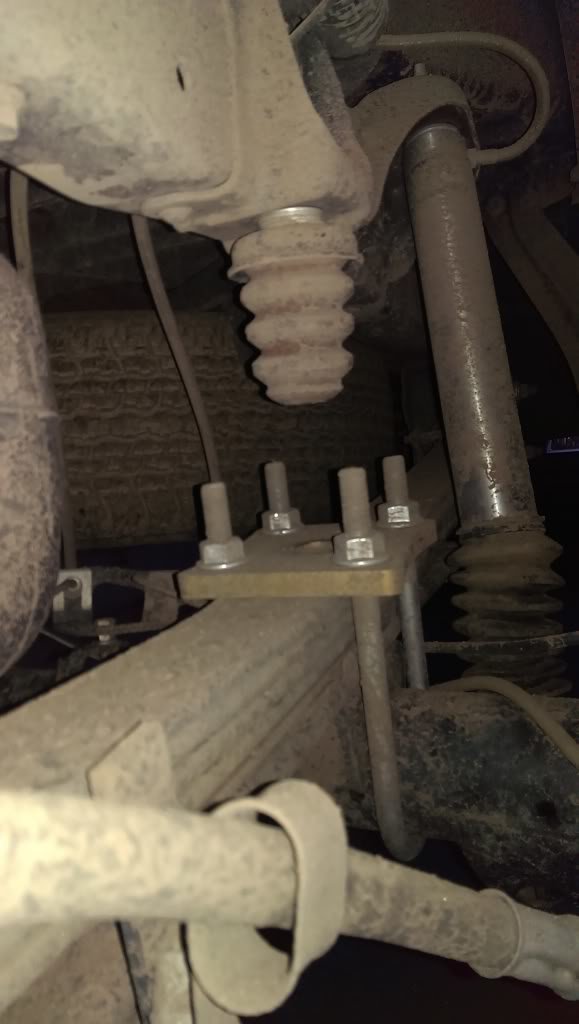

    669763d1336057305-can-only-buy-one-pair-_ce5efb7b8d58b67f3005a83ada0668d22a845979.jpg
