eBay fog light kits for '08-'09-'10 Tacomas....

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 10taco, Sep 6, 2009.

  1. Sep 6, 2009 at 9:20 AM
    #1
    10taco

    10taco [OP] Well-Known Member

    Joined:
    Sep 4, 2009
    Member:
    #22251
    Messages:
    60
    Gender:
    Male
    Massachusetts
    Vehicle:
    '10 4WD reg cab
    fog lights (with OEM switch), skid plate, stainless exhaust tip, Curt receiver hitch, Exact-Fit seat covers, AFE air filter, intermittant wipers, EGR in-channel vent visors, door sill protectors, Autocraft Platinum AGM battery.
    I plan on installing a set of 'direct replacement' fog lights in my '10 Taco reg cab 4WD 4CYL from one of the many sellers on eBay. The kits generally cost around $100 and include lamps, wiring harness and switch. I also plan to obtain a FACTORY Toyota fog light switch to install in the cab. My question is will the supplied aftermarket harness (which appears to be pretty much complete with plugs everywhere) plug into the Toyota switch? If not, will it work at all with the switch? Thanks in advance! :D

  2. Sep 6, 2009 at 9:22 AM
    #2
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    No it does not plug to the OEM switch, but yes it can be used to work with OEM switch, I did it that way.

    I'll give you some pics shortly.

  3. Sep 6, 2009 at 9:26 AM
    #3
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    [​IMG]

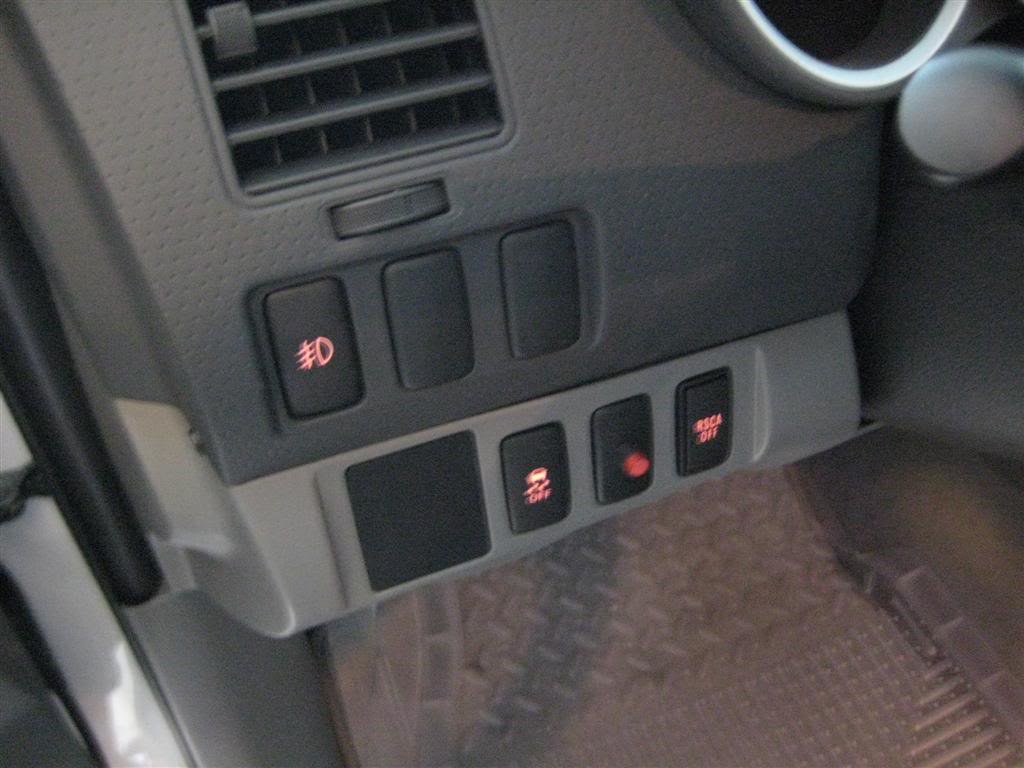

    OEM swith in stock location
    [​IMG]

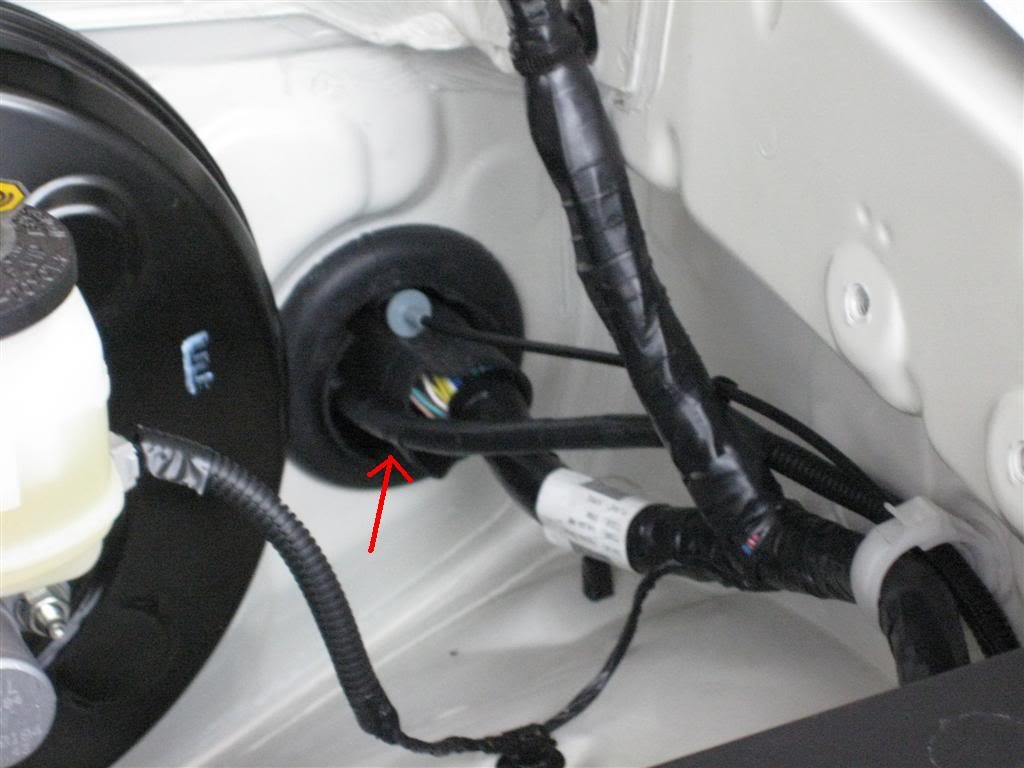

    wiring trough firewall
    [​IMG]

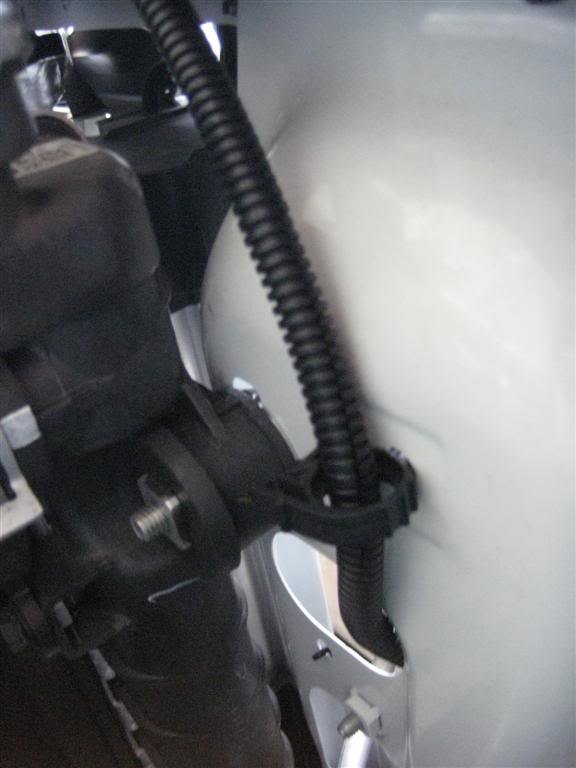

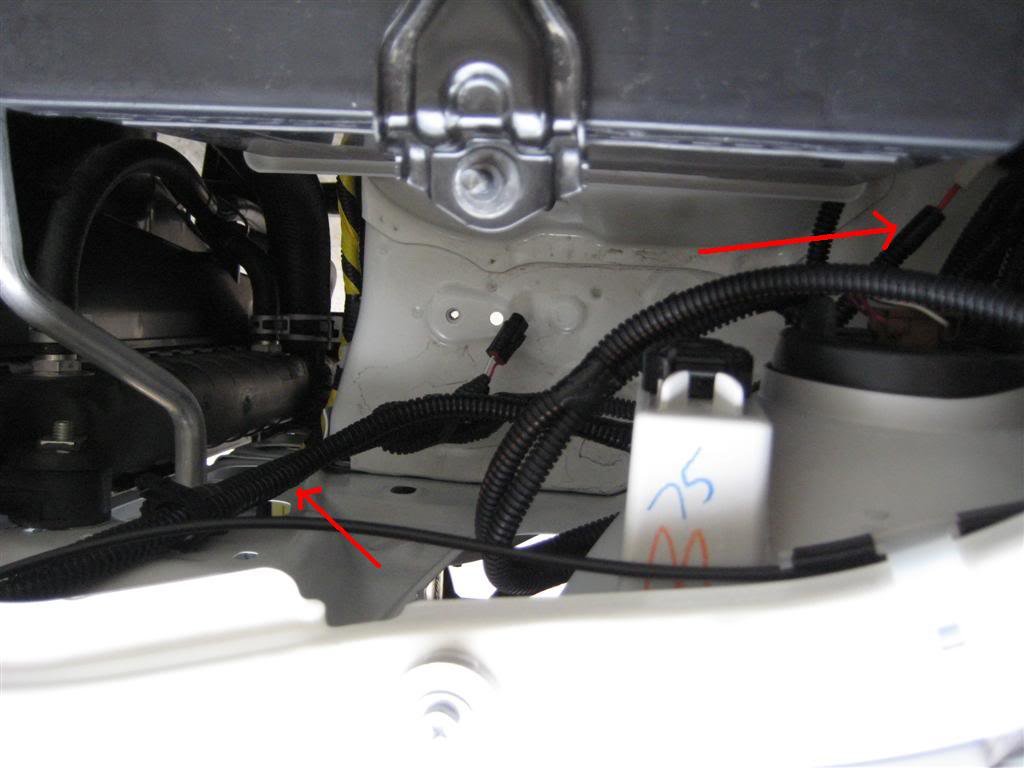

    wires to the passenger side foglight
    [​IMG]
    [​IMG]

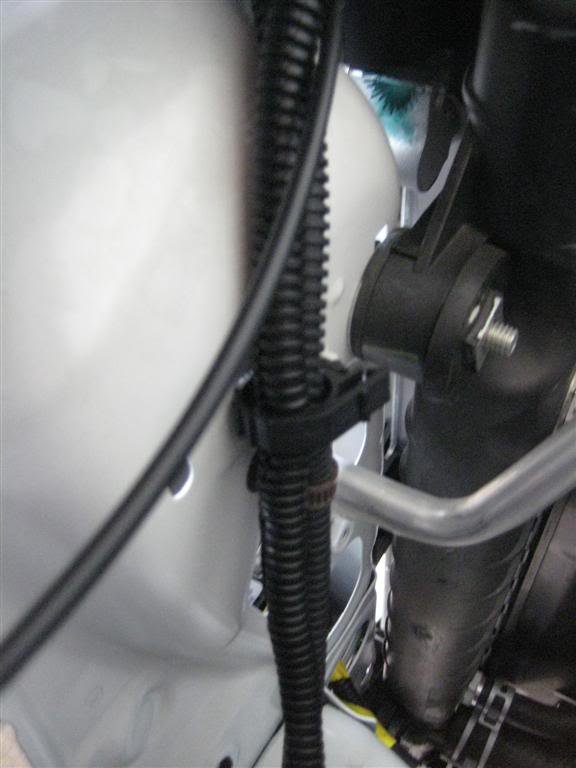

    wires for drivers side fog light
    [​IMG]
    [​IMG]

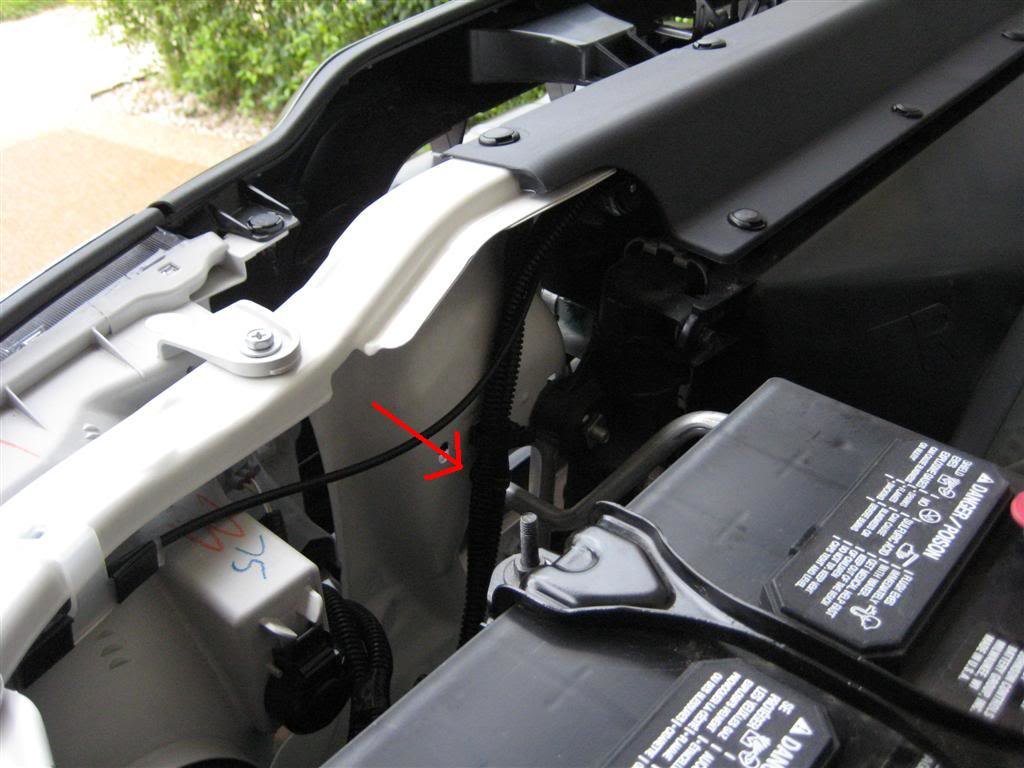

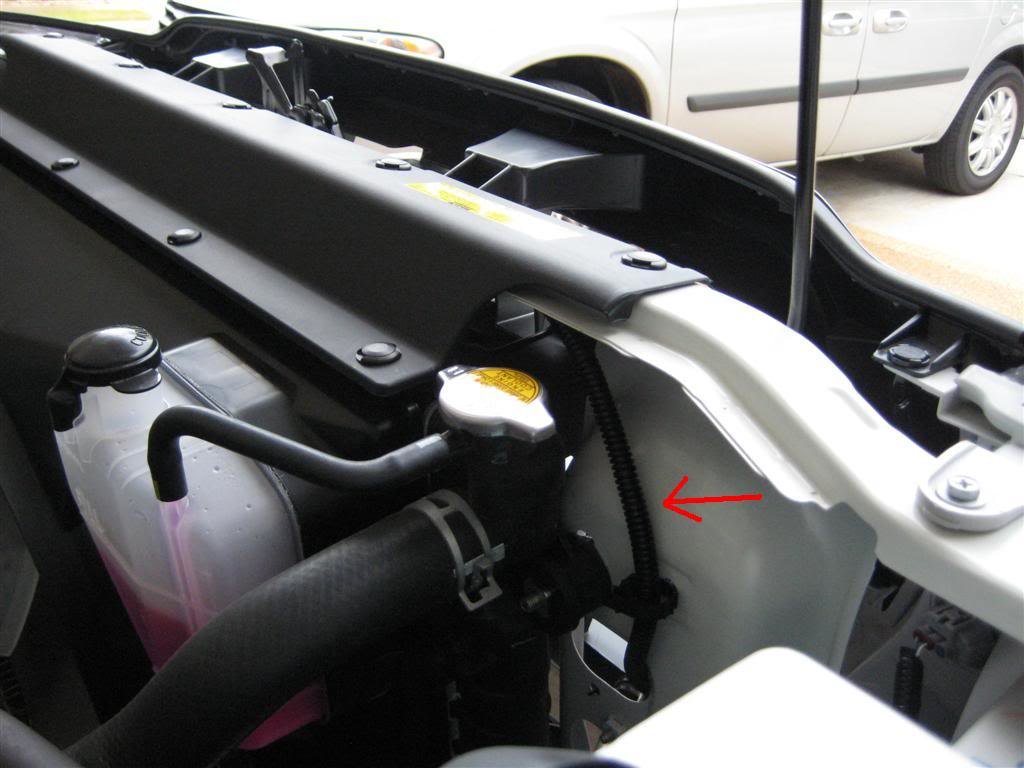

    behind driver's side headlight
    [​IMG]

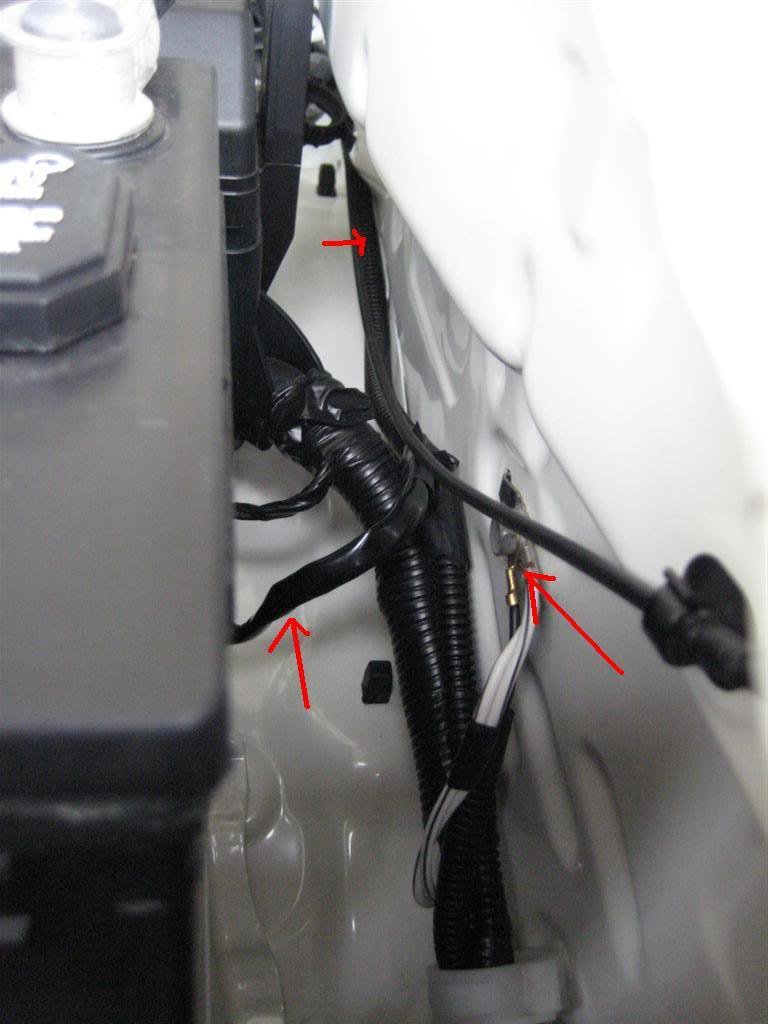

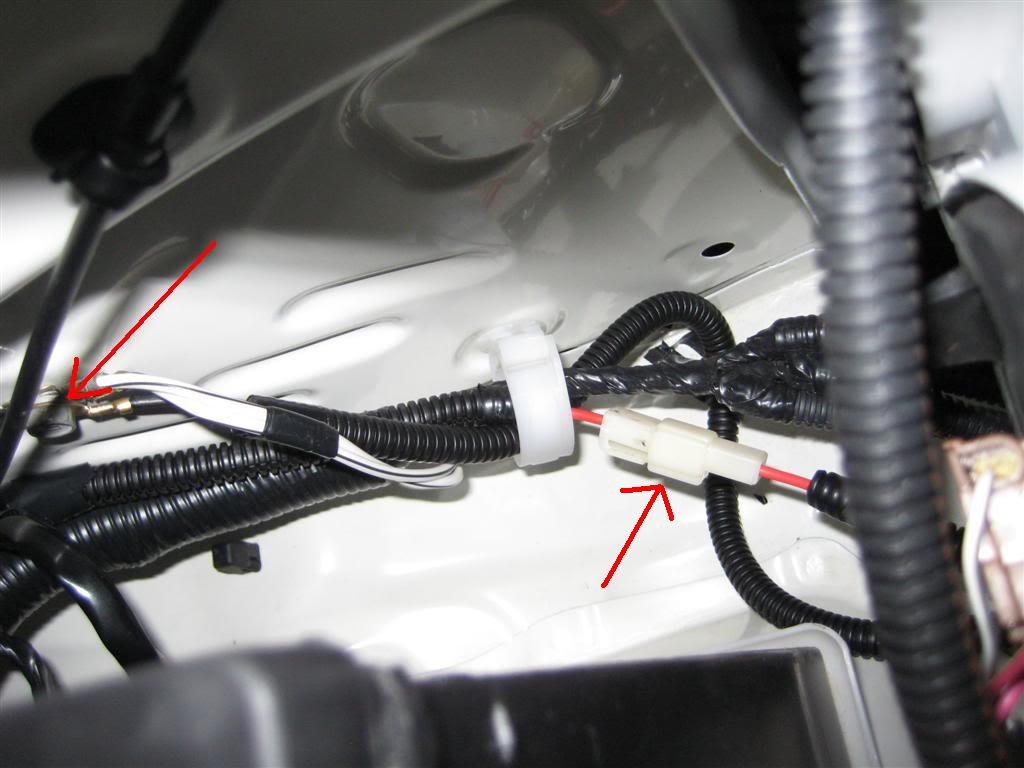

    between battery and driver's side fender
    [​IMG]
    [​IMG]

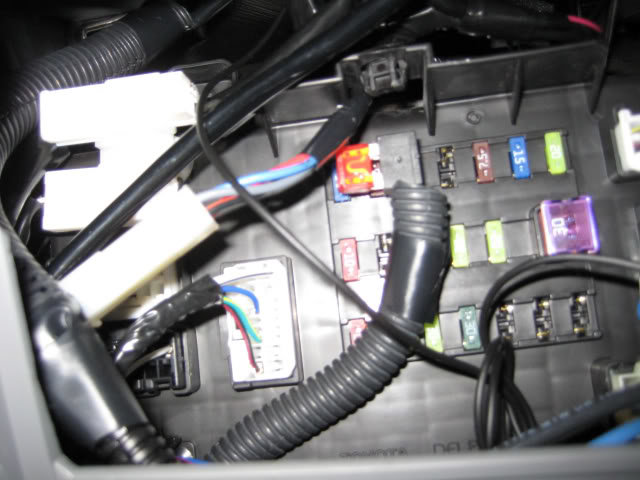

    Fuse box connection
    [​IMG]

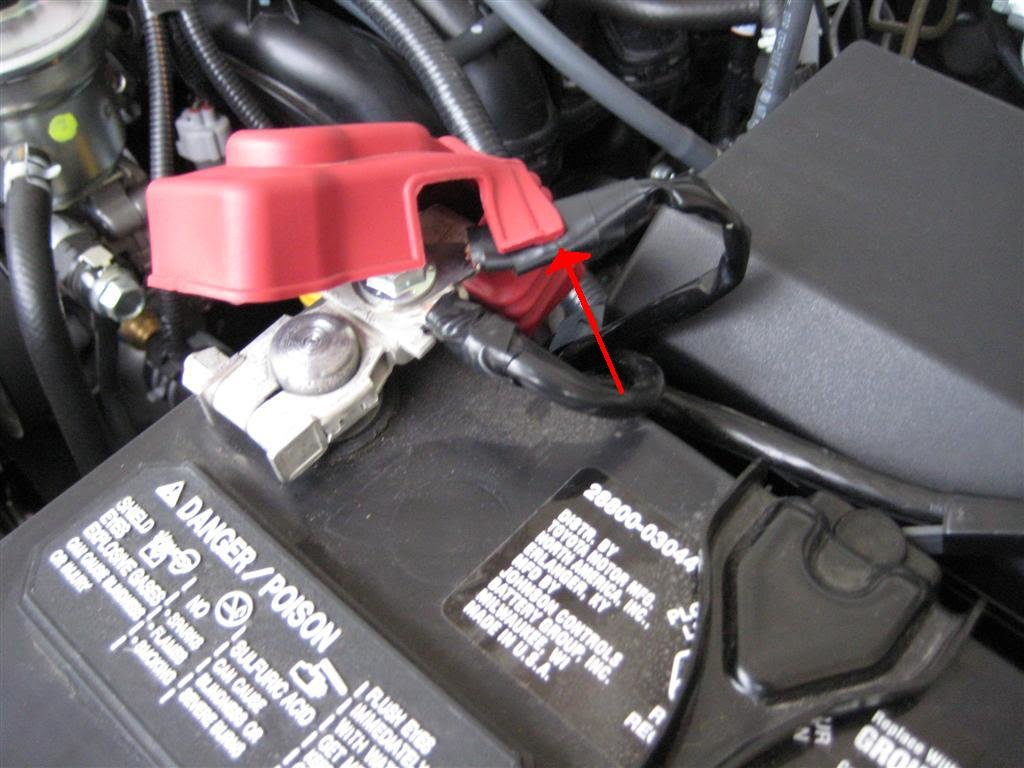

    Battery connection
    [​IMG]
    [​IMG]

  4. Sep 6, 2009 at 9:38 AM
    #4
    10taco

    10taco [OP] Well-Known Member

    Joined:
    Sep 4, 2009
    Member:
    #22251
    Messages:
    60
    Gender:
    Male
    Massachusetts
    Vehicle:
    '10 4WD reg cab
    fog lights (with OEM switch), skid plate, stainless exhaust tip, Curt receiver hitch, Exact-Fit seat covers, AFE air filter, intermittant wipers, EGR in-channel vent visors, door sill protectors, Autocraft Platinum AGM battery.
    EPA, Thanks a million for the super-quick and complete reply to my question. Nice work, BTW. Who did you get your light kit from? Any difficulty hooking the harness to the factory switch? Are the fog lights 'on anytime' or tied into the headlights? Could you also explain how you (seemingly) hooked into the factory fuse box? Thanks again! MR :D

  5. Sep 6, 2009 at 10:50 AM
    #5
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    I don't remember his ebay user name I'll try and look it up on my paypal history, hooking up the wires to the OEM switch was easy only 4 pins: (1 for ground, 1 for button illumination, 1 that decides when fog lights can be turned on, 1 that goes to the relay when the button is pressed), there is a diagram for the foglight switch around, I'll try to find it. BTW if you can get your hands on the OEM plug for the switch its better, there is a website that sells the switch along with the plug. I did not use the plug tough, I used small four pin connectors shielded with heatshirnk.

    I connected the switch so I can only turn the fog lights on whenever the dash lights are on which means that I have one of the three options in the headlight switch on. That way if I forget to turn the foglights off they will turn off anyway when I turn off the headlight switch.

    EDIT: I used the wiring and relay included in the kit, I did not hook up anything to the relay box behind the battery. I did hook up one wire to the fusebox inside the truck I used this
    "add a fuse":
    [​IMG]
    I connected this to the fuse for the truck's dash illumination. The fuse that you see in the pics I posted before is the fuse for the 12V line that is connected to the battery.

    EDIT: ebay user: makotoautotrends

    EDIT: I think this is the switch with the plug http://www.trdparts4u.com/PD-FJ-FOGSW.aspx?MakeID=1

    EDIT: Part Number for plug if you already have the switch: 90980-11090,
    Part Number for wires with pins that go in the plug: 82998-12340 4 required

    EDIT: I attached the diagram I connected pin 1 and 3 to the same wire.


  6. Sep 7, 2009 at 9:30 AM
    #6
    crazimofo

    crazimofo New Member

    Joined:
    Aug 9, 2009
    Member:
    #20872
    Messages:
    1
    Gender:
    Male
    Hawaii
    Vehicle:
    05 PreRunner Reg Cab
    thank you epa4wd, your work is much appreciated.
    for the switch and connector plug although listed on trd site as a fjcruiser? is it still the one for a tacoma?

  7. Sep 7, 2009 at 9:42 AM
    #7
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    Yes same part number, just checked trough toyodiy.com

  8. Sep 7, 2009 at 9:45 AM
    #8
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    this should be a sticky. so many people ask this same question and with the reply on this one is very detailed!

  9. Sep 7, 2009 at 10:47 AM
    #9
    jspadaro

    jspadaro Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12342
    Messages:
    2,997
    Gender:
    Male
    First Name:
    Jim
    Knoxville, TN
    Vehicle:
    Former Tacoma Owner
    Blue Oval Mod
  10. Sep 7, 2009 at 10:56 AM
    #10
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    yup thats the one, when you remove the covers for the fog lights in the bumper do it carefully so that you dont scratch the bumper regardless if its a painted or unpainted bumper. Mine is unpainted and it scratches very easily.

  11. Sep 8, 2009 at 3:00 PM
    #11
    10taco

    10taco [OP] Well-Known Member

    Joined:
    Sep 4, 2009
    Member:
    #22251
    Messages:
    60
    Gender:
    Male
    Massachusetts
    Vehicle:
    '10 4WD reg cab
    fog lights (with OEM switch), skid plate, stainless exhaust tip, Curt receiver hitch, Exact-Fit seat covers, AFE air filter, intermittant wipers, EGR in-channel vent visors, door sill protectors, Autocraft Platinum AGM battery.
    EPA, I have spent some time lately following your posted links, and their posted links, etc., and have seen quite a few fog light 'write-ups' posted by various subscribers to several forums. I have to say I have not seen one yet that compares favorably to yours; you are to be !COMMENDED! for the thoroughness and quality of your excellent fog light tutorial! I have ordered my lights (same as yours) and will be ordering the switch soon! THANKS!! :D

  12. Sep 8, 2009 at 3:10 PM
    #12
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    Thanks!! I really took my time with the wiring, I tried to make it as hidden as possible, I suggest you lay out everything how you want it before starting to put everything in the truck and figure out what wire does what. I also used some wire clip mounts under the hood for routing the wires, you can see them in the pics that show the wires going down each side of the radiator.

    If you have any doubts with which wire goes were, post a pic of the wiring and I'll try to remember what I did with each one. You may also need to extend some of the wires. I know that I had to extend at least one of them.

    Heck, I can even take more pics this weekend to show were I placed everything. :)

  13. Sep 8, 2009 at 5:35 PM
    #13
    Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    looks good hows the beam pattern? at least there are more options coming out for oem fogs finally

  14. Sep 8, 2009 at 5:35 PM
    #14
    Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    oh yeah if can put up your wiring diagram lol

  15. Sep 8, 2009 at 5:49 PM
    #15
    fletch aka

    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,122
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    X1

  16. Sep 8, 2009 at 6:13 PM
    #16
    gcwaterski

    gcwaterski Well-Known Member

    Joined:
    Jul 15, 2007
    Member:
    #2101
    Messages:
    483
    Gender:
    Male
    sticky worthy, nice reply :cookiemonster:

  17. Sep 8, 2009 at 6:48 PM
    #17
    Plain Jane Taco

    Plain Jane Taco Well-Known Member

    Joined:
    Apr 19, 2009
    Member:
    #16179
    Messages:
    937
    Gender:
    Male
    USA
    Vehicle:
    '15 Super White DCSB PreRunner V6
    I've got the ebay kit in yellow. Just a little moddin' to the harness to make it work with a Toyota switch. I didn't use the actual OEM switch...too spendy. I bought the $10 Toyota rocker switch from my local dealer. The base model has an empty slot in the fuse box that is hot when the parking lamps are on. I used an Add-A-Fuse link to connect this slot to the relay through the switch. So my fogs work with the parking lamps, low beams and hi beams. They turn off with the headlamp switch or I can defeat them all together with the rocker switch.

    [​IMG]

    [​IMG]

  18. Sep 10, 2009 at 3:11 PM
    #18
    epa4wd

    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,065
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
  19. Sep 11, 2009 at 10:42 AM
    #19
    NAAC3TACO

    NAAC3TACO Well-Known Member

    Joined:
    Aug 5, 2008
    Member:
    #8350
    Messages:
    2,567
    Gender:
    Male
    Vehicle:
    2014 SR5 DCLB 4x4
    Color matched door handles, Weathertech mats, rubber bed mat.
    I've never wired in fog lights. Does the kit come with instructions?

  20. Sep 11, 2009 at 10:47 AM
    #20
    McJosh

    McJosh avidoffroad.com

    Joined:
    Jun 18, 2009
    Member:
    #18621
    Messages:
    3,432
    Gender:
    Male
    First Name:
    Josh
    Chandler
    Vehicle:
    2005 Reg. Cab 5 lug Tacoma
    Pioneer AVH-p2300DVD, 12" Memphis sub and Alpine MRP-M650 amp, 32" BFG AT tires and KMC wheels, tinted windows, satoshi grille w/ stainless steel mesh, Avid front & rear tube bumpers, Cobra wx75 CB with 3' firestik, GaragePro bucket seats, FlowMaster 40 series, aFe CAI, Black head lights, LoJack and Autopage alarm installed, Avid sliders.
    Looks confusing. :/ I'm planning on getting some soon.
