Effects on spring rate from a shackle flip

Discussion in 'Suspension' started by stairgod, Sep 17, 2018.

  1. Sep 17, 2018 at 7:55 PM
    #1
    stairgod

    stairgod [OP] NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s
    Let me preface this by stating I am a carpenter. No schooling in physics, engineering, etc. After listening to rumors and conjecture for a long time, I decided my curiosity needed to be satisfied. Lacking the math background to do calculations, I figured to build a full size model from scrap steel, the top two leaves from my original leaf pack, my removed factory shackle hanger, and a fabbed up shackle flip. Factory shackle was used in both instances.
    I built a frame section to hold my weights, in this case a bundle of shingles and 80# bags of concrete mix, made a pivot for the front that could bolt to my workbench, and a stand to simulate the axle and wheel.
    Next step was to mount the factory shackle hanger, front leaf mount, and bolt on the leaves.
    Using the bundle of shingles to preload the leaves, I took my first measurement as my baseline.
    I then added one bag of concrete mix at a time, measuring from the bottom of the frame rail to the top leaf.
    Next up was the shackle flip. I made one with five sets of holes so I could vary the shackle angle and see any effect shackle had on the spring rate.
    Starting with the front hole, I repeated the experiment as with the factory shackle set up. Each measurement was taken from the bottom of the frame rail to the top of the top leaf. Each baseline was measured for each set up.
    I then repeated the experiment for each hole in the shackle flip, measuring starting and ending shackle angle as well as the frame to leaf measurements.
    Unfortunately the last(fifth) run through ended prematurely as the shackle flattened out against the frame after adding only 160# to the frame as the shackle did not allow enough movement for the spring eye distance elongation. Iirc the starting shackle angle was around 52 degrees, and with the leaves having a decent arch to them with the weight on, there simply was not enough shackle movement left. I essentially discovered a maximum starting shackle angle for that amount of spring arch.
    As I did this experiment over 2 1/2 years ago, the individual measurements have all been lost. As have some of the pictures.
    Full disclosure dictates me stating that I do not typically take a ton of pics, don't do write ups, and don't even have a build page. I was mostly interested in the results as I wanted to prove my theory.
    The short and skinny is that regardless of either tension or compression shackle, and regardless of shackle angle, adding 80# moved the frame down 1/2'. I measured a full two inch drop in all phases after adding 320#, which establishes that the two top factory leaves have a spring rate of 160# per inch, and that did not vary in any configuration.
    Takeaways from this experiment:
    1. Shackle flip does not change spring rate.
    2. Shackle angle does not change spring rate.
    3. Shackle flip will not flatten your springs faster. How can it if it does not effect spring rate?
    4. Shackle flip will not change ride quality or alter the dynamics of the rear suspension. Again, no change to spring rate.

    The flip does typically raise the rear of the truck. That moves COG and will effect handling.
    Assuming the shocks allow full articulation of the axle, and the bump stops are not moved down the same amount as the flip lowered the axle, then the leaves will have more travel, and will fatigue sooner. It is an unfortunate fact that spring steel can and will fatigue after a certain number of cycles. Too many people have stated that allowing the springs to go into negative arch is the culprit. It is in fact the amount of change in state that causes the fatigue.
    The front springs on my dually are negative arch and came that way from the factory. After 18 years and over 400k miles they are still serviceable. Why? limited suspension travel, i.e. small
    change in state through full cycle.
    Hopefully someone finds this helpful, or I just wasted a ton of time typing this.

    CGoss, kylehorvath, 3pooches and 17 others like this.
  2. Sep 17, 2018 at 7:57 PM
    #2
    stairgod

    stairgod [OP] NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s

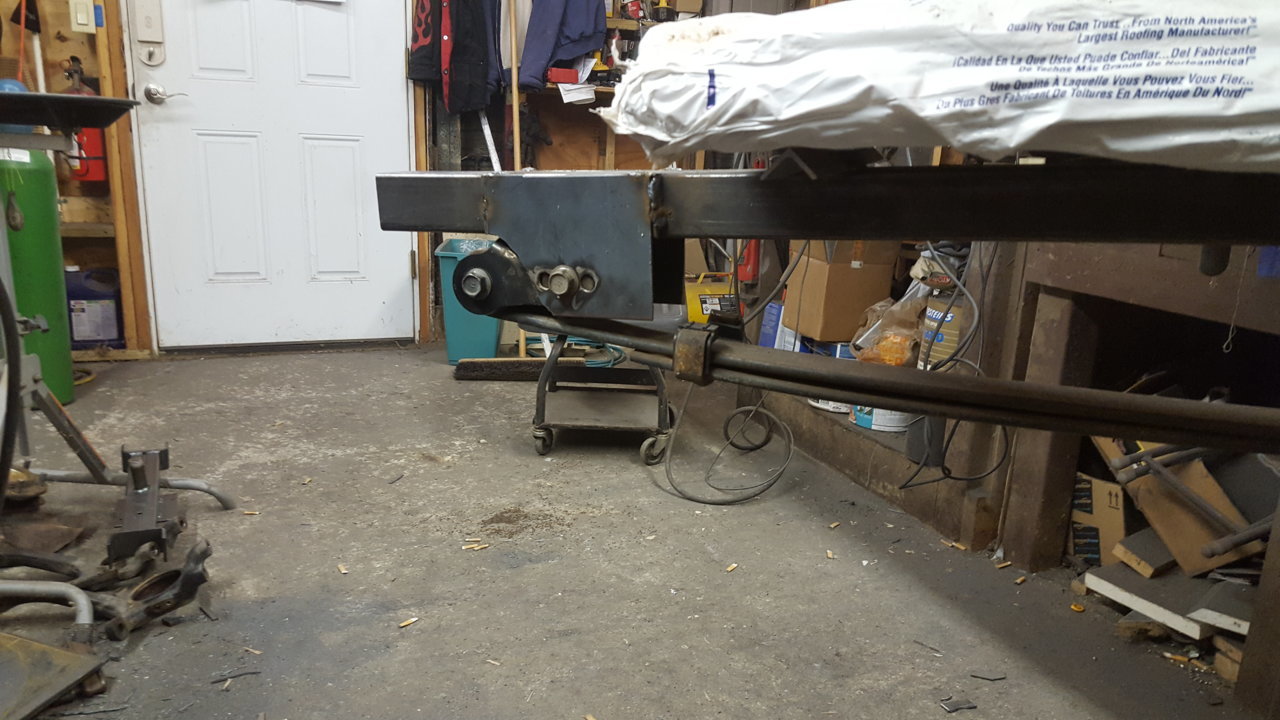

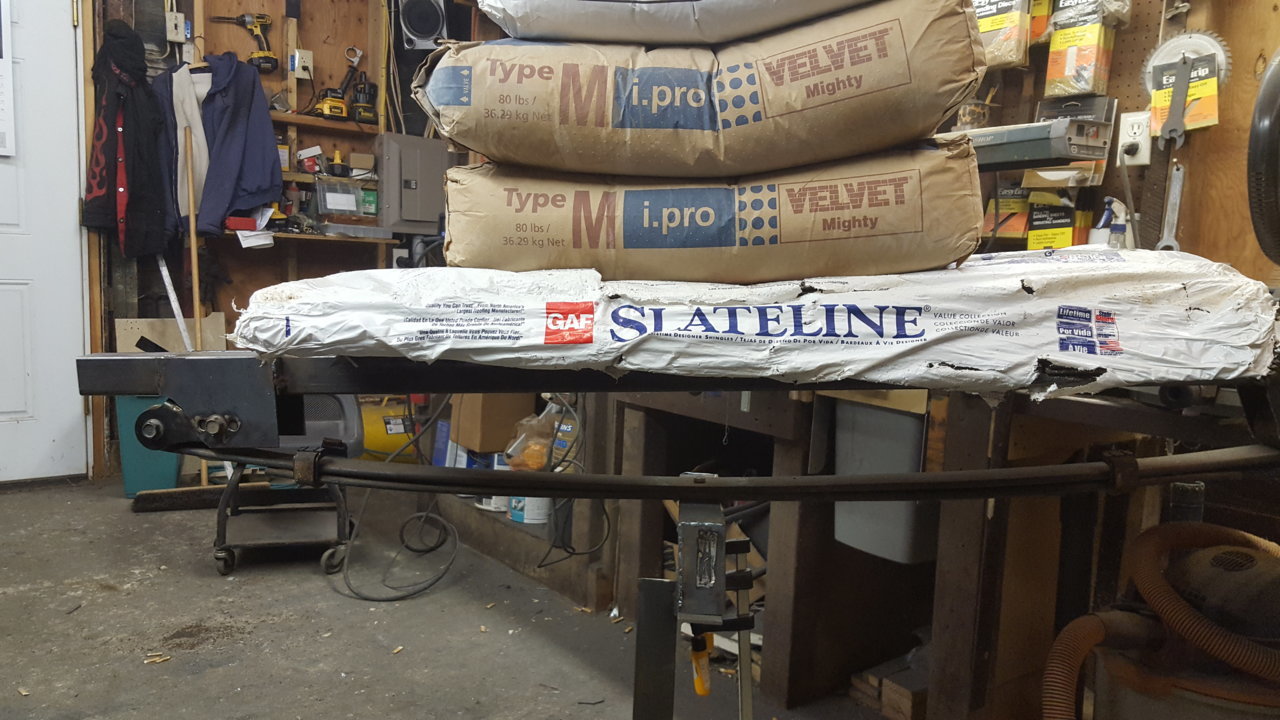

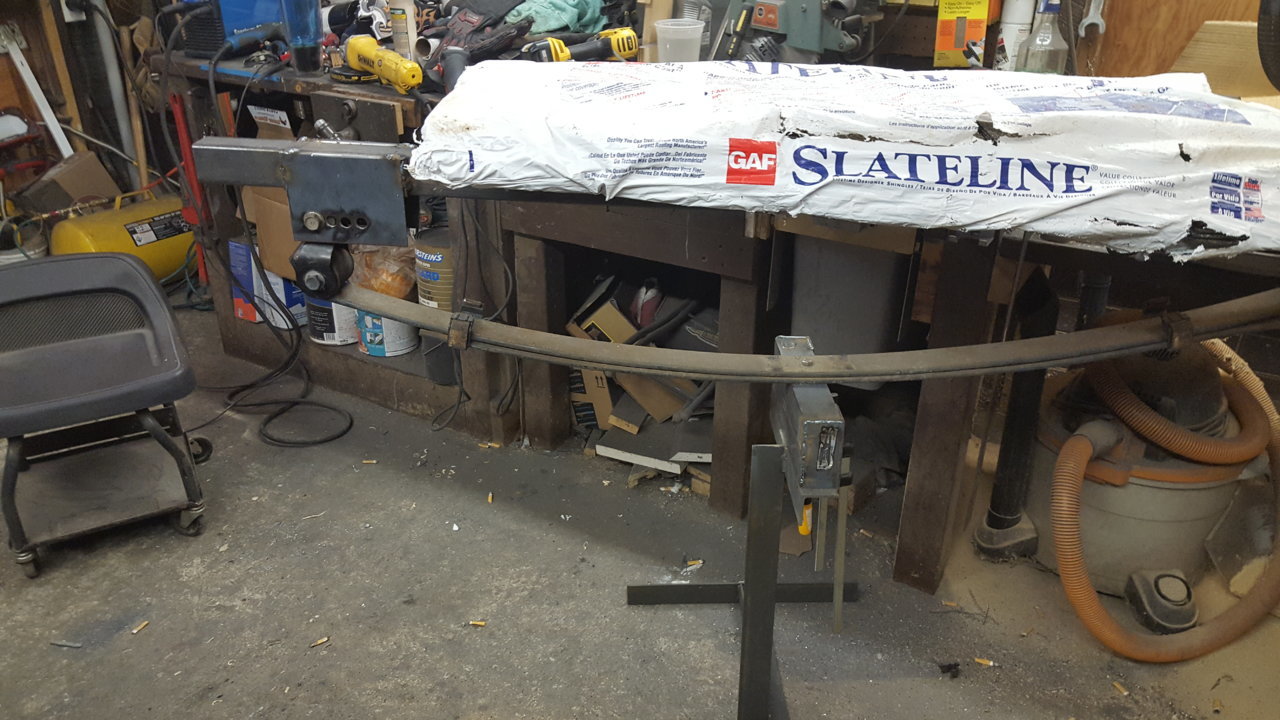

    20170321_211831.jpg 20170321_211836.jpg 20170315_213155.jpg
    I had more pics but they went walkabout

  3. Sep 17, 2018 at 8:07 PM
    #3
    stairgod

    stairgod [OP] NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s
    Sharp eyes will pick up that I only had four holes in the flip. And that the shackle flattened out on the third hole. And I had to plamsa part of the flip off as I went because the shackle was hitting it.
    And no I am not going to bother to edit the first post. Too damn tired.

  4. Sep 18, 2018 at 5:32 AM
    #4
    Nimble9

    Nimble9 visit squareonecreations.com Vendor

    Joined:
    Oct 20, 2015
    Member:
    #167184
    Messages:
    7,883
    Gender:
    Male
    Lebanon, PA
    Vehicle:
    2006 4x4 DCSB
    enough to have fun
    what a sweet experiment! If i was better at FEA i'd love to model this stuff and run simulations. maybe @Sub-Zero could? haha not to add to your workload Ryan

  5. Sep 18, 2018 at 5:37 AM
    #5
    Arcticelf

    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    6,885
    Gender:
    Male
    Vehicle:
    2013 double cab, long bed
    ^^^™This is the real issue.

    Nice write-up and experiment.

    Icon_Adrian and Nimble9 like this.
  6. Sep 18, 2018 at 5:39 AM
    #6
    Arcticelf

    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    6,885
    Gender:
    Male
    Vehicle:
    2013 double cab, long bed
    The angle of shackle and tension vs compression is going to change spring rate, based on the vectors, but I don't think it's going to be significant. I'll see if I can draw it up later. Someone else is going to have to do that math thought.

    DaveInDenver and Nimble9 like this.
  7. Sep 18, 2018 at 5:43 AM
    #7
    Nimble9

    Nimble9 visit squareonecreations.com Vendor

    Joined:
    Oct 20, 2015
    Member:
    #167184
    Messages:
    7,883
    Gender:
    Male
    Lebanon, PA
    Vehicle:
    2006 4x4 DCSB
    enough to have fun
    I don't think I have the proper software as I can only do linear static studies, but for this experiment a nonlinear static study would prove more realistic i believe. It would be so awesome to simulate this result and verify the results with computer models. That being said, I def. appreciate all the time spent on the physical tests. Awesome work @stairgod !!!!!!!!!!

    Arcticelf likes this.
  8. Sep 18, 2018 at 6:19 AM
    #8
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    52,992
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    So does that mean if you limited uptravel a little bit via bumps, and overall limited the amount the springs articulate, you won't fatigue them a quickly?

  9. Sep 18, 2018 at 6:42 AM
    #9
    Arcticelf

    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    6,885
    Gender:
    Male
    Vehicle:
    2013 double cab, long bed
    Short answer is yes.

    Long answer is that your leaf pack should be designed around the range of motion, intended shape, allowed travel and weight being supported. In @stairgod 's example of his dually above, part of the reason that pack is fine in negative arch is that it was designed to live there. Putting it into positive arch like our packs would probably be bad for it's life span.

    Blackout14 and EatSleepTacos like this.
  10. Sep 18, 2018 at 6:44 AM
    #10
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    52,992
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Of the aftermarket leaf packs available, I wonder which ones fare better at the shackle flip life (if any) vs stock shackle configuration.

  11. Sep 18, 2018 at 7:04 AM
    #11
    Arcticelf

    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    6,885
    Gender:
    Male
    Vehicle:
    2013 double cab, long bed
    Only way to know is either test or a meta-analysis of people's builds based on thier form posts.

    EatSleepTacos likes this.
  12. Sep 18, 2018 at 8:31 AM
    #12
    stairgod

    stairgod [OP] NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s
    Deaver make an expo pack that has many more and thinner leaves. They will fatigue more slowly.

  13. Sep 18, 2018 at 8:34 AM
    #13
    stairgod

    stairgod [OP] NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s
    If you limited up travel to essentially recreate factory travel numbers then yes. Because the leaves would end up with the same exact motions as stock.
    However, even with stock shackles and leaves, a street truck will probably not have spring issues where an offroaded truck that regularly has the springs fully cycled will fatigue much faster.

    Arcticelf likes this.
  14. Sep 18, 2018 at 8:41 AM
    #14
    stairgod

    stairgod [OP] NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s
    It was not significant enough to show up in 2" of travel. If I had measured the slightest amount of change between the various set ups I would agree. Perhaps a long shackle would show some difference. I do not plan on testing that. I also stuck with the top two leaves as if made spring rate linear so that measurements could be more easily compared. A full leaf pack could have caused some weird measurements if the pack was progressive.

  15. Sep 18, 2018 at 9:33 AM
    #15
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    I like tests!

    I thought the difference comes into play because a leaf spring isn't linear (not to mention packs themselves are progressive as more leafs engage) and the rate does change as they transition from compression and tension.

    You get a rising rate with a tension shackle that you don't get with a compression shackle, which is due to the spring's datum and the relationship of the front and rear eyes.

    In the stock configuration the rear eye is further above the centerline through the spring and axle so the effective spring rate is different than when the rear eye is lower than the front eye as happens in a flip. It worked on 1st gen Tacoma because the frame was designed to locate the spring and shackle properly for the geometry. In a 2nd gen the frame must not curve up as much and flipping the shackle is forcing the spring even further down the soft side of the rate curve.

    If I'm not mistaken, I think the term for all of this is roll steer. You're changing how the wheel arcs through its travel as the weight shifts, so just flipping the shackle and changing nothing else can make a big difference in how the rear suspension cycles and feels even if the absolute spring rate of the leaf hasn't changed.

    But I would also be very interested in hearing a mechanical engineering explanation.

  16. Sep 18, 2018 at 10:10 AM
    #16
    Arcticelf

    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    6,885
    Gender:
    Male
    Vehicle:
    2013 double cab, long bed
    Yeah, it's going going to be a small % that it matters (I think). Does it matter, yes, if you're an engineer at Toyota. Not to us.

  17. Sep 18, 2018 at 12:36 PM
    #17
    HolyHandGrenade

    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    So many words.

    I just need to know if it’s safe to tow stuff now that the shackle flip has caused my springs to flatten?















    :boink:

  18. Sep 18, 2018 at 12:54 PM
    #18
    Thyces

    Thyces Above average size member

    Joined:
    Nov 19, 2015
    Member:
    #170146
    Messages:
    3,053
    Gender:
    Male
    Ontario
    Vehicle:
    2009 DCLB TRD Sport
    Nitrocharger on 886 1/2" spacer Fox 2.0 12" in the rear Allpro expedition leafs (garbage) Pelfreybilt aluminum single hoop front Full size pickup bedslide modded to fit Satoshi grill Ubolt flip kit Archive garage shackle flip Sumo supersprings 1500lbs SPC uca's Full set RCI skid plates Weld on sliders ABS killswitch Pop'n'lock power tailgate lock Cooper s/t maxx 255 80 17 Plastidipped emblems Ebay projector headlights Smoked aftermarket tail lights High output led reverse lights Hella horns 330w 5d led bumper bar 18w spots on track facing rear (fuck you lights) B&m trans cooler Bussmann fuse box ECGS bushing Big 4 (0 gauge ofc wire) upgrade Mechman 240 amp alternator Jl 10w7 in a 1 1/2" thick wall custom box Alpine 1000w rms mono amp Group 31 AGM battery installed next to sub Yaesu 2800 Bearcat 980 in dash with wireless mic and stainless whip Diff breather mod Hilux snorkel Turbine pre filter Baja Rack low profile cab rack Rifle case on rack Shovel and axe on quick fists in bed Flat and spade shovel mounted in bed Highlift mount in bed Tech deck with magnetic ram mount Tab s4 on ram mount
    My current set up is allpro expo leafs, archive garage shackle flip with sumo springs basically in fulltime contact with the frame. I can load ALOT of weight in the bed but I believe that the sumo springs are the only thing saving saving the leafs/enabling this. I figured a large amount of thin leaves was best for ride quality. It was until they started to go flat without any offroad driving. When I actually got offroad I snapped the main leaf in the pack from what I believe was too much tension on the leaf from a 5" shackle. Could have also been shitty quality control on allpros part. Could have been I was heavily loaded. Either way this combination of thin leaves and a shackle flip does not sit right with me. I'll be doing the 63 swap in the future as these are over sized and tested leafs that I can somewhat trust. My 2 cents.

  19. Sep 18, 2018 at 12:59 PM
    #19
    Thyces

    Thyces Above average size member

    Joined:
    Nov 19, 2015
    Member:
    #170146
    Messages:
    3,053
    Gender:
    Male
    Ontario
    Vehicle:
    2009 DCLB TRD Sport
    Nitrocharger on 886 1/2" spacer Fox 2.0 12" in the rear Allpro expedition leafs (garbage) Pelfreybilt aluminum single hoop front Full size pickup bedslide modded to fit Satoshi grill Ubolt flip kit Archive garage shackle flip Sumo supersprings 1500lbs SPC uca's Full set RCI skid plates Weld on sliders ABS killswitch Pop'n'lock power tailgate lock Cooper s/t maxx 255 80 17 Plastidipped emblems Ebay projector headlights Smoked aftermarket tail lights High output led reverse lights Hella horns 330w 5d led bumper bar 18w spots on track facing rear (fuck you lights) B&m trans cooler Bussmann fuse box ECGS bushing Big 4 (0 gauge ofc wire) upgrade Mechman 240 amp alternator Jl 10w7 in a 1 1/2" thick wall custom box Alpine 1000w rms mono amp Group 31 AGM battery installed next to sub Yaesu 2800 Bearcat 980 in dash with wireless mic and stainless whip Diff breather mod Hilux snorkel Turbine pre filter Baja Rack low profile cab rack Rifle case on rack Shovel and axe on quick fists in bed Flat and spade shovel mounted in bed Highlift mount in bed Tech deck with magnetic ram mount Tab s4 on ram mount
    I would suggest air bags or sumo springs if your towing often. I believe our trucks aren't meant to tow too heavy or too often.

  20. Sep 18, 2018 at 1:00 PM
    #20
    HolyHandGrenade

    HolyHandGrenade NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    11,726
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    DCFB (RIP)
    Some Stuff
    I was just messing with Mohawk :thumbsup:
