Eibach 1.6 + 5100 Thanks to all TW members

Discussion in '2nd Gen. Tacomas (2005-2015)' started by wmb67, Jan 23, 2010.

  1. Jan 23, 2010 at 10:22 AM
    #1
    wmb67

    wmb67 [OP] Well-Known Member

    Joined:
    May 4, 2009
    Member:
    #16804
    Messages:
    160
    Gender:
    Male
    Boston
    Vehicle:
    09 Dbl Cab Off Road Mag Gray

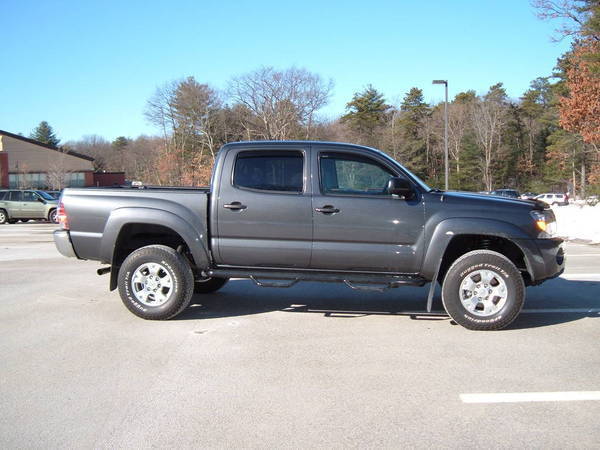

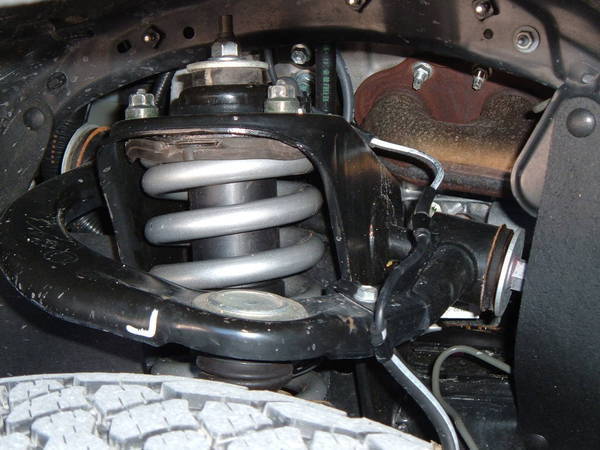

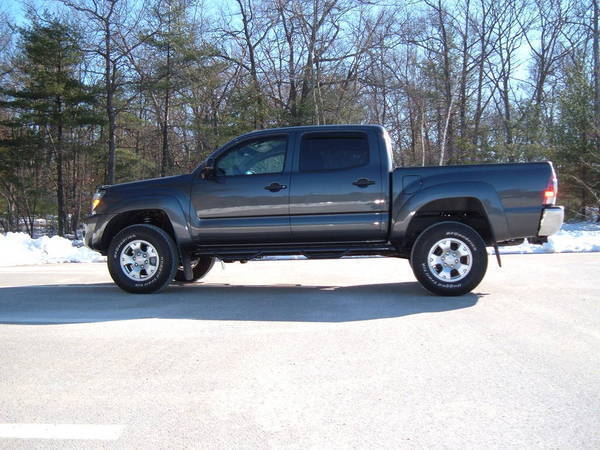

    A big thank you to all members who post on this site. This amazingly helpful site has allowed me to enjoy my truck more than I thought possible.:thumbsup: I purchased Eibach 1.6" coils and 4 Bilstein shocks a couple months ago. Attempted install, but aborted after Mineke assembled coil/shock with spring seat UPSIDE DOWN, and I didn't notice, untill spring violently unsprung during install :mad:. Thankfully no one was hurt and there was no damage. So finally had some time to get them installed this week. I still need to get an alignment, but the truck rides and looks better than ever. Thanks again to everyone. Before:[​IMG] [​IMG] After with Eibach 1.6" coils, Bilstein shocks all around and 1.75 aal: [​IMG]

    [​IMG]
    [​IMG][​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    FYI: Bilsteins set @ "0", and did not put in diff drop. I do have some slight vibrations @ 22-25 mph, but very slight. Might put diif drop in to see if that resolves vibes.
    Any suggestions appreciated.

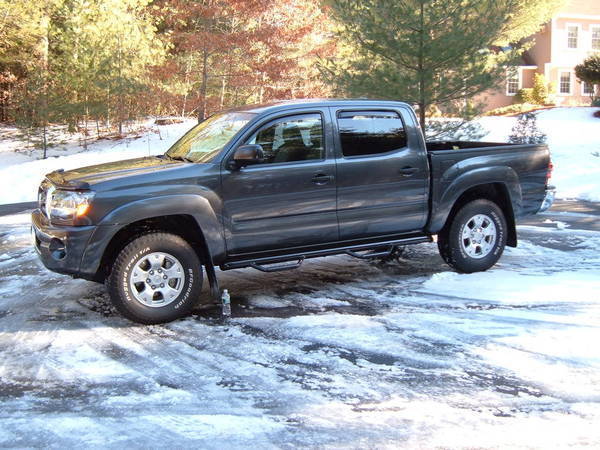

    PS: 1 of the before photos is bone stock the day I bought truck.

  2. Jan 23, 2010 at 10:33 AM
    #2
    Jigzor

    Jigzor Well-Known Member

    Joined:
    May 19, 2009
    Member:
    #17413
    Messages:
    3,077
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB Silver Sky
    Looks great! Glad you weren't hurt when the spring discharged!

  3. Jan 23, 2010 at 10:37 AM
    #3
    A7XT

    A7XT Reppin UWYO

    Joined:
    May 1, 2009
    Member:
    #16656
    Messages:
    343
    Gender:
    Male
    First Name:
    Kyle
    WYOMING
    Vehicle:
    '09 TRD Sport V6 Silver
    BRUTEFORCE FAB HYBRID BUMPER!, 1.5 AAL, 5100 at 2.5" in front, foglight and DRL mod, fully de-badged, diff-breather mod, aux backup lights, rear view switch on mod, full husky floor liners, yellow wire mod, black action packer toolbox, Rockford P3SD412 sub on a hifonics Zues, Pioneer 4200DVD, hitch recovery shackle, Toyota Ski racks over bed, 55W Bixenon 6000K, Rigid 4" LED bars on bumper, Black Ultra Thunder 17" rims
    Looks sweet man thats a sharp truck you got there! You could also probably put those front billies at .85 to level it out more if you wanted, but the rake looks good too:cool:

  4. Jan 23, 2010 at 10:42 AM
    #4
    Chester

    Chester Well-Known Member

    Joined:
    Sep 30, 2007
    Member:
    #2874
    Messages:
    279
    Gender:
    Male
    Nor Cal
    Vehicle:
    07 Access Cab TRD-OR M-V6 4x4
    Rear Spring TSB,Locker Mod,In bed cargo lights,Fully de-badged,TRD Seat Covers,Trailer Harness Relocation,Painted wheels,Extra tie-downs,5100's,Biceman lighting,09 stereo with sirius & isimple ipod interface,Rear diff breather mod,K&N Air Filter
    Damn,Not cool when they pop.Compressed the springs on my 2000 got one done and as I had the other off and compressed the compressor started to bend and crack ,left with no other choice than to hit it with a hammer and release it!Drove across town with just a shock in to a Midas LOL.Truck looks great!Getting billy's for mine on the first cant wait!And not doing it myself!

  5. Jan 23, 2010 at 11:04 AM
    #5
    WilsonTheDog

    WilsonTheDog Kylie's dad

    Joined:
    Nov 17, 2007
    Member:
    #3496
    Messages:
    4,837
    Gender:
    Male
    First Name:
    Eric
    Myrtle Beach SC
    Vehicle:
    07 Prerunner SR5 DC/SB V6
    Magnaflow 12576 muffler & chrome tip, Westin step bars, 27% tint, Pop N Lock, AFE ProdryS, bed mat, Husky liners, D-rings added, Access Literider tonneau, Pioneer 4-ways all around, GY Wrangler Duratracs 265/75/16, 5100's @ 1.75", 1.5" AAL
    Rear TSB or other lift?

  6. Jan 23, 2010 at 11:14 AM
    #6
    wmb67

    wmb67 [OP] Well-Known Member

    Joined:
    May 4, 2009
    Member:
    #16804
    Messages:
    160
    Gender:
    Male
    Boston
    Vehicle:
    09 Dbl Cab Off Road Mag Gray
    1.75 add a leaf. I didn't have the patience to argue with my dealer for the tsb, so i bought the aal.

    Thanks for the good words guys!

  7. Jan 23, 2010 at 1:22 PM
    #7
    WilsonTheDog

    WilsonTheDog Kylie's dad

    Joined:
    Nov 17, 2007
    Member:
    #3496
    Messages:
    4,837
    Gender:
    Male
    First Name:
    Eric
    Myrtle Beach SC
    Vehicle:
    07 Prerunner SR5 DC/SB V6
    Magnaflow 12576 muffler & chrome tip, Westin step bars, 27% tint, Pop N Lock, AFE ProdryS, bed mat, Husky liners, D-rings added, Access Literider tonneau, Pioneer 4-ways all around, GY Wrangler Duratracs 265/75/16, 5100's @ 1.75", 1.5" AAL
    How's it ride? Looks great, btw.

  8. Jan 23, 2010 at 4:16 PM
    #8
    oldtacomaguy

    oldtacomaguy four forty four

    Joined:
    Dec 11, 2006
    Member:
    #444
    Messages:
    10,032
    Gender:
    Male
    First Name:
    Dave
    SE Conn.
    Vehicle:
    08 SR-5 4WD Impulse Red Pearl
    Alpine deck and amp, Polk speakers front and rear, Kenwood subwoofer, windows tinted to 20%, Sockmonkey decals, TSB, Eibach springs and Bilstein 5100's
    X2, I'm getting the parts together for this same settup. Looks great!

  9. Jan 23, 2010 at 7:47 PM
    #9
    BSP4x4

    BSP4x4 Guest

    i thought the 5100's were suggested to be paired with OEM coils only? how is the ride?

  10. Jan 23, 2010 at 7:56 PM
    #10
    OH-MAN

    OH-MAN Well-Known Member

    Joined:
    Apr 23, 2009
    Member:
    #16324
    Messages:
    2,292
    Gender:
    Male
    First Name:
    Steve
    Sunny Az.
    Vehicle:
    10 4X4 O.R. White
    TRD skid painted black,
    Work great with my 1.6 Eibach springs. Set at .85:D

  11. Jan 23, 2010 at 8:04 PM
    #11
    CJH9980

    CJH9980 Well-Known Member

    Joined:
    Oct 2, 2008
    Member:
    #9641
    Messages:
    505
    Gender:
    Male
    First Name:
    Clint
    Shreveport, LA
    Vehicle:
    2010 TRD OR 4x4
    5100's, Eibach springs, Toytec AAL, Total Chaos UCA's, MetalMiller Skid
    Same here

  12. Jan 23, 2010 at 10:45 PM
    #12
    TacoSupreem

    TacoSupreem Dirty Trucker

    Joined:
    Dec 21, 2009
    Member:
    #27935
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Hayden
    Kentucky
    Vehicle:
    2013 MGM DCSB 4x4 Sport
    the vibes are probably from ur aal? do u feel them in the seat or the steering wheel? u shouldn't need the front diff. drop only doing up 1.75 inches.

  13. Jan 24, 2010 at 12:37 AM
    #13
    DuderAbides

    DuderAbides Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26369
    Messages:
    167
    Gender:
    Male
    First Name:
    Tom
    Vista, CA
    Vehicle:
    2010 DC SB TRD OR 4X4
    price? How much lift did you achieve with this? How much bigger of a tire can you run? Is your gas mileage affected at all by this? Id really like to get a lift as well for myself, but I definately don't want anything huge, or will impact my gas mileage that much, but would like some better clearance for offroading (if i ever pop my OR cherry!) Thanks!! sorry to threadjack, your truck looks awesome!

  14. Jan 24, 2010 at 3:54 AM
    #14
    671taco

    671taco Well-Known Member

    Joined:
    Nov 5, 2009
    Member:
    #25461
    Messages:
    798
    Gender:
    Male
    Guam
    Vehicle:
    twenty-ten rc
    looks sweet!

  15. Jan 24, 2010 at 5:09 AM
    #15
    wmb67

    wmb67 [OP] Well-Known Member

    Joined:
    May 4, 2009
    Member:
    #16804
    Messages:
    160
    Gender:
    Male
    Boston
    Vehicle:
    09 Dbl Cab Off Road Mag Gray
    Purchased in a groupbuy through this forum for about $650 from Toytec.com who is a vendor on this site.
    I'm not sure about tire size...I'm running stock BFG Rugged Trails and will replace when necessary with same/similar size BFG A/T.
    I 've only had lift on a few days, but I can't imagine the gas mileage could get much worse;).
    Check out Toytec Lifts... their prices seem reasonable, service was prompt and the people were helpful.
    I don't have the height measurements with me, but the coils raised the front almost exactly 1.6" and the aal raised the rear 1.75". I'll post up final measurements later if you want.

  16. Jan 24, 2010 at 5:14 AM
    #16
    MattN03

    MattN03 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12571
    Messages:
    716
    Gender:
    Male
    First Name:
    Matt
    Bluegrass State
    Vehicle:
    07 DC 4x4 TRD Off-Road
    20% window tint, beep mod, hardwired V1, TSB springs, AVS Bugshield-21803, USA Spec PA15, OEM Tacoma scuff plates, Weathertech mats, Truxedo LoPro, TRD skid, GY Duratrac's 265/75/16 C Range, locker mod (switch method)
    What's the advantage of doing 5100's and Eibach 1.6 springs vs 5100's only?

  17. Jan 24, 2010 at 5:21 AM
    #17
    bluecluee

    bluecluee Well-Known Member

    Joined:
    Oct 22, 2008
    Member:
    #10166
    Messages:
    127
    Gender:
    Male
    First Name:
    Jason
    Baltimore, MD
    Vehicle:
    '09 DC TRD OR Timberland Mica
    5100's Set at 1.75
    I have been wondering the same thing...

  18. Jan 24, 2010 at 5:35 AM
    #18
    wmb67

    wmb67 [OP] Well-Known Member

    Joined:
    May 4, 2009
    Member:
    #16804
    Messages:
    160
    Gender:
    Male
    Boston
    Vehicle:
    09 Dbl Cab Off Road Mag Gray
    The ride is firmer then stock, which I felt was too "squishy or soft". So I guess the ride is a bit more "truck-like", but for me, it now rides and looks the way a truck should. I'm very happy with this lift.

    I'm not an expert, but the 5100's can be paired with a few set-ups and work well, but other set-ups not so well. Check out Toytec Lifts and talk to them about how you're going to be using your truck... They will give you appropriate suggestions and steer you in the right direction.

  19. Jan 24, 2010 at 5:50 AM
    #19
    saf023

    saf023 Well-Known Member

    Joined:
    Aug 13, 2009
    Member:
    #21124
    Messages:
    734
    Gender:
    Male
    East Coast
    Vehicle:
    2nd Gen TRD Sport DCSB 4X4
    Looks great.

  20. Jan 24, 2010 at 5:55 AM
    #20
    wmb67

    wmb67 [OP] Well-Known Member

    Joined:
    May 4, 2009
    Member:
    #16804
    Messages:
    160
    Gender:
    Male
    Boston
    Vehicle:
    09 Dbl Cab Off Road Mag Gray
    For my set-up, the 5100's set @ "0", the springs do all the lifting. From my research and reading on here, it seems that by using the springs for lift, the 5100's retain their full functionality without preloading the springs.

    So I think the advantage is that by using the springs for lift, the shocks are allowed to just perform as shocks, which contibutes to as smooth a ride as possible with this set-up, without preloading the springs which would result in a bit of a firmer/harsher ride.

    Hopefully someone else can chime in if my explanation is way off base.
