    I had been waiting for the Tacoma community to source a heated mirror kit for some time, and recently had a flash of brilliance that allowed me to move forward on my installation of heated mirrors on my 2005 Access Cab V6.

    This procedure details what I did to my truck. Attempt at your own risk.

    Being an avid all-weather motorcyclist, I have been using heated grips for some time. The kit I have on my Honda ST1100 is a Kimpex kit commonly available at Canadian Tire.

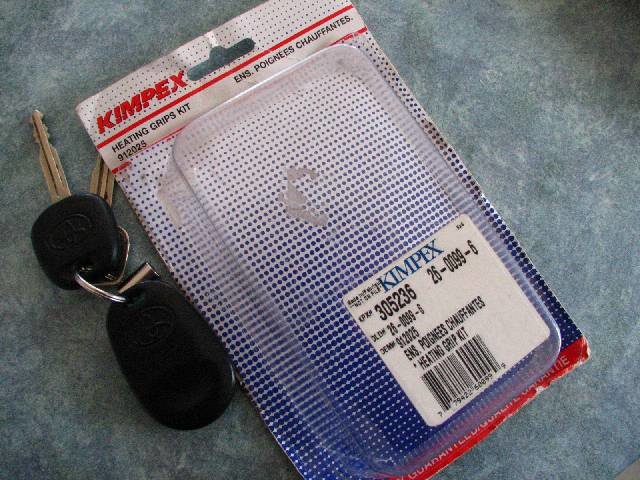

    I promptly drove my trusty motorcycle to Canadian Tire and purchased the following kit off the shelf for $30. It was located in the snowmobile section.

    [​IMG]

    I opened up the package and sure enough, the heating elements are sized just right!

    [​IMG]

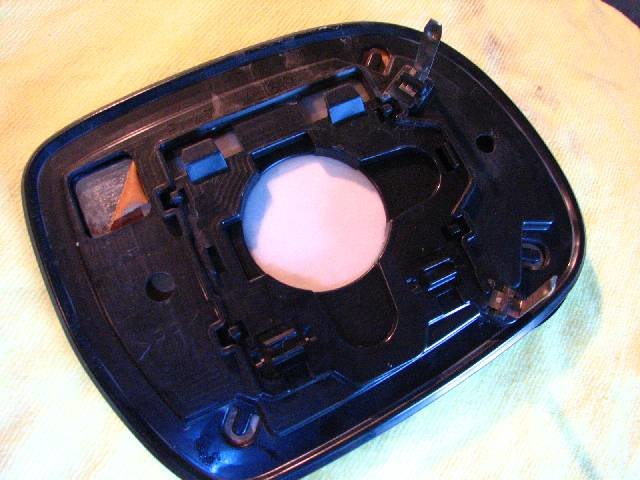

    First step was removing the mirrors from the housing. I did this by tilting the mirror up, prying out the bottom of the mirror straight out toward the back of the truck, then pulling it downwards.

    [​IMG]

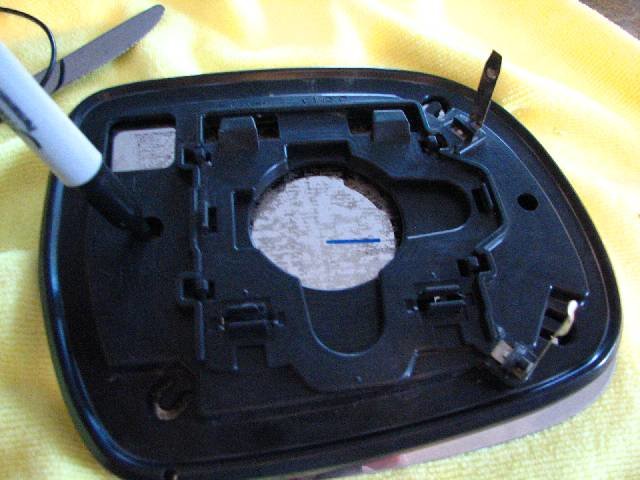

    Removing the mirror from the plastic backing was simple. I put my kitchen range on the lowest possible setting and one at a time placed the mirror inside for a few minutes. This could melt the plastic if left too long.

    Then I removed the mirror using gloves and inserted four kitchen knives into the mirror as illustrated. You might want to go buy knives for this as a lot of the adhesive which was holding the mirror on will end up on the knives.

    [​IMG]

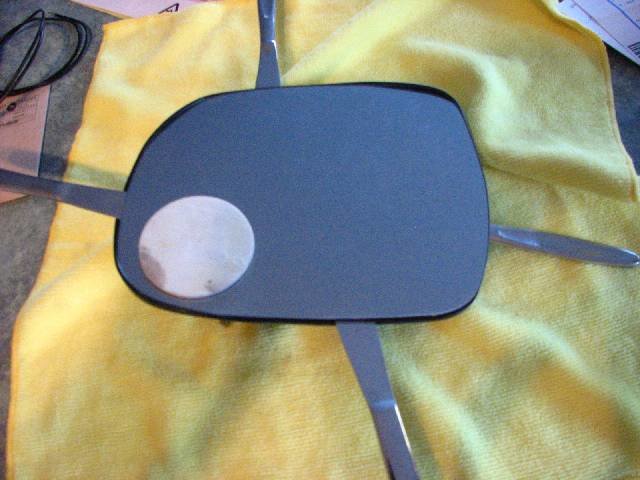

    Moving the knives back and forth very quickly separated the mirrors. Then it was a matter of gently prying the plastic off at the corners.

    [​IMG]

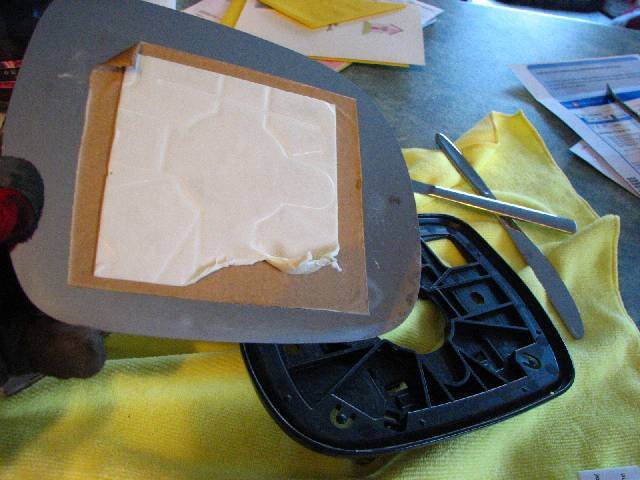

    This adhesive needs to be removed as much as possible as this is where the elements will be stuck on. The grip elements have adhesive to be able to stick them on the handlebars of a snowmobile or motorcycle.

    cont...

  2. Oct 7, 2008 at 10:47 AM
    #2
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.

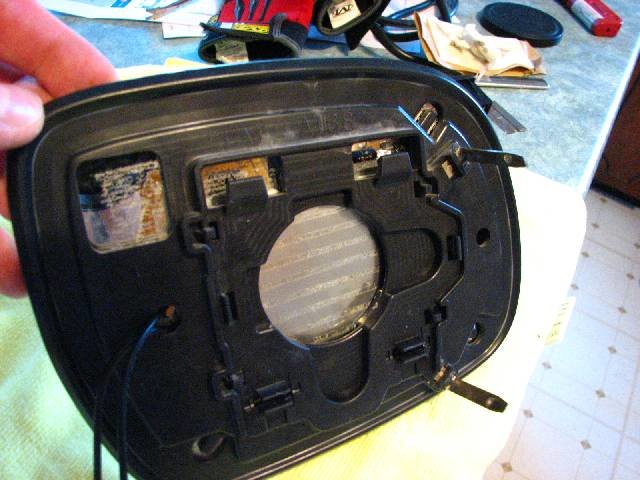

    After the adhesive pads were removed, I placed the plastic up against the mirror and marked where the hole was located that I wanted to route the wires through.

    [​IMG]

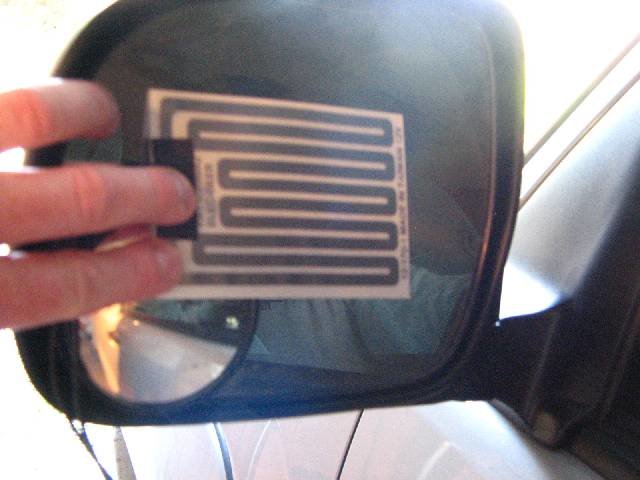

    I then stuck the heating element to the mirror, with the two wires located close to where they would be routed through the mirror. I didn't get a pic of the element on the mirror, but the following three pics show what I did to reassemble the mirror to the backer.

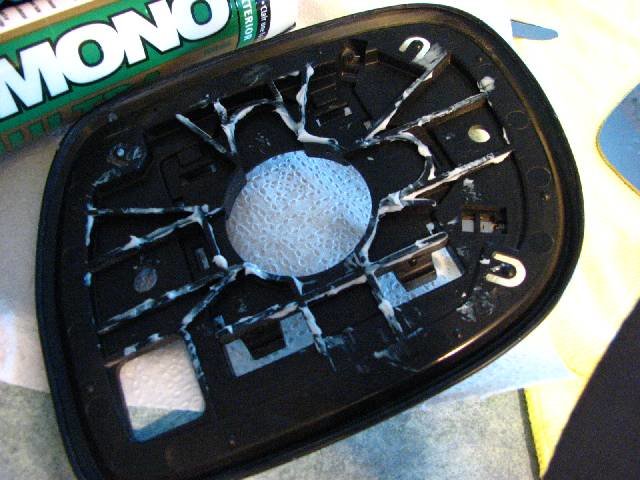

    I used exterior grade silicone and put it on all the ridges of the plastic that would be against the mirror.

    [​IMG]

    Then routed the wires through the hole I wanted to use then pressed the mirror back into the plastic housing. I made sure all the plastic edges were wrapped properly around the edges of the mirrors.

    [​IMG]

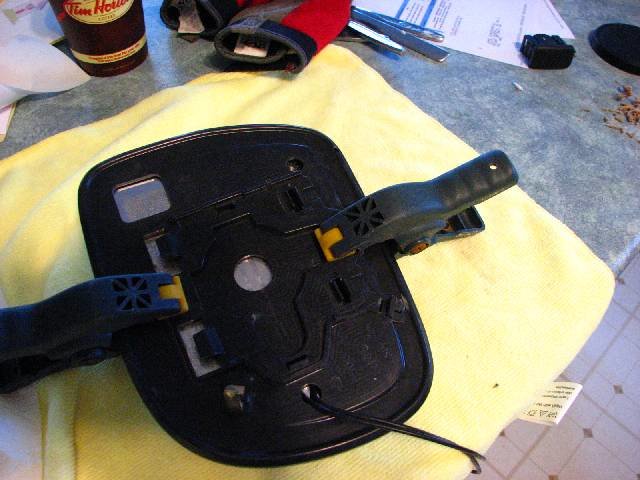

    Then I used some clamps to hold the works in place overnight.

    [​IMG]

    cont...

  3. Oct 7, 2008 at 11:15 AM
    #3
    tsilliker

    tsilliker [OP] Well-Known Member

    Joined:
    Dec 19, 2006
    Member:
    #523
    Messages:
    203
    Gender:
    Male
    London, Ontario, Canada
    Vehicle:
    '05 SR5 V6 4x4 6spd
    Tundra wheels, Access roll-up tonneau, D-rings in front of bed floor, tinted glass in doors to match privacy glass, synthetic oil, Husky floor liners, fog lights, constant power mod for 12v plugs, heated mirrors, brake controller, billet grill, radio aux input mod.

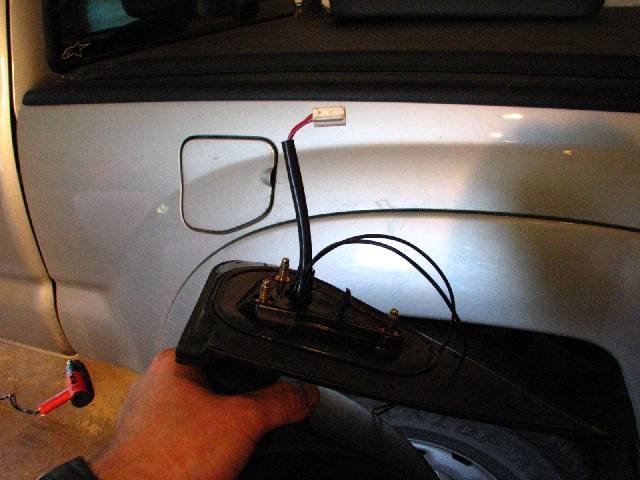

    I then set to work disassembling both mirrors from the truck. This requires removing the door panels. You must remove two screws - located behind the latch handle and the door pull. Then the three nuts that hold each mirror on.

    To disassemble the mirror, remove a screw holding on the rubber grommet, and three screws on the underside of the mirror assembly. Two of them are under a cover that must be pried off.

    When you are ready to put the mirrors in, get everything together and begin the route the heater wires through where the motor wires go through. It is a twisting path and you will need to be careful not to pinch any wires on reassembly. It helped me to tape the heater wires to the motor wires to route them through the pivot section.

    It took a bit of time and care, but I was happy with the results. Be sure you have the motor wires pulled all the way out upon completion or they won't plug back into the harness in the door.

    [​IMG]

    At this point with each mirror, I mounted the mirror back on the door and soldered three feet of wire to the heater wires.

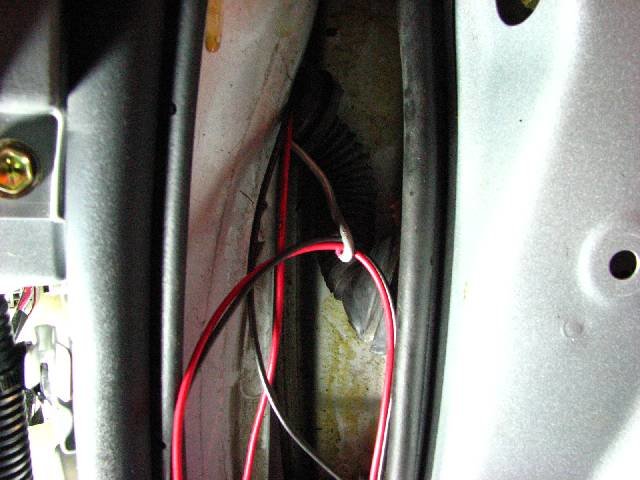

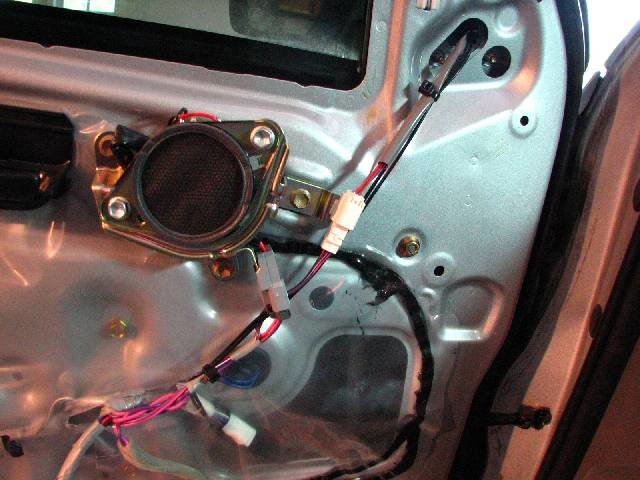

    The following pic shows the wire routing.

    [​IMG]

    I then removed both ends of the rubber protective sleeve which runs between the door and the truck body. I used flexible but rigid wire with a loop on the end to help pull the wires through the various holes and rubber.

    [​IMG]

    At the end of this routing process, I brought the heater wires to the back of the blank plugs on the lower left part of the dash.

    The final wiring is not what I would consider factory looking or even ideal. I got fed up looking for a nice Toyota switch that would do the job, so I used a lighted rocker from Canadian Tire. I dremeled out one of the plugs and installed the switch into it. This part is quite rough looking, and I may clean it up with some black silicone around the edges of the switch to hide the rough cuts.

    [​IMG]

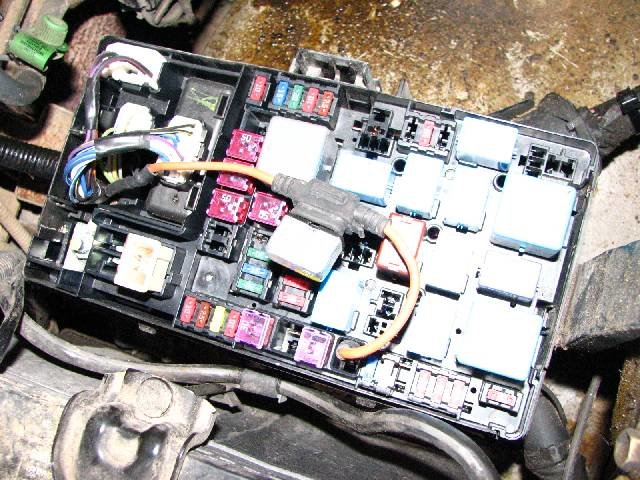

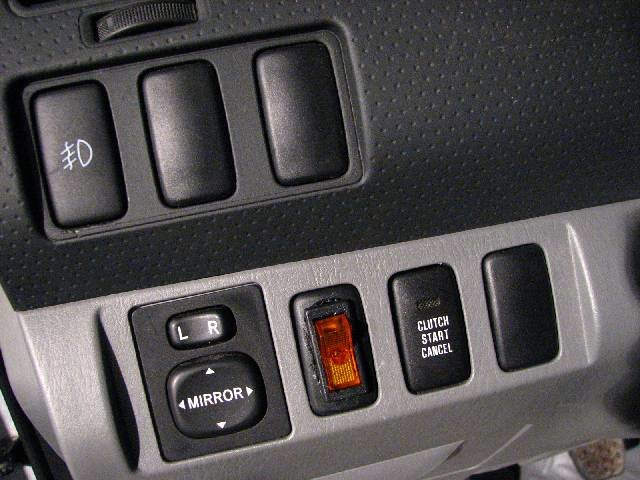

    Anyway, here is what I did to wire up my heated grips. I had already previously installed a constant power circuit into the fuse panel under the hood to power my brake controller. This constant power circuit has a self resetting circuit breaker instead of a fuse. I had to cut out a little plastic wall in the lid in order to route the wire as shown. A female spade was used and inserted into a constant power source in the panel.

    [​IMG]

    My heated grips are on constantly, even with the ignition off. This is dangerous to the health of the battery for obvious reasons. I couldn't find a nice switched source to trigger a relay as I have done the constant power mod to my power outlets by modifying the relay for that circuit.

    Power is routed through the switch and to one side of each heater circuit. The other side of each heater circuit is routed to ground. I did not use the dropping resistor in the grip kit as I wanted full heat output. Fairly simple connections, but as I mentioned, dangerous as hell!

    The heat output is significant and will positively eliminate any frost or dew on the mirrors.
