El Cheapo Heated Mirrors

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tsilliker, Oct 7, 2008.

  1. Nov 8, 2011 at 12:14 PM
    #281
    2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,358
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    anyone done this on a 1st gen?

  2. Nov 8, 2011 at 2:54 PM
    #282
    griffin407c

    griffin407c Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    748
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    OME 885s on Bilstein 5100s set at 0 with 1/2" plate spacers. OME Dakars with Bilstein 5100 Extended Length Shocks. 16" Pro Comp 7032 wheels wrapped with 285/75-16 Duratracs
    i dont really see how it would be any different besides mirror style and type of switch. many people wire it different as well, so that's more or less up to you on how you want to wire it.

  3. Nov 8, 2011 at 3:42 PM
    #283
    piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Also, the grip heaters are small enough to fit most mirrors. Something like 2"x3" I think. Good if you can't find pads for your specific mirror size, or don't want to cut one down.

  4. Nov 10, 2011 at 10:30 PM
    #284
    CtryBoyInMT

    CtryBoyInMT Lifetime Member

    Joined:
    Nov 27, 2007
    Member:
    #3632
    Messages:
    487
    Gender:
    Male
    United States of America
    Vehicle:
    2008 4WD V6 Access Manual TRD Off-Road
    Tinted windows, Rear locker anytime, Secondary filter delete, Parking light activated Fog lights, USA▪Spec Ipod adapter, Map light mod, Relocated 7-Blade, Warn Trans4mer Brushguard & winch, Tire chains, Homelink© installed in headliner, LED lighted 4x4 Switch, Defrost w/o A/C, Heated mirrors, Bilstein 5100's (1.75") & Rear TSB, 50w Reverse lights, Pratt & Whitney PT6A-68, Will this list ever end???
    A little late to the party, but I must add.

    Use a relay, yes it's needed. Follow this diagram. Auto parts stores sell them for 5 bucks. Smaller MOSFET relays are available from Radio Shack type places, but you'll need to board mount them. The smaller relays are not really needed as there is plenty of room to zip-tie a regular relay to a wire bundle under the dash.
    Use heat shrink tubing on the connectors or wrap individual connections neatly with electrical tape and you will be good to go.

    As far as the door panels,kick panels, etc... The previous guidance will help you out.

  5. Nov 11, 2011 at 3:30 AM
    #285
    fvtalon

    fvtalon Well-Known Member

    Joined:
    Aug 12, 2010
    Member:
    #41625
    Messages:
    234
    Gender:
    Male
    First Name:
    Mike
    Southern BC
    Vehicle:
    07 DC TRD/Yamaha
    285/65/18 BFG ATs on MKWs Leer Cap
    Anyone tried these?

    http://www.ebay.ca/itm/UNIVERSAL-MI...r_Truck_Parts_Accessories&hash=item1e683c0d15

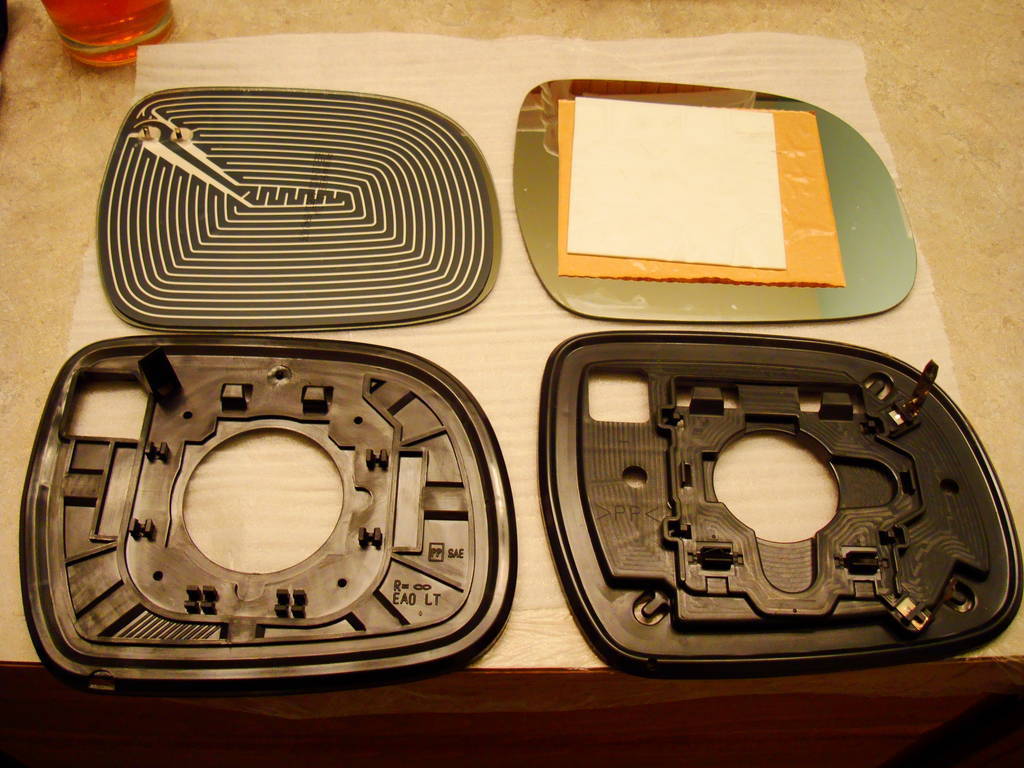

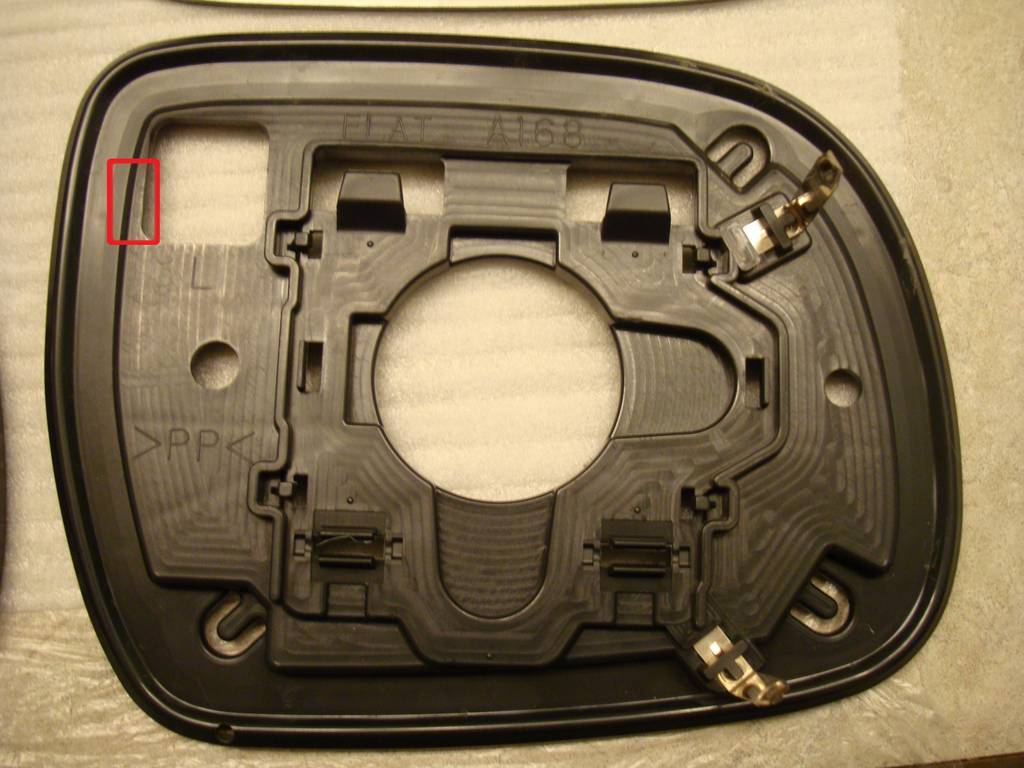

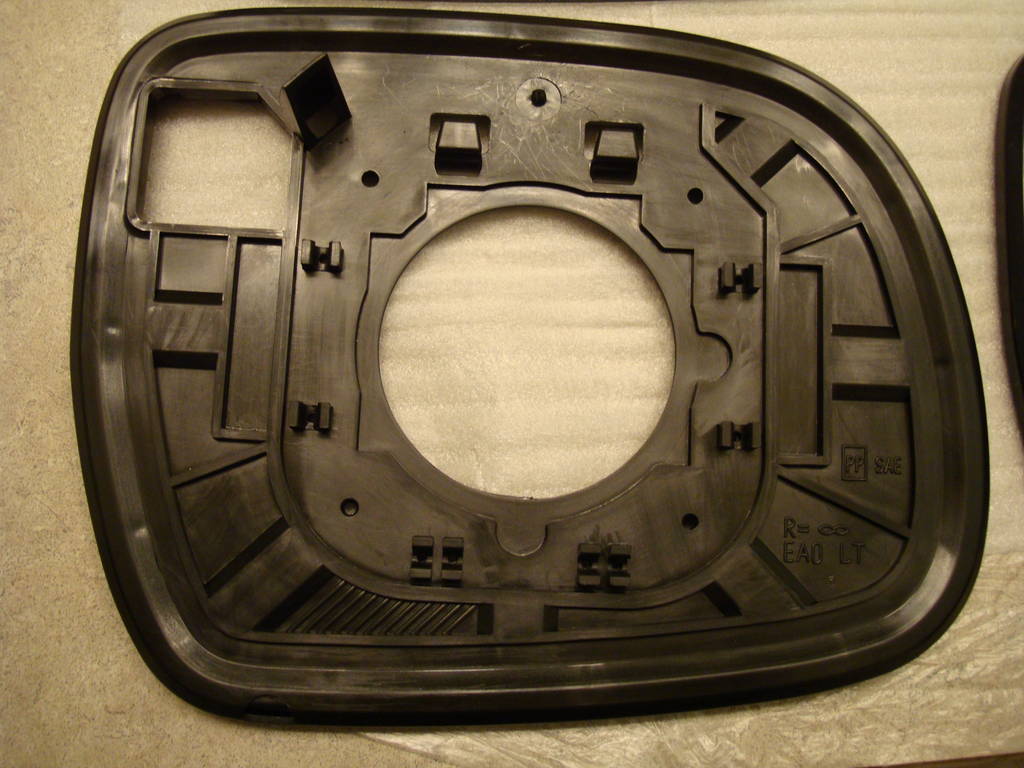

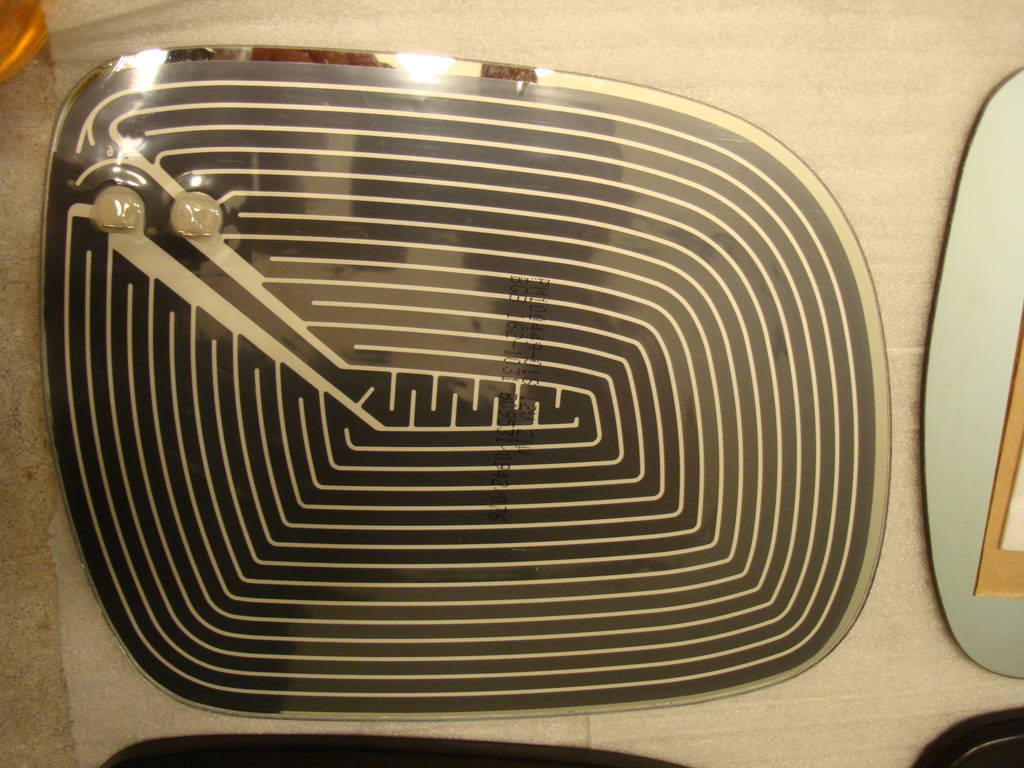

    They're mirror heater elements. Might be a good alternative at a bigger size then a grip heater and a cheaper than the Sienna glass.

    Mirrors are on my to-do list. I might try this guy's heater pads, have to verify measurements though. I've already got the seat heaters, someone figure out how to do the steering wheel and shift knob!

    Is it wrong that I've eyeballed my armrests and center console pad and thought... hmmm... a heater pad would fit under there.

  6. Nov 11, 2011 at 4:39 AM
    #286
    puckstopper55

    puckstopper55 Well-Known Member

    Joined:
    May 18, 2011
    Member:
    #56857
    Messages:
    619
    Gender:
    Male
    Long Island
    Vehicle:
    '11 Double Cab TRD Sport, Mag Grey
    tailgate anti-theft Map Light LED's Dome Light LED LP LED Halogen Bed Light Extra D-Rings in bed Anytime Fog Lights Tri-Fold tonnau cover Wet Ok's
    Thats what I figured. That schematic is exactly what I am going to follow. Thank you very much for your help.

  7. Nov 12, 2011 at 8:55 AM
    #287
    CtryBoyInMT

    CtryBoyInMT Lifetime Member

    Joined:
    Nov 27, 2007
    Member:
    #3632
    Messages:
    487
    Gender:
    Male
    United States of America
    Vehicle:
    2008 4WD V6 Access Manual TRD Off-Road
    Tinted windows, Rear locker anytime, Secondary filter delete, Parking light activated Fog lights, USA▪Spec Ipod adapter, Map light mod, Relocated 7-Blade, Warn Trans4mer Brushguard & winch, Tire chains, Homelink© installed in headliner, LED lighted 4x4 Switch, Defrost w/o A/C, Heated mirrors, Bilstein 5100's (1.75") & Rear TSB, 50w Reverse lights, Pratt & Whitney PT6A-68, Will this list ever end???
    Here are the raw files. TW shrinks them a bit, but still viewable.


  8. Nov 28, 2011 at 8:35 AM
    #288
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,560
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Hey Shawn (or anyone with more knowledge than me),

    I have been following this (and the MUTH Install thread) to gain more knowledge to do the heated mirror mod using the Sienna mirrors with the Highlander switch. TONS of good info., diagrams etc. The circuit I will be using will consist of an Add-A-Fuse in the dash fuse-block (either blank IGN power location, or tap into the ACC fuse since I did the 12v Always-On mod) to a relay, to the Highlander switch. I have (2) questions:

    1. What relay should I use? Just a standard 5 PIN SPDT like THIS and use a connector like THIS? Is there a better option?

    2. When connecting the Green "light wire" (terminal #1 -or- #2) to the Highlander switch, do I only connect the rheostat terminal (#2) or do I have to connect both #1 & #2 even if I only want dimmer control light identical to the other OEM switches? Can I just splice into one of the existing Green/White switch wires to control the lighting?

    Thanks in advance to anyone that replies. This is my first "serious" electrical mod, and I want to insure I do correctly and safely. Any Help is greatly appreciated.

  9. Nov 28, 2011 at 9:46 AM
    #289
    shawnd2

    shawnd2 Well-Known Member

    Joined:
    Aug 12, 2008
    Member:
    #8497
    Messages:
    528
    Gender:
    Male
    First Name:
    Shawn
    Toronto, Ontario, Canada
    Vehicle:
    08 Tacoma Access Cab 4x4 TRD Offroad
    The relay you linked will work, as well as the socket. The socket is not really required as I just used regular female spade type connectors plugged them directly on the relay terminals and heat shrinked each one, but the socket is nice, espacially if you have have to order a relay anyways

    With regards to the rehostat wiring, I used the green/greenwhite from a unused harness in one of the switch blanks. I don't really recall anymore, but I assume one wire is -ve and one +ve, so you will reguire both (i.e. green on term #1 and greenwhite on term #2).

    Thanks to CntrboyinMT the rest of the wiring is easy if you follow his schematic.

    Shawn

  10. Nov 28, 2011 at 9:54 AM
    #290
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,560
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Thanks for the quick reply Shawn. Electrical work has always been daunting and intimidating to me, but with great write-ups like yours' and CntrboyinMT's it makes a lot more sense to me. I know the extra relay plug harness isn't required, but for $1, I figured why not? Same for the Highlander switch, I may have found one that includes the back plug harness connector with all pins installed for $50-$60, so I will go for that rather than using the .11" spades. Hopefully all goes well, I will try to make an install thread similar to this, but updated for the Sienna/Highlander Mod version.

  11. Nov 28, 2011 at 1:42 PM
    #291
    CtryBoyInMT

    CtryBoyInMT Lifetime Member

    Joined:
    Nov 27, 2007
    Member:
    #3632
    Messages:
    487
    Gender:
    Male
    United States of America
    Vehicle:
    2008 4WD V6 Access Manual TRD Off-Road
    Tinted windows, Rear locker anytime, Secondary filter delete, Parking light activated Fog lights, USA▪Spec Ipod adapter, Map light mod, Relocated 7-Blade, Warn Trans4mer Brushguard & winch, Tire chains, Homelink© installed in headliner, LED lighted 4x4 Switch, Defrost w/o A/C, Heated mirrors, Bilstein 5100's (1.75") & Rear TSB, 50w Reverse lights, Pratt & Whitney PT6A-68, Will this list ever end???
    Can't say more than the reply you have.

    1. (Slightly more stern than Shawn, LoL) but, Use both Green/GreenWhite. Polarity doesn't matter. It's easy since they're right there together and it'll work great.

    2. Ref: quote above- You'll want a switched power source. If you have done the Always-On mod, this is not the best choice to tap power from. If you shut the vehicle off, take out key, walk away and lock doors; the mirrors will still be on until the 15 mins have expired. Find a IGN switched source is best. But it's a personal call.

  12. Nov 28, 2011 at 2:54 PM
    #292
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,560
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Thanks for the response. This project seems a lot less intimidating now, but then again, I haven't started yet. I can't wait to have heated mirrors, it's the one luxury add-on I wish Tacomas offered.

  13. Nov 28, 2011 at 5:15 PM
    #293
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,168
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser


    .

  14. Nov 29, 2011 at 12:59 AM
    #294
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,168
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    Does the switch need acc+ at Pin5 to work? Isn't it just providing the ground to the relay? Isn't the switch getting power for the led from Pin1 & Pin2? If so, your diagram would still work if you don't have pin5 going to acc+, so long as you still connect acc+ to 86 & 30. See pic to verify

    Can someone who has done this by this diagram please disconnect pin5 from the switch and test to see if it still works.


  15. Nov 29, 2011 at 1:56 AM
    #295
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,168
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    I def believe it has a timer, no question... i'm just wondering if it's necessary to have the potential sitting at the switch like that

  16. Nov 29, 2011 at 7:48 AM
    #296
    griffin407c

    griffin407c Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    748
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    OME 885s on Bilstein 5100s set at 0 with 1/2" plate spacers. OME Dakars with Bilstein 5100 Extended Length Shocks. 16" Pro Comp 7032 wheels wrapped with 285/75-16 Duratracs
    chaddawkins, the switch is wired properly.

    1 and 2 are for the bulb inside the switch only (heated mirror image on switch). this allows the bulb to be on with the rest of the switches and dim with the factory dimmer. if i'm reading correctly, it sounds like you wanna run acc+ through pin 1 and 2. this is not a good idea because the switch can not handle the load from the acc lights. there's a thread here or on toyotanation where a member did this and it melted the switch. also, this would not run the bulb in the switch along with the rest of the bulbs/switches

    3 is most likely (almost 100% positive) for the second bulb to light the rectangular part when the switch is "on"

    4 and 5 are to signal on the relay on/off

  17. Nov 29, 2011 at 7:51 AM
    #297
    RI Tacoma

    RI Tacoma Well-Known Member

    Joined:
    Feb 24, 2011
    Member:
    #51797
    Messages:
    1,487
    Gender:
    Male
    First Name:
    Tim
    Phx sometime soon
    Vehicle:
    2011 Sport DCLB
    OME 885's, Derped FJ TRD Wheels, Hankook Dynapro's ATM 265/75/16's, Retro's, WeatherTech Liners, Fog Light Mod, Bak Flip F-1, N-Fab Steps, 20% Tint, complete stereo, heated mirrors, Katzkin seats!!
    I ordered my heated pads from ebay and my highlander switch yesterday! I am excited for heated mirrors, not having them is awful on frosty mornings.

    To anyone that replaced the LED inside of the switch itself, where did you get it?

  18. Nov 29, 2011 at 7:53 AM
    #298
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,168
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    no, i don't want to run acc+ to pin1 or pin2; i'm curious how exactly the switch works and if it's possible for it to work as previous diagram shows minus acc+ to pin5
    compare the diagrams and you'll more fully see what i'm talking about

  19. Nov 29, 2011 at 8:12 AM
    #299
    griffin407c

    griffin407c Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    748
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    OME 885s on Bilstein 5100s set at 0 with 1/2" plate spacers. OME Dakars with Bilstein 5100 Extended Length Shocks. 16" Pro Comp 7032 wheels wrapped with 285/75-16 Duratracs

    ahh, alright. yes you would need it going to pin 5, otherwise you're not completing a "circuit". pins 3 and 4 are not connected. 4 and 5 are connected. the ground on 3 is not goin to transfer to 4 resulting in that "completed circuit" you're looking for. technically it's not ground at 4. it should be a power souce from the ignition. 4 and 5 are what activate the lights on and off.

  20. Nov 29, 2011 at 3:26 PM
    #300
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,168
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    i thought the switch, once pushed, only provided the groud... i guess it needs power to work the 15 minute timer... and pin1 and pin2 don't do anything for that, ONLY for led

    thanks
