El Cheapo Heated Mirrors

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tsilliker, Oct 7, 2008.

  1. Dec 5, 2011 at 2:48 AM
    #321
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    Did you see the PDF catalog that is on the Sumitomo site? Wondering if this is the type "F" plug for the back of the switch-

    Wouldn't it be nice to go straight to the source instead of dealing with parts people. I am tired of explaining that telling them my VIN number won't help because I am ordering parts for a different vehicle!

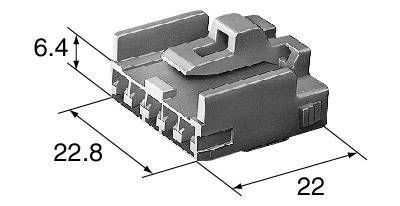

    This is the 5 pin TS series plug from Sumitomo that matches the terminal size that BensonX discovered:

    [​IMG]

    Does this look like the plug?

  2. Dec 5, 2011 at 6:44 AM
    #322
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,564
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Nice, I hadn't looked at the catalog yet. I ordered the connector from the dealer, I will have to compare the 2 to see if they are the same.

    I'm wondering if the Sumitomo "Series" name is based on the vehicle they are used in. TS Series = Toyota Series, LS = Lexus Series (even though it's the same company). I don't know, just a hunch. Call me weird, or cheap but I love researching stuff like this, and saving money in the long run.

    Plus, it makes you feel more accomplished when you can make something professional on your own and say "I did that...I am a badass" :D

  3. Dec 5, 2011 at 7:51 AM
    #323
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
  4. Dec 5, 2011 at 9:26 AM
    #324
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,564
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Sweet, lotsa good info. showing up in this thread. We may have to start a new Thread in the Technical Chat section to get the good word out (or it could be our secret!!!) muwahahahah!!!!:drevil:

  5. Dec 5, 2011 at 9:45 AM
    #325
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    Another great terminal reference- seems really complete!

    http://www.chriswilson.tv/connectors.pdf

    This list is also available on TTORA- if you feel uncomfortable getting it from a Prius Forum- LOL

  6. Dec 5, 2011 at 4:02 PM
    #326
    ChathamTaco

    ChathamTaco Member

    Joined:
    Sep 7, 2011
    Member:
    #63085
    Messages:
    5
    Gender:
    Male
    First Name:
    Joel
    Cape Cod, MA
    Vehicle:
    '11 TRD Sport DC LB
    Wow! You guys would make great detectives. Can't wait to hear about the clips and the confirmation if they are the right ones.

  7. Dec 5, 2011 at 5:53 PM
    #327
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,195
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    link to part please :)

  8. Dec 5, 2011 at 8:58 PM
    #328
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
  9. Dec 5, 2011 at 9:33 PM
    #329
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,195
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
  10. Dec 5, 2011 at 11:15 PM
    #330
    RedTaco2134

    RedTaco2134 Well-Known Member

    Joined:
    Jun 15, 2008
    Member:
    #7324
    Messages:
    784
    Gender:
    Male
    First Name:
    Scott
    Portland, Or
    Vehicle:
    08 Long Bed TRD Sport
    295/70/17 Cooper STT Pro, Revtek 3" lift. TSB rear and Blistein 5100's http://www.cardomain.com/ride/3097063
    You sir are a visionary! hats off to you, i'll be adding these to my truck this weekend. It has been very cold here lately.

  11. Dec 6, 2011 at 6:30 AM
    #331
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,564
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    So, my local electronics store (not RadioShack) was unable to find/order the terminals, so I ordered them from Ballenger Motorsports. Hopefully I receive them by this weekend so I can do the install. They have a "Small Order Fee" of $3.00 if your order is less than $25, so I ordered 16 terminals and the total came out to $10.47 shipped. I figured it would be good to have extras on-hand for future projects too.
    I will take a picture of the back of the Highlander switch when I get home tonight to compare the 2. I am still waiting on the back plug from the dealer.

  12. Dec 6, 2011 at 6:32 AM
    #332
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    Not sure if you can buy these retail from Sumitomo. I have been looking for a retail suppliers of their complete product line- Only seem to be able to find places that stock partial lines of automotive connectors. That Ballenger Motorsports looks like they carry a good selection.

    Other manufacturers that seem to make connectors for Toyota are:

    Amp/Tyco and Yazaki.

    I have been trying to find an outfit like Digi-Key or Mouser that carries the full line of products- no luck so far. It seems like automotive connectors are kind of in a category by themselves.

  13. Dec 6, 2011 at 6:54 AM
    #333
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,564
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    Same here, I was surprised that my go-to store (Electronics Resource Inc.) was unable to find Sumitomo parts either. They can usually get any random, obscure parts I'm looking for. The only place that had the terminals was Ballenger and of it's subsidiary sites.

  14. Dec 6, 2011 at 7:26 AM
    #334
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
  15. Dec 6, 2011 at 10:03 AM
    #335
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,564
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    OH SCHNAP!!! That is awesome! The Toyota Part# Cross-reference is great. Confirms the terminals are correct. Good find!

  16. Dec 6, 2011 at 12:15 PM
    #336
    CtryBoyInMT

    CtryBoyInMT Lifetime Member

    Joined:
    Nov 27, 2007
    Member:
    #3632
    Messages:
    487
    Gender:
    Male
    United States of America
    Vehicle:
    2008 4WD V6 Access Manual TRD Off-Road
    Tinted windows, Rear locker anytime, Secondary filter delete, Parking light activated Fog lights, USA▪Spec Ipod adapter, Map light mod, Relocated 7-Blade, Warn Trans4mer Brushguard & winch, Tire chains, Homelink© installed in headliner, LED lighted 4x4 Switch, Defrost w/o A/C, Heated mirrors, Bilstein 5100's (1.75") & Rear TSB, 50w Reverse lights, Pratt & Whitney PT6A-68, Will this list ever end???
    I just wanted to say something here.

    Not all too often in other forums, but am I amazed by the group of subscribers Tacoma World has acquired.

    We took a simple heater pad modified for mirror heater use to integrating timer, to Sienna mirrors and now a resource for the connector & terminals to make it almost 100% factory. All this, at a great price for OEM quality and safety.

    Whom ever says Generation X isn't worth their beans, needs no other proof than this thread to prove them wrong.

    Keep up the great work people.

  17. Dec 6, 2011 at 3:47 PM
    #337
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    Heh heh- I am only Generation-X by about 2 months. Aug 1966 is the official cutoff. I just think immaturely- eg. if Toyota did not want us to find this out, they should have included heated mirrors!

    Anyway- still waiting for confirmation that the parts all fit. I will try to order the housing and terminals to see if they fit the stock switch. They also have a 4 position plug housing that may fit the fog light switch.

  18. Dec 6, 2011 at 5:55 PM
    #338
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,564
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    So, this seems to be the same plug Toyota uses (90980-10789) I did some more inter-web digging (JAPANESE GOOGLE CRAZY YAY!!!:yay:)
    [​IMG]
    [​IMG]
    and this page had some pics near the bottom
    http://celsiorup.com/custom20/2096RadarCruise1.htm
    [​IMG]
    This guy didn't use the Sumitomo Terminals!!! :mad:
    [​IMG]

    The plugs are almost 100% identical except that one "nub" in the center (beneath the clip).

  19. Dec 6, 2011 at 11:32 PM
    #339
    84Hilux

    84Hilux Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39877
    Messages:
    542
    Gender:
    Male
    First Name:
    Gary
    Vancouver, Canada
    Vehicle:
    09 SR5 Access Cab V6 4X4
    Stock Fog Lights, Camera Mirror, Arrow Canopy, Lighted 4x4switch, Weathertech Mats (Black), Wet Okoles- Black/Charcoal, Alpine CDA117 Headunit/ Alpine PDX4150 Amp/Alpine PDX M6 Amp/ Hybrid Legatia SE Components/ JL 10W6V2 Subwoofer/ Prototype MR Marv Sub Enclosure
    Sure looks like it would work!

    Are there any part numbers on the housing shell?

  20. Dec 7, 2011 at 3:57 AM
    #340
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,195
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    this will save a buck or two... if only we could find the switch for cheap
