Electrical Help

Discussion in 'Lighting' started by Doc V, Feb 15, 2018.

  1. Feb 15, 2018 at 3:25 PM
    #1
    Doc V

    Doc V [OP] Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176743
    Messages:
    94
    Gender:
    Male
    Caldwell, ID
    Vehicle:
    2013 Tacoma Double Cab Short Box
    Rear seat 12V Outlets Streamlight Flashlight Install Remote Start Bed lights Amber emergency lighting Aries Grille Guard ARE topper with ski-rack USB power point

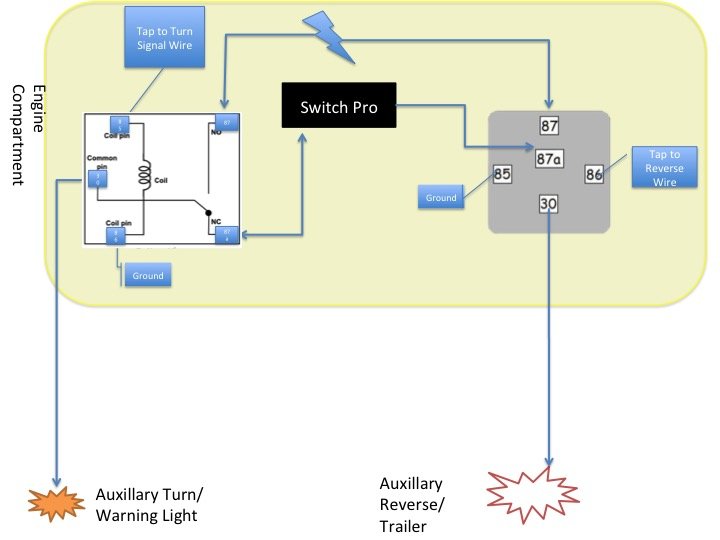

    I picked up some lights that have amber and white LEDs in the same housing. I need someone to double check my work on some auxiliary reverse lights/turn signals, before I drop cash on relays, run wires etc. I want to be able to use them two ways:
    1) Slave them to the turn and reverse signals. So they will turn on when in reverse and blink with the turn signals.
    2) Use switch-pros for manual on/off and strobe/flash functionality.

    I appreciate any help you can give me and I will be happy to give you a shout out once I do a write-up.Slide4.jpg


    https://www.amazon.com/gp/product/B06XCWLFHN/

  2. Feb 16, 2018 at 3:20 PM
    #2
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    Your diagram looks solid. I don't see an issue jumping out at me. where do you plan to pull the signal for the turn signals?

  3. Feb 16, 2018 at 8:16 PM
    #3
    Doc V

    Doc V [OP] Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176743
    Messages:
    94
    Gender:
    Male
    Caldwell, ID
    Vehicle:
    2013 Tacoma Double Cab Short Box
    Rear seat 12V Outlets Streamlight Flashlight Install Remote Start Bed lights Amber emergency lighting Aries Grille Guard ARE topper with ski-rack USB power point
    I’m going to use the front L and R inside the engine bay. I figured it would make it easier to wire and troubleshoot than wiring it in the rear taillight towers. Especially with 3 relays (L/R and reverse). Thanks for your help.

  4. Feb 16, 2018 at 8:59 PM
    #4
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    If you have DRL, you may need to get the signal elsewhere. If not, then your golden.

  5. Feb 16, 2018 at 9:02 PM
    #5
    Doc V

    Doc V [OP] Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176743
    Messages:
    94
    Gender:
    Male
    Caldwell, ID
    Vehicle:
    2013 Tacoma Double Cab Short Box
    Rear seat 12V Outlets Streamlight Flashlight Install Remote Start Bed lights Amber emergency lighting Aries Grille Guard ARE topper with ski-rack USB power point
    Does DRL effect the turn signals? I was going to use the lateral turn signals on a 2013 (gen2) taco.

  6. Feb 19, 2018 at 10:33 PM
    #6
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    Using the side mirror signals will work just fine. DRL only affects the front turn signals.

  7. Feb 19, 2018 at 10:35 PM
    #7
    Doc V

    Doc V [OP] Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176743
    Messages:
    94
    Gender:
    Male
    Caldwell, ID
    Vehicle:
    2013 Tacoma Double Cab Short Box
    Rear seat 12V Outlets Streamlight Flashlight Install Remote Start Bed lights Amber emergency lighting Aries Grille Guard ARE topper with ski-rack USB power point
    Good call. I will track those down. I finally got off my lazy butt and stood in front of the truck with the DRL on. All I could think was o_O“wow I am dumb for not realizing the problem with the DRL wire!!” Thank you!
