Elusive Elements grill instructions

Discussion in 'Technical Chat' started by timsxr, Jan 30, 2011.

  1. Jan 30, 2011 at 7:14 PM
    #1
    timsxr

    timsxr [OP] Well-Known Member

    Joined:
    Nov 21, 2010
    Member:
    #46529
    Messages:
    1,155
    Gender:
    Male
    portland
    Hey guys im starting a Install guide for the grilles. If anyone that has a grille from me wants to post or chime in on the how to guide please do!!!

    SATOSHI INSERT

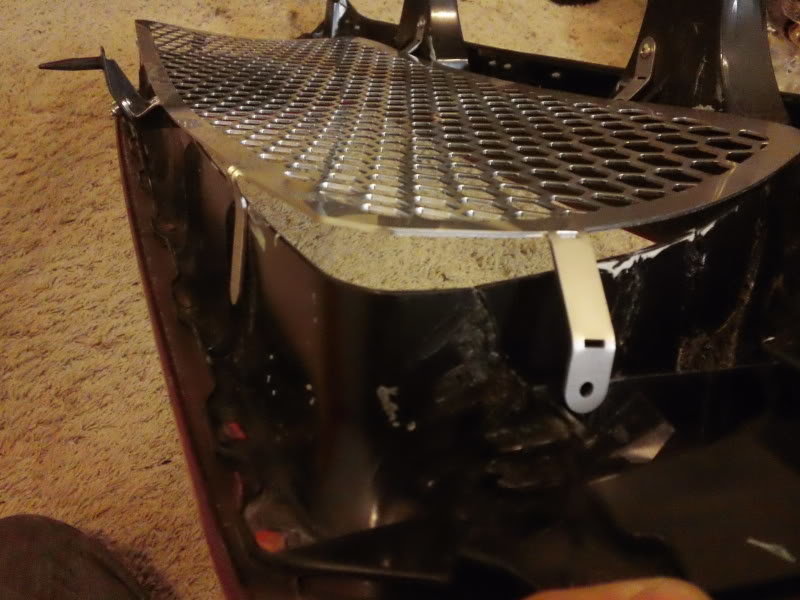

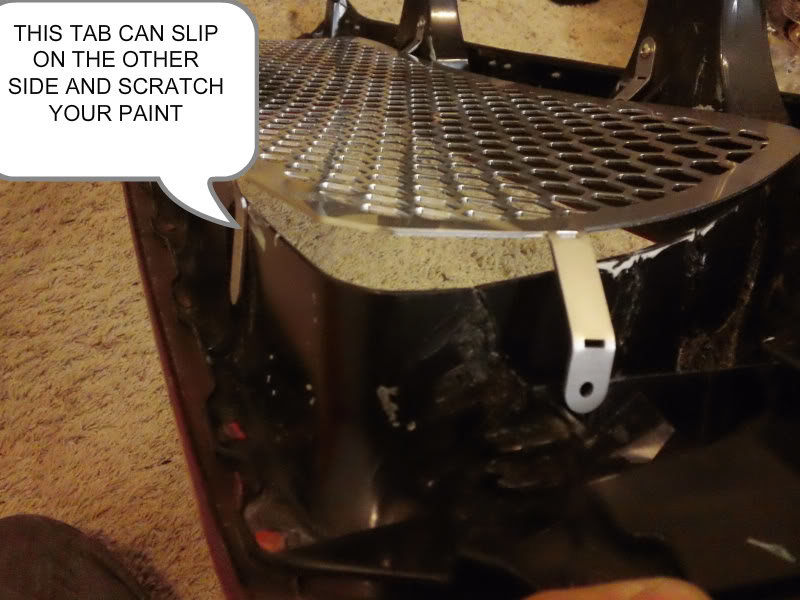

    BE VERY CARFULL NOT TO SCRATCH YOUR GRILL WITH THE BOTTOM TABS THAT HOLD THE LOWER GRILL UP WHEN PLACING THE MESH ON THE BACK

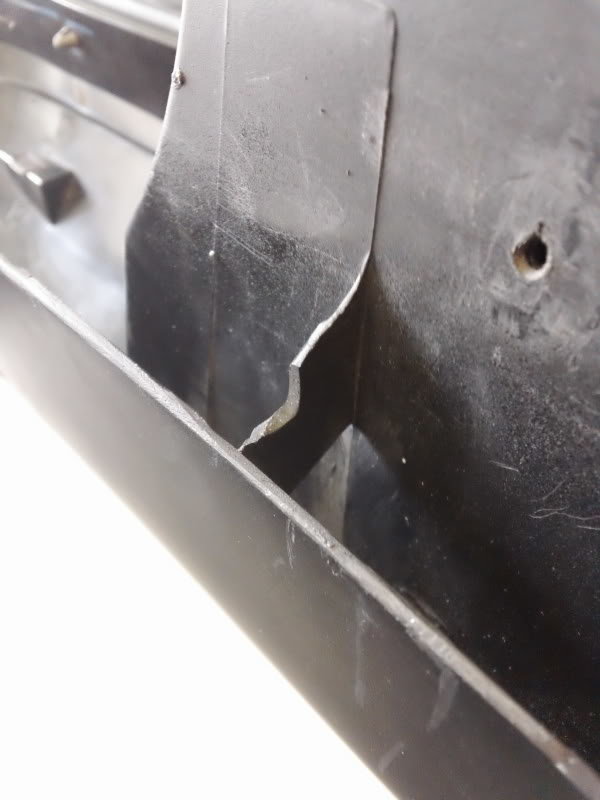

    1. Trim the top two tabs

    2. Start at the bottom first!! the two tabs will help align the center push down and mark your holes, use a 3/16 drill bit.

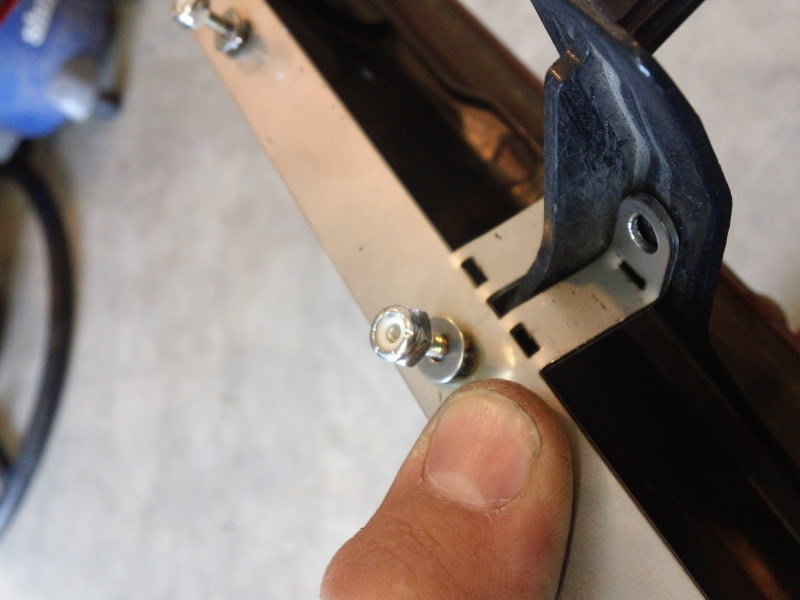

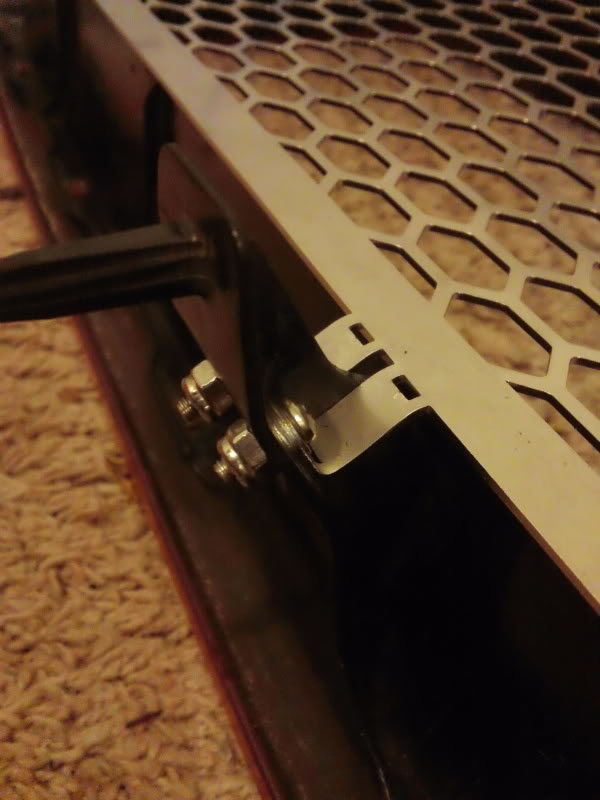

    3. Bolt down the tabs

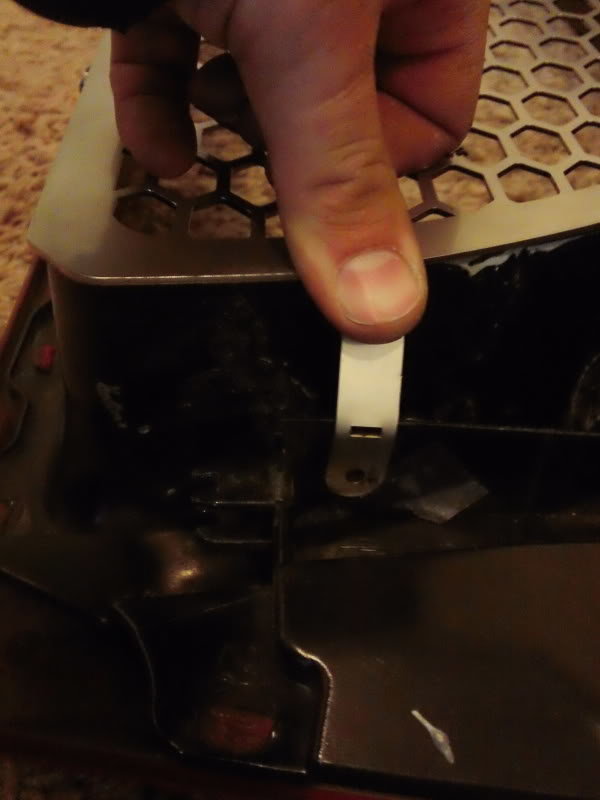

    4. Push the top two tabs down, both sides should have the same amount of overhang and screw them in

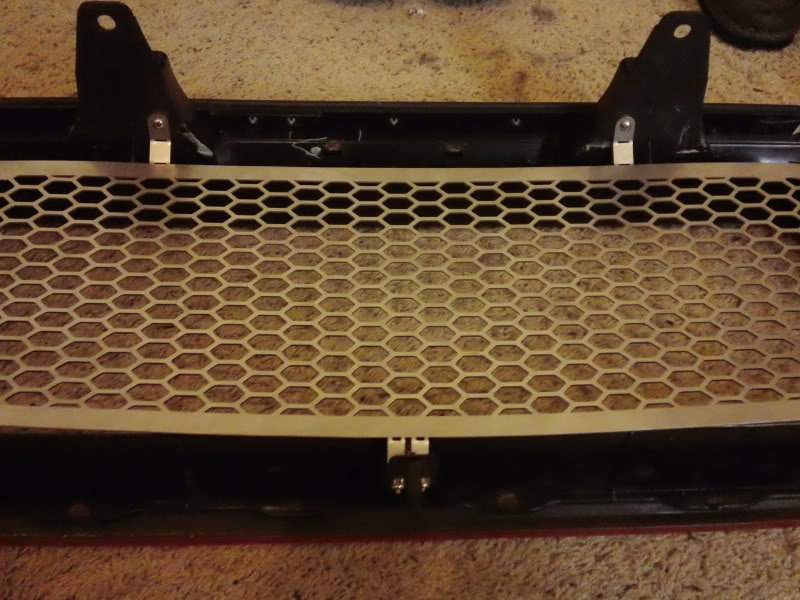

    THIS IS WHAT IT SHOULD LOOK LIKE

    5. Both sides should flare up like this, you can now check the contour of the sides and bottom (bend if you need to because everyones body work might be a little different)

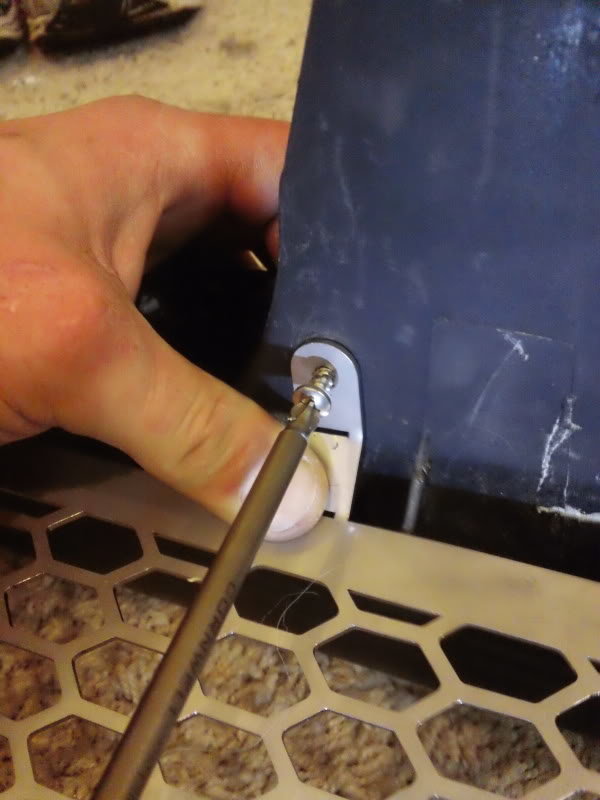

    6. Push down, mark, drill 3/16 hole, and bolt down

  2. Feb 1, 2011 at 7:48 AM
    #2
    ckeeton

    ckeeton Bazinga

    Joined:
    Sep 7, 2010
    Member:
    #42853
    Messages:
    1,547
    Gender:
    Male
    First Name:
    Chris
    Duluth, GA
    Vehicle:
    2011 DC Trd Sport Gray
    trd sport with avid off road light bar, avid rock sliders. OEM roof rack, 12' LED light bar, and Sock monkey decals.
    sweet, great write up.

    thanks for the help

  3. Apr 2, 2011 at 1:44 PM
    #3
    vierzwanzig

    vierzwanzig Well-Known Member

    Joined:
    Mar 14, 2011
    Member:
    #53045
    Messages:
    165
    Gender:
    Male
    Moreno Valley, CA
    Vehicle:
    '11 SW 4x4AC/MT 2.7l
    the list is growing
    Is there any sort of write up out there that shows the new mounting tabs on the grill? The tabs that came on my BDF grill look nothing like the tabs in the write up.

  4. Apr 2, 2011 at 2:54 PM
    #4
    timsxr

    timsxr [OP] Well-Known Member

    Joined:
    Nov 21, 2010
    Member:
    #46529
    Messages:
    1,155
    Gender:
    Male
    portland

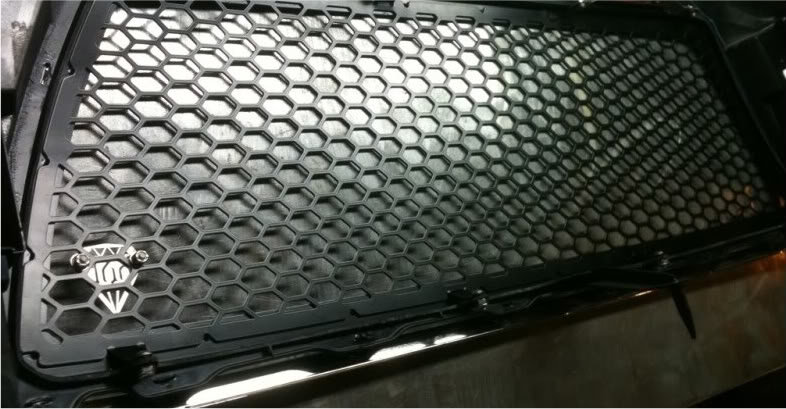

    This is the best i have at the moment im working on a write up for the front mount insert

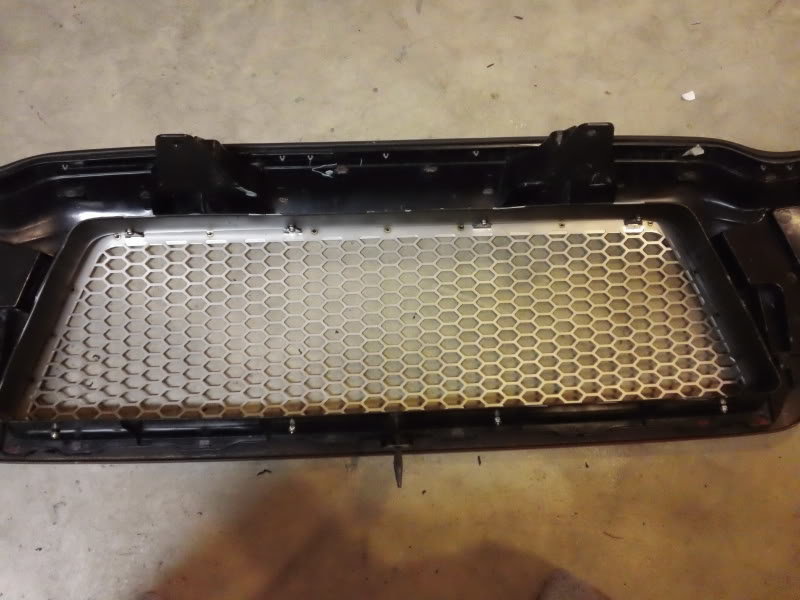

    just cut the center out mark your holes and around the tabs and cut as much as you want out the more you trim out the better it looks from the front, the last one i did i left about 1/4 inch and then the tabs

    this one is mounted to my satoshi mock up grill so the sides are filled in


    You can see how much i cut out of this one


  5. Apr 3, 2011 at 1:19 PM
    #5
    mfrantz24

    mfrantz24 Scorched Earth

    Joined:
    Oct 24, 2010
    Member:
    #45169
    Messages:
    18
    Gender:
    Male
    First Name:
    Mike
    CT
    Vehicle:
    2011 DC LB Sport
    Bilstein 5100's all around (fronts at 1.75")
    Tim, question for you about the lower grille install. I have a 2011, which apparently does not have a removable lower stock grille, do you have any suggestions about getting this installed the best way. I would like to not remove the entire lower bumper, if possible. Thanks!

  6. Apr 3, 2011 at 2:18 PM
    #6
    timsxr

    timsxr [OP] Well-Known Member

    Joined:
    Nov 21, 2010
    Member:
    #46529
    Messages:
    1,155
    Gender:
    Male
    portland
    None of them are removable I did a lower install last week
    I just put it in place marked the four holes with a pick and drilled at a angle from the front of the grill, I was able to get the Allen wrench in thru the hex hole from the front and use a ratcheting wrench from the back. If you remove the upper grill it will be much easier

  7. Oct 8, 2011 at 8:11 PM
    #7
    FY01CPO

    FY01CPO Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58412
    Messages:
    308
    Gender:
    Male
    First Name:
    Jeremy
    CT
    Vehicle:
    SR5 4x4
    black tube steps, side marker turn signals, 15% tint and window strip, EGR vent shades, fighter pilot/cockpit mod, console and glove box auto on LED, anytime fog light mod, 3000k HID fogs, bed mat wing nut mod, locking bed storage bin mod, smoked tail lights, plasti-dipped rims, blacked out emblems, black tail pipe, tail gate hose clamp, rear seat utility/dog shelf with rear center console access door.

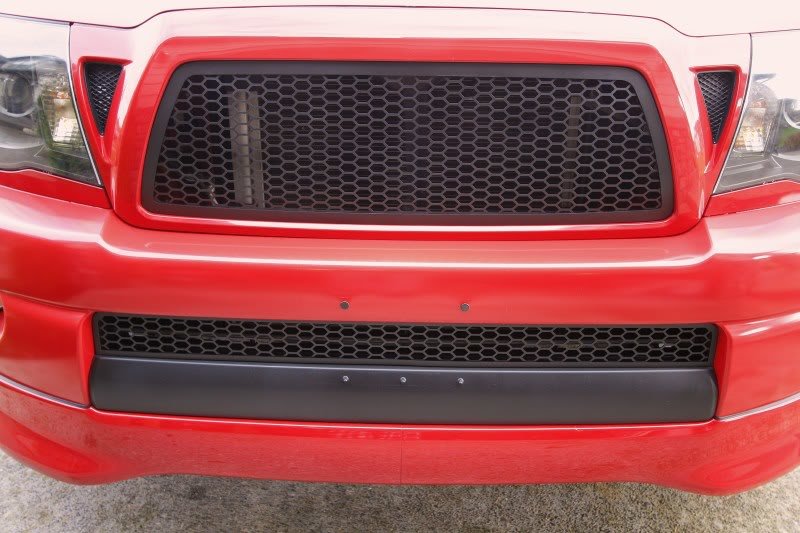

    Will these fit well if installed to the outer grill surround? If I cut out or completely remove the center of my inner grill, can I install this so they have like a 1/2" depth like the one you have on the red truck below. Maybe your previous post talked about this but I want to make sure.


    THANKS!!

  8. Oct 17, 2011 at 8:00 PM
    #8
    FY01CPO

    FY01CPO Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58412
    Messages:
    308
    Gender:
    Male
    First Name:
    Jeremy
    CT
    Vehicle:
    SR5 4x4
    black tube steps, side marker turn signals, 15% tint and window strip, EGR vent shades, fighter pilot/cockpit mod, console and glove box auto on LED, anytime fog light mod, 3000k HID fogs, bed mat wing nut mod, locking bed storage bin mod, smoked tail lights, plasti-dipped rims, blacked out emblems, black tail pipe, tail gate hose clamp, rear seat utility/dog shelf with rear center console access door.
    Bumpity bump.
