Engine Bay LED Install

Discussion in 'Lighting' started by Benson X, Sep 16, 2012.

  1. Sep 16, 2012 at 12:05 AM
    #1
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Here's my LED install for the engine bay. I wanted to illuminate the whole engine compartment and separately light up the winch area using one discreet switch.

    [​IMG]



    PARTS USED:

    (2) 12" Cool White Waterproof ribbons from Ozium.com (found HERE)
    (1) 6" Cool White Waterproof ribbon from Ozium.com (found HERE)
    (1) On-Off-On SPDT Rocker Switch (I used one exactly like THIS)
    (1) Add-A-Fuse (I used one like THIS)

    TOOLS NEEDED:

    Wire-Strippers / Crimpers
    Philips head screwdriver
    Flathead screwdriver
    10mm wrench -or- socket
    12mm wrench -or- socket
    Soldering Iron / Solder (optional)
    Butt Connectors
    14-16awg Wire (2-colors recommended)
    (1) Quick-Splice connector
    (1) 1/2" Ring terminal connector
    (1) 1/4" Ring terminal connector
    (3) .187" Female Quick-Connect terminals
    Heat-Shrink tubing
    Electrical Tape
    Coat Hanger / Wire-puller
    Zip-Ties
    Drill with 3/4" drill-bit -or- hole-saw
    LIGHT!!!



    STEP 1: Mount The LEDs

    !!!Disconnect the Battery!!!

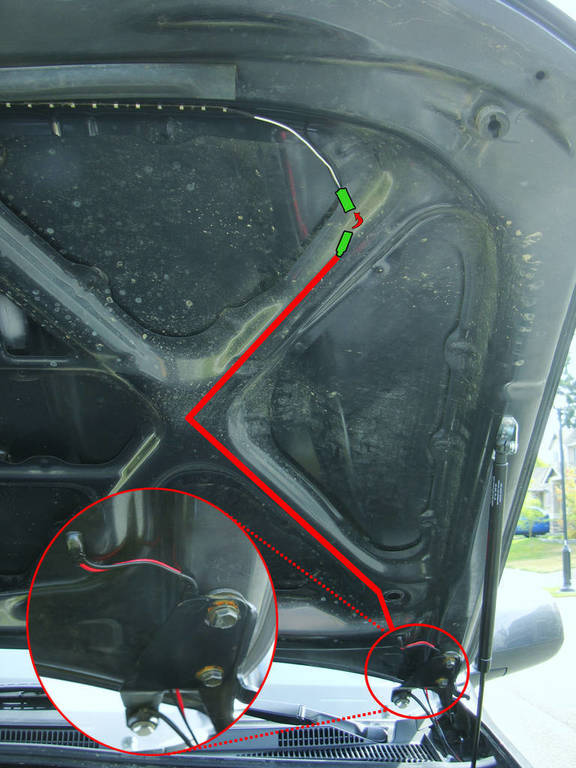

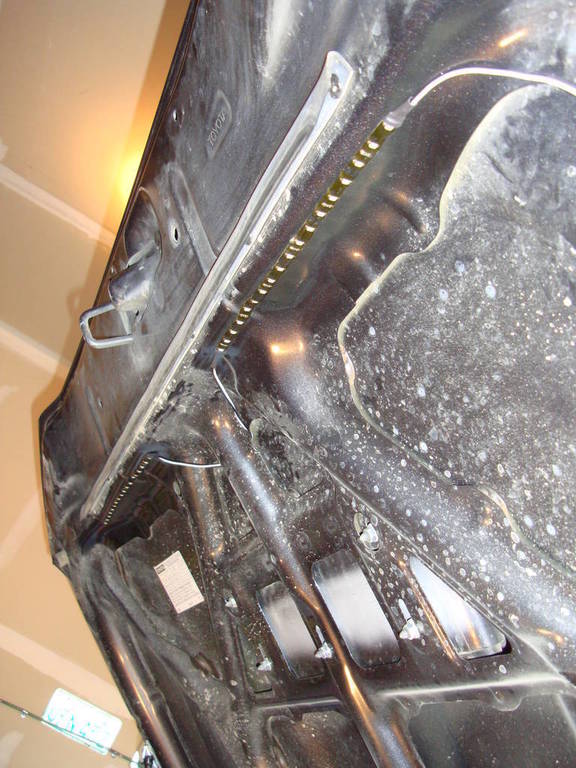

    I mounted the (2) 12" LED strips on the underside of the hood (First, clean the mounting area with water and/or rubbing alcohol, let dry)
    [​IMG]

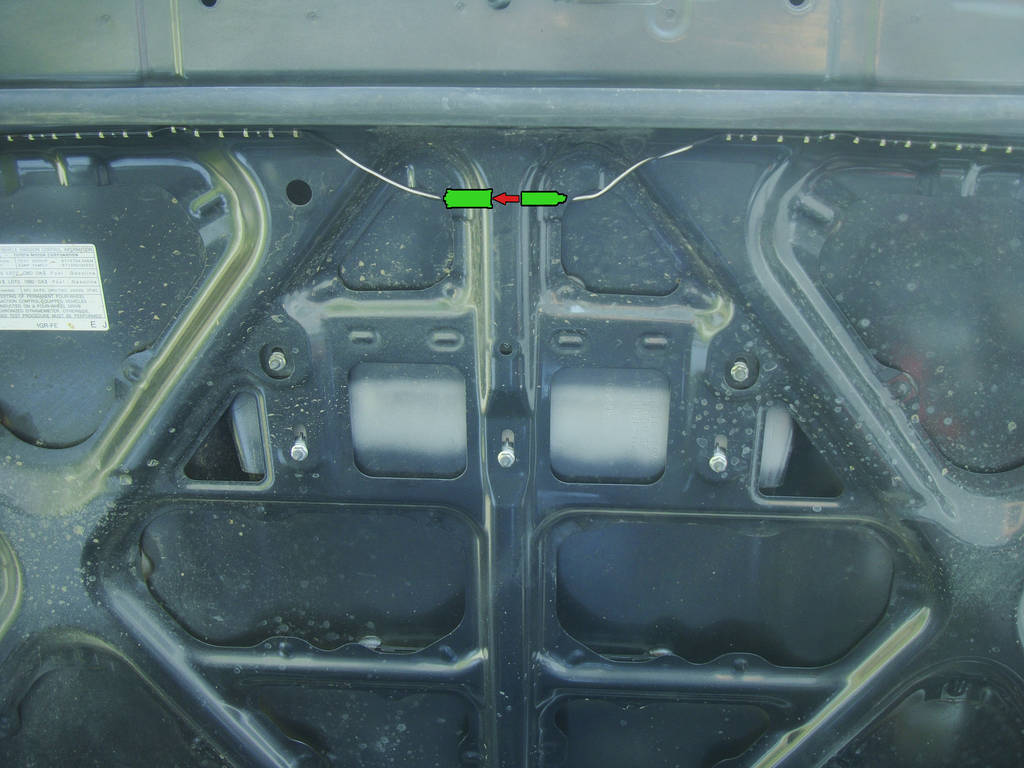

    Connect the (2) 12" strips using the pre-wired pigtails. You can clip off the last pigtail on the passenger side, as it will not be used.
    [​IMG]

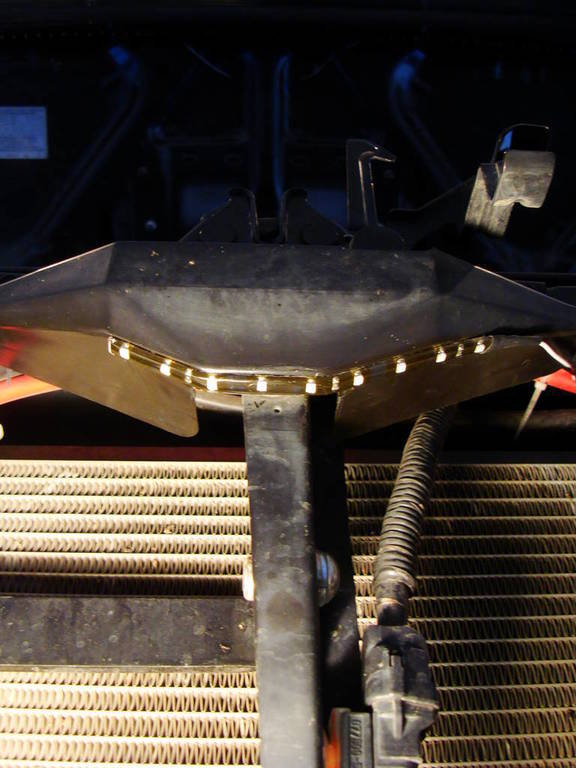

    I stuck the 6" strip on the underside of the hood latch shield thing. Again, clip off the passenger side pigtail, and leave the driver's side.
    [​IMG]




    STEP 2: Install the Switch

    Using a skinny flat head screwdriver, remove all the clips on the top plastic cover above the radiator.

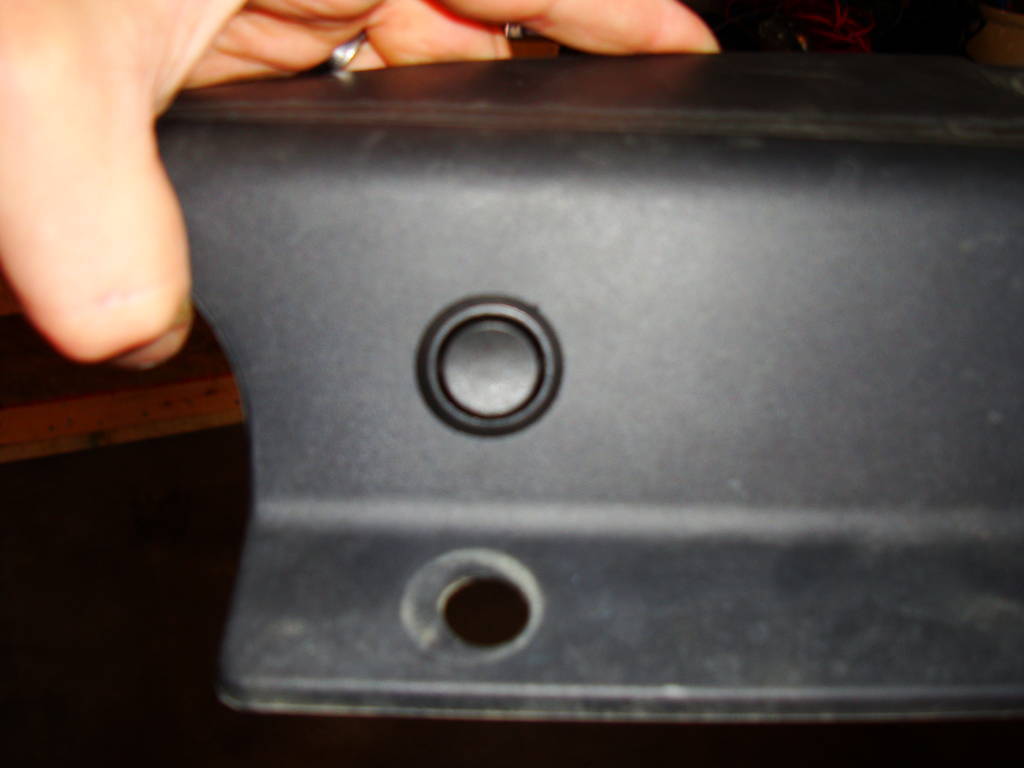

    Drill a 3/4" hole on the driver's side of the plastic piece, centered above the last hole.
    NOTE: I had to make small notch at the 9 o'clock position of the hole (driver's side). Test fit the switch

    [​IMG]

    [​IMG]



    STEP 3: Wire it up

    *I used (2) Male pigtail plugs that came with the LED strips. The WHITE is the +POS and the BLACK is the GROUND

    For the hood LEDs:
    I soldered my +POS and GROUND wires to the male pigtail that came with the LED strips and heat shrinked them. Run the +POS wire until it reached the switch. I then measured the GROUND until it reaches the common ground by the battery (near the fusebox).

    Leave yourself a few extra inches and trim the wire.

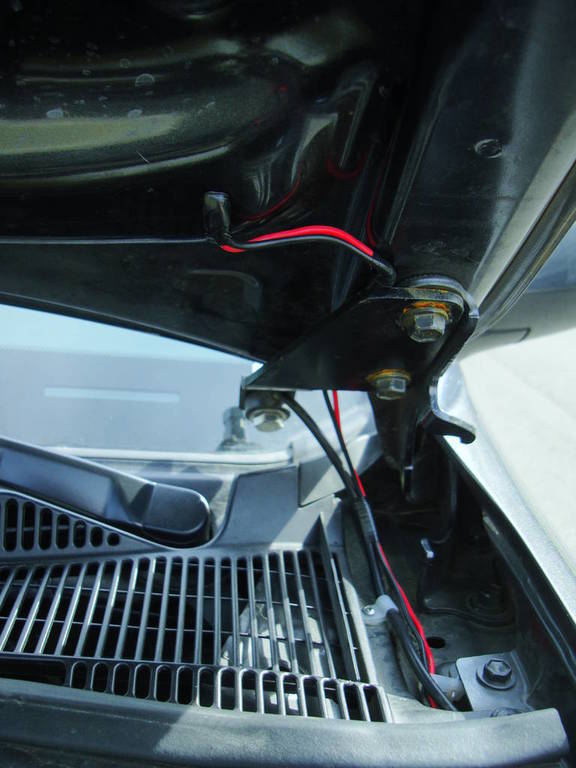

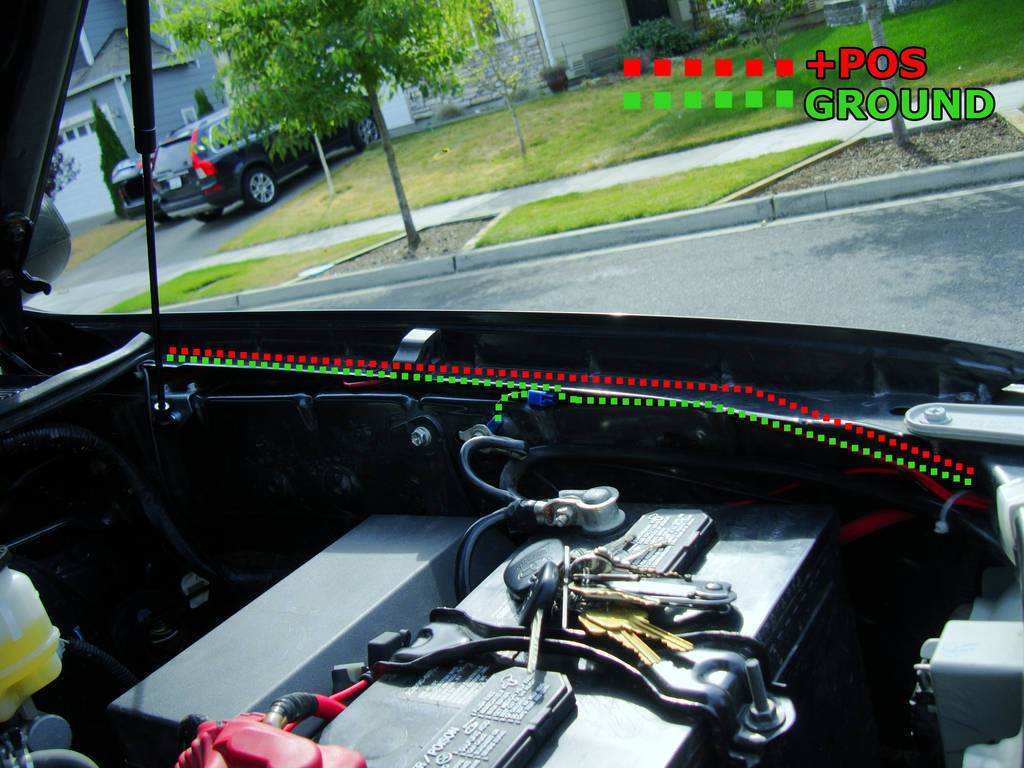

    After you have your wire lengths measured and cut, run them through the recesses of the hood, and out the hole in the bottom corner near the windshield on the driver's side.
    [​IMG]

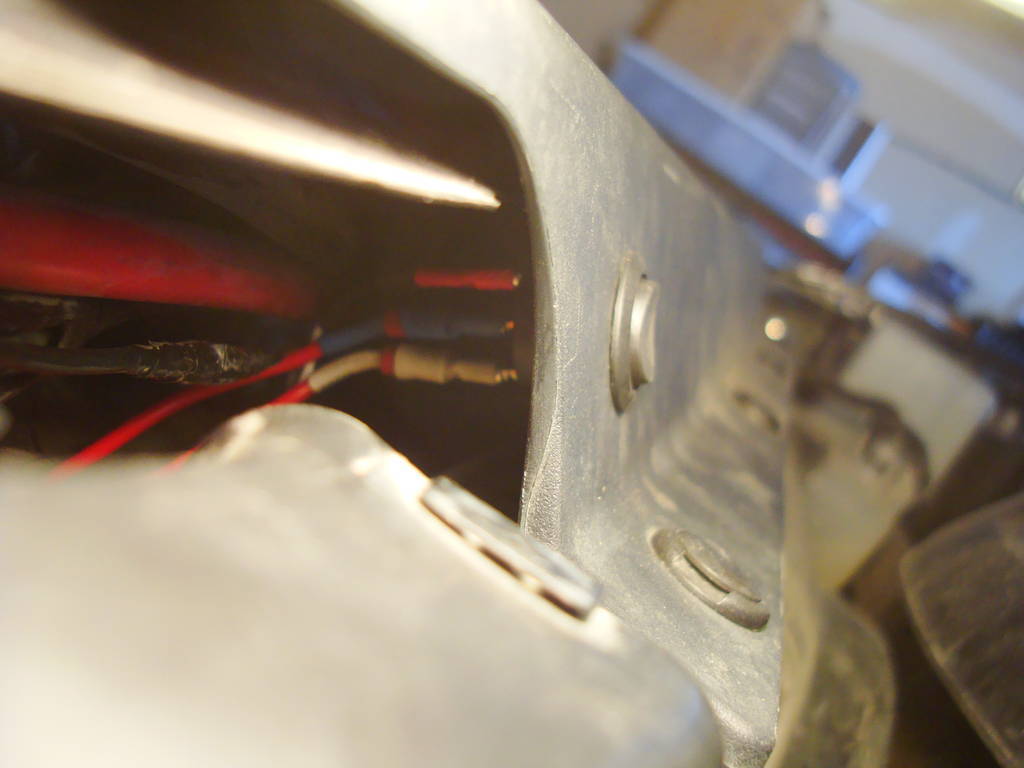

    I wrapped the wire in electrical tape near the hole, and pulled it back through to insulate it and keep it in place. I also used my Relentless CB mount to keep the wire from getting pinched in the hood and insured it wouldn't move.
    [​IMG]

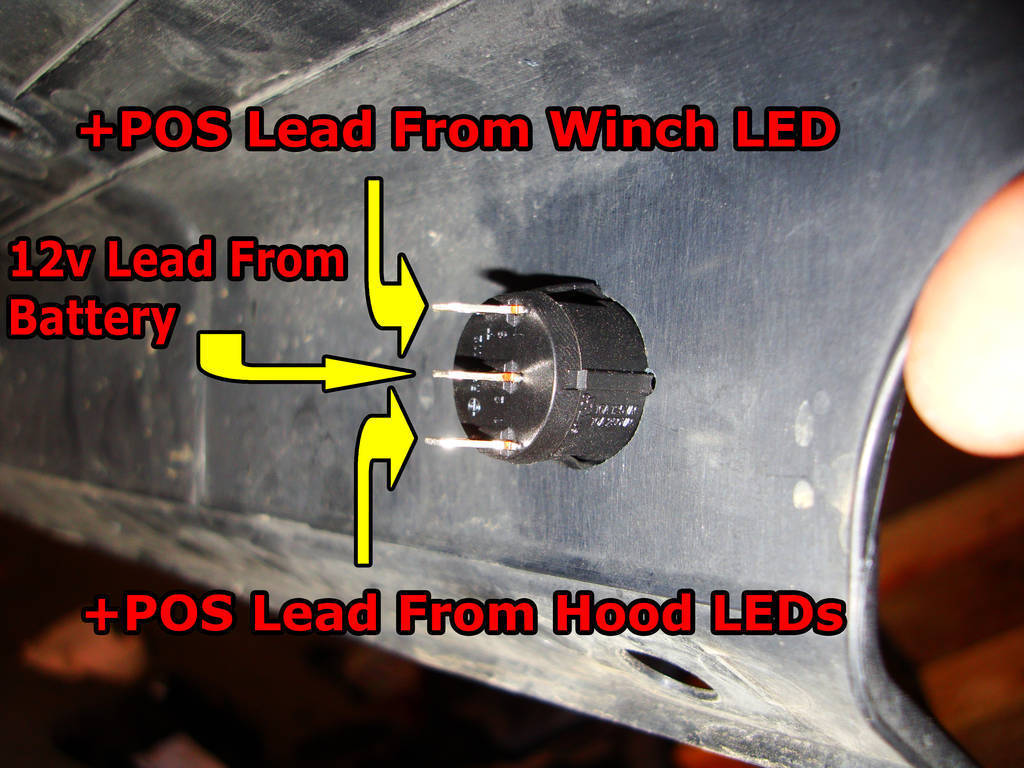

    After insuring the +POS lead reaches the switch, crimp on a .187" female quick-connect terminal.


    For the winch LED:

    I plugged in the other pigtail and soldered a length of wire for the GROUND. This is going to the same ground point as the hood LEDs. Measure it and trim the wire.

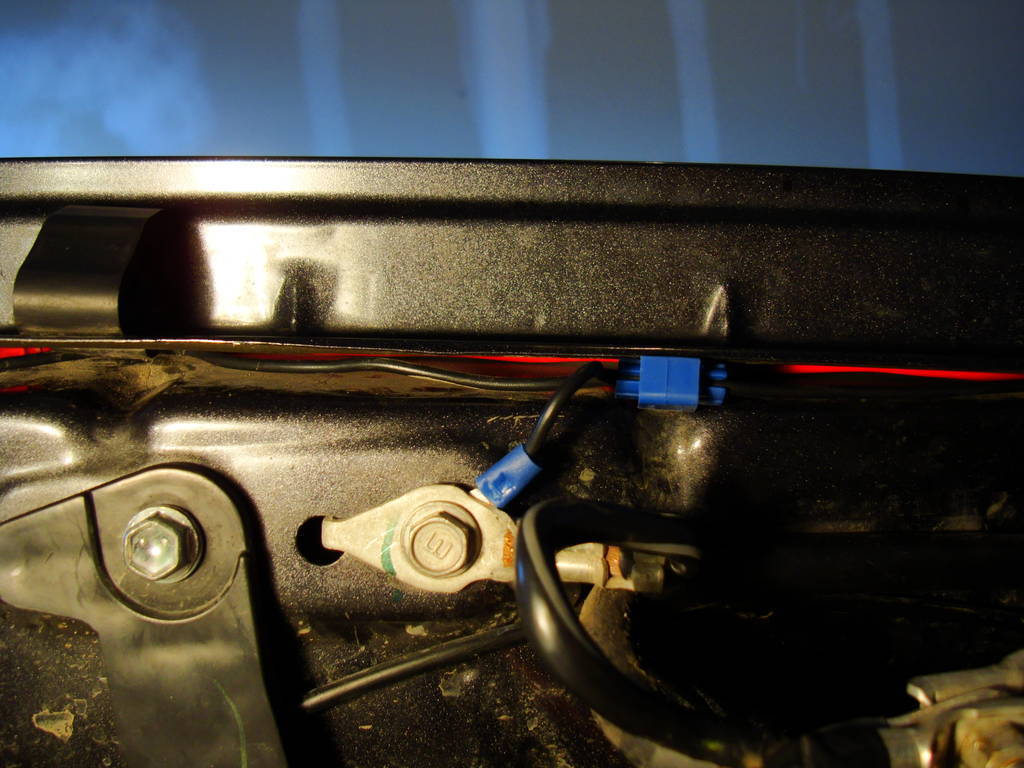

    I crimped on the 1/4" Ring Terminal and connected this GROUND wire to the Hood LED GROUND using a Quick-Splice connector. Now all the LED strips share the same common GROUND point.

    On the +POS lead (white wire), I crimped on a .187" female Quick Connect terminal for the switch.


    For the 12v Battery Lead:

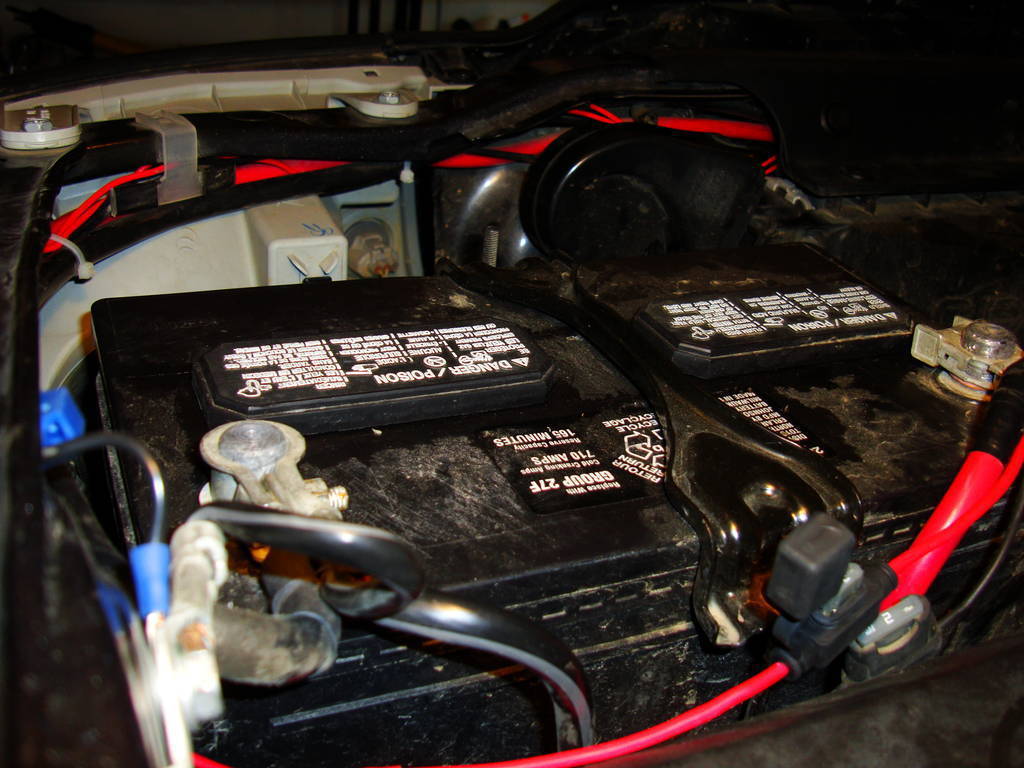

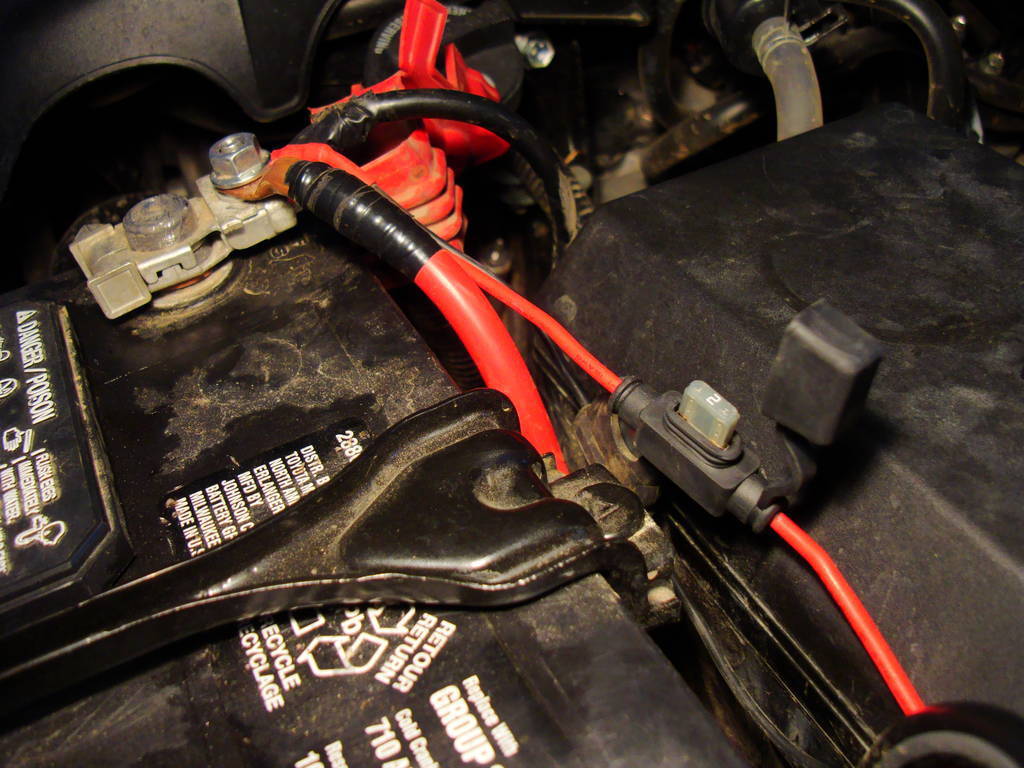

    I crimped on the 1/2" ring terminal on the in-line Add-A-Fuse and soldered an extension wire to reach the switch. Then I crimped on another .187" female Quick-Connect terminal to connect it to the switch. I used a 2 amp fuse.
    [​IMG]




    STEP 4: Clean it up & Plug It In

    After checking that all the wires will reach the switch and ground point, start tucking them in and cleaning them up with zip-ties, electrical tape etc.

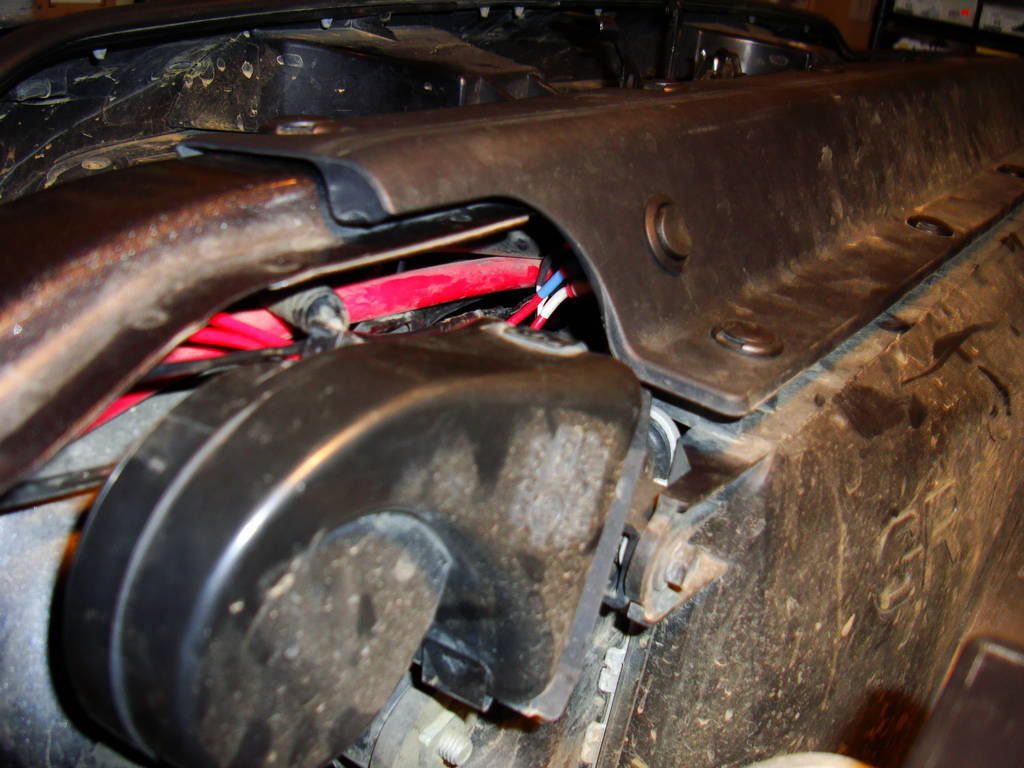

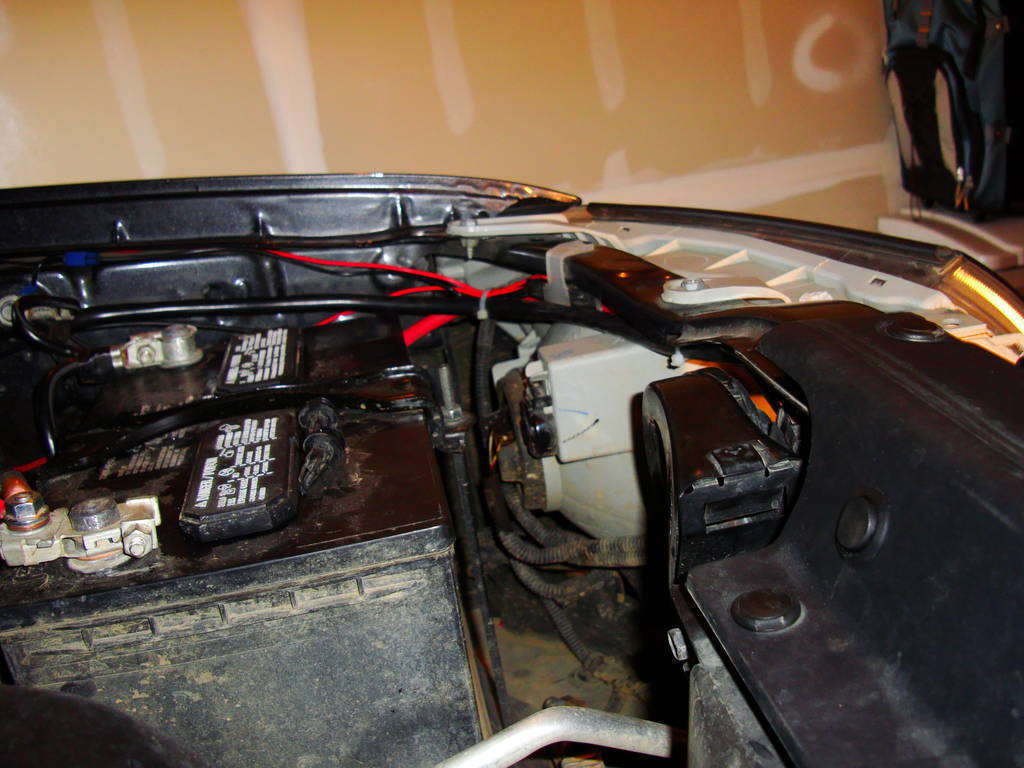

    I tried to tuck the wires up into the fender area as much as possible, but be careful to avoid sharp edges and pinch points. Zip-ties and electrical tape came in handy here.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Give everything a once-over and plug it all in. Don't forget to put a fuse in.

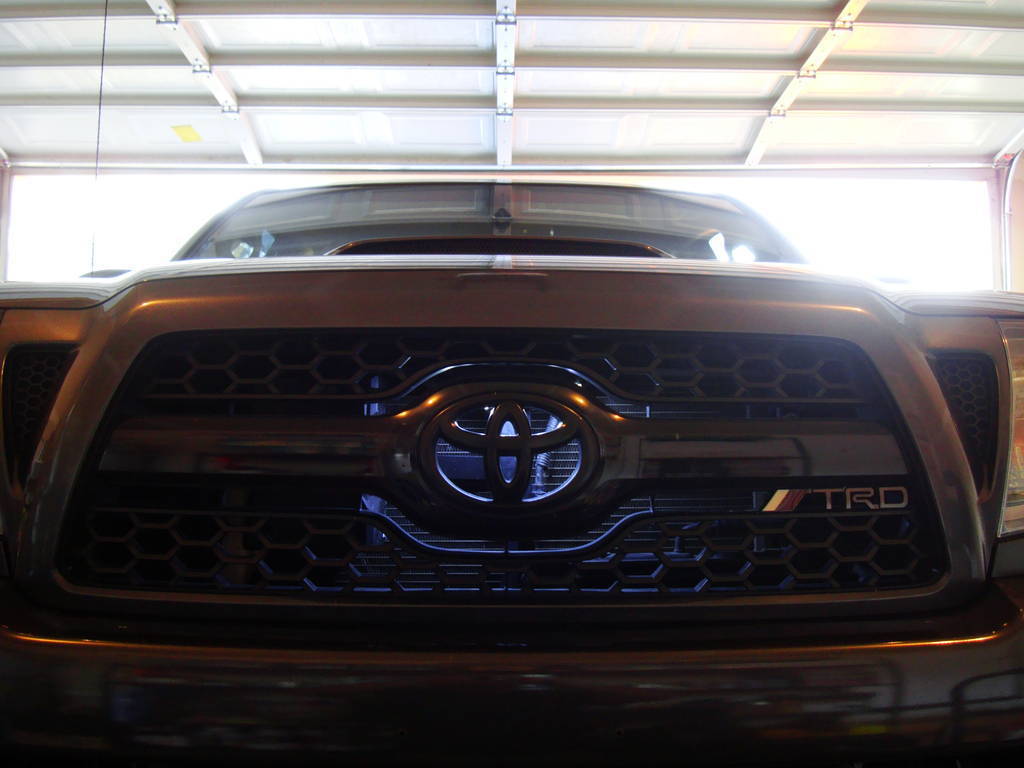

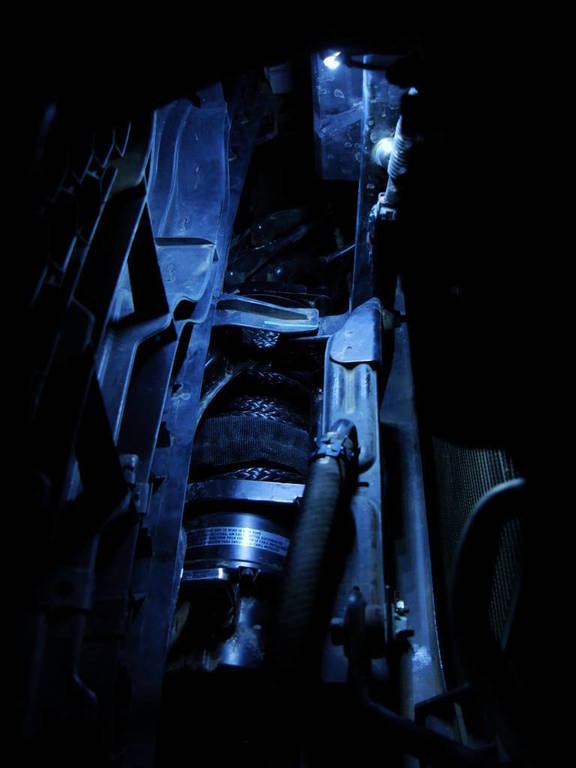

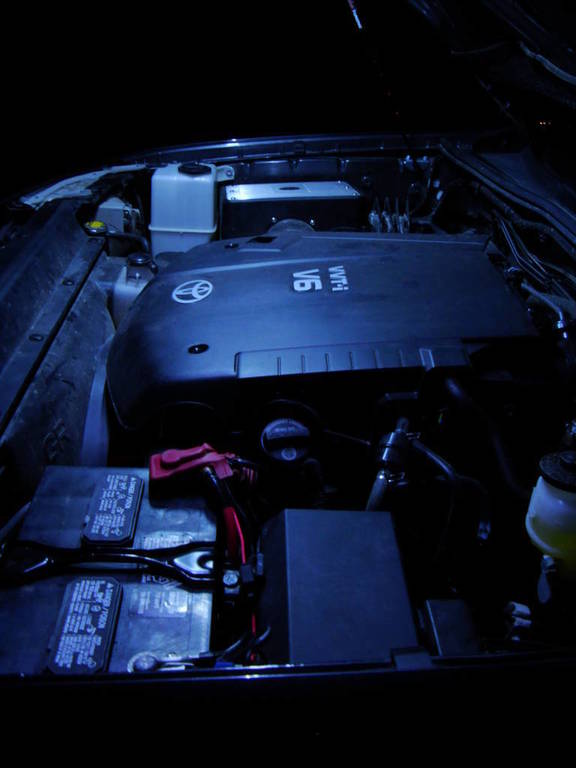

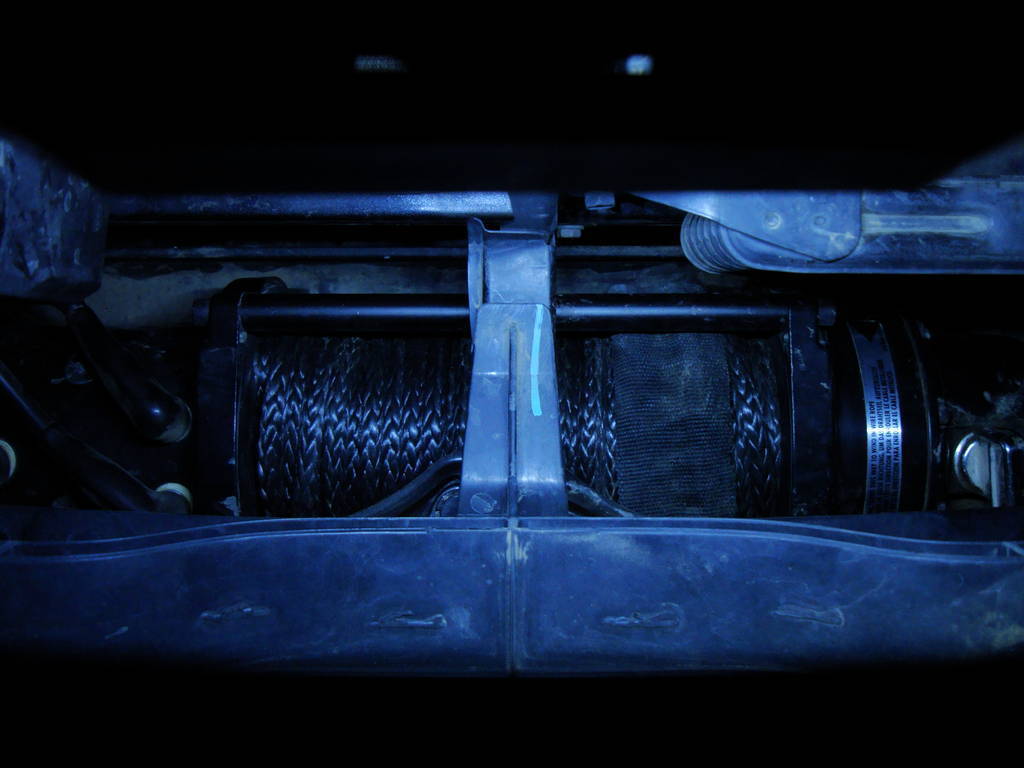

    STEP 5: Turn Them ON!!!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]







  2. Sep 16, 2012 at 12:07 AM
    #2
    ToyotaKTMracing

    ToyotaKTMracing The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    That is awesome! It reminds me of my mod I just did. Mainly because of the last picture. Haha

  3. Sep 16, 2012 at 12:34 AM
    #3
    707tothe907

    707tothe907 Superior Member

    Joined:
    Oct 28, 2010
    Member:
    #45372
    Messages:
    2,723
    Gender:
    Male
    First Name:
    Jake
    Chico NorCal
    Vehicle:
    05 DCSB Off Road
    Clean install!!

    I have a rats nest of wires surrounding my battery..

  4. Sep 16, 2012 at 12:34 AM
    #4
    BulletToothTony

    BulletToothTony Gold Member

    Joined:
    Feb 20, 2008
    Member:
    #4833
    Messages:
    11,387
    First Name:
    You can call me Susan if it makes you happy.
    Subd good job man :thumbsup:

  5. Sep 16, 2012 at 12:42 AM
    #5
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Interesting. And nice switch location. I wouldn't have thought of that. No one will know it's there unless you're looking specifically.

  6. Sep 16, 2012 at 9:44 AM
    #6
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Thanks man, the LEDs are badass. I thought about cruising around with the grille lit up, but then I remembered I don't live in S-Cal, and I drive a truck :p

    :thumbsup: I try to keep it tidy. I may look into getting an aux. fuse block before I add anything else.

    Thanks Tony, check out my other installs too!

    Thanks Nick. I like being able to control the lights independently. The install was pretty straight-forward. It took me about 1.5 hours total. Shit..it took me longer to the write-up...:eek:

  7. Sep 16, 2012 at 9:56 AM
    #7
    sfcadams

    sfcadams Retired Senior NCO

    Joined:
    Aug 13, 2011
    Member:
    #61645
    Messages:
    1,431
    Gender:
    Male
    First Name:
    Dan
    Elizabeth, Indiana
    Vehicle:
    2011 TRD Off Road DCSB Prerunner Skeewped
    Awesome!

  8. Sep 16, 2012 at 11:43 AM
    #8
    brian

    brian Another Traitor

    Joined:
    Apr 15, 2009
    Member:
    #16011
    Messages:
    7,568
    Gender:
    Male
    Roseville, CA
    Vehicle:
    2008 F-350 Powerstroke
    Nice writeup. For future reference, if you want an even cleaner install with less wire, remember that everything metal in your truck is a ground, assuming its bonded. You could have saved a few feet of wire by using the hood bolts, or whever the closest bolt/screw to your lights are. Looks good man. I'm starting on my bed LED's here in a few minutes, and seeing this gives me an idea to do some under hood lights as well. Just not enough light in this truck!

  9. Sep 16, 2012 at 12:21 PM
    #9
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    I agree :D

    Nice, thanks Brian. I may just be OCD, but I prefer to use the same ground point closest to the battery, same as my CB install.

    Good luck on the bed LEDs :thumbsup:

  10. Sep 22, 2012 at 6:09 PM
    #10
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Damn, I'm loving the LEDs! Combined with the interior (map/dome) it makes me want to swap all of 'em. Maybe do the gauges too :notsure:

  11. Feb 9, 2014 at 7:52 PM
    #11
    MrGrimm

    MrGrimm Mall Crawler

    Joined:
    Oct 19, 2009
    Member:
    #24568
    Messages:
    2,555
    Gender:
    Male
    First Name:
    Dean
    Slaying bodies abroad
    Vehicle:
    2006 Toyota Tacoma 4WD w/TRD Sport Package
    See build page
    Subscribed! I like the detail in this DIY.

  12. Apr 21, 2014 at 3:33 PM
    #12
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,572
    Gender:
    Male
    You ever use a gas prop switch? I have a couple I am installing for my frone and rear lights/..

  13. Apr 21, 2014 at 3:45 PM
    #13
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    I was debating it, but I went with the 2 position switch so I can control the winch area or engine bay lights independently.

  14. Apr 21, 2014 at 3:51 PM
    #14
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,572
    Gender:
    Male
    Tying mine into the Alarm system / Door switches too.

  15. Apr 21, 2014 at 8:51 PM
    #15
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,572
    Gender:
    Male
  16. Apr 21, 2014 at 10:11 PM
    #16
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
  17. Apr 22, 2014 at 4:18 AM
    #17
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,572
    Gender:
    Male
    Try again

  18. Apr 22, 2014 at 11:12 PM
    #18
    toendanger

    toendanger Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    1,228
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    01 ext cab prerunner

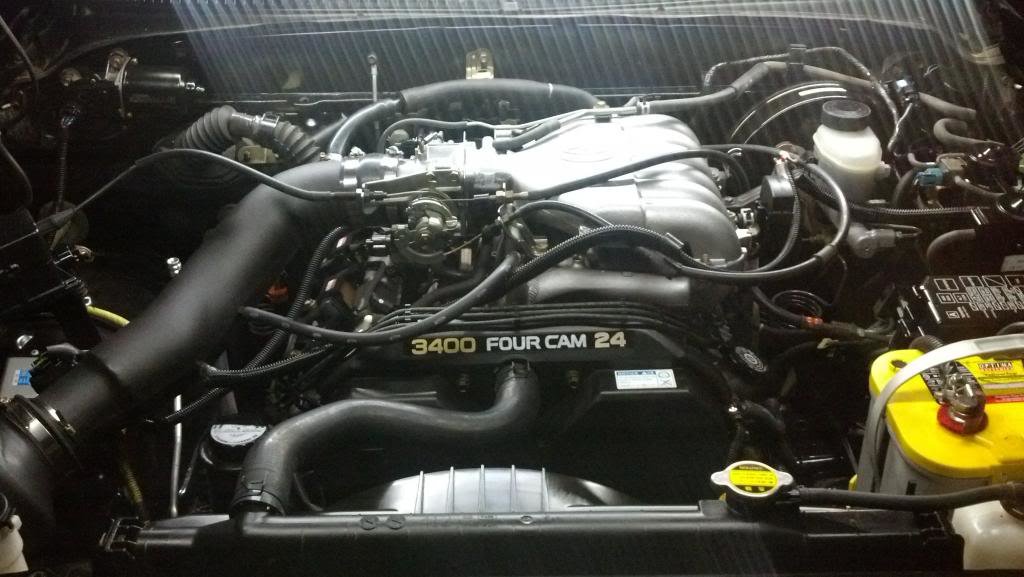

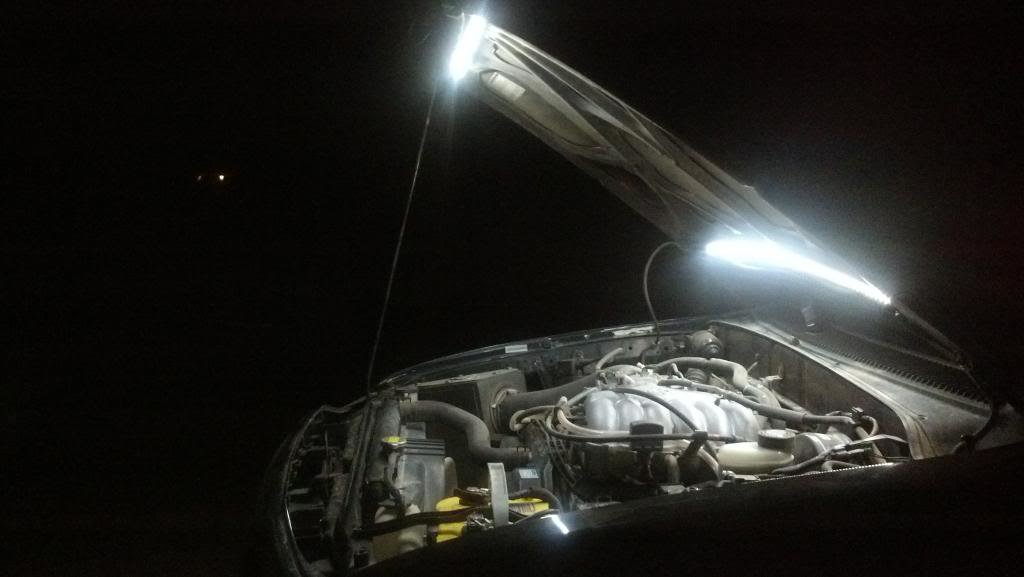

    Thought I'd share mine I did a while back. Did basically the same. Absolutely love all the light. And these suckers could stay on forever with minimal drain. I want to put another one under the engine for when I need to crawl underneath at night for whatever reason.

    [​IMG]
    [​IMG]

  19. Apr 23, 2014 at 8:53 AM
    #19
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,598
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Awesome, dude! That works like a charm, great job! :thumbsup:

  20. Apr 24, 2014 at 2:52 PM
    #20
    27Tacoma

    27Tacoma Member

    Joined:
    Apr 21, 2014
    Member:
    #128193
    Messages:
    14
    Gender:
    Male
    NJ
    Stock for NOW
    How do you think they'll hold up due to engine heat? Most cheap LEDs can't sustain much heat, so they burn out quick, or flicker.
