Everything You Always Wanted About Lower Ball Joint Bolts

Discussion in '1st Gen. Tacomas (1995-2004)' started by SpikerEng, Jul 21, 2022.

  1. Sep 30, 2024 at 3:22 PM
    #141
    JTFisherman

    JTFisherman Well-Known Member

    Joined:
    Feb 19, 2019
    Member:
    #283636
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Jake
    Texas / Missouri
    Vehicle:
    4Runner
    I did have some breakage recently too, thanks for the tag Anthony.

    Installed with new lbj in late April and I haven’t broken anything till now so I am 99% sure I never removed them. Black washer bolts torqued to 40ft-lbs, no loctite or anti-seize.

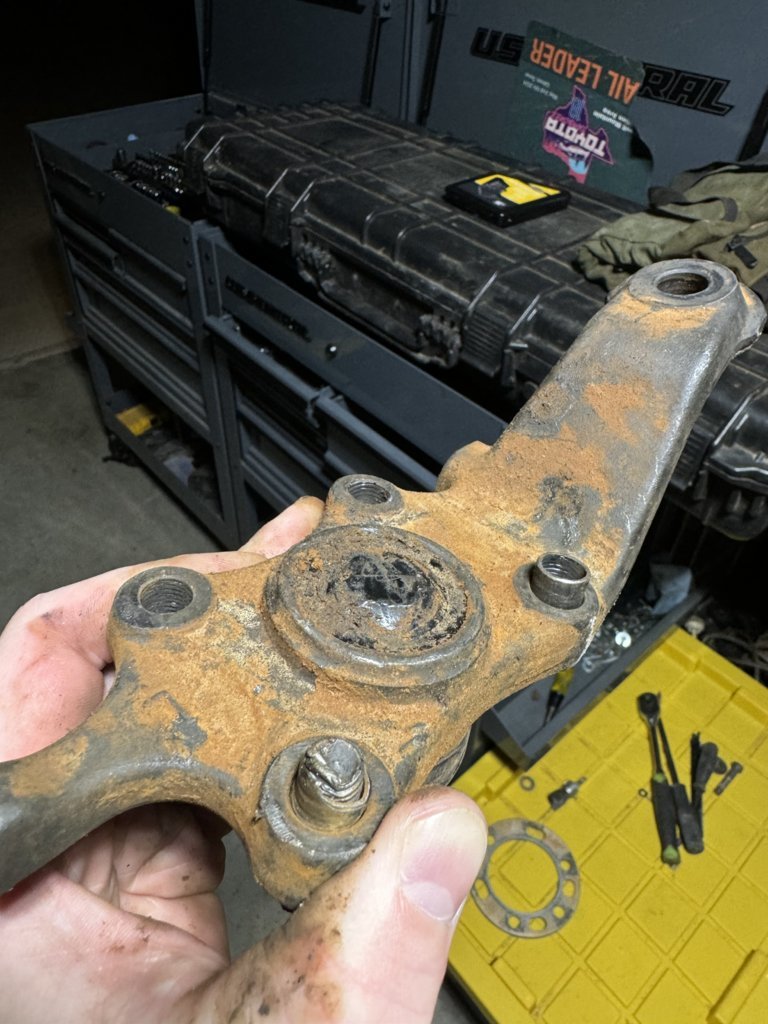

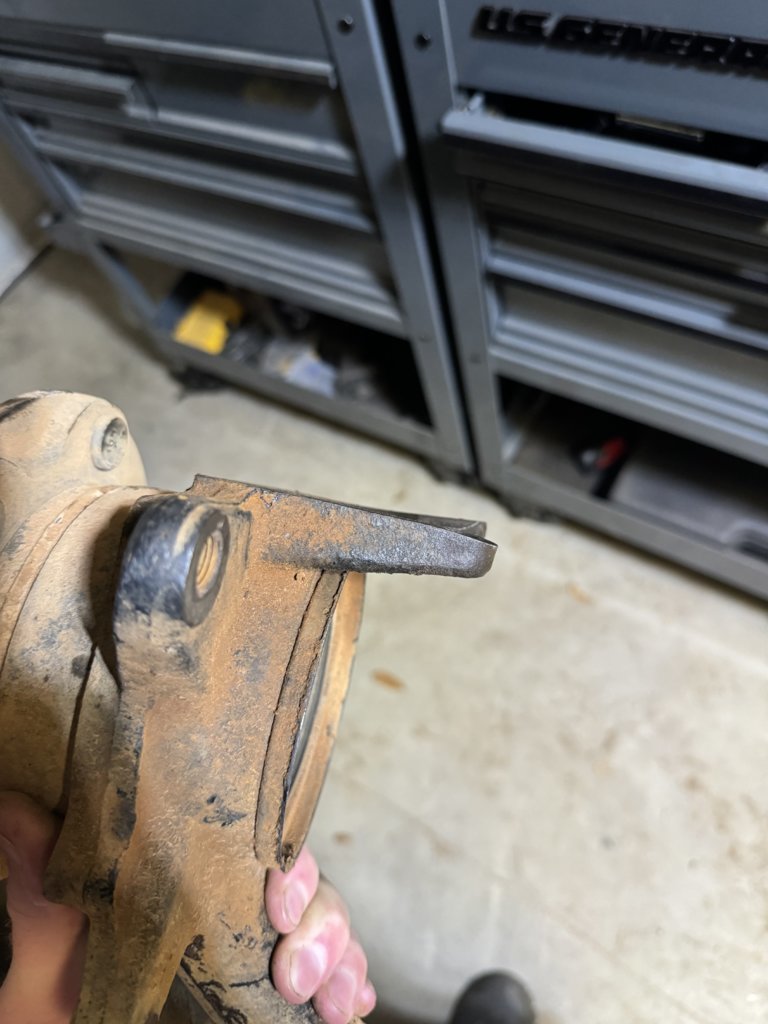

    sheared all 4 bolts, twisted the spindle some. I’m pretty confident mine did not fail in tension rather just sheared.

    a guy on Facebook is pretty adamant that I had a bolt or two that was coming loose, but I really just don’t see that being likely. These had ~3k on them probably, 5-6 weekends of wheeling, and they failed on the first (remotely hard) trail I did that day.

    @SpikerEng do you want to look at these! I can round up what I have and send off the lbj and cut the spindle off and send it since it’s trash anyways. May take a bit for me to ship though.

    I did extract some bolts though before giving up on it, also don’t have 3 of the broken heads they were lost in the dirt.

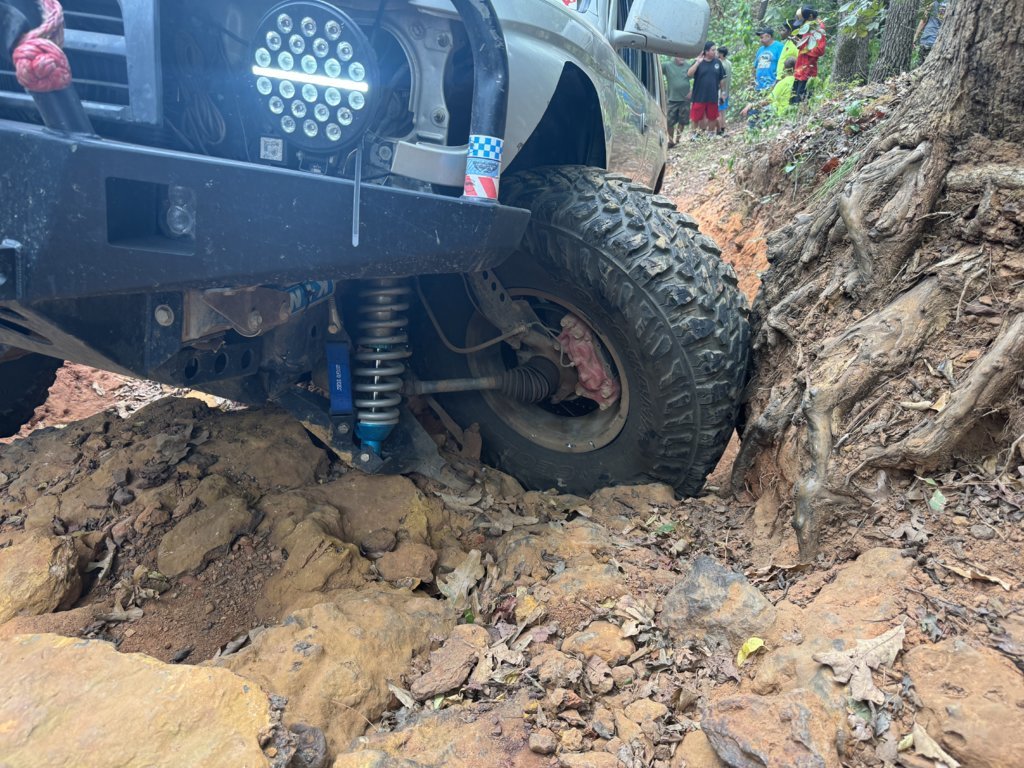

    And a video, there are two more as well but pretty much the same. failure was probably just asking too much of the bolts and not enough driver skill. I think I caught the edge of a root and it turned the wheel hard driver till it hit steering stops then sheared the bolts.

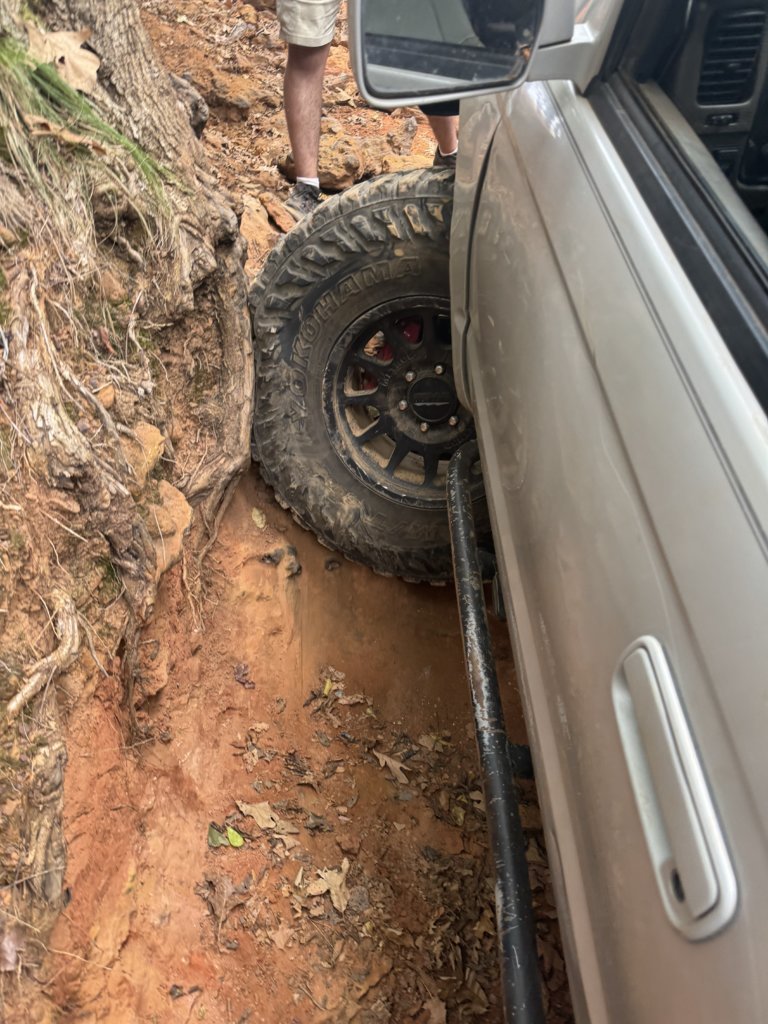

    still bummed it broke, wasn’t going all that fast and there is so little root there to catch a tire. Also the recovery off the trail sucked, but still drove it home.

    https://youtube.com/shorts/QHfvS5kWlEk?si=lO4eZpwRPq8k83ql

    Dayman Karate likes this.
  2. Sep 30, 2024 at 4:01 PM
    #142
    Dayman Karate

    Dayman Karate Fighter of the night man, champion of the sun

    Joined:
    Dec 18, 2017
    Member:
    #238838
    Messages:
    4,684
    Gender:
    Male
    First Name:
    Clay
    Central Alabama
    Vehicle:
    2001 4Runner
    https://www.tacomaworld.com/threads/daymans-karate-class-but-you-wont-learn-nothin-4-link-lt-and-previous-iterations.755134/
    @JTFisherman looking at the impressions the bolts made in the lower ball joint holes in that last picture it does look like they sheared. Also, I didnt realize the factory ball joint doesn’t sit flush with the spindle looking at the rust. Am I seeing that right?

  3. Sep 30, 2024 at 4:14 PM
    #143
    JTFisherman

    JTFisherman Well-Known Member

    Joined:
    Feb 19, 2019
    Member:
    #283636
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Jake
    Texas / Missouri
    Vehicle:
    4Runner
    *red dirt* but yes haha. The little things for bolts are standoffs so just those 4 spots touch the spindle. Probably for any manufacturing defects so it has a better change of really mating up?

    And these are not toyota oem LBJs but same design, just cheap aftermarket brand. Still outlasted the bolts haha

    Dayman Karate[QUOTED] likes this.
  4. Sep 30, 2024 at 4:21 PM
    #144
    Dayman Karate

    Dayman Karate Fighter of the night man, champion of the sun

    Joined:
    Dec 18, 2017
    Member:
    #238838
    Messages:
    4,684
    Gender:
    Male
    First Name:
    Clay
    Central Alabama
    Vehicle:
    2001 4Runner
    https://www.tacomaworld.com/threads/daymans-karate-class-but-you-wont-learn-nothin-4-link-lt-and-previous-iterations.755134/
    red dirt, my bad haha I have some OEM and they are the same. TC ones are flush. Apparently flush isn’t good enough to save the bolts though haha gotta be a solution to this. Bigger bolts seems like the next easy logical step.

  5. Sep 30, 2024 at 4:41 PM
    #145
    JTFisherman

    JTFisherman Well-Known Member

    Joined:
    Feb 19, 2019
    Member:
    #283636
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Jake
    Texas / Missouri
    Vehicle:
    4Runner
    @livel0veryde has 7/16? bolts in his

    apparently like 04-06 maybe? Tundra has a larger spread and m12 bolts.

    need different lbj, outer tie rod, and spindle though

  6. Oct 1, 2024 at 5:14 AM
    #146
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
  7. Oct 7, 2024 at 3:00 PM
    #147
    Tuluk

    Tuluk Well-Known Member

    Joined:
    Apr 23, 2022
    Member:
    #395640
    Messages:
    242
    Vehicle:
    1999 trd manual 4x4 ext cab
    Man, that’s a killer. I was seriously considering making the upgrade to the total chaos uniball just for peace of mind on this, but if they’re still shearing bolts then what does it matter.

    My biggest worry is that I’m usually so far out in the wilderness, and almost always alone. This LBJ deal is the one thing I’m not confident I could trail fix my way out of. It would be a catastrophic failure for me.

    TACOTU3 likes this.
  8. Oct 7, 2024 at 3:45 PM
    #148
    ChargedSHOTaco

    ChargedSHOTaco Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85118
    Messages:
    741
    Gender:
    Male
    The 1st gen LBJ issue is 2 fold. The balljoint itself separating, and the 4 bolts shearing. You'll have to solve both to truly fix the issue.

  9. Oct 7, 2024 at 3:51 PM
    #149
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    55,624
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    They're all over German cars. Plenty of applications just probably not very many for these kind of trucks.

    As for the actual LBJ problem... I've been using the black bolts successfully. But I think next time I change out ball joints which is coming up I'm going to go for ARP studs so I can sink them all in full depth before any torque is ever applied to them with a nut

  10. Oct 7, 2024 at 5:08 PM
    #150
    theesotericone

    theesotericone Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260800
    Messages:
    12,210
    Gender:
    Male
    Bishop CA
    Bolts failing are more common then the cup and ball pulling apart. It's why I never bothered with a uni-ball conversion.

    As far as field repairing the LBJ/Spindle after the bolts have sheared. Weld it. Works every time. lol

  11. Oct 7, 2024 at 9:44 PM
    #151
    El Taco Diablo

    El Taco Diablo Professional Pinstriper

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    13,628
    Gender:
    Male
    First Name:
    Matt - KN6DZP
    Hughson, CA
    Vehicle:
    Impulse Red DC, 5vz-fe, 4wd swap, LT, dual case, F/R locked
    Just 3 tons of fun!!!
    I've got ideas and parts on order. To see if I can come up with something different.

  12. Oct 8, 2024 at 4:56 AM
    #152
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    Not downplaying the failure and I don't even own a first gen but is this failure a very rare thing? I mostly follow the 2nd gen topics but those only use 2 larger bolts and haven't seen any mention of failure.

  13. Oct 8, 2024 at 5:52 AM
    #153
    Dalandser

    Dalandser ¡Me Gustan Las Tacos-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    17,320
    First Name:
    Anthony
    Downey
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    The lbj cradle is a redesign which puts the lower ball joint in compression, not tension. You’ll usually bend a spindle before a failure at any part of the ball joint in 2nd gens.

  14. Oct 8, 2024 at 6:10 AM
    #154
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    I am aware of the redesign and glad for it. In my case I was just referring to the failure of the LBJ bolts and not the LBJ itself.

  15. Oct 8, 2024 at 7:35 AM
    #155
    Dalandser

    Dalandser ¡Me Gustan Las Tacos-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    17,320
    First Name:
    Anthony
    Downey
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    Right but they’re in the same situation as the the ball joint itself. Putting the bolts in tension as well as experiencing shear will produce different results as two big bolts in the configuration they’re in on 2nd gens.

  16. Oct 8, 2024 at 7:53 AM
    #156
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    Back to my original question... How common is this failure of the LBJ bolts on the 1st gen? (not how or why but how often)

  17. Oct 8, 2024 at 7:59 AM
    #157
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    16,891
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    Often enough that if you google "tacoma lbj" you will see images of failures right away.

    [​IMG]Screenshot 2024-10-08 at 10.56.18 AM by MJH Creations, on Flickr

    But I think that is a loaded and statistically difficult to answer question without pooling a ton of data that no one will do. Realistically bolts only fail on a street driven vehicle after using the wrong torque on the wrong bolt. Most of the time when I hear the bolts fail on a street truck it's shortly after a replacement.

  18. Oct 8, 2024 at 8:09 AM
    #158
    babylon5

    babylon5 Well-Known Member

    Joined:
    Aug 19, 2015
    Member:
    #162175
    Messages:
    883
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 Tacoma Double Cab TRD Sport
    Looking at the images most if not all are of the actual LBJ failing. I gather that in the case of street driving Tacoma's this bolt failure is exceedingly rare.

    And not to say the design it shouldn't be able to handle it but its looks like enthusiastic off roading is the common thread.

    Is there any way to adapt the 2nd gen design to the 1st gen or is aftermarket the only solution.

  19. Oct 8, 2024 at 8:15 AM
    #159
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    55,624
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    Not really, you'd have a lot of reworking to do because of different spindle heights and steering geometry... be easier to graft in the whole front section of frame from a second gen really.

  20. Oct 8, 2024 at 8:47 AM
    #160
    JTFisherman

    JTFisherman Well-Known Member

    Joined:
    Feb 19, 2019
    Member:
    #283636
    Messages:
    1,575
    Gender:
    Male
    First Name:
    Jake
    Texas / Missouri
    Vehicle:
    4Runner
    I think a big contributor for failure is also the transfer of steering force.

    First gens have the steering arm on the lbj, second gens have the steering arm on the spindle. When the steering rack is maxed out on a first gen, all additional force from the wheel is transferred through the bolts to the lbj where the steering stops and steering arm is. On a second gen in the same case, the force is divided to the steering arm on the spindle and through the bolts where the steering stops are.

    When people drive outside the limits of their vehicles, something will break. I enjoy driving hard more than I hate breaking stuff so I’m going to keep breaking stuff. That doesn’t mean I won’t try to find a solution or post about failures to engaging others
