F/S-2012 FACTORY NAVIGATION RADIO

Discussion in 'Audio & Video' started by Nat2012, Sep 4, 2012.

  1. Sep 5, 2012 at 10:48 PM
    #21
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    You can wait if you want to but for those who don't want to, more are available for same price, just pm me

  2. Sep 5, 2012 at 11:00 PM
    #22
    signalbobby

    signalbobby Well-Known Member

    Joined:
    Nov 24, 2008
    Member:
    #11007
    Messages:
    984
    Gender:
    Male
    First Name:
    Robert
    Arizona
    Vehicle:
    14 TRD O/R
  3. Sep 5, 2012 at 11:02 PM
    #23
    1stacoma

    1stacoma Well-Known Member

    Joined:
    Jun 14, 2012
    Member:
    #80656
    Messages:
    513
    Gender:
    Male
    Austin
    Vehicle:
    2012 MGM SR5 DCSB 4.0
    5100's front and rear, front 2.5" rear 2" AAL, 18% tint front and rear, color matched grill. SCS wheels 275/70/17 BFG AT KO's. DTRL toggle switch.
    Nice... Possible scam. :notsure:

  4. Sep 5, 2012 at 11:29 PM
    #24
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,366
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Can you please take a picture of the BACK of the radio to show all the harness connections. It doesnt need to be plugged in I just need to see the back of the unit. Thanks

  5. Sep 6, 2012 at 12:40 AM
    #25
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    just waiting on pics to upload so i can post.

  6. Sep 6, 2012 at 12:44 AM
    #26
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,366
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Thanks.

  7. Sep 6, 2012 at 1:33 AM
    #27
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    here are the connections of radio


  8. Sep 6, 2012 at 1:52 AM
    #28
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,366
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    GREAT!! Now I need to see a picture of a 2012 standard radio, or a 2013 with standard display audio, no Entune :spy"

    Only then will I know if I am purchasing this or not

  9. Sep 6, 2012 at 1:54 AM
    #29
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,366
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature

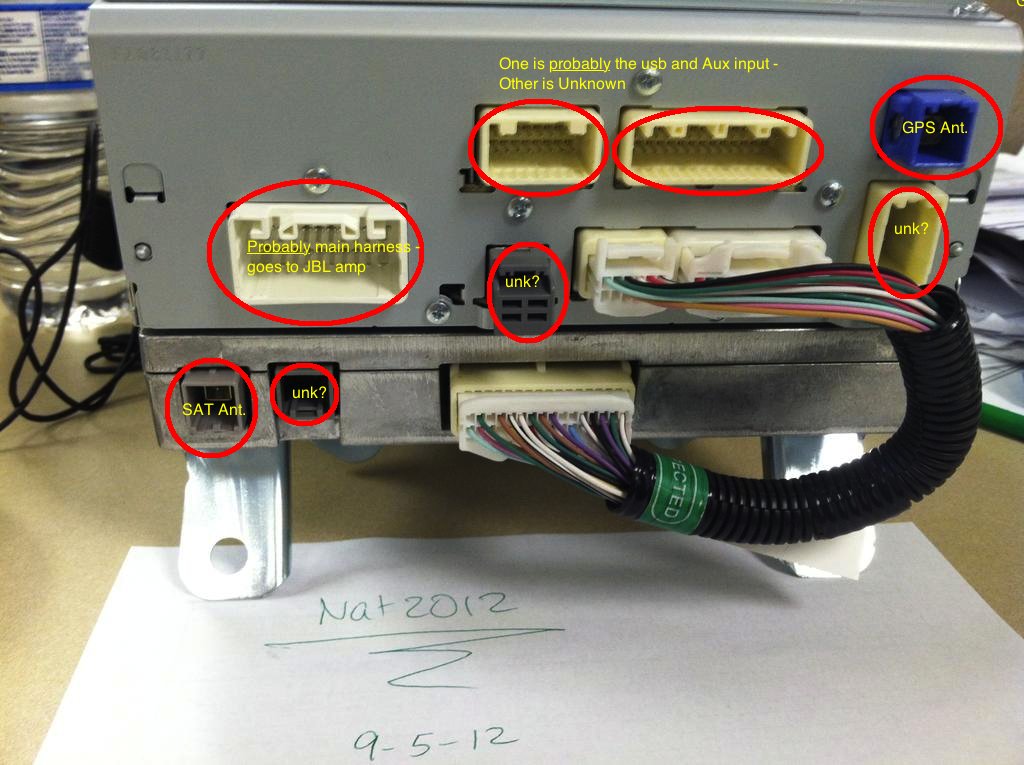

    JEREZ... for reference:

    one of the bottom 2 gray plugs that is labeled "unk" is the BT mic, and one of the yellowish plugs labeled "unk" is probably steering wheel controls, and I bet the last open plug is not used.


    [​IMG]

  10. Sep 6, 2012 at 2:04 AM
    #30
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    will post pick of regular radio in a few mins

  11. Sep 6, 2012 at 2:26 AM
    #31
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    regular radio connector pic


  12. Sep 6, 2012 at 2:28 AM
    #32
    dibble9012

    dibble9012 Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    216
    Gender:
    Male
    Little Rock, AR
    The right hand connector with the two "pins" inside. That is the AM/FM antenna connector.

  13. Sep 6, 2012 at 2:33 AM
    #33
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,366
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Is this a 2012 standard radio or a 2013 "display audio" (NO Entune or XML or HD but still touch screen)

  14. Sep 6, 2012 at 2:35 PM
    #34
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    The second pic of radio is a standard touchscreen radio

  15. Sep 7, 2012 at 3:52 AM
    #35
    dibble9012

    dibble9012 Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    216
    Gender:
    Male
    Little Rock, AR
    That's what I figured since everything was the same except it was missing the "expansion" box that the nav unit has.

  16. Sep 7, 2012 at 6:49 AM
    #36
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    that blue one is the bluetooth plug...

    and idk what the rest are lol...id have to go thru some short of diagram...
    ill ask my bud to give me one next week at toyota

  17. Sep 7, 2012 at 6:51 AM
    #37
    dibble9012

    dibble9012 Well-Known Member

    Joined:
    Mar 22, 2012
    Member:
    #75358
    Messages:
    216
    Gender:
    Male
    Little Rock, AR
    Here are the connectors: 2012 Tacoma NAV Connectors

    The satellite and GPS antennas are not listed on there. Bluetooth functions are all internal of the nav unit. The microphone connections go out of R15, R16, R19, and R20, up to the rearview mirror.


    From looking at the wiring diagrams, an ENTUNE unit should be able to swap over to a pre-2012 JBL Tacoma. See the PDF below. The multi-colored lines show which pins from the PRE 2012 connectors need to be moved, and where they need to go on the 2012 connector. Toyota combined two connectors from the old model on the 2012. The only issue comes into play if you want to subscribe to Entune, Toyota requires a VIN number that came from the factory with Entune installed. Without the subscription you will not get any of the internet functions: Bing, Traffic, Weather, Stocks, or Pandora. Nav, iPod, BlueTooth all still work (which is mainly what I'm interested in, everything else is already on my iPhone). I have heard some people using a 2012 VIN just to get the subscription but I'm not sure how legal that is and it probably creates issues down the road when the legitimate owner of that VIN tries to register for the service.

    Entune in PRE 2012 Tacoma

    EDIT: Updated PDF 20120911.

    I'll be unsubscribing from this thread and will post any updates to the 2012 nav in a -2011 in this thread.

  18. Sep 13, 2012 at 2:02 PM
    #38
    Nat2012

    Nat2012 [OP] Member

    Joined:
    Sep 4, 2012
    Member:
    #86275
    Messages:
    15
    Gender:
    Male
    Still have some available if anyone interested

  19. Sep 13, 2012 at 2:04 PM
    #39
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,188
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    I had no idea only double cabs offered JBL, because of the sub?

  20. Sep 14, 2012 at 10:01 AM
    #40
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with Speed override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339
    what is the difference between the jbl and non-jbl units? i have a 2012 dcsb o/r and it has the standard(?) stereo in it... wouldn't entune be a simple swap?
